USER MANUAL THAC 20030 OF EINHELL

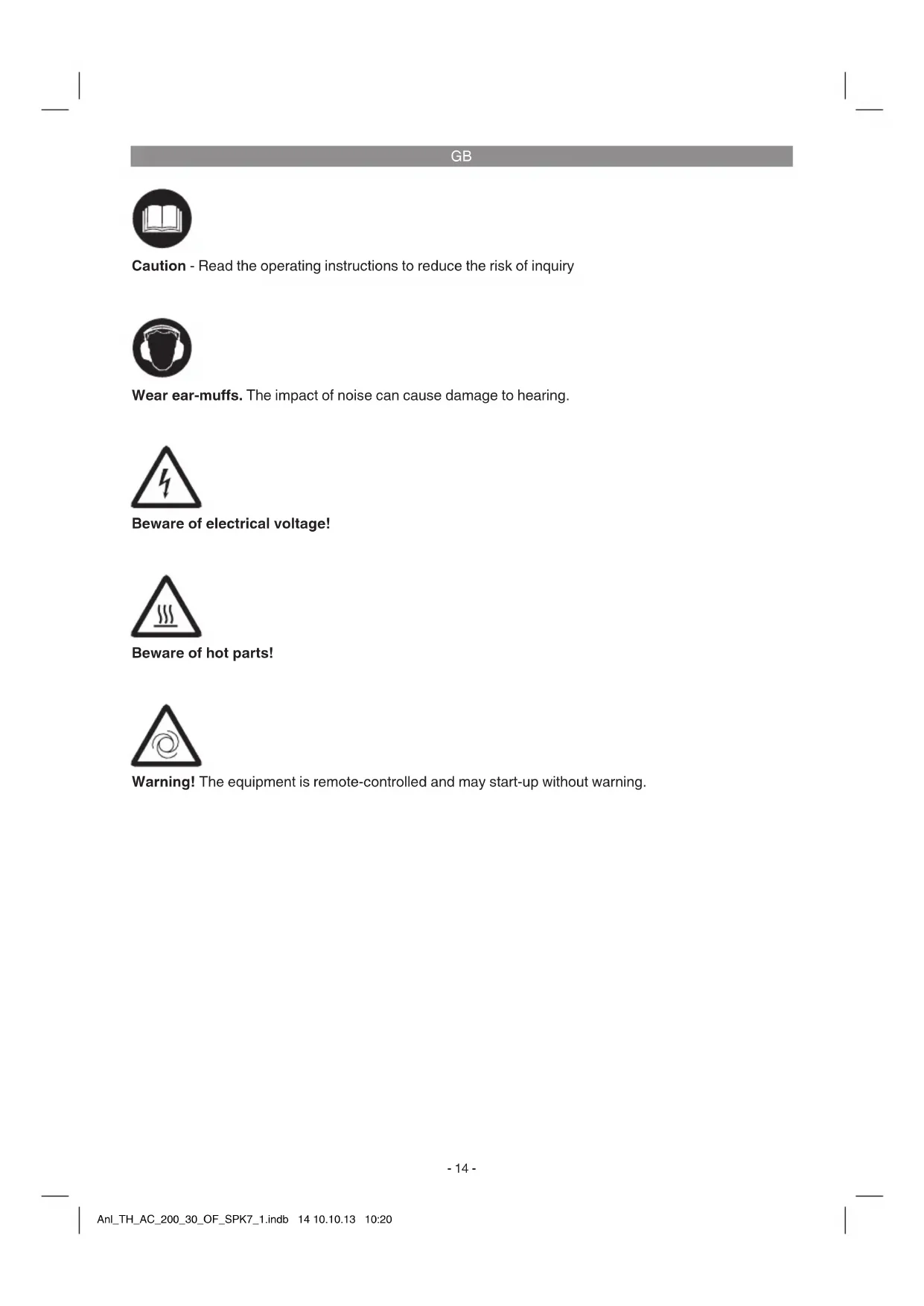

Beware of electrical voltage! Beware of hot parts! Warning! The equipment is remote-controlled and may start-up without warning. Wear ear-mus. The impact of noise can cause damage to hearing. Caution - Read the operating instructions to reduce the risk of inquiry

When using the equipment, a f cautions must be obser damage instructions and saf

equipment to an oper

or accidents which arise due to a f these instructions and the saf

tions and instructions ma shock, re and/or serious injury.

in a saf This appliance is not intended f (including childr sor and kno super appliance b Childr do not pla

Wear ear-mus. m Important! When using the equipment, a few safety pre- cautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the in- formation is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet. m Caution! Read all safety regulations and instructions. Any errors made in following the safety regula- tions and instructions may result in an electric shock, re and/or serious injury. Keep all safety regulations and instructions in a safe place for future use. This appliance is not intended for use by persons (including children) with reduced physical, sen- sory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

2. Layout and items supplied

2.1 Layout (Fig. 1-3)

1. Drain plug for condensed water

5. Quick-lock coupling (regulated compressed

6. Pressure gauge (for reading the set pressure)

A Axle screw B Locknut

Please check that the article is complete as specied in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

Open the packaging and take out the equip- ment with care.

Remove the packaging material and any packaging and/or transportation braces (if available).

Check to see if all items are supplied.

Inspect the equipment and accessories for transport damage.

If possible, please keep the packaging until the end of the guarantee period. Important! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suocating!

Original operating instructions

The compressor is designed for generating compressed air for tools operated by compressed air. The equipment is to be used only for its prescri- bed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or inju- ries of any kind caused as a result of this. Anl_TH_AC_200_30_OF_SPK7_1.indb 15 10.10.13 10:20GB

Please note that our equipment has not been de- signed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

Operating pressure bar: ............................max. 8 Pressure vessel capacity (in liters): ................ 30 Theoretical suction rate l/min.: ..................... 200 Output (compressed air) at 7 bar: ....60 liters/min Output (compressed air) at 4 bar: ....83 liters/min Sound power level L

uncertainty: .........................................1,5 dB Protection type: ........................................... IP20 Weight of the unit in kg: ................. approx. 19 kg S3 25%: Intermittent mode, no start-up, no bra- king (cycle duration 10 minutes). In intermittent mode, the percentage load factor (25%) is always quoted so that the heat generated during this pe- riod can be dissipated during breaks in operation by convective cooling. Intermittent mode consists of the on time and the cooling breaks, known as the duty cycle. The period of consideration is 10 minutes. 25% load factor means that the electric tool can be operated for 2.5 minutes at the rated perfor- mance, followed by a cooling phase of 7.5 minu- tes. Noise The noise emission values were measured in ac- cordance with EN ISO 3744.

5. Before starting the equipment

Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.

Examine the machine for signs of transit da- mage. Report any damage immediately to the company which delivered the compressor.

The compressor should be set up near the working consumer.

Avoid long air lines and long supply lines (ex- tensions).

Make sure the intake air is dry and dust-free.

Do not set up the compressor in damp or wet rooms.

The compressor may only be used in suitable rooms (with good ventilation and an ambient temperature from +5°C to +40°C). There must be no dust, acids, vapors, explosive gases or inflammable gases in the room.

The compressor is designed to be used in dry rooms. It is prohibited to use the compressor in areas where work is conducted with spray- ed water.

The equipment must be set up where it can stand securely.

6. Assembly and starting

m Important! You must fully assemble the appliance before using it for the rst time. 6.1. Fitting the wheels (3) Fit the supplied wheels as shown in Figure 4 and Figure 5. 6.2. Mains connection: Before you use the machine, make sure that the mains voltage complies with the specications on the rating plate. Long supply cables, extensions, cable reels etc. cause a drop in voltage and can impede motor start-up. At low temperatures below +5°C, sluggishness may make starting dicult or impossible.

The pr Cut-in pr Cut-out pr

8. Cleaning, maintenance and

Pull the po cleaning and maintenance w pliance

You can adjust the pressure on the pressure gauge (6) using the pressure regulator (7).

The set pressure can be drawn from the quick-lock coupling (5).

6.5 Setting the pressure switch

The pressure switch is set at the factory. Cut-in pressure approx. 6 bar Cut-out pressure approx. 8 bar

7. Replacing the power cable

If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

8. Cleaning, maintenance and

ordering of spare parts m Important! Pull the power plug before doing any cleaning and maintenance work on the ap- pliance. m Important! Wait until the compressor has completely cooled down. Risk of burns! m Important! Always depressurize the tank before carrying out any cleaning and maintenance work.

Keep the safety devices free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.

We recommend that you clean the appliance immediately after you use it.

Clean the appliance regularly with a damp cloth and some soft soap. Do not use cleaning agents or solvents; these may be aggressive to the plastic parts in the appli- ance. Ensure that no water can get into the interior of the appliance.

You must disconnect the hose and any spraying tools from the compressor before cleaning. Do not clean the compressor with water, solvents or the like.

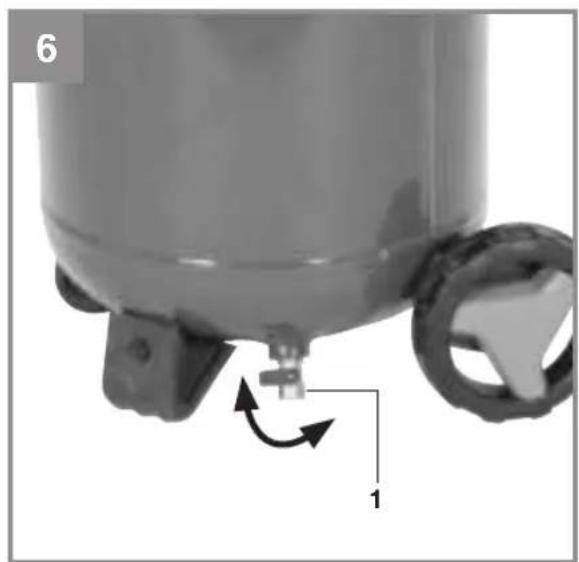

8.2 Condensed water (Fig. 6)

Important! To ensure a long service life of the pressure vessel (2), drain o the condensed water by opening the drain valve (1) each time after using. To open you must turn the cock on the drain screw through 90°. Tilt the vessel so that the drain screw is the lowest point of the vessel and the condensed water can drain o completely. To close again, turn the cock back through 90°. Check the pressure vessel for signs of rust and damage each time before using. Do not use the compressor with a damaged or rusty pressure vessel. If you discover any damage, please con- tact the customer service workshop.

m Important! Pull the mains plug out of the socket and ventilate the appliance and all connected pneumatic tools. Switch o the compressor and make sure that it is secured in such a way that it cannot be started up again by any unauthorized person. m Important! Store the compressor only in a dry location which is not accessible to unauthorized per- sons. Always store upright, never tilted!

In case of excessive sparking, have the carbon brushes checked only by a qualied electrician. Important! The carbon brushes should not be rep laced by anyone but a qualied electrician.

8.5 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

Article number of the machine

Identification number of the machine

9. Disposal and recycling

The equipment is supplied in packaging to pre- vent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council oces. Anl_TH_AC_200_30_OF_SPK7_1.indb 18 10.10.13 10:20GB

10. Possible causes of failure

Problem Cause Solution The compressor does not start.

1. No supply voltage.

2. Insucient supply voltage.

3. Outside temperature is too low.

4. Motor is overheated.

2. Make sure that the extension cable

is not too long. Use an extension cable with large enough wires.

3. Never operate with an outside tem-

perature of below +5° C.

4. Allow the motor to cool down. If

necessary, remedy the cause of the overheating. The compressor starts but there is no pressure.

1. The non-return valve leaks.

2. The seals are damaged.

3. The drain plug for condensation

2. Check the seals and have any da-

maged seals replaced by a service center.

3. Tighten the screw by hand. Check

the seal on the screw and replace if necessary. The compressor starts, pressure is shown on the pres- sure gauge, but the tools do not start.

1. The hose connections have a leak.

2. A quick-lock coupling has a leak.

3. Insucient pressure set on the

1. Check the compressed air hose

and tools and replace if necessary.

2. Check the quick-lock coupling and

replace if necessary.

3. Increase the set pressure with the

For EU countries only Never place any electric power tools in your household refuse. To comply with European Directive 2002/96/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot. Recycling alternative to the return request: As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any ac- cessories or aids without electrical components supplied with the old equipment. The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH. Subject to technical changes Anl_TH_AC_200_30_OF_SPK7_1.indb 20 10.10.13 10:20GB

Service information W e hav e competent service partners in all countries named on the guarantee certicate whose contact details can also be found on the guarantee certicate. These partners will help you with all service re- quests such as repairs, spare and wearing part orders or the purchase of consumables. Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables. Category Example Wear parts* V-belt, air lter Consumables* Missing parts

• Not necessarily included in the scope of delivery! In the eect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Ple- ase ensure that you provide a precise description of the problem and answer the following questions in all cases:

Did the equipment work at all or was it defective from the beginning?

Did you notice anything (symptom or defect) prior to the failure?

What malfunction does the equipment have in your opinion (main symptom)? Describe this malfunction. Anl_TH_AC_200_30_OF_SPK7_1.indb 21 10.10.13 10:20GB

Warranty certicate Dear Customer, All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. You can also contact us by telephone using the service number shown. Please note the following terms under which guarantee claims can be made:

1. These guarantee conditions regulate additional guarantee services. Your statutory guarantee claims

are not aected by this guarantee. Our guarantee is free of charge to you.

2. Our guarantee only covers defects suered by the device which have been veriably caused by a

material or manufacturing fault and is limited to the rectication of such defects or the replacement of the device at our discretion. Please note that our devices are not designed for use in commercial, trade or professional applica- tions. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

- Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by ex- posing the device to abnormal environmental conditions or by lack of care and maintenance. - Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for ex- ample by dropping it). - Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

4. The guarantee is valid for a period of 24 months starting from the purchase date of the device. Gu-

arantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts tted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts tted. This also applies if an on-site service is used.

5. Please report the defective device on the following internet address to register your guarantee claim:

www.isc-gmbh.info. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement device. Of course, we are also happy oer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address. Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions. Anl_TH_AC_200_30_OF_SPK7_1.indb 22 10.10.13 10:20F

2004/108/EC 2004/22/EC 1999/5/EC

Annex VI Noise: measured L

= 95 dB (A); guaranteed L
