Product Type	Managed PoE+ Network Switch (Smart Switch)
Brand	TP-Link
Model	T1600G28PS
Dimensions (W x D x H)	440 x 220 x 44 mm
Weight	3.5 kg
Power Supply	100-240 V AC, 50/60 Hz
Maximum Power Consumption	250 W (with PoE)
Number of Ports	24 10/100/1000 Mbps PoE+ ports + 4 Gigabit SFP ports
PoE Budget	250 W
Main Features	L2+ Management, VLAN, QoS, IGMP Snooping, Storm Control, SNMP, CLI, Web Interface
Operating Temperature	0°C to 40°C
Operating Humidity	10% to 90% non-condensing
Chassis Material	Metal
Installation	Desktop or 19-inch rack (mounting kit included)
Maintenance and Cleaning	Clean with a soft, dry cloth. Do not use chemicals.
Safety	Disconnect before cleaning. Do not open. Use a grounded electrical outlet.
Spare Parts and Repairability	Sealed unit. For any repairs, contact TP-Link support.

Frequently Asked Questions - T1600G28PS TP-LINK

How to configure the IP address of T1600G28PS switch?

By default, the switch IP address is 192.168.0.1. Set your computer to an IP address in the same subnet (e.g., 192.168.0.2) and connect them via an Ethernet cable. Open a browser and enter http://192.168.0.1.

How to access the switch web interface?

Open a web browser and enter the switch IP address (default 192.168.0.1). Log in with username admin (lowercase) and password admin. Click Login.

What to do if I forgot the switch password?

Perform a factory reset by pressing and holding the Reset button on the back of the switch for about 10 seconds until the LEDs flash. Factory settings will be restored (IP: 192.168.0.1, login: admin/admin).

How to enable PoE power on a port?

By default, all PoE ports are enabled. You can manage PoE power via the web interface: go to PoE > PoE Config and enable or disable ports as needed.

How to update the switch firmware?

Download the latest firmware from the TP-Link website. Log in to the web interface, go to System > Update, select the downloaded file and click Update. Do not turn off power during the update.

How to reset the switch to factory settings?

Use the Reset button on the back of the switch. Press and hold it with a pointed object for about 10 seconds. Release when the LEDs flash quickly. The switch will reboot with default settings.

Can I use non-compatible SFP modules on the T1600G28PS?

For optimal performance, it is recommended to use TP-Link compatible SFP modules. Third-party modules may not work correctly or may reduce reliability.

How to connect multiple T1600G28PS switches together?

Use an RJ45 Ethernet cable or SFP modules and fiber optic to connect the SFP ports of the switches. Configure VLANs and L2+ management to interconnect networks.

What to do if the LED indicators do not light up?

Check that the power cable is properly plugged in and the electrical outlet works. If the switch does not power on, contact TP-Link support. LEDs may be disabled by configuration; check in the web interface if the LED option is enabled.

How to use the CLI (Command Line Interface)?

Connect the switch console port to your computer using the provided console cable. Use a terminal software (like PuTTY) with settings: 115200 baud, 8 data bits, 1 stop bit, no parity. Log in with default credentials (admin/admin). For more details, refer to the TP-Link CLI guide.

USER MANUAL T1600G28PS TP-LINK

Easy Smart&Smart&Managed Rackmount Switch

CONTENTS

Deutsch. 01
English. 06
Espanol. 11
Elambdaviká. 16
François. 21
Italiano 26
Portugues. 31
Suomi 36
Nederlands. 41
Svenska. 46
Norsk. 51
Dansk 56
Türkge. 61

Installation

- Tischmontage

- Desktop Installation

To install the device on the desktop, please follow the steps below:

1. Set the device on a flat surface strong enough to support the entire weight of the device with all fittings.
2. Remove the adhesive backing papers from the rubber feet.
3. Turnover the device and attach the supplied rubber feet to the recessed areas on the bottom at each corner of the device.

- Rack Installation

To install the device in a rack, follow the instructions described below:

1. Check the grounding and stability of the rack.

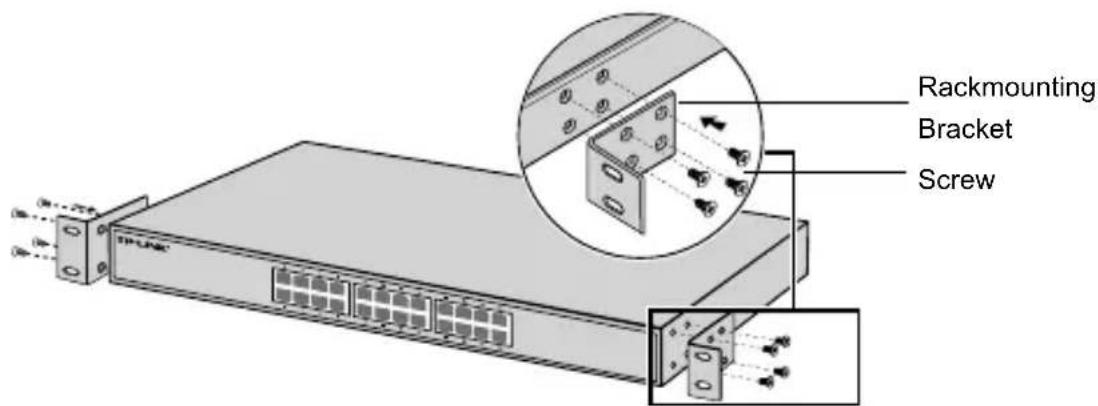

2. Secure the supplied rack-mounting brackets to each side of the device with supplied screws.

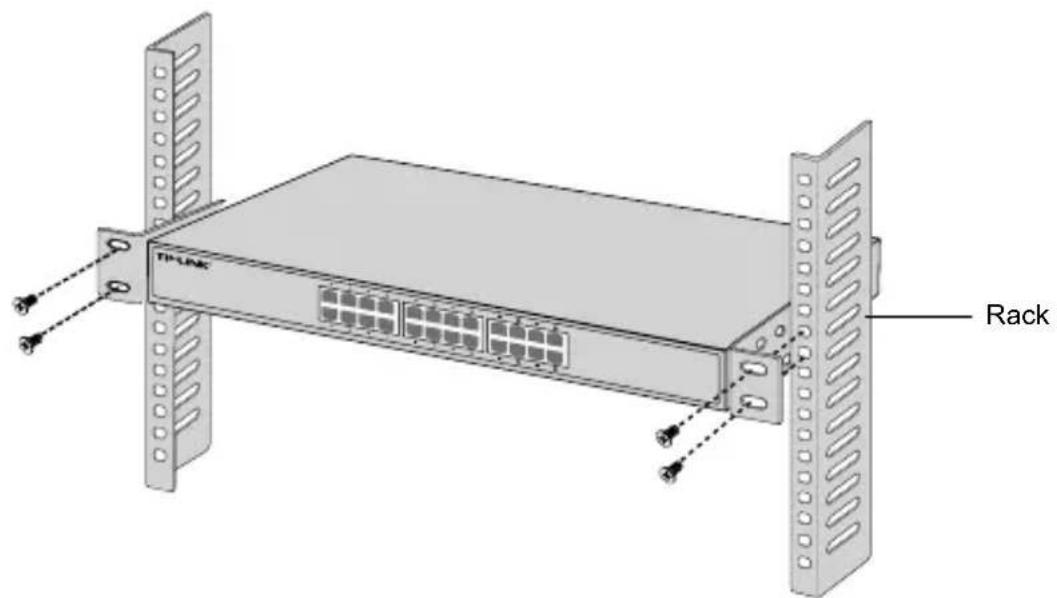

1. After the brackets are attached to the device, use suitable screws (not provided) to secure the brackets to the rack.

Connection

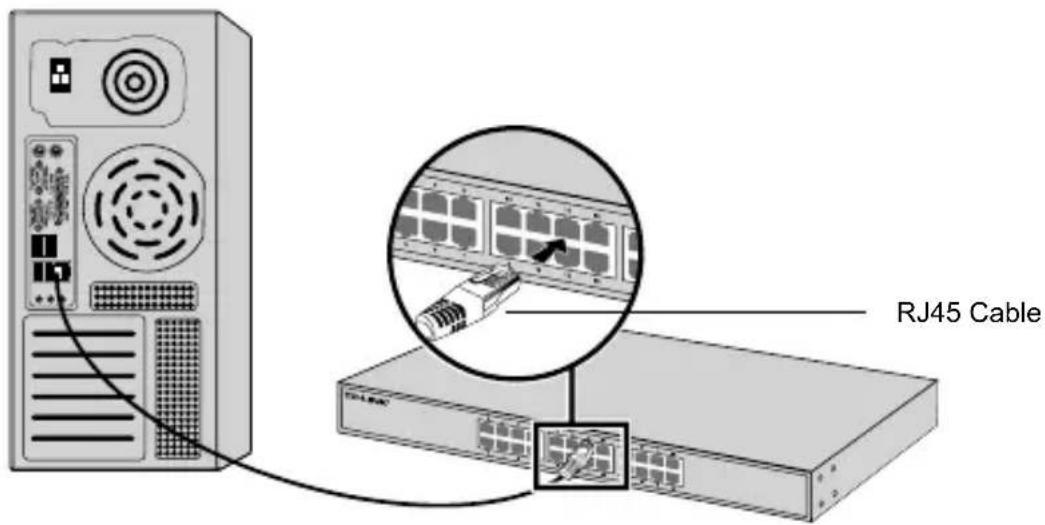

- Ethernet Port

Connect an Ethernet port of the switch to the computer by RJ45 cable as the following figure shown.

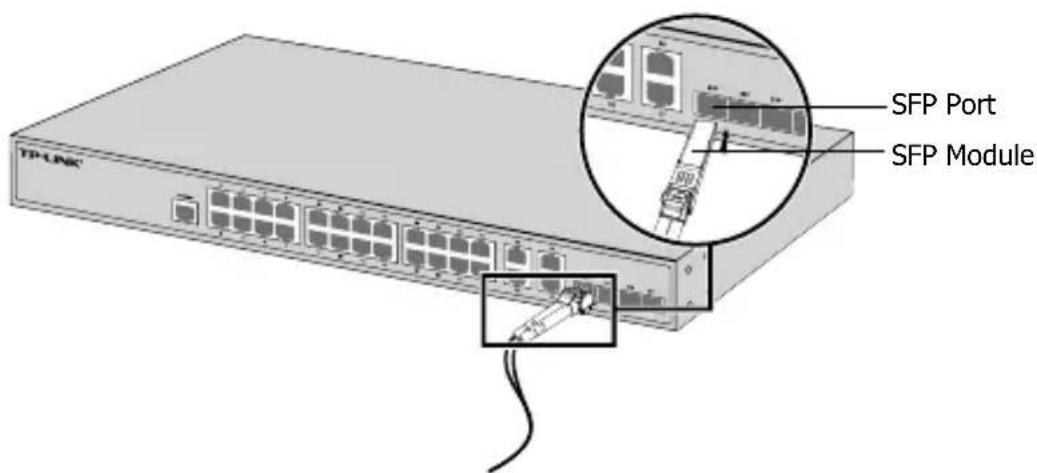

- SFP Port

For switches with SFP ports, you can connect a SFP port to a SFP module. If an SFP transceiver is installed in a slot and has a valid link on the port, the associated RJ45 port will be disabled and cannot be used.

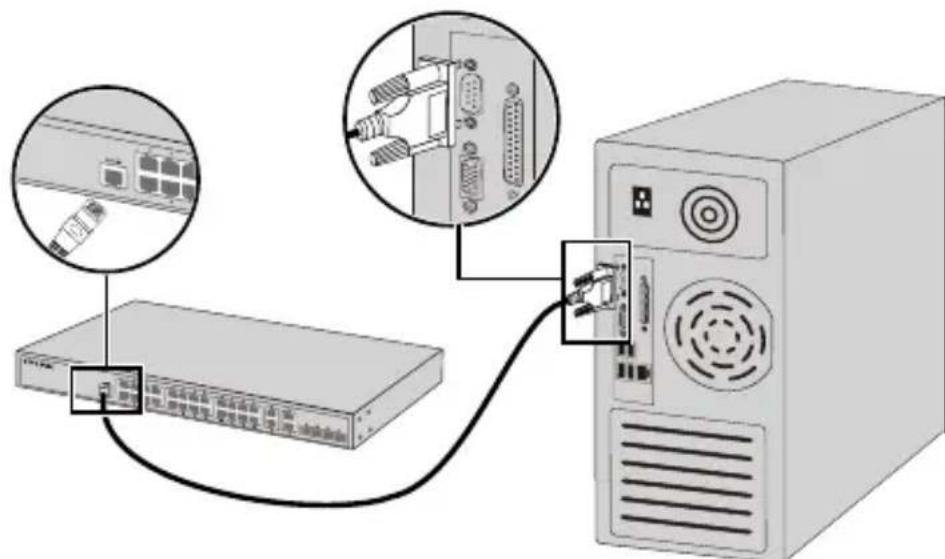

- Console Port

For switches with the console port, you can connect the console port with your computer by the console cable. Then you can load the CLI to manage the switch.

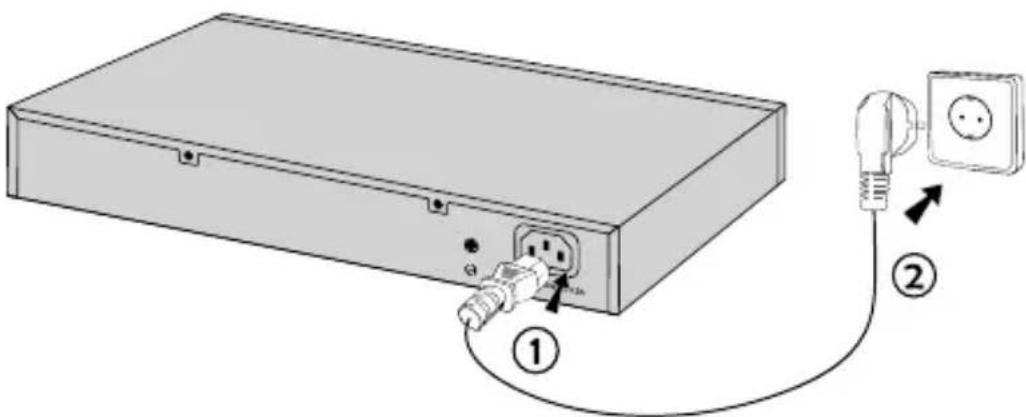

- Power On

Plug the female connector of the provided power cord into the power socket of the device, and the male connector into a power outlet.

Configuration

- Configure the Switch Using the GUI

1. Set the IP address of your PC in the same subnet of the switch. The IP address is 192.168.0.x("x" is any number from 2 to 254); the Subnet Mask is 255.255.255.0.
2. Open a web browser and type the default management address http://192.168.0.1 in the address field of the browser, then press the Enter key.
3. Enter admin for the default User Name and Password, both in lower case letters. Then click the Login button or press the Enter key.
4. After a successful login, you can configure the switch on the management page.

- Configure the Switch Using the CLI (Only for Smart Switches and Managed Switches)

You can log on to the switch and access the CLI to manage the switch. For the detailed instructions as to how to do this, please refer to the CLI Guide.

- Configure the Switch Using the Utility (Only for Easy Smart Switches)

You can use the Easy Smart Configuration Utility to centrally manage entire networks of the Easy Smart Switches. For the detailed instructions as to how to do this, please refer to the Utility User Guide.

Instalación

- Desktop-installation

Foratt installeraenhetenpàdatorn,folj stegen nedan:

• When a product has a power on/off button, the power on/off button is one way to turn-off the product. For products without the on/off button, the only way to completely turn-off the product is to disconnect the product or the power adapter from the power source. The disconnected device shall remain readily operable.
• Do not open this product or attempt to service it; it may expose you to dangerous high voltage or other risks. Opening a sealed component or sealed product/s will void the warranty. For product servicing, please contact us.
• Do not operate this product near water.

TP-LINK Limited Product Warranty

For TP-LINK Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTYES, REMEDIES AND CONDITIONS.

TP-LINK warrants the TP-LINK branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-LINK's guidelines for some period which depends on the local service from the date of original retail purchase by the end-user purchaser.

Espanol

South Building(floors 1,3,4,5) and 28(floors 1-4), Central Science & Technology Park, Shennan Rd, Nanshan, Shenzhen, China

Robert-Bosch-Straße 9, 65719 Hofheim am Taunus, Germany

Unit 2 & 3 Riverview (142-144), Cardiff Road, Reading, RG1 8EW

Marathonodromou 77, Marousi 151 24, Greece

Specifications are subject to change without notice. TP-LINK is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2016 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved.
