USER MANUAL DVL2862 LENCO

WarningCAUTION: Usage of controls or adjustments or performance of procedures other than those specified herein may resulte in hazardous radiation exposure. This unit should not be adjusted or repaired by anyone except qualified service personnel.

PRECAUTIONS BEFORE USE

KEEP THESE INSTRUCTIONS IN MIND:

1. Do not use this device near water.

2. Clean only with a slightly damp cloth.

3. Do not cover or block any ventilation openings. When placing the device on a shelf, leave 5 cm

(2”) free space around the whole device.

4. Install in accordance with the supplied user manual.

5. Don’t step on or pinch the power adaptor. Be very careful, particularly near the plugs and the

cable’s exit point. Do not place heavy items on the power adaptor, which may damage it. Keep the entire device out of children’s reach! When playing with the power cable, they can seriously injure themselves.

6. Unplug this device during lightning storms or when unused for a long period.

7. Keep the device away from heat sources such as radiators, heaters, stoves, candles and other

heat-generating products.

8. Avoid using the device near strong magnetic fields.

9. Electrostatic discharge can disturb normal usage of this device. If so, simply reset and restart

the device following the instruction manual. During file transmission, please handle with care and operate in a static-free environment.

10. Warning! Never insert an object into the product through the vents or openings. High voltage

flows through the product and inserting an object can cause electric shock and/or short circuit internal parts. For the same reason, do not spill water or liquid on the product.

11. Do not use in wet or moist areas such as bathrooms, steamy kitchens or near swimming pools.

12. Do not use this device when condensation may occur.

13. Although this device is manufactured with the utmost care and checked several times before

leaving the factory, it is still possible that problems may occur, as with all electrical appliances. If you notice smoke, an excessive build-up of heat or any other unexpected phenomena, you should disconnect the plug from the main power socket immediately.

14. This device must be well ventilated at all time!

15. This device must operate on a power source as specified on the specification label. If you are

not sure of the type of power supply used in your home, consult your dealer or local power company.

16. The socket outlet must be installed near the equipment and must be easily accessible.

17. Do not overload ac outlets or extension cords. Overloading can cause fire or electric shock.

18. Devices with class 1 construction should be connected to a main socket outlet with a protective

19. Devices with class 2 construction do not require a earthed connection.

20. Keep away from rodents. Rodents enjoy biting on power cords.

21. Always hold the plug when pulling it out of the main supply socket. Do not pull the power cord.

This can cause a short circuit.

22. Avoid placing the device on any surfaces that may be subject to vibrations or shocks.

23. To protect the device during a thunderstorm, unplug the ac power adaptor.

24. When the device is not in use for long periods, unplug the ac power adaptor for safety reasons.

25. To clean the device, use a soft dry cloth. Do not use solvents or petrol based fluids. To remove

severe stains, you may use a damp cloth with dilute detergent.

26. The supplier is not responsible for damage or lost data caused by malfunction, misuse,

modification of the device or battery replacement.

27. Do not interrupt the connection when the device is formatting or transferring files. Otherwise,

data may be corrupted or lost.

28. The usb memory stick should be plugged into the unit directly. Don’t use an usb extension

cable because it can cause interference resulting in failing of data.

29. The apparatus shall not be exposed to dripping or splashing and make sure that no objects

filled with liquids, such as vases, are placed on or near the apparatus.

30. To completely disconnect the power input, the mains plug of the apparatus shall be

disconnected from the mains, as the disconnect device is the mains plug of apparatus.

31. The mains plug of the apparatus should not be obstructed or should be easily accessed during

32. Battery shall not be exposed to excessive heat such as sunshine, fire or the like.

33. Minimum distance of 10cm around the apparatus is needed for sufficient ventilations.

34. The ventilation should not be impeded by covering the ventilation openings with items such as

newspapers, table-cloths, curtains etc.

35. No naked flame sources such as lighted candles should be placed on the apparatus.

436. on should be drawn to the environmental aspects of battery disposal.

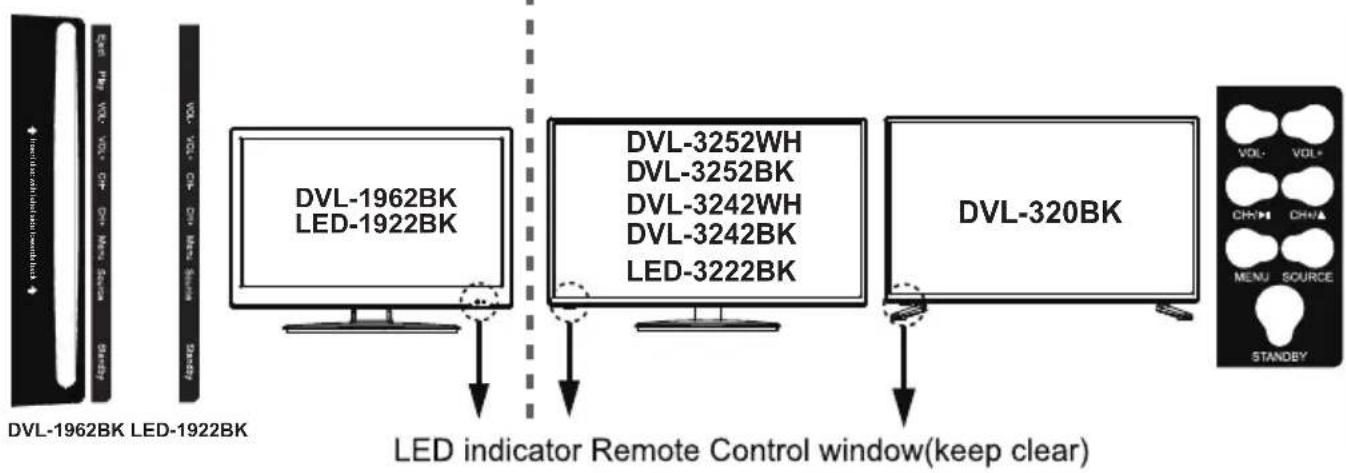

37. The apparatus can only be used in moderate extremely cold or climates warm environments

38. The rating label has been marked on the bottom panel of the apparatus.

39. This device is not intended for use by people (including children) with physical, sensory or

mental disabil or a lack of experience and knowledge, unless they!re under supervision or have received instructions about the correct use of the device by the person who is responsible for their safety.

40. This product is intended for household use only and not for commercial or industrial use.

41. Make sure the unit is adjusted to a stable position. Damage caused by using this product in an

unstable position or by failure to follow any other warning or precaution contained within this user manual will not be covered by warranty.

43. Never place this apparatus on other electrical equipment.

44. Do not use or store this product in a place where it is subject to direct sunlight, heat, excessive

45. Do not clean this product with water or other liquids.

46. Do not block or cover the slots and holes in the product.

47. Do not push foreign objects into the slots or holes in the product.

49. Please check that the voltage on the type plate of your appliance corresponds with your house

electricity supply (type plate is located on the back of the unit).

50. Protect the power cord from being walked on or pinched, particularly at plugs, convenience

receptacles, and the point where they exit from the apparatus.

hments/accessories specified by the manufacturer.

52. Refer all servicing to qualified service personnel. Servicing is required when the appa ratus has

been damaged in any way, such as the power supply cord or the plug, when liquid has been spilled or objects have fallen into the apparatus, when the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

53. Do not use a damaged power cord or plug or a loose outlet. Doing so may result in fire or

Warning: prolonged exposure to loud sounds from personal music players may lead to temporary o r

permanent hearing loss. INSTALLATION

• Unpack all parts and remove protective material.

• Do not conn ect the unit to the mains before checking the mains voltage and before all other conn have been made.

• Do not cover any vents and make sure that there is a spa ce of several cen around the unit for ventilation.

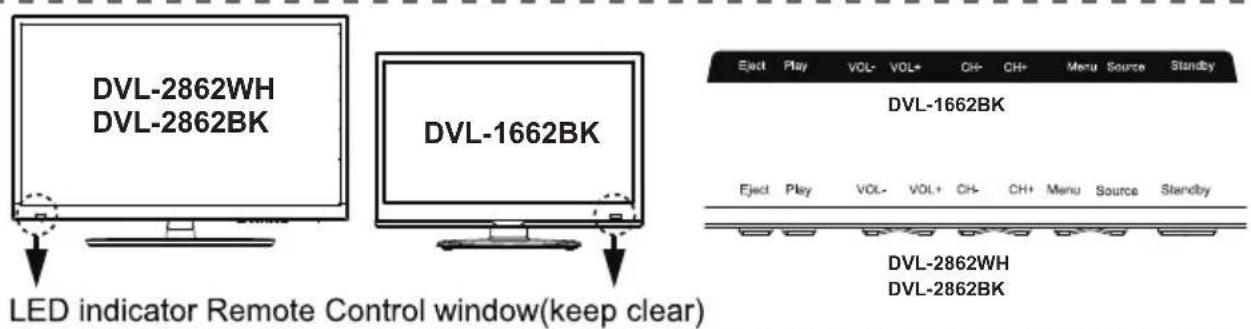

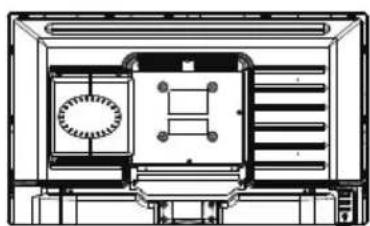

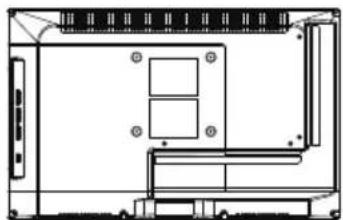

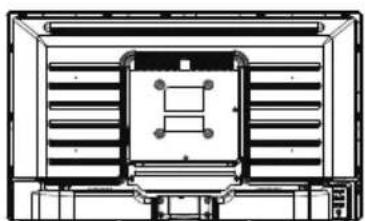

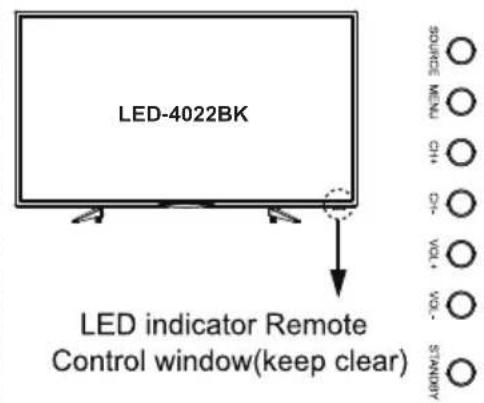

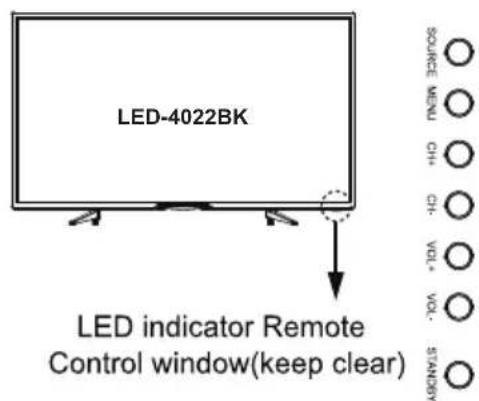

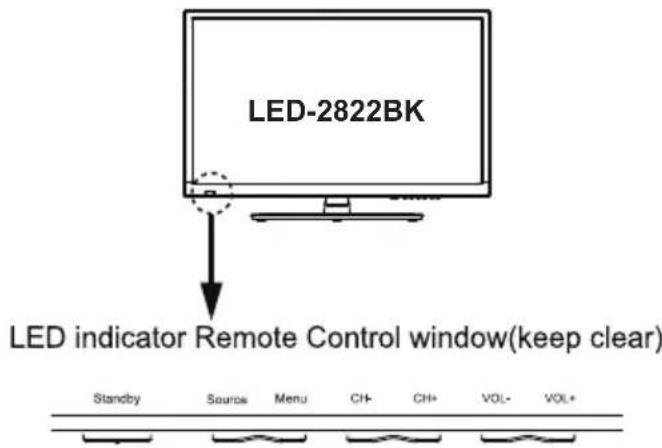

Insert disc with label side towards back DVL-2262BK DVL-2862WH DVL-2862BK

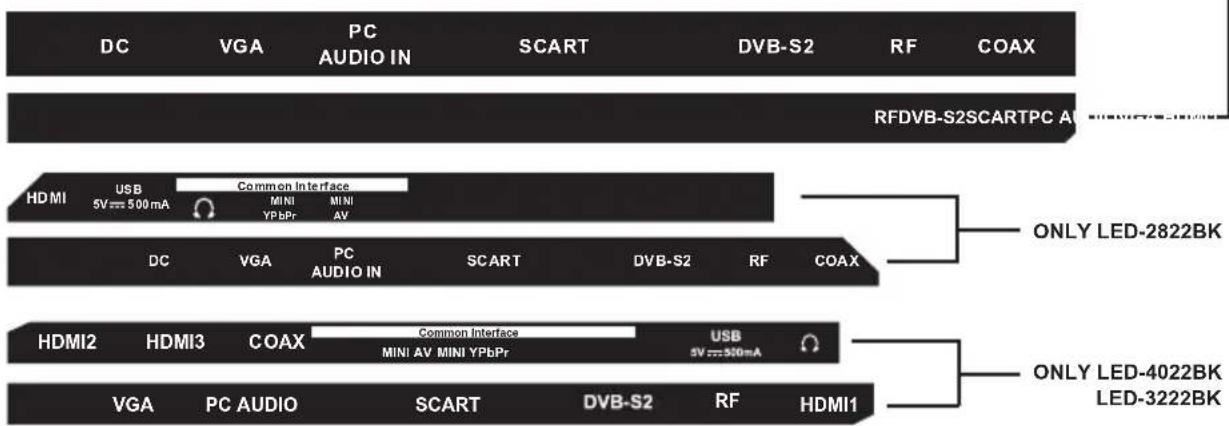

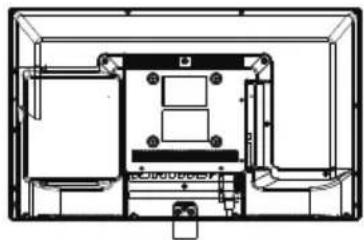

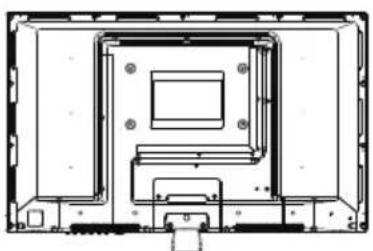

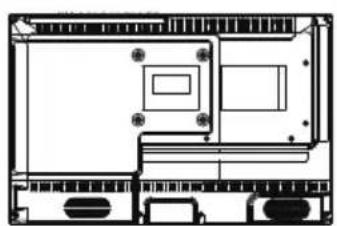

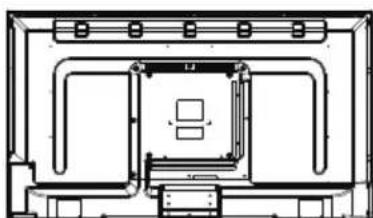

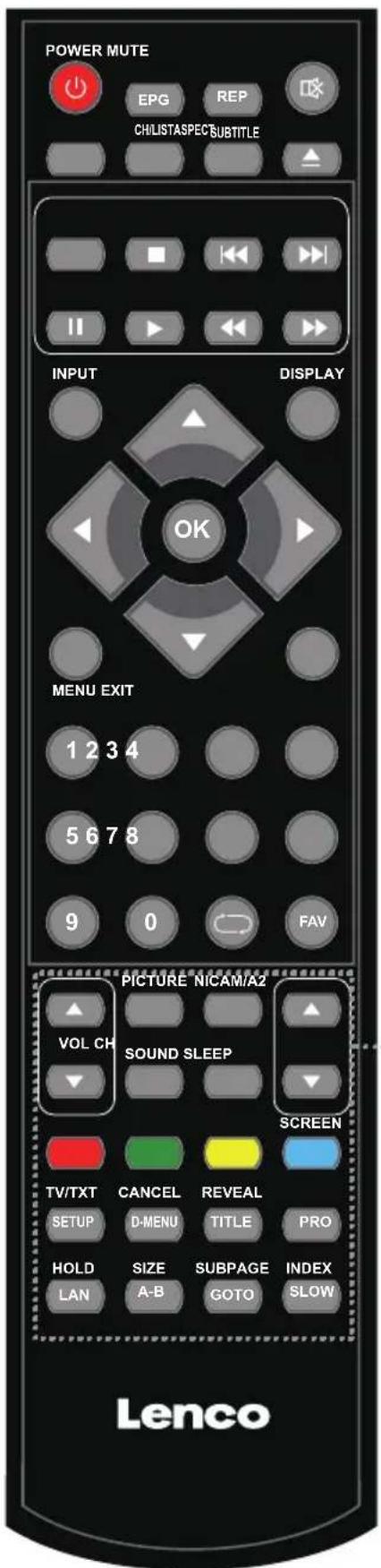

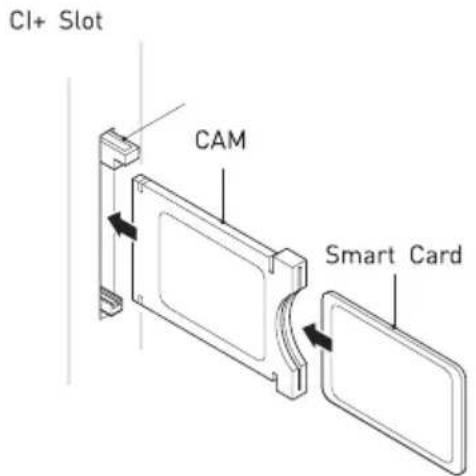

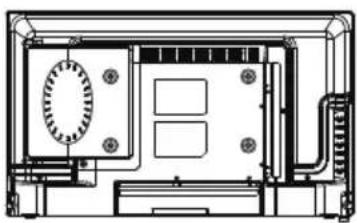

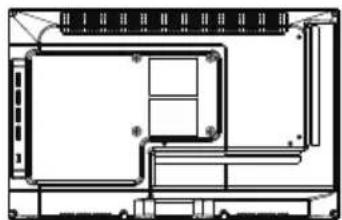

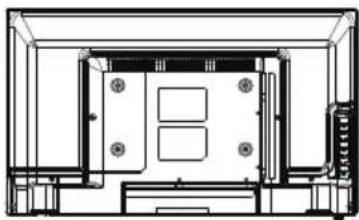

LED-3222BK 5V 500mA 5V 500mA9 DVB-S2: RF: COAX: or DC 12V Car adaptor. or other equipment. or other equipment or other equipment10 ASPEC EPG： T: Adjust picture size Electronic television and radio program guide (broad- caster- specific). POWER MUTE EPG INPUT MENU EXIT VOL CH PICTURE SETUP A-B GOTO D-MENU TITLE

HOLD SIZE SUBPAGE INDEX

DISPLAY REP SUBTITLE

HOLD SIZE SUBPAGE INDEX

DISPLAY REP SUBTITLE

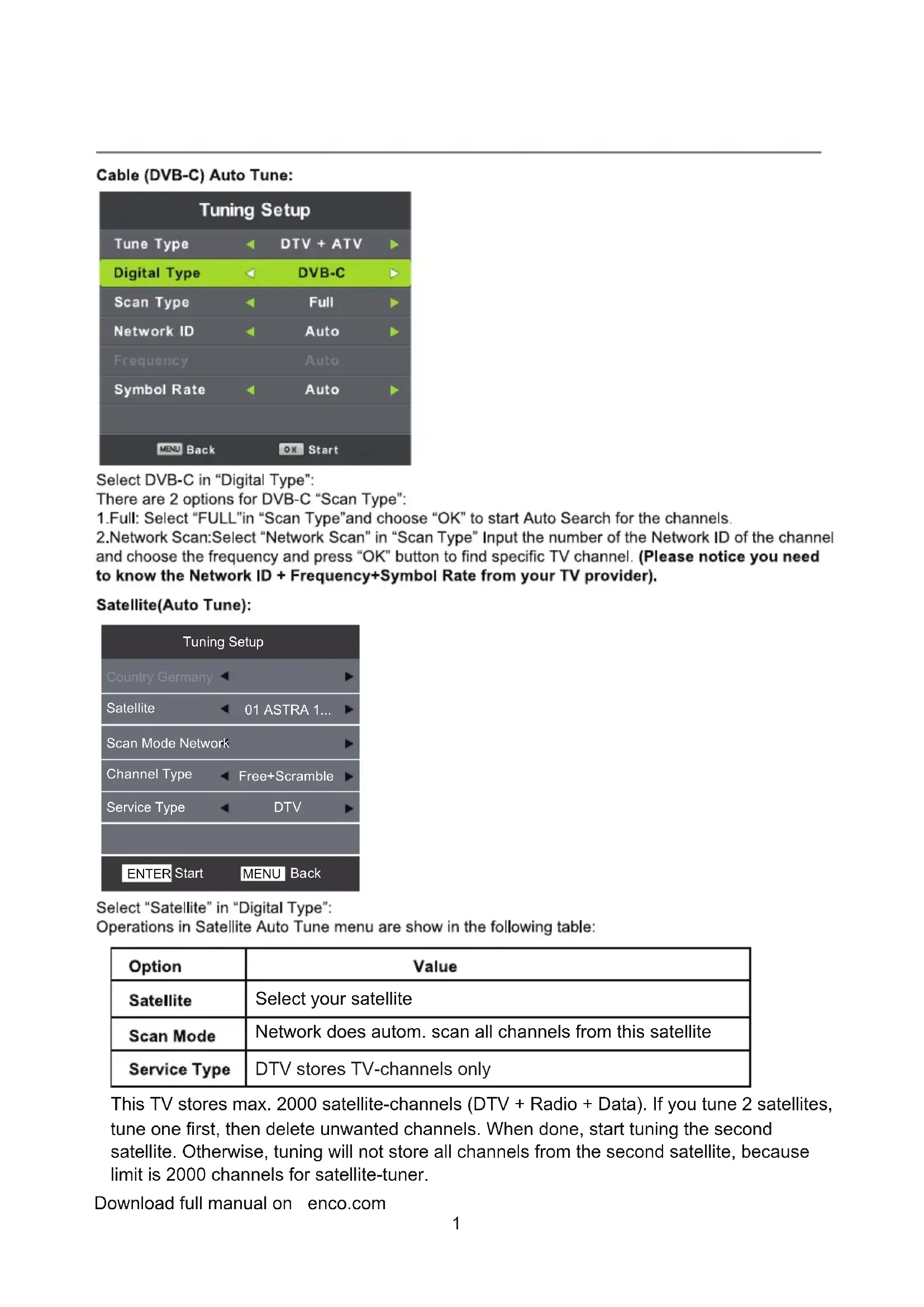

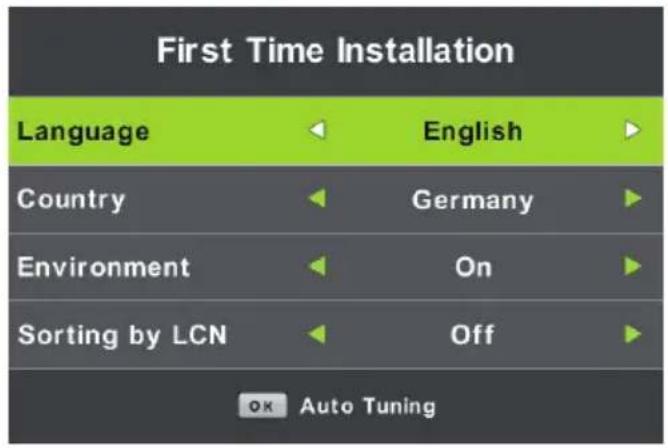

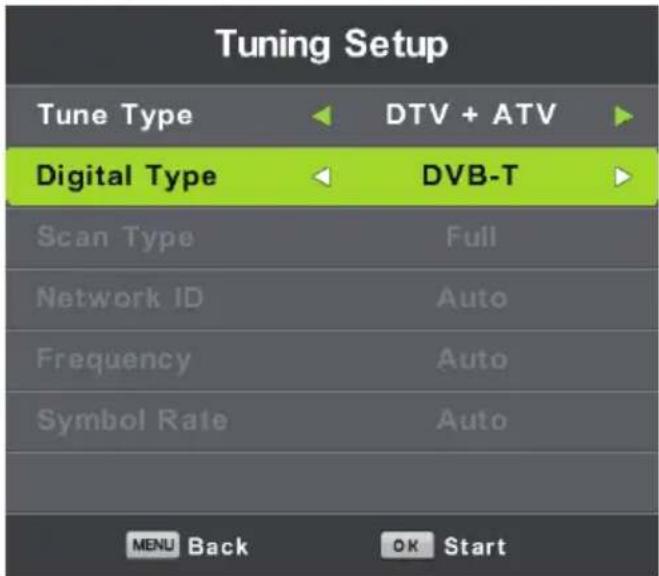

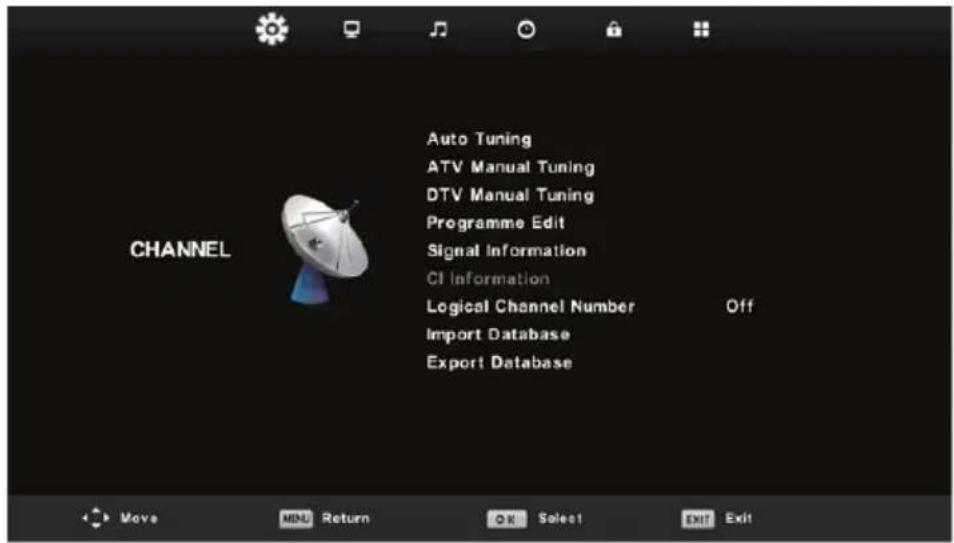

Tuning Setup Country Germany Satellite 01 ASTRA 1... Back MENU Scan Mode Network Channel Type Free+Scramble Service Type DTV Start ENTER Select your satellite Network does autom. scan all channels from this satellite DTV stores TV-channels only This TV stores max. 2000 satellite-channels (DTV + Radio + Data). If you tune 2 satellites, tune one first, then delete unwanted channels. When done, start tuning the second satellite. Otherwise, tuning will not store all channels from the second satellite, because limit is 2000 channels for satellite-tuner. Download full manual on L enco.com/ ÿÿ16 Main Menu Operation Channel Menu Press MENU button to display the main menu. Press ◄/► button to select CHANNEL in the main menu.

1. Press ▼/▲ button to select the option that you want to adjust in the CHANNEL menu.

2. Press OK button to select.

3. After finishing your adjustment, Press OK button to save and return to the previous

Current CH Set the channel number. Color System Select the color system (Available System: AUTO, PAL, SECAM) Sound System Select the Sound system Fine-Tune Adjust the frequency of the channel finely. Search Start searching channel by presing ► button. Once a channel is found, it will automatically stored. Repeat the step by changing the channel number.18 DTV Manual Tuning DVB-T Manual Tuning:

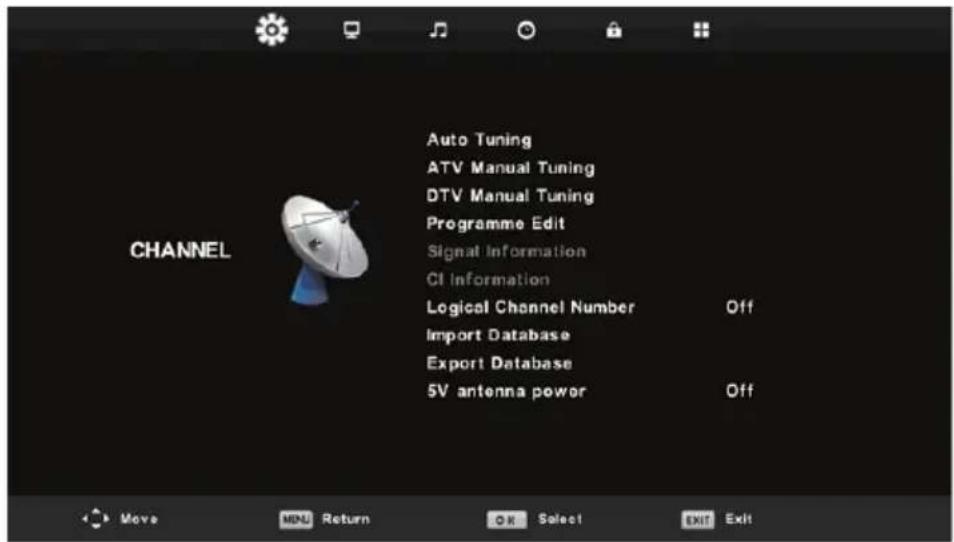

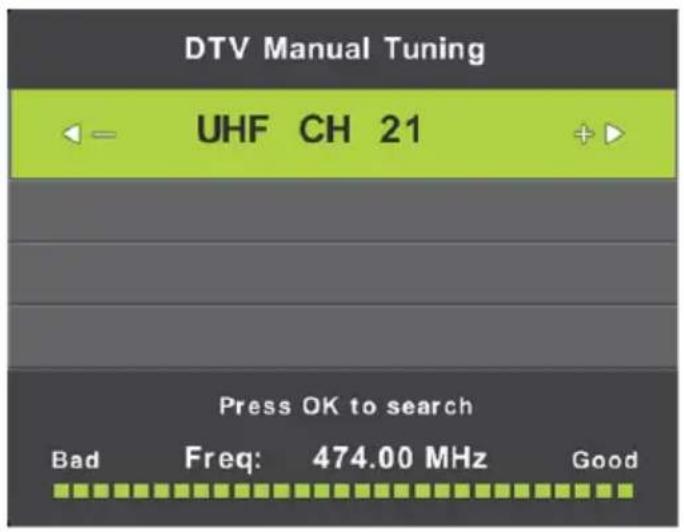

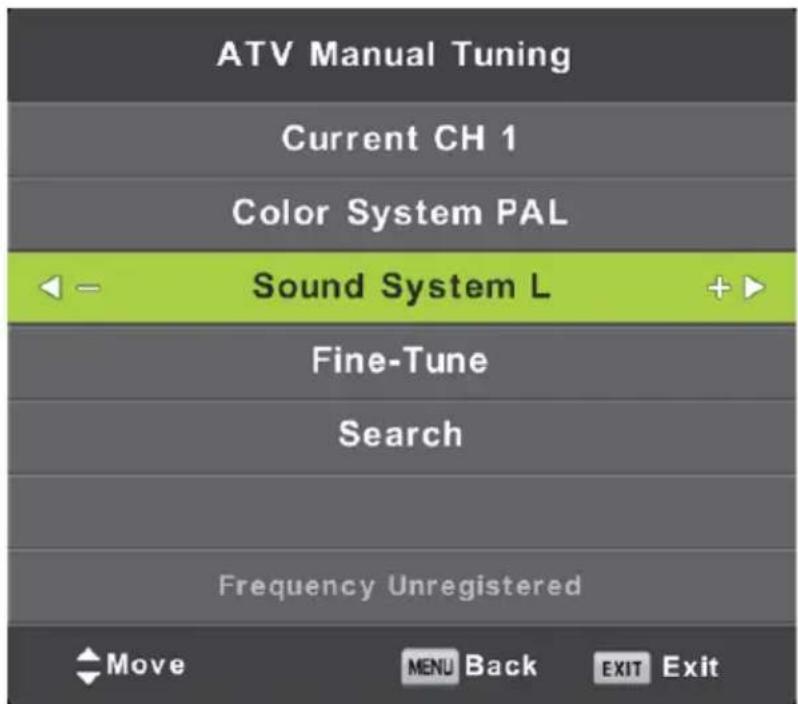

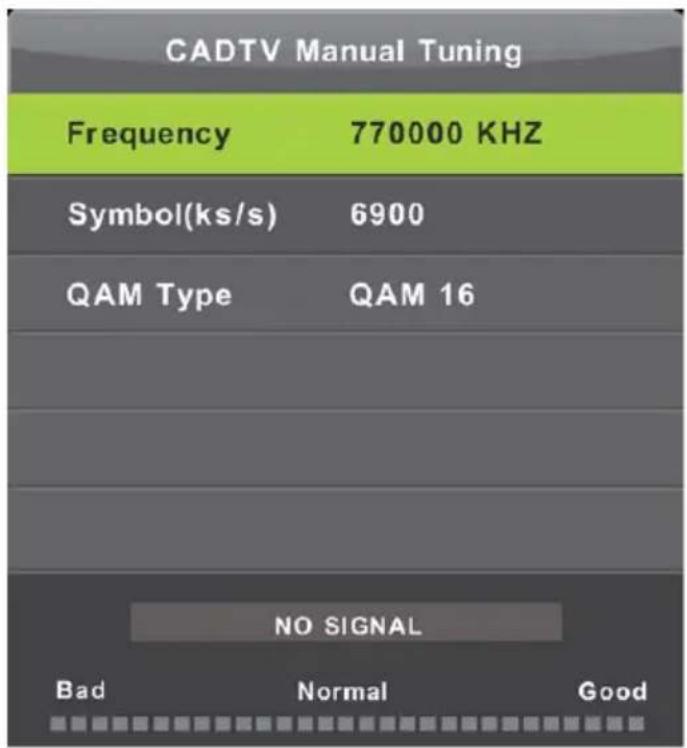

Enter the DTV Manual Tuning. Press ◄/► button to adjust the channel and press OK button to manual tune. DVB-C Manual Tuning:

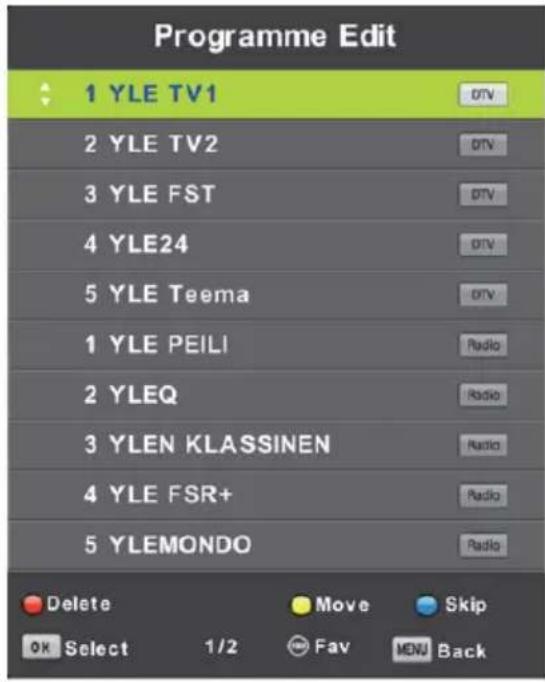

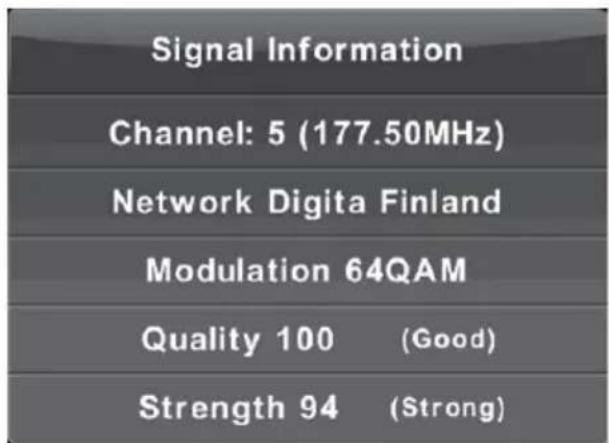

The three colored key is the shortcut key for programming the channel. First press ▼/▲ to highlight the channel you want to select, then: Press the Red button to delete the program in the list. Press the Yellow button to move the channel in favorite list. Press the Blue button to skip the selected channel. Press Fav button to add or remove the channel to/from your favorite list. (Your TV set will skip the channel automatically when using CH+/- to view the channels.) Signal Information Press ▼/▲ button to select Signal Information, press the OK button to see the detail information about the signal. Only available when there is signal in DTV.20 Picture Menu

1. Press ▼/▲ button to select the option that you want to adjust in the PICTURE menu.

2. Press OK button to adjust.

3. After finishing your adjustment, Press MENU button to save and return back to the

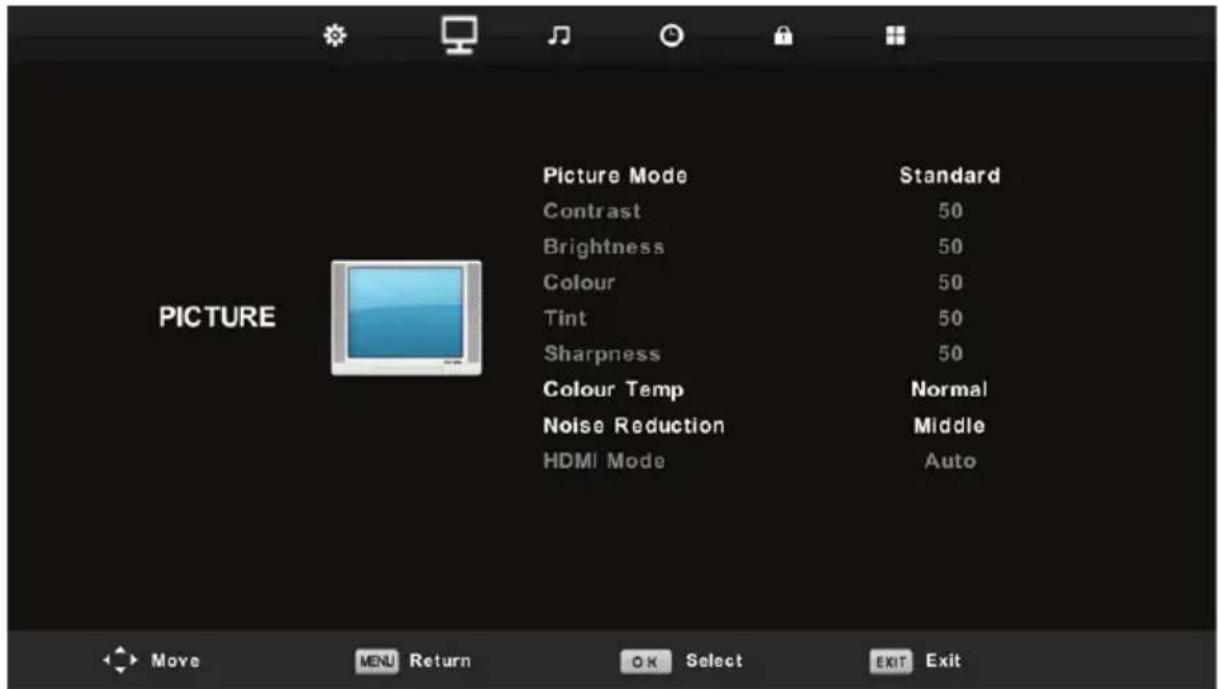

previous menu.21 Picture Mode Press ▼/▲ button to select Picture Mode, then press OK button to enter sub-menu. You can change the value of contrast, brightness, color, sharpness and tint when the picture is in Personal mode. TIPS: You can press PMODE button to change the Picture Mode directly.

Contrast/Brightness/Color/Tint/Sharpness Press ▼/▲ button to select option, then press ◄/► button to adjust. Contrast Adjust the contrast intensity of the picture, but the shadow of the picture is invariable. Brightness Adjust the brightness output of the entire picture. Colo

Adjust the saturation of the color. Tint Adjust the compensating color change. Sharpness Adjust the sharpness in the detail of the picture.22 Color Temp Change the overall colorcast of the picture. Press ▼/▲ button to select Color Temperature, then press OK button to enter sub-menu. Press ◄/►button to select. (Available color temperatures: Cool, Medium, Warm). You can change the value of red, green and blue when the color temperature is in User mode.

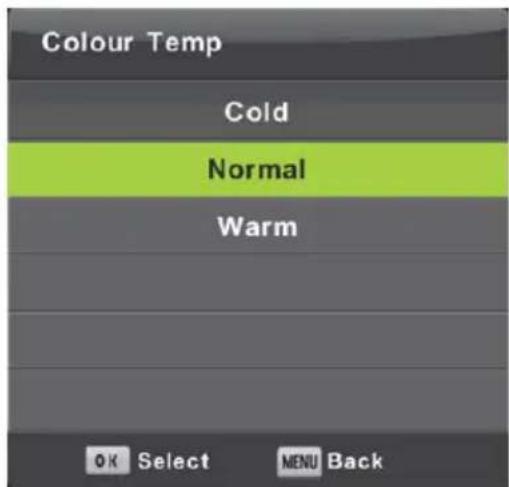

Cold Increase the blue tone for the white. Normal Increase the Six-linked colors for the white. Warm Increase the red color for the white. Noise Reduction To filter out and reduces the image noise and improve picture quality. Press ▼/▲ button to select Noise Reduction, then press OK button to enter sub-menu.

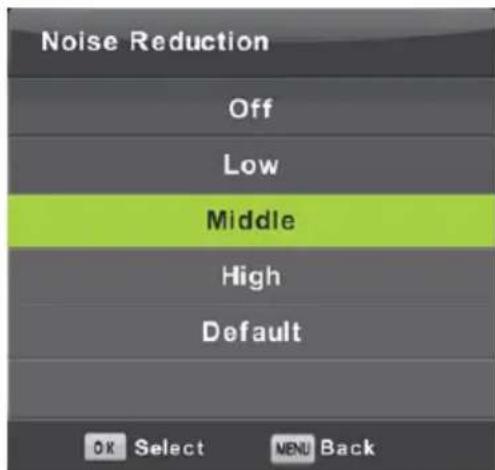

Off Select to turn off video noise detection. Low Detect and reduce low video noise. Middle Detect and reduce moderate video noise. High Detect and reduce enhanced video noise. Default Set as Default.23 Sound Menu Press MENU button to display the main menu. Press ◄/► button to select SOUND in the main menu.

1. Press ▼/▲ button to select the option that you want to adjust in the SOUND menu.

2. Press OK button to adjust.

3. After finishing your adjustment, Press OK button to save and return to the previous

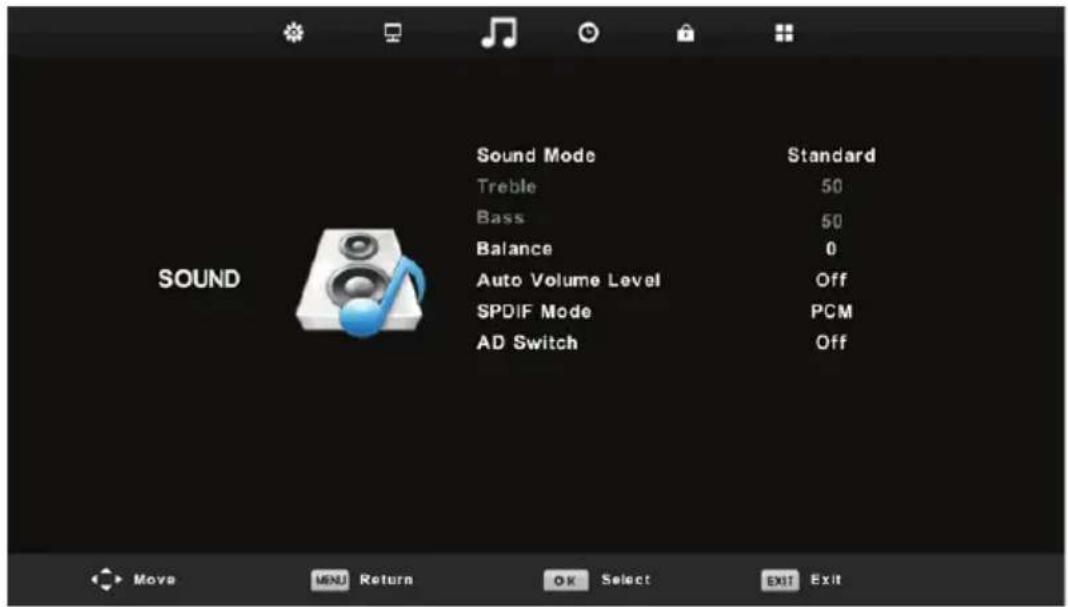

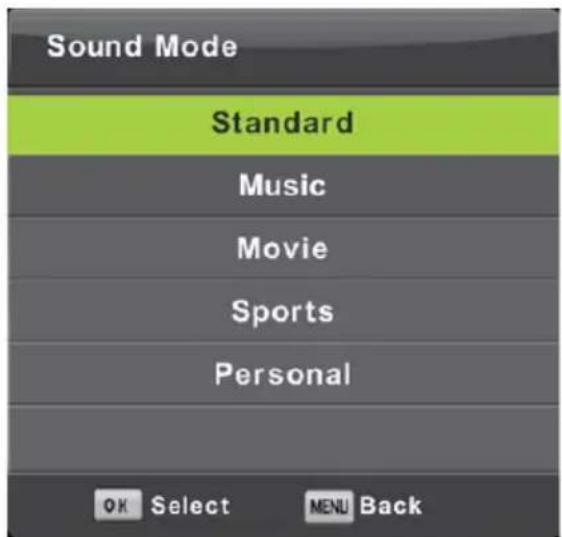

Sound Mode Press ▼/▲ button to select Sound Mode, then press OK button to enter sub-menu. Press ▼/▲ button to select. You can change the value of Treble and Bass when the sound is in Personal mode. TIPS: You can press the Sound button on the remote control to change the Sound Mode directly.24 Default Produces a balanced sound in all environments. Music Preserves the original sound. Good for musical programs. Movie Enhances treble and bass for a rich sound experience. Sports Enhances vocals for sports. Personal (user- defined) Select to customize sound settings. Note: The treble and bass are only available in User mode, you can adjust them as you like. Balance Press ▼/▲ button to select option, then press ◄/► button to adjust. Auto Volume level Press ▼/▲ button to select Auto Volume Level, then press ◄/► button to select On or Off. SPDIF Mode Press ▼/▲ button to select SPDIF Mode, then press ◄/► button to select Off/PCM/Auto. AD Switch Press ▼/▲ button to select AD Switch, then press ◄/► button to select On or Off. Amblyopia function for the blind, the tracks will be mixed describe the current screen. It need code stream to support. NOTE: Balance: This item can adjust the speaker’s output, it enables you to listen to best at your position. Auto Volume: This item is used for reducing the difference between channel and program’s volume automatically.25 Time Menu Press MENU button to display the main menu. Press ◄/► button to select TIME in the main menu.

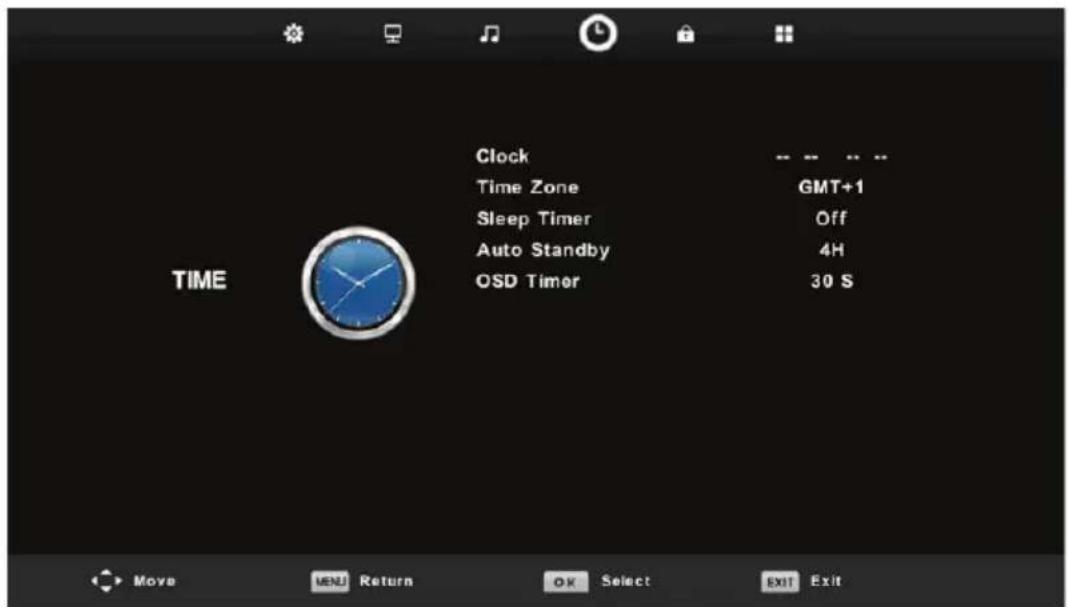

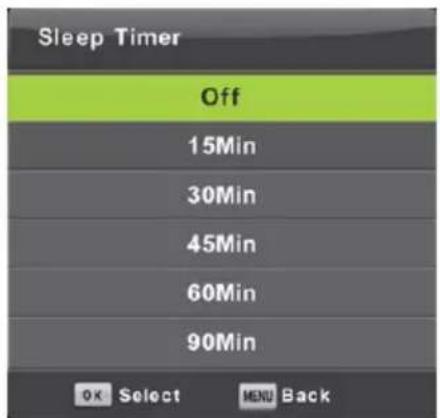

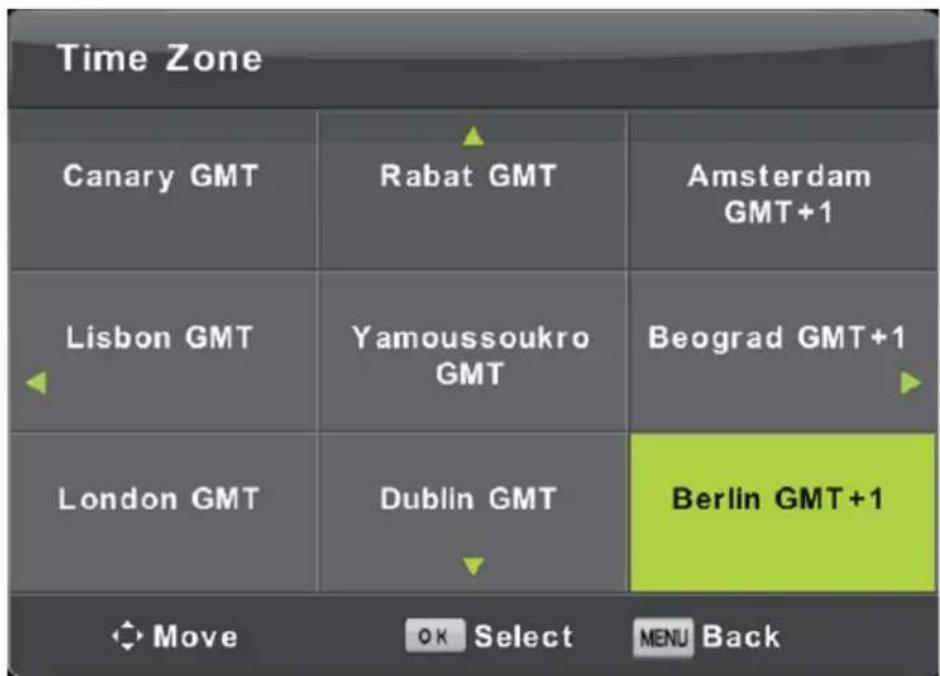

1. Press ▼/▲ button to select the option that you want to adjust in the TIME menu.

2. Press OK button to adjust.

3. After finishing your adjustment, Press OK button to save and return to the previous

Press ▼/▲ button to select Auto Standby, then press "OK" button to confirm selection and enter the sub-menu. Tips: If the remote control is uesd during the standby time, it will restart again from zero. OSD Timer

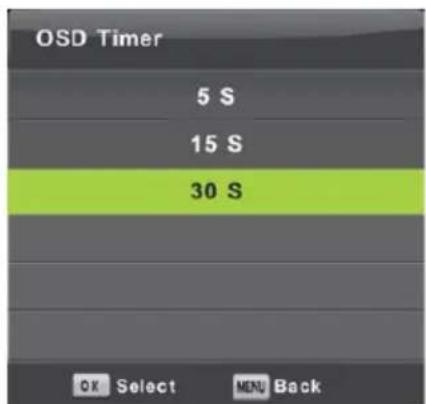

1. Press ▼/▲ button to select the option that you want to adjust in the LOCK SYSTEM

3. After finishing your adjustment, Press MENU button to return back to the previous

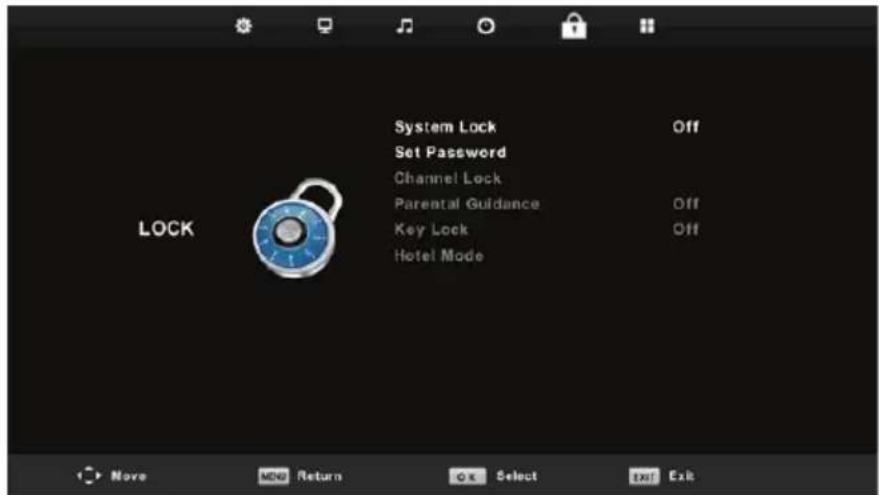

Press ▼/▲ button to select Lock System, then press OK button to make the following 3 options valid. Default password is 0000 Set Password

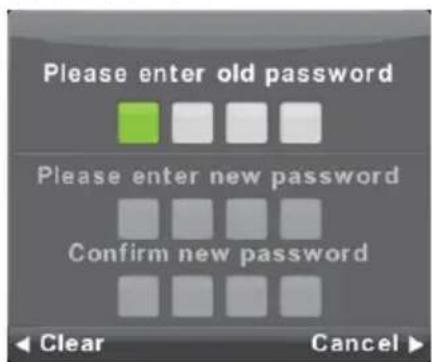

Press ▼/▲ button to select Set Password, then press OK button to enter sub-menu to set new password.28 Channel Lock

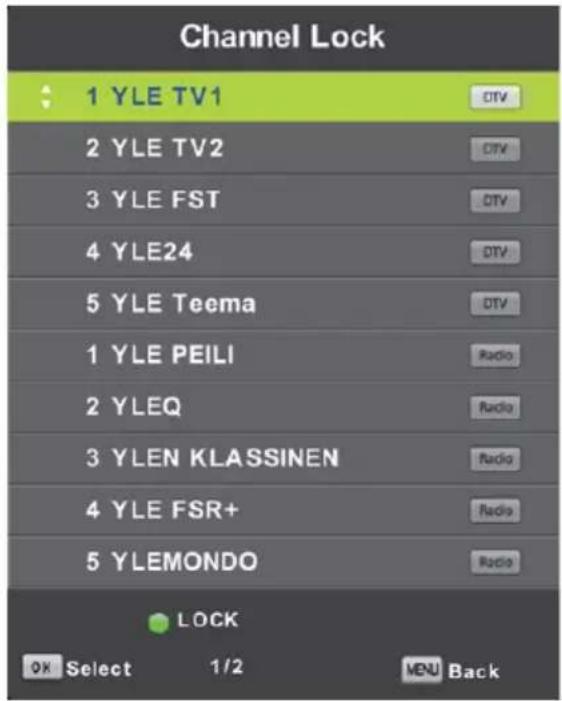

Press ▼/▲ button to select Channel Lock then press OK button to enter sub-menu to select. Press Green button to lock or unlock the channel. Parental Guidance

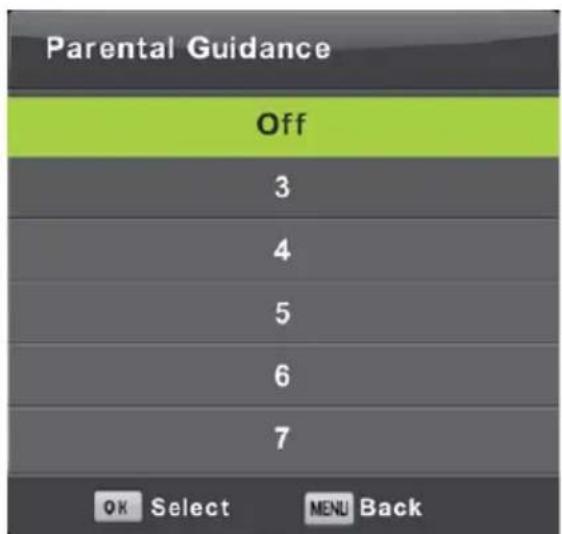

Press ▼/▲ button to select Parental Guidance, then press OK button to enter sub-menu to select the number of age which is suitable for your children. Key Lock Press ▼/▲ button to select Key Lock, then press ◄/► button to select Off or On. When Key Lock’s statue is on, you can’t use the Key panel button.29 Hotel Mode

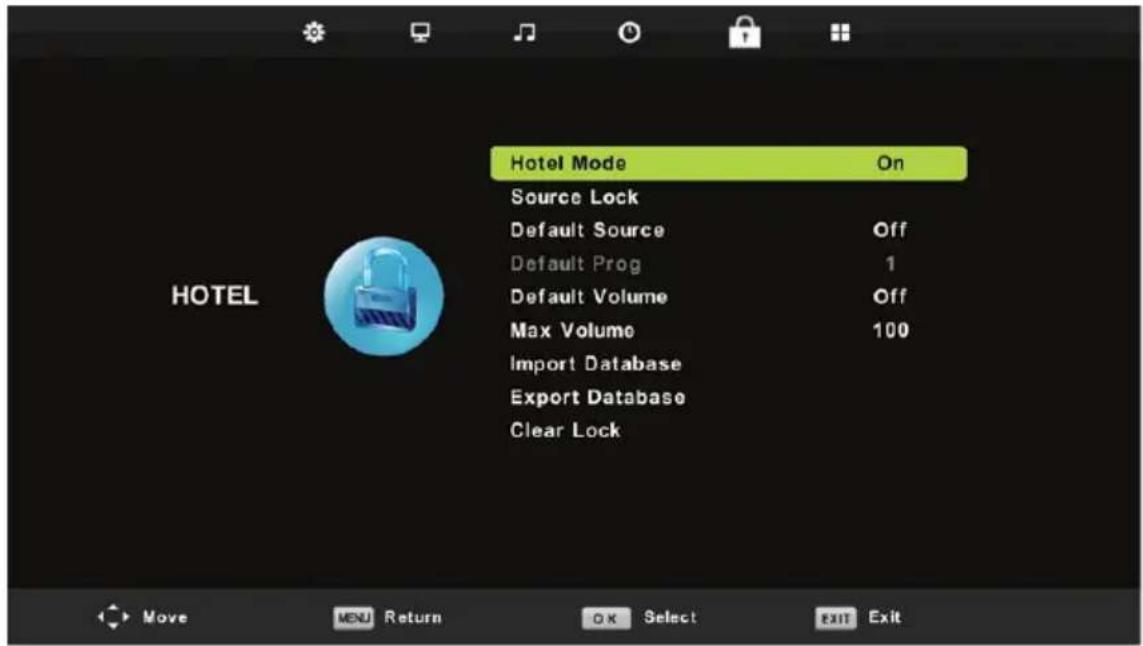

3. After finishing your adjustment, Press MENU button to save and return back to the

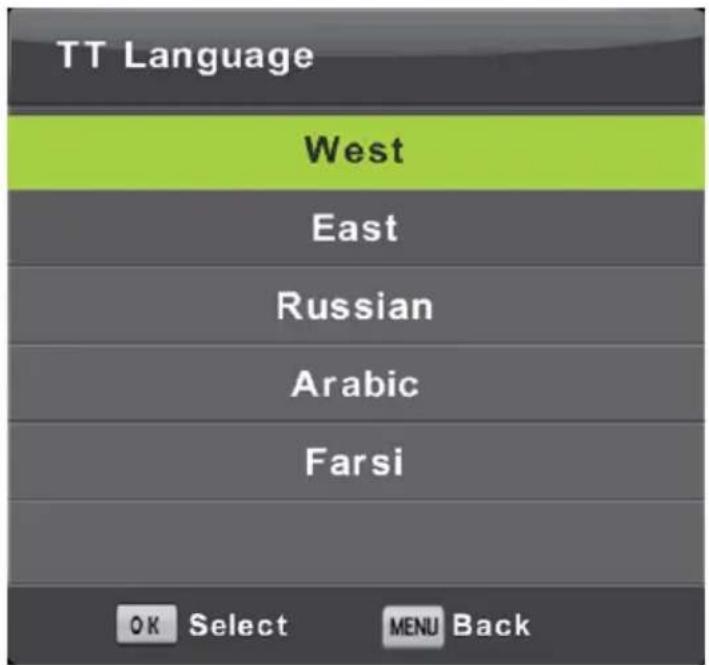

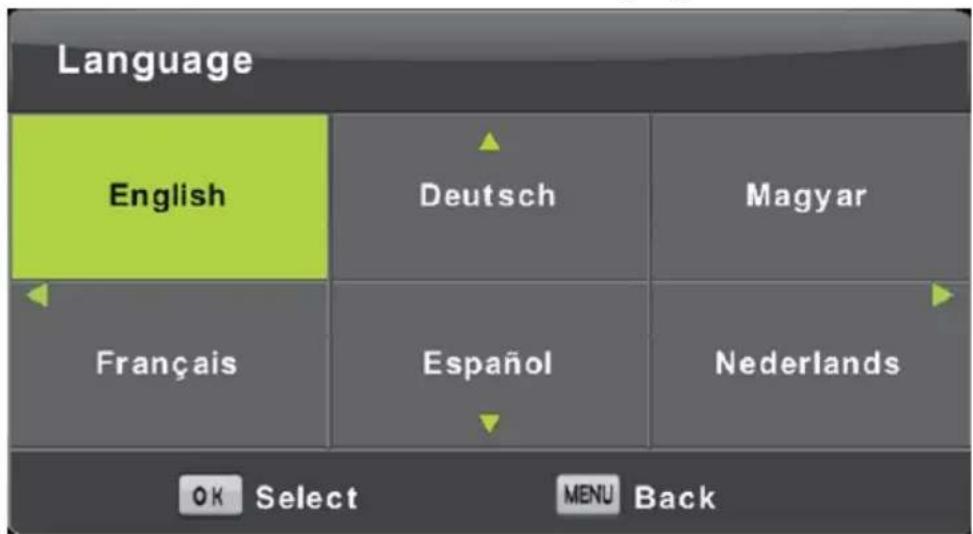

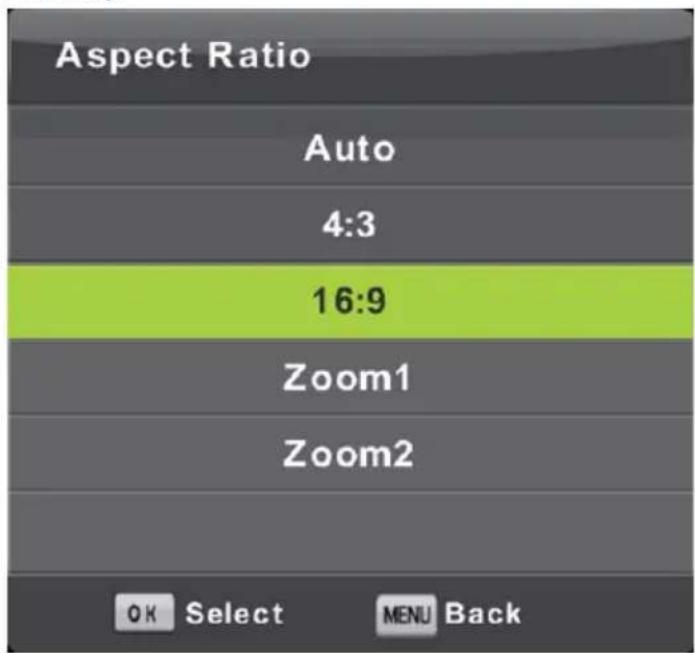

1. Press ▼/▲ button to select the option that you want to adjust in the SETUP menu.

2. Press OK button to adjust.

3. After finishing your adjustment, Press OK button to save and return to the previous

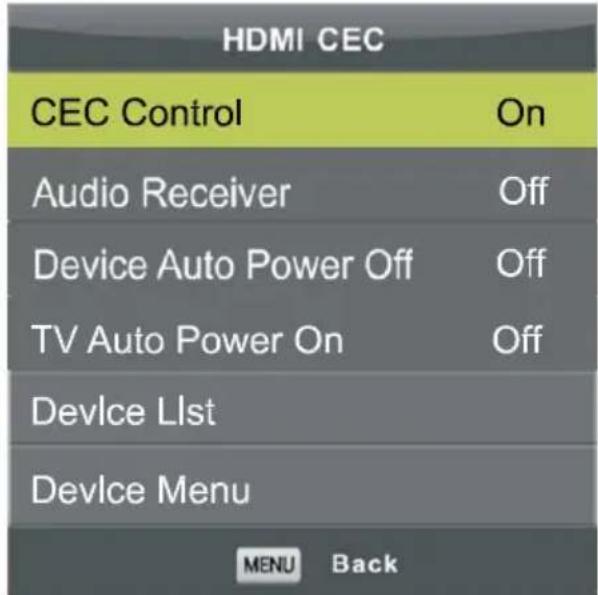

CEC Control Press ◄/► button to turn the CEC Control on or off. Audio Receive

Press ◄/►button to turn the Audio Receiver on or off. Device Auto Power Off Press ◄/► button to turn the Device Auto Power Off on or off. TV Auto Power Off Press ◄/► button to turn the TV Audio Power Off on or off. Device List Press OK button to open the main menu of device. Device Menu Press OK button to open the Device Menu.34 Screen Menu (Under PC mode only) Press INPUT, choose PC. Press MENU button to display the main menu.

1. Press ▼/▲ button to select the option that you want to adjust in the SCREEN menu.

2. Press OK button to adjust.

3. After finishing your adjustment, Press OK button to save and return to the previous

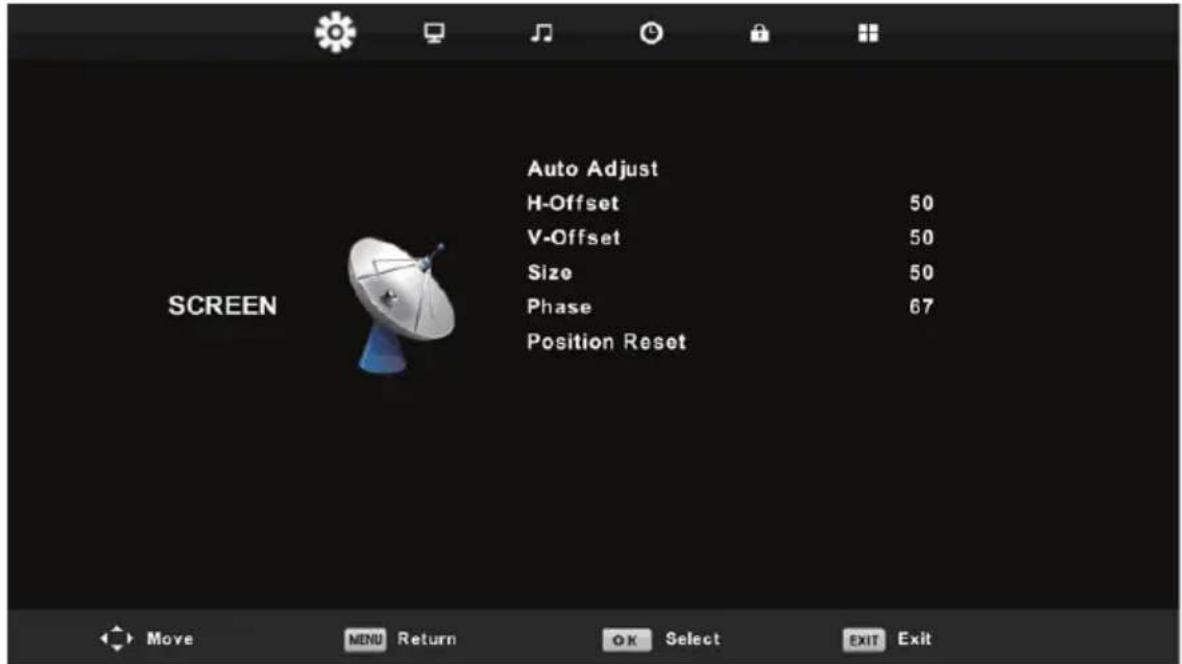

menu. Auto Adjust Press OK button to start adjusting H-Offset/V-Offset/Size/Phase automatically. H-Offset. Adjust the horizontal position of the picture. Press ◄/► button to select H-Offset, then press OK button to enter sub-menu. V-Offset Adjust the vertical position of the picture. Press ◄/► button to select V-Offset, then press OK button to enter sub-menu. Screen size Adjust the display size. Press ◄/► button to select Size, then press OK button to enter sub-menu. Phase Adjust the horizontal interfering lines. Press ◄/► button to select Phase, then press OK button to enter sub-menu.35 Position Reset Press OK button to select Position Reset, then press OK button to enter. Notes:

1. Noise Reduction in PICTURE option is invalid.

2. AD Switch in SOUND option is invalid.

3. TIME menu and description are the same as that for Air mode.

4. Block Program and Parental Guidance in LOCK option is invalid.

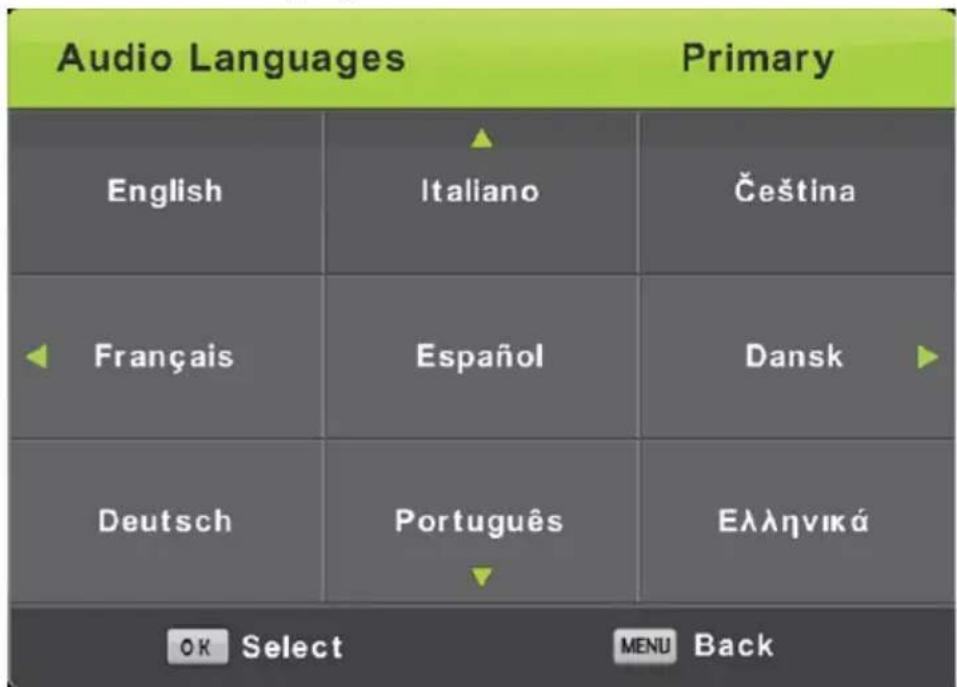

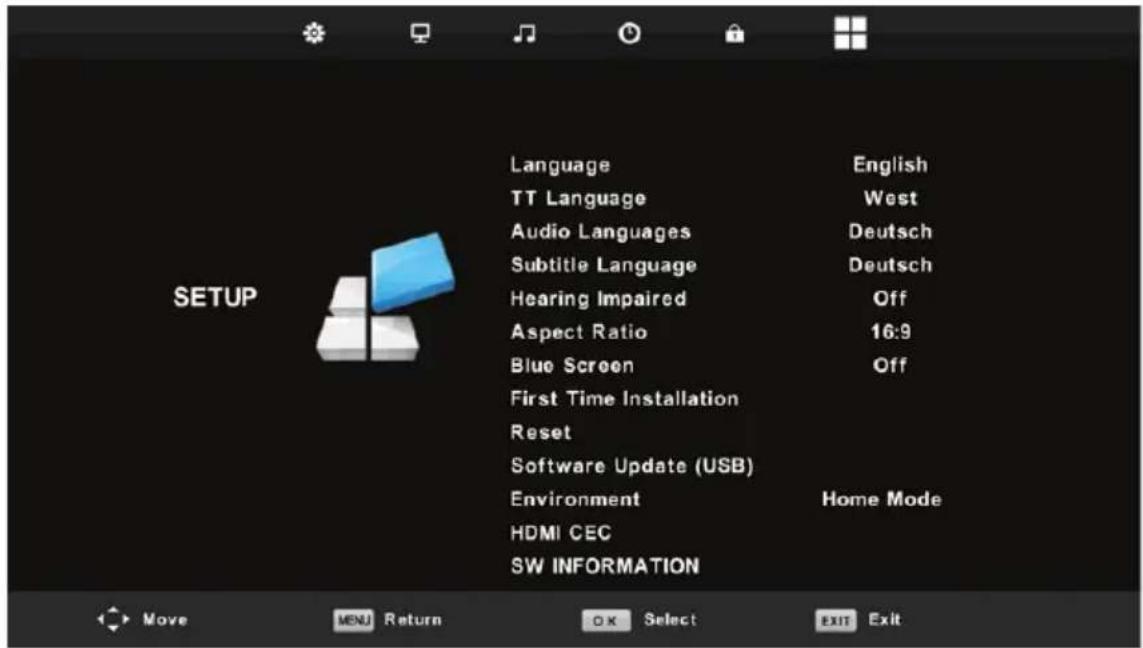

5. Audio Languages, Subtitle Language, Hearing Impaired and PVR File System in

SETUP option is invalid.

6. PC mode has no CHANNEL menu.36

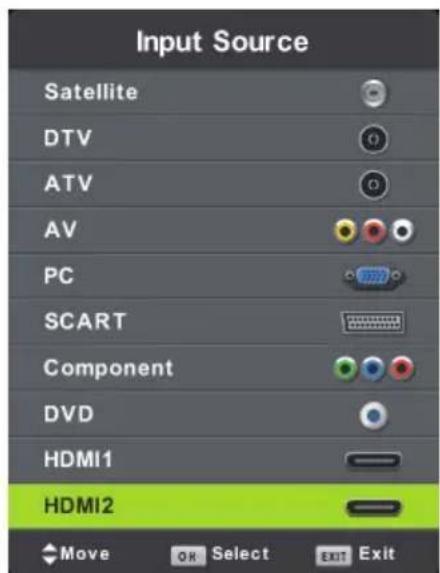

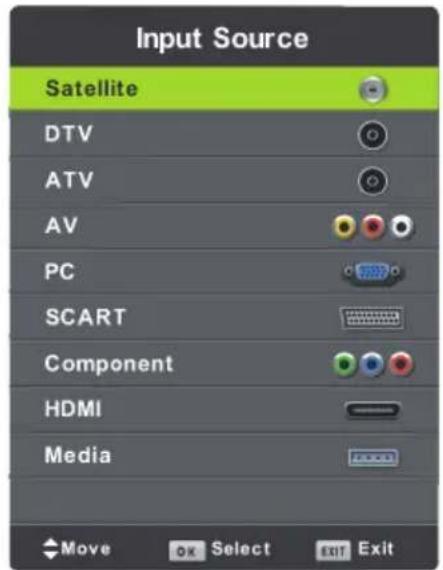

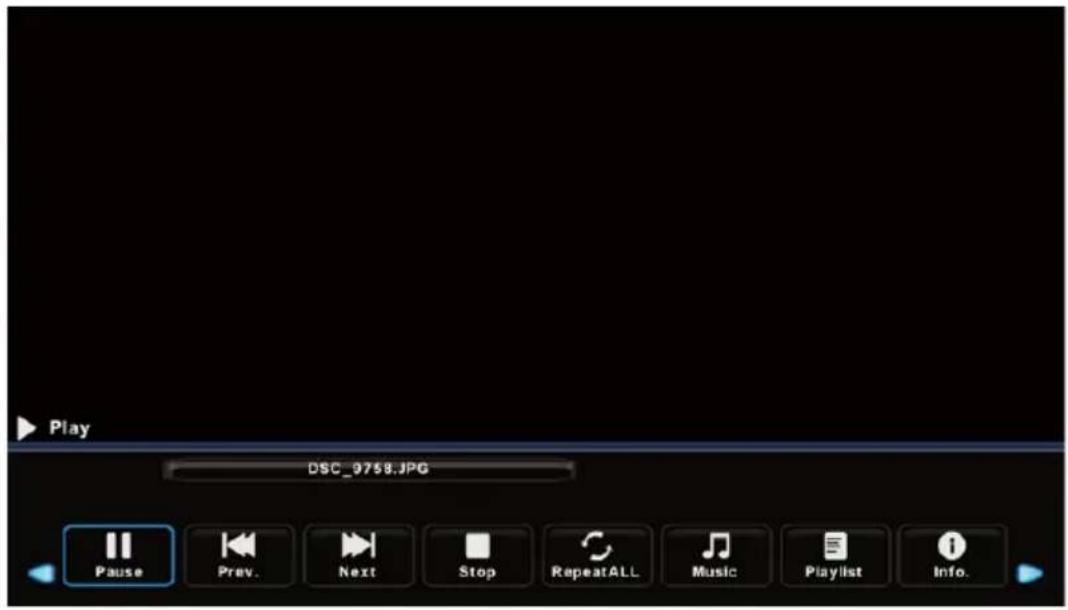

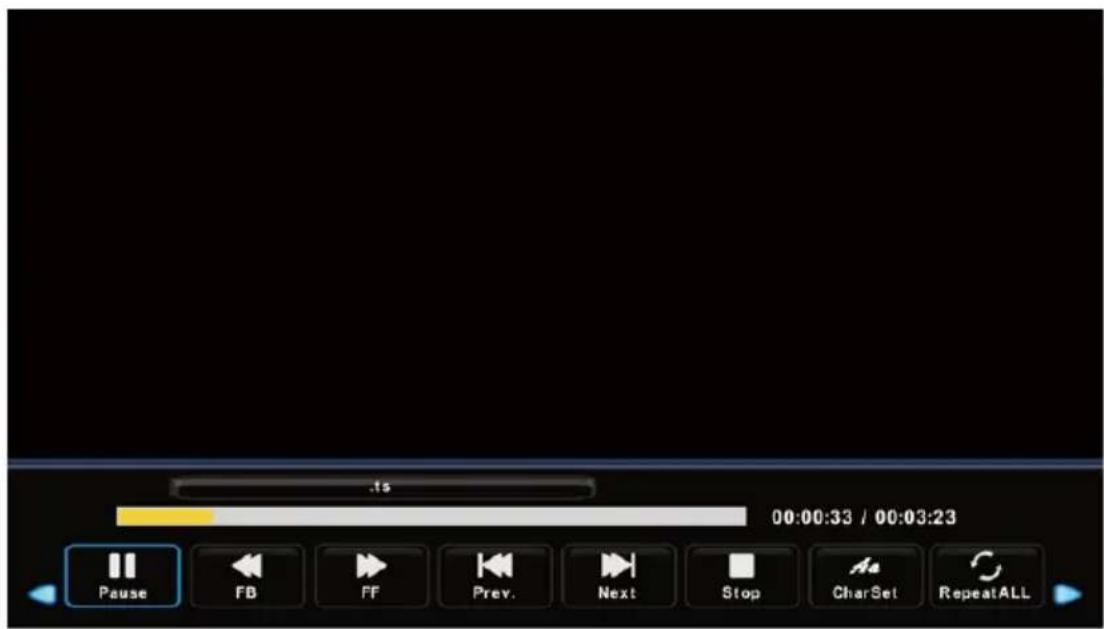

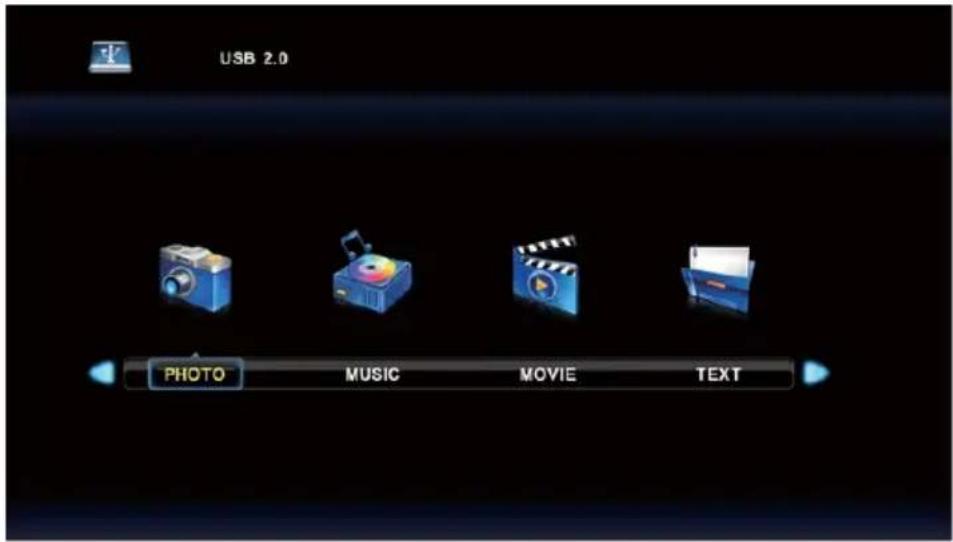

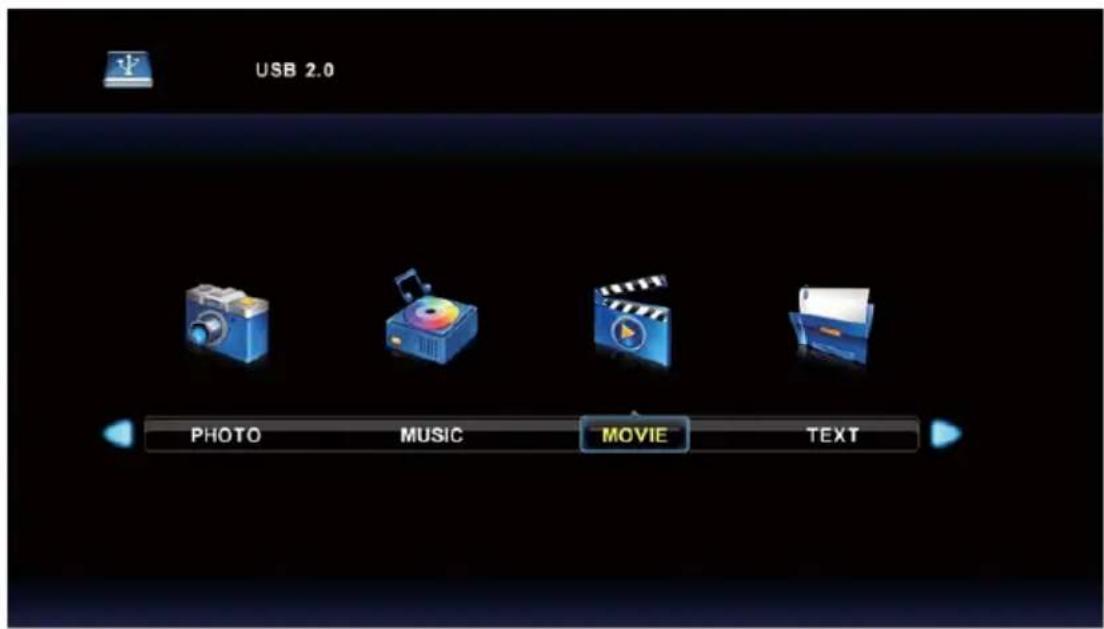

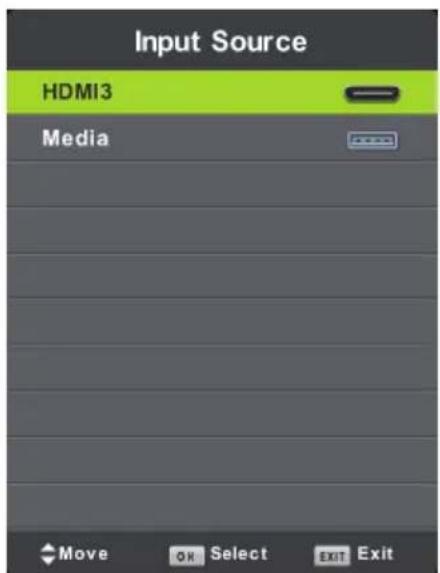

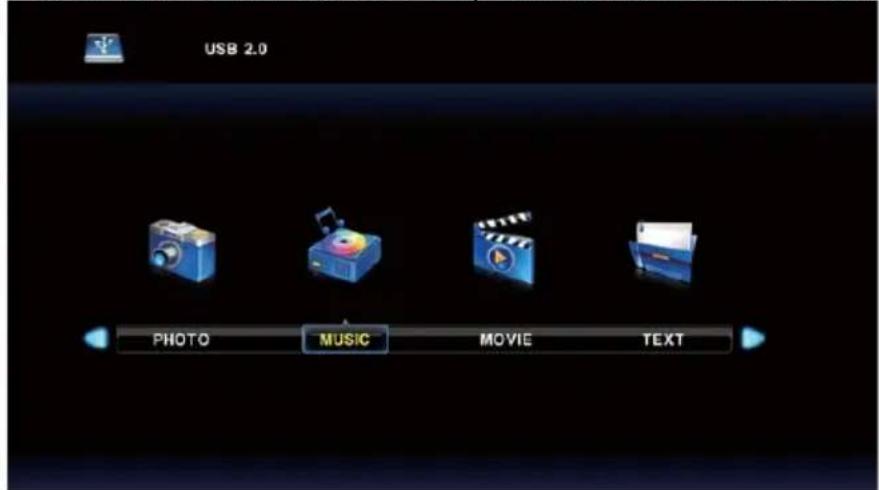

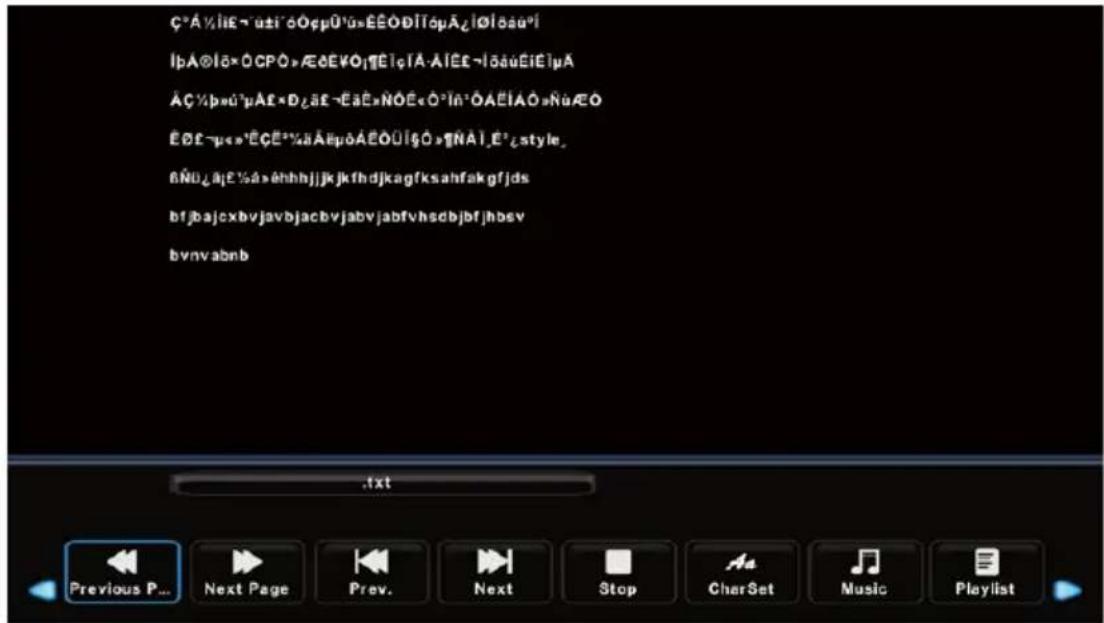

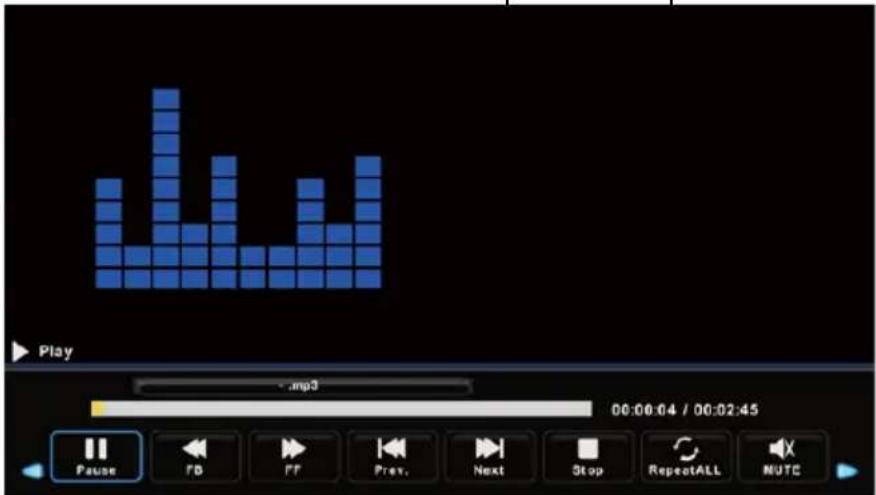

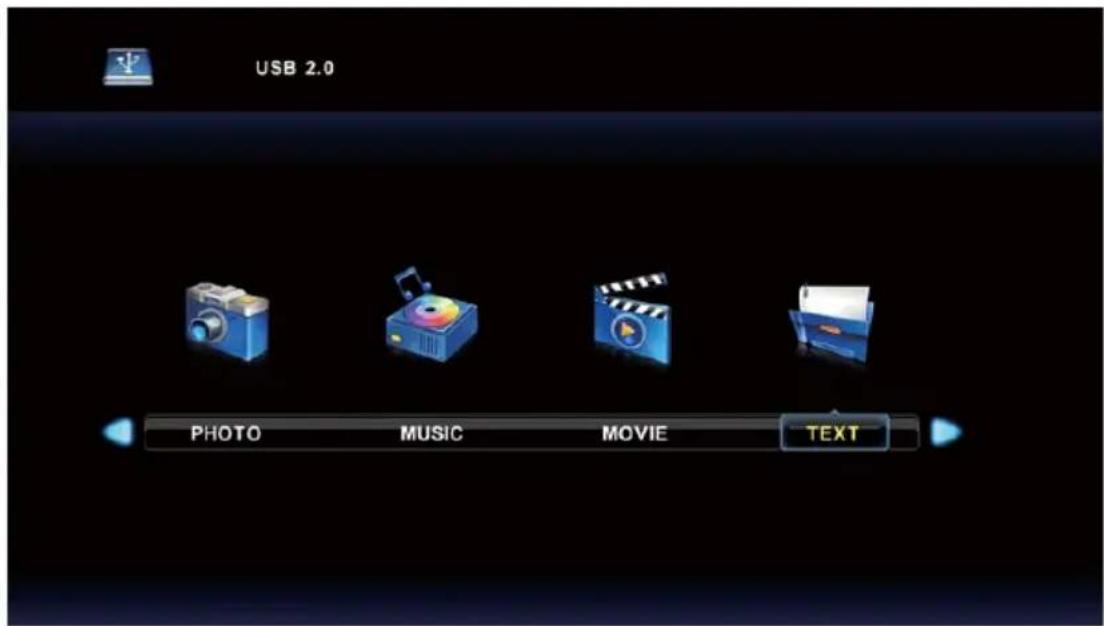

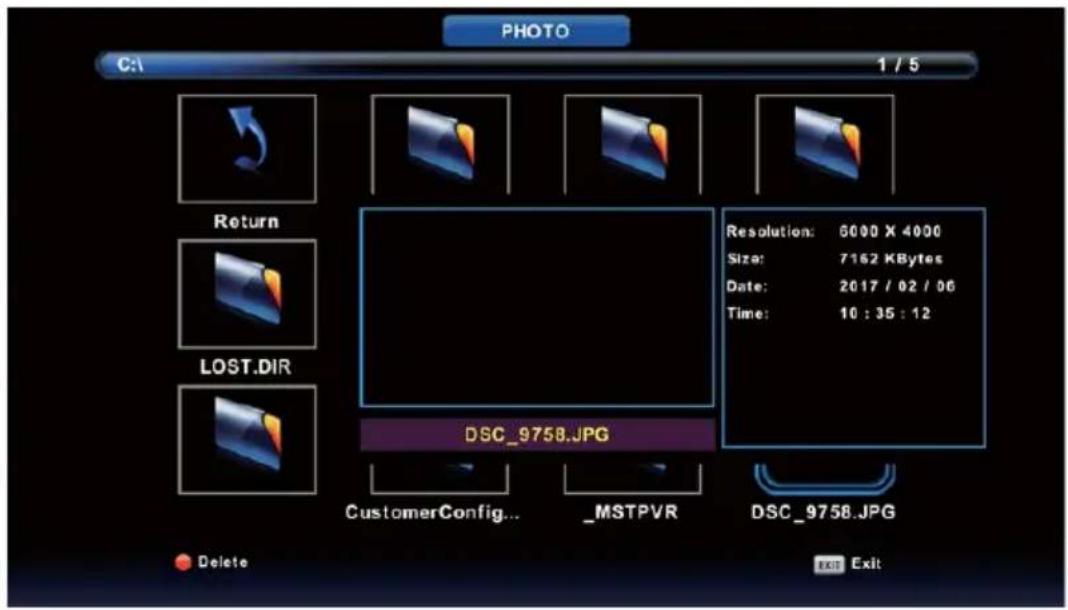

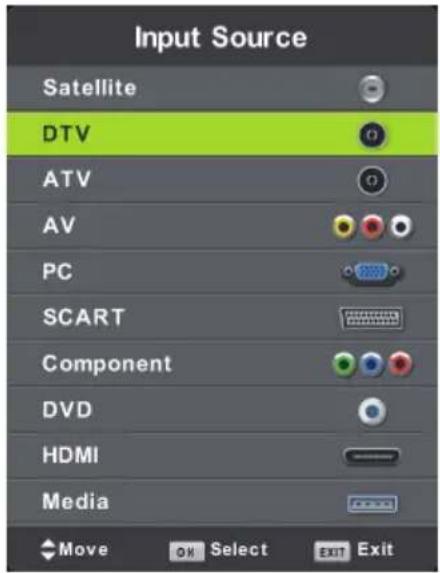

Note: Before operating Media menu, Plug in USB device, then press INPUT button to set the Input Source to Media. Press ▼/▲ button to select Media in the Source menu, then press OK button to enter.

Press ◄/► button to select the option you want to adjust in the main Media menu, then press OK button to enter.37 Photo Menu Press ◄/► button to select PHOTO in the main menu, then press OK button to enter. Press Exit button to return to the previous menu and exit menu to quit.

Press ◄/► button to select the file you want to watch in the file selecting menu, then press media button to display picture. When highlighting the option you select, the file information will appear on the right and picture will be previewed in the center.38 Music Menu Press ◄/► button to select MUSIC in the main menu, then press OK button to enter. Press Exit button to return to the previous menu and exit menu to quit.

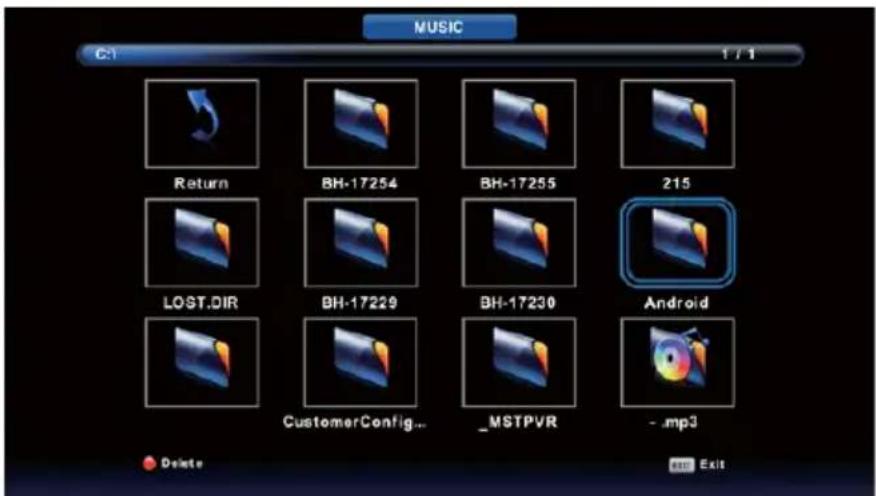

Press ◄/► button to select drive disk you want to watch, then press OK button to enter. Press ◄/► button to select return option to the previous menu.39 Movie Menu Press ◄/► button to select MOVIE in the main menu, then press OK button to enter. Press Exit button to return to the previous menu and exit menu to quit.

Press ◄/► button to select drive disk you want to watch, then press OK button to enter. Press media button to play the selected movie. Press display button to select menu in the bottom you want to run, then press OK button to operate. Press Exit button to return to the previous menu and exit menu to quit.40 Text Menu Press ◄/► button to select TEXT in the main menu, then press OK button to enter. Press Exit button to return to the previous menu and exit menu to quit.

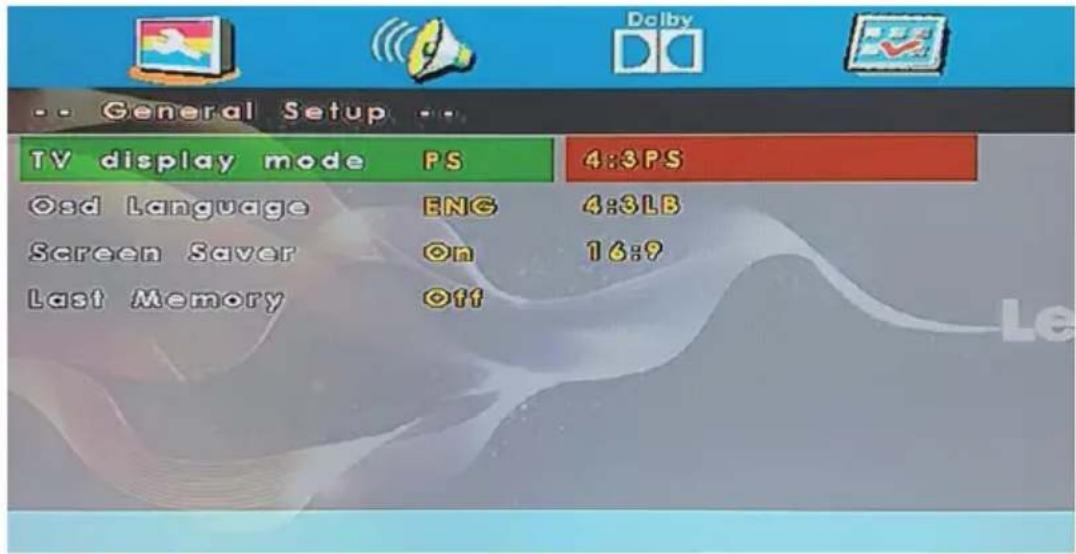

Press ◄/► button to select drive disk you want to watch, then press OK button to enter. Press ◄/► button to select return option to the previous menu.41 DVD Operation Basic Operation Press the Power button on the TV or the remote control, then press the INPUT button to select DVD mode. If there is no disc in the DVD player the screen will show "NO DISC". Insert Disc according to picture next to disc slot. Do not touch the playing surface. Hold the disc around the outside with your fingers and place the disc into the slot. The player will automatically draw the disc into the player. To "Eject" the disc, press the EJECT button on the TV or the " " button on the remote control. Disc Eject If not in DVD-mode, press INPUT-key on remote and select DVD. Press OK. Press -key on remote. Disc ejects. Return to Tuner-mode (watch TV) Press INPUT-key on remote. See the INPUT SOURCE window appear. Select DTV or Satellite and press OK-key. DVD Setup Mode Setup Mode provides the menu for the configuration of General Setup Page, Audio Setup Page, Dolby Digital, Setup, Preference Page. Item selection in the Setup Menu is done by using the Navigation Arrows, SETUP button and the OK button. Press the SETUP button first, enter into SETUP menu, then press the DIRECTION RIGHT button, you can enter into the next Sub-menu. Press the SETUP button again to exit the Setup Menu.42 General Setup TV Display - 4:3 PS This is selected when the DVD player is connected to a normal TV. Wide-screen images are shown on the screen, but with some parts cut automatically. - 4:3 LB This is selected when the player is connected to a normal TV. Wide-screen images are shown on the screen, with black belt on the top and bottom. - 16:9 This is selected when the player is connected to a wide-screen TV.43 DVD Operation OSD Language This is used to select the OSD language.

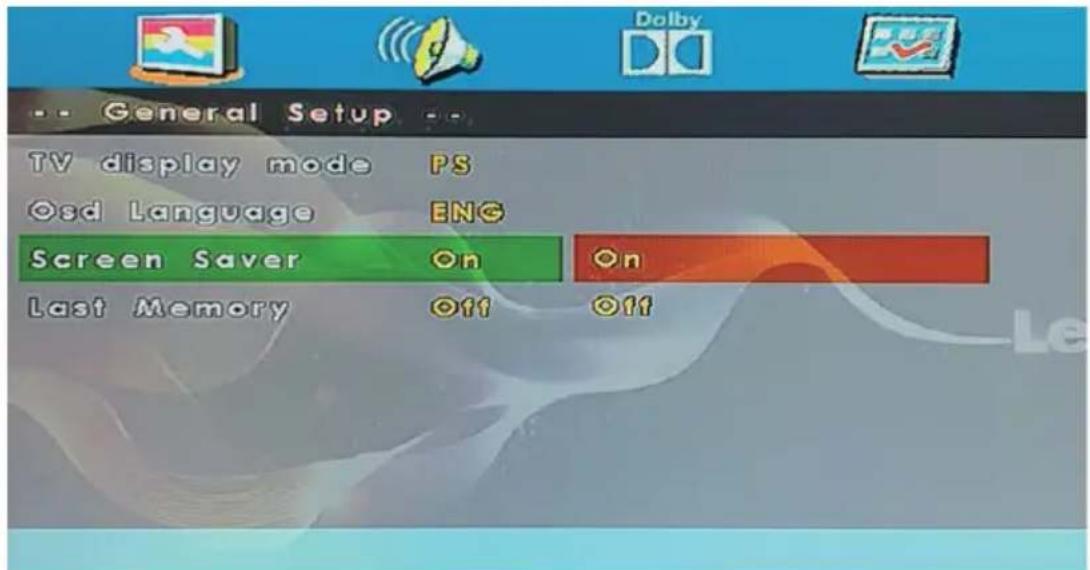

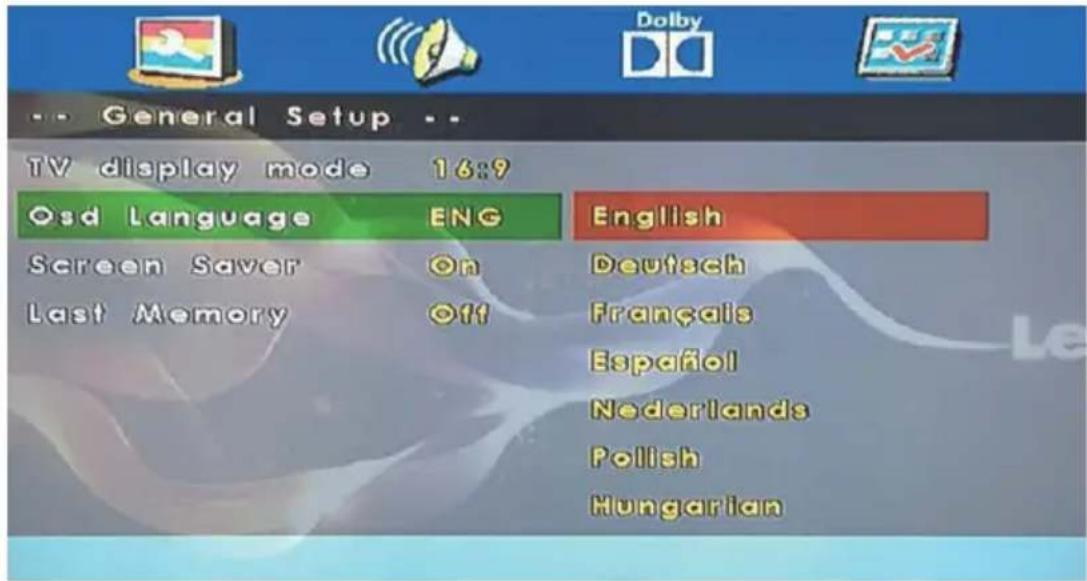

Screen Saver Start the screen saver, the screen saver image will appear when the player stops or the picture is frozen for a few minutes. This saver can keep the screen from being damaged. On (Start the screen saver) Off (Remove the screen saver).

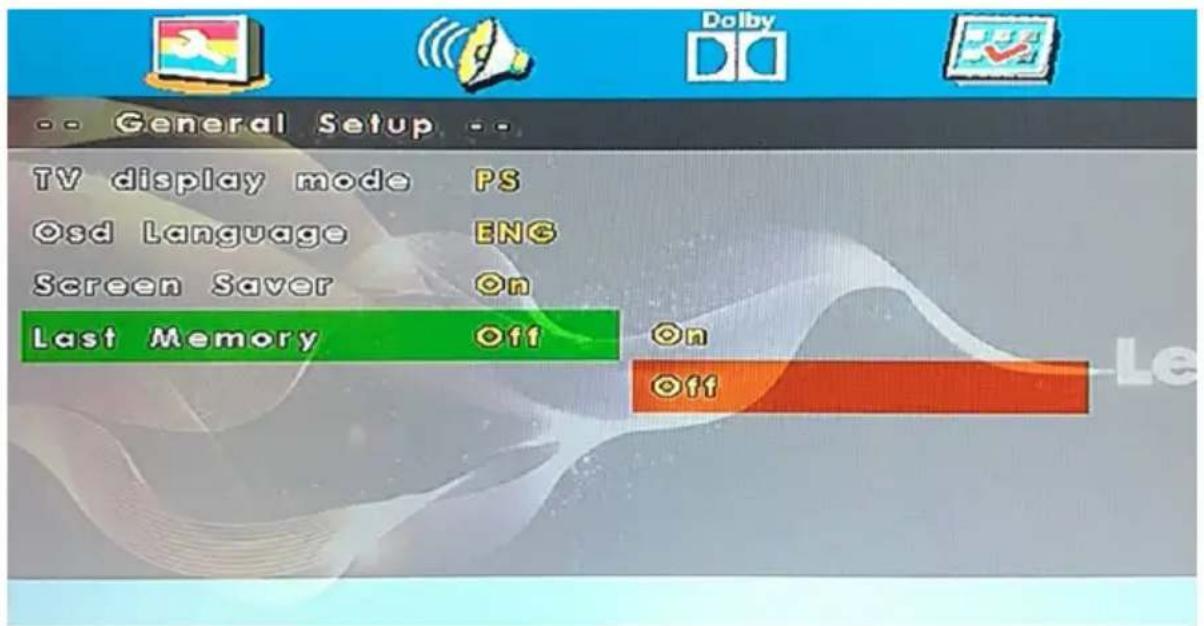

Last Memory Can set the items on the last memory, "on" and "off" option. On (Start the memory): The DVD will start playing at the last time position of previous play. Off (Remove the memory): When turning on the DVD, the last position will not be remembered.44 DVD Operation

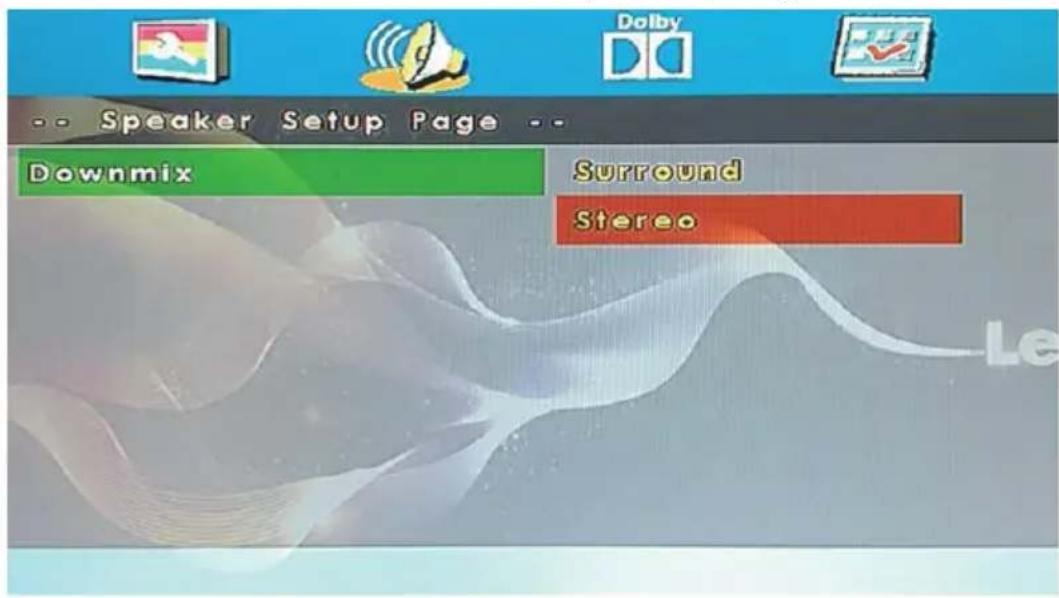

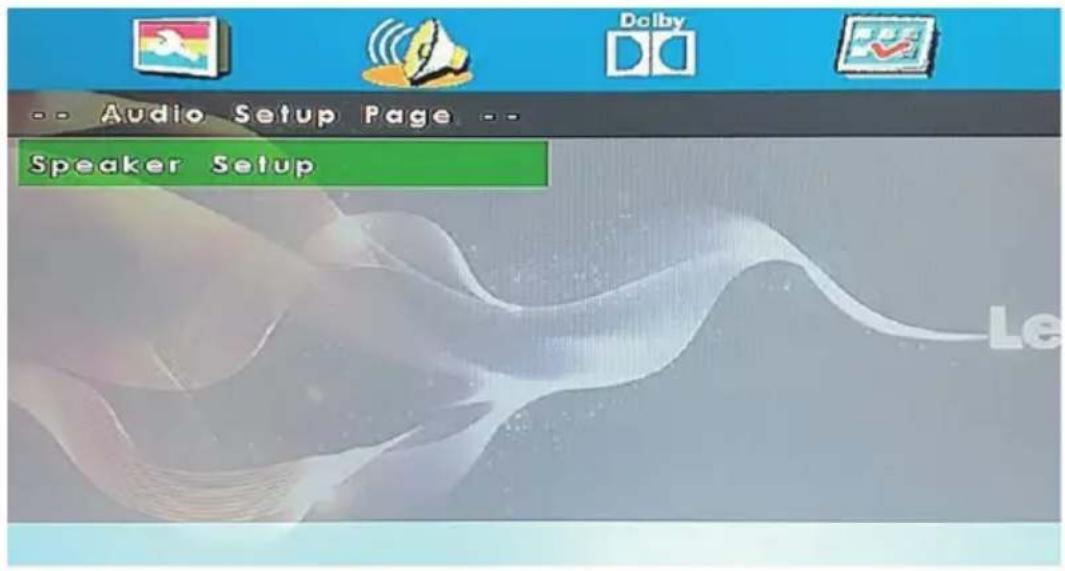

Speaker Setup In the “Audio Setup page” press “▼” button to select “Speaker Setup” item, press the “OK ENTER” or “►” button (play) into the “Speaker Setup Page”.45 DVD Operation

Surround A disc recorded multi channel soundtrack, the output signal will be converted to left and right channel.

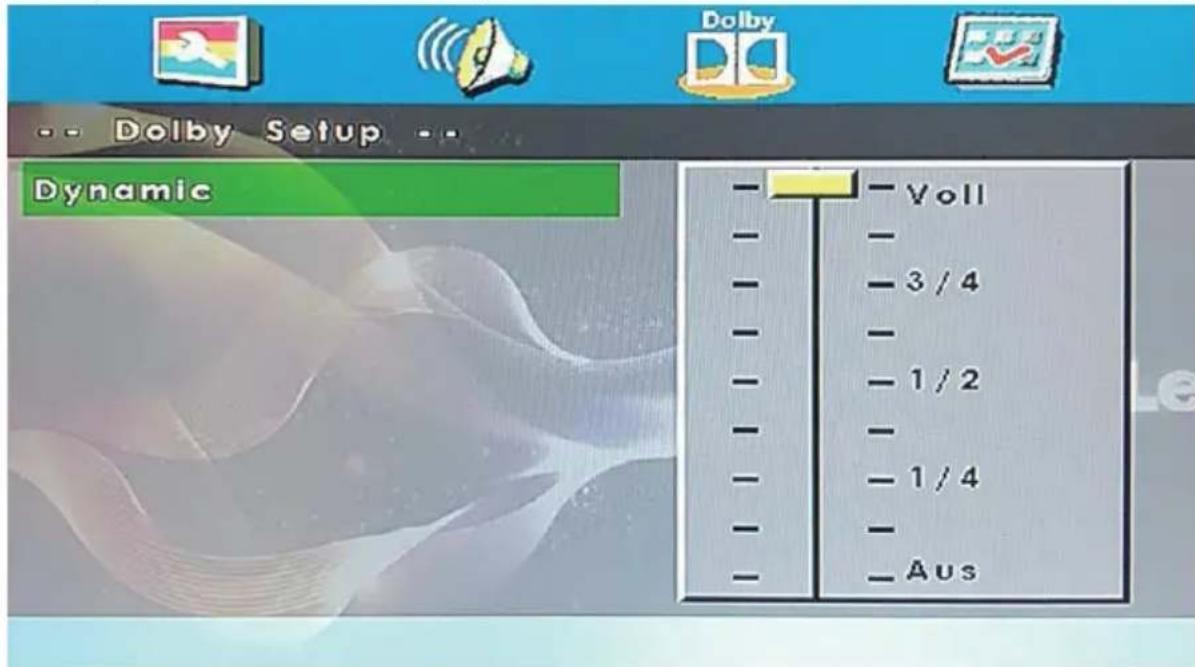

Stereo A disc recorded multi channel soundtrack, The output signal will be converted to stereo.46 DVD Operation Dolby Digital Setup Dynamic This option is used to set the compression ratio in order to control the sound contrast.

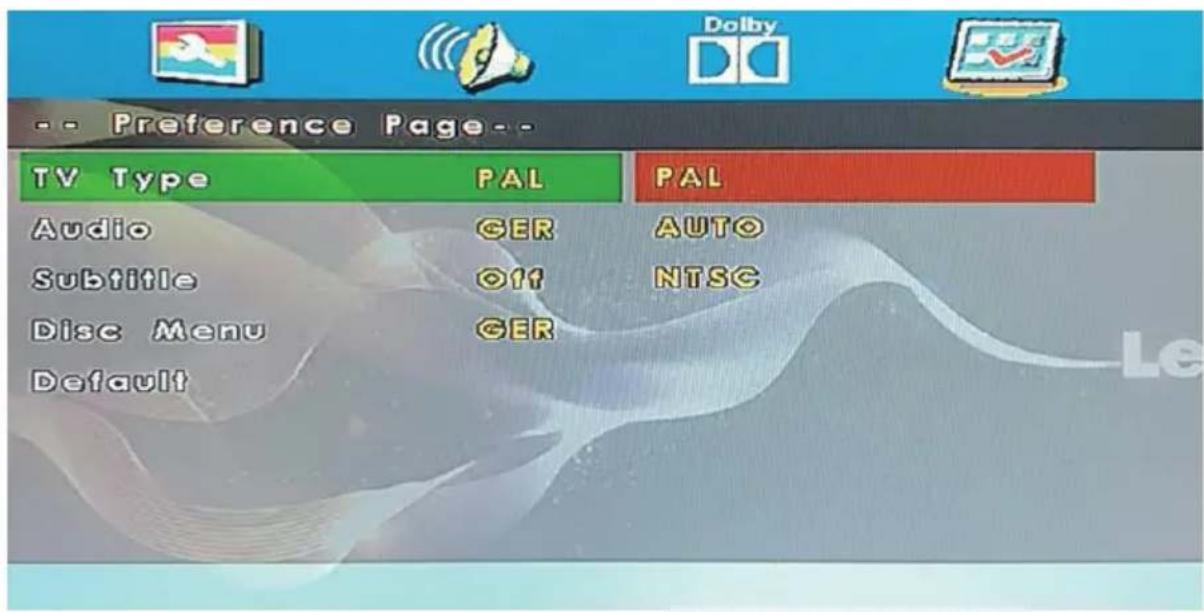

PAL This is selected when the player is connected to an PAL System TV.

AUTO The player will set the TV system according to the disc in the tray.

NTSC This is selected when the player is connected to a NTSC System TV. Audio If a language listed below is recorded on the disc, you can play the sound in such language. If not, the language recorded will be used.48 DVD Operation

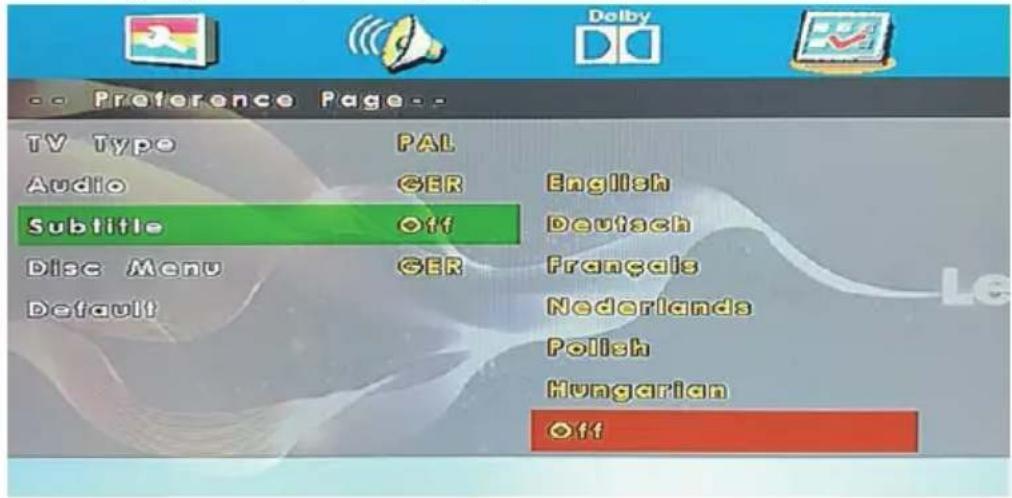

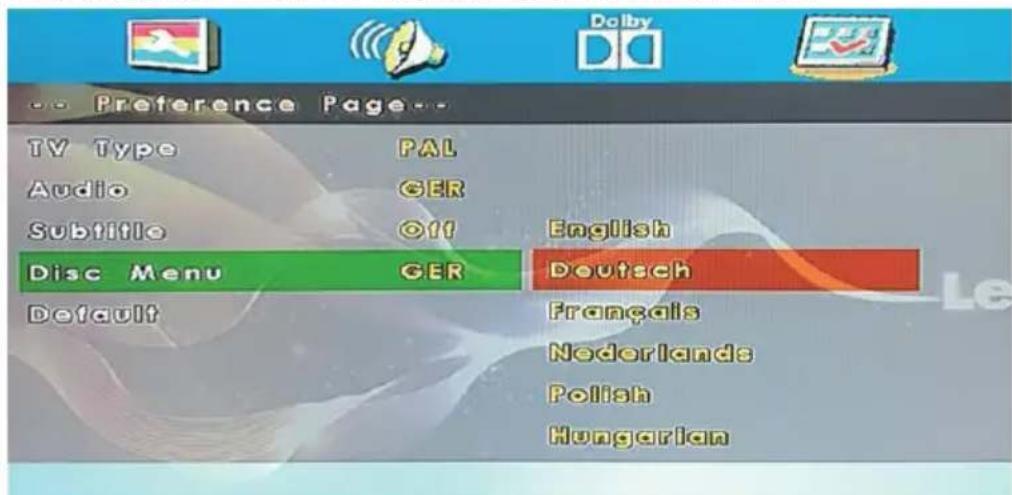

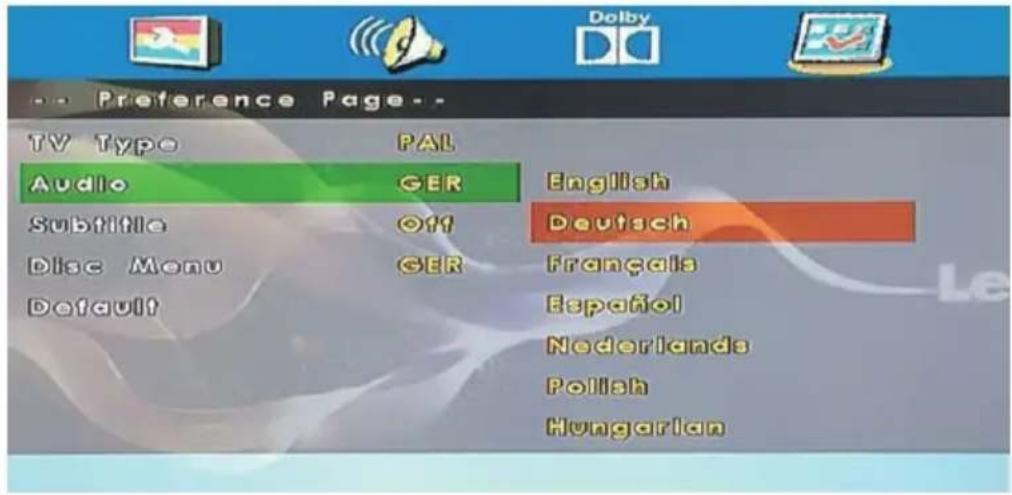

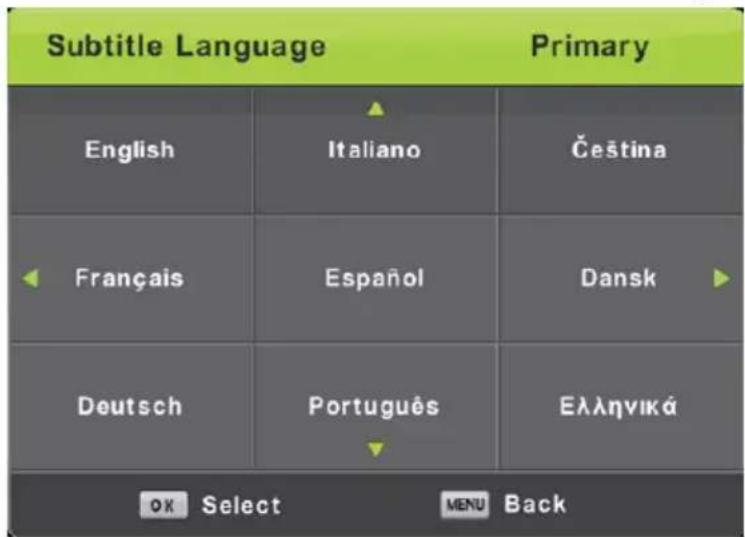

Subtitle If a language listed below is recorded on the disc, you set the subtitle to be displayed in such language. If not, the language recorded will be used.

Disc Menu If a language listed below is record on the disc, you can set the Menu to be displayed in such language. If not, the language recorded will be used.1. Guarantee Lenco offers service and warranty in accordance to European law, which means that in case of repairs (both during and after the warranty period) you should contact your local dealer. Important note: It is not possible to send products that need repairs to Lenco directly. Important note: If this unit is opened or accessed by a non-official service center in any way, the warranty expires. This device is not suitable for professional use. In case of professional use, all warranty obligations of the manufacturer will be voided.

Disclaimer Updates to Firmware and/or hardware components are made regularly. Therefore some of the instruction, specifications and pictures in this documentation may differ slightly from your particular situation. All items described in this guide for illustration purposes only and may not apply to particular situation. No legal right or entitlements may be obtained from the description made in this manual.

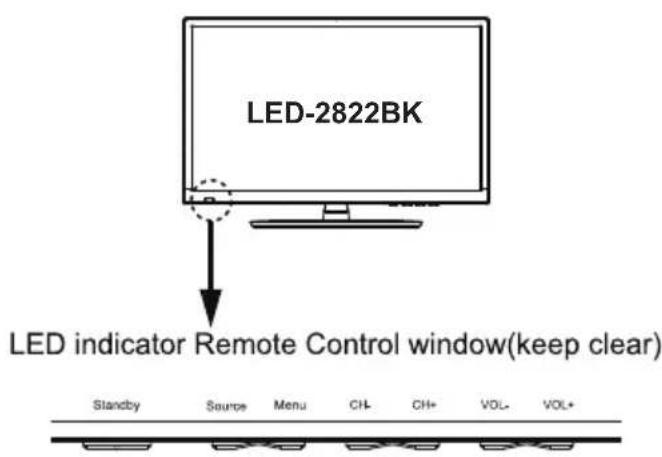

DVL-2462BK Insert disc with label side towards backInsert disc with label side towards back DVL-240 DVL-3252WH

HOLD SIZE SUBPAGE INDEX

DISPLAY REP SUBTITLE

HOLD SIZE SUBPAGE INDEX

DISPLAY REP SUBTITLE

HOLD SIZE SUBPAGE INDEX

DISPLAY REP SUBTITLE

HOLD SIZE SUBPAGE INDEX

DISPLAY REP SUBTITLE

HOLD SIZE SUBPAGE INDEX

DISPLAY REP SUBTITLE

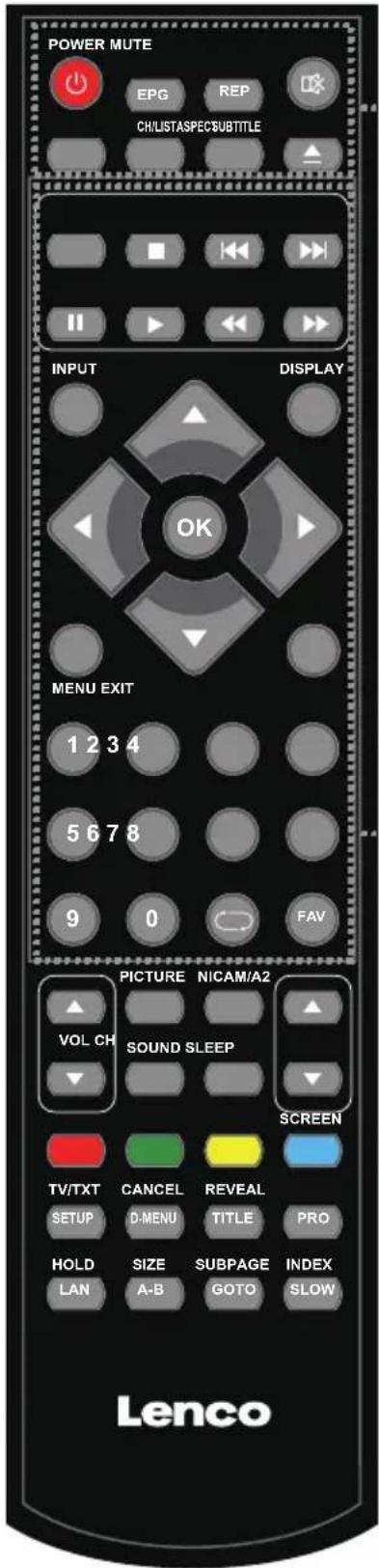

CH/LISTASPECT PRO SLOW SCREEN LAN EPG：Electronic television and radio program guide (broad- caster- specific).12 Mando a distancia

HOLD SIZE SUBPAGE INDEX

DISPLAY REP SUBTITLE
