DVT-2233 - Television LENCO - Free user manual and instructions

Product Type	LCD TV with Built-in DVD Player
Screen Size	21.6 inches
Resolution	1920 x 1080 (Full HD)
Aspect Ratio	16:9
Brightness	300 cd/m²
Contrast Ratio	1000:1
Response Time	5 ms
Power Consumption (Max)	72 W
Power Input	100-240 V ~ 50/60 Hz
Dimensions (with Stand)	534 x 399 x 196 mm (WxHxD)
Weight (with Stand)	5.5 kg
VESA Mount Compatible	Yes, 100 x 100 mm
Built-in DVD Player	Yes, Region 2
TV System	PAL / SECAM
Sound System	B/G, I, D/K, L/L'
Inputs	HDMI, VGA, PC Audio, Component (Y Pb Pr), Composite (AV), SCART, USB, RF (75 Ω)
Outputs	Coaxial (COAXIAL OUT), Headphone
Remote Control	Included with 2 x AAA batteries
Teletext	Yes, with FASTEXT support
Sleep Timer	Yes, up to 120 minutes
Child Lock	Yes, PIN code (default 0000)
Hotel Mode	Yes, with source and volume locks

Frequently Asked Questions - DVT-2233 LENCO

How do I set up the TV for the first time?

Connect the antenna to the RF 75Ω socket, plug in the power, and turn on the TV. The First Time Installation screen will appear. Select your country and language, then choose YES for Search Program to automatically scan for channels.

How can I play a DVD on the TV?

Press INPUT and select DVD as the source. Insert a disc (label facing away) into the slot on the side panel until it clicks. Playback starts automatically. Use the remote control for functions like play, pause, skip, and repeat.

What types of discs are compatible?

The built-in DVD player supports DVD, CD, and JPEG picture CDs. It also plays DVD-R, DVD-RW (Video mode), and DVD+R/+RW. Region number 2 is supported. Do not use DVD-ROM, CD-ROM, CVD, or VCD.

How do I set the sleep timer?

Press the SLEEP button on the remote repeatedly to cycle through options: 15, 30, 45, 60, 75, 90, 105, or 120 minutes. The timer starts immediately. To check remaining time, press SLEEP once.

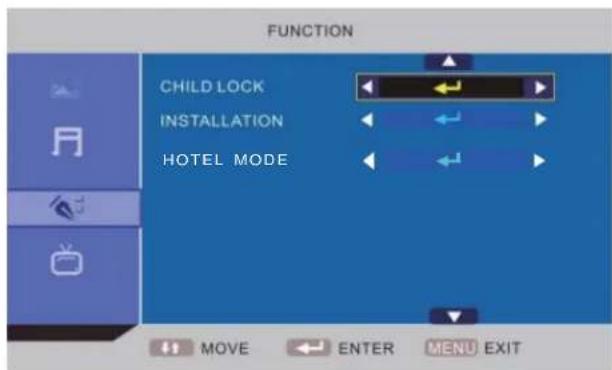

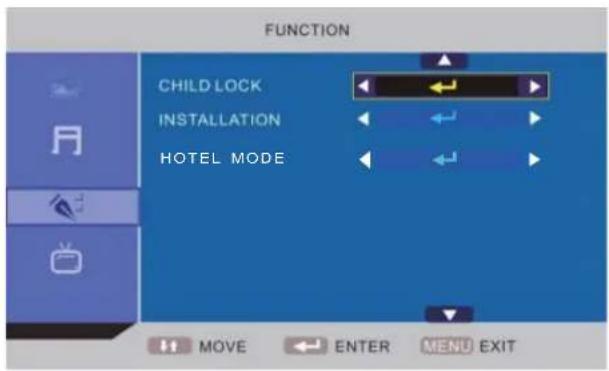

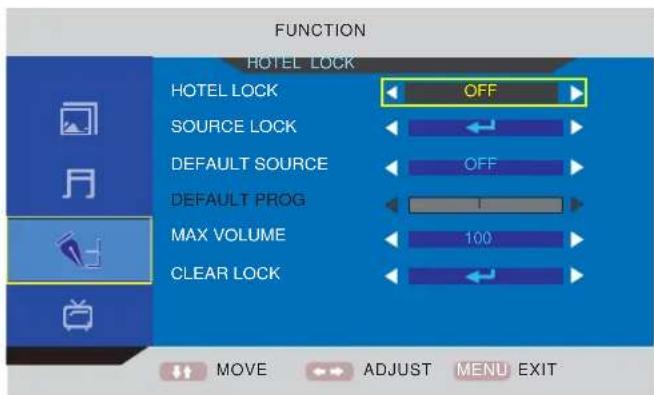

What is Hotel Mode and how do I activate it?

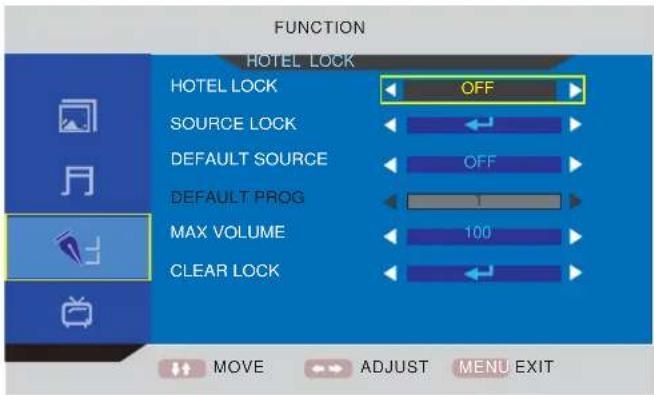

Hotel Mode allows you to lock settings like source, default channel, and maximum volume. Go to MENU > FUNCTION > HOTEL MODE > HOTEL LOCK and set to ON. Then configure SOURCE LOCK, DEFAULT SOURCE, DEFAULT PROG, and MAX VOLUME.

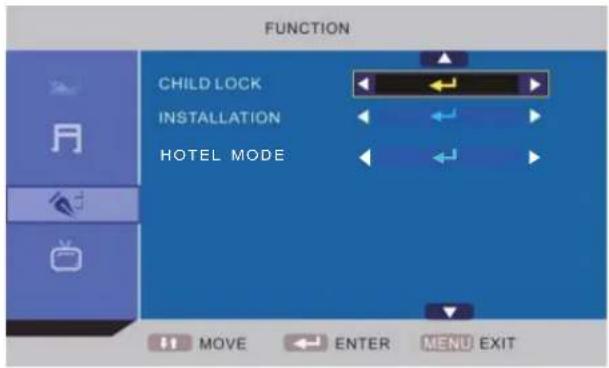

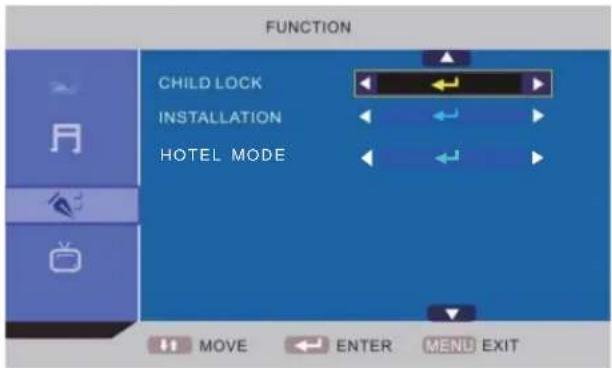

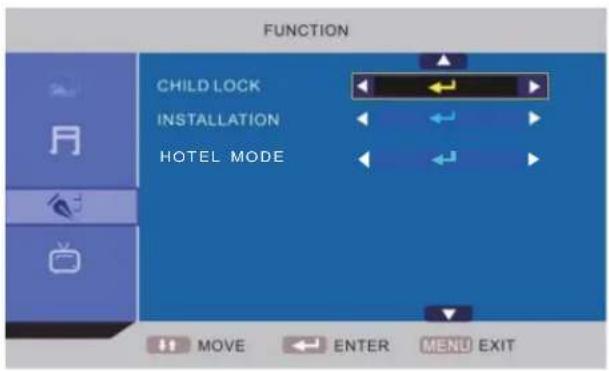

How can I use the child lock feature?

From the FUNCTION menu, select CHILD LOCK. Enter your PIN code (default is 0000) to lock the TV. To unlock, enter the same PIN. If you forget the PIN, use the master code 2008.

How do I clean the LCD screen?

Turn off and unplug the TV. Wipe the screen gently with a clean, soft cloth. Use straight motions from center to edges. Never use chemicals like benzene, thinner, or alcohol, as they may damage the screen.

What should I do if there is no picture or sound?

Check that the power cord is connected properly and plugged into a working outlet. Ensure the correct input source is selected. If only sound is missing, verify the volume is not muted or set too low. For persistent issues, consult the troubleshooting section in the manual.

What is the remote control range?

The remote control works within approximately 8 meters and at an angle of up to 30 degrees from the sensor on the TV. Bright sunlight or lighting may interfere with operation.

How can I connect external devices like a game console?

Use the appropriate input: HDMI for high-definition, AV for composite, Component (Y Pb Pr) for analog HD, or VGA for PC. After connecting, press INPUT to cycle through available sources until the correct one is displayed.

USER MANUAL DVT-2233 LENCO

TROUBLE SHOOTING E19

SPECIFICATIONS ...... E20

Dear Customer:

Thank you for purchasing this LCD TV. When opening the box for the first time, please check whether all the accessories are present. Before connecting parts and power, please carefully read the user manual and always keep these instructions handy and close by your LCD TV.

Remote control X 1

Instruction Manual X 1

Batteries X 2

Power cord X 1

Please check the accessories when open the package. If anything damaged or lacked, consult with your local dealer.

Note:

This handling description is printed prior to product development.

When a part of the product specification must be changed to improve operability or other functions, priority is given to the product specification itself. In such instances, the instruction manual may not entirely match all the functions of the actual product.

Therefore, the actual product and packaging, as well as the name and illustration, may differ from the manual.

The screen shown as an example in this manual may be different from the actual screen display.

If at any time in the future you should need to dispose of this product, please note that: Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice (Waste Electrical and Electronic Equipment).

PRECAUTIONS

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

	This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit.
	This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit.

CAUTION

TO ENSURE CONTINUED SAFETY DO NOT REMOVE ANY COVERS OR ATTEMPT TO GAIN ACCESS TO THE INSIDE OF THE PRODUCT.

REFER ALL SERVICING TO QUALIFIED PERSONNEL.

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

• Do not install the unit in an unstable space.
• Do not exposed the unit to where there are extremes of temperature (below 5°C or exceeding 35°C) or moisture.
• Do not expose the unit to directly sunlight or heat nearby.
• Do not install this unit in a confined space, such as a bookcase or built-in cabinet. For suffi cent ventilation, there should be at least 20 m distance around the apparatus.
• The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc..
• Do not place this unit in any liquid.
• Do not insert any tiny object into the unit through the ventilation.
• The apparatus shall not be exposed to dropping or splashing. No object filled with liquids, such as vases, shall be placed on the apparatus.
• No naked flame sources, such as lighted candles, should be placed on the apparatus.
• Never touch the TV screen or antenna / power cord during thunderstorms. Stop use it during thunderstorms.
• Do not step on the power cord, or twist the power cord wire.
• This product should not be adjusted or repaired by anyone except properly qualified personal when an abnormal condition or trouble happens. Please consult with the qualified service person.
  • Always remove the batteries and store in a dry place if the remote control is not to be used for a long time.
• Avoid drop down the remote control and damage it.
• Always power this unit from an outlet with the same rating (voltage and frequency) as indicated on the rating label at the back of this unit.
• When not in use, disconnect the power cord from the outlet. Grasp the plug, not the cord, when disconnecting the unit.
• This CLASS 1 device should be connected to the AC power plug with earthed-protective, and place the AC power plug at the position easy to plug in and out.
• Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

CONTROLS

MAIN UNIT

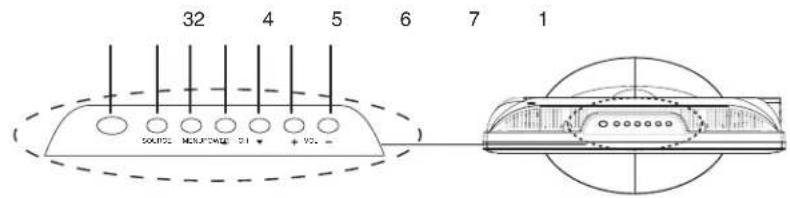

Control buttons

*Power Supply: Obey the same voltage and frequency indication on the rating label of the main unit.

General control buttons

1. Power/Standby button (POWER)
2. Input source select button (SOURCE)
3. Menu button (MENU)
4. Channel up button (▲CH)
5. Channel down button (CH ▼)
6. Volume increase button (+ VOL)
7. Volume decrease button (VOL - )
8. Power indicator
9. Remote sensor
10. Power on/off button

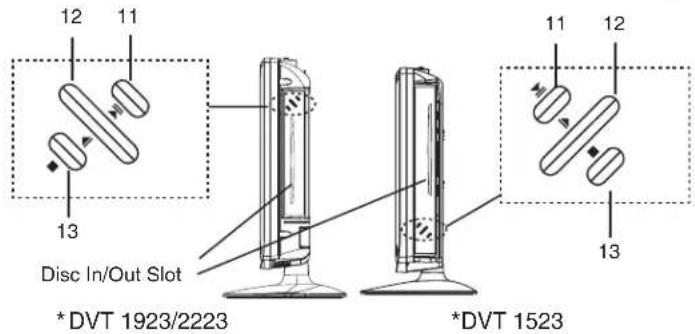

For DVD player

1. Play / Pause button (▶ II)
2. Eject button (▲)
3. STOP button (■)

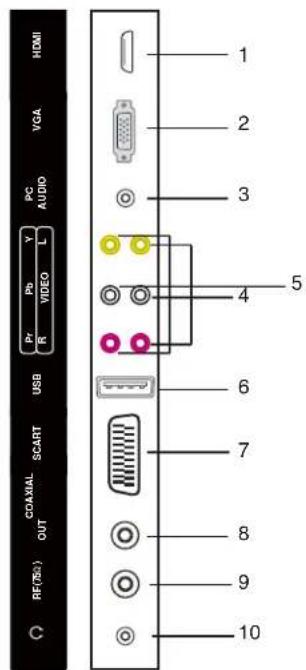

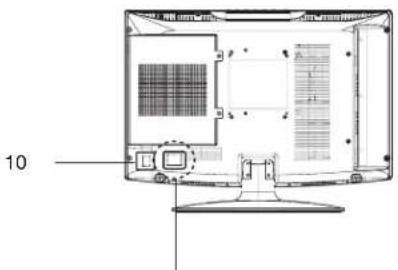

Jacks (Rear Panel)

1. High-Definition Multimedia interface input plug (HDMI)
2. VGA interface input plug (VGA)
3. PC audio input plug (PC AUDIO)
4. Composite audio & video input plug (R/L/VIDEO)
5. Component video input plugs (Y Pb Pr)
6. USB input plug (USB)
7. SCART input plug (SCART)
8. Coaxial output plug (COAXIAL OUT)
9. Antenna/Cable TV input plug (RF 75 Ω)
10. Audio output plug (Ω)

REMOTE CONTROL

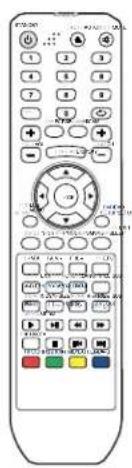

Control buttons

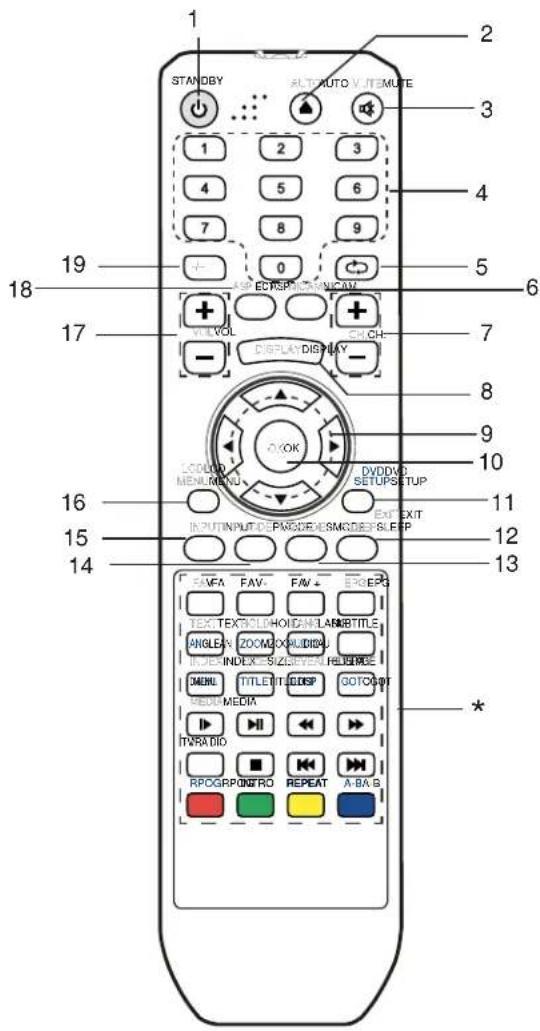

Inserting Batteries

1. Power/Standby button (⊕)

2. DVD eject button (AUTO)

3. Mute button (MUTE)

4. Number buttons (0, 1\~9)

5. Channel return button (←)

6. NICAM mode select button (NICAM)

7. Channel select buttons (+ CH. -)

8. Display button (DISPLAY)

9. Navigation keys (▲, ▶, ▼, ◀)

10. Confirm button (OK)

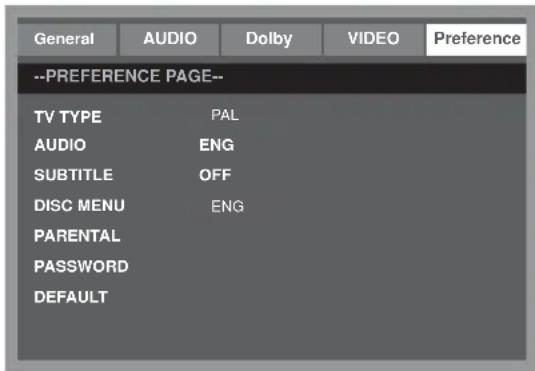

11. DVD setup menu button/Menu exit button (DVD SETUP/EXIT)

12. Sleep timer button (SLEEP)

13. Sound mode button (SMODE)

14. Picture mode button (PMODE)

15. Input source select button (INPUT)

16. LCD menu button (LCD MENU)

17. Volume control buttons (+ VOL -)

18. Display mode select button (ASPECT)

19. Multi-digitals button (-/-)

*. Special buttons:

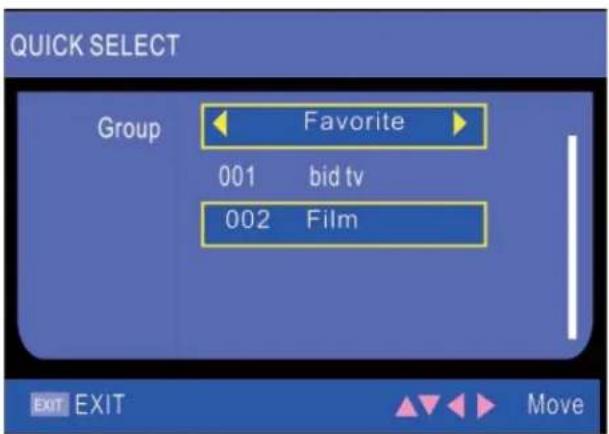

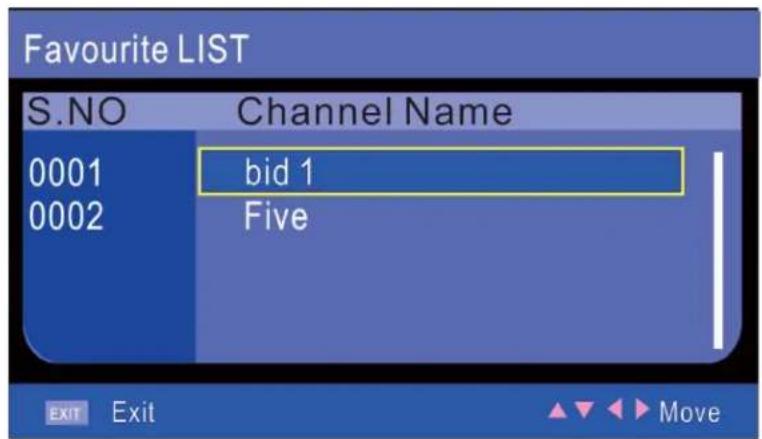

FAV: Favorite program list button

FAV-: Favorite program channel down

FAV+: Favorite program channel up

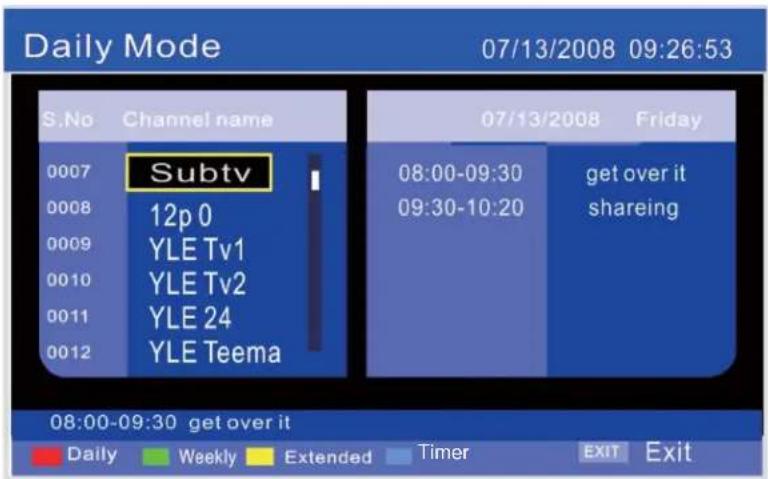

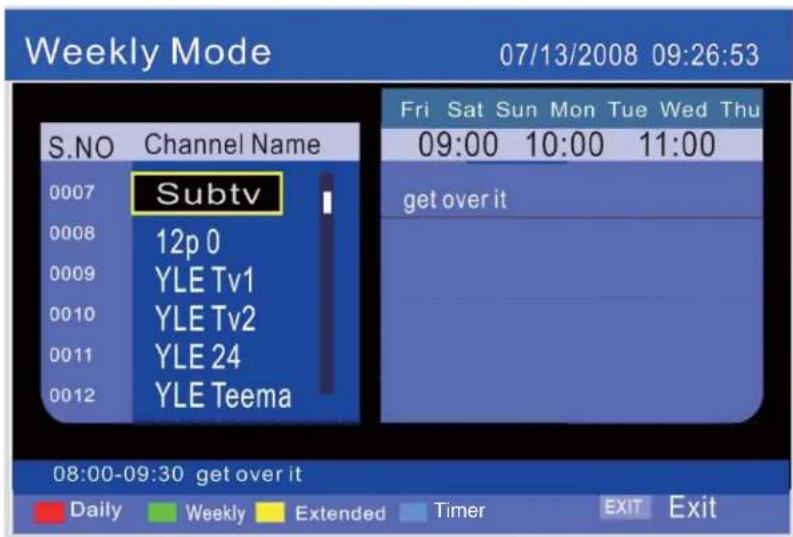

EPG: Electronic program guide

TEXT/ANGLE: Teletext button / DVD angle button

HOLD/ZOOM: Teletext hold button / DVD zoom in/out

LANG/AUDIO: Language / Audio language select button

SUBTITLE: DVD subtitle button

INDEX/D.MENU: Teletext index button / Disc menu button

SIZE/TITLE: Teletext size button / Title button

REVEAL/D.DISP: Teletext reveal button / Disc menu display button

SUBPAGE/GOTO: Teletext subpage button / Go to button

MEDIA/▶: Media select button / DVD step button

▶ II: DVD play/pause button

◀◀: Fast-backward button

▶▶: Fast-forward button

TV/RADIO: TV / Radio select button

■: DVD stop button

◀◀: Previous button

▶▶: Next button

PROG: Red / DVD program button

INTRO: Cyan / DVD introduction button

REPEAT: Yellow / DVD repeat playback button

A-B: Blue / DVD A-B repeat button

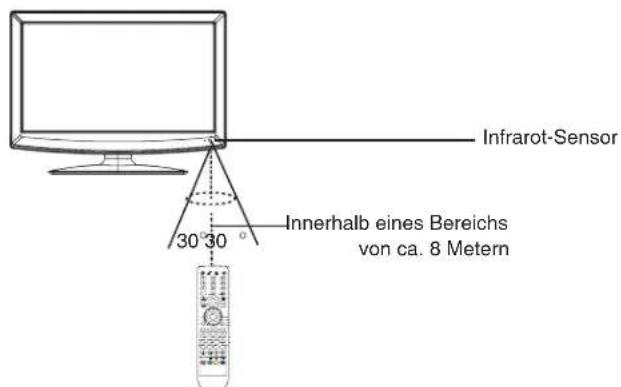

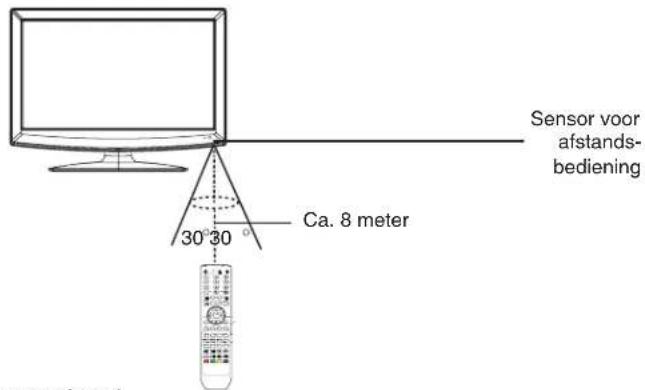

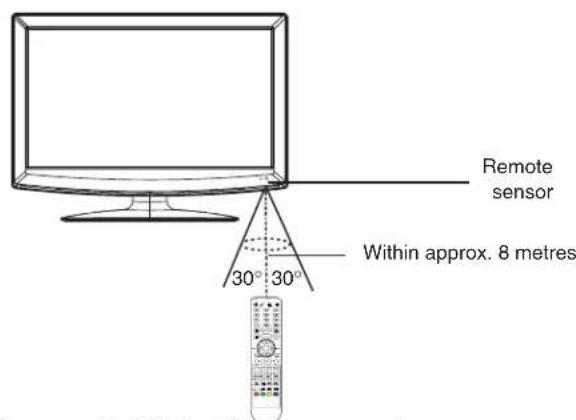

Control Range

Note:
- Bright Sunlight or lighting may cause erratic remote operation.
- Always remove batteries if the remote control is not to be used for more than a month. Batteries left in it may cause damage.
- The buttons on the remote control perform similar function to similarly marked buttons on the main unit.

Teletext Function

TEXT: Press this button to enter teletext state and display teletext page; press this button again, display both image and teletext page at the same time. If you want to exit teletext state, press this button again.

SUBPAGE: It is refer to the subpage of teletext page, i.e subcode page. When it is pressed, the screen display the requirement of subpage code entry. If there is no subpage, it will not be displayed. In most case, there is no subpage.

HOLD: Press this button if you want to keep the displaying of the page and press it again to exit hold state.

SIZE: Press this button if you want to enlarge the content on the upper part of the page, and press the second time to enlarge the content on the lower part of the page, and the third time to resume normal display of all the contents on the page.

REVEAL: Press this button if you want to display the concealed text. Press it again to close the display of concealed text.

INDEX: Press this button if you want to display the index for all the teletext page.

Number buttons 0\~9 on the remote control can be used to get to a certain page. "▲▼" button on the remote control can be used to display the content of previous or next page.

Press the RED/GREEN/YELLOW/CYAN button on the remote control, the page of relevant color displayed on the lower part of the screen will be displayed.

FAST TEXT:

The RED, GREEN, YELLOW & CYAN buttons are used for quick access to color coded pages transmitted by FAST TEXT broadcast.

Example:

RED selects CITY INFORMATION,

CYAN selects TRAVEL INFORMATION,

GREEN selects WEATHER INFORMATION,

YELLOW selects TV PROGRAMMING.

DVD Function

ANGLE: Press to display current playback angle, press again to toggle between different playback angle code in sequent (DVD mode only). Note: Selectable playback angle depends on the availability of the DVD contents.

ZOOM: Press to zoom in the picture. There are 3 zoom modes.

AUDIO: Press to select the sound mode (DVD mode only).

SUBTITLE: Press to display current sub-title.

D.MENU: Press to display the menu for disc.

TITLE: Press to display the title (only for DVD mode).

D.DISP: Press to display the DVD disc information (DVD mode only).

GOTO: Press to activate the on screen scroll down menu for edit.

▶: Press this button again and again to show the picture step by step.

▶ II: Press to play or pause the DVD display (DVD mode only).

◀◀: Press to move backward. There are 5 speeds for backward (DVD mode only).

▶▶: Press to move forward. There are 5 speeds for forward (DVD mode only).

■: Press to stop the DVD display (DVD mode only).

◀◀ Press to play last Title/Chapter/Track (DVD mode only).

▶▶▶: Press to play next Title/Chapter/Track (DVD mode only).

PROG: Press to edit the program of the disc (DVD mode only).

INTRO: Press to preview and introduce DVD disc contents (DVD mode only).

REPEAT: To playback the portion automatically, you could select one of OFF/CHAPTER/TRACK/REP ALL mode (DVD mode only).

A-B: To start the repeat portion from A-B (DVD mode only).

USING THE TV FOR THE FIRST TIME

1. Connect the antenna or DTV STB to the RF 75Ω socket.
2. Turn on the TV unit.

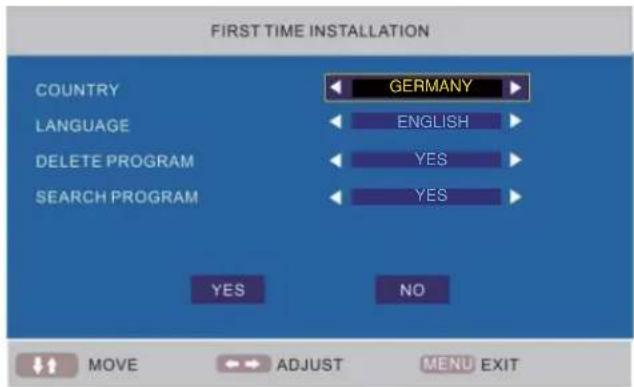

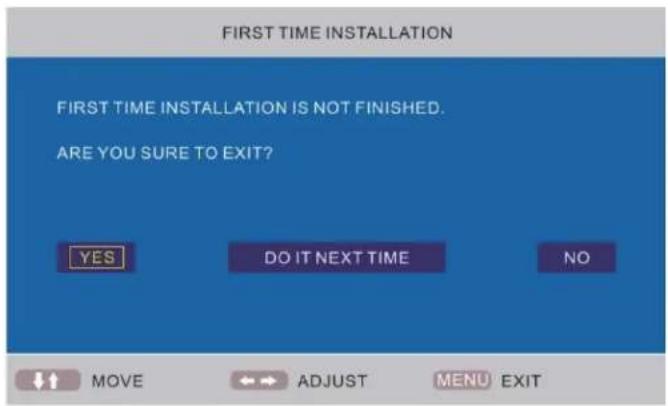

3. The Installing Guide screen appears as below:

1. Press [▲] or [▼] to select the desired settings.
2. Press [◀] or [▶] to adjust the desired settings.
3. Press [▼] to select "YES", and press [OK] to confirm.

Note:

To cancel the first time installation during it's installation process, press [▼] to select "NO", below screen appears:

To cancel clearing channel search, press [MENU].

Note:

The first time installation screen appears again, when the "reset" operation has been done, and then turn off and turn on the main unit.

TV information

Press [DISPLAY] to display the program information.

BASIC OPERATIONS

Make sure all necessary connections are correctly connected before turn on the power.

The power indicator turns red and the unit is in the standby mode.

Turn on the power

Press [⏻] to turn on the main unit.

The power indicator turns blue.

Turn off the power

Press [☐] again can turn off the main unit.

The unit is automatically set standby mode.

The power indicator turns red.

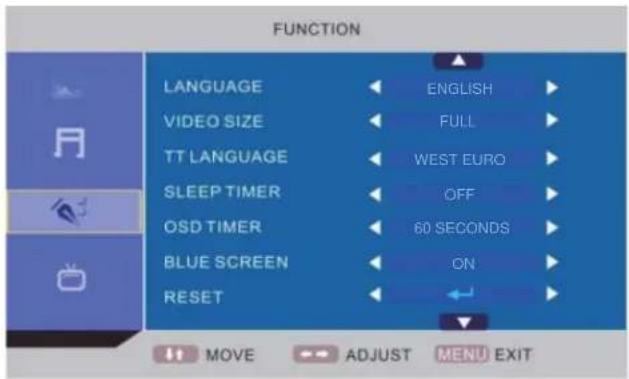

Using the Sleep Timer

The sleep timer automatically switches off the power after a preset time has elapsed. There are 9 time periods available, press [SLEEP] on the remote control repeatedly to select the desired sleep time:

0 Min → 15 Min → 30 Min → 45 Min

→60 Min → 75 Min → 90 Min → 105 Min → 120 Min

(The sleep timer starts when the setting is finished.)

To check the remain sleep time

Press [SLEEP] on the remote control, the remain sleep time appears on the screen for a few seconds.

Select the TV channel

After selected "ATV" or "DTV" as input source, you can do either one of followings to select your channel.

- Press [▲CH] or [CH▼] (or [CH.+] or [CH.-] on the main unit).

or

• Press [0, 1\~9] to input the channel number directly.
• Press [] to go back the previous channel you've watched last time.

Selecting the picture mode

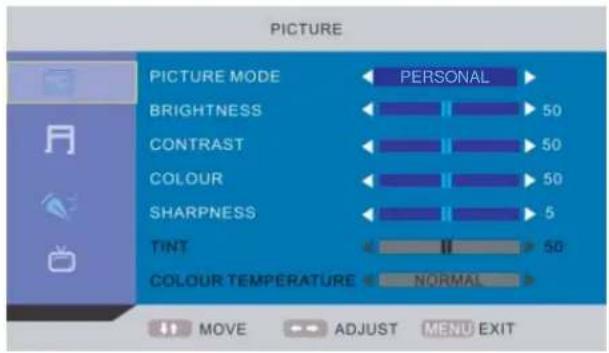

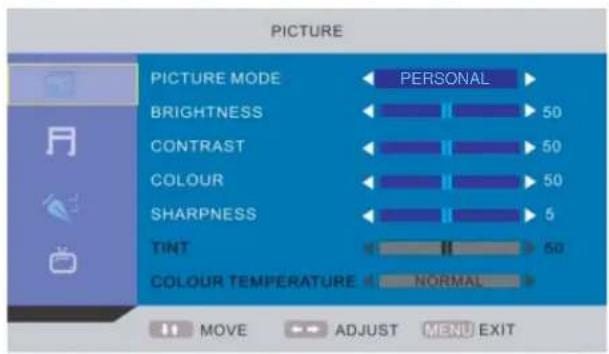

Press [PMODE] repeatedly on the remote control to select the desired picture mode.

Select the input source

Turn on the connected necessary external device. Press [INPUT] to select the proper input source.

The input source menu appears.

1. Press [▲/▼] to move the high-lighted bar to the desired source item.
2. Press [OK] (or [◀▶]) to confirm.

DTV

TV

DVD

AV

SCART

YPBPR

HDMI

PC

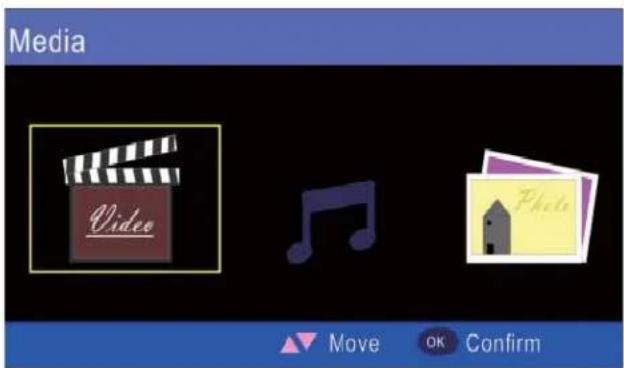

MEDIA

Information of the selected source name appears on the TV for a few seconds.

Information display

Press [DISPLAY] on the remote control, the related information of current source appears on the screen automatically.

Adjusting the volume

Press [VOL-] to reduce the volume.

Press [+VOL] to increase the volume.

or

NICAM Function

Press [NICAM] on the remote control when input source is "TV". This operation do no effect to the channels without NICAM signal.

Once [NICAM] is pressed, it alternates in the different sound options such as mono, stereo, dual I, dual II.

Selecting the audio language

For some programs with audio language options, once [AUDIO] is pressed, it alternates in the different audio language options.

Mute function

Press [MUTE] on the remote control to switch off the sound temporarily.

Press this button again (or [+VOL]), the sound comes back.

Selecting the sound mode

Press [SMODE] repeatedly on the remote control to select the desired sound mode.

OSD MENU SETTING

Navigating through menus

Press [MENU], OSD main menu appears.

Press [▼], the main menu displays sequentially:

PICTURE → SOUND → FUNCTION → TV → DTV → PC → HDMI/YPBPR → MEDIA → ...

When some menu option is gray displayed, that means the option is not available in current setting mode.

Common procedure of operation:

• For each menu, press [▲,▼] on the remote control to select the options of the main menu.
• Press [◀, ▶, ▲, ▼] on the remote control to change or confirm your settings.

(Follow the tips at the bottom of the related OSD screens.)

- After setting of an option is finished, press [MENU] to exit stage by stage, while press [EXIT] to turn off OSD screen directly.

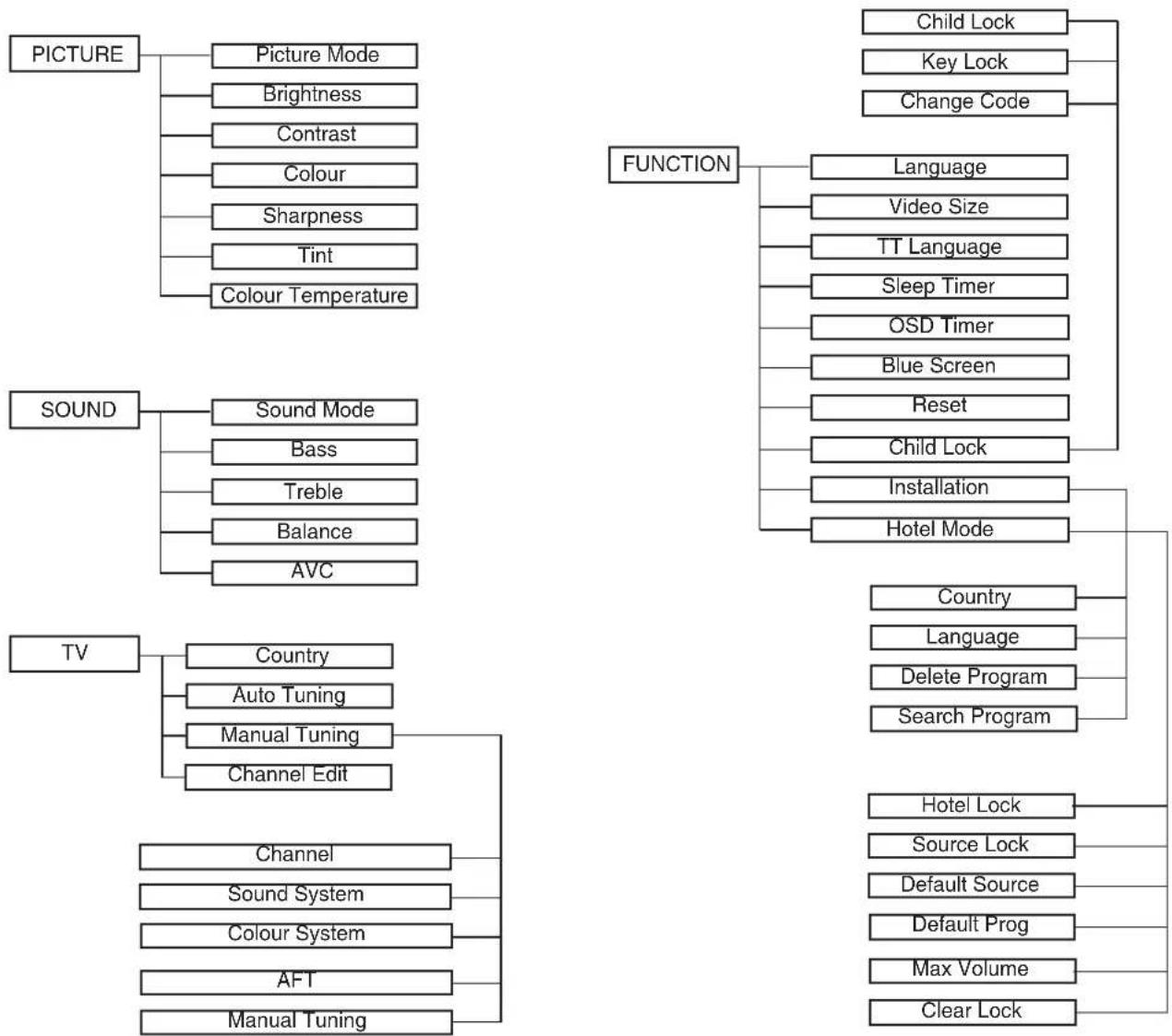

Structure of OSD menu:

    I["SOUND"] --> J["Sound Mode"]
    I --> K["Bass"]
    I --> L["Treble"]
    I --> M["Balance"]
    I --> N["AVC"]

    O["TV"] --> P["Country"]
    O --> Q["Auto Tuning"]
    O --> R["Manual Tuning"]
    O --> S["Channel Edit"]

    T["FUNCTION"] --> U["Language"]
    T --> V["Video Size"]
    T --> W["TT Language"]
    T --> X["Sleep Timer"]
    T --> Y["OSD Timer"]
    T --> Z["Blue Screen"]
    T --> AA["Reset"]
    T --> AB["Child Lock"]
    T --> AC["Installation"]
    T --> AD["Hotel Mode"]

    AE["TV"] --> AF["Channel"]
    AE --> AG["Sound System"]
    AE --> AH["Colour System"]
    AE --> AI["AFT"]

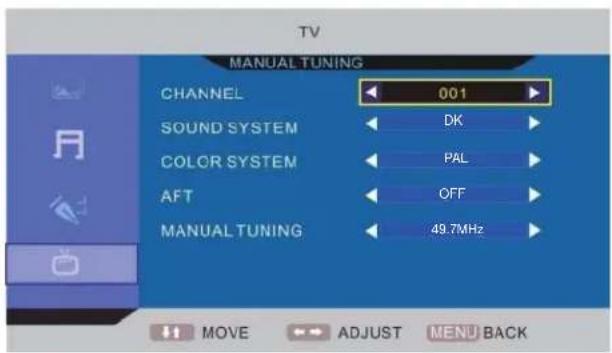

    AE --> AJ["Manual Tuning"]

    AK["FUNCTION"] --> AL["Country"]
    AK --> AM["Language"]
    AK --> AN["Delete Program"]
    AK --> AO["Search Program"]

    AP["TV"] --> AQ["Channel"]
    AP --> AR["Sound System"]
    AP --> AS["AFT"]
    AP --> AT["Manual Tuning"]

    AU["FUNCTION"] --> AV["Child Lock"]
    AU --> AW["Key Lock"]
    AU --> AX["Change Code"]

    AY["FUNCTION"] --> AZ["Country"]
    AY --> BA["Language"]
    AY --> BB["Delete Program"]
    AY --> BC["Search Program"]

    ADY --> BD["Hotel Lock"]
    ADY --> BE["Source Lock"]
    ADY --> BF["Default Source"]
    ADY --> BG["Default Prog"]
    ADY --> BH["Max Volume"]
    ADY --> BI["Clear Lock"]

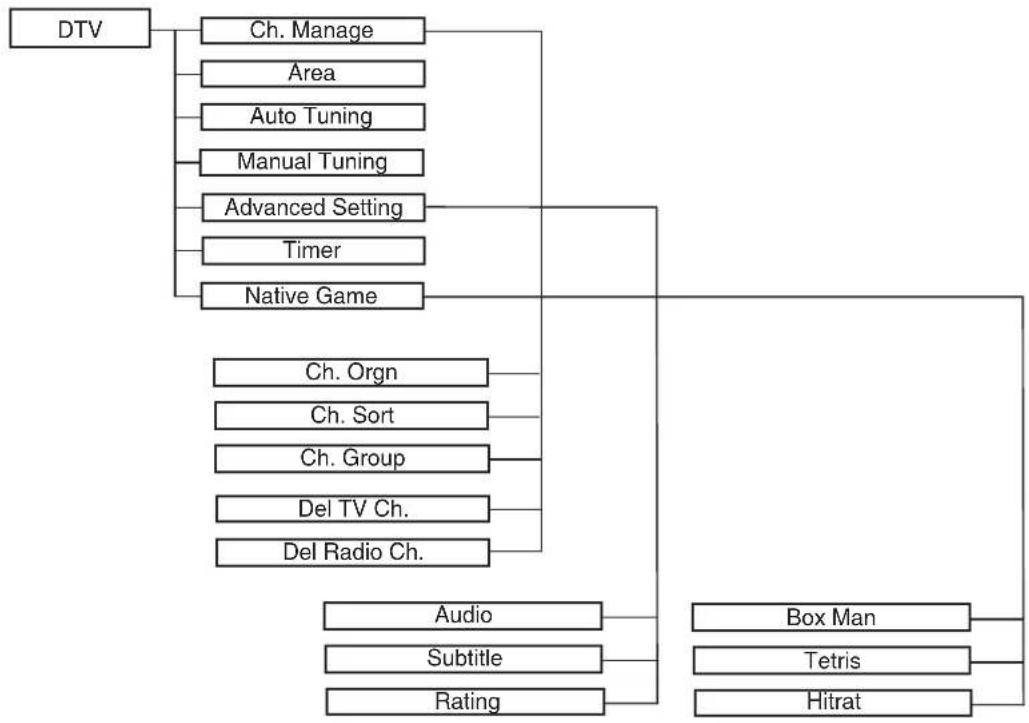

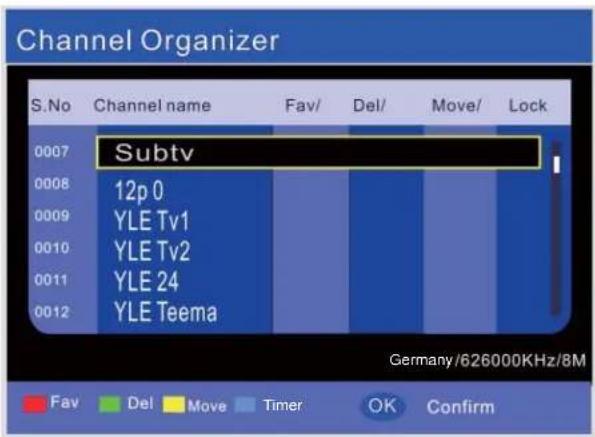

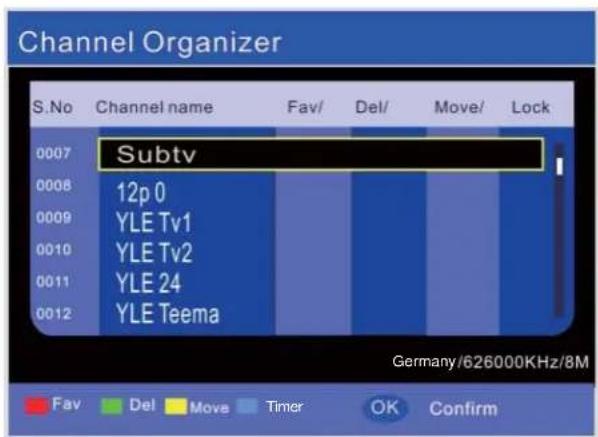

    H --> I["Ch. Orgn"]

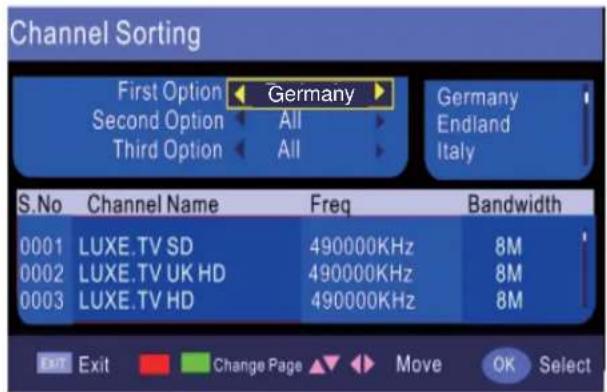

    H --> J["Ch. Sort"]

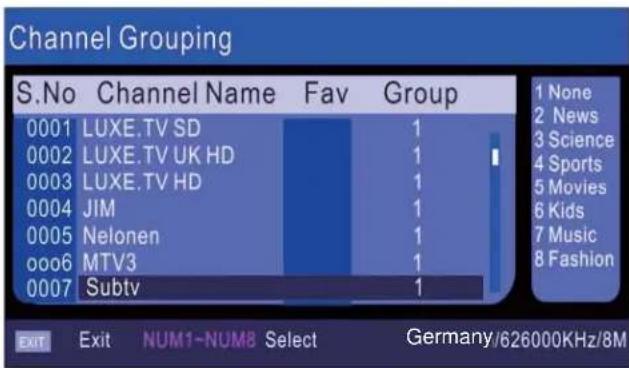

    H --> K["Ch. Group"]
    H --> L["Del TV Ch."]
    H --> M["Del Radio Ch."]
    I --> N["Audio"]
    J --> O["Subtitle"]
    K --> P["Rating"]
    L --> Q["Box Man"]
    M --> R["Tetris"]
    M --> S["Hitrat"]


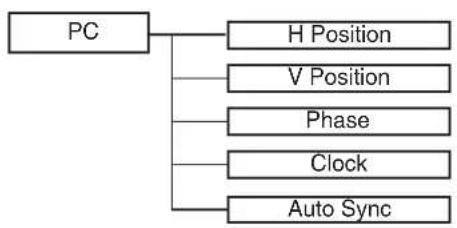

    A["PC"] --> B["H Position"]
    A --> C["V Position"]
    A --> D["Phase"]
    A --> E["Clock"]
    A --> F["Auto Sync"]

Main OSD :

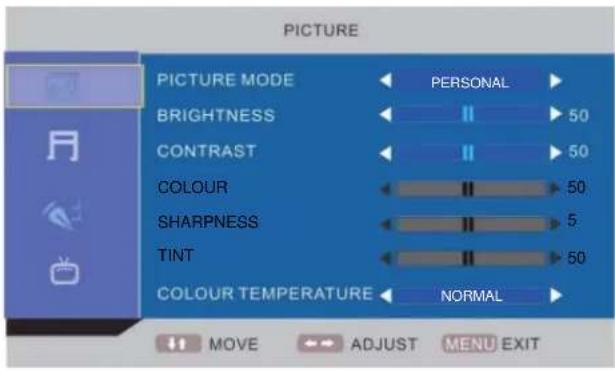

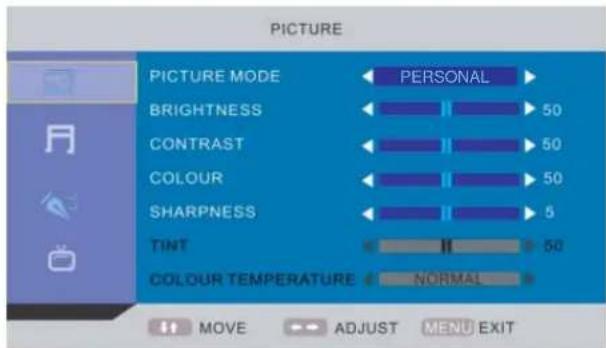

PICTURE MENU

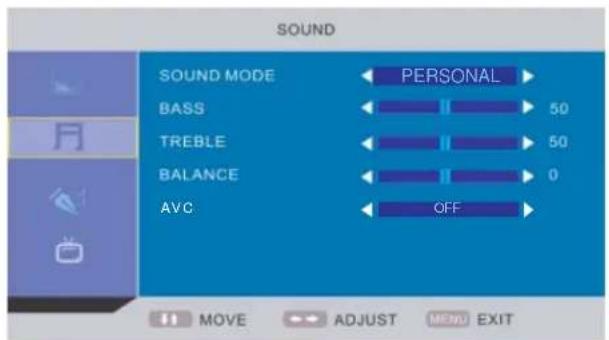

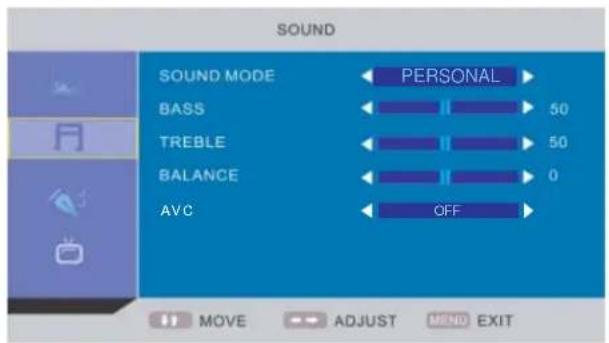

SOUND MENU

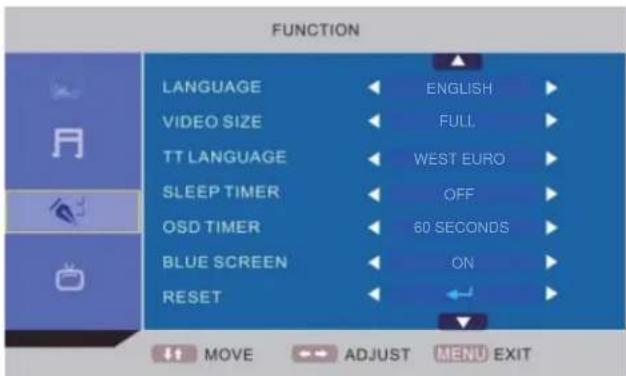

FUNCTION MENU

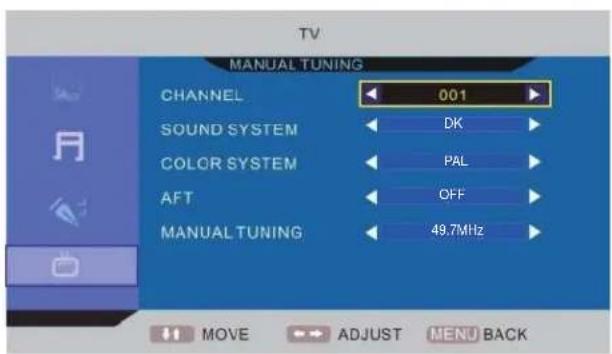

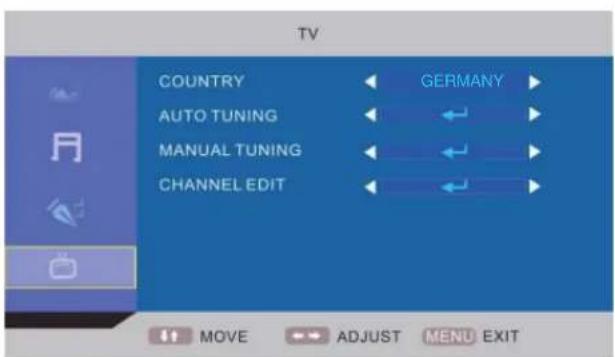

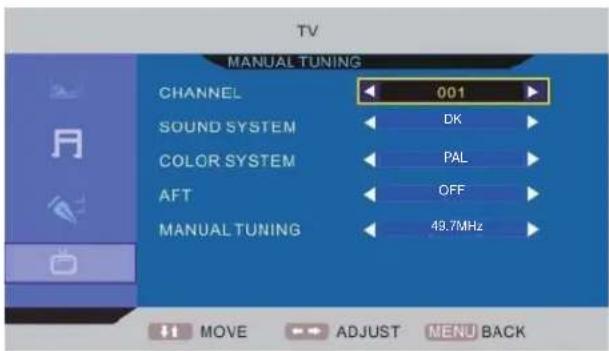

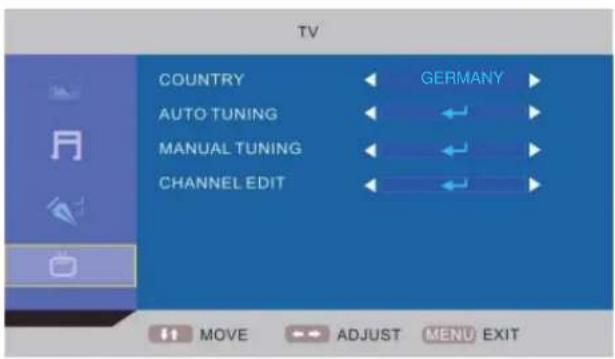

TV MENU

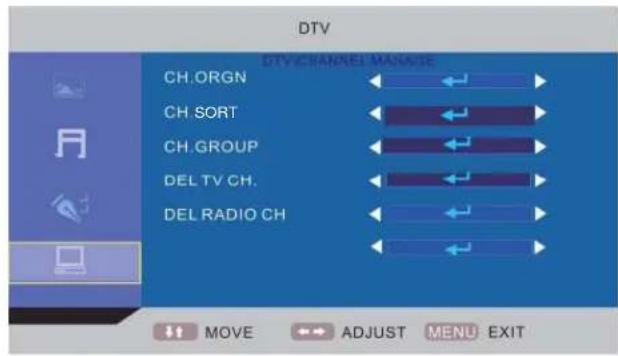

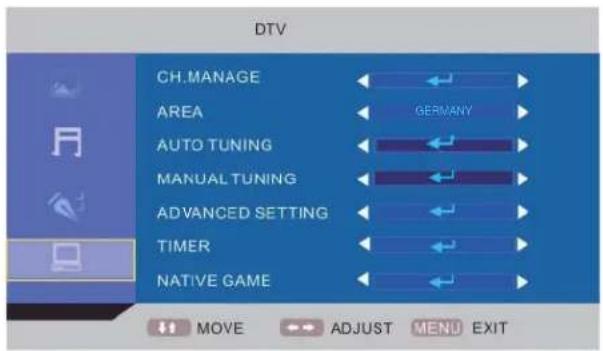

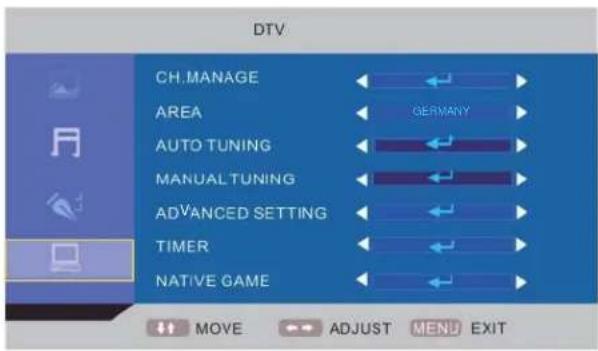

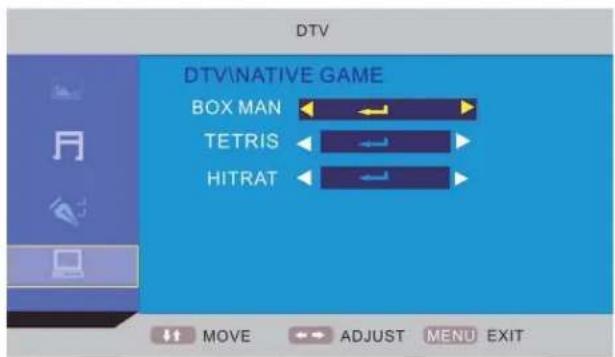

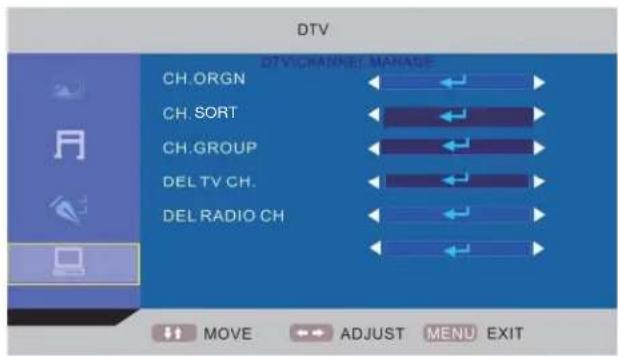

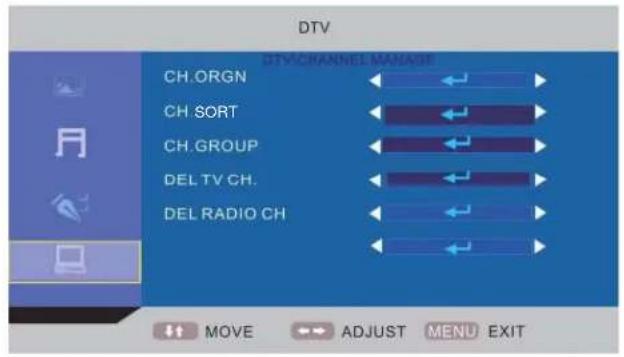

DTV MENU

Note: Press RED button to label it as your favorite channel; press GREEN button to delete the chosen channel; Press YELLOW button to move it to the number you want to sign it and then press [▲▼] to select other channel, and press [OK] to confirm it; press BLUE button to set timer.

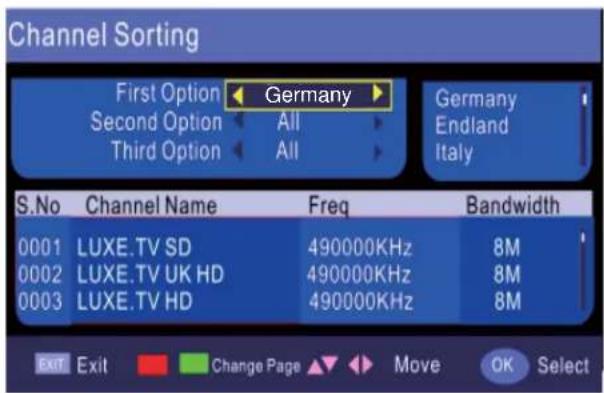

Note: Press RED button to the above page or GREEN button to the bottom page. The bottom page is the list of the channels you have set on the above page.

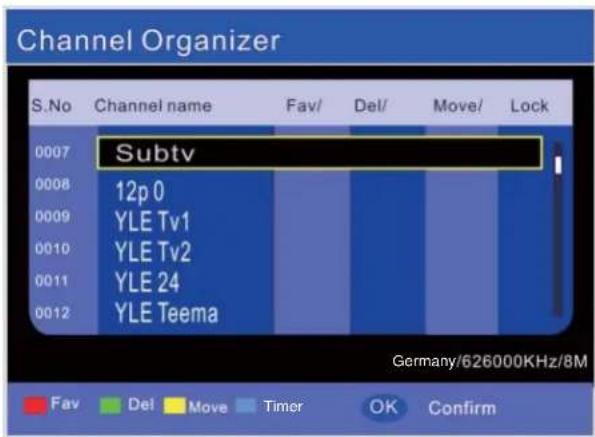

Note: Press [▲▼] to select the channel you want to adjust and press the number (1\~8) which stand for the group (you can see it on the right). Press [EXIT] or [LCD MENU] to back to the upper page.

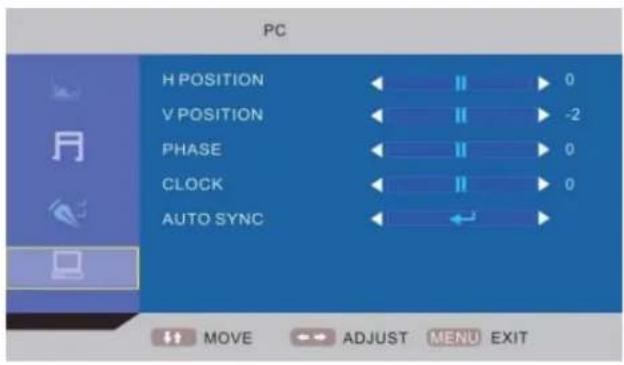

PC MENU

Note: Picture menu is the same as that of TV mode except the COLOUR, SHARPNESS and TINT are invalid (in gray), and COLOUR TEMPERATURE is valid (Available options: WARM, COLD and NORMAL).

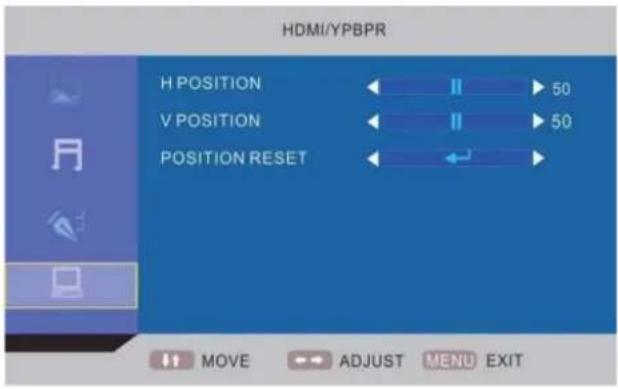

HDMI/YPBPR MENU

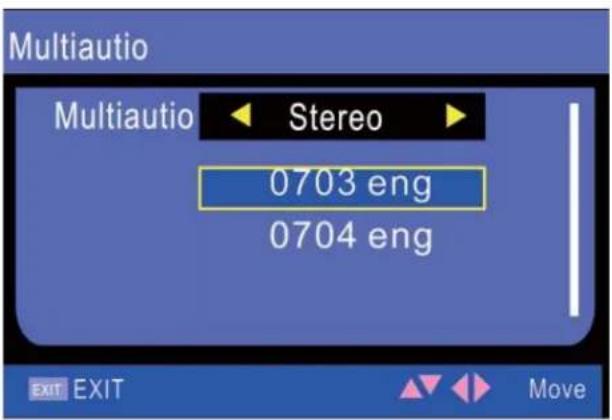

MULTIAUDIO MENU

Note: Press [LANG] to enter the Multiaudio.

MEDIA MENU

Note: Press [◀/▶] to select Video/Music/Photo and press [OK] to enter in.

QUICK SELECT MENU

Note: Press [OK] to enter the Quick Select.

For Digital TV :

Favorite List

Note: Press [FAV] to enter the Favorite List.

EPG Menu

Note: Press [EPG] to enter the Daily Mode.

Press RED button to enter the Daily Mode.

Press GREEN button to enter the Weekly Mode.

Press [◀▶] button to switch program with channel.

Press [▲▼] button to choose channel and program.

Press YELLOW button in program list to enter the Extended Mode.

Press BLUE button in program list to set wakeup timer.

About the Hotel Lock function

Expand the sub-menu stage by stage in turn:

FUNCTION → Hotel Mode → Hotel Lock → ...

Hotel Lock: Have the priority than other options below. To set below options, this item must be set to "ON" firstly. When it set to "On", all options below it are available.

Source Lock: Set the lock to the input source (E.g.: TV,HDMI...) you want to set.

Default source: Set an input source channel as default while turning on the TV unit.

Default Prog: Set a TV programme number as default while alternate into "DTV" or "ATV".

Max Volume: To set the maxinium volume value.

Clear Lock: Clear the locks.

About the PIN Code:

(The default setting is "0000".)

If you forget the password...

Input "2008" to enter it.

Avoid young kids know this password.

BUILD-IN DVD PLAYER OPERATIONS

The following types of discs can be played on this unit.

Disc type and logo mark
DVD
CD	COMPACTDISCDIGITAL AUDIO

Region Number

Region number (Regional restriction code) is built-in to the unit and DVD video discs. Region number "2" of DVD video discs can be used on this unit.

DVD Video Disc

DVD video discs are divided into titles, and the titles are subdivided into chapters.

Chapter 1 Chapter 2 Chapter 1 Chapter 2 Chapter 3

There are the marks on some DVD video disc package. Examples:

3)	Multiple languages
7	Multi-language subtitles
8	Multi-angle
LB 6:9	Multi-aspect
10	Region number
CC	Closed caption

Audio CD Disc

Audio CD discs are divided into tracks.

Track 1 Track 2 Track 3 Track 4 Track 5

CAUTION:

• Only the above types of discs can be played on this unit. DVD-ROM, CD-ROM, CVD, VCD, etc. cannot beplayed.
• This unit can play back the DVD-R that has recorded movie data as well. However, some DVD-Rs cannot be played back depending on the recording conditions.
• The DVD-R that has no movie data cannot be played back.
• The DVD-RW (Video mode) can be played back. However, some DVD-RWs cannot be played back depending on the recording conditions. The DVD-RW (VR mode) cannot be played back.
• The DVD+R/+RW can be played back. However, some DVD+R/+RWs cannot be played back depending on the recording conditions.

Handling, Storing and Cleaning Discs

• Do not touch the disc door while it is moving.
• Never put anything except a 5-inch (12cm) or 3-inch (8cm) DVD (or CD) into the disc in/out slot. Foreign objects can damage the unit.
• Fingerprints and dust should be carefully wiped from the signal surface of the disc (glossy side) with a soft cloth. Wipe in a straight motion from the center to the outside of the disc.
• Never use chemicals such as record cleaning sprays, antistatic sprays or fluids, benzene or thinner to clean the discs. These chemicals will permanently damage the plastic surface of the disc.
• To remove a disc from its storage case, press down on the center of the case and lift the disc out, holding it carefully by the edges.
• Discs should be returned to their cases after use to protect them from dust and scratches.
• To prevent warping the disc, do not expose it to direct sunlight, high humidity or high temperatures for extended periods of time.
• Do not apply paper or write anything on either side of the disc. Sharp writing instruments, or the inks used in some felt-tip pens, may damage the surfaces of the disc.

Basic Playback

"may appear on the TV screen during operation. This icon means that the function is not available on the disc now.

Preparations

1. Turn on the TV and press [INPUT] to select the input source as "DVD",
2. Insert the disc (label facing away from you) to the disc in/out slot (side panel) until it clicks.

The TV starts to play automatically the first file/track/chapter.

Note:

While in other function, it alternate to "DVD" function and starts playback automatically when insert a playable disc into the disc in/out slot.

Stop Playback

[CD]

Press [▶ II] to stop the playing back disc temporarily, press this button again to resume playback.

[DVD]

Press [■] once to stop the playing back disc temporarily.
Press [■] twice to stop the playing back disc completely.

Various disc playing functions

Selecting a DVD menu

Notes:

•The operation may differ depending on the disc used.
- Selecting a menu may not be possible on some discs.

1. Press [DISC MENU] during playback.

The main menu screen will appear.

1. Press [▲], [▼], [◀] or [▶] (or the number buttons) to select the desired menu.

2. Press [OK]. The selected menu playback starts.

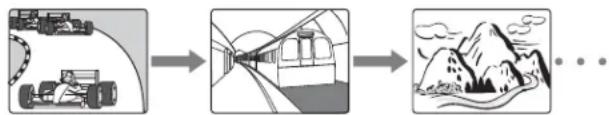

Chapter (Track) Skip

Skipping forward

Press [▶▶] during playback to skip to the next chapter (or track).

Skipping backward

Press [◀◀] during playback to skip back to the previous chapter (or track).

Note:

You can skip only through the chapters, not over the title on the DVD disc.

Title search [DVD]

Press [GOTO].

Press the number buttons to enter the desired title number.

Example:

T: 01/01 C: 01/15

Repeat playback

Press [REPEAT] during playback to activate repeat mode:

[DVD]

If you want to... Press [REPEAT] ..
Repeat chapter (CHAPTER)	Once
Repeat title (TITLE)	Twice
Repeat all (ALL)	Three times
Repeat off Four times

[CD]

If you want to... Press [REPEAT] ...
Repeat current track Once
Repeat all tracks Twice
Repeat off Three times

Designated Range Repeat Playback(A-B Repeat)

1. Press [A-B] during playback at the beginning of the section you want to repeat (Point A).
   •“A” appears on the TV screen.
2. Press [A-B] again at the end of the section you want to repeat (Point B).
3. “AB” appears briefly on the TV screen.
4. To return to normal playback, press [A-B] again.

Selecting Subtitle Language [DVD]

Press [SUBTITLE] repeatedly during playback until the desired subtitle language appears on the TV screen.

Example:

SUBTITLE 01/03 ENG

Note:

Not all disc supports this function.

Selecting Audio Soundtrack Language(Multi-Language) [DVD]

This operation works only with discs on which multiple audiosoundtrack languages are recorded.

Hello! Holà! ¡Hola!

Press [AUDIO] repeatedly during playback until the desired language appears on the TV screen.

Notes:

• When the desired language is not selected even if the button is pressed, the language is not available on the disc.
• When the power is turned on or the disc is replaced, select the language again.
• If the language is not recorded on the disc, only the available language on the disc will be heard.

Selecting On-Screen Information

Press [DISPLAY] repeatedly to show the disc information(Title, Chapter, Title elapsed playing time, Language, etc.).

KODAK Picture/JPEG CD Playback

To start the slide show from the thumbnail pictures:

1. Press [▲], [▶], [▼] or [◀] to select the desired picture.

2. To go to the next or previous thumbnail pictures, press[▶▶] or [◀◀].

3. Press [OK] or ▶ (Play) to start the slide show from the selected picture.

During the slide show:

• Press [1] to pause. Press [▶] (Play) to continue.
  -Press [▶▶] or [◀◀], it skips to the next or previous file.
• If the picture appears upside down or sideways, press [▲], [▶], [▼] or [◀] to flip / rotate the picture.

Initial settings

Once the initial settings have been completed, the unit canalways be operated under the same conditions. The settings will be retained in the memory until they are changed, even if the power is turned off.

• Press [DVD SETUP] to activate the DVD player OSD menu.
• Press [▶] or [◀] to move and highlight between different sub-menu.
• Press [▲] or [▼] to enter the highlighted sub-menu.
• Press [DVD SETUP] to exit the OSD menu.

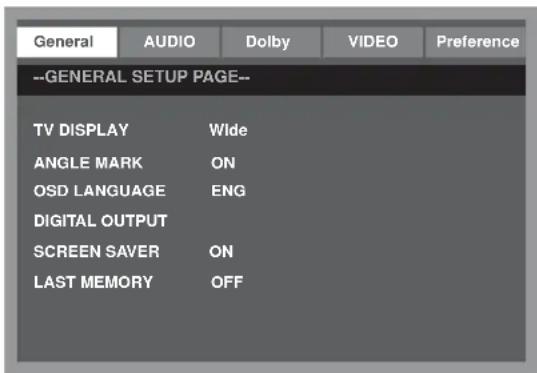

General setup menu

Audio setup menu

Dolby Digital setup menu

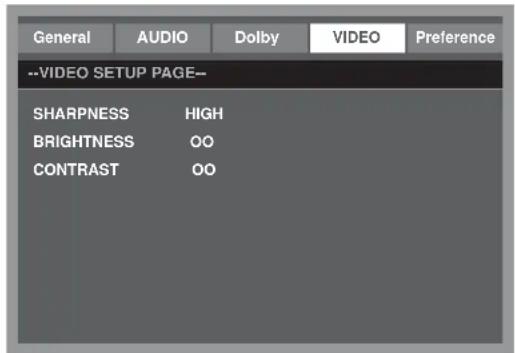

Video setup menu

Preference setup menu

IMPORTANT NOTICE

The factory setting of PIN Code is "0000". If you forgot the password you've set, input the initial password "2008".

MAINTENANCE

WARNING:

FOR YOUR PERSONAL SAFETY, BE SURE TO DISCONNECT THE AC POWER CORD BEFORE PROCEEDING WITH ANY MAINTENANCE OR CLEANING.

Cleaning the LCD Panel

The LCD panel should not be toughed with sharp objects. If dust and fingerprints is on the LCD panel surface, wipe them off with a clean soft cloth.

Wipe in a straight motion from the center to the outside of the LCD panel.

Never use chemicals such as record cleaning sprays, antistatic sprays or fluids, benzene or thinner to clean the LCD panel.

Cleaning the Main Unit

Clean the outside of the unit with a clean soft cloth moistened with luke-warm water. Do not use benzene, thinner or alcohol since they will mar the fi nish of the surface.

TROUBLESHOOTING

Symptom

Possible cause

Corrective active

No Picture and sound.

Power cord is not correctly connected with the main unit. Connected the power cord with the main unit.

Power cord is not plugged into an AC outlet. Plug the power cord into an AC outlet.

The wrong input source is selected. Select a correct input source.

The input source is failed to connect with the TV. Make correct connections.

No sound only.

Volume control is set to minimum.

Press the VOL+ button to increase the volume.

The ☒ button on the remote control is pressed. Press the ☒ (or VOL+/-) button to release the volume.

An incorrect sound system mode is setted. Set a correct sound system from the main menu to match your TV.

Symptom

Possible cause

Corrective active

No picture only, or monochrome picture.

The color system setting doesn't match the program. Set the proper color system setting.

The sound system setting doesn't match the program. Set the proper sound system setting.

Interfered sound or picture.

Some equipment that brings interference is nearby the TV. Keep these things away from the TV.

Multi devices plug into the same one AC outlet collections. Plug the power cord into another AC outlet.

An incorrect sound system mode is setted.

Set a correct sound system from the main menu to match your TV.

Note:

A few bright dots and dark dots may appear on the TV screen, that is normal appearance.

SPECIFICATIONS

DVT 1533

Display Features

Display Type LCD

Screen Size 15.6 inch

Aspect ratio 16:9

Active Area 347.5 (H) X 196.8 (V)

Panel Resolution 1366 (H) X 768 (V)

Brightness 250 ^2 cd/m

Contrast Ratio 500:1

Dot Pitch 0.252 (H) X 0.252 (V) mm

Maximum Color 16.7 M

Response Time 8 ms

Features

HD compatible 480I, 480P, 576I, 576P, 720P, 1080I, 1080P

Wall mounting VESA 100

TV Reception

TV System: PAL / SECAM

Sound System B/G, I, D/K, L/L'

Antenna Impedance: 75 Ohm

Tuner receiving range:

ATV 49MHz - 863MHz

DTV VHF (174MHz - 230MHz)

UHF (474MHz - 862MHz)

Power Requirements

Power Input 100-240V \~ 50/60 Hz

Power Consumption

Maximum < 40W

DVD Features

Laser Wave Length 650 nm / 795 nm

DVD Region Number 2

Connections

Input:

TV Tuner (RF 75Ω) 1

Component Video Input (Y Pb Pr) 1

Video Input (AV) 1

SCART 1

VGA Input (VGA) 1

PC audio Input (PC AUDIO) 1

HDMI input (HDMI) 1

USB port 1

Output:

Coaxial output jack (COAXIAL OUT) 1

Earphone (♀) 1

VGA Resolutions Supported

up to 1360 x 768

Dimension(WxHxD)

Unit W/stand/speakers 402 x 313 x 160 mm

Unit W/O stand 402 x 282 x 65 mm

Weight(N.W.)

Unit W/stand/speakers 3.5 Kg

Environment

Operating Temperature 5°C-35°C

Operating Humidity 20%-80%

Note:

Specifications subject to change without notice.

DVT 1933

Display Features

Display Type LCD

Screen Size 18.5 inch

Aspect ratio 16:9

Active Area 409 (H) X 230(V)

Panel Resolution 1366 (H) X 768 (V)

Brightness 250 ^2 cd/m

Contrast Ratio 1000:1

Dot Pitch 0.3 (H) X 0.3 (V) mm

Maximum Color 16.7 M

Response Time 5 ms

Features

HD compatible 480I, 480P, 576I, 576P, 720P, 1080I, 1080P

Wall mounting VESA 100

TV Reception

TV System: PAL / SECAM

Sound System B/G, I, D/K, L/L'

Antenna Impedance: 75 Ohm

Tuner receiving range:

ATV 49MHz - 863MHz

DTV VHF (174MHz - 230MHz)

UHF (474MHz - 862MHz)

Power Requirements

Power Input 100-240V \~ 50/60 Hz

Power Consumption

Maximum < 50W

DVD Features

Laser Wave Length 650 nm / 795 nm

DVD Region Number 2

Connections

Input:

TV Tuner (RF 75Ω) 1

Component Video Input (Y Pb Pr) 1

Video Input (AV) 1

SCART 1

VGA Input (VGA) 1

PC audio Input (PC AUDIO) 1

HDMI input (HDMI) 1

USB port 1

Output:

Coaxial output jack (COAXIAL OUT) 1

Earphone (♀) 1

VGA Resolutions Supported

up to 1360 x 768

Dimension(WxHxD)

Unit W/stand/speakers 466 x 353 x 180 mm

Unit W/O stand 466 x 309 x 73 mm

Weight(N.W.)

Unit W/stand/speakers 4.7 Kg

Environment

Operating Temperature 5°C-35°C

Operating Humidity 20%-80%

Note:

Specifications subject to change without notice.

DVT 2233

Display Features

Display Type LCD

Screen Size 21.6 inch

Aspect ratio 16:9

Active Area 477.5(H) x 268.5(V)

Panel Resolution 1920 (H) X 1080 (V)

Brightness 300 ^2 cd/m

Contrast Ratio 1000:1

Dot Pitch 0.248(H) X 0.248(V) mm

Maximum Color 16.7 M

Response Time 5 ms

Features

HD compatible 480I, 480P, 576I, 576P, 720P, 1080I, 1080P

Wall mounting VESA 100

TV Reception

TV System: PAL / SECAM

Sound System B/G, I, D/K, L/L'

Antenna Impedance: 75 Ohm

Tuner receiving range:

ATV 49MHz - 863MHz

DTV VHF (174MHz - 230MHz)

UHF (474MHz - 862MHz)

Power Requirements

Power Input 100-240V \~ 50/60 Hz

Power Consumption

Maximum < 72W

DVD Features

Laser Wave Length 650 nm / 795 nm

DVD Region Number 2

Connections

Input:

TV Tuner (RF 75Ω) 1

Component Video Input (Y Pb Pr) 1

Video Input (AV) 1

SCART 1

VGA Input (VGA) 1

PC audio Input (PC AUDIO) 1

HDMI input (HDMI) 1

USB port 1

Output:

Coaxial output jack (COAXIAL OUT) 1

Earphone (♀) 1

VGA Resolutions Supported

up to 1920 x 1080

Dimension(WxHxD)

Unit W/stand/speakers 534 x 399 x 196 mm

Unit W/O stand 534 x 354 x 76 mm

Weight(N.W.)

Unit W/stand/speakers 5.5 Kg

Environment

Operating Temperature 5°C-35°C

Operating Humidity 20%-80%

Note:

Specifications subject to change without notice.

Lenco

DVT 1533

DVT 1933

DVT 2233

BENUTZER-

HANDBUCH

Inhalt

Fernbedienung X 1

Reichweite

Bildschirmmenü:

BILDMENÜ

AUDIOMENÜ

Funktionsmenü

FERNSEHMENÜ

DTV-MENÜ

Nach vorne Springen

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

CAUTION: TO PREVENT THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Bedieningsbereik

ROOD selecteert STADSINFORMATIE,

CYAAN selecteert REISINFORMATIE,

GROEN selecteert WEERINFORMATIE,

GEEL selecteert TV PROGRAMMERING.

DVD Functies

Hoofd OSD:

BEELDMENU

GELUIDSMENU

FUNCTIEMENU

TV MENU

DTV MENU

FUNCTION → Hotel Mode → Hotel Lock → ...

Track 1 Track 2 Track 3 Track 4 Track 5

LET OP:

Vooruit Overslaan

Hello! Holà! ¡Hola!

Dolby Digital setupmenu

Video setupmenu

Voorkeur setupmenu

BELANGRIJKE MEDEDELING

Abstract geometric design with overlapping planes and lines (no text or symbols)

If at any time in the future you should need to dispose of this product please note that: Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. (Waste Electrical and Electronic Equipment Directive)
