USER MANUAL Caldo Vintage OLIMPIA SPLENDID

Yellow portable hair dryer with black mesh grille and black buttons (no visible text or symbols)

INSTRUCTIONS FOR INSTALLATION, USE AND MAINTENANCE EN

THIS PRODUCT IS ONLY SUITABLE FOR WELL INSULATED SPACES OR OCCASIONAL USE

INSTRUCTIONS POUR L'INSTALLATION, L'EMPLOI ET L'ENTRETIEN FR

CE PRODUIT NE PEUT ÊTRE UTILISÉ QUE DANS DES LOCAUX BIEN ISOLÉS OU DE MANIÈRE OCCASIONNELLE

Two circular diagrams with internal shapes, one containing a vertical bar and the other a small circle (no text or symbols)

Simple circular diagram with a smiling face at the center, no text or symbols present.

Simple line drawing of a circular object with a ring and base (no text or symbols)

We wish to thank you, first of all, for purchasing an heater produced by our company.

This document is restricted in use to the terms of the law and may not be copied or transferred to third parties without the express authorization of the manufacturer. Our machines are subject to change and some parts may appear different from the ones shown here, without this affecting the text of the manual in any way.

Read this manual carefully before performing any operation (installation, maintenance, use) and follow the instructions contained in each chapter.

Keep the manual carefully for future reference.

After removing the packaging, check that the appliance is in perfect condition.

The packaging materials must not be left within reach of children as they can be dangerous.

THE MANUFACTURER IS NOT RESPONSIBLE FOR DAMAGES TO PERSONS OR PROPERTY CAUSED BY FAILURE TO FOLLOW THE INSTRUCTIONS IN THIS MANUAL.

The manufacturer reserves the right to make any changes it deems advisable to its models, although the essential features described in this manual remain the same.

During installation and maintenance, respect the precautions indicated in the manual, and on the labels applied inside the units, as well as all the precautions suggested by good sense and by the safety regulations in effect in your country.

SYMBOLS

The pictograms in the next chapter provide the necessary information for correct, safe use of the machine in a rapid, unmistakable way.

Editorial pictograms

Service

- Refers to situations in which you should inform the SERVICE department in the company: CUSTOMER TECHNICAL SERVICE.

Index

- Paragraphs marked with this symbol contain very important information and recommendations, particularly as regards safety.

Failure to comply with them may result in:

- danger of injury to the operators

- loss of the warranty

- refusal of liability by the manufacturer.

Raised hand

- Refers to actions that absolutely must not be performed.

Safety pictograms

Danger of high voltage

- Signals to the personnel that the operation described could cause electrocution if not performed according to the safety rules.

Generic danger

- Signals to the personnel that the operation described could cause physical injury if not performed according to the safety rules.

Danger due to heat

- Signals to the personnel that the operation described could cause burns if not performed according to the safety rules.

Do not cover

- Inform all interested personnel that to avoid overheating, it is forbidden to cover the appliance.

DISPOSAL

Pursuant to Directive 2012/19/EU on waste electrical and electronic equipment (WEEE), the crossed bin symbol on the appliance or its packaging indicates that the appliance must be disposed of separately from other waste at the end of its useful life. The user must therefore take the appliance to an appropriate recycling centre for electrical and electronic equipment. Alternatively, instead of handling the disposal, the user can hand over the appliance to the retailer when a new, equivalent one is purchased. The user can hand over electronic products measuring less than

25 cm to retailers of electronic products having a sales area of at least 400 m2 free of charge and with no obligation to buy. Appropriate separate collection for the subsequent procedure for the decommissioned appliance for recycling, which includes treatment and environmentally friendly disposal helps prevent adverse effects on the environment and health and promotes reusing and/or recycling materials that the appliance consists of.

WARNINGS

- Before connecting, make sure that the plate data corresponds the mains electrical supply.

The plate can be found on the back.

- Install it according to the manufacturer's instructions An incorrect installation can cause damage to people, animals or property for which the manufacturer accepts no responsibility.

EN

• Always and only use it in a vertical position.
• Always unreel the cable completely during use.

If the power cord is damaged, it must be replaced by the manufacturer, his technical service or a similarly qualified person in order to eliminate all possible risks.

- Install it in such a way that the switches and other controls not be reached by persons using the bath or shower.

• Only use extensions with great attention.
• Keep all objects at least 1.5 meter from the front, sides and rear of the appliance.
• Do not place appliance close to a radiant heat source.
• Do not operate in areas where gasoline, paint or other flammable liquids are used or stored.
• Do not use the appliance to dry clothes.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening, as this may cause an electric shock, fire or damage to the appliance.
• Do not allow cord to come in contact with heated surfaces during operation.
• Do not run cord under carpeting, throw rugs or runners etc. Arrange cord away from traffic areas so that it will not be tripped over.
• Do not twist, kink or wrap the cord around the appliance, as this may cause the insulation to weaken and split.
• Do not store appliance while it is still hot.
• Do not use this appliance outdoors, or on wet surfaces. Avoid spilling liquid on the appliance.
• Do not use this heater with programmer, timer or any other device that switches the heater on automatically since a fire risk exists if the heater is covered or positioned incorrectly.
• This heater is intended for floor use only. Do not mount on ceiling or walls.
• Do not operate the heater near curtains, as the material could be sucked into the air vents.
• It is forbidden to dispose of or leave in the reach of children the packaging materials which could become a source of danger.
• It is forbidden for the appliance to be used by children or unassisted disabled

EN

persons.

• The appliance may be used by children over 8 years of age and by persons with reduced physical, sensorial or mental capacities, or without the required experience or knowledge, provided they are supervised or have been instructed in the safe use of the appliance and understand the hazards involved.
• Children must not play with equipment.

Children must not be allowed to clean the appliance or perform user maintenance without proper supervision.

• Children of less than 3 years should be kept away unless continuously supervised.
• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

CAUTION – Some parts of this product may become very hot and could cause burns. Be very careful when children or vulnerable adults are nearby.

WARNING: in order to avoid overheating, do not cover the heater.

For correct use of the thermo fan NEVER:

• Place it immediately underneath a mains wall socket.
• Pull the power cable or the appliance itself to remove the plug from the mains socket.
• Leave it expose to atmospheric agents (rain, sun, etc.).
• Leave it plugged in when not in use.
• Touch it with wet or damp hands.
• This appliance is intended for household use only and not for commercial or industrial use.
• Use this appliance only as described in this manual. Any other use is not recommended by the manufacturer and may cause fire, electric shock or injury.

EN

• The most common cause of overheating is deposits of dust or fluff in the appliance. Ensure these deposits are removed regularly by unplugging the appliance and vacuum cleaning air vents and grilles.
• Do not use abrasive cleaning products on this appliance. Clean with a damp cloth (not wet) rinsed in hot soapy water only. Always remove plug from the mains supply before cleaning.
• Do not connect the appliance to the mains voltage until completely assembled and adjusted.
• Switch off and use handles where provided when moving.
• Do not remove plug from power socket until the appliance has been switched off.

After removing the packing, make sure that the appliance is complete, without visible damage that could have been caused during transport. In case of doubt, do not use the appliance and contact the authorised Technical Assistance centres.

When left unattended, always disconnect from the power supply.

INSTRUCTIONS FOR USE

5 6 1 2

4 3

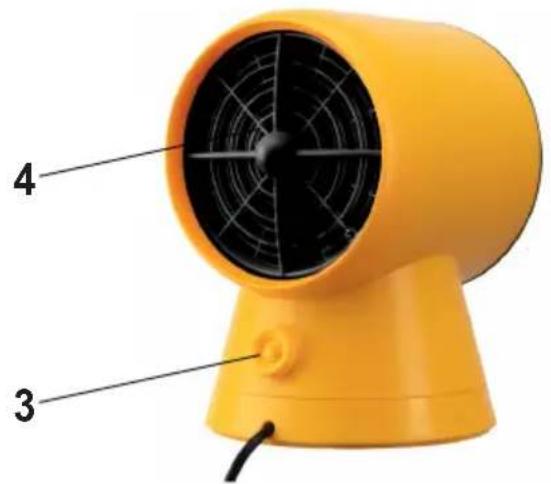

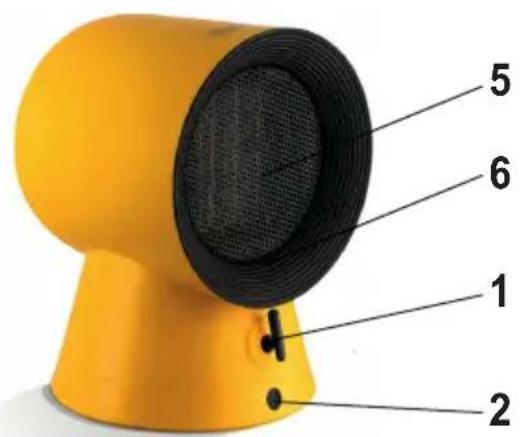

Description of parts

1 - ON/OFF power switch
2 – Oscillation button
3 – Room temperature thermostat
4 – Air intake grill
5 – Air outtake grill
6 – Indicator light

Two circular diagrams with concentric rings and a central vertical bar, no text or symbols present.

Four-position switch: off, cold air, minimum power, maximum power.

Simple circular diagram with a smiling face at the center, no text or symbols present.

Control knob for setting the room temperature.

Simple line drawing of a circular object with a central circular element and a base (no text or symbols)

Spin button: To enable or disable the rotation function

PRELIMINARY INSTRUCTIONS

• Take the appliance out of the cardboard box and unwind the cable to its full length.
• Place the appliance on a firm, flat surface, in a stable upright position.
• Make sure switch "1" is turned to "0".

Selecting functions

• To activate the FAN function, turn knob "1" to position "5".
• To activate the MINIMUM POWER function, turn knob "1" to position "☐".
• To activate the MAXIMUM POWER function, turn knob "1" to position "1".

Setting the thermostat

- To set the room temperature to a given value (thermostatting function), turn knob "3" clockwise until it stops.

Once the required temperature has been reached in the room, turn knob "3" slowly counter-clockwise until you hear a "click". The appliance will now switch off the heating element, but not the fan, until the room temperature drops below the value set. The heating element will then switch itself on again automatically until the room temperature reaches the set value again.

Indicator light "6" is on when the appliance is working.

SAFETY DEVICE IN CASE OF OVERHEATING

Your heater is fitted with a safety device the switches off the heater in the event of overheating.

Should the heater stop working, turn the heater off and inspect for blockage of air inlet or outlet.

Wait at least 5 minutes for the protection system to reset before attempting to restart the heater. If the heater fails to operate or the safety device switches the heater off again, return heater to your nearest service center for examination or repair.

CLEANING

Turn the appliance "off" and leave it to cool down.

Remove the plug from the mains socket.

Clean the outside of the appliance with a damp cloth making sure that water does not enter.

Never put the appliance in water.

Clean the air inlet and outlet grills regularly with a vacuum cleaner (twice yearly).

Ensure the heater is dry before plugging back into the mains supply.

INFORMATIONS GENERALES

Two circular diagrams with concentric rings and a central vertical bar, no text or symbols present.

Simple circular diagram with a smiling face at the center, no text or symbols present.

Simple line drawing of a circular object with a central body and two arms, enclosed in a circle (no text or symbols)

Two circular diagrams with internal shapes, one containing a vertical bar and the other a small circle (no text or symbols)

Simple circular diagram with a smiling face and concentric rings (no text or symbols)

Simple line drawing of a circular object with a central circular element and a base (no text or symbols)

Two circular diagrams with internal shapes, one containing a vertical bar and the other a small circle (no text or symbols)

Simple circular diagram with a smiling face at the center, no text or symbols present.

Simple line drawing of a circular object with a ring and base (no text or symbols)

Type of heat output/room temperature control	Yes	No
Single stage heat output and no room temperature control	□	☑
Two or more manual stages, no room temperature control	□	☑
With mechanic thermostat room temperature control	☑	□
With electronic room temperature control	□	☑
Electronic room temperature control plus day timer	□	☑
Electronic room temperature control plus week timer	□	☑
Other control options
Room temperature control, with presence detection	□	☑
Room temperature control, with open window detection	□	☑
With distance control option	□	☑
With adaptive start control	□	☑
With working time limitation	□	☑
With black bulb sensor	□	☑
