USER MANUAL VSZ62512 SIEMENS

Close-up of a black industrial vacuum cleaner with a circular dial indicator (no visible text or symbols)

Technical diagram of a vacuum cleaner with numbered parts and exploded view, showing internal components and part numbers.

Simple line drawing of an open book with a right-pointing arrow indicating rotation (no text or symbols)

Illustration of Siemens 3D printer packaging and its front view (no text or symbols on the diagram itself)

HEPA-Filter (Klasse H12) VZ154HFB

3D wireframe model of a grid-patterned rectangular object (no text or symbols)

TURBO-UNIVERSAL®-Bürste VZ102TBB

Illustration of a mechanical component with a handle and circular feature (no text or symbols)

Hartboden-Düse VZ123HD

Zum Saugen glatter Böden (Parkett, Fliesen, Terracotta,...)

Illustration of a pushpin or scraper tool with a handle and textured base (no text or symbols)

Wischdüse VZ103WD

Illustration of a handheld vacuum cleaner (no text or symbols visible)

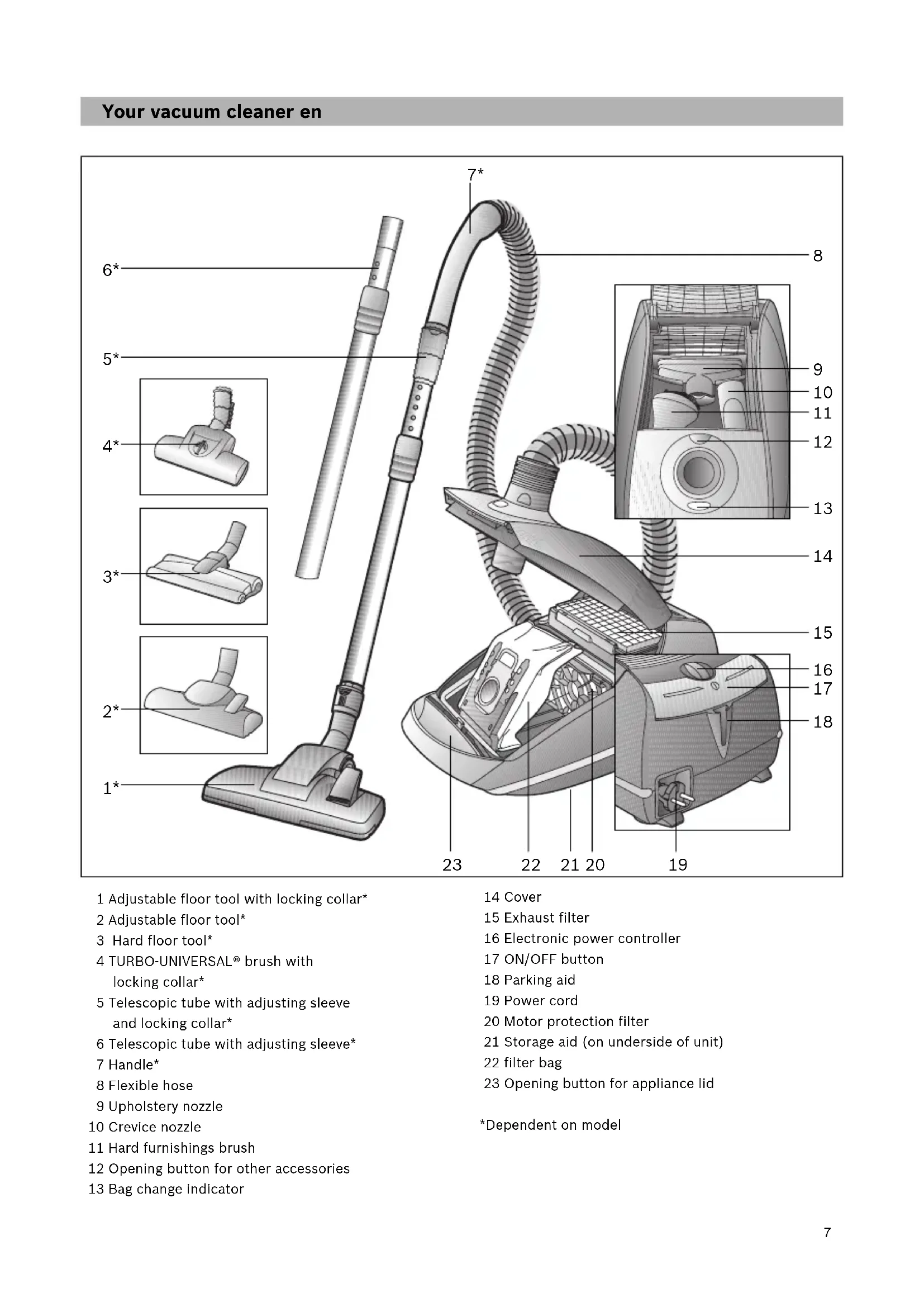

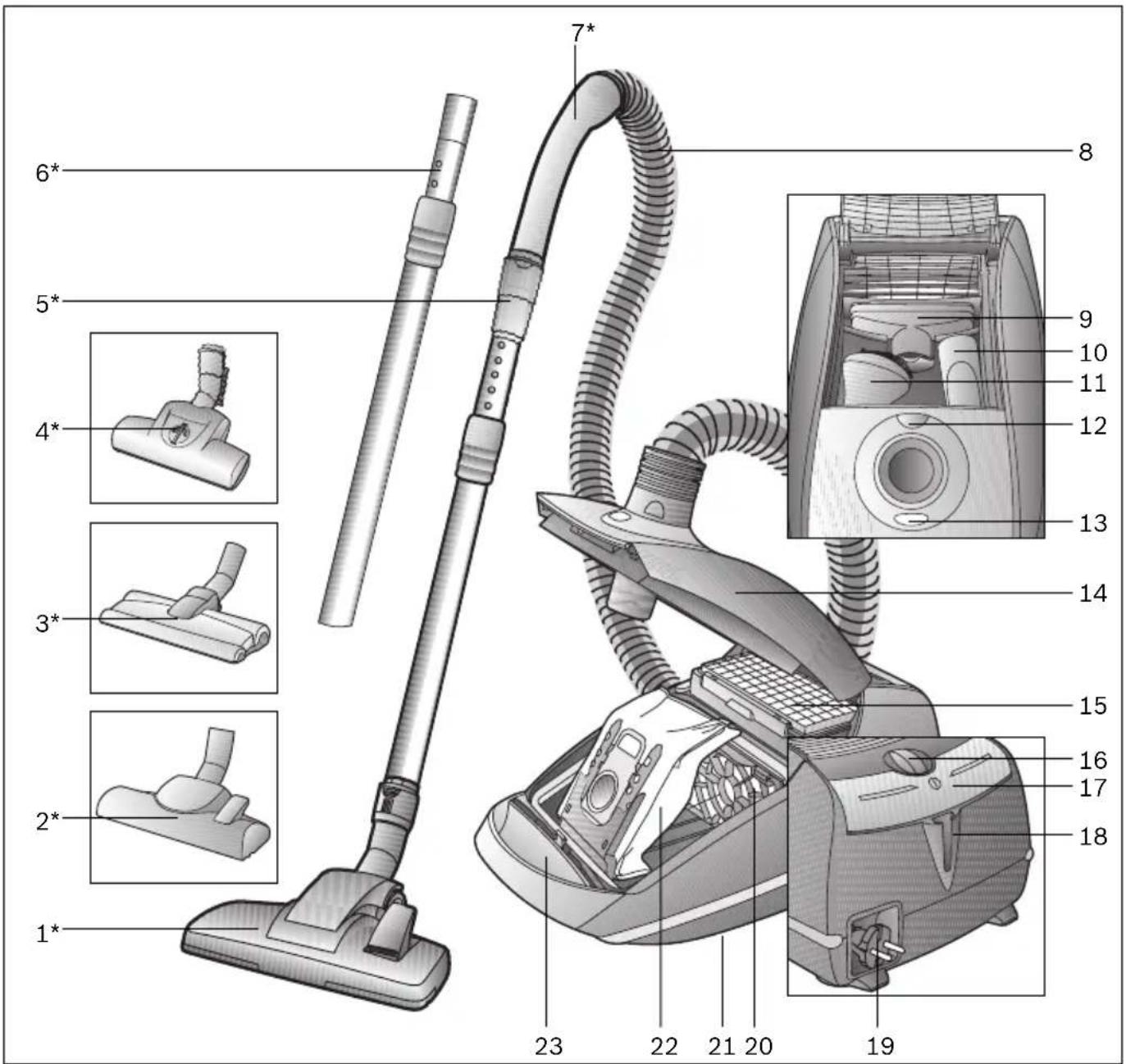

Technical diagram of a vacuum cleaner with numbered parts and exploded view, showing internal components and part numbers.

1 Adjustable floor tool with locking collar*

2 Adjustable floor tool*

3 Hard floor tool*

4 TURBO-UNIVERSAL® brush with locking collar*

5 Telescopic tube with adjusting sleeve and locking collar*

6 Telescopic tube with adjusting sleeve*

7 Handle*

8 Flexible hose

9 Upholstery nozzle

10 Crevice nozzle

11 Hard furnishings brush

12 Opening button for other accessories

13 Bag change indicator

14 Cover

15 Exhaust filter

16 Electronic power controller

17 ON/OFF button

18 Parking aid

19 Power cord

20 Motor protection filter

21 Storage aid (on underside of unit)

22 filter bag

23 Opening button for appliance lid

*Dependent on model

Congratulations on your purchase of a Siemens VSZ6 vacuum cleaner.

This instruction manual describes various VSZ6 models, which means that some of the equipment features and functions described may not be available on your model.

You should only use original Siemens accessories, which have been specially developed for your vacuum cleaner to achieve the best possible vacuuming results.

Please keep this instruction manual in a safe place. If you pass the vacuum cleaner on to someone else, please also pass on this instruction manual.

Intended use

This vacuum cleaner is intended for domestic use only, not for commercial use.

Only use this vacuum cleaner in accordance with the instructions in this instruction manual.

The manufacturer will not accept any responsibility for damage caused by improper use or incorrect operation. Therefore, you must note the following points.

The vacuum cleaner must only be operated with:

■ Manufacturer's original dust bags
■ Manufacturer's original replacement parts, accessories or special accessories

Safety information

This vacuum cleaner complies with the generally accepted standards of technology and relevant safety regulations.

■ Always observe the information on the rating plate when using the vacuum cleaner and connecting to the power supply.
■ Never use the vacuum cleaner without a dust bag fitted. => This can damage the appliance.
■ The appliance may be used by children over the age of 8 years and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge if they are supervised or have been instructed on the safe use of the appliance and the have under-stood the potential dangers of using the appliance.
■ Children must never play with the appliance
■ Cleaning and user maintenance must never be carried out by children without supervision.

The vacuum cleaner may not be used for:

■ cleaning persons or animals
■ vacuuming up:

• hazardous, sharp-edged, hot or red hot substances.
• damp or liquid substances
  – highly flammable or explosive substances and gases
• ash, soot from tiled stoves and central heating systems
• toner dust from printers and copiers.

- Keep suction away from your head when using the handle, nozzles or pipe.

=> Risk of injury.

■ Stand the appliance on a firm, secure surface when vacuuming.
■ When vacuuming stairs, the appliance must always be lower down than you.
■ In the following cases, stop using the appliance immediately and contact the after-sales service:

• if the mains connection cable is damaged.
• if you have accidentally vacuumed up some liquid or liquid has entered the inside of the appliance
• if the appliance has been dropped.

■ Do not use the power cord to carry the vacuum cleaner.
■ Fully extend the power cord when using the vacuum cleaner continuously for several hours.
■ When disconnecting the appliance from the mains, pull on the plug, not the power cord.
■ Do not pull the power cord around sharp corners or allow it to become trapped.
■ Unplug the power cord from the mains before carrying out any work on the vacuum cleaner or its accessories.
■ Do not use the vacuum cleaner if it is damaged. Unplug the power cord from the mains if a fault is detected.
■ For safety reasons, only authorised after-sales service personnel are permitted to carry out repairs and fit replacement parts to the vacuum cleaner.
■ Protect the vacuum cleaner from outside weather conditions, moisture and sources of heat.
■ The vacuum cleaner is not suitable for use on building sites.

=>Vacuuming up building rubble could damage the appliance.

■ Switch off the appliance when it is not in use.
■ At the end of its life, the appliance should be rendered unusable, then disposed of in an appropriate manner.
■ Plastic bags and films must be kept out of the reach of children before disposal (risk of suffocation).
■ do not pour any flammable substances or substances containing alcohol onto the filters (filter bag, motor protective filter, exhaust filter, etc.).

Disposal information

Packaging

The packaging is designed to protect the vacuum cleaner from being damaged during transportation. It is made of environmentally friendly materials and can be recycled.

Dispose of packaging that is no longer required at an appropriate recycling point.

■ Used vacuum cleaners

Used vacuum cleaners still contain many valuable materials. Therefore, please take your used vacuum cleaner to your retailer or recycling centre to be recycled. For current disposal methods, please enquire at your retailer or your local council.

■ Disposal of filters and dust bags

Filters and dust bags are made from environmentally friendly materials.

As long as they do not contain substances that are not permitted to be disposed of in the household rubbish, you can dispose of them with your normal household rubbish.

Please note

- The mains socket must be protected by at least a 16 amp fuse.

If a fuse should blow when you switch on the appliance, this may be because other electrical appliances which have a high current draw are connected to the same power circuit.

To prevent the fuse from blowing, select the lowest power setting before switching the appliance on, and increase the power only once it is running.

Fold out the picture pages.

Simple line drawing of an open book with a right-pointing arrow indicating the page direction (no text or symbols)

Before using for the first time

Figure

Push the handle onto the flexible hose until it engages.

Setting up

Figure

a) Push the flexible hose adapter into the opening on the vacuum cleaner until it engages.

b) To remove the flexible hose, press the release buttons and pull the hose out.

Figure

a) Connect the handle and the telescopic tube together.

b) Push the handle into the telescopic tube until it engages.

Press on the locking collar and pull out the telescopic tube to disconnect.

Figure

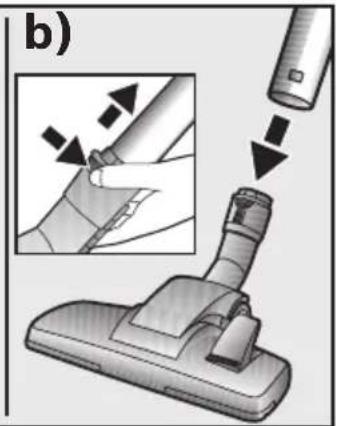

a) Connect the floor tool and the telescopic tube together.

b) Push the telescopic tube into the connecting piece of the floor tool until it engages.

Press on the locking collar and pull out the telescopic tube to disconnect.

Figure

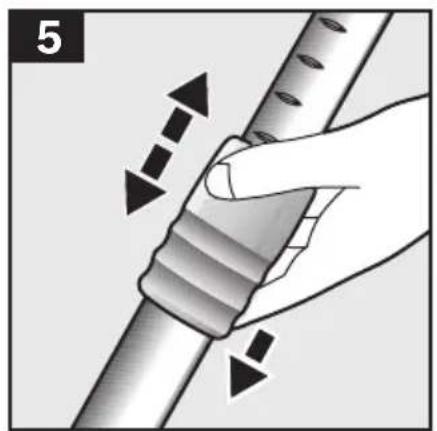

To adjust the length of the telescopic tube, adjust the adjusting sleeve/sliding switch in the direction of the arrow and adjust the tube to the required length.

Figure

Take the mains plug, pull the power cord to the required length and insert the plug into a socket.

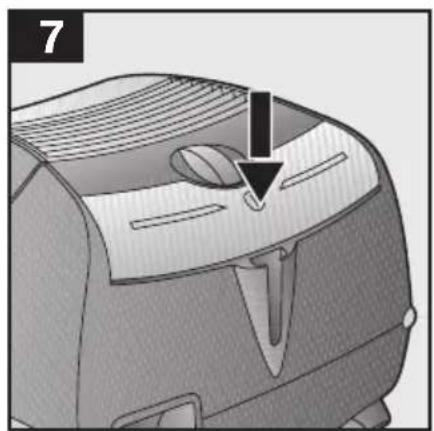

Figure

Press the ON/OFF button in the direction of the arrow to switch on your vacuum cleaner.

Vacuuming

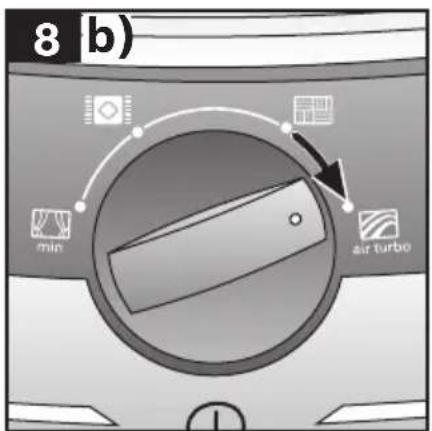

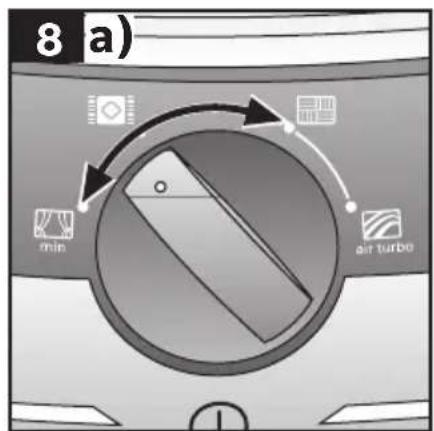

Figure 8

a) The required suction level can be infinitely adjusted by turning the control knob in the direction of the arrow.
■ Low suction range: For vacuuming delicate fabrics, e.g. curtains.
■ Moderate suction range: For daily cleaning on lightly soiled areas.
■ High suction range: For vacuuming durable floor coverings, hard floors and heavily soiled surfaces.
b) Air Turbo: For heavily soiled surfaces and coarse dirt deposits. The appliance vacuums with the maximum possible suction.

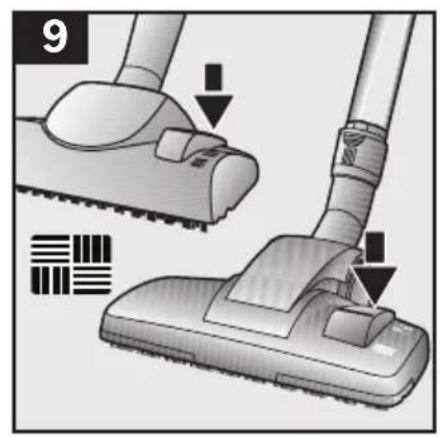

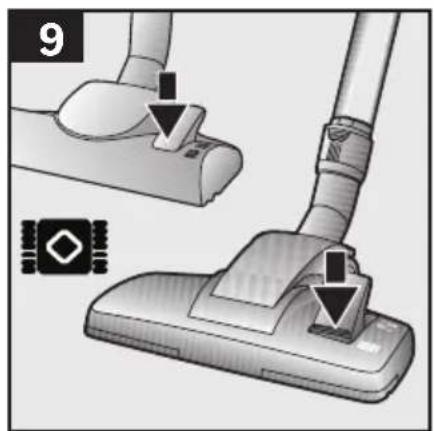

Figure 9

Adjusting the floor tool:

a) For vacuuming rugs and carpets =>

b) For vacuuming hard floors =>

Caution!

Floor tools are subject to a certain amount of wear, depending on the type of hard floors you have (e.g. rough, rustic tiles). Therefore, you must check the underside of the floor tool at regular intervals. Worn undersides of floor tools may have sharp edges that can damage sensitive hard floors, such as parquet or linoleum. The manufacturer does not accept any responsibility for damage caused by worn floor tools.

Turbo brush

If your appliance is equipped with a turbo brush, please consult the accompanying instruction manual for notes on its use and maintenance.

Other accessories that you do not need can be stored easily in the accessories compartment of the appliance lid.

Figure 10

When the opening button is pressed, the lid of the accessories compartment opens automatically. Take out the required accessories.

Figure 11

After removal, close the lid of the accessories compartment and engage the catch.

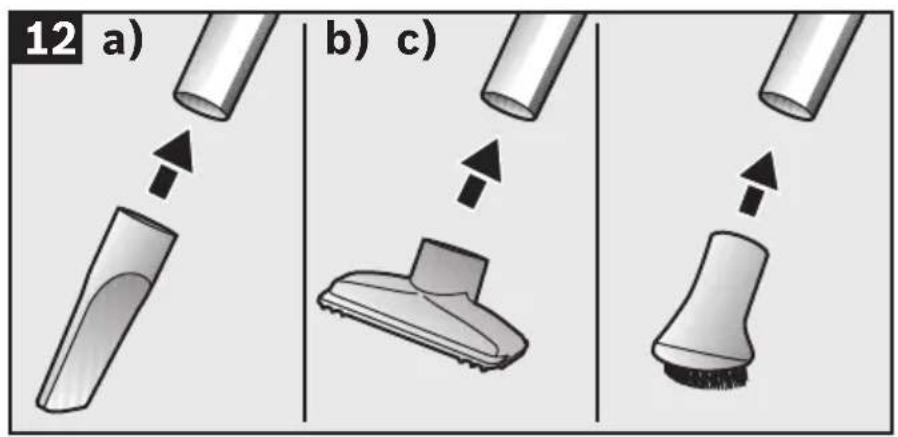

Figure 12

Vacuuming with accessories (attach to handle or suction pipe as required)

a) Crevice nozzle
For cleaning crevices and corners
b) Upholstery nozzle For cleaning upholstered furniture, curtains, etc.
c) Hard furnishings brush For vacuuming picture frames, books, furniture requiring particular care, etc.

Hard-floor brush

Figure 13\*

For vacuuming hard floor coverings (tiles, parquet flooring, etc.)

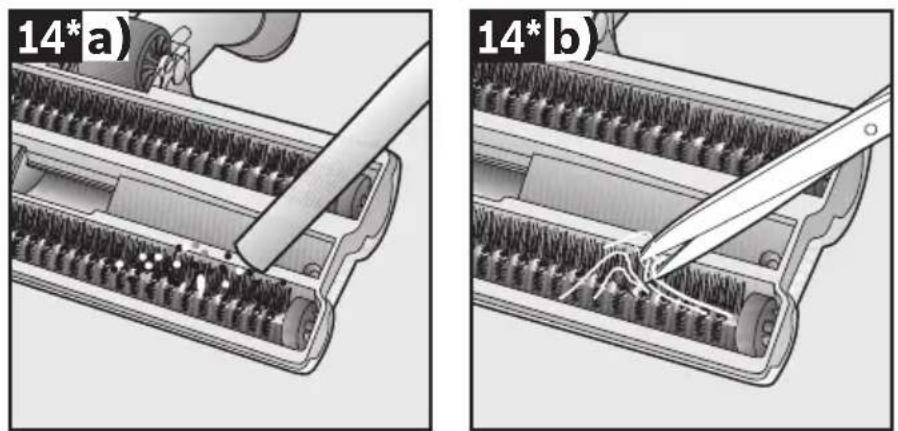

Cleaning the hard-floor brush

Figure 14\*

a) Vacuum from below to clean the brush.
b) Cut through threads and hairs wound round the rollers using scissors.
Vacuum threads and hairs with the crevice nozzle.

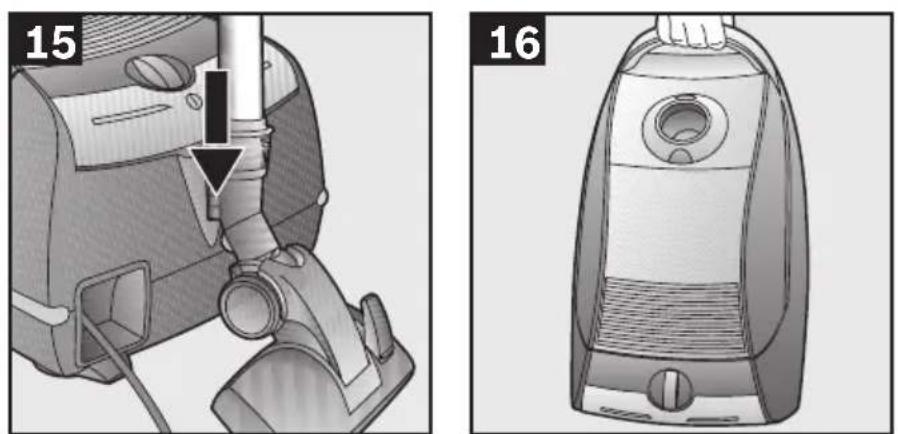

Figure 15

Once you have switched off the vacuum cleaner, you can use the parking aid on the back of the vacuum cleaner if you wish to stop vacuuming for a short time. To do this, slide the catch on the floor tool into the groove on the back of the vacuum cleaner.

Figure 16

The appliance can also be carried using the carrying handle when vacuuming stairs, for example.

When the work is done

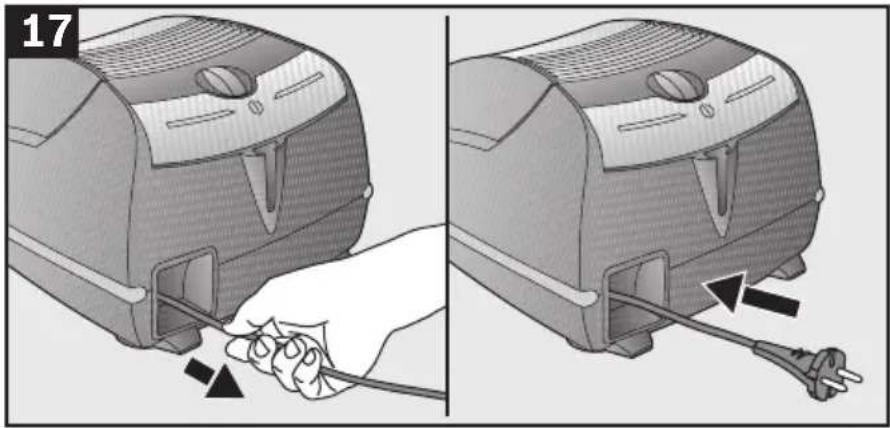

Figure 17

■ Unplug the vacuum cleaner.
■ Briefly pull the power cord and release.
The cord rewinds automatically.

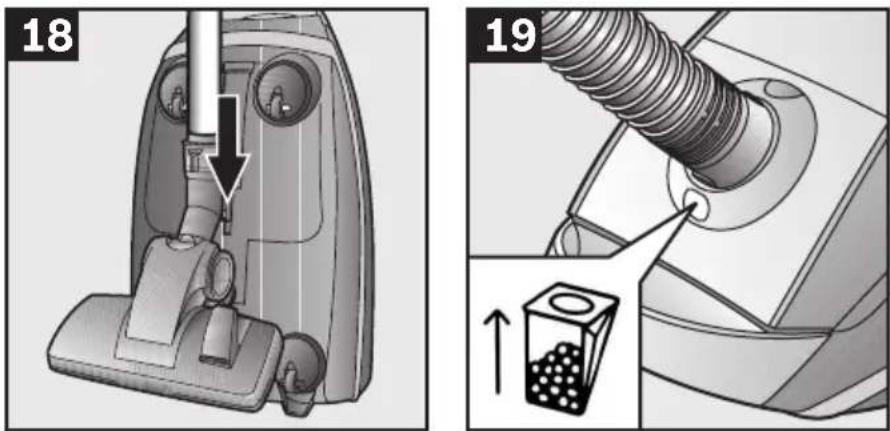

Figure 18

To store or transport the vacuum cleaner, use the storage aid on the underside of the vacuum cleaner. Stand the vacuum cleaner up on its end. Slide the catch on the floor tool into the groove on the underside of the appliance.

Changing the bag

Replacing the bag

Figure 19

If the dust bag change indicator is completely yellow when the floor tool is lifted from the floor and the highest suction power is selected, the dust bag must be changed. In this case it is essential to change the dust bag due to the type of material it contains. The nozzle, suction pipe and flexible tube must not be blocked, as this would also cause the dust bag change indicator to be triggered.

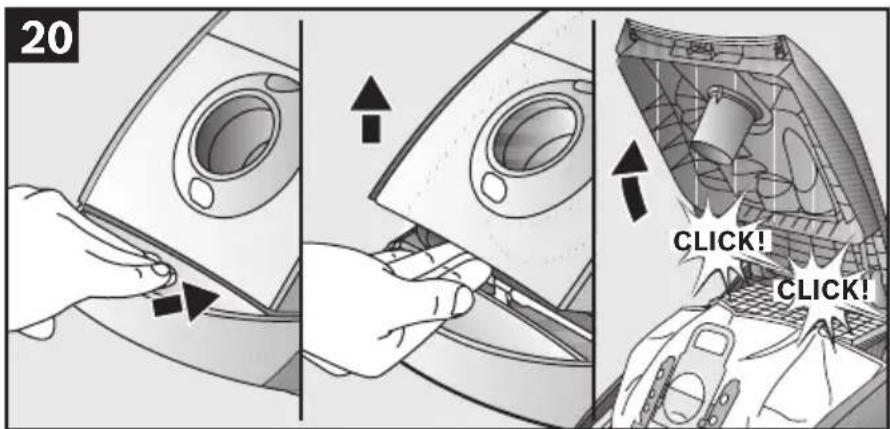

Figure 20

■ When the opening button is pressed, the appliance lid is raised slightly.
■ Reach underneath the lid and open in the direction of the arrow until the lid engages in the open position.

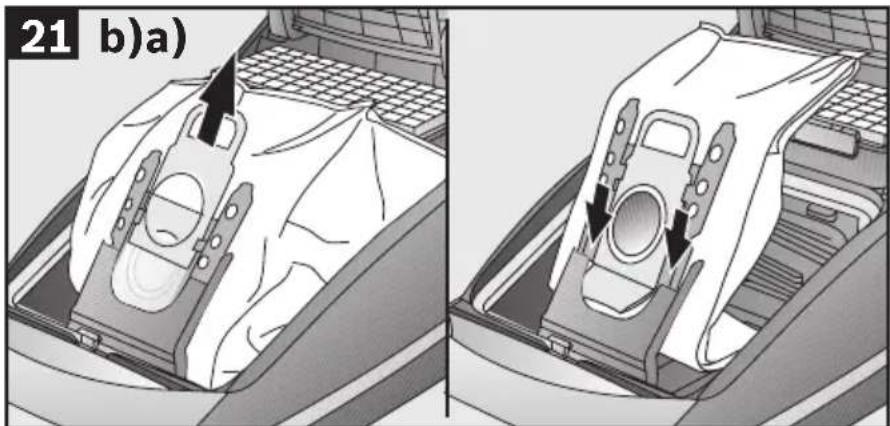

Figure 21

a) Seal the filter bag by pulling the locking tab and then remove it.
b) Insert a new filter bag into the holder and close the bag compartment lid.

! Caution: the lid will only close when the filter bag is inserted.

Cleaning the motor protection filter

The motor protection filter should be cleaned regularly by knocking out the dirt and rinsing.

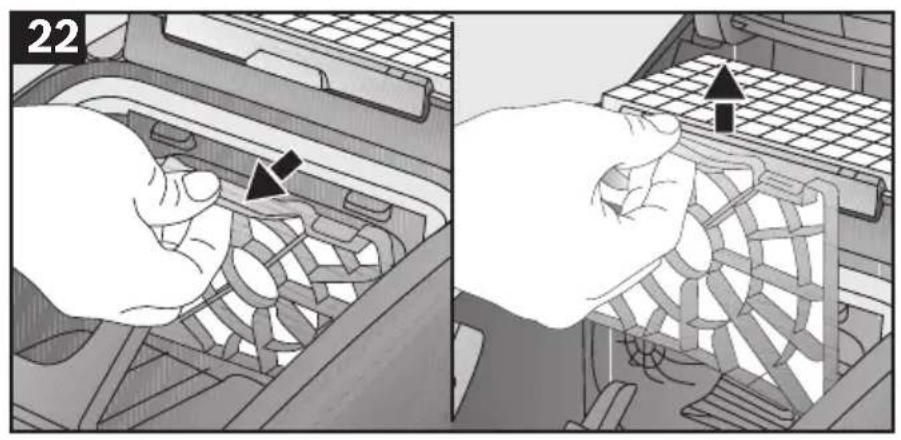

Figure 22

■ Open the bag compartment lid (see Figure 20).
■ Release the motor protection filter from the catch and remove in the direction of the arrow.
■ Clean the motor protection filter by tapping it.
■ If it is very dirty, the motor protection filter should be rinsed out.
The filter must then be left to dry for at least 24 hours.
■ After cleaning, insert the motor protection filter into the appliance and close the bag compartment lid.

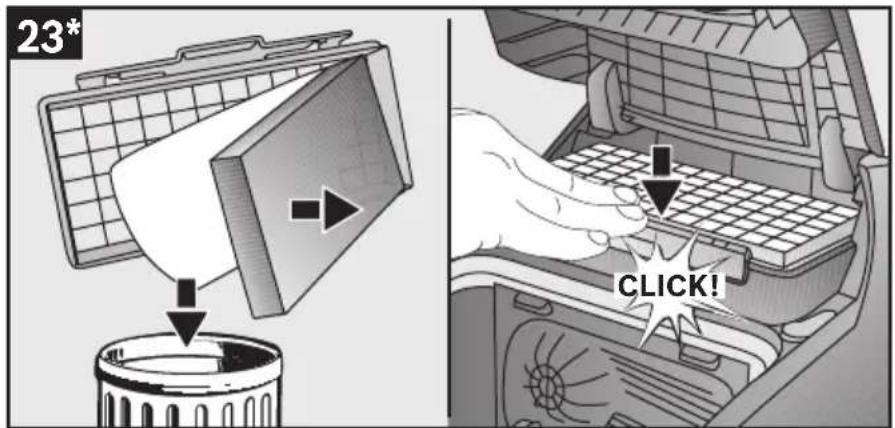

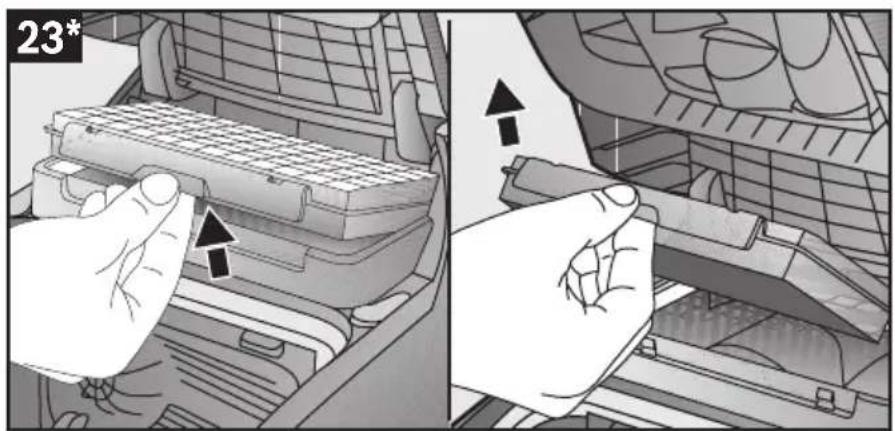

Replacing the micro-hygiene filter

Figure 23\*

■ Open the bag compartment lid (see Figure 20).
■ Release the filter holder by pressing the locking tab in the direction of the arrow
■ Remove the foam filter and micro-hygiene filter. Insert the new micro-hygiene filter and foam filter into the filter holder.
- Insert the filter holder into the vacuum cleaner and clip into place.

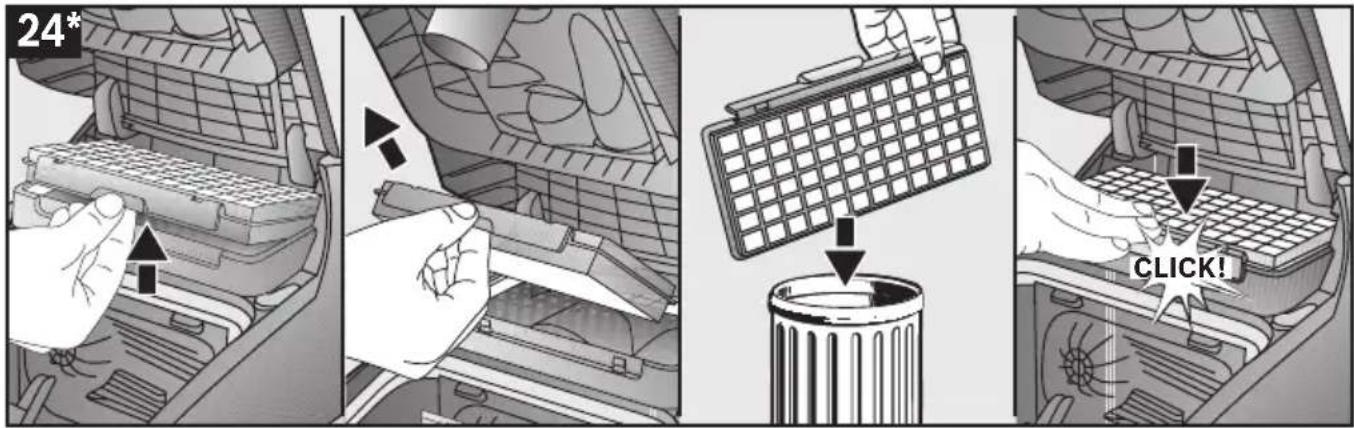

Replacing the HEPA filter

Figure 24\*

■ Open the bag compartment lid (see Figure 20).
■ Release the HEPA filter by pressing the locking tab in the direction of the arrow and remove it from the appliance.
■ Insert the new HEPA filter and clip into place.

If you have used the vacuum cleaner for fine dust particles, clean the motor protection filter by knocking out the dirt and, if necessary, replace the micro-hygiene filter, activated carbon filter or HEPA filter.

Care

Always switch off the vacuum cleaner and pull out the mains plug before cleaning the vacuum cleaner. The vacuum cleaner and plastic accessories can be cleaned with a commercial plastic cleaner.

! Do not use a scourer, glass-cleaning agent or all-purpose cleaning product. Never immerse the vacuum cleaner in water.

The dust compartment can, if necessary, be cleaned with a second vacuum cleaner or simply wiped with a dry cloth or dusting brush.

Subject to technical modifications.

en

Replacement filter pack

■ Filter type GXXL (VZ41AFGXXL)
■ For best performance: GXXL plus (VZ41GXXLP)

Contents: 4 filter bags with seal 1 micro-hygiene filter

http://www.dust-bag-siemens.com

Illustration of Siemens 3D printer packaging and its front view (no text or symbols on the diagram itself)

HEPA filter (class H12) VZ154HFB

Recommended for allergy sufferers. Ensures very clean exhaust air. Replace once a year.

3D wireframe model of a grid-patterned rectangular object (no text or symbols)

TURBO-UNIVERSAL® brush VZ102TBB

All-in-one brushing and vacuuming of short-pile rugs and carpets and all hard floor coverings. Especially suitable for picking up pet hair. The brush roller is driven by the air flow through the vacuum cleaner. No separate electric connection is needed.

Illustration of a mechanical component with a handle and circular feature (no text or symbols)

Hard floor tool VZ123HD

For vacuuming hard floors (parquet flooring, tiles, terracotta, etc.)

Illustration of a pushpin or scraper tool with a handle and textured base (no text or symbols)

Wiping tool VZ103WD

Suitable for use on parquet, laminate, stone, floorboards, tiles, etc. (test the floor wipes on an inconspicuous area before using on a sensitive hard floor finish or a hard floor with specific care requirements). Removes large particles of dirt while the moist cleaning cloth cleans the floor at the same time.

Illustration of a handheld vacuum cleaner (no text or symbols visible)

Technical diagram of a vacuum cleaner with numbered parts and exploded view, showing internal components and part numbers.

Simple line drawing of an open book with a right-pointing arrow indicating the page direction (no text or symbols)

Illustration of Siemens 3D printer packaging and its front view (no text or symbols on the diagram itself)

Filtre HEPA (classe H12) VZ154HFB

3D wireframe model of a grid-patterned rectangular object (no text or symbols)

Brosse TURBO-UNIVERSAL® VZ102TBB

Illustration of a mechanical device with a handle and circular component (no text or symbols)

Illustration of a cleaning brush with a handle and textured base (no text or symbols)

Illustration of a handheld vacuum cleaner (no text or symbols visible)

Technical diagram of a vacuum cleaner with numbered parts and exploded view, showing internal components and part numbers.

Simple line drawing of an open book with a right-pointing arrow indicating the page direction (no text or symbols)

Illustration of Siemens 3D printer packaging and its front view (no text or symbols on the diagram itself)

HEPA-filter (klasse H12) VZ154HFB

3D wireframe model of a grid-patterned rectangular object (no text or symbols)

TURBO-UNIVERSAL®-borstel VZ102TBB

Illustration of a mechanical component with a handle and circular feature (no text or symbols)

Illustration of a pushpin or scraper tool with a handle and textured base (no text or symbols)

Schoonmaakmondstuk VZ103WD

Illustration of a handheld vacuum cleaner (no text or symbols visible)

Technical diagram of a vacuum cleaner with numbered parts and exploded view, showing internal components and part numbers.

Simple line drawing of an open book with a right-pointing arrow indicating the page direction (no text or symbols)

Illustration of Siemens 3D printer packaging and its front view (no text or symbols on the diagram itself)

HEPA-filter (klasse H12) VZ154HFB

3D wireframe model of a grid-patterned rectangular object (no text or symbols)

TURBO-UNIVERSAL®-børste VZ102TBB

Illustration of a mechanical component with a handle and circular feature (no text or symbols)

Illustration of a pushpin or scraper tool with a handle and textured base (no text or symbols)

Illustration of a vacuum cleaner blade with handle and mounting bracket (no text or symbols)

Technical diagram of a vacuum cleaner with numbered parts and exploded view, showing internal components and part numbers.

1 Omstillbart gulvmunnstykke med läsering*
2 Omstillbart gulvmunnstykke*
3 Munnstykke for harde gulv*
4 TURBO-UNIVERSAL®-børste med läsehylse*
5 Teleskoprør med skyvemansjett og låsehylse*
6 Teleskoprør med skyvemansjett*
7 Slangehåndtak*
8 Sugeslange
9 Møbelmunnstykke
10 Fugemunnstykke
11 Møbelpensel
12 Åpningsknapp for småtilbehør

Simple line drawing of an open book with a right-pointing arrow indicating the page direction (no text or symbols)

Illustration of Siemens 3D printer packaging and its front view (no text or symbols on the diagram itself)

HEPA-filter (klasse H12) VZ154HFB

Anbefales til allergikere. Gir ekstremt ren utblåsningsluft. Byttes én gang i året.

3D wireframe model of a grid-patterned rectangular object (no text or symbols)

TURBO-UNIVERSAL®-børste VZ102TBB

Illustration of a mechanical component with a handle and circular feature (no text or symbols)

Munnstykke for harde gulv VZ123HD

Illustration of a pushpin or scraper tool with a handle and textured base (no text or symbols)

Gulvmunnstykke VZ103WD

Illustration of a handheld vacuum cleaner (no text or symbols visible)

Technical diagram of a vacuum cleaner with numbered parts and exploded view, showing internal components and part numbers.

Simple line drawing of an open book with a right-pointing arrow indicating rotation (no text or symbols)

Illustration of Siemens 3D printer packaging and its front view (no text or symbols on the diagram itself)

HEPA-filter (H12-klass) VZ154HFB

3D wireframe model of a grid-patterned rectangular object (no text or symbols)

TURBO-UNIVERSAL®-borste VZ102TBB

Illustration of a mechanical component with a handle and circular feature (no text or symbols)

Illustration of a pushpin or screwdriver with a handle and textured base (no text or symbols)

Illustration of a handheld vacuum cleaner (no text or symbols visible)

Technical diagram of a vacuum cleaner with numbered parts and exploded view, showing internal components and part numbers.

Simple line drawing of an open book with a right-pointing arrow indicating the page direction (no text or symbols)

Illustration of Siemens 3D printer packaging and its front view (no text or symbols on the diagram itself)

3D wireframe model of a grid-patterned rectangular object (no text or symbols)

TURBO-UNIVERSAL ^® -harja VZ102TBB

Illustration of a mechanical component with a handle and circular feature (no text or symbols)

Kovien lattioiden suulake VZ123HD

Sileiden lattioiden imurointiin (parketti, laatat, terrakotta, ...)

Illustration of a pushpin or screwdriver with a handle and textured base (no text or symbols)

Illustration of a handheld vacuum cleaner (no text or symbols visible)

Technical diagram of a vacuum cleaner with numbered parts and exploded view, showing internal components and part numbers.

Simple line drawing of an open book with a right-pointing arrow indicating the page direction (no text or symbols)

Illustration of Siemens 3D printer packaging and its front view (no text or symbols on the diagram itself)

Filtro HEPA (clase H12) VZ154HFB

3D wireframe model of a grid-patterned rectangular object (no text or symbols)

Cepillo TURBO-UNIVERSAL® VZ102TBB

Illustration of a mechanical component with a handle and circular feature (no text or symbols)

Illustration of a pushpin or scraper tool with a handle and textured base (no text or symbols)

Boquilla cepilladora VZ103WD

Illustration of a handheld vacuum cleaner (no text or symbols visible)

Technical diagram of a vacuum cleaner with numbered parts and exploded view, showing internal components and part numbers.

Simple line drawing of an open book with a right-pointing arrow indicating the page direction (no text or symbols)

Illustration of Siemens 3D printer packaging and its front view (no text or symbols on the diagram itself)

Filtro HEPA (classe H12) VZ154HFB

3D rendering of a grid-patterned rectangular object with no visible text or symbols

ESCOVA TURBO-UNIVERSAL® VZ102TBB

Illustration of a mechanical component with a handle and circular feature (no text or symbols)

Bocal de pavimentos rijos VZ123HD

Illustration of a pushpin or scraper tool with a handle and textured base (no text or symbols)

Illustration of a handheld vacuum cleaner (no text or symbols visible)

Technical diagram of a vacuum cleaner with numbered parts and exploded view, showing internal components and part numbers.

Simple line drawing of an open book with a right-pointing arrow indicating the page direction (no text or symbols)

Illustration of Siemens 3D printer packaging and its front view (no text or symbols on the diagram itself)

3D wireframe model of a grid-patterned rectangular object (no text or symbols)

Βούρτσα TURBO-UNIVERSAL® VZ102TBB

Illustration of a mechanical component with a handle and circular feature (no text or symbols)

Illustration of a pushpin or scraper tool with a handle and textured base (no text or symbols)

Illustration of a handheld vacuum cleaner (no text or symbols visible)

Technical diagram of a vacuum cleaner with numbered parts and exploded view, showing internal components and part numbers.

Simple line drawing of an open book with a right-pointing arrow indicating rotation (no text or symbols)

Illustration of Siemens 3D printer packaging and its front view (no text or symbols on the diagram itself)

HEPA filtresi (sinif H12) VZ154HFB

3D wireframe model of a grid-patterned rectangular object (no text or symbols)

TURBO-UNIVERSAL®-Fırça VZ102TBB

Illustration of a mechanical component with a handle and circular feature (no text or symbols)

Illustration of a pushpin or scraper tool with a handle and textured base (no text or symbols)

Silme ağzı VZ103WD

Illustration of a handheld vacuum cleaner (no text or symbols visible)

Technical diagram of a vacuum cleaner with numbered parts and exploded view, showing internal components and part numbers.

Simple line drawing of an open book with a right-pointing arrow indicating the page direction (no text or symbols)

Illustration of Siemens 3D printer packaging and its front view (no text or symbols on the diagram itself)

Filtr Hepa (klasa H12) VZ154HFB

3D wireframe model of a grid-patterned rectangular object (no text or symbols)

Szczotka TURBO-UNIVERSAL® VZ102TBB

Illustration of a mechanical component with a handle and circular feature (no text or symbols)

Illustration of a pushpin or scraper tool with a handle and textured base (no text or symbols)

Illustration of a handheld vacuum cleaner (no text or symbols visible)

Technical diagram of a vacuum cleaner with numbered parts and exploded view, showing internal components and part numbers.

Simple line drawing of an open book with a right-pointing arrow indicating rotation (no text or symbols)

Illustration of Siemens 3D printer packaging and its front view (no text or symbols on the diagram itself)

3D wireframe model of a grid-patterned rectangular object (no text or symbols)

TURBO-UNIVERSAL\*-kefe VZ102TBB

Illustration of a mechanical component with a handle and circular feature (no text or symbols)

Illustration of a pushpin or scraper tool with a handle and textured base (no text or symbols)

Törlökefe VZ103WD

Illustration of a handheld vacuum cleaner (no text or symbols visible)

Technical diagram of a vacuum cleaner with numbered parts and exploded view, showing internal components and part numbers.

Simple line drawing of an open book with a right-pointing arrow indicating rotation (no text or symbols)

3D wireframe model of a grid-patterned rectangular object (no text or symbols)

Четка TURBO-UNIVERSAL®VZ102TBB

Illustration of a mechanical component with a handle and central knob (no text or symbols)

Illustration of a pushpin or screwdriver with a handle and textured base (no text or symbols)

Illustration of a handheld vacuum cleaner (no text or symbols visible)

Technical diagram of a vacuum cleaner with numbered parts and exploded view, showing internal components and part numbers.

Simple line drawing of an open book with a right-pointing arrow indicating the page direction (no text or symbols)

Illustration of Siemens 3D printer packaging and its front view (no text or symbols on the diagram itself)

Filtru HEPA (clasa H12) VZ154HFB

3D wireframe model of a grid-patterned rectangular object (no text or symbols)

Perie TURBO-UNIVERSAL ^* VZ102TBB

Illustration of a mechanical component with a handle and circular feature (no text or symbols)

Illustration of a pushpin or scraper tool with a handle and textured base (no text or symbols)

Perie de šters VZ103WD

Illustration of a handheld vacuum cleaner (no text or symbols visible)

عربي وصف الجهاز

3D wireframe model of a grid-patterned rectangular object (no text or symbols)

Illustration of a handheld vacuum cleaner (no text or symbols visible)

Illustration of a cleaning brush with a handle and roller base (no text or symbols)

Illustration of a handheld vacuum cleaner (no text or symbols visible)

VZ103WD رأس المسح

Simple line drawing of an open book with blank pages (no text or symbols)

Technical diagram of a vacuum cleaner with numbered parts and exploded view, showing internal components and part numbers.

HEATHERTON, Victoria 3202

Tel.: [phone]

Fax: [phone]

valid only in AUS

mailto:[e-mail]

www.siemens-home.com.au

09/11

BA Bosnia-Herzegovina, Bosna i Hercegovina

"HIGH" d.o.o.

Gradačačka 29b

71000 Sarajewo

Info-Line: 061 10 09 05

Fax: [phone]

mailto:[e-mail]

+ 7 snt/min (alv 23%)

+ 17 snt/min (alv 23%)

Kundendienst-Zentren • Central-Service-Depots • Service Après-Vente • Servizio Assistenza •

Centrale Servicestation • Asistencia técnica • Servicevaerkter • Apparatservice • Huolto

FR France

BSH Electroménager S.A.S.

To arrange an engineer visit, to order spare parts and accessories or for product advice please visit:

www.siemens-home.cu.uk or call

Tel.:[phone]*

*Calls from a BT landline will be charged at up to 3 pence per minute. A call set-up fee of up to 6 pence may apply.

GR Greece, Ελλάς

BSH Ikiakes Siskeves A. B. E.

Central Branch Service

17 km E.O. Athinon-Lamias &

Potamou 20

145 64 Kifisia

Greece – Athens

Tel.:[phone]

Fax: [phone]

North-Greece – Thessaloniki

Tel.:[phone]

Fax: [phone]

South-Greece – Heraklion/Kreta

Tel.:[phone]

Fax: [phone]

Central-Greece – Patras

Tel.:[phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.com

HK Hong Kong, 香港

BSH Home Appliances Limited

Unit 1 & 2, 3rd Floor

North Block, Skyway House

3 Sham Mong Road

Tai Kok Tsui, Kowloon

Hong Kong

Tel.:[phone]

Fax: [phone]

mailto:service.siemens@

bshg.com

www.siemens-home.com.hk

09/11

HR Hrvatska, Croatia

Andabaka d.o.o.

Kopilica 21a

21000 Split

Info-Line: 021 481 403

Info-Fax: [phone]

mailto:[e-mail]

IE Republic of Ireland

BSH Home Appliances Ltd.

Unit F4, Ballymount Drive

Ballymount Industrial Estate

Walkinstown

Dublin 12

Service Requests, Spares and

Accessories

Tel.: [phone]

Fax: [phone]

www.siemens-home.com

IL Israel,

C/S/B Home Appliance Ltd.

Uliel Building

1. Hamelacha St.

Industrial Park North

71293 Lod

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.com

IN India, Bhārat, भारत

BSH Customer Service

Front Office

Shop No.4, Everest Grande,

Opp. Shanti Nagar Bus Stop,

Mahakali Caves Road,

Andheri East

Mumbai 400 093

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.: [phone]

Fax: [phone]

www.sminor.is

IT Italia, Italy

LT Lietuva, Lithuania

Baltic Continent Ltd.

Lukšio g. 23

09132 Vilnius

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.balticcontinent.lt

LU Luxembourg

General Serviss Limited

Bullu street 70c

1067 Riga

Tel.: [phone]

mailto:[e-mail]

Elkor Serviss

Brivibas gatve 201

1039 Riga

Tel.: [phone]: -36

Fax: [phone]

mailto:[e-mail]

www.servisacentrs.lv

MD Moldova

S.R.L. „Rialto-Studio“

ул. Щусева 98

2012 Кишинев

тел./факс: [phone]

ME Crna Gora, Montenegro

Elektronika komerc

Ul. 27 Mart br. 2

81000 Podgorica

Tel./Fax: [phone]

Mobil: 069 324 812

Kundendienst-Zentren • Central-Service-Depots • Service Après-Vente • Servizio Assistenza •

Centrale Servicestation • Asistencia técnica • Servicevaerkter • Apparatservice • Huolto

MK Macedonia, Makedonia

GORENEC

Jane Sandanski 69 lok. 3

1000 Skopje

Tel.:[phone]

Mobil: 070 697 463

mailto:[e-mail]

MT Malta

Aplan Limited

Aplan Centre

B - Kara By Pass

B - Kara BKR

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

NL Nederland, Netherlands

Unit F 2, 4 Orbit Drive

Mairangi Bay

Auckland 0632

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

PL Polska, Poland

Union Industrial Building

Block A, #01-03

577177 Singapore

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

SI Slovenija, Slovenia

BSH Hišni aparati d.o.o.

Litostrojska 48

1000 Ljubljana

Tel.: [phone]

Fax: [phone]

gama-electronics.com

XS Srbija, Serbia

15th Road Randjespark

Private Bag X36, Randjespark

1685 Midrand – Johannesburg

Tel.:[phone]

Fax: [phone]

mailto:applianceserviceza@

bshg.com

www.siemens-home.com

DE Garantie

GB Conditions of guarantee

For this appliance the guarantee conditions as set out by our representatives in the country of sale apply. Details regarding same may be obtained from the dealer from whom the appliance was purchased. For claims under guarantee the sales receipt must be produced.

FR Conditions de garantie

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

de

"This appliance is labelled in accordance with the European directive 2002/96/EG concerning waste electrical and electronic equipment – WEEE.

The directive provides the framework for the return and recycling of used appliances as applicable throughout the EU."

fr

Symbol of a trash bin crossed with no text or labels

pt

Diagram showing a mechanical component being inserted into a tool, with an inset close-up of the insertion process (no text or symbols present)

Illustration of a vacuum cleaner's tip being inserted into a device (no text or symbols present)

Illustration of a hand holding a clip with an inset showing the tip and arrow (no text or symbols)

Illustration of a hand holding a cylindrical object with directional arrows indicating movement or force (no text or symbols)

Illustration of a toaster oven with an electric plug inserted, showing a black arrow indicating the power input (no text or symbols present)

Diagram of a mechanical component with a labeled arrow pointing to a feature (no text or symbols present)

8 a) min air turbo

8 b) min air turbo

9

9

Mechanical component diagram showing a threaded pipe inserted into a housing with an arrow indicating direction (no text or symbols present)

11 CLICK!

Illustration of a robotic arm gripping a rectangular object, with a magnifying glass pouring liquid from the handle (no text or symbols)

Diagram of a mechanical device with internal components and a tool, no visible text or symbols

15 16

17

18 19

20 CLICK! CLICK!

21 b)a)

22

23*

23* CLICK!

24* CLICK!

A
