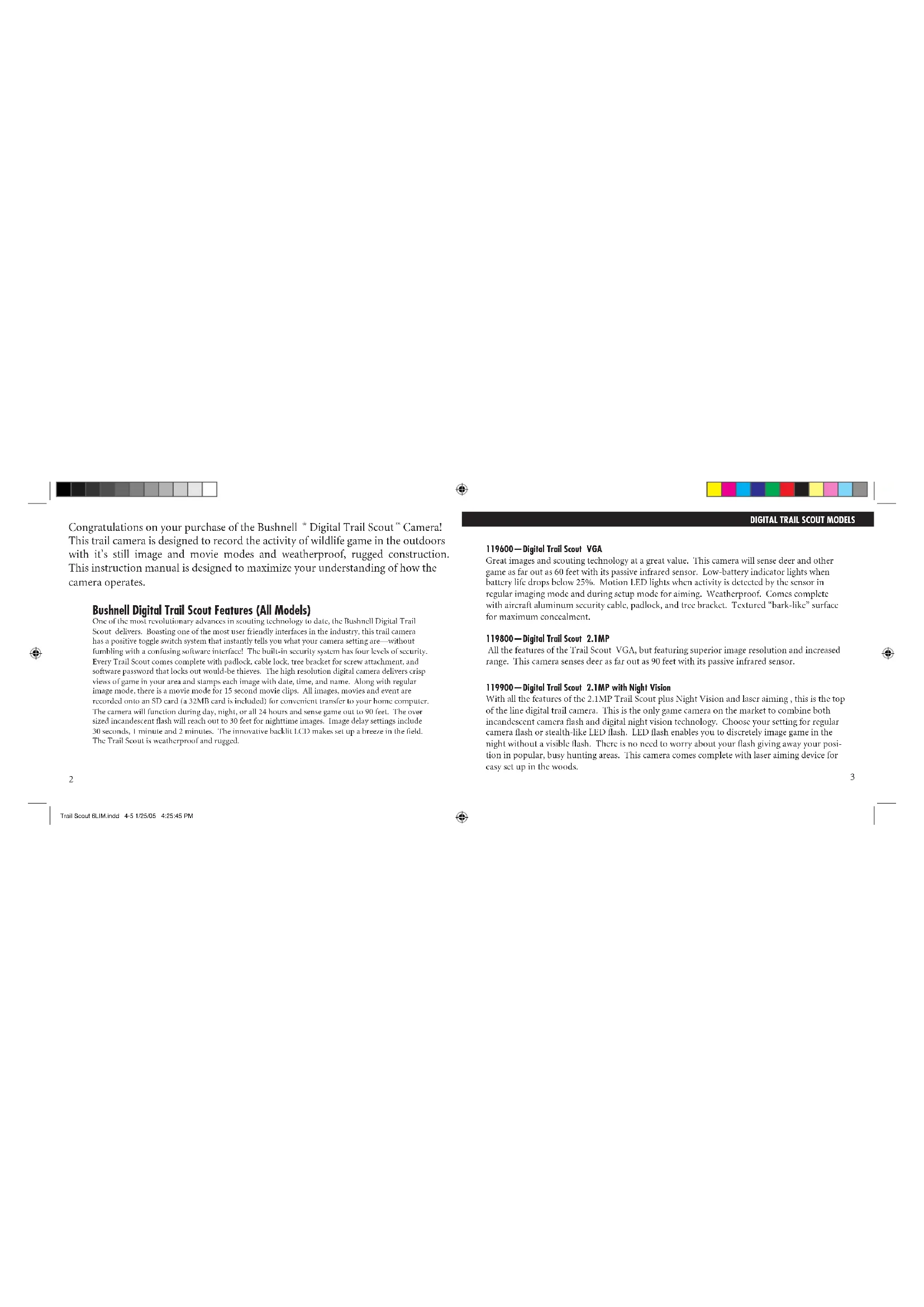

Congratulations on your purchase of the Bushnell ^ Digital Trail Scout ^ Camera! This trail camera is designed to record the activity of wildlife game in the outdoors with it's still image and movie modes and weatherproof, rugged construction. This instruction manual is designed to maximize your understanding of how the camera operates.

Bushnell Digital Trail Scout Features (All Models)

One of the most revolutionary advances in scouting technology to date, the Bushnell Digital Trail Scout delivers. Roasting one of the most user friendly interfaces in the industry, this trail camera has a positive toggle switch system that instantly tells you what your camera setting are—without fumbling with a confusing software interface! The built-in security system has four levels of security. Every Trail Scout comes complete with padlock, cable lock, tree bracket for screw attachment, and software password that locks out would-be thieves. The high resolution digital camera delivers crisp views of game in your area and stamps each image with date, time, and name. Along with regular image mode, there is a movie mode for 15 second movie clips. All images, movies and event are recorded onto an SD card (a 32MB card is included) for convenient transfer to your home computer. The camera will function during day, night, or all 24 hours and sense game out to 90 feet. The over-sized incandescent flash will reach out to 30 feet for nighttime images. Image delay settings include 30 seconds, 1 minute and 2 minutes. The innovative backlit LCD makes set up a breeze in the field. The Trail Scout is weatherproof and rugged.

2

Trail Seoul 8LIM.innd 4-51/2505 4:25.45PM

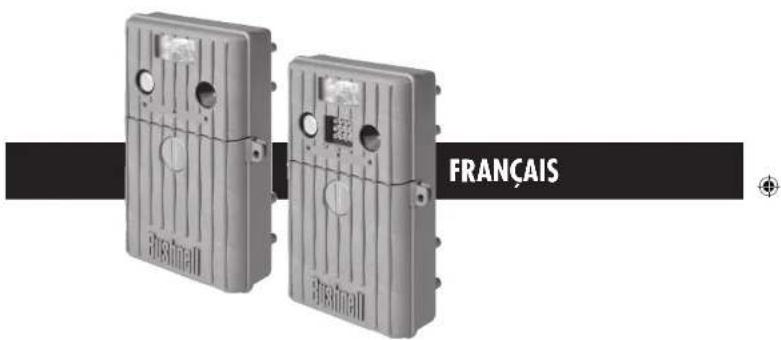

DIGITAL TRAIL SCOUT MODELS

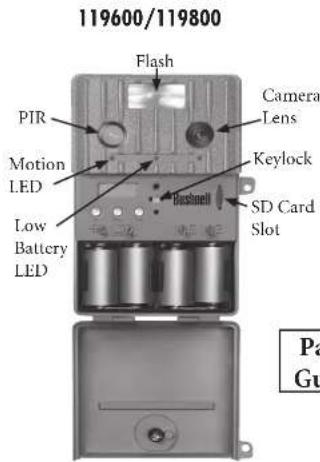

119600-Digital Trail Scout VGA

Great images and scouting technology at a great value. This camera will sense deer and other game as far out as 60 feet with its passive infrared sensor. Low-battery indicator lights when battery life drops below 25% . Motion LED lights when activity is detected by the sensor in regular imaging mode and during setup mode for aiming. Weatherproof. Comes complete with aircraft aluminum security cable, padlock, and tree bracket. Textured "bark-like" surface for maximum concealment.

119800-Digital Trail Scout 2.1MP

All the features of the Trail Scout VGA, but featuring superior image resolution and increased range. This camera senses deer as far out as 90 feet with its passive infrared sensor.

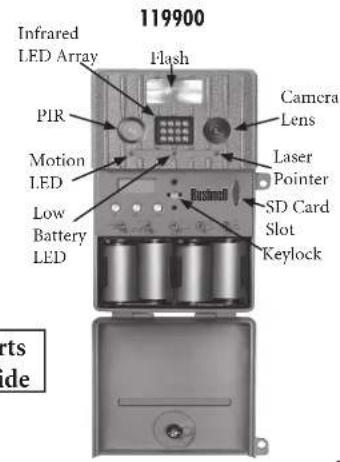

119900-Digital Trail Scout 2.1MP with Night Vision

With all the features of the 2.1MP Trail Scout plus Night Vision and laser aiming, this is the top of the line digital trail camera. This is the only game camera on the market to combine both incandescent camera flash and digital night vision technology. Choose your setting for regular camera flash or stealth-like LED flash. LED flash enables you to discreetly image game in the night without a visible flash. There is no need to worry about your flash giving away your position in popular, busy hunting areas. This camera comes complete with laser aiming device for easy set up in the woods.

3

DIGITAL TRAIL SCOUT SPECIFICATIONS

Image Sensor 1/4" CMOS, 0.35 million pixels (119600)1/2" CMOS, 2.1 million pixels (119800/119900)
Lens F/3.5, effective focus	l length 42mm. Sight range: 45 degrees
Flash High power electrcan	Ionic Incandescent flash. Range: 30 ft.
PIR Sensor Low noise, high sensitivity passive infrared sensor. Range: 60 ft. (119600)90 ft. (119800/119900)
Motion I.FD IndicatorYes
Display Backlit LCD, 2	ows x 8 characters. Auto-off: 3 min. 2-digit event and image display.
File Format Still image	PG 640x480 pixels (119600), 1600x1200 pixels (119800/119900). Movie images AVI 320x240 pixel per frame. DCF ver. 1.0 file management.
Exposure Auto
White Balance Auto
Power Supply 4 x "D" cell batteries. Low battery indicator at 25% remaining power.
Battery Life Approximate	ely 30 days (dependant on temperature, camera activity and flash us-age)
User Password Yes, available range: 0000 to 9999 (Default setting = 0000)
Other (119900 only)Note control, Laser pointer, I.FD for night vision infrared imaging

5

Switch and Setup Description

6

	Switch Position/Setting
Switch #/Function	UP CENTER	DOWN
K1 (Operating Mode)	On Setup Off
K2 (Image Mode) Still		- Movie
K3 (Day/Night Mode)	24小时 Day	(6AM-6PM)	Night
			(6PM-6AM)
K4 (Camera Delay) 2	minutes 1 minute 30 seconds

	Switch Position/Setting
Switch #/Function	UP CENTER DOWN
K1 (Operating Mode)	On Set	Up Off
K2 (Image Mode) Still		- Move
K3 (Lighting Mode)	LED	-	Incand.
K4 (Day/Night Mode)	24 Hour Day(6AM-6PM)		Night(6PM-6AM)
K5 (Camera Delay) 2	minutes 1 minute 30 seconds

SETUPGUIDE

NOTE (Model 1):9900 Only; THE LASER POINTER IS ACTIVATED IN THE SET-UP MODE. DO NOT PERMIT THE LASER POINTER TO BE DIRECTED TOWARDS ANYONE'S EYES TO AVOID POTENTIAL EYE INJURY.

Before beginning the setup, insert 4^ ^* size alkaline batteries as indicated inside the battery compartment.

1. K1 - Mode Switch (OFF/SETUP/ON):

a) Power ON (UP position): Set K1 to ON position, The LCD display will show "BUSHNIELL" for about 2 seconds, and then will prompt to input your password.

Press Up or Down key to select the first password digit of 0-9. Note: the factory programmed default password is 0000. Press ENTER to confirm, the cursor will move to the next digit to the right. Repeat the process using UP, Down and Enter keys to enter your four digit password. Press ENTER to confirm, if the password is correct the LCD will display EVENTIMAGE.

The LCD will rotate through the DATE\TIME\EVENT&IMAGE displays when pressing the Up and Down keys.

If the password entered was correct, or if the password was never previously programmed, the unit will be enabled after a 5 minute delay. If the password is entered incorrectly 3 times the unit will be turned OFF automatically.

For mounting directions, please refer to the manual section filled "Using The Trail Scout".

7

Setup Guide (cont.)

b) SETUP Mode [move switch K1 from UP (ON) position to center position]:

Press Up or Down buttons to scroll through choices of DATE, TIME, NAME and PASSWORD to modify or set these functions.

(1) SET DATE: When the LCD shows the date, press the ENTER key to modify the date.

Press Up or Down button to select 1-12 then press the ENTER button to confirm

C+Tbgs

Set1#

09/18/04

Press Up or Down button to select 0-99,then press ENTER to confirm the two

digit year. From Set Date, press the Down button to set the time.

(2) SET TIME: When the LCD shows the time, press the ENTER key to modify the time.

Press

Set 1
06:30PMM
1

(3) SET NAME: When the LCD shows current name, press ENTER key to modify the

name display. Press Up or Down button to select one character from "A" to "Z".

AME

1
555-1234

0 to 9, then Press ENTER to confirm, the cursor will move to next character.

There are 2 lines of 8 characters each for your use. From Set Name, press the Down

button to change the password.

(4) SET PASSWORD:

Setup Guide (cont.)

Password

Set

When the LCD shows [Password Set], press the ENTER key to set the password.

Password

Yes

The LCD will show [Password Yes]. To change the password, press Enter.

If you do not want to set a password, you can press the Up or Down key to select NO.

New Pswd

0000

If you do not want to set a password when the LCD shows (PW YES), you can press

the U/D button to select No. After pressing the ENTER, the LCD display shows (PW)

New

None

When you are finished with SETUP, change K1 to the ON (UP) position and the

unit will be operating after a 5 minute delay.

c) Power OFF: Set K1 to "Off", the Trail Scout will be OFF.

8

Setup Guide (cont.)

1. K2 - Image Mode Switch (STILL / MOVIE):

Set K2 to either of these settings:

UP) STILL Photo Mode: Image resolution is 0.35MP (119600) or 2.1MP (119800/119900)

and photos are stored in JPG format

(DOWN) MOVTE Mode: The camera can record a 15 second movie, the file format is AVI.

NOTE: The use of MOVIE Mode must be during daytime with models 119600 and 119800.

You can not record movies at night. However, MOVIE mode with the model 119900 CAN be used at night when the camera is in the IR-LFD mode.

(Model 119900 only)

1. K3 - Lighting Mode Switch (LED / Incand):

The Game camera has two modes for illumination in darkness:

(a)LEDMode;

When you use IR-LED light mode to take still picture at night, you must remove the FIT.TFR from the lens of the trail camera. The IR-LED (infrared) light is invisible to the naked eye, but will provide illumination for the camera, use it when you do not want to alert the subject. This mode will provide illumination for nighttime movie capture.

(b) Incand Mode: You can use Incandescent mode to take still pictures at night.

If you want to record movies using the MOVIE mode, you can not use Incard mode—you must set K3 to LEd Mode.

10

Setup Guide (cont.)

4.K3 (Models 119600 念 119800-241hr DAY/NIGIT MODE:

K4 (Model 11990)-(24Hr / DAY / NIGHT) MODE:

The Trail Scout has three working times:

(a) 24HR: The Trail camera is working all day. When the PIR is sensed the unit will take an image and record an EVENT.

(b) DAY: The Trail camera is only working in daytime (from 6:00 AM to 6:00 PM). When the PIR (Passive InfraRed) is sensed the unit will take image and record EVENT. If the PIR is sensed out of day-time, only an EVENT is recorded, an image is not taken.

(c) NIGHT: The Trail camera is only working at night (from 6:00 PM to 6:00 AM). When the PIR (Passive InfraRed) is sensed the unit will take image and record LVENT. If the PIR is sensed out of night time, only an EVENT is recorded, an image is not taken.

5.K4 (Models 119600 & 119800)-(30s/1Min/2Min) CAMERA DELAY MODE

There are three modes for taking delayed pictures: 30 Sec, 1 Min and 2 Min. The unit will record EVENTS while CAMERA is in DELAY MODE each time the PIR senses motion.

(a) 30s: After the first picture, a second picture will be taken 30 seconds later.
(b) 1Min: After the first picture, a second picture will be taken 1 minute later.
(c) 2Min: After the first picture, a second picture will be taken 2 minutes later.

11

GLOSSARY

OTHER SETUP NOTES

PIR-Passive Infrared Sensor. Senses motion like typical security motion detector. Requires Infrared Energy in addition to motion to trip sensor to assure detection of live animals.

Event—Any time that the PIR senses motion it counts it as an event. Events are recorded to the SD card in a text file. Events are recorded continuously during operation.

Image = A digital picture recorded on the SD Card when motion is sensed. Images are taken at the desired delay between images.

Image Delay—Delay between images taken by camera. This is user-set based on wildlife activity in area.

IR Flash—LED Night Vision Flash. Sends a burst of Infrared Energy which is invisible to the human eye. Especially useful for night photos when a visible flash is undesirable. (Featured on Model 119900 only)

Camera Flash-Incarcerate Flash used for night or low light photography. Typically oversized to achieve greater flash range for hitting game out further.

SD card=Memory card used to store images and events inside the trail camera. 32MB card included.

Battery Life-Time that camera will function in the field. Dependent on temperature, number of images and number of flashes during that time.

Setp-Methods required for setting date/time and camera imaging settings.

Security [4 methods]—One of the most important requirements of any trail camera. Badmull unis have 4 levels—padlock, tree bracket, cable lock, and software password.

1. SD CARD SLOT

The unit has a standard SD Card slot. You must push the SD Card in with the SD Card label facing the Bushnell logo into the SD card slot. Pushing it again will release the SD card, and then you can remove the SD card from the SD card slot. Insertion or removal of SD card is only recommended when the unit is in the "OFF" position.

2. PIR SENSOR

The sensor that triggers the trail camera is Passive Infrared, or PIR. Infrared energy is essentially heat energy. The PIR detector operates by sensing a change in the infrared level in its detection zone. This zone is a cone in the center 10 degrees of the camera's field of view. The camera establishes an average long-term infrared level. When this level increased suddenly the PIR detector signals the camera to record a picture and/or an event. Because of this effect, the PIR detector will be more sensitive at night, when the average temperature is lower.

In the Setup mode, you can use PIR sensor to determine the detection zone. When the PIR is sensed, the PIR Sense Indicator will light. The camera's field of view is a 45 degree cone, centered on the PIR detection zone.

Other Setup Notes (cont.)

1. LASER POINTER (Model 119900 Only)

The Model 11-9900 Trail Scout camera has a Laser pointer. When you mount the unit on a tree or any other fixed surface and cannot sight from behind the Game Camera, you can use the Laser Pointer to align the unit.

NOTE: LASER LIGHT IS POTENTIALLY DANGEROUS TO THE EYES. THE LASER POINTER IS ACTIVATED IN THE SET-UP MODE. DO NOT PERMIT THE LASER POINTER TO BE DIRECTED TOWARD ANYONE'S EYES TO AVOID POTENTIAL EYE INJURY.

1. REMOTE CONTROLLER (Model 119900 Only)

The Model 11-9900 Trail Scout camera has a remote controller attachment with two functions. Search: if you cannot locate the camera, you can press the SEARCH button.

When the Trail Scout receives the signal the unit's camera will fire the flash to help you locate it.

Snap: If you want to take a picture by remote control (without PIR activation), press the SNAP button.

USING THE DIGITAL TRAIL SCOUT

1.MOUNTING:

Mount the trail camera on the tree as shown below.

1. Screw bracket A to the tree.
2. Bolt bracket B on the back of the trail camera.
3. Match bracket B up to bracket A.
4. Then, hang bracket B over bracket A.
5. Finally, insert the padlock and lock when setup is completed.

For extra security, you can use the included cable to wrap around the tree also.

1. Insert the end with the large lug into bracket A.
2. Then, feed the other end of the cable around the tree and back
   through the bracket.
3. Tighten the adjustable locking bolt to hold the cable tightly in place (B).

2. Power ON and Setup switch summary:

Turn the knob 90^ counterclockwise and open the front cvar. Set the K1 to ON position.

Input correct Password. Default password is "0000".

(If the password is entered incorrectly 3 times, the unit will be powered off automatically. If you want to power ON again you must set K1 back to OFF and then set K1 to ON)

The LCD will display current IMAGE/REVENT counter. You can press the Up or Down key to see the DATE, TIME, NAME. If you want to modify DATE, TIME, NAME or password, set K1 to S (See instructions)

After finishing SETUP, set K1 back to ON position
The unit will delay 5 minutes before functioning to allow you to clear out of your area.
The functions of K2, K3, and K4 can be set in the SETUP or ON Mode.
After finishing SETUP, close the front cover and turn the knob to 90^ clockwise.
Finally, secure the Trail Scout with a padlock.

Using the Trail Scout (cont.)

1. USING THE FILTER (Model 11-9900 only)
   When using LED flash at night-time, remove the FILTER to get satisfactory pictures. Add the FILTER in daylight to get good quality full color pictures.

OPERATING NOTES

a. The LCD showing "RESUME" means the system is active.
b. The LCD showing "ENTER SUSPEND" means the system is going to suspend.
c. After setting K1 to ON, the system will begin working after a 5 minute delay.
If there is no activity sensed in three minutes, the system will go to SUSPEND.
When the PIR senses activity, the camera will be activated immediately.

TWO-YEAR LIMITED WARRANTY

Your "this-and-they" product is warranted to be free of defects in materials and workmanship for two years after the date of purchase, in the event of a defect under this warranty, we will, at our option, repair or replace the product, provided that you return the product postage prepaid. This warranty does not cover damages caused by misuse; improper handling, installation, or maintenance provided by someone other than a Bushnell Authorized Service Department.

Any return made under this warranty must be accompanied by the items listed below: 11. A check/monday order to the amount of $300 to cover the cost of postage and handling. 12. Name and address for product return 13. An explanation of the defect

1. Proof of Date Purchases
2. Products purchased were placed in a study centre shipping carton to prevent damage in transit with return policy posted to the address listed above.

IN U.S.A. Surname To: IN CANADA Surname To:

Bushnell Performance Optics Bushnell Performance Optics

850Mortg 25A Fent Prrty Stnch Lm

Lepas, Kanss 66214 Richmond Hill, Ontario L4B 2M9

For products purchased outside the United States or Canada please contact your local dealer for applicable security information. In Europe you may also contact Buidholland International, Inc., 1200 Park Avenue, Toronto, Ontario M5N 3A, Canada.

European Service Centre

MORSESTRASS

D-50/68 ROLN

GERMANY

Tel: [phone]
Fax: [phone]

This warranty gives you specific legal rights.

You may have other rights which vary from country to country.

FCC Note:

This equipment has been tested and found in comply with the limits for a Class B digital device, pursuant to Part 15 of the DCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed, and used in accordance with the requirements of the Federal Aviation Administration or radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment of 'and' on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Increase the separation between the equipment and catalyst.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radioTV technician for help.

Skeletal interface cable must be used with the equipment in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of F.C.C. Rules.

Specifications and designs are subject to change without any notice an obligation on the part of the manufacturer.
