USER MANUAL AVHZ9200DAB PIONEER

Your new product and this manual

• Do not operate this product, any applications, or the rear view camera option (if purchased) if doing so will divert your attention in any way from the safe operation of your vehicle. Always observe safe driving rules and follow all existing traffic regulations. If you experience difficulty in operating this product, pull over, park your vehicle in a safe location and apply the handbrake before making the necessary adjustments.
• Do not install this product where it may (i) obstruct the driver's vision, (ii) impair the performance of any of the vehicle's operating systems of safety features, including airbags, hazard lamp buttons, or (iii) impair the driver's ability to safely operate the vehicle. In some cases, it may not be possible to install this product because of the vehicle type or the shape of the vehicle interior.

Important safeguards

WARNING

Pioneer does not recommend that you install this product yourself. This product is designed for professional installation only. We recommend that only authorised Pioneer service personnel, who have special training and experience in mobile

electronics, set up and install this product. NEVER SERVICE THIS PRODUCT YOURSELF. Installing or servicing this product and its connecting cables may expose you to the risk of electric shock or other hazards, and can cause damage to this product that is not covered by warranty.

Precautions before connecting the system

WARNING

Do not take any steps to tamper with or disable the handbrake interlock system which is in place for your protection. Tampering with or disabling the handbrake interlock system could result in serious injury or death.

CAUTION

• Secure all wiring with cable clamps or electrical tape. Do not allow any bare wiring to remain exposed.
• Do not directly connect the yellow lead of this product to the vehicle battery. If the lead is directly connected to the battery, engine vibration may eventually cause the insulation to fail at the point where the wire passes from the passenger compartment into the engine compartment. If the yellow lead's insulation tears as a result of contact with metal parts, short-circuiting can occur, resulting in considerable danger.
• It is extremely dangerous to allow cables to become wound around the steering column or gearstick. Be sure to install this product, its cables, and wiring away in such so that they will not obstruct or hinder driving.

• Make sure that the cables and wires will not interfere with or become caught in any of the vehicle's moving parts, especially the steering wheel, gearstick, handbrake, sliding seat tracks, doors, or any of the vehicle's controls.
- Do not route wires where they will be exposed to high temperatures. If the insulation heats up, wires may become damaged, resulting in a short circuit or malfunction and permanent damage to the product.
- Do not shorten any leads. If you do, the protection circuit (fuse holder, fuse resistor or filter, etc.) may fail to work properly.
- Never feed power to other electronic products by cutting the insulation of the power supply lead of this product and tapping into the lead. The current capacity of the lead will be exceeded, causing overheating.

Before installing this product

• Use this unit with a 12-volt battery and negative earthing only. Failure to do so may result in a fire or malfunction.
• To avoid shorts in the electrical system, be sure to disconnect the (−) battery cable before installation.

To prevent damage

WARNING

• Use speakers over 50 W (maximum input power) and between 4 Ω to 8 Ω (impedance value). Do not use 1 Ω to 3 Ω speakers for this product.
  • The black lead is earth. Please earth this lead separately from the earth of high current products such as power amps. Do not earth more than one product

together with the earth from another product. For example, you must separately earth any amp unit away from the earth of this product. Connecting earths together can cause a fire and/or damage the products if their earths became detached.

• When replacing the fuse, be sure to only use a fuse of the rating prescribed on this product.
• When disconnecting a connector, pull the connector itself. Do not pull the lead, as you may pull it out of the connector.
• This product cannot be installed in a vehicle without ACC (accessory) position on the ignition switch.

ACC position

No ACC position

• To avoid short-circuiting, cover the disconnected lead with insulating tape. It is especially important to insulate all unused speaker leads, which if left uncovered may cause a short circuit.
- For connecting a power amp or other devices to this product, refer to the manual for the product to be connected.
• The graphical symbol placed on the product means direct current.

Notice for the blue/white lead

- When the ignition switch is turned on (ACC ON), a control signal is output through the blue/white lead. Connect to an external power amp's system remote control terminal, the auto-aerial relay control terminal, or the aerial booster power control terminal (max. 300 mA 12

V DC). The control signal is output through the blue/white lead, even if the audio source is switched off.

Important

When this product is in [Power OFF] mode, the control signal is also turned off. If [Power OFF] mode is cancelled, the control signal is output again and the aerial is extended with the auto aerial function (if the aerial is being used). Be careful so that the extended aerial does not come into contact with any obstacles.

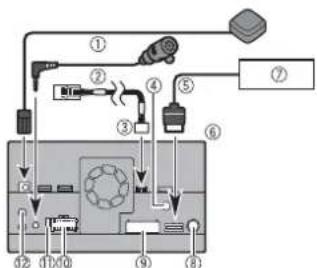

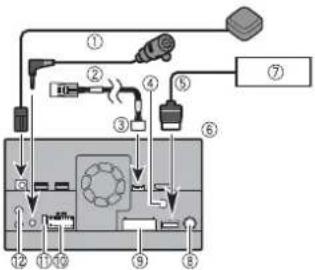

Rear panel (main terminals)

① GPS aerial 3.55 m
② Microphone 3 m
③ Vehicle Bus conversion cable 13 cm Refer to the instruction manual for the Vehicle Bus adapter (sold separately).
④ Digital Radio aerial input
⑤ RGB cable (supplied with Navigation system)
⑥ This product
⑦ Pioneer navigation system Contact your dealer to inquire about the connectable navigation unit.
⑧ Aerial jack
⑨ AV cable IN/OUT

⑩ Power supply
⑪ Fuse (10 A)
⑫ Wired remote input Hard-wired remote control adapter can be connected (sold separately).

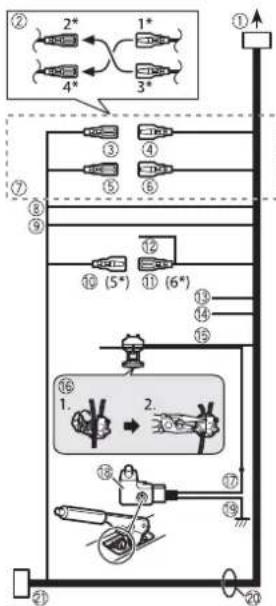

Power cord

WARNING

IMPROPER CONNECTION MAY RESULT IN SERIOUS DAMAGE OR INJURY INCLUDING ELECTRICAL SHOCK, AND INTERFERENCE WITH THE OPERATION OF THE VEHICLE'S ANTILOCK BRAKING SYSTEM, AUTOMATIC TRANSMISSION AND SPEEDOMETER INDICATION.

① To power supply
② Depending on the kind of vehicle, the function of 2^ and 4^ may be different. In this case, be sure to connect 1^ to 4^ and 3^ to 2^ .
③ Yellow (2*)
Back-up (or accessory)
④ Yellow (1*) Connect to the constant 12 V supply terminal.
⑤ Red (4*) Accessory (or back-up)
⑥ Red (3°) Connect to terminal controlled by ignition switch (12 V DC).

⑦ Connect leads of the same colour to each other.
⑧ Orange/white
To lighting switch terminal.
⑨ Black (earth)
To vehicle (metal) body.
⑩ Blue/white (5*)

The pin position of the ISO connector will differ depending on the type of vehicle. Connect 5* and 6* when Pin 5 is an aerial control type. In another type of vehicle, never connect 5* and 6*.

⑪ Blue/white (6*)

Connect to auto-aerial relay control terminal (max. 300 mA 12 V DC).

⑫ Blue/white

Connect to system control terminal of the power amp (max. 300 mA 12 V DC).

⑬ Violet/white

Of the two lead wires connected to the back lamp, connect the one in which the voltage changes when the gear shift is in the REVERSE (R) position. This connection enables the unit to sense whether the car is moving forwards or backwards.

⑭ Pink

Car speed signal input

15 Light green

Used to detect the ON/OFF status of the handbrake. This lead must be connected to the power supply side of the handbrake switch.

16 Connection method

Clamp the lead (1) then clamp firmly with needle-nosed pliers (2).

17 Power supply side

18 Handbrake switch

19 Earth side

⑳ Speaker leads

White: Front left + or high range left + White/black: Front left - or high range left -

Grey: Front right + or high range right + Grey/black: Front right - or high range right -

Green: Rear left + or middle range left + Green/black: Rear left - or middle range left -

Violet: Rear right + or middle range right +

Violet/black: Rear right – or middle range right –

② ISO connector

In some vehicles, the ISO connector may be divided into two. In this case, be sure to connect to both connectors.

NOTES

• The position of the speed detection circuit and the position of the handbrake switch vary depending on the vehicle model. For details, consult your authorised Pioneer dealer or an installation professional.
• When a subwoofer is connected to this product instead of a rear speaker, change the rear output setting in the initial setting. The subwoofer output of this product is monaural.
• When using a subwoofer of 2 , be sure to connect the subwoofer to the violet and violet/black leads of this unit. Do not connect anything to the green and green/black leads.

Power amp (sold separately)

Important

The speaker leads are not used when this connection is in use.

① Subwoofer output (SUBWOOFER OUTPUT) 23 cm (STD) Low range output (NW)
② RCA cable (sold separately)
③ Power amp
④ Front output (FRONT OUTPUT) 15 cm (STD) High range output (NW)
⑤ Rear output (REAR OUTPUT) 15 cm (STD)

Middle range output (NW)

⑥ Yellow/black (MUTE)

If you use an equipment with Mute function, wire this lead to the Audio Mute lead on that equipment. If not, keep the Audio Mute lead free of any connections.

⑦ This product

⑧ System remote control

Connect to Blue/white cable (max. 300 mA 12 V DC).

⑨ Rear speaker (STD)

Middle range speaker (NW)

⑩ Front speaker (STD)

High range speaker (NW)

⑪ Subwoofer (STD)

Low range speaker (NW)

NOTE

Select the appropriate speaker mode between standard mode (STD) and network mode (NW). For details, refer to the Operation Manual.

iPod/iPhone and smartphone

NOTES

• For details on how to connect an external device using a separately sold cable, refer to the manual for the cable.
• For details concerning the connection, operations and compatibility of the iPhone, refer to the Operation Manual.
• For details concerning the connection and operations of the smartphone, refer to the Operation Manual.

Attaching identification labels to USB cables

Attach identification labels to USB cables before installing this product in a vehicle.

1 Connect USB cables to the USB port 1 and 2 on the rear of this product.
2 Attach the identification labels corresponding to each port to the USB cables as illustrated below. Attach the "Port 1 Apple CarPlay" label to the USB cable connected to the USB port 1. Attach the "Port 2 Android Auto" label to the USB cable connected to the USB port 2.

iPod/iPhone

Connecting via the USB port

Diagram showing device connection with labeled components including power, switch, and smartphone interface

① USB port1
② USB cable 1.5 m
③ USB interface cable for iPod/iPhone (CD-IU52) (sold separately)
④ iPhone

Smartphone (Android™ device)

Connecting via the USB port

Diagram of a device setup with labeled components including ports, connectors, and a battery

① USB port2
② USB cable 1.5 m
③ USB - micro USB cable (Type USB A - micro USB B) (supplied with CD-MU200)
④ Smartphone

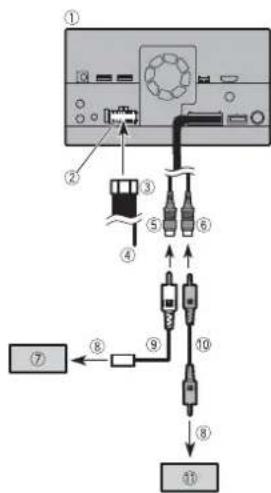

Camera

When you use the rear view camera, the rear view image is automatically switched from the video by moving the gearstick to REVERSE (R). Camera View mode also allows you to check what is behind you while driving.

WARNING

USE INPUT ONLY FOR REVERSE OR MIRROR IMAGE REAR VIEW CAMERA. OTHER USE MAY RESULT IN INJURY OR DAMAGE.

CAUTION

• The screen image may appear reversed.
- With the rear view camera you can keep an eye on trailers, or back into a tight parking spot. Do not use for entertainment purposes.
- Objects in rear view may appear closer or more distant than in reality.
• The image area of full-screen images displayed while backing or checking the rear of the vehicle may differ slightly.

① This product
② Power supply
③ Power cord
④ Violet/white (REVERSE-GEAR SIGNAL INPUT)
⑤ Brown (REAR VIEW CAMERA IN) 23 cm
⑥ Yellow (VIDEO INPUT) 23 cm
⑦ Rear view camera (ND-BC8) (sold separately)
⑧ To video output
⑨ RCA cable (supplied with ND-BC8)
⑩ RCA cable (sold separately)
⑪ View camera (sold separately)

NOTES

• Connect only the rear view camera to brown cable. Do not connect any other equipment.
• Some appropriate settings are required to use rear view cameras. For details, refer to the Operation Manual.

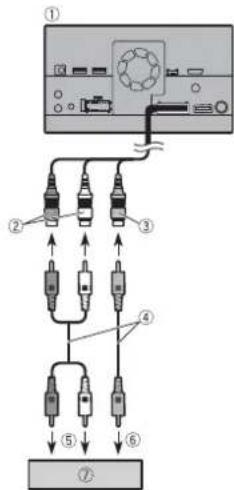

External video component

Using AV input

Diagram showing connections between a device and a power connector with labeled pins ① to ⑦

① This product
② Red, white (AUDIO INPUT) 23 cm
③ Yellow (VIDEO INPUT) 23 cm
④ RCA cable (sold separately)
⑤ To audio input
⑥ To video input
⑦ External video component (sold separately)

NOTE

The appropriate setting is required to use the external video component. For details, refer to the Operation Manual.

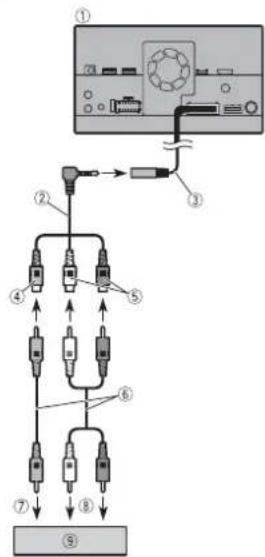

Using an AUX input

Diagram showing connections between a device and various audio equipment ports, labeled with numbers 1 through 9.

① This product
② Mini-jack AV cable (sold separately)
③ AUX input (AUX IN) 15 cm
④ Yellow
⑤ Red, white
⑥ RCA cables (sold separately)
⑦ To video output
⑧ To audio outputs
⑨ External video component (sold separately)

NOTE

The appropriate setting is required to use the external video component. For details, refer to the Operation Manual.

CAUTION

Be sure to use a mini-jack AV cable (sold separately) for wiring. If you use other cables, the wiring position might differ resulting in disturbed images and sounds.

L: Left audio (White) R: Right audio (Red) V: Video (Yellow) G: Earth

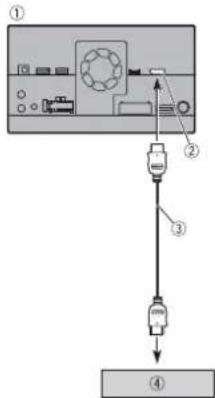

Using an HDMI input

Diagram showing a device connection with labeled parts and directional arrows, likely illustrating a system or system setup.

① This product
② HDMI port
③ High Speed HDMI™ Cable (sold separately)
④ HDMI device (sold separately)

NOTE

When you connect the High Speed HDMI™ Cable, use the lock tie to fix it securely (page 7).

Securing the High Speed HDMI™

Be sure to fix the High Speed HDMI™ Cable with the lock tie, when you connect the external device with the High Speed HDMI™ Cable.

1 Insert the High Speed HDMI™ Cable into the HDMI port.
2 Wrap the lock tie around the hook above the HDMI port and the High Speed HDMI™ Cable, and then tighten it to secure the High Speed HDMI™ Cable.

① Hook
② Lock tie
③ High Speed HDMI™ Cable

CAUTION

Do not tighten up the lock tie more than necessary.

Rear display

Diagram showing cable connections from a computer to a device, labeled with numbered components and connection points.

① This product
② Rear audio output (R. AUDIO OUT)
③ Yellow (REAR MONITOR OUTPUT) 30 cm
④ Mini pin plug cable (sold separately)
⑤ RCA cables (sold separately)
⑥ To audio input
⑦ To video input
⑧ Rear display with RCA input jacks (sold separately)

WARNING

NEVER install the rear display in a location that enables the driver to watch the video source while driving.

This product's rear video output is for connection of a display to enable

passengers in the rear seats to watch the video source.

Installation

Precautions before installation

CAUTION

• Never install this product in places where, or in a manner that:
  Could injure the driver or passengers if the vehicle stops suddenly.
• May interfere with the driver's operation of the vehicle, such as on the floor in front of the driver's seat, or close to the steering wheel or gearstick.
  • To ensure proper installation, be sure to use the supplied parts in the manner specified. If any parts are not supplied with this product, use compatible parts in the manner specified after you have the part compatibility checked by your dealer. If parts other than supplied or compatible ones are used, they may damage internal parts of this product or they may work loose and the product may become detached.
• It is extremely dangerous to allow cables to become wound around the steering column or gearstick. Be sure to install this product, its cables, and wiring away in such so that they will not obstruct or hinder driving.
• Make sure that leads cannot get caught in a door or the sliding mechanism of a seat, resulting in a short circuit.
• Please confirm the proper function of your vehicle's other equipment after installation of this product.
• Do not install this product where it may (i) obstruct the driver's vision, (ii) impair the performance of any of the vehicle's operating systems or safety

features, including airbags, hazard lamp buttons or (iii) impair the driver's ability to safely operate the vehicle.

- Never install this product in front of or next to the place in the dashboard, door, or pillar from which one of your vehicle's airbags would deploy. Please refer to your vehicle's owner's manual for reference to the deployment area of the frontal airbags.

Before installing

• Consult with your nearest dealer if installation requires drilling holes or other modifications of the vehicle.
• Before making a final installation of this product, temporarily connect the wiring to confirm that the connections are correct and the system works properly.
• Do not install this product in a position where the opening of the LCD panel is obstructed by any obstacles, such as the gearstick. Before installing this product, be sure to leave sufficient space so that the LCD panel does not obstruct the gearstick when it is fully opened. This may cause interference with the gearstick, or a malfunction of the mechanism of this product.

Installation notes

• Do not install this product in places subject to high temperatures or humidity, such as:

• Places close to a heater, vent or air conditioner.

• Places exposed to direct sunlight, such as on top of the dashboard.

• Places that may be exposed to rain, such as close to the door or on the vehicle's floor.
• Install this product horizontally on a surface within 0 to 30 degrees tolerance (within 5 degrees to the left or right). Improper installation of the unit with the surface tilted more than these tolerances increases the potential for errors in the vehicle's location display, and might otherwise cause reduced display performance.

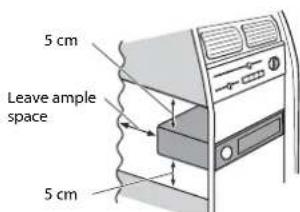

- When installing, to ensure proper heat dispersal when using this unit, make sure you leave ample space behind the rear panel and wrap any loose cables so they are not blocking the vents.

5 cm Leave ample space 5 cm

Before installing this product

1 Remove the trim ring.

Extend top and bottom of the trim ring outwards to remove the trim ring.

① Trim ring

2 Insert the supplied extraction keys into both sides of the unit until they click into place.
3 Pull the unit out of the holder.

① Extraction key

Installation with the holder

1 Install the holder into the dashboard.
2 Secure the mounting sleeve by using a screwdriver to bend the metal tabs (90°) into place.
① Dashboard
② Holder

182 mm ① ② 112 mm

3 Install this product into the holder.

① Dashboard

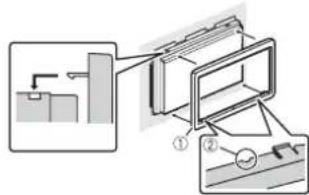

4 Attach the trim ring.

Diagram showing a mechanical assembly with labeled components, including a valve and a control panel.

① Trim ring
② Groove
Attach the trim ring with the side with a groove facing downward.

Installation using the screw holes on the side of this product

1 Fastening this product to the factory radio-mounting bracket.

Position this product so that its screw holes are aligned with the screw holes of the bracket, and tighten the screws at three locations on each side.

Use either the truss head screws or flush surface screws, depending on the shape of the bracket's screw holes.

Technical diagram of a device with labeled components and exploded view, showing internal components and assembly steps.

① Factory radio-mounting bracket
② If the pawl interferes with installation, you may bend it down out of the way.
④ Truss head screw or flush surface screw Be sure to use the screws supplied with this product.

③ Dashboard or console

Installing the GPS aerial

CAUTION

Do not cut the GPS aerial lead to shorten it or use an extension to make it longer. Altering the aerial cable could result in a short circuit or malfunction and permanent damage to this product.

Installation notes

• The aerial should be installed on a level surface where radio waves will be

blocked as little as possible. Radio waves cannot be received by the aerial if reception from the satellite is blocked.

Diagram showing car with two satellites and ground stations, labeled ① and ②

① Dashboard
② Rear shelf
- When installing the GPS aerial inside the vehicle, be sure to use the metal sheet provided with your system. If this is not used, the reception sensitivity will be poor.
- Do not cut the accessory metal sheet. This would reduce the sensitivity of the GPS aerial.
- Take care not to pull the aerial lead when removing the GPS aerial. The lead may become detached.
- Do not paint the GPS aerial, as this may affect its performance.

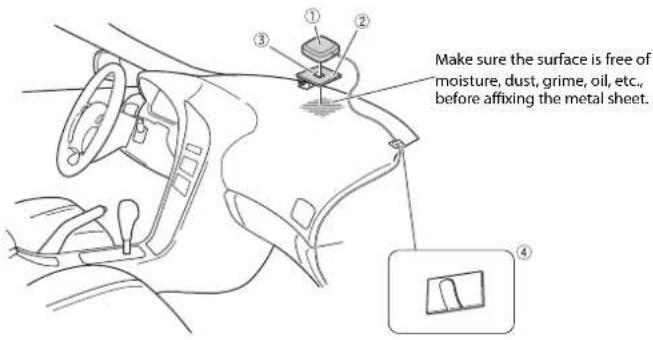

When installing the aerial inside the vehicle (on the dashboard or rear shelf)

WARNING

Do not install the GPS aerial over any sensors or vents on the dashboard of the vehicle, as doing so may interfere with the proper functioning of such sensors or vents and may compromise the ability of the metal sheet under the GPS aerial to properly and securely affix to the dashboard.

Make sure the surface is free of moisture, dust, grime, oil, etc., before affixing the metal sheet.

① GPS aerial

② Metal sheet

Peel off the protective sheet on the rear.

③ Double-sided tape

④ Clamps

Use clamps to secure the lead where necessary inside the vehicle.

NOTES

• Affix the metal sheet on the surface as level as possible where the GPS aerial faces the window.
• Affix the GPS aerial on the metal sheet using the double-sided tape.
• The metal sheet contains a strong adhesive which may leave a mark on the surface if it is removed.
• When attaching the metal sheet, do not cut it into small pieces.
• Some models use window glass that does not allow signals from GPS satellites to pass through. On such models, install the GPS aerial on the outside of the vehicle.

Installing the microphone

• Install the microphone in a place where its direction and distance from the driver make it easiest to pick up the driver's voice.
- Be sure to turn off (ACC OFF) the product before connecting the microphone.
- Depending on the vehicle model, the microphone cable length may be too short when you mount the microphone on the sun visor. In such cases, install the microphone on the steering column.

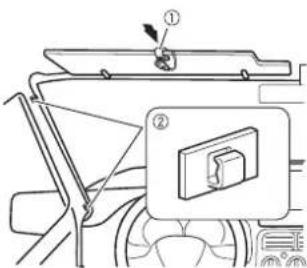

Mounting on the sun visor

1 Fit the microphone lead into the groove.

① Microphone lead ② Groove
2 Attach the microphone clip to the sun visor.

Diagram showing a car seatbelt switch mechanism with labeled parts and a zoomed-in inset view of the switch.

① Microphone clip
② Clamps

Use separately sold clamps to secure the lead where necessary inside the vehicle.

Install the microphone on the sun visor when it is in the up position. It cannot recognise the driver's voice if the sun visor is in the down position.

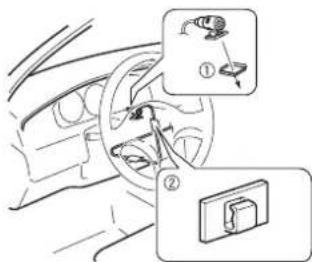

Installation on the steering column

1 Detach the microphone base from the microphone clip by sliding the microphone base while pressing the tab.

① Tab
② Microphone base

2 Mount the microphone on the steering column.

Diagram showing car interior with labeled parts and directional arrows, including a device panel and a gear mechanism.

① Double-sided tape
② Clamps

Use separately sold clamps to secure the lead where necessary inside the vehicle.

NOTE

Install the microphone on the steering column, keeping it away from the steering wheel.

Adjusting the microphone angle

The microphone angle can be adjusted.

Connexion

Précautions

Panneau arrière (bornes principales)

Diagram of a device control or system with numbered components and labeled parts, likely for industrial or electronic control.

① Antenne GPS 3,55 m

② Microphone 3 m

Technical diagram of a mechanical or electrical component with numbered parts and labeled connections

① À l'alimentation

Diagram showing connections between a device, cable, and smartphone with labeled components

Diagram of a device setup with labeled components including ports, connectors, and a device with ports ①, ②, ③, and ④.

Diagram showing connection points and labeled components of a device with numbered parts

Diagram showing connections between a device and a network of connected ports, labeled with numbers ① to ⑦.

Diagram showing connections between electronic devices and a device with numbered components and labeled parts

Diagram showing cable connections from a device to a terminal block, with numbered components and labeled parts.

Diagram showing a device connected to a screen, with labeled components and directional arrows indicating flow or interaction.

① Garniture

② Rainure

Technical diagram of a device assembly with numbered components and labeled parts

Diagram showing car with two labeled sensors (① and ②) pointing to a vehicle, likely illustrating sensor positioning or navigation.

Technical diagram showing a mechanical assembly with labeled parts, including a numbered component and a magnified inset of a device.

Diagram showing car interior with labeled parts and directional arrows, including a numbered diagram of a device.

Diagram of a device control or system with numbered components and signal paths

Diagram showing device connection with labeled components including ports, cables, and a smartphone interface

① PortaUSB 1
② Cavo USB da 1,5 m
③ Cavo interfaccia USB per iPod/iPhone (CD-IU52) (venduto separatamente)
④ iPhone

Smartphone (dispositivo Android™)

Diagram of a device setup with labeled components including ports, connectors, and a device connected to a power outlet.

① Porta USB 2
② Cavo USB da 1,5 m
③ Cavo USB - micro USB (tipo USB A - micro USB B) (fornito con CD-MU200)
④ Smartphone

Videocamera

Diagram showing connections between electronic components and a device, labeled with numbered parts ① to ⑦.

Diagram showing connections between a computer interface and various audio equipment devices, labeled with numbered components.

Diagram showing a device connection with labeled parts and directional arrows, likely illustrating a system or system setup.

Diagram showing cable connections from a computer to an audio device, labeled with numbered components.

Diagram illustrating a mechanical or electrical assembly process with labeled components and directional arrows

Technical diagram of a device assembly with numbered components and labeled parts

Diagram showing satellite coverage on a car with labeled components and directional arrows

Diagram showing car seatbelt switch mechanism with labeled parts and zoomed-in detail view

Diagram showing car interior with labeled parts and directional arrows, including a device panel and a gear mechanism.

Diagram of a device control or system with numbered components and signal paths

Diagram showing connections between a device, switch, and smartphone via ports labeled ①, ②, and ③.

Diagram of a device setup with labeled components including ports, connectors, and a battery

① Puerto USB 2
② Cable USB de 1,5 m
③ Cable USB - micro USB (Tipo USB A - micro USB B) (suministrado con el CD-MU200)
④ Smartphone

Cámara

Diagram showing connection steps from device to terminal, including ports and connectors with numbered labels

Diagram showing connections between electronic devices and a power supply unit, labeled with numbered components.

Diagram showing connections between a computer interface and various audio equipment ports, labeled with numbers 1 through 9.

Diagram showing a device with labeled components and directional arrows, likely illustrating a system or process flow.

Diagram showing cable connections from a device to a base, with numbered parts and labeled connectors

Diagram showing a mechanical or electrical assembly with labeled components and directional arrows

① Anillo embellecedor

② Ranura

Technical diagram of a device with labeled components including a box, panel, and control panel

Diagram showing car with two labeled points and dashed lines indicating positions or directions, likely illustrating a physics or optics concept.

Diagram showing a car seatbelt switch mechanism with labeled parts ① and ②

Diagram showing car interior with labeled parts and a close-up of a device component, likely illustrating a mechanical or electrical setup.

Diagram showing device connection with labeled ports and a smartphone, likely illustrating a mobile network or system setup.

Diagram of a device setup with labeled components including ports, connectors, and a device with ports ①, ②, ③, and ④.

Diagram showing connections between electronic devices and a power supply unit, labeled with numbered components.

Diagram showing connections between a computer interface and various audio equipment ports, labeled with numbers 1 through 9.

Diagram showing cable connections to a device with labeled parts and numbered arrows indicating connection points.

Diagram showing a mechanical or electrical setup with labeled components and directional arrows indicating flow or movement.

① Abdeckring
② Nut

Diagram of a microwave oven assembly with labeled components and parts

Diagram showing a car with three satellites and two ground stations, labeled ① and ②.

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating motion or force.

Diagram showing car interior with steering wheel and two labeled parts, likely illustrating a mechanical or electrical component.

Diagram showing connections between a device, switch, and smartphone with labeled components

Diagram of a device setup with labeled components including ports, connectors, and a device with ports ①, ②, ③, and ④.

Diagram showing connections between electronic devices and a device, labeled with numbered components.

① Dit product

Diagram showing connections between a device and a network of connected ports, labeled with numbers 1 through 9.

① Dit product

L: Audio links (wit)

R: Audio rechts

(rood)

V:Video (geel)

G:Aarde

Diagram showing a device connection with labeled parts and directional arrows, likely illustrating a system or system setup.

Diagram showing cable connection to a device with labeled components and wiring paths

Diagram showing a mechanical or electrical setup with labeled components and directional arrows, likely illustrating a system or process.

① Sierrand
② Gleuf

Technical diagram of a device assembly with numbered components and labeled parts

Diagram showing a car with two satellites and ground stations, labeled with numbers ① and ②.

Technical diagram showing a car seatbelt switch mechanism with labeled parts ① and ②

① Microfoonklem
② Klemmen

Diagram showing car interior with labeled parts and a close-up of a device component, likely illustrating a steering or navigation system.

28-8, Honkomagome 2-chome, Bunkyo-ku, Tokyo 113-0021, Japan

PIONEER ELECTRONICS (USA) INC.

P.O. Box 1540, Long Beach, California 90801-1540, U.S.A. TEL: [phone]

PIONEER EUROPE NV

Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium/Belgique TEL: [phone]

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

2 Jalan Kilang Barat, #07-01, Singapore 159346 TEL: [phone]

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

5 Arco Lane, Heatherton, Victoria, 3202 Australia TEL: [phone]

PIONEER ELECTRONICS DE MÉXICO S.A. DE C.V.

Blvd. Manuel Avila Camacho 138, 10 piso Col.Lomas de Chapultepec, México, D.F. 11000 Tel: [phone], Fax: [phone]

先鋒股份有限公司

台北市內湖區瑞光路407號8樓

電話：886-(0)2-2657-3588

先鋒電子（香港）有限公司

香港九龍長沙灣道909號5樓

電話：852-2848-6488

© 2019 PIONEER CORPORATION. All rights reserved.
