USER MANUAL AC6250 UFESA

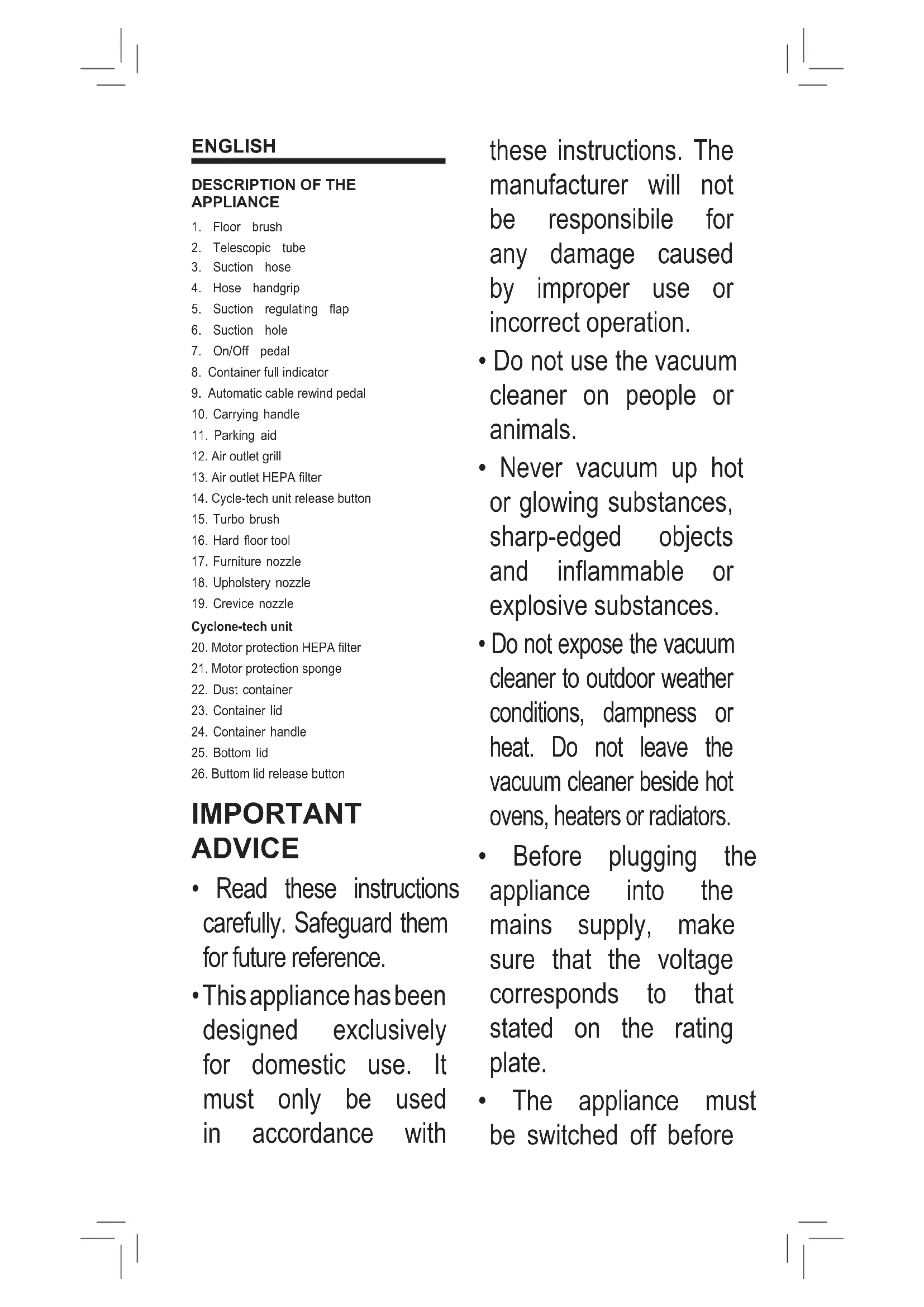

DESCRIPTION OF THE APPLIANCE

1. Floor brush
2. Telescopic tube
3. Suction hose
4. Hose handgrip
5. Suction regulating flap
6. Suction hole
7. On/Off pedal
8. Container full indicator
9. Automatic cable rewind pedal
10. Carrying handle
11. Parking aid
12. Air outlet grill
13. Air outlet HEPA filter
14. Cycle-tech unit release button
15. Turbo brush
16. Hard floor tool
17. Furniture nozzle
18. Upholstery nozzle
19. Crevice nozzle

Cyclone-tech unit

1. Motor protection HEPA filter
2. Motor protection sponge
3. Dust container
4. Container lid
5. Container handle
6. Bottom lid
7. Button lid release button

IMPORTANT ADVICE

• Read these instructions carefully. Safeguard them for future reference.
  This appliance has been designed exclusively for domestic use. It must only be used in accordance with

these instructions. The manufacturer will not be responsible for any damage caused by improper use or incorrect operation.

• Do not use the vacuum cleaner on people or animals.
• Never vacuum up hot or glowing substances, sharp-edged objects and inflammable or explosive substances.
• Do not expose the vacuum cleaner to outdoor weather conditions, dampness or heat. Do not leave the vacuum cleaner beside hot ovens, heaters or radiators.
• Before plugging the appliance into the mains supply, make sure that the voltage corresponds to that stated on the rating plate.
• The appliance must be switched off before

plugging it in or unplugging it.

• Do not operate the appliance with the cable still coiled.
• Do not unplug the appliance by tugging on the cable.
• Unplug the vacuum cleaner from the mains supply when not in use and before proceeding to clean it or change the bags or filters.
• This vacuum cleaner must not be used without the cyclone-tech unit and the permanent HEPA filter. This could damage the appliance.

• Do not use the vacuum cleaner if any of its openings are obstructed, as this will reduce the air flow causing it to overheat, which may damage the appliance.

• Do not handle either the vacuum or the plug with wet hands. Do not immerse the appliance in water.

• Do not pull on either the cable or the suction tube to move the vacuum cleaner. Use the carrying handle.
• Donotuse the appliance if either the cable or plug is damaged or if it can be detected that the appliance is not working correctly.
• When closing doors, make sure not to pinch the cable.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning

use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• At the end of its life, the vacuum cleaner should be disposed of in an appropriate manner.
• Cable repairs replacements must be carried out exclusively by an authorized technical service centre.

SUCTION SYSTEM

This appliance operates without a dust bag using cyclone-tech technology. To do this just attach cyclone-tech unit to the appliance.

SWITCHING ON

• Insert the hose handgrip (4) into the suction hole (6) so that it clicks into position.

Pressing down the release button will help you to insert or remove the hose (3). Fig. 1

• Attach the telescopic tube (2) to the hose handgrip (4), and adjust the length to suit the user. Fig. 2
• Fit the floor brush (1), accessory number 15, 16, 17, 18, 19 to the vacuum tube Fig. 3. The accessory parts 17, 18, 19 can also be affixed to the hose handgrip Fig. 4.

• Holding the power cord by the plug, pull out the required length and plug it into the mains socket. Fig. 5

• Press the On/Off pedal (7), Fig. 6. The intensity can be regulated from the hose handgrip. Opening the suction regulating flap (5) reduces suction, whereas closing it increases suction. Fig. 7

• You can use the parking aid (11) on the back of the vacuum cleaner if you wish to stop vacuuming for a short while. Slide the catch on the brush into the groove at the rear of the appliance. Fig. 8
• The wheels and 360^ swivel joint and the carrying handle, make this vacuum cleaner extremely mobile.

WHEN FINISHED

When you have finished using the appliance, press the On/Off pedal (7). Press the automatic cable rewind pedal (9) to wind the cable back in. Fig. 9

MAINTAINING THE CYCLONE-TECH UNIT AND FILTERS

When suction power decreases considerably and the container full indicator (8) lights up, this means that the container is full or that the filters are clogged.

Follow the instructions for emptying the dust container (22) and cleaning the filters.

Emptying and cleaning the dust container (22)

The dust container (22) must be emptied after each use, do not let the dust exceed the "max" level line marked on the container.

• To do this, press the cyclone-tech release button (14) and remove the Cyclone-Tech unit. Fig. 10
• Empty the contents into a dustbin by pressing bottom lid release button (26) to open the bottom lid (25). Fig. 11
• The inside of the container can be wiped clean by using a damp cloth and then left to dry before reusing it. To do this, turn the container lid (23) anti-clock wise to take the container out of the lid. Fig. 12
• Reassemble the cyclone-tech unit and put it back on the vacuum cleaner.

Cleaning the motor protection sponge and HEPA filter (20)

The motor protection sponge (21) and HEPA filter (20) should be cleaned regularly by knocking out the dirt and rinsing.

• Press the release button (14) and take the Cyclone-Tech unit out.
• Remove the sponge (21) from the Cyclone-tech unit and wash it to clean. Fig. 13
• Take the HEPA filter (20) out and clean it by tapping or washing. Fig. 14
• Leave both the sponge and HEPA filter to completely dry before next use.

Cleaning the air outlet HEPA filter (13)

• Press the release catches and remove the air outlet grill (12), take the air outlet HEPA filter (13) out. Fig. 15
• Clean the HEPA filter (12) by tapping it.
• If it is very dirty, the HEPA filter should be rinsed.
• Leave it to completely dry before refitting it.

Important:

To guarantee trouble-free operation only use original Ufesa filters.

The vacuum cleaner must never be switched on unless these filters are fitted correctly.

Ufesa recommends that the motor protection filter and the air outlet HEPA filter be replaced after washing for five times (depending on use). You can find these replacements at your local shopping center.

FLOOR BRUSH (1)

The general purpose floor brush supplied with this model has two different sweeping positions.

If we press the button on the brush to the bristles at the front of the brush come out which, together with the two rear wheels, makes it easier to move across all types of surfaces. Fig. 16

If we press the button on the brush to the [1] position the bristles at the front of the brush retract to produce more efficient suction on carpets and rugs. Fig. 17

TURBO BRUSH FOR RUGS & CARPETS (15)

This brush is specially designed for cleaning rugs and carpets. The rotating brush beats gently against the carpet fibers for deeper cleaning.

ACCESSORY NOZZLES

Hard floor tool (16)

This tool has been specially designed to clean hard floor surfaces, tiles and terracotta, the soft hair bristles brush over the surface picking up the dust but without damaging the floor.

Furniture nozzle (17)

This accessory is ideal for vacuum cleaning furniture and other delicate surface, prevent surfaces from being damaged.

Upholstery nozzle (18)

This accessory has been designed to clean all types of upholstery.

Crevice nozzle (19)

Use this accessory to vacuum crevices and deep grooves and nooks, etc.

CLEANING

Unplug the appliance from the mains supply before cleaning it.

The accessories and the vacuum cleaner can be wiped clean with a damp cloth and then left to dry before reusing them.

Never immerse the appliance in water.

Do not use solvents or abrasive products to clean it.

ADVICE ON DISPOSAL:

Our goods come in optimized packaging. This basically consists in using noncontaminating materials which should be handed over to the local waste disposal service as secondary raw materials.

This product complies with EU Directive 2002/96/CE.The crossed wheelie bin symbol shown on the appliance indicates that when it comes

to dispose of the product it must not be included in with household refuse. It must be taken to a special refuse collection point for electric and electronic appliances or returned to the distributor when purchasing a similar appliance. Under current refuse disposal regulations, users who fail to take discarded appliances to special refuse collection points may be penalized. Correct disposal of discarded appliances means that they can be recycled and processed ecologically, helping the environment and allowing materials used in the product to be reused. For more information on available waste disposal schemes contact your local refuse service or the shop where the product was purchased. Manufacturers and importers are responsible for ecological recycling, processing and disposal of products, whether directly or via a public system.

Your local town council can provide you with information about how to dispose of obsolete appliances.
