Product type	HF/Radar motion detector for flush mounting
Brand	Goobay
Model	71367
Dimensions (L x W x H)	91.7 x 45 x 25.5 mm
Weight	60 g
Power supply	220-240 V~, 50 Hz
Max. rated load	600 W
Standby power consumption	~0.9 W
Detection range (wall)	2-15 m
Detection range (ceiling)	2-16 m
Surveillance angle	180° (wall) / 360° (ceiling)
Adjustable time delay	5 s / 30 s / 1 min / 5 min / 10 min / 20 min / 30 min
Brightness threshold	2 / 10 / 50 / 2000 lx
Dimming level	10 / 20 / 30 / 50 %
HF frequency	5.8 GHz
Protection rating	IP20
Recommended mounting height	1.5 - 3.5 m (wall) / 2 - 6 m (ceiling)
Operating temperature	-20 °C to +40 °C
Ambient humidity	< 93 % RH
Switch type	Relay
Minimum load	1 W (incandescent, energy saving, LED lamps)
Package contents	Motion detector, instruction manual
Maintenance and cleaning	Clean with a soft, dry cloth. Do not use chemicals.
Safety	Installation by a qualified electrician. Cut off power before any intervention. Do not cover the product.
Spare parts and repairability	Spare parts are not available. Repair only by an approved professional.
General information	Doppler effect microwave detector. Suitable for indoor use only. Not suitable for use as a VdS alarm system.

Frequently Asked Questions - 71367 Goobay

How to install the Goobay 71367 motion detector?

Installation must be carried out by a qualified electrician. Turn off the power supply beforehand. Connect the detector according to the wiring diagram provided in the manual (without switch or with separate switch). Use cables with a minimum cross-section of 1.0 mm².

What is the detection range of the Goobay 71367?

The range is adjustable from 2 to 15 meters for wall mounting and from 2 to 16 meters for ceiling mounting. Use the 'Range' potentiometer to adjust.

Can this detector be used with LED bulbs?

Yes, provided the LED bulbs are dimmable and compatible. The minimum load is 1 W for LED, incandescent, and energy-saving lamps.

How to adjust the switch-off delay?

Use the 'Time' potentiometer to select from the following values: 5 s, 30 s, 1 min, 5 min, 10 min, 20 min, or 30 min. The light stays on at 100% for this duration after the last detected movement.

Does the detector work through glass or a wall?

Yes, the microwave technology (5.8 GHz) penetrates glass, wood, and light partitions. However, thick or metallic materials may reduce the range.

How to adjust the brightness threshold?

Turn the 'Lux' potentiometer to select between 2, 10, 50, or 2000 lux. At 2000 lux, the detector operates day and night; at 2 lux, it only activates in darkness.

What to do if the detector triggers unexpectedly?

Check that the detection area does not contain moving objects (plants, curtains, animals) or reflective surfaces. Reduce the range or adjust the brightness sensitivity.

Can this detector be used for an alarm system?

No, according to the manual, this detector is not suitable as a component of a VdS alarm system. It may generate false alarms under unfavorable conditions.

How to clean the detector?

Use a soft, dry cloth to clean the surface. Never use chemical or abrasive products that could damage the housing.

Is the product guaranteed?

Check the warranty conditions on the manufacturer's website Wentronic GmbH. The WEEE number is 82898622. For any questions, contact your dealer.

USER MANUAL 71367 Goobay

1 Safety instructions. 14

1.1 In general. 14
1.2 Warning levels 14

2 Description and Function 15

2.1 Product 15
2.2 Product parts 15
2.3 Scope of Delivery 15
2.4 General specifications 16

3 Intended Use 16
4 Preparation 17
5 Installation 17

5.1 Installation without separate light switch 17
5.2 Installation with separate light switch 18

6 Mounting 18
7 Settings 19

7.1 Method 19
7.2 Reach (ceiling and wall mount) 20

8 Maintenance, Care, Storage and Transport 20
9Liability notice. 20

10 Disposal Instructions 20
11 EU Declaration of Conformity 21

1 Safety instructions

1.1 In general

The user manual is part of the product and contains important information for correct use.

Read the user manual completely and carefully before use. The user manual must be available for uncertainties and passing the product.

Keep this user manual.

Installation, assembly, maintenance and repair work must be carried out only by trained electrical specialists.

Risk of electric shock

Cut off power supply before any work on the product, switch off y fuses and secure against reconnection.

Assure and check the absence of voltage before any work on the product.

Do not modify product and accessories.
Do not cover the product.
Do not use in sealed environments.

Avoid stresses such as heat and cold, moisture and direct sunlight, vibration and mechanical pressure.

Motion detectors are not suitable as a component of alarm systems within the meaning of the Association of Property Insurers (VdS). They can trigger false alarms if the installation place has been chosen unfavorably.

Only use EN 60998-2-1 and EN 60998-2-2 tested terminals.
Follow local installation and building regulations.
In case of questions, defects, mechanical damage, trouble and other problems, non-recoverable by the documentation, contact your dealer or producer.
Use product, product parts and accessories only in perfect condition.
Pay attention to current-carrying or other lines, lying behind plaster and do not damage them!
Only operate with dimmable LED transformers and LED bulbs.

1.2 Warning levels

WARNING

CAUTION

NOTICE

Warnings against hazards that may result in serious injuries or death in case of nonobservance.

Warnings against hazards that may result in injuries in case of non-observation.

Warnings against hazards that may result in material damage in case of non-observance.

2 Description and Function

2.1 Product

Your product is a microwave / radar motion sensor for indoor use and represents electrotechnical fittings.

It works on the Doppler principle and sends out microwaves. These are reflected from objects in the detection area and evaluated by the sensor. If frequency changes, the activation of the connected load is done.

Compared to infrared motion detectors, the RF sensor technology also penetrates glass, wood and stud walls and reacts to each movement, independent of heat.

Furthermore, your product is able to dim the connected lighting via brightness sensor.

Operating modes:

100% light on,

10/20/30/50% dimmed light,

Light off

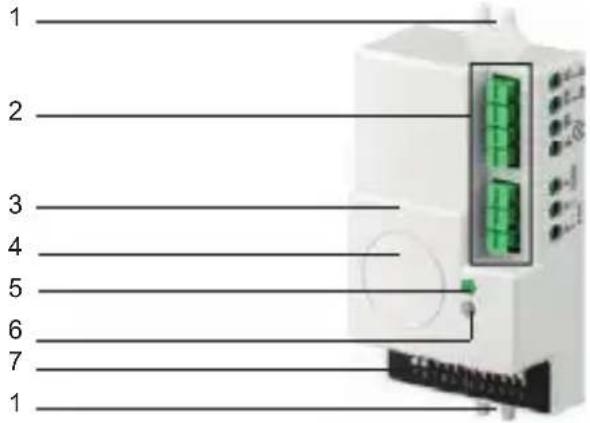

2.2 Product parts

Fig.6: Product parts

1 Mounting holes
2 Terminals
3 Housing
4 Antenna module
5 Function LED
6 Daylight sensor
7 Adjuster

2.3 Scope of Delivery

Flush-mounted Microwave Motion detector, User manual

2.4 General specifications

Tab.3: Specifications

Voltage 220-240 V~	50 Hz
Rated load max. 600	W
Power consumption ~0.9	W
Detection area	2-15 m (Wall mount) 2-16 m (Ceiling mount)
Detection angle 180/360° wall/ceiling installation
Switch-off delay 5/30 s, 1/5/10/20/30 Min.
Standby time 0/10 s, 1/5/10/30 Min., 1 h, +∞
Brightness sensitivity 2/10/50/2000 lx
Dimmability 10/20/30/50 %
HF System 5.8 GHz CW Radar, ISM Band
Transmission power <0,2	mW
Installation height	1.5-3.5 m (Wall mount) 2-6 m (Ceiling mount)
Motion detection 0.6-1.5 m/s
Protection level IP20
Environment conditions	-20 ~ +40 °C, 93 % RH
Switch	Relais
Minimum load	1 W (incandescent and LED/Energy saving lamps)
Dimensions	91.7 x 45 x 25.5 mm
Borehole diameter	85.7 mm
Weight	60 g

3 Intended Use

IP20 We do not permit using the device in other ways like described in chapter "Description and Function" and „Safety Instructions". This product is protected against medium sized foreign objects, but not against water ingress. Not attending to these regulations and safety instructions might cause fatal accidents, injuries, and damages to persons and property.

4 Preparation

Compare the specifications of all used devices to ensure compatibility.
Check the scope of delivery for completeness and integrity.

5 Installation

Risk of electric shock

• Let open cable ends ONLY assemble by experienced electrician.
• Cut off power supply before any work on the product, switch off safety fuse and secure against reconnection.
  Assure and check the absence of voltage before any work on the product.

The power cord used should have a minimum cross section of 1.0mm^2 . The following connections are made to the terminal block of the product.

1. Connect your lamps (LOAD) like shown. If using several lamps, they must be wired in parallel. Power cables are installable sidewise or from above.
2. Fix all wire connections using a screwdriver.
3. Insulate the connection against contact and moisture. The earth wire will not be connected.

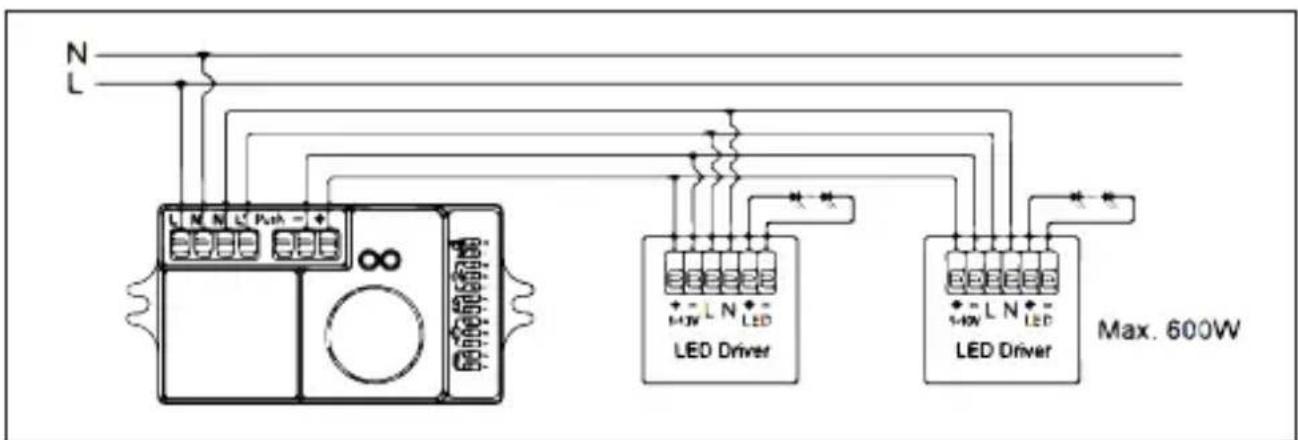

5.1 Installation without separate light switch

Fig.7: Installation without separate light switch

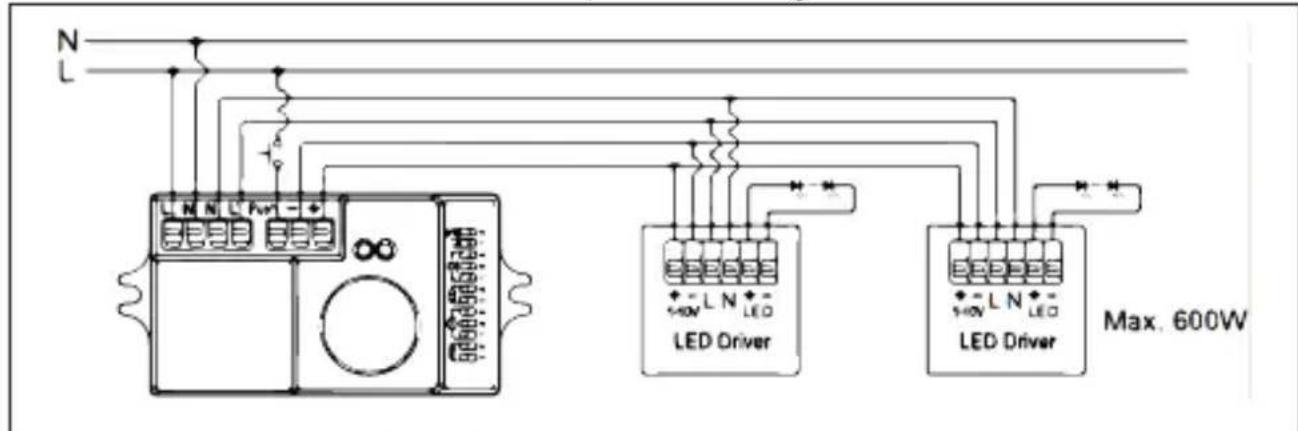

5.2 Installation with separate light switch

Fig.8: Installation with separate light switch

ON OFF: The light turns off immediately and can not be switched on for 1 minute, even if motion is detected. After this period, the sensor goes into automatic mode.

OFF ON: The light turns on 100% brightness and then reverts to automatic mode.

6 Mounting

CAUTION

Risk of falling / Material damage

• Place and use tools safely.
  Pay attention to current-carrying or other lines, lying behind plaster and do not damage them!

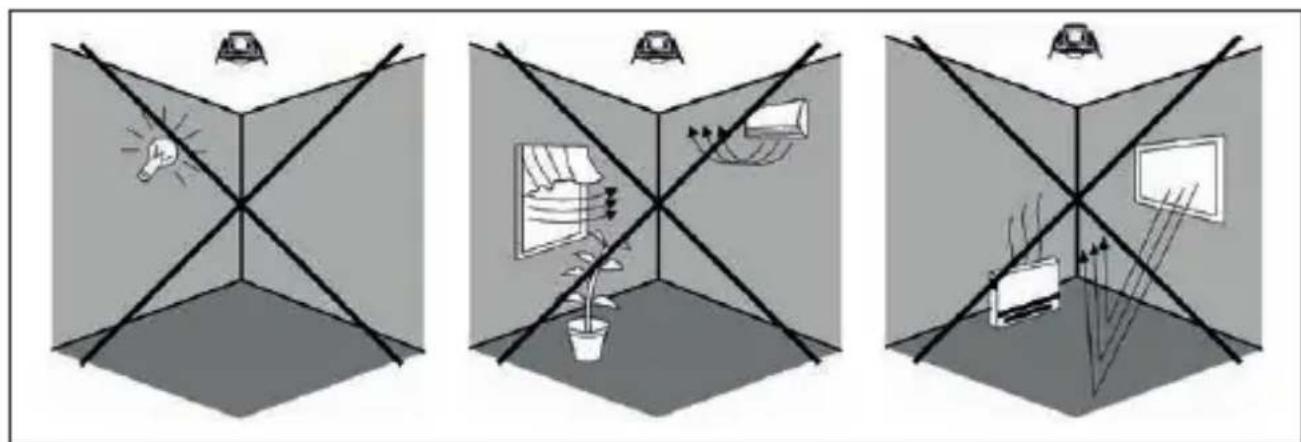

1. Select the mounting place according to the following criteria:

Fig.9: Mounting place

• The surface must be stable.

• The product must be attached absolutely straight.

• Plants, street lighting, reflective surfaces or randomly moving objects must not be located in the detection range.
  The recommended mounting height is 1,5-3,5 m.

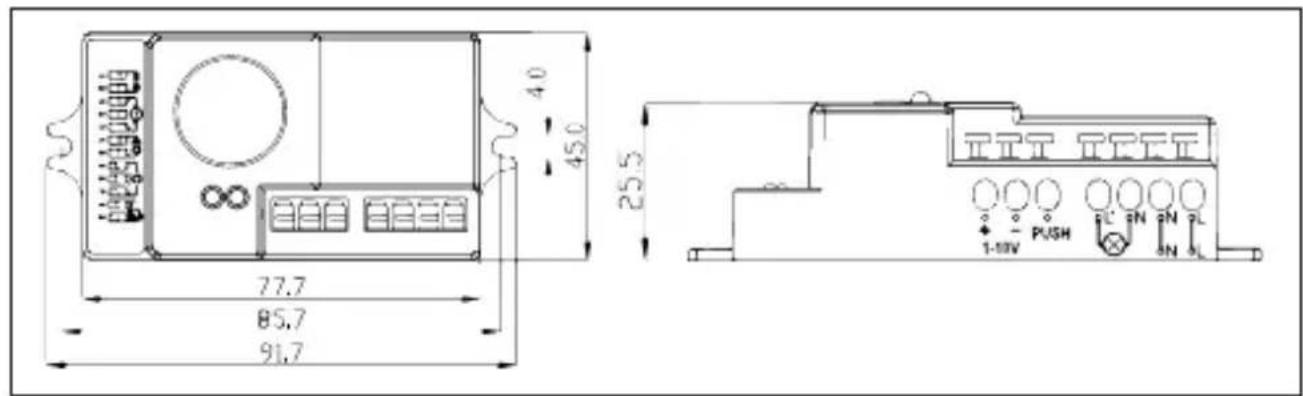

1. Install the product either on the ceiling, wall or behind prefabricated walls.

Fig.10:Mounting

1. Set the adjustments like shown in chapter 7.

7 Settings

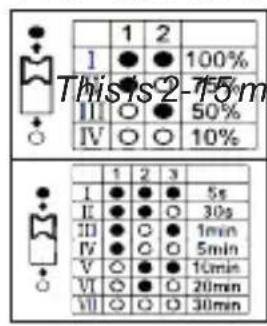

7.1 Method

Detection range

• Set a the detection range between 10/50/75/100 %. for wall mounting and 2-8 m for ceiling mounting.

Switch-off delay (optional)

• Set a switch-off delay from 5 seconds to 30 minutes.

Within the selected period, the load remains on with 100% brightness.

Daylight sensor

• Set the daylight sensor 2-2000 Lux.

The 2000 Lux setting switches the motion sensor on during night, only by night with 2 Lux setting.

The motion sensor settings overrides the Daylight Sensor.

This means, after the triggering by motion detection, the motion detector switches only after the set switch-off delay in the daylight setting.

Dimming phase length (optional)

• Set the dimming phase length.

The dimming phase length determines the length of the

case after the already set switch-off delay for 100 % light.

s means no dimming = off.

+∞ means permanently dimmed = no off.

Dimming level

• Set a the dimming level between 10-50 %

This determines the brightness of the light during dimming phase.

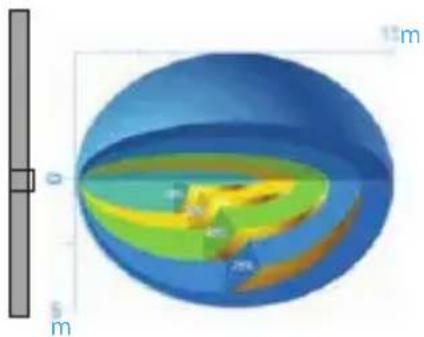

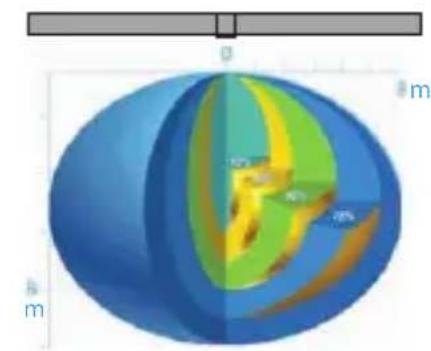

7.2 Reach (ceiling and wall mount)

Tab.4: Reach (ceiling and wall mount)

8 Maintenance, Care, Storage and Transport

The product is maintenance-free.

NOTICE

Material Damage

Only use a dry and soft cloth for cleaning.
- Do not use detergents or chemicals.
Store cool and dry.
- Store the product out the reach of children and in a dry and dust-protected ambience when not in use.
- Keep and use the original packaging for transport.

9 Liability notice

We reserve the right to printing errors and changes to product, packaging or product documentation.
See our terms of warranty. These are available in their current form under the given contact details.

10 Disposal Instructions

According to the European WEEE directive, electrical and electronic equipment must not be disposed with consumers waste. Its components must be recycled or disposed apart from each other.

• Otherwise contaminative and hazardous substances can pollute our environment.

As a consumer, you are committed by law to dispose electrical and electronic devices to the producer, the dealer, or public collecting points at the end of the devices lifetime for free. Particulars are regulated in national right. The symbol on the product, in the user's manual, or at the packaging alludes to these terms. With this kind of waste separation, application, and waste disposal of used devices you achieve an important share to environmental protection.

WEEE No: 82898622

11 EU Declaration of Conformity

Hereby Goobay®, a registered trademark of Wentronic GmbH ensures that the mentioned radio system type is conformed to Directive 2014/53/EU. The full text of EU Declaration of Conformity is available at the following Internet address: https://www.wentronic.de/en/
