Product type	Range hood
Brand	Bosch
Model	DWK096751

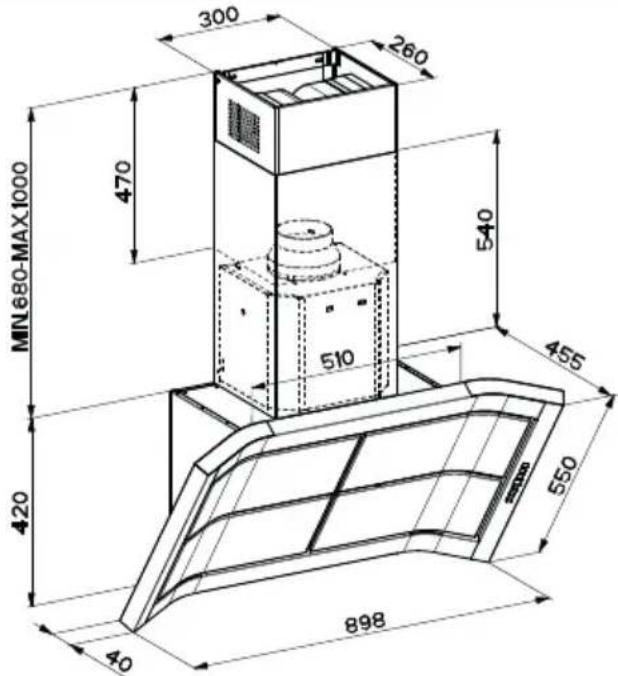

Dimensions (H x W x D)	680 - 1000 mm x 898 mm x 300 mm
Weight	20.0 kg
Power supply	220-240 V, cable 1.30 m
Operating modes	Air exhaust and air recirculation
Suction speeds	Variable speeds + intensive mode (10 minutes)
Grease filter	Metallic, dishwasher-safe
Activated carbon filter	Replaceable (not washable), annual replacement
Lighting	Halogen lamps 12 V max 20 W, socket GU4
Controls	Touch-sensitive buttons with LED display
Special functions	Delayed automatic shut-off (30 min), filter saturation indicator

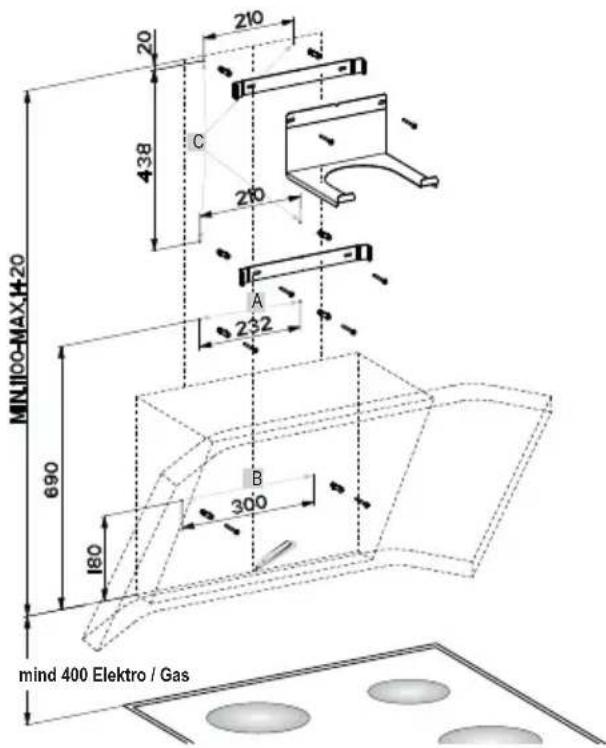

Minimum distance to cooktop	400 mm (electric and gas)

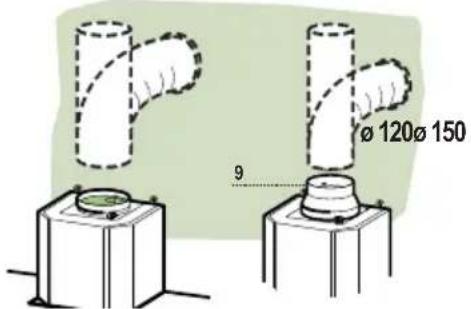

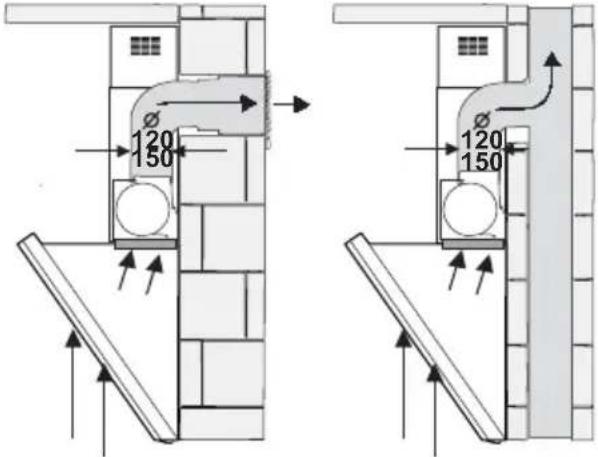

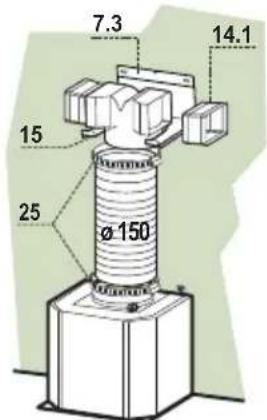

Exhaust duct diameter	150 mm (minimum 120 mm)
Cleaning and maintenance	Damp cloth and mild detergent, avoid abrasive products
Safety	Auto shut-off, overheat protection, electrical disconnection device
Spare parts and repairability	Filters, lamps available; repair by qualified personnel
General information	Domestic use, WEEE compliant, manufacturer's warranty

Frequently Asked Questions - DWK096751 BOSCH

What is the minimum mounting height above a gas stove?

The minimum distance between the upper edge of the pan support grid and the lower edge of the hood is 400 mm.

How to clean the metal grease filters?

The metal grease filters can be washed in the dishwasher or by hand with a mild detergent. It is recommended to wash them about once a month or when the F symbol appears.

When should the activated carbon filter be replaced?

The activated carbon filter must be replaced every year or when the C symbol appears. It is not washable and cannot be regenerated.

How to change the halogen lamps?

Turn off the hood and disconnect the power. Remove the lamp with a screwdriver (possibly unscrew the holder). Replace with a halogen lamp 12 V, max 20 W, socket GU4.

What is the difference between air exhaust and recirculation modes?

In air exhaust, vapors are expelled outside via a duct. In recirculation, the air is filtered through an activated carbon filter then returned to the kitchen.

How to activate the delayed automatic shut-off?

Press the E button to activate the automatic shut-off after 30 minutes. The point at the bottom right of the display flashes to confirm.

What to do if the hood does not work at all?

First check the power supply (outlet, fuse). If the problem persists, contact customer service indicating the E-Nr. and FD numbers located on the rating plate.

Which cleaning products should be avoided?

Never use abrasive products, hard sponges, alcohol on plastics, or detergents containing sand, soda, acid, or chloride on stainless steel.

Can the hood be installed above a wood fire?

Yes, only if the fire is equipped with a closed non-removable cover and if all local safety standards are respected.

Where to find spare parts such as filters or lamps?

Spare parts are available from any authorized dealer or via Bosch customer service. References are provided at the end of the manual.

USER MANUAL DWK096751 BOSCH

Black-and-white photo of a hand holding a plate of cooked rice with oyster and shell pieces (no text or symbols visible)

DWK096751

Exterior view of a stainless steel kitchen range hood (no text or symbols visible)

en Operating and installation instructions

Household Appliances

de Seite 3–13

en page 14 – 24

fr page 25 – 35

nl pagina 36 – 46

it pagina 47 – 57

es página 58 – 68

el Σελίδα 69 – 79

Gebrauchsanleitung

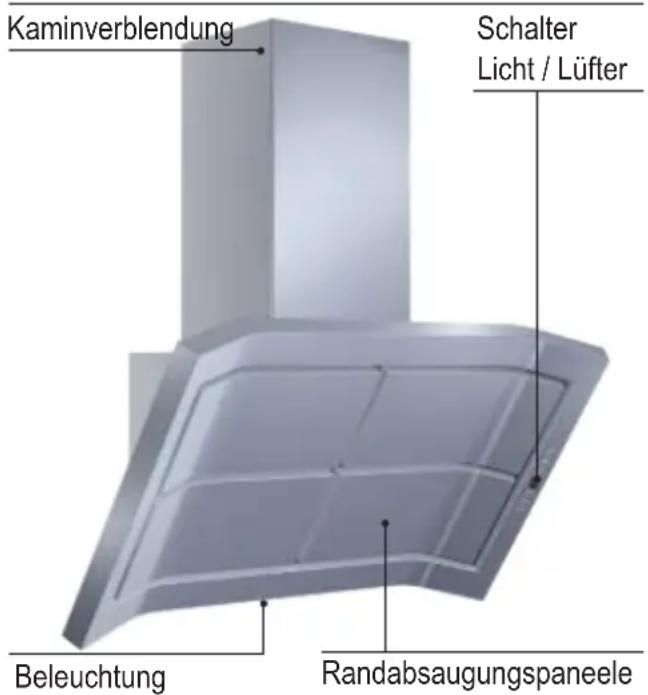

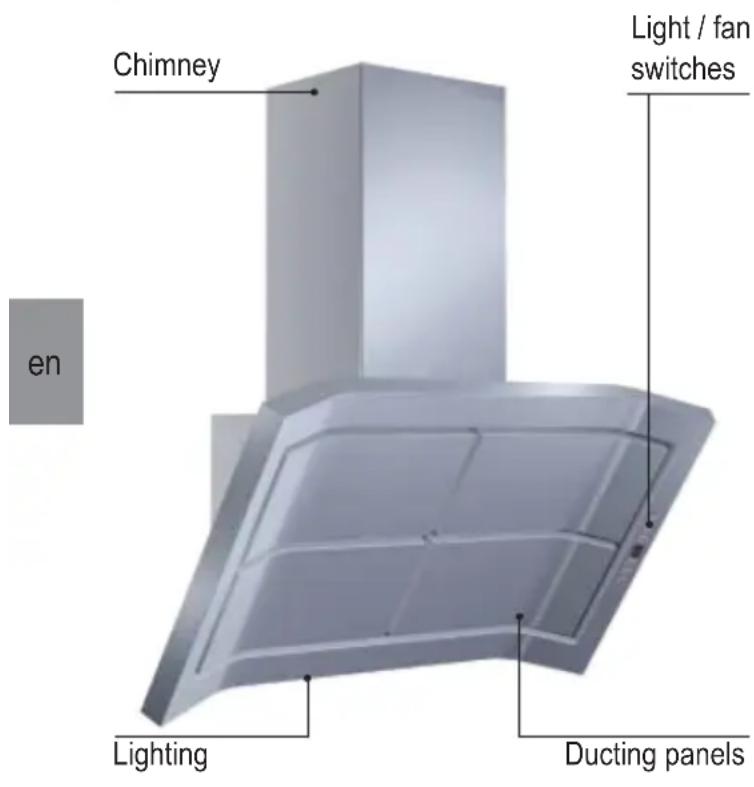

Gerätebeschreibung

Hand inserting a device into a screen with a green arrow indicating direction (no text or symbols)

Illustration of a hand inserting a small object into a container with a green arrow indicating direction (no text or symbols)

Hand holding a small object with a green flag on top, no visible text or symbols

Pure mechanical diagram showing a lever and pulley system without any text, numbers, or symbols

Operating Instructions

Description of appliance Operating modes

Operating modes

Exhaust-air mode:

☐ The extractor-hood fan extracts the kitchen vapours and conveys them through the grease filter into the atmosphere.
☐ The grease filter absorbs the solid particles in the kitchen vapours.
☐ The kitchen is kept almost free of grease and odours.

If the extractor hood is operated in exhaust-air mode at the same time as a fl ue-type heater (e.g. gas, oil or solid-fuel heater, instantaneous water heater, boiler), ensure that there is an adequate air supply which the heater requires for combustion.

Safe operation is possible provided that the partial vacuum in the room in which the heater is installed does not exceed 4 Pa (0.04 mbar).

This can be achieved if the combustion air is able to flow through non-lockable openings, e.g. in doors, windows and in conjunction with an air supply/air-in-take wall box or by other technical procedures such as reciprocal interlocking.

If the air intake is inadequate, there is a risk of poisoning from combustion gases which are drawn back into the room.

An air-intake/exhaust-air wall box by itself is no guarantee that the limiting value will not be exceeded.

Note: When assessing the overall requirement, the combined ventilation system for the entire household must be taken into consideration. This rule does not apply to the use of cooking appliances, such as hobs and ovens.

Unrestricted operation is possible if the extractor hood is used in recirculating mode – with activated carbon filter.

Circulating-air mode:

☐ An activated carbon filter must be fitted for this operating mode (see Filters and maintenance).
The complete installation set and replacement filters can be obtained from specialist outlets.
The corresponding accessory numbers can be found at the end of these operating instructions.
☐ The extractor-hood fan extracts the kitchen vapours which are purified in the grease filter and activated carbon filter and then conveyed back into the kitchen.
☐ The grease filter absorbs the grease particles in the kitchen vapours.
☐ The activated carbon filter binds the odorous substances.
⚠️ If no activated carbon filter is installed, it is not possible to bind the odorous substances in the cooking vapours.

Important notes:

☐ The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.
☐ This extractor hood complies with all relevant safety regulations.
Repairs should be carried out by qualified technicians only.

Improper repairs may put the user at considerable risk.

Before using your appliance for the first time, please read these Instructions for Use carefully. They contain important information concerning your personal safety as well as on use and care of the appliance.
☐ Please retain the operating and installation instructions for a subsequent owner.

This appliance is labelled in accordance with European Directive 2002/96/EG concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline determines the framework for recycling of used appliances as throughout the EU.

Gas hobs / gas cookers

Do not use all the gas hotplates simultaneously for a prolonged period (max. 15 minutes) at maximum thermal load, otherwise there is a risk of burns if the housing surfaces are touched or a risk of damage to the extractor hood. If the extractor hood is situated over a gas hob, operate the hood at maximum setting if three or more gas hotplates are operated simultaneously.

Safety instructions

Do not flambé food directly under the extractor hood.
Risk of grease filter catching fire due to flames.
The hotplates must always be covered with a utensil.
Restrictions apply to the use of the extractor hood over a solid-fuel burner (coal, wood, etc.). (See Installation instructions).
⚠️ Do not use the appliance if damaged.
The appliance is not intended for use by young children or infirmed persons without supervision. Young children should be supervised to ensure they do not play with the appliance.
⚠️ If the connecting cable for this appliance is damaged, the cable must be replaced by the manufacturer or his customer service or a similarly qualified person in order to prevent serious injury to the user.
The appliance may be connected to the mains by a qualified technician only.
⚠️ Dispose of packaging materials properly (see Installation instructions).
This extractor hood is designed for domestic use only.
Light bulbs must always be fitted when the extractor hood is in use.
⚠️ Defective bulbs should be replaced immediately to prevent the remaining bulbs from overloading.
⚠️ Never operate the extractor hood without a grease filter.
Overheated fat or oil can easily catch fire. If you are cooking with fat or oil, e.g. chips, etc., never leave the cooker unattended.
⚠️ Carefully clean the extractor hood before switching on for the first time.

Operating the extractor hood

The most effective method of removing vapours produced during cooking is to:

☐ Switch the ventilator ON

as soon as you begin cooking.

☐ Switch the ventilator OFF

a few minutes after you have fi nished cooking.

en

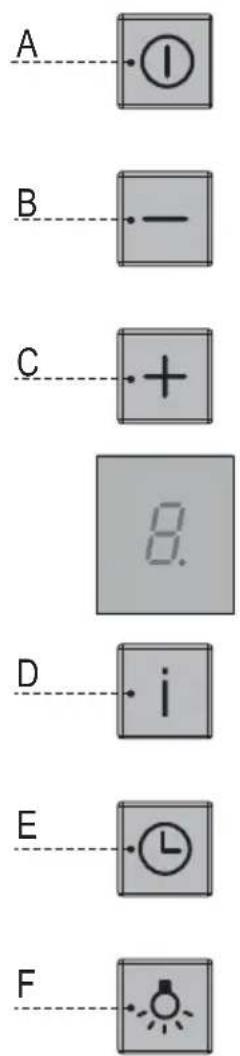

Key Function Display
A	Switches the extractor motor on and off at the latest selected speed	It shows the selected speed
B	Decreases the suction speed.
C	Increases the suction speed.
D	By pressing this key it is possible to activate the intensive speed from any previously selected speed. This speed has been timed at 10 minutes. After that time the system activates automatically the latest selected speed.	It shows H
F	By pressing this key it is possible to set the delayed shutdown of the appliance to 30 minutes. This function is suitable for a complete elimination of the residual smells. It can be activated at any position, and it is deactivated by pressing the key again or by switching off the motor.	The point low to right fl ashes.
G	With a short press, turns light on and off. With an extended press, turns light on and off at reduced intensity.

Ducting panels

The ducting panels must never be washed in a dishwasher.

Open the ducting panels pulling them downwards.

☐ Disconnect the panels from the hood canopy by sliding the fi xing pin lever.

☐ Clean the outside using a damp cloth and neutral liquid detergent.

□ Clean the inside using a damp cloth and neutral detergent; do not use wet cloths or sponges, or iets of water; do not use abrasive substances.

☐ When the above operation has been completed, hook the panels back to the hood canopy in the opposite direction and close they.

Grease fi Iters:

Metal-mesh fi Iters are used to trap the grease particles in the cooking vapours.

The filter mats are made from noncombustible metal.

Caution:

As the fi Iter becomes more and more saturated with grease, there is an increased risk of fi re and the function of the extractor hood may be impaired.

Important:

By cleaning the metal grease fi lters at appropriate intervals, the possibility of them catching fi re as a result of a build-up of heat such as occurs when deep-fat frying or roasting is taking place, is reduced.

Filters can be washed in the dish machine. They need to be washed when F-sign appears on the display or in any case every month, or even more frequently in case of particularly intensive use of the hood.

Removing and inserting metal grease fi Iters

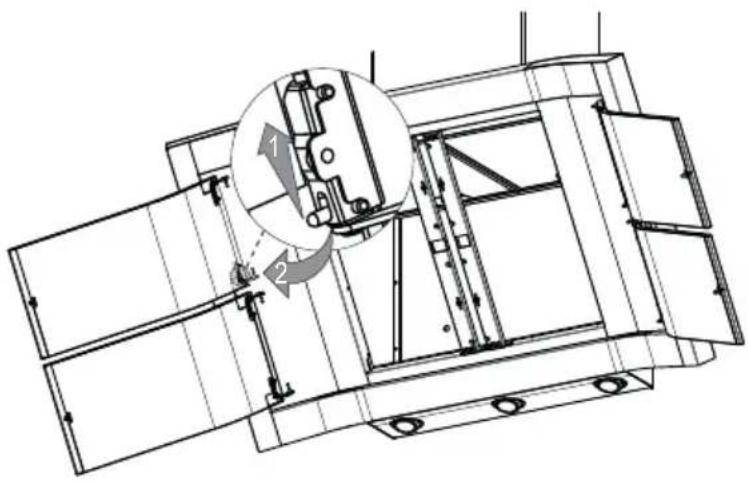

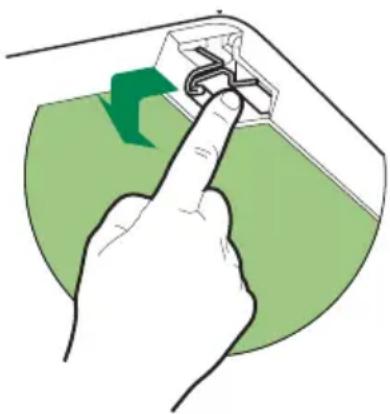

Open the ducting panels.

☐ Remove the fil iters one by one.

Illustration of a hand pressing a device on a screen with a green arrow indicating left motion (no text or symbols)

☐ Any kind of bending of the filters has to be avoided when washing them. Before fi tting them again into the hood make sure that they are completely dry. (The colour of the fi lter sur-face may change throughout the time but this has no influence to the filter efficiency).

☐ Put the clean fi Iters back on its place

☐ Close the ducting panel.

Reset of the alarm signal

☐ Switch off the hood and the lighting.

☐ Press the E-key until the display is unlit.

Filters and maintenance

Activated carbon fi Iter:

For neutralizing odours in recirculating mode.

Caution:

As the fi Iter becomes more and more saturated with grease, there is an increased risk of fi re and the function of the hood may be impaired.

Important:

Change the activated carbon fi Iter promptly to prevent the risk of fi re from the accumulation of heat when deep-fat frying or roasting.

These filters are not washable and cannot be regenerated, and must be replaced when the C-sign appears on the display or approximately every year of operation, or more frequently with heavy usage.

Activation of the alarm signal

☐ In the recycling version hoods the filter saturation alarm must be activated during the installation or later.
☐ Switch off the hood and the lights.
☐ Disconnect the hood from the mains supply.
☐ When restoring the connection press and hold B-key.
☐ When releasing the key two rotating rectangles appear on the display.
☐ Within 3 seconds press the B-key until a flashing confirmation appears on the display:
☐ 2 flashes with C-sign - charcoal filter saturation alarm ACTIVATED
☐ 1 flash with C-sign - charcoal filter saturation alarm DEACTIVATED.

Replacing the activated carbon fi Iter

Reset of the alarm signal

☐ Switch off the hood and the lighting.
☐ Press the E-key until the display is unlit.

Replacing of the fi Iter

☐ Open the ducting panels pulling them downwards.
☐ Remove the metal grease filters.

Filters and maintenance

☐ Remove the saturated charcoal filter by releasing the fixing hooks.

Illustration of a hand inserting a small object into a container with a green arrow indicating direction (no text or symbols)

☐ Fit the new filter and fasten it in its correct position. Filter can be ordered at the customer service
☐ Put the metal grease filters in their seats.
☐ Close the comfort panels.

Disposal of the old activated carbon fi Iter:

□ Activated carbon filters do not contain any harmful substances. They can be disposed of as residual waste.

Cleaning and care

Isolate the extractor hood by pulling out the mains plug or switching off the fuse.

☐ When cleaning the grease filters, remove grease deposits from accessible parts of the housing. This prevents the risk of fi re and ensures that the extractor hood continues operating at maximum effi ciency.
☐ Clean the extractor hood with a hot soap solution or a mild window cleaner.
☐ Do not scrape off dried-on dirt but wipe off with a damp cloth.
☐ Do not use scouring agents or abrasive sponges.
☐ Note: Do not use alcohol (spirit) on plastic surfaces, as dull marks may appear. Caution: Ensure that the kitchen is adequately ventilated. Avoid naked flames!

⚠ Clean the operating buttons with a mild soapy solution and a soft, damp cloth only. Do not use stainless-steel cleaner to clean the operating buttons.

Stainless steel surfaces:

☐ Use a mild non-abrasive stainless steel cleaner.
☐ Clean the surface in the same direction as it has been ground and polished.

Do not use any of the following to clean stainless steel surfaces: abrasive sponges, cleaning agents containing sand, soda, acid or chloride!

Aluminium and plastic surfaces:

☐ Use a soft, non-linting window cloth or micro-fi bre cloth.
Do not use dry cloths.
☐ Use a mild window cleaning agent.
☐ Do not use aggressive, acidic or caustic cleaners.
☐ Do not use abrasive agents.

Replacing the light bulbs

1. Switch off the extractor hood and pull out the mains plug or switch off the electricity supply at the fuse box.
   When switched on, the halogen bulbs become very hot. Even for some time after the bulbs have been switched off there is still a risk of burns.
2. With the aid of a screwdriver pull out the bulbs or, if it is not easy, remove the 2 screws fixing the Lighting support, and pull it out of from the Hood.
3. Replace the halogen light bulb (conventional halogen bulb, 12 Volt, max. 20 Watt, GU4 bulb-holder).

Caution: Plug-in bulbholder.

Illustration of a hand holding a small object with a green flag above, no text or symbols present

1. Replace the Support, fixing it in place with the two screws removed as above.
2. Restore the power by inserting the mains plug or switching on the fuse.

Note: If the light does not function, check that the bulbs have been inserted correctly.

If you encounter a problem

If you have any questions or if a fault occurs, please call Customer Service.

(See list of Customer Service representatives).

When you call, please quote the following:

E-Nr.

FD

Enter the relevant numbers into the box above. The E-Nr. (product no.) and FD (production date) are shown on the nameplate which can be seen inside the extractor hood after the filter frame has been detached.

The manufacturer of the extractor hoods accepts no liability for complaints which can be attributed to the design and layout of the pipework.

Important information

Old appliances are not worthless rubbish. Valuable raw materials can be reclaimed by recycling old appliances. Before disposing of your old appliance, render it unusable.
⚠️ You received your new appliance in a protective shipping carton. All packaging materials are environmentally friendly and recyclable. Please contribute to a better environment by disposing of packaging materials in an environmentally-friendly manner. Please ask your dealer or inquire at your local authority about current means of disposal.
⚠ The extractor hood can be used in exhaust air or circulating air mode.
⚠️ Always mount the extractor hood over the centre of the hob.
⚠️ Minimum distance between electric hob and bottom edge of extractor hood: 400 mm.
The extractor hood must not be installed over a solid fuel cooker – a potential fire hazard (e.g. flying sparks) – unless the cooker features a closed, non-removable cover and all national regulations are observed.
The smaller the gap between the extractor hood and hotplates, the greater the likelihood that droplets will form on the underside of the extractor hood.

Additional information concerning gas cookers:

When installing gas hotplates, comply with the relevant national statutory regulations (e.g. in Germany: Technische Regeln Gasinstallation TRGI).
⚠️ Always comply with the currently valid regulations and installation instructions supplied by the gas appliance manufacturer.
⚠️ Only one side of the extractor hood may be installed next to a high-sided unit or high wall. Gap at least 50 mm.
⚠️ Minimum distance on gas hotplates between the upper edge of the trivet and lower edge of the extractor hood: 400 mm.

Prior to installation

Exhaust-air mode

The exhaust air is discharged upwards through a ventilation shaft or directly through the outside wall into the open.

Exhaust air should neither be directed into a smoke or exhaust flue that is currently used for other purposes, nor into a shaft that is used for ventilating rooms in which stoves or fi replaces are also located.

Exhaust air may be discharged in accordance with offi cial and statutory regulations only (e.g. national building regulations).

Local authority regulations must be observed when discharging air into smoke or exhaust flues that are not otherwise in use.

When the extractor hood is operated in exhaust-air mode simultaneously with a different burner which also makes use of the same chimney

(such as gas, oil or coal-fi red heaters, continuous-fl ow heaters, hot-water boilers) care must be taken to ensure that there is an adequate supply of fresh air which will be needed by the burner for combustion.

Safe operation is possible provided that the under-pressure in the room where the burner is installed does not exceed 4 Pa (0.04 mbar).

This can be achieved if combustion air can flow through non-lockable openings, e.g. in doors, windows and via the airintake/ exhaust-air wall box or by other technical measures, such as reciprocal interlocking, etc.

If the air intake is inadequate, there is a risk of poisoning from combustion gases which are drawn back into the room.

An air-intake/exhaust-air wall box by itself is no guarantee that the limiting value will not be exceeded.

Note: When assessing the overall requirement, the combined ventilation system for the entire household must be taken into consideration. This rule does not apply to the use of cooking appliances, such as hobs and ovens.

If the exhaust air is going to be discharged into the open, a telescopic wall box should be fitted into the outside wall.

For optimum extractor hood effi ciency:

☐ Short, smooth air exhaust pipe.
☐ As few bends in the pipe as possible.
☐ Diameter of pipe to be as large as possible and no tight bends in pipe.

If long, rough exhaust-air pipes, many pipe bends or smaller pipe diameters are used, the air extraction rate will no longer be at an optimum level and there will be an increase in noise.

The manufacturer of the extractor hoods accepts no liability for complaints which can be attributed to the design and layout of the pipework.

Prior to installation

Round pipes:

We recommend

Internal diameter: 150 mm (at least 120 mm).

☐ Flat ducts must have an internal crosssection that equates to that of round pipes.

There should be no sharp bends.

∅ 120 mm approx. 113 cm ^2

∅ 150 mm approx. 177 cm ^2

☐ If pipes have different diameters: Insert sealing strip.
☐ For exhaust-air mode, ensure that there is an adequate supply of fresh air.

Connecting a ∅ 150 mm exhaust-air pipe:

☐ Mount the pipe directly onto the air outlet on the hood.

Connecting a ∅ 120 mm exhaust-air pipe:

☐ Attach the reducing connector directly to the air pipe.
☐ Attach the exhaust-air pipe to the reducing connector.

Circulating-air mode

☐ With activated carbon fi Iter if ex-haust-air mode is not possible.
⚠️ The complete installation set can be obtained from specialist outlets. The corresponding accessory numbers can be found at the end of these operating instructions.

Pure mechanical diagram showing a lever and pivot with no text, numbers, or symbols

Preparing the wall

☐ The wall must be flat and perpendicular.
☐ Ensure that the wall is capable of providing a fi rm hold for mounting screws and plugs.

Weight in kg: 20.

We reserve the right to construction changes within the context of technical development.

Electrical connection

WARNING: THIS APPLIANCE MUST BE EARTHED

IMPORTANT: Fitting a Different Plug:

The wires in the mains lead are coloured in accordance with the following code:

Green and Yellow – Earth

Blue

-

Brown

-

If you fit your own plug, the colours of these wires may not correspond with the identifying marks on the plug terminals.

This is what you have to do:

1. Connect the green and yellow (Earth) wire to the terminal in the plug marked 'E' or with the symbol (), or coloured green or green and yellow.
2. Connect the blue (Neutral) wire to the terminal in the plug marked 'N' or coloured black.
3. Connect the brown (Live) wire to the terminal marked 'L', or coloured red.

The extractor hood should only be connected to an earthed socket that has been installed according to relevant regulations.

If possible, site the earthed socket directly behind the chimney panelling.

☐ The earthed socket should be connected via its own circuit.
☐ If the earthed socket is no longer accessible following installation of the extractor hood, ensure that there is a permanently installed disconnector.

If it is necessary to wire the extractor hood directly into the mains:

The extractor hood should only be connected to the electricity supply by a properly qualified electrician.

A separator must be installed in the household circuit. A suitable separator is a switch that has a contact gap of more than 3 mm and interrupts all poles. Such devices include circuit breakers and contactors.

⚠️ If the connecting cable for this appliance is damaged, the cable must be replaced by the manufacturer or his customer service or a similarly qualified person in order to prevent serious injury to the user.

Electrical connection

Electrical data:

Are to be found on the name plate inside the appliance after removal of the fi lterframe.

⚠️ Before undertaking any repairs, always disconnect the extractor hood from the electricity supply.

Length of the connecting cable: 1.30 m.

This extractor hood corresponds to EC regulations concerning RF interference suppression.

Installation

This extractor hood is intended to be mounted onto the kitchen wall.

1. Unhook the ducting panels and the metal filters (see maintenance chapter)
2. Draw a line on the wall from the ceiling to the lower edge of the hood at the centre of the location where the hood is going to be mounted.
3. Use the template or following the picture to mark the points (A-B-C) on the wall where the screws will be mounted.

Note: Take into account any special accessories that are going to be fitted.

Installation

⚠ Ensure that the minimum distance between the hob and the extractor hood is maintained – 400 mm for the electric or gas hob.

1. Drill 8 mm holes A and B for the extractor hood. Drill 8 mm holes C for the chimney brackets.
2. Insert plugs 11 into the holes so that they are flush with the wall.
3. Fix the brackets 7.2.1 using the 12a screws supplied.

In case of hood installation in recycling version with the chimney, the upper bracket 7.2.1 must be fixed together with the Air Outlet Connection Support 7.3.

1. Insert two screws 12a supplied in the hood body fi xing holes, leaving a gap of 5-6 mm between the wall and the head of the screw.

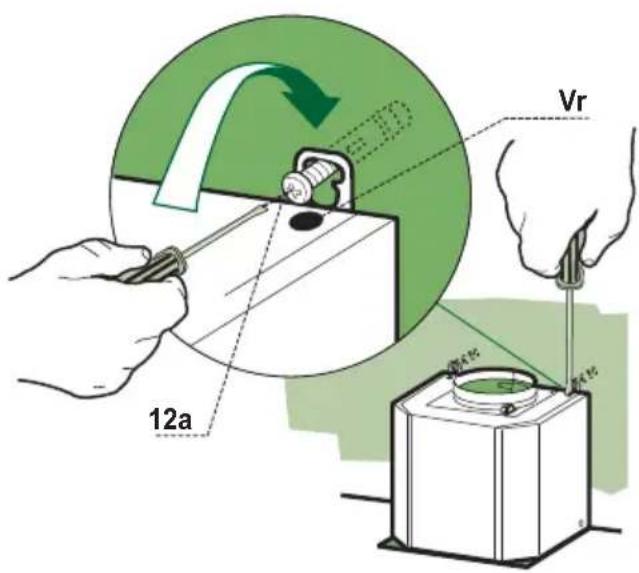

Mounting the hood body

1. Before attaching the hood body, tighten the two screws Vr located on the hood body mounting points.

2. Hook the hood body onto the screws 12a.

3. Fully tighten support screws 12a.

4. Before attaching the hood body, tighten the two screws Vr located on the hood body mounting points.

5. Hook the hood body onto the screws 12a.
6. Fully tighten support screws 12a.

1. Adjust screws Vr to level the hood body.

2. Tighten the safety screw 11 in holes B.

3. Adjust screws Vr to level the hood body.

4. Tighten the safety screw 11 in holes B.

Installation

Connection in Ducting Version

When installing the ducting version, connect the hood to the chimney using either a fl exible or rigid pipe 150 or 120 mm, the choice of which is left to the installer.

☐ To install a 120 mm air exhaust connection, insert the reducer flange 9 on the hood body outlet.

☐ Fix the pipe in position using sufficient pipe clamps (not supplied).
☐ Remove charcoal filters, if present.

Connection in Recycling Version

All the items named in this procedure are included in the recycling kit. The corresponding accessory numbers can be found at the end of these operating instructions.

☐ Put connection 15 into the connection support 7.3.
☐ Insert the connection extension pieces laterally 14.1 in connection 15.
☐ Make sure that the outlet of the extension pieces 14.1 is horizontally and vertically aligned with the chimney outlets.
☐ Connect the air outlet connection 15 to the hood body outlet using either a pipe ∅ 150 mm.

☐ Ensure that the activated charcoal filters have been inserted.

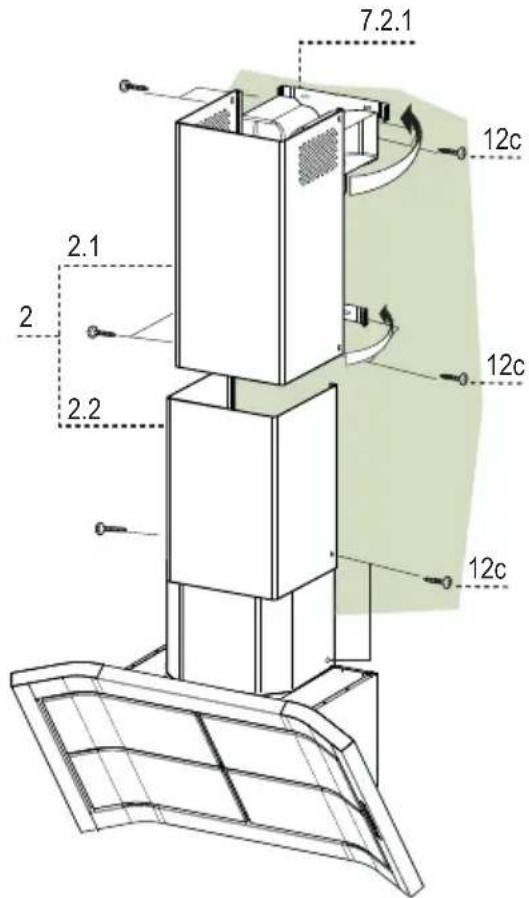

Chimney assembly

Upper Chimney

☐ Slightly widen the two sides of the upper Chimney and hook them behind the brackets 7.2.1, making sure that they are well seated.
☐ Secure the sides to the brackets using the 4 screws 12c supplied.
☐ Make sure that the outlet of the extensions pieces is aligned with the chimney outlets.

Lower Chimney

☐ Slightly widen the two sides of the Chimney and hook them between the upper Chimney and the wall, making sure that they are well seated.
☐ Fix the lower part laterally to the hood body using the 2 screws 12c supplied.

Mode d'emploi

Illustration of a hand pressing a green arrow on a device component (no text or symbols)

Illustration of a hand inserting a small object into a container with a green arrow indicating direction (no text or symbols)

Illustration of a hand holding a small object with a green circular top, no text or symbols present

Pure mechanical diagram showing a lever and pivot with no text, numbers, or symbols

Préparation du mur

Hand holding a tablet device with a green directional arrow on the screen (no text or symbols)

Hand inserting a small object into a container with a green arrow indicating direction (no text or symbols)

Illustration of a hand holding a small object with a green flag above, no text or symbols present

Let op: lamphouder.

Pure mechanical diagram showing a lever and pivot with no text, numbers, or symbols

Illustration of a hand pressing a green arrow on a device (no text or symbols)

Illustration of a hand inserting a small object into a container with a green arrow indicating direction (no text or symbols)

Illustration of a hand holding a small object with a green flag above, no text or symbols present

Pure mechanical diagram showing a lever and pivot with no text, numbers, or symbols

Illustration of a hand pressing a green directional arrow on a device (no text or symbols)

Illustration of a hand inserting a cable into a device (no text or symbols)

Illustration of a hand holding a small object with a green flag above, no text or symbols present

Hand inserting a green arrow on a device (no text or symbols visible)

Illustration of a hand inserting a small object into a container with a green arrow indicating direction (no text or symbols)

Illustration of a hand holding a small object with a green flag above, no text or symbols present

Pure mechanical diagram showing a lever and pivot with no text, numbers, or symbols

Exploded view diagram of mechanical components including a pipe fitting, housing, and a grid-patterned base (no text or labels)

DHZ5475
