USER MANUAL BQ2200 CASO

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions. Your grill will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

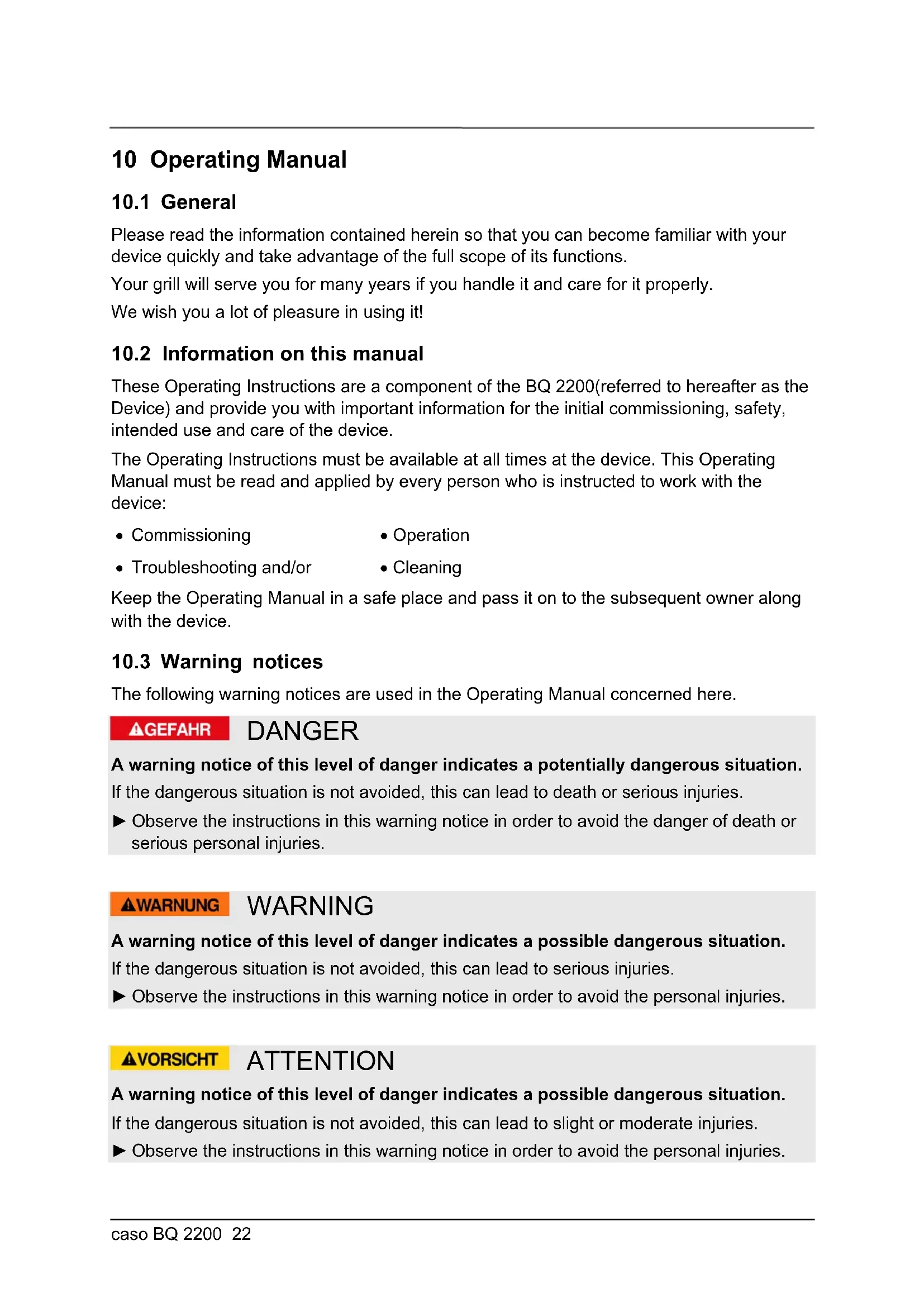

10.2 Information on this manual

These Operating Instructions are a component of the BQ 2200(referred to hereafter as the Device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device: Commissioning Operation Troubleshooting and/or Cleaning Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

10.3 Warning notices

The following warning notices are used in the Operating Manual concerned here. DANGER A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries. ► Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries. WARNING A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries. ► Observe the instructions in this warning notice in order to avoid the personal injuries. ATTENTION A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries. ► Observe the instructions in this warning notice in order to avoid the personal injuries.caso BQ 2200 23 PLEASE NOTE A notice of this kind indicates additional information, which will simplify the handling of the machine.

10.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration. No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following: Non-observance of the manual Uses for non-intended purposes Improper repairs Technical alterations, modifications of the device Use of unauthorized spare parts Modifications of the device are not recommended and are not covered by the guarantee. All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

10.5 Copyright protection

This document is copyright protected. Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes. 11 Safety This chapter provides you with important safety notices when handling the device. The device corresponds with the required safety regulations. Improper use can result in personal or property damages.caso BQ 2200 24

This device is only intended for use in households in enclosed spaces for warming up, cooking and roasting foods. Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use. Warning Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use. ► Use the device exclusively for its intended use. ► Observe the procedural methods described in this Operating Manual. Claims of all kinds due to damages resulting from unintended uses are excluded. The User bears the sole risk.

11.2 General Safety information

Please note Please observe the following general safety notices with regard to the safe handling of the device. ► Examine the device for any visible external damages prior to using it. Never put a damaged device into operation. ► If the connection lead is damaged, you will need to have a new connection lead installed by an authorized electrician. ► This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. ► Children shall not play with the appliance. ► Cleaning and user maintenance shall not be made by children without supervision. ► Do not leave the device unsupervised when it is in operation. ► Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs that may be needed. Improperly performed repairs can cause considerable dangers for the user. ► Only customer service departments authorized by the manufacturer may carry out repairs on the device during the guarantee period, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. ► Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled ► The appliance is not intended to be operated by means of an external timer or a separate remote-control systemcaso BQ 2200 25 Please note ► Do not use the device near walls and curtains. ► Do not immerse the temperature probe in water or any other liquid. ► The grill must only be used with the provided temperature probe. ► Adequate ventilation or an exhaust fans is recommended. ► Only use the appliance fully assembled with all parts correctly in place. ► Plug must be removed before the appliance is cleaned. Turn the control knob to off and remove the plug from the socket. ► The unit is after the direct operation still very hot! Allow to cool all parts before touching them. ► Only the appropriate connector must be used.

11.3 Sources of danger

11.3.1 Danger of Burning

WARNING The items cooked on this appliance as well as the grill and the surface of the appliance can become very hot. Adhere to the following safety instructions in order to avoid burning or scalding yourself or others: ► Protect your hands during all work at the hot appliance by using heat insulating gloves, dish cloths or similar. ► Do not put kitchen utensils, cooking or frying pan lid, knife or other objects on the grill. If the device is turned on, these objects are very hot. ► Do not move or transport device during operation. ► Hot oil / fat splashes during grilling of greasy or salty meat. Risk of burns! ► Do not leave plastic utensils in contact with hotplate while cooking. ► The temperature of accessible surface may be high when the appliance is operating. Risk of burns!

11.3.2 Danger of Fire

WARNING There is a danger of fire due to the event the device is not used properly. Observe the following safety notices to avoid dangers of fire: ► Do not set up the device near flammable material. ► Keep this appliance away from sources of heat (gas, electric, burner, heated oven).caso BQ 2200 26

11.3.3 Dangers due to electrical power

Danger Mortal danger due to electrical power! Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power: ► If the connection lead is damaged, you will need to have a special connection lead installed by an authorized electrician. ► Do not operate this device if its power cable or plug is damaged, if it does not work properly or if it is damaged or has been dropped. If the power cable is damaged, it will need to be replaced by the manufacturer or his service agency or a similar qualified person, to avoid any dangers. ► Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur. ► Do not touch the appliance or the mains plug with wet hands. ► Do not insert objects into the openings of the appliance. There is a risk of electrocution if contact is made with voltage-carrying connections. ► Switch off the power before unplugging or plugging the power cord. Remove the plug by pulling it, do not pull on the cable. ► Switch off the power and disconnect the plug when the device is not in use and before cleaning.

12 Commissioning This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

12.1 Safety information

Warning Personal and property damages can occur during commissioning of the device! Observe the following safety notices to avoid such dangers: ► Packaging materials may not be used for playing. There is a danger of suffocation.caso BQ 2200 27

12.2 Delivery scope and transport inspection

As a rule, the BQ 2200 is delivered with the following components: base with grillplate thermostat with temperature probe drip cleaning spatula operating instructions Please note ► Examine the shipment for its completeness and for any visible damages. ► Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

To unpack the device, remove the device out of the carton and remove the packaging material.

12.4 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling- related points of view and can therefore be recycled. Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to “Green Dot” recycling collection points for disposal. Please note ► If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

12.5.1 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites: The appliance must be positioned on a solid, even, horizontal and heat-resistant base with sufficient load-supporting capacity for the appliance itself plus the heaviest anticipated cooking contents. Select an installation location where children cannot reach the appliance’s hot surface. Do not set up the device in a hot, wet or extremely damp environment or near flammable material. Do not use the device near walls and curtains. Adequate ventilation or an exhaust fan is recommended.caso BQ 2200 28 The device is not intended to be installed in a wall or a built-in cupboard. The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency. The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

12.6 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection: Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device. If in doubt, ask your qualified electrician. The electrical outlet must be protected by a 16A safety cut-out switch. The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 mm². The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this. Make sure that the power cable is undamaged and has not been installed under the oven or over hot or sharp surfaces. The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician. The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.caso BQ 2200 29 13 Design and Function This chapter provides you with important safety notices on the design and function of the device.

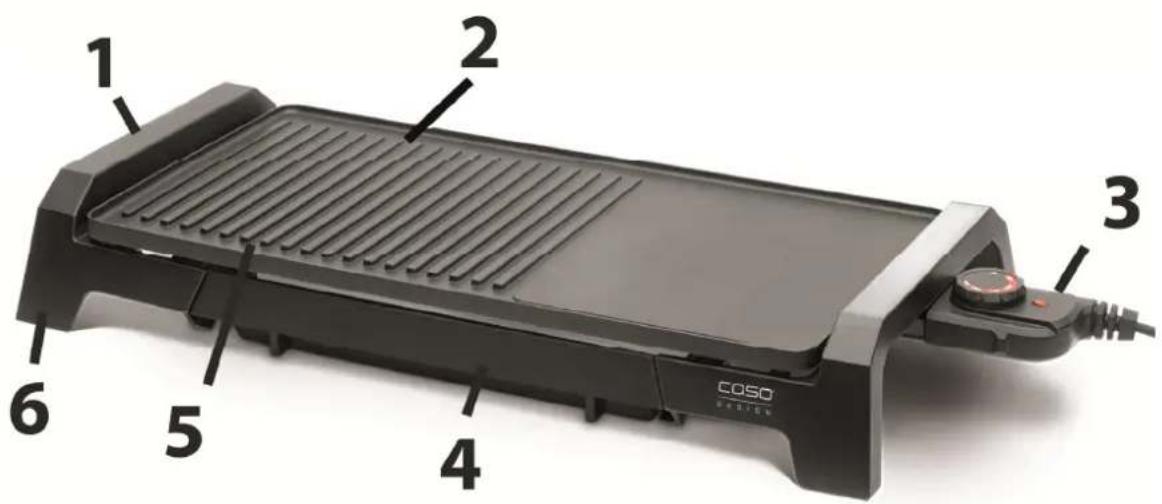

1. Heat-protected handle for easy transport of the unit

2. Slopping grooves: To draing the grease efficiently for low –fast and healthy grilling

3. Removable thermostat with temperature probe: The thermostat with temperature

probe allows accurate temperature control and is removable for easy cleaning and transport.

4. Removable drip tray: Collects fats and excessive meat juices during cooking. Is

dishwasher safe for easy cleaning

5. Ripped and smooth grill plate with embedded heating element:

Meat juices and flavour are sealed in the food by ripped grill plate, fat and excessive meat juice are drained between the slooping grooves for healthy and low fat grilling. The smooth grill plate is ideal for grilling various foods such as eggs, bacon, onions, mushrooms and tomatoes. The heating element is embedded in the grill plate. This guarantees rapid heating and even heat distribution and longer life of heating element.

The rating plate with the connection and performance data can be found at inner surface of left handle.caso BQ 2200 30 14 Operation and Handing This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages: Please note ► Switch off the power and disconnect the plug when the device is not in use and before cleaning.

14.1 Before first use

Remove sticker from grillplate. Wash the hotplate and drip tray in warm soapy water using a mild household detergent. Dry grillplate and drip tray thoroughly. Place drip tray into base. For easy cleaning line the drip tray with aluminium foil. Grease grillplate with a bit cooking oil and after this wipe with paper towel to preserve the non-stick surface.

14.2 Operating the device

1. Insert the temperature probe into the socket of the device

2. Plug the cord into power outlet.

3. Set the thermostat to desired temperature. When the control light on the thermostat

switches off, the desired cooking temperature is reached and the device is ready to use. Warning ► The device must not be operated with charcoal, wood or other fuels! Please note ► The control light of the thermostat will light up during operation and turns off again, this ensures that the desired temperature is maintained. ► The preheat time will depend on the desired temperature. If a high temperature is selected, a longer preheat time is required. ► When barbecuing on high temperature settings the grill will generate smoke. Selecting a lower temperature setting will reduce the smoke. Adequate ventilation is required. ► Never put metal foil packages or utensils on the grill plate. ► The grill is suitable for all kinds of juicy meat such as beef steak, pork chop, chicken fillet, sausage, fish and also vegetables. ► Grill the food according to your own taste. Grilling time depends on the kinds of food, initial temperature of the food and its thickness. ► During grilling, turn the food from time to time. ► You can also spread salt or sauce on the food.caso BQ 2200 31 15 Cleaning and Maintenance This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

15.1 Safety information

Attention Please observe the following safety notices, before you commence with cleaning the device: ► The device must be cleaned and food residues must be removed at regular intervals. If the device is not maintained in a clean condition, this will have a detrimental effect on the service life of the device and can also result in a dangerous condition in the device as well as in the growth of fungus and bacteria. ► Switch the device off prior of cleaning it and unplug the plug from the power outlet. ► After using the appliance is hot. Danger of burns! Wait until the appliance has cooled down. ► Clean the grill after use as soon as it has cooled down. Extended waiting unnecessarily complicates cleaning and can make it impossible in extreme cases. Excessive accumulations of dirt can even damage the device under certain circumstances. ► Do not use any aggressive or abrasive cleaning agents or solvents. ► Do not scrape off stubborn dirt with hard items. ► Do not use a sharp metal pusher ► Do not cut the food with a knife on the surface. ► No cleansing agents (except liquid soap), no nylon brushes or metallic brushes must be used as the surface of the grillplate could be damaged.

15.2 Cleaning and maintenance after use

Dry the device after cleaning and before storing with a damp cloth. Remove the temperature probe form the socket of the device.

15.2.1 Thermostat with temperature probe

If necessary wipe over with a damp cloth. Store in a safe place. Do not knock or drop the thermostat with temperature probe. Please note ► Do not immerse temperature probe in water or other liquids. ► Before inserting the temperature probe in the socket enseure that the socket is fully dry. To do this wipe socket with a dry cloth.caso BQ 2200 32

15.2.2 The grillplate and drip tray

The heating element is totally sealed in the grillplate, so that you can clean the grillplate in water. Wash drip tray in warm soapy water using a mild household detergent and soft washing sponge or clean drip tray in the dishwasher.

Always dry the device before storing. Ensure the drip tray is correctly positioned. Store the device on a flat surface such as bench top or cupboard.

16 Disposal of the Old Device Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances. Please note ► Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information. ► Ensure that your old device is stored safely away from children until it is taken away.

17 Guarantee We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults. Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this. The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements. This device is designed for use in domestic situations and has the appropriate performance levels.caso BQ 2200 33 Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use. In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device. Any pending faults must be reported within 14 days of delivery. All further claims are excluded. To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).
