Item No. 2832

10 Operating Manual

10.1 General

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.

Your grill will serve you for many years if you handle it and care for it properly.

We wish you a lot of pleasure in using it!

10.2 Information on this manual

These Operating Instructions are a component of the contact grill DG 2000 (referred to hereafter as the device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:

- Commissioning

- Operation

- Troubleshooting and/or

- Cleaning

Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

10.3 Warning notices

The following warning notices are used in the Operating Manual concerned here.

⚠GEFAHR

DANGER

A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

⚠️WARNUNG

WARNING

A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

▲VORSICHT

ATTENTION

A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

HINWEIS

PLEASE NOTE

A notice of this kind indicates additional information, which will simplify the handling of the machine.

10.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.

No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a

result of the following:

• Non-observance of the manual

- Improper repairs

• Uses for non-intended purposes

- Technical alterations, modifications of the device

- Use of unauthorized spare parts

Modifications of the device are not recommended and are not covered by the guarantee. All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

10.5 Copyright protection

This document is copyright protected. Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially.

Subject to content and technical changes.

11 Safety

This chapter provides you with important safety notices when handling the device.

The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

11.1 Intended use

This device is only intended for use in households in enclosed spaces

- Roasting and cooking meat, vegetables, bread, etc.

This device is intended for use in the household and for similar applications such as:

• in kitchens for employees in shops, offices, and other commercial areas; • in B&Bs,
  • in agricultural estates;
• by customers in hotels, motels and other residential establishments.

Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

⚠️WARNUNG

Warning.

Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.

▶ Use the device exclusively for its intended use.
▶ Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded.

The User bears the sole risk.

11.2 General Safety information

HINWEIS

Please note

Please observe the following general safety notices with regard to the safe handling of the device.

▶ Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
▶ If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard.
This device can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
▶ Children shall not use this device. Keep the device and its cord out of reach of children.
▶ Children shall not play with the device.
▶ Cleaning and user maintenance shall not be made by children.
▶ Do not leave the power cord hanging within children's reach.
▶ Do not leave the device unsupervised when it is in operation.
▶ Only customer service departments authorized by the manufacturer may carry out repairs on the device, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. Improperly performed repairs can cause considerable dangers for the user.

HINWEIS

Please note

▶ Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.
▶ Do not immerse the housing with power cord in water or other liquids, and do not put it in the dishwasher.
▶ The appliance is not intended to be operated by means of an external timer or a separate remote-control system
▶ Do not use the appliance near flammable materials such as curtains, kitchen towels, wooden surfaces, etc.
▶ During operation of the appliance, there needs to be sufficient area for air circulation above the appliance and on all its sides.
▶ Do not use the appliance without the drip tray.

11.3 Sources of danger

11.3.1 Danger of Burning

⚠️WARNUNG

WARNING

The items cooked on this appliance as well as the grill and the surface of the appliance can become very hot.

Adhere to the following safety instructions in order to avoid burning or scalding yourself or others:

▶ During operation and directly after this the temperature of accessible surfaces can be very hot. Risk of burns.
▶ Do not touch the metal out surface or grilling plates. Use the handle to lift the upper grilling plate. Let all parts cool down before touching them. If necessary use suitable oven mitts.
▶ Do not put kitchen utensils, cooking or frying pan lid, knife or other objects on the grill. If the device is turned on, these objects are very hot.

▲WARNUNG WARNING

▶ Do not move or transport device during operation.
▶ Hot oil / fat splashes during grilling of greasy or salty meat. Risk of burns!
▶ Do not leave plastic utensils in contact with hotplate while cooking.

11.3.2 Danger of Fire

▲WARNUNG WARNING

There is a danger of fire due to the event the device is not used properly.

Observe the following safety notices to avoid dangers of fire:

▶ Do not set up the device near flammable material.
▶ Keep this appliance away from sources of heat (gas, electric, burner, heated oven).

11.3.3 Dangers due to electrical power

▲GEFAHR Danger

Mortal danger due to electrical power!

Mortal danger exists when coming into contact with live wires or subassemblies!

Observe the following safety notices to avoid dangers due to electrical power:

▶ Do not operate this device if it has a damaged cable or plug, if it is not working properly or if it has been damaged or dropped. If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard.
▶ Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.

⚠GEFAHR

Danger

▶ Do not insert objects into the openings of the appliance. There is a risk of electrocution if contact is made with voltage-carrying connections.
▶ Do not touch the appliance or the mains plug with wet hands.

12 Commissioning

This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

12.1 Safety information

⚠️WARNUNG

Warning

▶ Packaging materials may not be used for playing. There is a danger of suffocation.

12.2 Delivery scope and transport inspection

As a rule, the DG 2000 is delivered with the following components:

- Grill

- drip tray

- operating instructions

HINWEIS

Please note

▶ Examine the shipment for its completeness and for any visible damages.
▶ Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

12.3 Unpacking

To unpack the device, remove the device out of the carton and remove the packaging material.

12.4 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled.

Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to “Green Dot” recycling collection points for disposal.

HINWEIS

Please note

▶ If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

12.5 Setup

12.5.1 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• The appliance must be positioned on a solid, even, horizontal and heat-resistant base with sufficient load-supporting capacity for the appliance itself plus the heaviest anticipated cooking contents.
• Select an installation location where children cannot reach the appliance's hot surface.
• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.
• Do not use the appliance near flammable materials such as curtains, kitchen towels, wooden surfaces, etc.
• During operation of the appliance, there needs to be sufficient area for air circulation above the appliance and on all its sides.
• Do not use the appliance outdoors.
• The device is not intended to be installed in a wall or a built-in cupboard.
• The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency.
• The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

12.6 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device.
  If in doubt, ask your qualified electrician.
• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 ~mm^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
• Make sure that the power cable is undamaged and has not been installed under the oven or over hot or sharp surfaces.
• The electrical outlet must be protected by a 16A safety cut-out switch.
• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. If in doubt, have the house installation checked over by a qualified electrician.
  The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

13 Design and Function

This chapter provides you with important safety notices on the design and function of the device.

13.1.1 Rating plate

The rating plate with the connection and performance data can be founded on the bottom of the device.

13.2 Overview

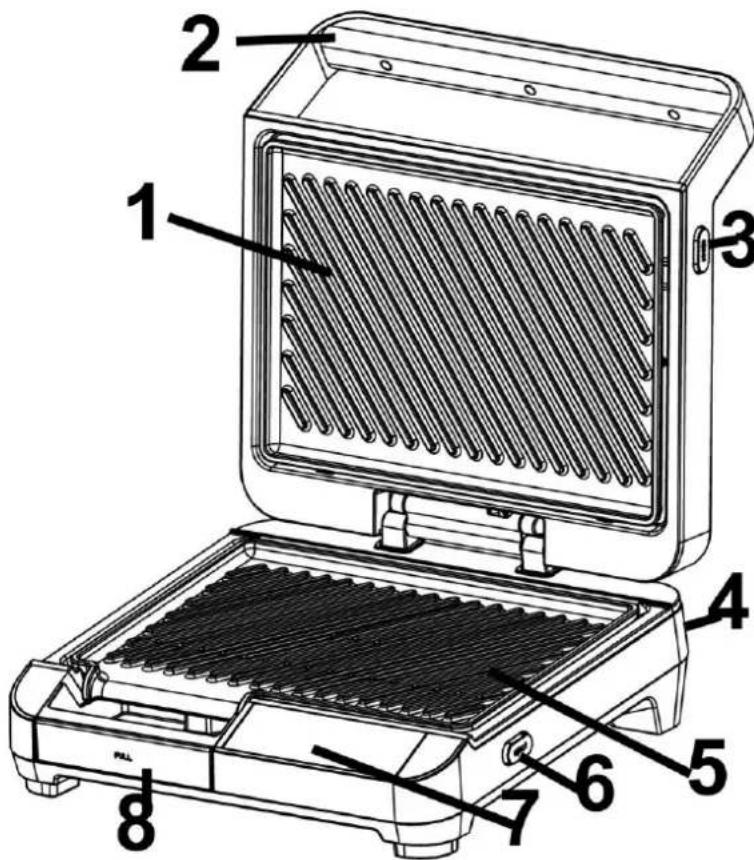

Labeled diagram of a grater with numbered parts for identification

1 upper grilling plate
2 handle
3 upper release button
4 On/Off button
5 lower grilling plate
6 lower release button
7 control panel
8 drip tray

⚠️WARNUNG

Warning Danger of burns

▶ Use the release buttons only when the device is cooled down. Do not touch when device is hot.

13.3 Control panel

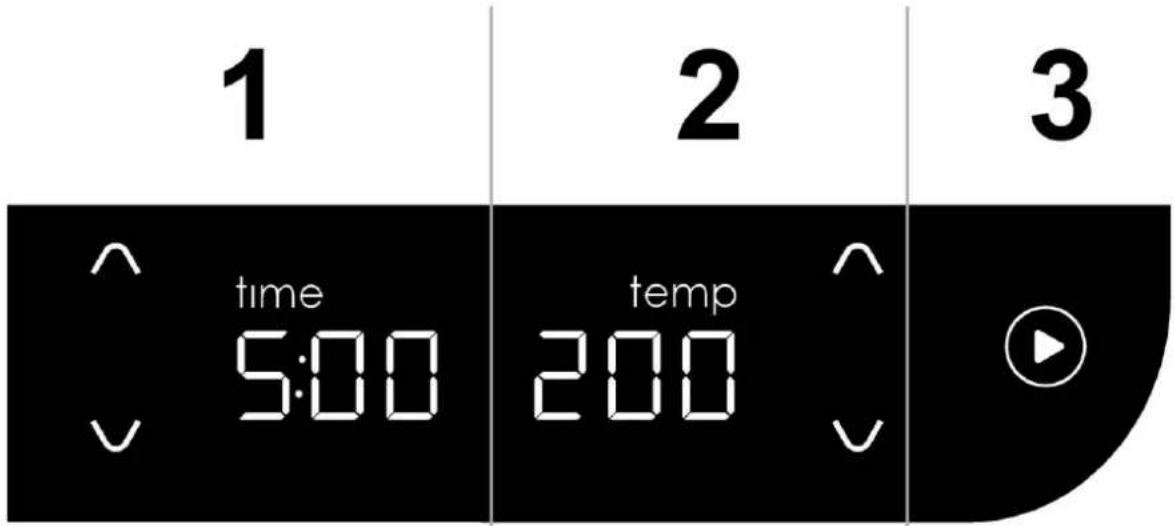

1 ^ time 5:00 200 3 temp ^ ↓ ↓

1 Setting and displaying of timer (time)
2 Setting and displaying of temperature (temp)
3 Start / Pause button for the timer

13.4 Rating plate

The rating plate with the connection and performance data can be founded on the bottom of the device.

14 Operation and Handing

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

⚠️WARNUNG

Warning

▶ Do not leave the appliance unsupervised during operation, so that you can react fast in case of any danger.

14.1 Assembly / Disassembly

Pull the power cord.

Keep the release button pressed, place the grilling plate on the contacts and then press it down until it latches. Place the drip tray.

Disassembly:

Press the corresponding side release button, then remove the grilling plate, remove the drip tray.

⚠️WARNUNG

Warning

▶ Let the device cool down before disassembling the grilling plates and the drip tray.

14.2 Before initial use

1. Preheat the device without grill food to 220^ C with closed grilling plates. Then operate it without timer for ca. 15 minutes.
2. Pull mains plug and let the device cool down.
3. Clean the device as shown in chapter cleaning.

HINWEIS

Please note

▶ You may see a little smoke when first using the contact grill.

14.3 How to use

1. Keep grilling plates closed. Press On/Off button.
2. The device will automatically preheat to 200^ . Change temperature if required.
3. The temperature display will blink during this process, and the device will beep once the desired temperature has been reached.
4. Then put your food on the grill and set the timer if required. Push the Start/Pause button to start the timer. If you push the Start/Pause button again, the timer will pause.
5. If you subsequently change the temperature, the device will heat up or cool down until it reaches the new temperature. The timer will pause. The device will beep once the desired temperature has been reached.
6. Then activate the timer using the Start/Pause button.
7. The device will beep once the timer has run down, and OFF will appear on the display.
8. Take your food off the grill.

HINWEIS

Please note

▶ You can also leave the upper grilling plate up and grill on the lower grilling plate only.
▶ If you do not set any time then the device will hold the temperature and switches off after 30 minutes.
In case a lot of food waste has accumulated, wipe the plates with a dry cloth and rinse out the drip tray in between times.
▶ Turn and take off your food using heat-resistant cutlery.
- Don't use any sharp or pointed utensils to remove your food to avoid damaging the non-stick coating of the grilling plates.
▶ Unplug the device after grilling and before cleaning and let the device cool down with closed grilling plates.

⚠️WARNUNG

Warning: Risk of burns

▶ Both grilling plates will always heat up. We recommend removing the upper grilling plate if you are not using it.
Please be careful if you operate the device with a grilling plate open or if you clean the grill in between grilling operations so that you don't burn yourself.

14.4 Table with preparation recommendations

Food	Weight	Recommended temperature	Recommended time
Pork minute steak	Ca. 140 g	140 °C	Ca. 2 minutes
Chicken breast	Ca. 200 g	160 °C	Ca. 5 minutes
SteakRareMediumWell done	Ca. 260 g	180 °C	Ca. 2 minutesCa. 3 minutesCa. 4 minutes
Burger meat (patties)	Ca. 100 g	160 °C	Ca. 3 minutes
Sausages		160 °C	Ca. 8 minutes
Salmon	Ca. 125 g	160 °	Ca. 3 minutes
Paninis		170 °C	Ca. 8 minutes
Toasted sandwich		150 °C	Ca. 5 minutes
Bell peppers	halved quartered	180 °C	Ca. 4 minutesCa. 7 minutes

15 Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

15.1 Safety information

▲VORSICHT Attention

Please observe the following safety notices, before you commence with cleaning the device:

▶ Unplug the device after grilling and before cleaning and let the device cool down with closed grilling plates.
The device must be cleaned and food residues must be removed at regular intervals. If the device is not maintained in a clean condition, this will have a detrimental effect on the service life of the device and can also result in a dangerous condition in the device as well as in the growth of fungus and bacteria.
▶ After using the appliance is hot. Danger of burns! Wait until the appliance has cooled down.

▲VORSICHT Attention

▶ Clean the grill after use as soon as it has cooled down. Extended waiting unnecessarily complicates cleaning and can make it impossible in extreme cases. Excessive accumulations of dirt can even damage the device under certain circumstances.
▶ Do not immerse the housing with power cord in water or other liquids, and do not put it in the dishwasher.
▶ Do not use any aggressive or abrasive cleaning agents or solvents. Do not scrape off stubborn dirt with hard items. Do not use a sharp metal pusher
▶ Do not cut the food with a knife on the surface.
▶ No cleansing agents (except liquid soap), no nylon brushes or metallic brushes must be used as the surface of the grillplate could be damaged.

15.2 Cleaning the grilling plates

Press the release buttons and remove the grilling plates. Then clean them in warm soapy water and dry them with soft cloth. You can also clean the grilling plates in the dishwasher. Then replace them.

15.3 Cleaning the drip tray

After each use, remove the drip tray (push gently against it then pull it out) and wash it in a warm water with a dish washing liquid solution. Then rinse with clean water, dry and replace to the bottom of the grill.

15.4 Cleaning the housing

Use a dry or slightly moist cloth to clean the housing, then wipe it dry.

16 Disposal of the Old Device

Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment.

Therefore, do not put your old device into the non-recyclable waste under any circumstances.

HINWEIS Please note

• Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
  ▶ Ensure that your old device is stored safely away from children until it is taken away.

17 Guarantee

We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults.

Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this.

The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements.

This device is designed for use in domestic situations and has the appropriate performance levels. Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use.

In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device. Any pending faults must be reported within 14 days of delivery. All further claims are excluded. To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).

18 Technical Data

Device	Caso Contact Grill DG 2000
Item No.	2832
Mains data	220 V – 240 V; 50 Hz – 60 Hz
Power	2000 W
External measurements (W x H x D)	34 x 19 x 34,5 cm
Net weight	6,3 kg

Mode d'emploi

Exterior view of a COSO gas station appliance with digital display (no visible text or symbols on main body)

N°. d'art. 2832

CE Home

19 Mode d'emploi

19.1 Généralités

Labeled diagram of a grater with numbered parts for identification

Exterior view of a COSO gas station appliance with digital display (no visible text or symbols on main body)

28 Istruzioni d'uso

29 In generale

Labeled diagram of a grater with numbered parts for identification

Exterior view of a CASO digital kitchen appliance with control panel and digital display (no visible text or symbols)

Labeled diagram of a grater with numbered parts for identification

Exterior view of a modern stainless steel CASO digital kitchen appliance with control panel (no visible text or symbols on device body)

Labeled diagram of a portable grater with numbered parts for identification
