USER MANUAL BG2000 CASO

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions. Your grill will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

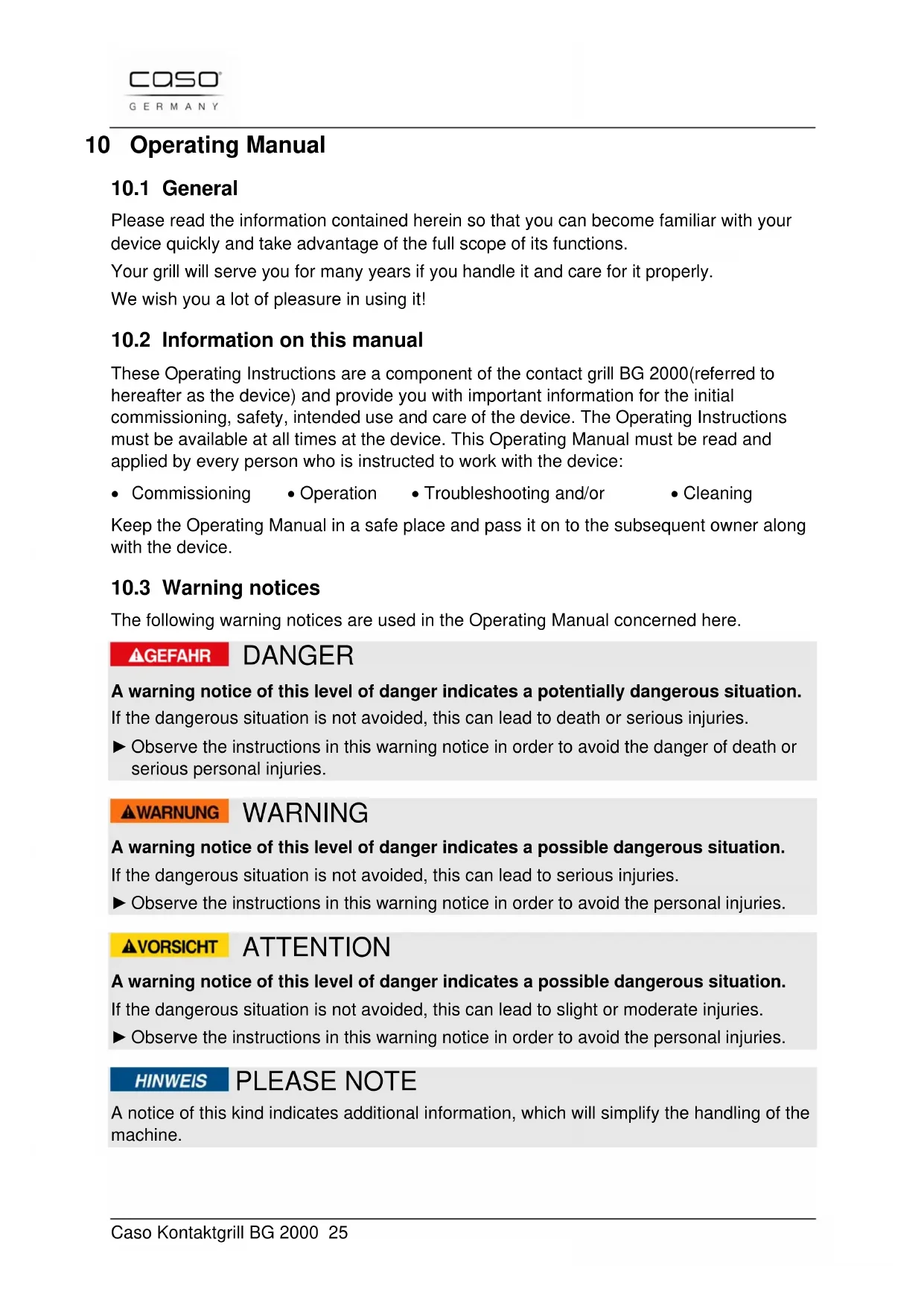

10.2 Information on this manual

These Operating Instructions are a component of the contact grill BG 2000(referred to hereafter as the device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:

• Commissioning • Operation • Troubleshooting and/or • Cleaning Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

10.3 Warning notices

The following warning notices are used in the Operating Manual concerned here. DANGER A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries. ► Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries. WARNING A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries. ► Observe the instructions in this warning notice in order to avoid the personal injuries. ATTENTION A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries. ► Observe the instructions in this warning notice in order to avoid the personal injuries. PLEASE NOTE A notice of this kind indicates additional information, which will simplify the handling of the machine.Caso Kontaktgrill BG 2000 26

10.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration. No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following:

• Non-observance of the manual • Uses for non-intended purposes

• Improper repairs • Technical alterations, modifications of the device

• Use of unauthorized spare parts Modifications of the device are not recommended and are not covered by the guarantee. All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

10.5 Copyright protection

This document is copyright protected. Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes. 11 Safety This chapter provides you with important safety notices when handling the device. The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

This device is only intended for use in households in enclosed spaces

• Roasting and cooking meat, vegetables, bread, etc. Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use. Warning Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use. ► Use the device exclusively for its intended use. ► Observe the procedural methods described in this Operating Manual. Claims of all kinds due to damages resulting from unintended uses are excluded. The User bears the sole risk.Caso Kontaktgrill BG 2000 27

11.2 General Safety information

Please note Please observe the following general safety notices with regard to the safe handling of the device. ► Examine the device for any visible external damages prior to using it. Never put a damaged device into operation. ► If the connection lead is damaged, you will need to have a new connection lead installed by an authorized electrician. ► This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. ► Children shall not play with the appliance. ► Cleaning and user maintenance shall not be made by children without supervision. ► Do not leave the device unsupervised when it is in operation. ► Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs that may be needed. Improperly performed repairs can cause considerable dangers for the user. ► Only customer service departments authorized by the manufacturer may carry out repairs on the device during the guarantee period, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. ► Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled ► Do not immerse the appliance in water or other liquids, and do not put it in the dishwasher. ► The appliance is not intended to be operated by means of an external timer or a separate remote-control system ► Do not use the appliance near flammable materials such as curtains, kitchen towels, wooden surfaces, etc. ► During operation of the appliance, there needs to be sufficient area for air circulation above the appliance and on all its sides. ► The unit is after the direct operation still very hot! Allow to cool all parts before touching them. ► Do not use the appliance without the drip tray. ► Allow the appliance to fully cool down before assembling or disassembling parts, before moving, cleaning or storing it. ► Clean the grilling plates after each use (see chapter “Cleaning“).Caso Kontaktgrill BG 2000 28

11.3 Sources of danger

11.3.1 Danger of Burning

WARNING The items cooked on this appliance as well as the grill and the surface of the appliance can become very hot. Adhere to the following safety instructions in order to avoid burning or scalding yourself or others: ► Protect your hands during all work at the hot appliance by using heat insulating gloves, dish cloths or similar. ► Do not put kitchen utensils, cooking or frying pan lid, knife or other objects on the grill. If the device is turned on, these objects are very hot. ► Do not move or transport device during operation. ► Hot oil / fat splashes during grilling of greasy or salty meat. Risk of burns! ► Do not leave plastic utensils in contact with hotplate while cooking. ► The temperature of accessible surface may be high when the appliance is operating. Risk of burns! ► The temperature of accessible surfaces may be higher if the appliance is in operation. Be careful not to touch the heated stainless outer surface or grilling surfaces. Use the handle to lift the upper grilling plate.

11.3.2 Danger of Fire

WARNING There is a danger of fire due to the event the device is not used properly. Observe the following safety notices to avoid dangers of fire: ► Do not set up the device near flammable material. ► Keep this appliance away from sources of heat (gas, electric, burner, heated oven).

11.3.3 Dangers due to electrical power

Danger Mortal danger due to electrical power! Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power: ► If the connection lead is damaged, you will need to have a special connection lead installed by an authorized electrician. ► Do not operate this device if its power cable or plug is damaged, if it does not work properly or if it is damaged or has been dropped. If the power cable is damaged, it will need to be replaced by the manufacturer or his service agency or a similar qualified person, to avoid any dangers.Caso Kontaktgrill BG 2000 29 Danger ► Do not open the housing on the device or dismantle any parts under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur. ► Do not touch the appliance or the mains plug with wet hands. ► Do not insert objects into the openings of the appliance. There is a risk of electrocution if contact is made with voltage-carrying connections. ► Switch off the power before unplugging or plugging the power cord. Remove the plug by gently pulling it, do not pull on the cable. ► Switch off the power and disconnect the plug when the device is not in use and before cleaning. 12 Commissioning This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

12.1 Safety information

Warning Personal and property damages can occur during commissioning of the device! Observe the following safety notices to avoid such dangers: ► Packaging materials may not be used for playing. There is a danger of suffocation.

12.2 Delivery scope and transport inspection

As a rule, the BG 2000 is delivered with the following components:

• Grill • drip tray • operating instructions Please note ► Examine the shipment for its completeness and for any visible damages. ► Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

12.4 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling- related points of view and can therefore be recycled. Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to “Green Dot” recycling collection points for disposal. Please note ► If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

12.5.1 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• The appliance must be positioned on a solid, even, horizontal and heat-resistant base with sufficient load-supporting capacity for the appliance itself plus the heaviest anticipated cooking contents.

• Select an installation location where children cannot reach the appliance’s hot surface.

• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.

• Do not use the appliance near flammable materials such as curtains, kitchen towels, wooden surfaces, etc.

• During operation of the appliance, there needs to be sufficient area for air circulation above the appliance and on all its sides.

• Do not use the appliance outdoors.

• The device is not intended to be installed in a wall or a built-in cupboard.

• The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency.

• The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.Caso Kontaktgrill BG 2000 31

12.6 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device. If in doubt, ask your qualified electrician.

• The electrical outlet must be protected by a 16A safety cut-out switch.

• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 mm². The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.

• Make sure that the power cable is undamaged and has not been installed under the oven or over hot or sharp surfaces.

• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician. The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.Caso Kontaktgrill BG 2000 32 13 Design and Function This chapter provides you with important safety notices on the design and function of the device. Double contact grilling is roasting form above and below. Advantages are: a fast, juice preserving and delicious grilled food.

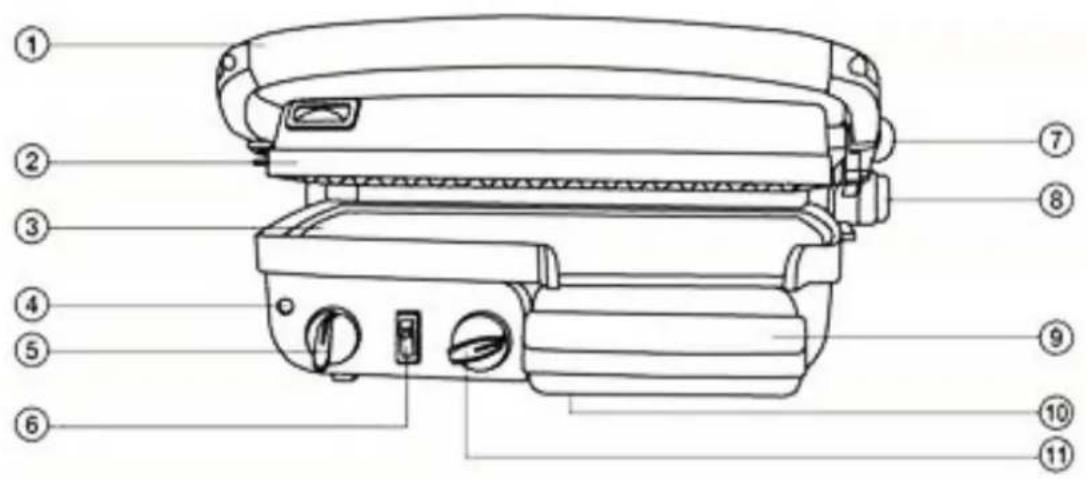

1 Handle 7 Sliding lock 2 Upper nonstick grilling plate 8 Button for tilting upper plate open by 180° 3 Lower nonstick grilling plate 9 Removable drip tray 4 Grilling plates heating indicator 10 Power cord storage space 5 Timer 11 Temperature control dial 6 Main power switch

The rating plate with the connection and performance data can be founded on the bottom of the device. 14 Operation and Handing This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages: Warning ► Do not leave the appliance unsupervised during operation, so that you can react fast in case of any danger.Caso Kontaktgrill BG 2000 33

14.1 Before initial use

1. Take the contact grill out of its packaging.

2. Wipe the grill plates with a clean, moistened rag and then with a dry one.

Please note ► You may see a little smoke when first using the contact grill. This is normal; after repeated use, this phenomenon disappears.

1. Check to see that the removeable drip tray (9) is placed in the bottom of the grill. If the

grill plates are locked together by the sliding lock (7), release the upper plate by sliding the lock to the front.

2. Connect the contact grill to an outlet. Switch the main power switch (6) to the ON

position. The main power indicator light (6) lights up.

3. Set your desired temperature. The device heats up the plates, the grilling plates

indicator lights up. To accelerate this, leave down the upper grilling plate. Please note ► Set the temperature (11) based on the type of food you want to grill. To prepare steaks, we recommend leaving the temperature control dial on MAX (high temperature). To grill sandwiches, we recommend setting the temperature control dial to MIN (low temperature).

4. The grilling plates indicator switches off, when your desired temperature is reached.

5. The timer works like a kitchen timer. Set desired time. When the time is over, a signal

tone sounds but the timer does not turn off the device.

6. Place your ingredients onto the grilling plates.

Please note ► If the displayed temperature is reached, the indicator light turns off. If the temperature falls down, the device is heating up again and the indicator light turns on again.

7. Remove the ingredients after desired time and turn off the device.

8. The device is still hot and the ingredients keep cooking. Please remove the food.

Please note ► When the food is ready, remove it from the grill with a plastic spatula. Do not use metal tongs, metal spatulas, a knife or other sharp utensils. This could cause damage to the non-stick coating of the grilling plates. ► After use, switch off the grill by placing the main switch (6) in the OFF position, and unplug the power cord. Prior to any further handling, let the grill cool down.

9. Grilling with closed upper grilling plate:

• Using the lid handle (1), open the upper grilling plate (2) to the upright position.

• Place meat, vegetables, sandwich or other food that you want to grill or cook up on the lower grilling plate (3).

• The unique contact grill design enables using both grilling plates at the same time.

• Press the button (8) located on the right side. Grasp the lid handle (1) and lift the upper grilling plate (2) so that it leans against the table, utility surface or counter top, and the upper grilling plate will rest in a horizontal position just like the lower plate.

• Place meat, vegetables or other foods suitable for grilling on the grilling plate. Turn food over as needed during grilling.

14.3 Non-stick coating on grilling plates

1. The grilling surfaces of your contact grill feature a special non-stick coating. This coating

enables you to prepare foods healthily while using a minimum amount of fat or oil.

2. Do not use sharp, metal kitchen utensils and do not cut food directly on the grilling plate.

The manufacturer holds no liability for damage to the coating caused by use of sharp objects or metal utensils.

3. If the color of the surfaces changes over time, this does not affect the function. On these

surfaces a good patina for grilling is formed.

14.4 Tips for grilling meat

1. In the meat juice of grilled food are included all the essential vitamins, minerals and

flavors. Double contact grilling guarantees fast and juice obtained results.

2. A "medium" roasting result can be obtained from a 2 centimeter thick steak in about 3

3. Do not salt the meat before grilling. This would result in the meat being tough and dry.

4. Before starting to grill marinated meat, pat with paper towels to remove excess

marinade. Some marinades have a high sugar content, which may become charred to the grilling plate.

5. When grilling, do not insert a fork or knife into the meat, as this would cause the juices

to flow out. This would also result in making the meat tough and dry.

6. Do not overcook your meat, because then it will be dry and leathery.

7. Always make sure chicken is cooked through.

8. When the meat is finished grilling, season it to taste with salt or other seasoning.

14.4.1 Recommended grilling times

Food type Grilling time (with closed upper grilling plate) Beef

• hamburger Cooking time per centimeter of thickness is about 1.5 minutes when a medium (rose) result is desired. Cooking time per centimeter of thickness is about 2.5 minutes, when a medium Well Done (well cooked) result is desired. 2–3 minutes 4–6 minutes Pork

Cooking time per centimeter of thickness is about 1.5 minutes when a medium (rose) result is desired. Cooking time per centimeter of thickness is about 2.5 minutes, when a medium Well Done (well cooked) result is desired.Caso Kontaktgrill BG 2000 35

• rump steak Cooking time per centimeter of thickness is about 1.5 minutes when a medium (rose) result is desired. Cooking time per centimeter of thickness is about 2.5 minutes, when a medium Well Done (well cooked) result is desired. 4 minutes 4 minutes Chicken

• thigh steaks 6 minutes or until cooked through 4–5 minutes or until cooked through Sausages/ hotdogs

• thin 3–4 minutes 6–7 minutes Seafood

• sweet potatoes 3–5 minutes 3–5 minutes 3–5 minutes Please note ► The grilling times listed in the table are approximate and may differ in relation to the slice thickness or food size. 15 Cleaning and Maintenance This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

15.1 Safety information

Attention Please observe the following safety notices, before you commence with cleaning the device: ► Prior to cleaning the contact grill, always turn the main switch to the off position, unplug the power cord and let the grill cool down. ► The device must be cleaned and food residues must be removed at regular intervals. If the device is not maintained in a clean condition, this will have a detrimental effect on the service life of the device and can also result in a dangerous condition in the device as well as in the growth of fungus and bacteria.Caso Kontaktgrill BG 2000 36 Attention ► Switch the device off prior to cleaning it and unplug the plug from the wall power outlet. ► After using the appliance is hot. Danger of burns! Wait until the appliance has cooled down. ► Clean the grill after use as soon as it has cooled down. Extended waiting unnecessarily complicates cleaning and can make it impossible in extreme cases. Excessive accumulations of dirt can even damage the device under certain circumstances. ► Do not immerse the appliance in water or other liquids, and do not put it in the dishwasher. ► Do not use any aggressive or abrasive cleaning agents or solvents. ► Do not scrape off stubborn dirt with hard items. ► Do not use a sharp metal pusher ► Do not cut the food with a knife on the surface. ► No cleansing agents (except liquid soap), no nylon brushes or metallic brushes must be used as the surface of the grillplate could be damaged.

15.2 Cleaning the grilling surfaces

1. Clean the grilling plates after every use to prevent build-up of excess food.

2. Use a moist, soft cloth to clean. If charred bits of food remain on the grilling plates, ex.

from marinated meat, apply a solution of water and neutral dish washing liquid to the area. Wipe clean afterwards with a clean, moist cloth. Please note ► It will be easier to clean the grilling plates if they are still a bit warm.

15.3 Cleaning the drip tray

1. After each use, remove the drip tray and wash it in a warm water with a dish washing

liquid solution. Then rinse with clean water, dry and replace to the bottom of the grill.

15.4 Cleaning the outer surface

1. Use a dry or slightly moist cloth to clean the outer surface, then wipe it dry.

2. Do not use a steel scouring pad, sharp cleaning utensils or solvents to clean the contact

3. Do not use solvent based cleaning agents, such as Gasoline.

4. To prevent potential injury by electric shock, do not submerge the grill in water or any

other liquid. 16 Disposal of the Old Device Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment.Caso Kontaktgrill BG 2000 37 Therefore, do not put your old device into the non-recyclable waste under any circumstances. Please note ► Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information. ► Ensure that your old device is stored safely away from children until it is taken away. 17 Guarantee We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults. Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this. The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements. This device is designed for use in domestic situations and has the appropriate performance levels. Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use. In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device. Any pending faults must be reported within 14 days of delivery. All further claims are excluded. To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase). 18 Technical Data Device Caso Contact Grill BG 2000 Model DF-9799 Item No. 2835 Mains data 220-240 V – 50/60 Hz Power 1850-2000 W External measurements (W x H x D) 47,8 x 16,2 x 39,5 cm Net weight 7,25 kgCaso Kontaktgrill BG 2000 38
