USER MANUAL Comfortcook 99203 TREBS

When using the electrical appliances, basic safety precaution should always be followed, including the followings:

Read all the instructions:

This appliance is for household use only. Do not use outdoor.
- Do not use this appliance for other than its intended use.
- Before using for the first time, check if voltage indicated on the head of the appliance corresponds to the voltage in your home.
- Close supervision is necessary when any appliance is used by or near children.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunction or has been damaged in any manner. Return appliance to the authorized service centre for examination, repair or adjustment.
- The use of attachments or accessories not recommended or sold by the manufacturer may result in fire, electric shock or injury.
- Do not let the cord hang over edge of table or counter, or touch hot surface.
- Do not place the appliance near or touch flammable material such as curtains, draperies, wall, when in operation.
- To protect against electric shock, fire an inquiry to persons, do not immerse main cord, plug or unit in water or any other liquid.

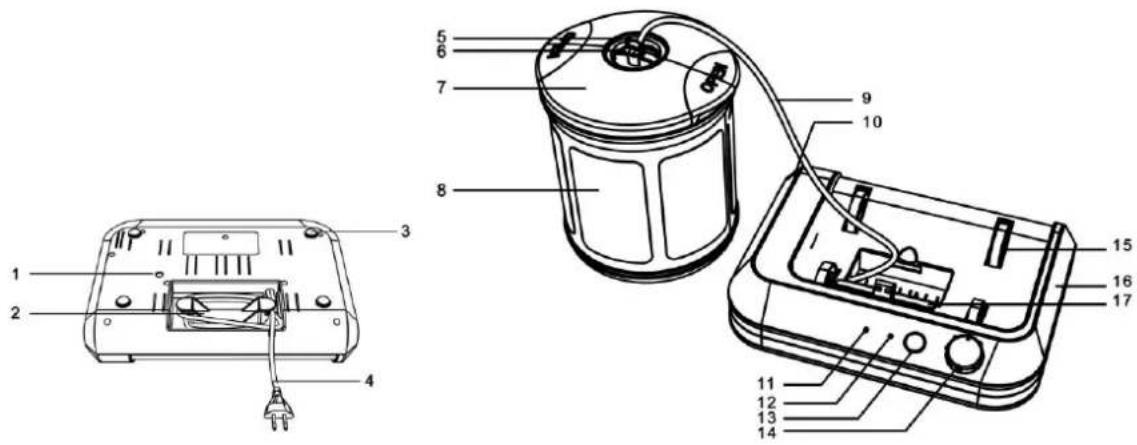

Construction and features:

1--Vacuum Pressure adjustment

5--Vacuum Head
9--Vacuum tube
13--Vacuum switch
17--Door cabinet

2--Power cord Storage compartment
6--Pressure Switch
10--Lower cabinet
14--Timer(30 mins.) adjustment

3--Rubber foot
7--Cover
11--Power light
15--wheel

4--Power cord
8--Vacuum bottle
12--Finished light
16--Top housing

Before your first use:

Carefully unpack the unit and remove all packing materials. Select a flat, heat-resistant non-flammable surface to place the unit. Do not immerse the appliance in water or other liquid. To remove any dust that may have accumulated on the removable parts during packing, clean the surface with damp cloth and remove any stickers (except for any warning/caution stickers). Wash the bowl container in warm soapy water. Rinse and dry thoroughly.

Operating instructions:

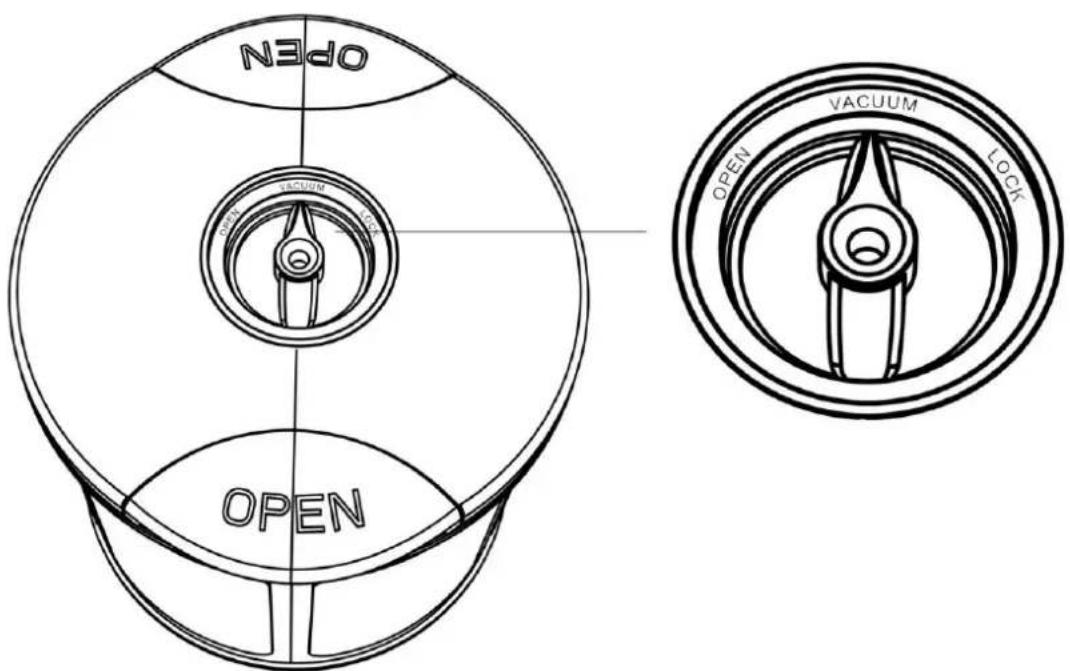

Firstly, plug the AC Main, the Vacuum Marinator Power Light will on. Insert the vacuum tube to the vacuum pot and turn vacuum pot the knob to "VACUUM" position. Press the

"vacuum switch" and start to vacuum and take out all the air from the vacuum pot. When the pot inside reach to completely vacuum (about 45KPa ), the "finished" light

will on about 3 - 5 seconds, the pump will stop working and the "finished" light will off.

Turn the vacuum pot the knob to the "LOCK" position. Take out the vacuum tube and place back well. Placed the vacuum pot to the Vacuum Marinator. Turn the mechanical timer and set the vacuum pot rotating time (max. 30 mins.) The motor will start to move and bring the vacuum pot to rotate and stop until reach the preset timing.

Vacuum states by removing air in the vacuum pot prevent bacteria from breeding. It restrains food from oxidation and rotting. Food could be reserved fresh over a long time.

Technical data

Voltage : 220-240V

Frequency : 50-60Hz

Capacity : 3.2KGS/7LBS (marination weight

Caution

1. Never immerse cord or plug in water or any other liquid.
2. If scrubbing is necessary, use a nylon or polyester mesh pad.
3. Do not use a steel wool pad or abrasive material.
4. Never use solvents or cleaning powder.
5. Do not get any liquids inside the head/lid.

Storing

Allow the appliance to cool completely before storing. Store the appliance in a dry location. Do not place any heavy items on top of appliance during storage as this may result in possible damage of appliance.

Service

If you have any further questions about the product after reading this manual, please contact the Trebs customer service: [e-mail].

Trebs BV

Thermiekstraat 1a, 6361 HB, Nuth, The Netherlands, Email: [e-mail], Internet: www.trebs.nl

CE
