1006 Kadoma, Kadoma City, Osaka, Japan Operating Instructions Simplifi ed Remote Controller Before operating the unit, read these operating instructions thoroughly and keep them for future reference. Model No. CZ-RELC2 CV6233195384Contents

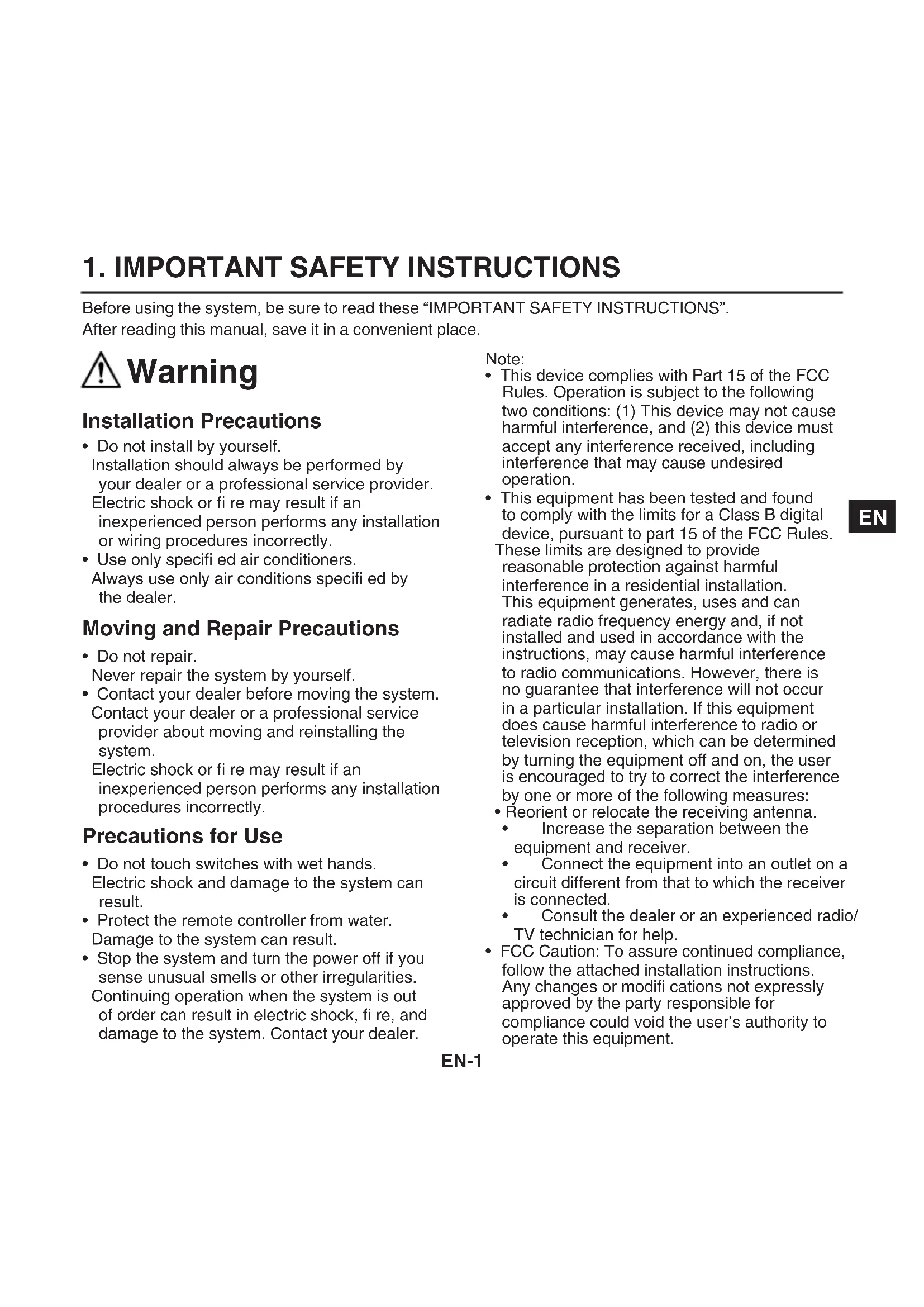

Before using the system, be sure to read these “IMPORTANT SAFETY INSTRUCTIONS”. After reading this manual, save it in a convenient place. Warning Note:

• This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

• This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/ TV technician for help.

• FCC Caution: To assure continued compliance, follow the attached installation instructions. Any changes or modifi cations not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Installation Precautions

• Do not install by yourself. Installation should always be performed by your dealer or a professional service provider. Electric shock or fi re may result if an inexperienced person performs any installation or wiring procedures incorrectly.

• Use only specifi ed air conditioners. Always use only air conditions specifi ed by the dealer. Moving and Repair Precautions

• Do not repair. Never repair the system by yourself.

• Contact your dealer before moving the system. Contact your dealer or a professional service provider about moving and reinstalling the system. Electric shock or fi re may result if an inexperienced person performs any installation procedures incorrectly. Precautions for Use

• Do not touch switches with wet hands. Electric shock and damage to the system can result.

• Protect the remote controller from water. Damage to the system can result.

• Stop the system and turn the power off if you sense unusual smells or other irregularities. Continuing operation when the system is out of order can result in electric shock, fi re, and damage to the system. Contact your dealer.EN-2

2. NAMES AND OPERATIONS

Operation Section A: ON/OFF operation button This button is for turning the air conditioner on and off . B: MODE button Use this button to select one of the following fi ve operating modes. (AUTO) : Used to automatically set cooling or heating operation. (temperature range: 17 ~ 27 °C) (HEAT) : Used for normal heating operation. (temperature range: 16 ~ 26 °C) (DRY) : Used for dehumidifying without changing the room temperature. (temperature range: 18 ~ 30 °C) (COOL) : Used for normal cooling operation. (temperature range: 18 ~ 30 °C) (FAN) : Used to run the fan only, without heating or cooling operation. D: FAN SPEED selector button C: Temperature setting buttons A: ON/OFF operation button G: Test button F: Temperature Sensor (Internal) B: MODE button E: FLAP buttonEN-3

• In the cool mode and dry mode, if the fl aps are set in a downward position, condensation may form and drip around the vent.

• Do not move the fl ap with your hands. F: Temperature sensor (Internal) Although the temperature sensor in the indoor unit normally detects the temperature, this internal sensor can detect the temperature around the remote controller. For more information, contact the dealer where you made the purchase. (Do not make any settings if group control is being used.) G: TEST button CAUTION This button is used only when servicing the air conditioner. Do not use the TEST button for normal operation. NOTE When any button is pressed, the backlight of the LCD display lights up for 30 seconds.

• Group control means that maximum up to 8 indoor units can be concurrently controlled with a remote controller.EN-4 Display Section

2. NAMES AND OPERATIONS (Continued)
