USER MANUAL HF180 H.KOENIG

This is an automatic self-refrigerated frozen ice cream & sorbet maker. For your safety and continued enjoyment of this product, always read the instruction book carefully before using.

IMPORTANTNOTICES

When using an electrical appliance, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury, including the following:

1. Read all instructions before using.
2. Ensure the voltage is compliant with the voltage range stated on the rating label, and ensure the earthing of the socket is in good condition.
3. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
4. Do not upend this product or incline it over a 45^ angle.
5. To protect against risk of electric shock, do not pour water on cord, plug and ventilation, immerse the appliance in water or any other liquid.
6. Unplug the appliance after using or before cleaning.
7. Keep the appliance 8cm from other objects to ensure the good heat releasing.
8. Do not use the accessories which are not recommended by Manufacturer.
9. This appliance may be used by persons with reduced physical, sensory or mental capabilities or lack of experience or knowledge, provided that they are supervised or instructed in the safe use of the appliance and that they fully understand the potential hazards.
10. Do not use the appliance close by flames, hot plates or stoves.
11. Do not use the appliance close by flames, hot

plates or stoves.

1. Do not switch on the power button frequently (ensure 5min. interval at least) to avoid the damage of compressor
2. Metal sheet or other electric objects are not allowed to be inserted into the appliance to avoid fire and short circuit.
3. When take out the ice cream, do not knock the barrel or edge of barrel to protect the barrel from damage.
4. Do not switch on the power before install well the barrel or blender blade.
5. The initial temperature of the ingredients is 25 ± 5^ C . Do not put the ingredients into freezer for pre-freeze, as it will easily make the blender blade blocked before the ice cream is in good condition.
6. Please do not remove the blender motor while making ice cream.
7. If you want to extend the cooling function after completing ice cream making program, the blender motor must be removed firstly. Otherwise it will shorten the life of blender motor.
8. Do not use outdoors.
9. Never clean with scouring powders or hard implements.
10. Please keep the instruction manual.
11. The device must not be used if it has been dropped, it obvious signs of damage are visible or if it has leaks.
12. This appliance may be used by children of at least 8 years of age, as long as they are supervised

and have been given instructions about using the appliance safely and are fully aware of the dangers involved.

1. Cleaning and maintenance should not be carried out by children unless they are at least 8 years of age and are supervised by an adult.
2. Keep the appliance and its power cord out of reach of children under 8 years of age.
3. When using electrical C6 safety precautions must always be taken to prevent the risk of fire, electric shock and/or injury in the event of misuse.
4. Make sure that the voltage rating on the typeplate corresponds to your main voltage of your installation. If this is not the case, contact the dealer and do not connect the unit.
5. Never leave the unit unattended while in operation.
6. Please keep this document at hand and give it to the future owner in case of transfer of your device.

7. This appliance is intended for use in domestic and similar applications such as:

8. kitchen areas in shops, offices and other working environments
   -farmhouses

9. in hotels, motels and other residential environments
10. guest rooms.

Refrigerant

The refrigerant gas contained in the circuit of this appliance is isobutane (R 600a), a gas which is polluting but flammable.

• When transporting and installing the appliance, take care not to damage any part of the refrigeration circuit
• Do not use any sharp or pointed tools to defrost the appliance.
• Do not use any electrical device inside the device.

If the refrigeration system is damaged:

Do not use a flame near the appliance.

Avoid sparks - do not light any electrical appliance or electric lamp.

Ventilate the room immediately

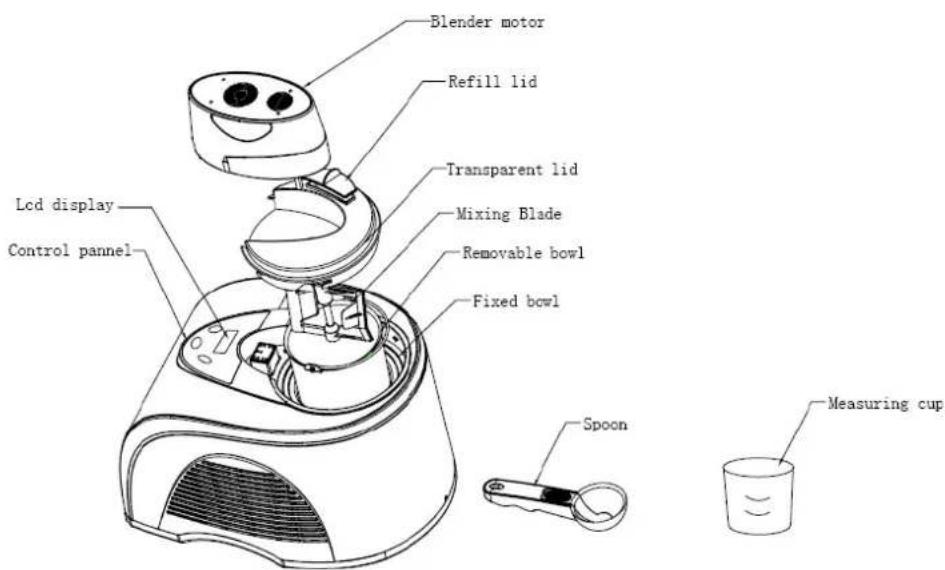

Illustration 1-Exploded View

BEFORE MAKING ICE CREAM

Cleanness

Before use, thoroughly wash all parts that will come into contact with the ice cream (including the fixed bowl, removable bowl, mixing blade, transparent lid, refill lid, measuring cup and spoon).

Prepare recipe ingredients:

Prepare recipe ingredients from your own recipe or from the recipe booklet here, and pour the well prepared recipe ingredients into the removable bowl.

Note: You do not need to freeze the bowl for hours in a freezer in advance, as this machine has a BUILT-IN COMPRESSOR that freezes the recipe ingredients in operation thus ensure the output of ice cream.

Assembly

Warning: Please be sure the power cord is unplugged.

Important: Always place the Ice Cream Maker upright on a flat surface in order that the build-in COMPRESSOR can provide best performance.

1) Put the removable bowl into the fixed bowl in the machine body.
2) Place the mixing blade into the removable bowl.
3) Install the transparent lid on top of the bowls and keep the mixing blade fitted in the center of the transparent lid.
4) Place the refill lid onto the transparent lid.
5) Mount the blender motor onto the transparent lid and be sure the motor axis fitted into the hole in top of mixing blade.

Connect to the electricity

Check voltage to be sure that the voltage indicated on the rating label agrees with your home voltage, then plug into the correct socket.

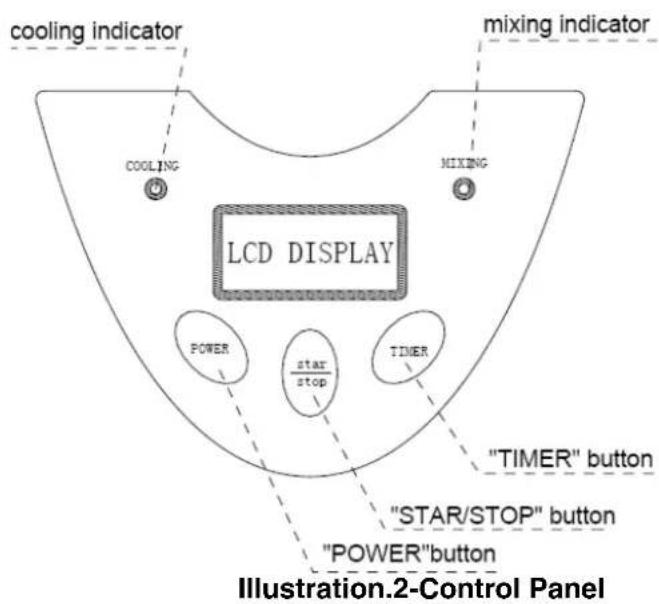

Operation of function buttons

[POWER] Button: After connecting with the electricity, press the [POWER] button to electrify the machine and the LCD displays "60:00" which means the default operating time is 60 minutes.

[TIMER] Button: 10, 20, 30, 40, 50 and 60 minutes of operation time is optional and can be preset by repeatedly pressing [TIMER] Button. You can choose different operating time to your taste. (Default operating time is 60 minutes).

[START/STOP] Button: After the time set, press the [START/STOP] button to start. It begins mixing immediately and the GREEN indicator lights up, 2 minutes later it begins cooling and the RED indicator lights up. When the count-down ends, the operation automatically stops and it hears 10 times of "Di Di Di" sound. The LCD displays "00:00".

If no one seems to serve the ice cream or turn off the machine in 10 minutes, it automatically enters into a "Extended Cooling Function" to keep the ice cream not defrosted.

Compressor self-protection function:

1) If press POWER button during ice making process, the machine will automatically begin to count down for 3 minutes. When the countdown ends, the machine starts again, the mixing function and cooling function will start synchronously. If, during the countdown, the POWER button is pressed again, the mixing function starts immediately, the cooling function will only start after the end of the countdown.

If the machine suffers a power failure or is unplugged suddenly during ice cream making, there won't be the automatic countdown function. Suggest to starting the machine after 3 minutes, otherwise it will enter into compressor self-protection status.

Extended Cooling Function

The machine runs the COOLING function(no mixing) for 10 minutes in every other 10 minutes, totally 1 hour, then returns to the initial default status(Electrified but no operation).

[Caution]: Always remember to unplug from outlet when you serve the finished ice cream to avoid an electric shock.

Adjusting Operations

Break off Operation: You can stop the machine by pressing the [START/STOP] Button for 3 seconds, or pressing the [Power] button for one time whenever the machine is running.

Operating Time Adjusting(In Operation): Whenever the machine is running, you can add the operating time by repeatedly pressing the [TIMER] Button, 5 minutes added each pressing till it reaches the maximum 60 minutes displayed on the LCD. The time can only be increased but can not be reduced.

Adding Time Operation (After Operating Time Finished)

When the preset time (60 minutes etc.) finishes and the machine stops and returns to the initial default statuses, if you like a harder consistency, you can once again select an operating time (10/20/30/40/50/60 minutes) by pressing [TIMER] button, then again press the [START/STOP] button in turn, the machine will continue to run down the time you selected and then stops and again enters into the "Extended Cooling Function" to keep the ice cream not defrosted.

Controlling the Volume of the Ingredients

To avoid overflow and waste, please make sure that the ingredients do not exceed 80% of capacity of the removable bowl (Ice cream expands when being formed)

STORAGE OF ICE CREAM

Remove finished ice cream into another container using a plastic scoop or a wooden spoon, do not use a metal scoop avoiding scratch on the inside removable bowl.

NOTES

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

CREAM RECIPE

MANUAL

VANILLA ICE

CREAM

Makes ten 1/2-cup

servings. 1 cup

whole milk

3/4 cup

granulated

sugar 2 cups

heavy cream

1/2 teaspoons pure vanilla extract, to taste

In a medium bowl, use a hand mixer or a whisk to combine the milk and granulated sugar until the sugar is dissolved, about 1 - 2 minutes on low speed. Stir in the heavy cream and vanilla to taste. Turn machine on, pour mixture into freezer bowl through ingredient spout and let mix until thickened, about 50 - 60 minutes.

Nutritional analysis per serving:

Calories 239 (68% from fat). carbo. 17g. pro 2g. fat 18g. sat. fat 11g. chol. 69mg. sod. 30mg

VARIATIONS:

Mint Chip: Omit the vanilla and replace with 1 to 1-1/2 teaspoons pure peppermint extract (to taste). Chop your favorite 4-ounce bittersweet or semi-sweet chocolate bar into tiny uneven pieces. Add the chopped chocolate during the last 5 minutes of mixing.

Butter Pecan: Melt 1 stick unsalted butter in a 10-inch skillet. Add 1 cup roughly chopped pecans and 1 teaspoon kosher salt. Cook over medium-low heat, stirring frequently until the pecans are lightly browned.

Remove from the heat, strain (the butter will have a pecan flavor and may be reserved for another use).

Allow the pecans to cool completely. Add the toasted buttered pecans during the last 5 minutes of mixing.

Cookies & Cream: Add 3/4 cup coarsely chopped cookies or your

favorite candy (chocolate chip, Oreos., Mint Oreos., etc.) during the last 5 minutes of mixing.

BASIC CHOCOLATE ICE CREAM

Makes ten 1/2-cup

servings. 1 cup

whole milk

1/2 cup granulated sugar

240g or 8 ounces bittersweet or semi-sweet chocolate (your

favorite), broken into 1/2-inch pieces

3/2 cups heavy cream

1 teaspoon pure vanilla extract

Heat the whole milk until it is just bubbling around the edges (this may be done on the stovetop or in a microwave). In a blender or food processor fitted with the metal blade, pulse to process the sugar with the chocolate until the chocolate is very finely chopped. Add the hot milk, process until well blended and smooth. Transfer to a medium bowl and let the chocolate mixture cool completely. Stir in the heavy cream and vanilla to taste.

Turn the machine ON, pour mixture into freezer bowl

through ingredient spout and let mix until thickened, about

50 - 60 minutes. Nutritional analysis per serving:

Calories 370 (60% from fat). carbo. 34g. pro 3g.

fat 25g . sat. fat 11g . chol. 65mg . sod. 31mg

VARIATIONS:

Chocolate Almond: Add 1/2 teaspoon pure almond extract along with the vanilla. Add 1/2 - 3/4 cup chopped toasted almonds or chopped chocolate-coated almonds during the last 5 - 10 minutes of freezing.

Chocolate Cookie: Add 1/2 - 1 cup chopped cookies during

the last 5 minutes of freezing.

Chocolate Fudge Brownie: Add 1/2 - 1 cup chopped day old brownies during the last 5 minutes of freezing.

Chocolate Marshmallow Swirl: When removing the ice cream to a container for freezing, layer it with dollops of your favorite chocolate sauce and scoops of marshmallow crème (fluff).

FRESH STRAWBERRY ICE CREAM

Makes ten 1/2-cup servings.

250g or 1 pint fresh ripe strawberries, stemmed

and sliced 3/2 tablespoons freshly squeezed

lemon juice

1 cup

sugar,

divided 1

cup whole

milk

2 cups heavy cream

1 teaspoon pure vanilla extract

In a small bowl, combine the strawberries with the lemon juice and 1/3 cup of the sugar; stir gently and allow to the strawberries to macerate in the juices for 2 hours.

In a medium bowl, use a hand mixer or a whisk to combine the milk

and granulated sugar until the sugar is dissolved, about 1 - 2 minutes on low speed. Stir in the heavy cream plus any accumulated juices from the strawberries and vanilla. Turn the machine ON, pour mixture into freezer bowl through ingredient spout and let mix until thickened, about 50 - 60 minutes. Add the sliced strawberries during the last 5 minutes of freezing.

Note: this ice cream will have a "natural" appearance of very pale pink; if a deeper pink is desired, sparingly add drops of red food coloring until desired color is achieved.

Nutritional analysis per serving:

Calories 222 (61% from fat) . carbo. 20g . pro 2g . fat 15g . sat. fat 10g . chol.57mg . sod.26mg

FRESH LEMON SORBET

Makes ten 1/2-cup

servings. 2 cups

sugar

2 cups water

1 cup freshly squeezed lemon juice

1 tablespoon finely chopped lemon zest *

Combine the sugar and water in a medium saucepan and bring to a boil over medium-high heat. Reduce heat to low and simmer without stirring until the sugar dissolves, about 3 - 5 minutes. Cool completely.

This is called a simple syrup, and may be made ahead in larger quantities to have on hand for making fresh lemon sorbet. Keep refrigerated until ready to use.

When cool, add the lemon juice and zest; stir to combine. Turn the

machine ON, pour the lemon mixture into freezer bowl through ingredient spout and mix until thickened, about 50

• 60 minutes.

When zesting a lemon or lime use a vegetable peeler to remove the colored part of the

citrus rind. Nutritional analysis per serving:

Calories 204 (0% from fat) . carbo. 52g . pro .19g

fat 0g . sat. fat 0g . chol. 0mg . sod. 2mg

VARIATION:

Fresh Pink Grapefruit Sorbet: Substitute 1-1/2 cups freshly squeezed pink grapefruit juice for the lemon juice, and 1 tablespoon finely chopped grapefruit zest for the lemon zest. Add 1/4 cup Orgeat Syrup to the mixture (Orgeat Syrup is used for cocktails such as a MaiTai or Scorpion and can be found with the drink mixers in most grocery stores).

CHOCOLATE FROZEN YOGURT

Makes ten 1/2-cup

servings. 1 cup

whole milk

180g or 6 ounces bittersweet or semisweet chocolate,

chopped 2 cups low-fat vanilla yogurt

1/4 cup sugar

Combine the milk and chocolate in a blender or food processor fitted with the metal blade and process until well blended and smooth, 20 - 30 seconds. Add the yogurt and sugar; process until smooth, about 15 seconds. Turn the machine ON, pour mixture into freezer bowl through ingredient spout and let mix until thickened, about 50 - 60 minutes.

Nutritional analysis per serving:

Calories 222 (31% from fat) . carbo. 36g . pro 3g

. fat 8g . sat. fat .64g . chol. 4mg . sod. 46mg

WARRANTY

The warranty period for our products is 2 years, unless otherwise stated, starting from the date of initial purchase or the date of delivery.

If you have any problems or questions, you can easily access our help pages, troubleshooting tips, FAQ, and user manuals on our service site: https://sav.hkoenig.com.

By typing the reference name of your device in the search bar, you can access all available online support, designed to best meet your needs.

If you still cannot find an answer to your question or problem, then click on "Did the answer solve your problem?" This will direct you to the Customer Support Request Form, which you can fill out to validate your request and get help.

WARRANTY CONDITIONS

The warranty covers all failures occurring under normal use, in accordance with the usage and specifications in the user's manual.

This warranty does not apply to packaging or transportation problems during shipment of the product by the owner. It also does not include normal wear and tear of the product, nor maintenance or replacement of consumable parts.

EXCLUSION OF WARRANTY

• Accessories and wearing parts (^*)
• Normal maintenance of the device.
• All breakdowns resulting from improper use (shocks, failure to comply with power supply recommendations, poor conditions of use, etc.), insufficient maintenance or misuse of the device, as well as the use of unsuitable accessories.
• Damage of external origin: fire, water damage, electrical surge, etc.
• Any equipment that has been disassembled, even partially, by persons other than those authorized to do so (notably the user).
• The products whose serial number would be missing, deteriorated or illegible that would not allow its identification.
• The products subjected to leasing, demonstration, or exhibition.

(*) Some parts of your device, called wear parts or consumables, deteriorate with time and frequency of use of your device. This wear and tear are normal but can be accentuated by poor conditions of use or maintenance of your device. These parts are therefore not covered by the warranty.

The accessories supplied with the device are also excluded from the warranty. They cannot be exchanged or refunded. However, some accessories can be purchased directly through our website: https://sav.hkoenig.com/.

ENVIRONMENT

CAUTION:

Do not dispose of this product as it has with other household products. There is a separation of this waste product into communities, you will need to inform your local authorities about the places where you can return this product. In fact, electrical and electronic products contain hazardous substances that have harmful effects on the environment or human health and should be recycled. The symbol here indicates that electrical and electronic equipment should be chosen carefully, a wheeled waste container is marked with a cross.

Adeva SAS / H.Koenig Europe - 8 rue Marc Seguin, 77290 Mitry-Mory, France

www.hkoenig.com - https://en.hkoenig.com - Tél: [phone]
