Product Type	LCD Monitor
Brand	DGM
Model	L1935W
Screen Size	19 inches (19.0")
Display Technology	TFT Active Matrix LCD
Max Resolution	1440 x 900 (WXGA)
Brightness	300 cd/m² (typical)
Contrast Ratio	500:1 (typical)
Response Time	8 ms (Tr+Tf)
Viewing Angle	H:150°, V:130°
Display Colors	16.2 million (True Color)
Pixel Pitch	0.285 mm (H) x 0.285 mm (V)
Connectivity	VGA (D-sub 15-pin), DVI-D (optional), stereo audio input
Power Supply	100-240 VAC, 50/60 Hz built-in
Power Consumption	Active <48 W, Standby <3 W
Dimensions (W x H x D)	440 x 370 x 160 mm
Net Weight	4.2 kg
Tilt	-5° to +20°
Features	Energy Saver, Plug & Play, Auto Adjust, Multilingual OSD
Security	Kensington Lock, grounding
Certifications	UL/CUL, CE, FCC, ENERGY STAR, NUTEK
Maintenance	Clean with soft dry cloth, avoid chemicals
Operating Conditions	Temperature 5°C-40°C, humidity 20%-80% RH

Frequently Asked Questions - L1935W DGM

What to do if the screen stays black but the indicator light is on?

Check that the signal cable is properly connected between the computer and the monitor. If the indicator is orange, the monitor is in power saving mode. Move the mouse or press a key. If the indicator is green but no image, perform an auto-adjustment by pressing the Auto button.

How to clean the monitor screen?

Turn off and unplug the monitor. Use a soft dry cloth slightly dampened with pure water or a glass cleaner without ammonia or alcohol. Never spray liquid directly on the screen. For the housing, use a slightly damp soft cloth.

The message 'Out of Range' is displayed, what to do?

This means the resolution or refresh rate exceeds the monitor's capabilities. Set your computer's resolution to 1440x900 at 60 Hz or a supported resolution. Consult the list of display modes in the manual.

How to activate the economy mode?

Press the Turbo button (▲) to switch between Image, Text, and Economy modes. Economy mode reduces backlight brightness to save energy and reduce eye strain.

My monitor does not detect the DVI signal, why?

Make sure your DVI cable is properly connected and the source is sending a signal. Use the OSD menu to select the Digital (DVI) input. If the problem persists, check that your graphics card supports the resolution and that the driver is up to date.

Can I use a VGA to DVI adapter?

Yes, but ensure the adapter is compatible. The monitor accepts analog signals via VGA and digital signals via DVI. Note that image quality may vary.

How to reset to factory settings?

Access the OSD menu by pressing the Menu button, navigate to the Reset option, and confirm. This will restore default settings.

Are there built-in speakers?

This model does not have built-in speakers. However, a stereo audio input is present. You can connect external speakers via the jack.

Is the monitor compatible with my Mac computer?

Yes, the monitor is PC and Mac compatible. Connect it via VGA or DVI (depending on available ports on your Mac) and set the appropriate resolution in System Preferences.

What to do if the image is blurry or distorted?

Perform an auto-adjustment by pressing the Auto button. If that does not resolve, manually adjust the Clock and Phase in the OSD menu under Image. Also check that the resolution is correct.

USER MANUAL L1935W DGM

19" Wide Screen LCD Monitor

Contents

PRODUCT 2

Features 2

Power saver 2

Plug & play 2

SAFETY 3

Electrical. 3

Common 4

SET UP YOUR LCD MONITOR 5

Installation 5

Screen Adjustments 5

OSD Control 6

Description 8

TROUBLE SHOOTING 9

MAINTENANCE 10

DISPLAY MODE 11

SPECIFICATION 12

PRODUCT

Note: Save the original box and packing material for future shipping needs.

Features

Bright image
Lightweight
Fast response time
Stereo speakers (If there is no speaker installed, please skip this item.)
Power saving features
Low electromagnetic radiation output
Kensington security lock
Safety certifications

Power saver

Power control system, also called (Power Saver), is installed inside the LCD monitor.
If the monitor has not been used for a certain period of time, the system will turn the monitor to low voltage mode to save power. Slight movement of the mouse or any pressing key on the keyboard will return the original image.
The VGA card inside the computer configures Power Saver. You can use your PC to set the function.
The LCD monitor is compatible with EPA ENERGY STAR and NUTEK if used with a VESA DPMS computer.
To save power, turn off the LCD monitor power when not in use.

Plug & play

The new VESA Plug and Play function is used, eliminating the complicated and time-consuming installation process.
Use the Plug and Play system without encountering the usual installation problems. Your computer system can easily identify and automatically adjust the monitor.
The LCD monitor uses Display Data Channel (DDC) to send Extended Display Identification Data (EDID) to the computer system, so the computer system can auto adjust your monitor.

SAFETY

Note: Note the following safety precautions before using this monitor.

Electrical

Check the Voltage

Electrical Shock

This product should be operated from the type of power indicated on the marking label. If you are not sure of the type of power available, consult your dealer or local power company.
This product is equipped with a 3-wire grounding-type plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the purpose of the grounding-type plug.
To prevent electrical shock, do not insert any metal object into any opening in the LCD monitor casing.
Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel.
If the power cord is damaged, do not use the LCD monitor. Do not place any object on the power cord, and place the power cord away from crowded areas.
While pulling the LCD monitor plug away from the socket on the wall, hold the plug not the power cord.
Do not expose the LCD monitor to rain and do not use in environments near water (such as in the kitchen, or near a swimming pool).
If the LCD monitor becomes wet, unplug the power cord immediately and contact a Service Center.
If the LCD monitor begins to perform abnormally, makes a noise, or emits smoke or odors, unplug it immediately and contact a service center.

Unusual conditions

Common

Monitor and Screen Care

Avoid touching the screen with your fingers or any hard objects. Oil from the skin is difficult to remove, and touching the screen with anything may damage the panel. Clean the monitor using a soft, dry cloth after first turning it off.
The LCD monitor should not be used in dusty or humid environments.
The LCD monitor should be kept away from heat sources and radiation. Such as: stoves, ovens, or direct sunlight.
To reduce glare, avoid placing the monitor in a place that receives direct sunlight.
Avoid letting small children play with monitor. Frequent touching of the panel will leave marks on the screen and lower the image quality.
Handle with care when unplugging and moving the monitor.
Do not place items on top of the LCD monitor.
If the LCD monitor is not in use for a long time, unplug it and store it in the proper package. The original carton and packaging should be used if possible.
The openings in the LCD monitor casing are for ventilation. To prevent overheating, the openings should not be blocked or covered. Do not place the LCD monitor on a bed, sofa, blanket or other soft surfaces; as soft objects may block the vents in the LCD monitor.
If you place the LCD monitor on a bookshelf or other enclosed space, it is essential to leave an air-space of 4-inches (10cm) between the monitor and the enclosure.
Ensure that the area around the LCD monitor is clean and free of moisture. Please refer to "Maintenance" for normal maintenance information.

Cleaning the screen

SET UP YOUR LCD MONITOR

Installation	Note: Read the last section "Safety" before you install the LCD monitor.
Notes	Note the instructions below prior to installing your LCD monitor.
Installation Position	For the best image quality, choose a position away from any windows to minimize reflection of light on the panel.
Workstation Height	It is important to view the LCD monitor from at least 30 cm to minimize eyestrain.
Angle of Vision	Position the LCD monitor slightly above your horizontal vision.
Quick Installation	Tilt the LCD monitor either forward or backward for the most comfortable viewing angle.
Screen Adjustments	This LCD monitor supports connection to a personal computer or workstation. The steps are described as Quick Setup.
	After installation, refer to "Auto Adjust" for automatic adjustment procedures.
Auto Adjust	Though your computer system can automatically identify the new LCD monitor system, the Auto Adjust function can enhance the display. To enter adjust mode, refer to "OSD Control".
	Turn the computer and LCD monitor on.
	Press the 'Auto' button to start Auto Adjust.
	The LCD monitor starts the Auto Adjust process. The process will continue for 10 seconds. You will notice the image change as the Auto Adjust is working.
Self Test Function Check (STFC):	Your LCD monitor provides a STFC function, through which you can check whether the LCD monitor is working properly.
	If your LCD monitor is properly connected, but there is no image showing and the indicator light remains orange, follow these steps to start STFC.
	Shutdown computer and LCD monitor.
	Unplug the signal connector from the back of computer.
	Turn the LCD monitor on.
	If the image connector is disconnected or damaged, the following message will appear during normal operation.
	No Signal Input
	Turn off the LCD monitor and reconnect the signal cable. Turn the computer and LCD monitor on.
	If the LED on the LCD monitor remains orange after completing the steps above, check your VGA card, cable, and computer system. Your monitor should be operating properly.

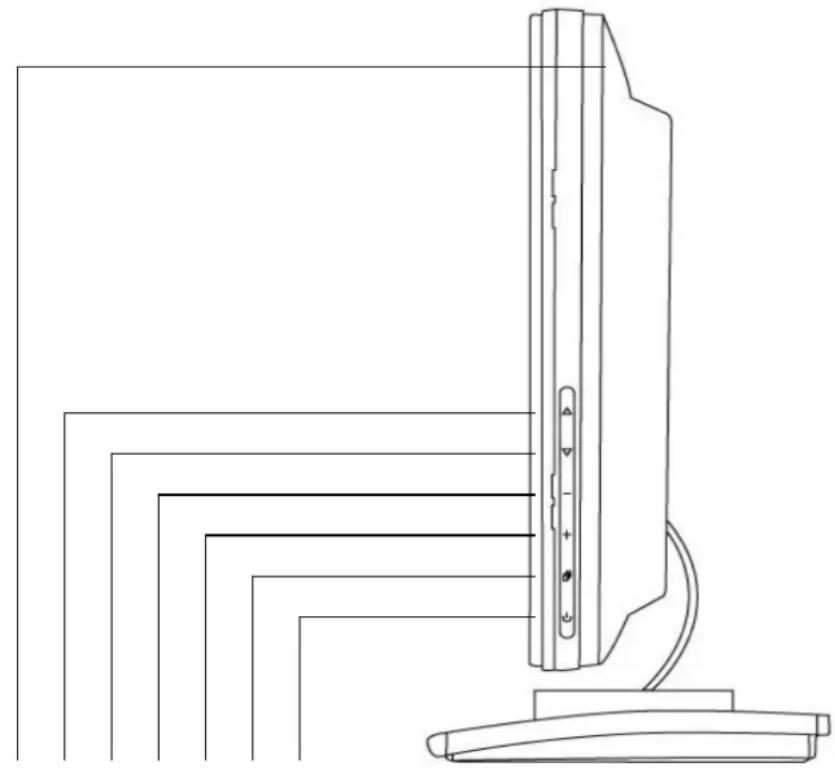

Keypad Button Definition

1 2 3 4 5 6 7

1	Speakers	Audio output. (If there is no speaker installed, please skip this item.)
2	▲ /Turbo	• Switch between picture, text and economy modes. • Move selection up when OSD is displayed.
3	▼ /Auto	• Automatically optimize positions, phase, and clock when OSD is not displayed. • Move selection down when OSD is displayed.
4	-	• Quick contrast adjustment and decrease contrast/brightness. • Move selection left when OSD is displayed.
5	+	• Quick brightness adjustment and increase contrast/brightness. • Move selection right when OSD is displayed.
6	#	Enter and exit the OSD menu.
7	Power On/Off button and indicator LED. Green: Normal. Orange: Power Saving. Off: Power Off.

Operation

Your LCD monitor has been adjusted to its optimal settings before shipment. You can also adjust the image using the following illustrations and steps.

Press the "Menu" button to display the OSD.
Press the or button to select the function to be adjusted.
Press the +button to access the function to be adjusted.
Press the -or + buttons to change the current setting of the function.
To go back to the previous menu, press the button. Changes are saved automatically.
To exit the OSD menu press "Menu" again.

Notes

The OSD turns off several seconds after you stop pressing the buttons while performing an adjustment.
Any changes are automatically saved in memory when the OSD turns off. Turning off the power should be avoided while using the menu.
Adjustments for clock, phase and positions are saved for each individual signal timing. Except for these adjustments, all other adjustments have only one setting, which applies to all signal timings.
To select function, click the blue cursor on the desired option.

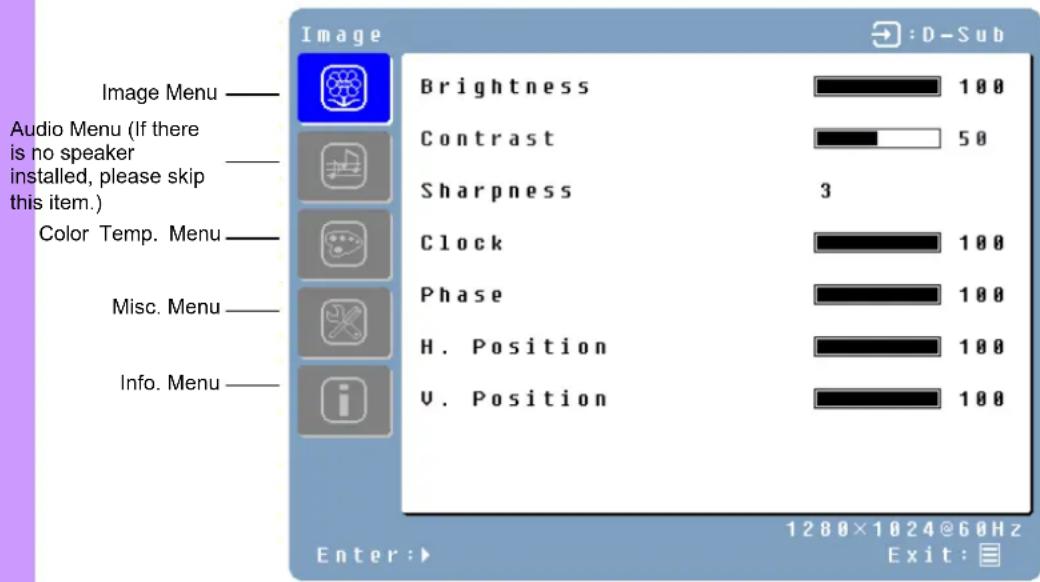

Function Definition

Primary Menu	Secondary Menu	Description
Image	Brightness	Adjust the brightness of the screen.
	Contrast	Adjust the contrast of the image.
	Sharpness	Adjust the picture sharpness of low resolution pictures.
	Clock	Adjust the monitor clock. (Optional)
	Phase	Adjust the monitor phase. (Optional)
	H.	MPositherimage left or right on the screen. (Optional)
	V.	MPositherimage up or down on the screen. (Optional)
Audio (If there is no speaker installed, please skip this item.)	Volume	Adjust the volume of the audio.
	Mute	Disable the audio.
Color	Color	oko/9300K/7500K/6500K/sRGB
	Red	Adjust red color.
	Green	Adjust green color.
	Blue	Adjust blue color.
Misc	Language	English, Français, Deutsch, Espanol, Italiano, [ˈbʌərərərərərərərərərərərərərərərərərərərərərərərərərərərərərərərərərərərərərərərərərərərərərərərərərərə r
	OSD time-out	Adjust OSD display time setting.
	OSD position	Move OSD display position to any one of the following 5 positions within the overall screen. 1 2 3 4 5
	Reset	Restore LCD monitor to factory settings.
	Input Select	Analog / Digital
	Auto setting	Adjust clock, phase and positions automatically. (Optional)
	CM Engine	Color Management Engine. (Optional)
Info	Resolution	Displays resolution.
	Horizontal frequency	Displays horizontal frequency.
	Vertical frequency	Displays vertical frequency.
	Version	Displays firmware version.

Quick Adjustment

You can skip the Menu pages and display an adjustment scale directly by using the following button operations:

Brightness: Press the + Brightness button when the Menu is not displayed.
Contrast: Press the - Contrast button when the Menu is not displayed.
Auto Setting: Press the Auto button when the Menu is not displayed.
Turbo: Press the Turbo button when the Menu is not displayed to switch between picture modes.

Picture Mode-High brightness
Text Mode - Normal
Economy Mode - Brightness of back-light is reduced
Changing to a lower brightness mode can lessen eye fatigue.
Change from Picture Mode to Text Mode when working with text.
Change from Text Mode to Economy Modes when viewing the screen for long periods.

TROUBLE SHOOTING

	Check the information in this section to see if problems can be solved before requesting repair. Note: Users should only attempt to solve the problems described below. Any unauthorized product modification, or failure to follow instructions supplied with the product, will void the warranty immediately.
No image	◆ Make sure power is ON. ◆ Check whether the LCD monitor and computer power cords are plugged in and whether there is power.
No Signal Input	◆ Check the signal connection between the computer and LCD monitor.
“Out Of Range”	◆ Check the computer image output resolution and frequency and compare the value with the preset values.
Fuzzy image	◆ Perform Auto Adjust, or adjust clock and phase.
Image too bright	◆ Adjust brightness and contrast using OSD.
Image too dark	◆ Check the signal connection between the computer and LCD monitor.
Irregular image	◆ Perform Auto Adjust.
Distorted image	◆ Reset the LCD monitor. (perform the “Reset” function using OSD) ◆ Remove extra accessories (such as signal extension cord).
Image is not centered	◆ Use OSD Image Menu to adjust H. Position and V. Position.
Size is not appropriate	◆ Check image size setting.
Uneven color	◆ Perform Auto Adjust.
Color too dark	◆ Use OSD Color Menu to adjust color setting.
Dark area distorted	◆ Contact the store where you purchased the unit or service center listed on your warranty card.
White color is not white	◆ Please download the video card driver from websites below: Nvidia : http://www.nvidia.com/content/drivers/drivers.asp Intel : http://downloadfinder.intel.com/scripts-df/support_intel.asp ATI : https://support.ati.com/ics/support/default.asp
Can’t adjust the LCD monitor with the buttons on the front panel.	◆ Video chips below support the resolution 1440x900: Geforce4 Ti4200 , Geforce FX5200 , Geforce PCX6200, G5 Geforce FX5200 , ATI Radeon 9600 , ATI RadeonRX300 Matrox P750 , Nvidia Geforce2 , I865G , I915G
Can’t display the LCD monitor with resolution 1440x900	◆

MAINTENANCE

	This product has undergone strict quality control during the production process. For maintenance of the LCD monitor, refer to the information below. Maintenance is important for maximizing the display performance and product life. Warning: To prevent electrical shock, do not open the LCD monitor casing. Users should not attempt to repair the LCD monitor on their own. User maintenance is limited to the procedures listed below.
Unplug the power	◆ Unplug the LCD monitor from the AC socket before conducting maintenance.
Check the cover	◆ Check to see if the LCD monitor and accessories are damaged or broken..
Clean	◆ Never spray or pour any liquid directly onto the screen or case.
Cleaner	◆ Do not allow water or liquid to enter the LCD monitor or accessories. □ Use pure water or non-ammonia, non-alcohol based glass cleaner. □ Do not use ketene (such as acetone), ethanol, toluene, acetic acid, methane, chloride, or abrasive detergent to clean the monitor because these chemicals can damage the LCD monitor.
Screen	□ To clean your LCD monitor screen, use water or mild cleaner, as above, to gently moisten a soft, clean cloth. □ If possible, use a special screen cleaner sheet or a solution suitable for static electricity application.
Case	□ To clean your LCD monitor case, use water or mild cleaner, as above, to gently moisten a soft, clean cloth.
Accessory	□ To clean your accessories, use water or mild cleaner, as above, to gently moisten a soft, clean cloth.
Conserve	◆ If the LCD monitor is not in use for a long time, please unplug and store in the original box in order to avoid any unexpected damage.
Disclaimer	◆ Any damage resulting from use of any cleaner that is not mentioned above is not covered under this warranty term.

DISPLAY MODE

Incoming Display Mode

Resolution	Horizontal Frequency (KHz)	Vertical Frequency (Hz)
640X480	31.47	59.94
640X480	37.86	72.81
640X480	37.50	75.00
800X600	35.16	56.25
800X600	37.88	60.32
800X600	48.08	72.19
800X600	46.88	75.00
720X400	31.47	70.09
1024X768	48.36	60.00
1024X768	56.48	70.07
1024X768	60.02	75.03
1280X800	49.68	60.00
1280X800	62.62	75.00
1440X900	55.92	60.00

1. We offer you 14 available modes compatible with Windows.
2. If any interference occurs on your screen while you modulating your PC or OSD. It is normal.
3. To have Best quality present on the PC, remember to upgrade your video card Driver. We strongly recommend you to choose a Model listed in the table.
4. The other Modes may not be supported that are not list on the table above.
5. You may use the power management on your computer. It's good for last service life of the product.

Specification

LCD Panel Type	Viewing Angle Contrast Ratio Brightness Response Time(Tr+Tf) Display Colors Max Resolution Pixel Pitch	19.0° TFT Active Matrix LCD Display H: 150°, V:130° 500:1 (Typical) 300 cd/m² (Typical) 8 ms 16.2M colors 1440 x 900(WXGA) 0.285mm(H) x 0.285mm(V)
Input Signals	VGA DVI*	VGA compatible analog RGB Composite sync supported DDWG compliant Single Link TMDS Digital Visual Interface (DVI)
Compatibility	PC	Up to 1440 x 900@60Hz(Non-interlaced)
Connector	VGA DVI* Audio Power USB Hub*	D-sub 15-pins DVI-D* Stereo Phone Jack A/C Input B type USB port +A type 2 port Hi-Speed USB 2.0 (Windows ME, 2000, XP)
Power	Voltage Consumption Power saving mode	Built-in universal power supply: 100-240 VAC, 50/60 Hz Active < 48 Watt Max. Standby < 3 Watt
Internal Speaker		2Wx2(Stereo)
User Interface LED Indicator		Active - Green Standby - Orange
Operating Condition	Temperature Air Humidity	5°C~40°C 20% ~ 80% R.H.
Dimensions (W x H x D)	Physical	440.0mm(W) x 370.0mm(H) x160.0mm (D)
Net Weight	4.17Kg
DDC		DDC2B
Power Management	VESA DPMS
Tilt Angle	-5	° dip and 20° elevation
Regulation (Certifications)		UL/CUL、CE、FCC

Notice: * DVI is optional.

Table des matieres

PRODUIT 2

Table des matieres 2

Charactéristiques 2

Voupeovzignorerlespagesdemenuetafficheruneechelled'ajustementdirectementenutilisant les fonctionsdeboutonsuivantes：
Luminosite: Appuyez sur le bouton Luminosite + lorsque le Menu n'est pas affché.
Contraste: Appuyez sur le bouton Contraste --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- —---
Réglage auto: Appuyez sur le bouton Auto lorsque le Menu n'est pas affchéé.
Turbo: Appuyez sur le bouton Turbo lorsque le Menu n'est pas affiché pour basculer entre les modes image.

1. We offer you 14 available modes compatible with Windows.
2. If any interference occurs on your screen while you modulating your PC or OSD. It is normal.
3. To have Best quality present on the PC, remember to upgrade your video card Driver. We strongly recommend you to choose a Mode listed in the table.
4. The other Modes may not be supported that are not list on the table above
5. You may use the power management on your computer. It's good for last service life of the product.

Technische Angaben

RISOLUZ IONE DEI PROBLEMI 9

MANUTENZ IONE 10

MODALITAVIDEO 11

SPECIFICHE TECNICHE 12

PRODOTTO
