USER MANUAL DVP940 LENCO

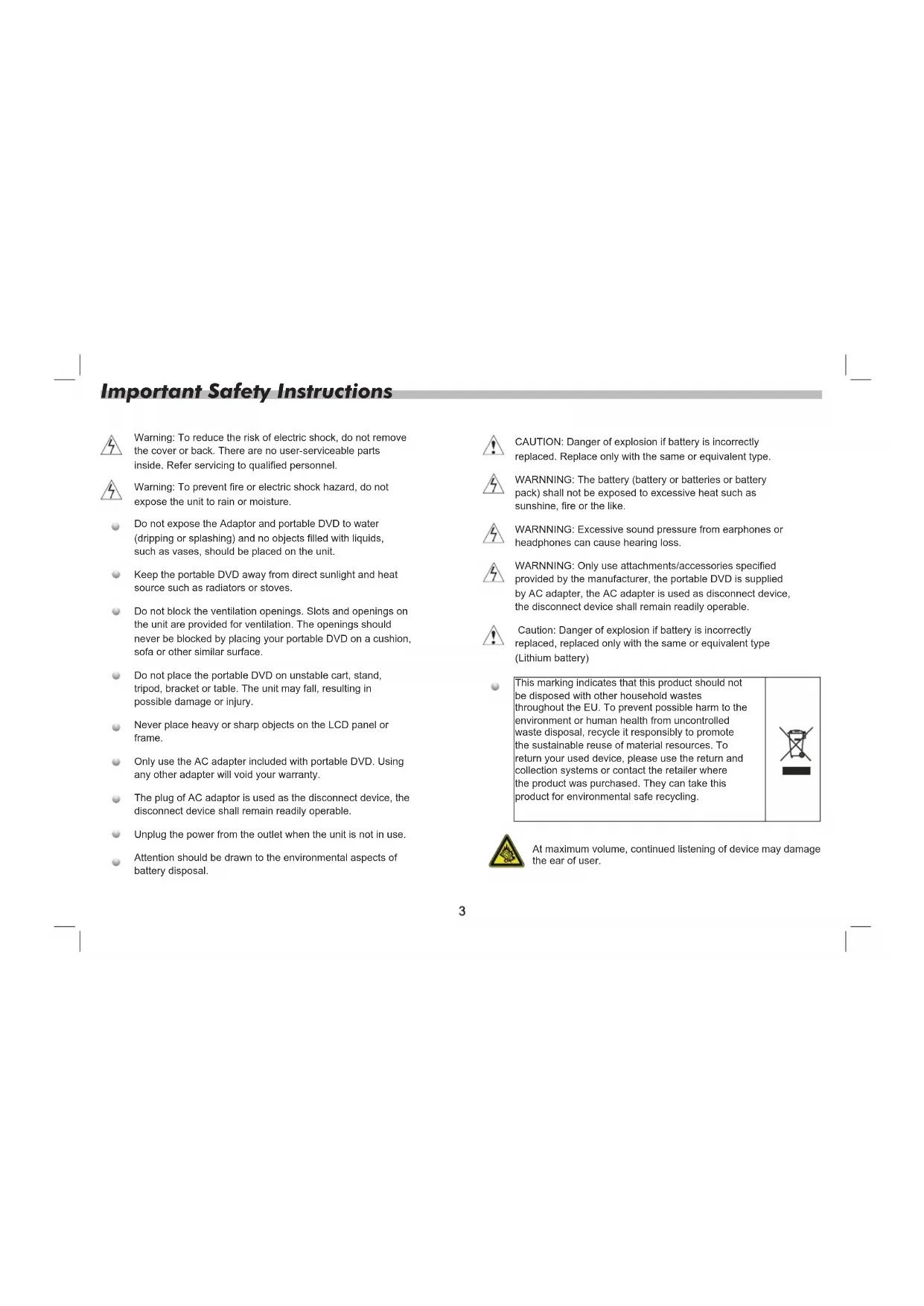

Important Safety Instructions

Warning: To reduce the risk of electric shock, do not remove the cover or back. There are no user-serviceable parts inside. Refer servicing to qualified personnel.

Warning: To prevent fire or electric shock hazard, do not expose the unit to rain or moisture.

Do not expose the Adaptor and portable DVD to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the unit.
- Keep the portable DVD away from direct sunlight and heat source such as radiators or stoves.
Do not block the ventilation openings. Slots and openings on the unit are provided for ventilation. The openings should never be blocked by placing your portable DVD on a cushion, sofa or other similar surface.
Do not place the portable DVD on unstable cart, stand, tripod, bracket or table. The unit may fall, resulting in possible damage or injury.
Never place heavy or sharp objects on the LCD panel or frame.
Only use the AC adapter included with portable DVD. Using any other adapter will void your warranty.
The plug of AC adaptor is used as the disconnect device, the disconnect device shall remain readily operable.
Unplug the power from the outlet when the unit is not in use.
Attention should be drawn to the environmental aspects of battery disposal.

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

WARNING: The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like.

WARNING: Excessive sound pressure from earphones or headphones can cause hearing loss.

WARNING: Only use attachments/accessories specified provided by the manufacturer, the portable DVD is supplied by AC adapter, the AC adapter is used as disconnect device, the disconnect device shall remain readily operable.

Caution: Danger of explosion if battery is incorrectly replaced, replaced only with the same or equivalent type (Lithium battery)

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

At maximum volume, continued listening of device may damage the ear of user.

Safety Precautions

WARNING

RISK OF ELECTRIC SHOCK DO NOT OPEN

Warning: This digital video disc player employs a laser system. Use of controls, adjustments, or the performance of procedures other than those specified herein may result in hazardous radiation Exposure.

Warning: To prevent direct exposure to laser beam,do not open the enclosure.Visible laser radiation when open.

Warning: Never stare directly into the laser beam.

Caution: Do not install this product in a confined space such as a book case or similar unit.

Warning: when the unit using by child, parents must make sure to let the child understand all contents in Instruction book how battery using to guarantee using battery correctly all the time.

Warning: when find battery overheat, swell or dour, please stop using battery and contact service centre for getting replacement.

Warning: do not charging battery on the place of insufficient ventilation such as: mattress, sofa, cushion, soft mat....

Warning: we will not take any responsibility if user incorrectly use battery, not following our warning instruction label on the battery case.

warning: The USB memory stick should be plugged in the unit directly. USB extension cable should not be used to avoid failing of data transferring and interference caused.

WARNING: When using the headphone: Prolonged exposure to loud sounds may lead to temporary or permanent hearing loss. When participating in the traffic listening to a personal player can make the listener less aware of potential dangers such as approaching cars.

Power supply adaptor(For EU only)
Manufacturer: Shenzhen Mass Power Electronics Limited
Model number: SEF0900100E1BA
Use only the power supply listed in the user instructions

Notes on Copyrights:

It is forbidden by law to copy, broadcast, show,broadcast via cable, play in public, or rent copyrighted material without permission.
This product features the copy protection function developed by Macrovision. Copy protection signals are recorded on some discs. When recording and playing the pictures of these discs picture noise will appear. This product incorporates copyright protection technology that is protected by method claims of certain U.S. Patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by macrovision Corporation. Reverse engineering or disassembly is prohibited.

Mounting

a€ a ni DVD eht

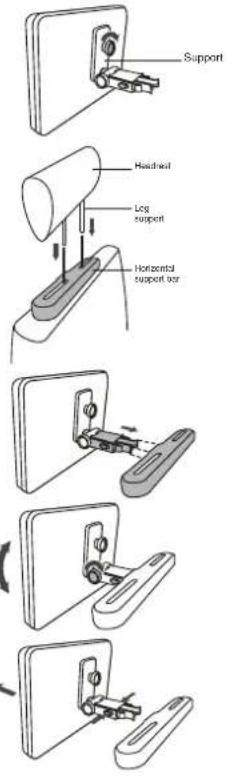

Use the supplied mounting kit to install the DVD players on the back of the vehicle's headrests.

1. Align the angled support's bolt to the screw hole on the back of the DVD unit. Turn the bolt clockwise and secure the support.
2. Lift the headrest off its leg supports. Align the horizontal support with the headrest leg slots and ensure the horizontal support rests securely on the top of the car seat. Reattach the headrest.
3. Grip the DVD firmly with both hands and slot the angled support firmly into the support bar. It will click. Ensure the entire unit is secure.
4. Adjust the angle of the DVD unit, then secure by tightening the bolt on the right.
5. To remove the DVD from the horizontal support bar, support the DVD unit with one hand. With the other hand, firmly squeeze the release buttons either side of the angled support and pull.

This unit should never be used by the vehicle's driver or left unsecured in the vehicle while driving.
If this unit is being used in your vehicle, be sure that it is secured or held safely, and does not obstruct any safety device, including air bags or seat belts.
All passengers should wear seat belts when using this unit in a moving vehicle.
If in doubt, please contact your vehicle manufacturer for further advice.

Identification of Controls

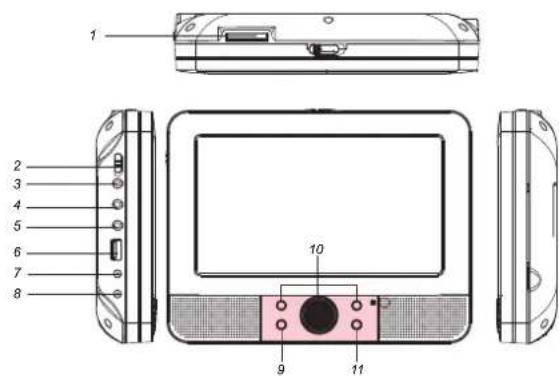

Main Unit

1.SD/MS/MMC
2. POWER ON/OFF
3. HEADPHONE OUT JACKS
4.VIDEO/AUDIO OUT
5.VIDEO/AUDIO IN
6.USB
7.DC OUT
8.DC IN 9-12V
9. ENTER
10. UP/DOWN/LEFT/RIGHT
11. SOURCE

Insert the battery

1. Open the battery door.

2.Insert battery.

When using the remote control for the first time do not forget to remove the plastic card.

NOTES:

Remove battery during storage or when you are not using the DVD player for a long time.

WARNING

Do not ingest the battery. Chemical Burn Hazard

(The remote control supplied with) This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children.

If the battery compartment does not close securely, stop using the product and keep it away from children.

If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

To prevent possible hearing damage, do not listen at high volume levels for long periods.

Identification of Controls

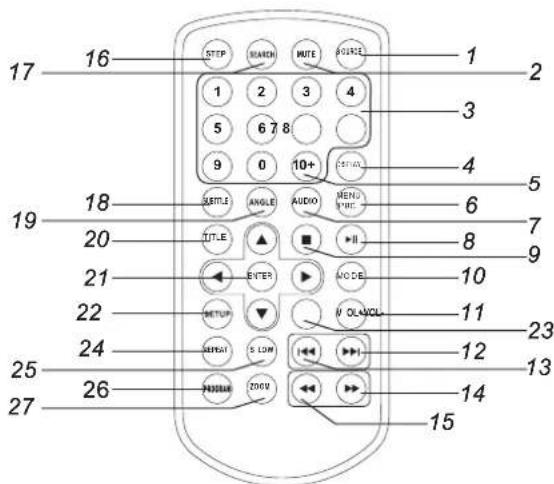

Remote control unit

1. SOURCE

DVD/ CARD/USB.

1. MUTE

Disable Audio output.

3.0-9 NUMBER BUTTON

Selects numbered items in a menu.

4.DISPLAY

To display the playtime and status information.

5.10+ BUTTON

In order to select a track 10 or greater, first press 10+ . For example; select track 12, first press 10+ , and then press number 2 button.

1. MENU/PBC

Return to DVD root menu(DVD).

PBC on/off switch (VCD).

7.AUDIO

DVD Press AUDIO repeatedly during playback to hear a different audio language or audio track, if available.

MP3 CD VCD Press AUDIO repeatedly during playback to hear a different audio channel (Left,Right,Mix,Stereo).

1. PLAY/PAUSE

Press PLAY/PAUSE once to pause playback, pressing PLAY/

PAUSE second time will resume the playback.

9.STOP

When this buttom is pressed once, the unit records the stopped point.from where playback will resume if PLAY( )pressed after wards. But if STOP button is pressed again instead of PLAY( ) button, there will be no resume function.

10.MODE

Set LCD parameter(adjust brightness, contrast, and saturation).

11.VOL+

23.VOL-

Adjust volume

12.Forward Skip

Go to next chapter/ track.

13.Reverse Skip

Go to previous chapter/ track to the beginning.

1. BUTTON

Press BUTTON allow skipping ahead at 5-level speed(X2->X4->

X8->X16->X32->PLAY), press PLAY button return to normal playback.

Identification of Controls

Remote control unit

15. BUTTON

Press BUTTON allow skipping back at 5-level speed(X2->X4-> X8->X16->X32 PLAY), press PLAY button return to normal playback.

16.STEP

Step the motion in DVD mode.

17.SEARCH

Goto time point, title or chapter you want in DVD Mode.

18.SUBTITLE

Press SUBTITLE repeatedly during playback to hear a different subtitle languages.

19.ANGLE

DVD:Press ANGLE will change the view angle, on DVDs that support this feature.

20. TITLE

Return to DVD title menu

21.ENTER

Confirms menu selection..

22 SETUP

Accesses or removes setup menu.

24.REPEAT

Press REPEAT during playback to select a desired repeat mode.
DVD : you can play select repeat chapter/title/off.

VCD : you can select repeat single/all/off.

:you can select repeat single/folder/off.

25.SLOW

Press Slow button repeatedly to enter slow playback, and cycle between different speeds. The speeds are 1/2, 1/4, 1/8, 1/16, and normal.

26.PROGRAM

DVD VCD :The program function enables you to store your favourite tracks from the disc. Press PROGRAM button ,then PROGRAM MENU will appear on screen, now you can use the number key to direct input the titles, chapters or tracks number and select PLAY option. TO resume normal playback, press PROGRAM and select clear program option on the program menu,press PROGRAM again to exit program menu.

27.ZOOM

DVD VCD: Use ZOOM to enlarge or shrink the video image.
1. Press ZOOM during playback or still playback to activate the Zoom function. The square frame appears briefly in the right bottom of the picture.
2. Each press of the ZOOM button changes the TV screen in the following sequence:
[ 2X \text{ size} \rightarrow 3X \text{ size} \rightarrow 4X \text{ size} \rightarrow 1/2 \text{ size} \rightarrow 1/3 \text{ size} \rightarrow 1/4 \text{ size} \rightarrow \text{normal size} ]
JPEG: Use ZOOM to enlarge or shrink the picture.
1. Press 'ZOOM'.
2. Used "▶" to enlarge,or "▶" to shorten the picture.
Use the button to move through the zoomed picture.

SETUP Menu Setting

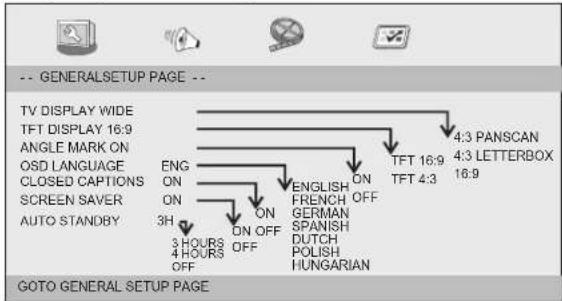

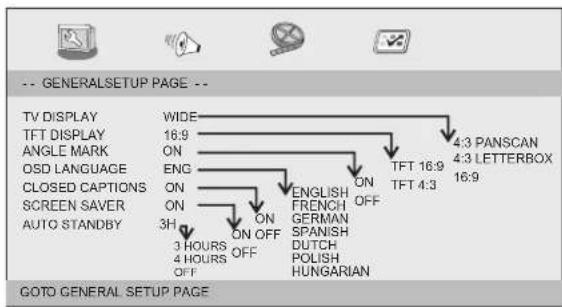

General Setup Page

Press SETUP button to get the setup menu. Use direction buttons

to select the preferred item. After finishing settings, press

SETUP again to normal display.

The following menu items can be changed:

General Setup Page

TV DISPLAY: selects the aspect ratio of the playback picture.

4:3 PANSCAN: if you have a normal TV and want both sides of the picture to be trimmed or formatted to fit your TV screen.

4:3 LETTERBOX: if you have a normal TV. In this case, a wide picture with black bands on the upper and lower portions of the TV screen will be displayed.

16:9:wide screen display.

TFT DISPLAY: Selects the TFT display to 16:9 or 4:3.

Angle Mark

Displays current angle setting information on the right hand corner of the TFT screen if available on the disc.

OSD Language

You can select your own preferred language settings.

Closed Captions

Closed captions are data that are hidden in the video signal of some discs.Before you select this function,please ensure that the disc contains closed captions information and your TV set also has this function.

Screen Saver

This function is used to turn the screen saver On or Off.

Auto Standby

This function is used to select auto standby settings after 3 or 4 hours. 3 HOURS: the unit will turn to standby mode after 3 hours if there is a need for a new configuration of the system.

no interaction from user within this period of time.

4 HOURS: the unit will turn to standby mode after 4 hours if there is no interaction from user within this period of time.

OFF: the auto standby function is disabled, and unit will stay in "on" mode even if no interaction from user.

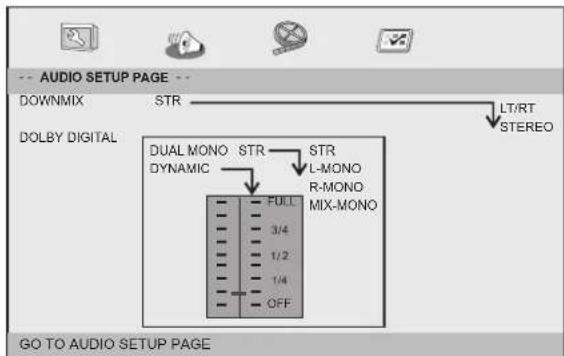

Audio Setup Page

Audio Setup Page

SETUP Menu Setting

Audio Setup Page

Downmix

This options allows you to set the stereo analog output of your DVD Player.
LT/RT:Select this option if your DVD Player is connected to a Dolby Pro Logic decoder.
Stereo :Select this option when output delivers sound from only the two front speakers.

Dolby digital

The options included in Dolby Digital Setup are: 'Dual Mono' and 'Dynamic'.

Dual Mono

Stereo:Left mono sound will send output signals to Left speaker and Right mono sound will send output signals to Right speaker.
L-Mono: Left mono sound will send output signals to Left speaker and Right speaker.
R-Mono:Right mono sound will send output signals to Left speaker and Right speaker.
Mix-Mono: Left and Right mixed mono sound will send output signals to Left and Right speakers.

Dynamic

Dynamic range compression.

Video Setup Page

Video Setup Page

Brightness, Contrast, Hue, Saturation:setting the video quality.

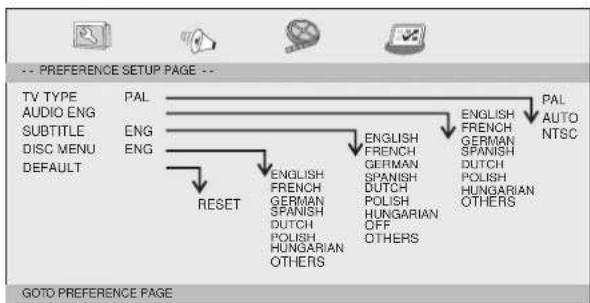

Preference Page

Preference Page

TV Type

Selecting the colour system that corresponds to your TV when AV outputs. This DVD Player is compatible with both NTSC and PAL.

SETUP Menu Setting

Preference Page

PAL - Select this if the connected TV is PAL system.lt will change the

video signal of a NTSC disc and output in PAL format.

NTSC-Select this if the connected TV is NTSC system. It will change

the video signal of a PAL disc and output in NTSC format.

Auto:Chang the video signal output automatic according to the

playing disk format.

A audio:Selects a language for audio (if available).
Subtitle:Selects a language for subtitle (if available).
Dis c M nue: Selects a language for disc menu (if available).
Default: Back to the factory setting.

Parameters and specifications

Electronical parameters

Item		Standard requirement
Power requirements		: AC 100-240 V, 50/60 Hz
Power consumption		: <15W
Operating humidity		: 5 % to 90 %
Output	VIDEO OUT	:1 Vp-p (75Ω)
	AUDIO OUT	:1.0 Vrms (1 KHz, 0 dB)
	Audio	:Speaker:1WX2, outputHeadphones

Battery Parameters

Battery Parameters

Battery Specifications:

Output: 7.4V

Storage and work circumstances:

1. Storage circumstances Temperature Humidity

6 months -20°C ~ +45°C 65±20%

1 week -20°C ~ +65°C 65±20%

2.Work circumstances Temperature Humidity

Standard charge 0^ +45^ 65 ± 20%

Standard discharge -20°C ~ +65°C 65±20%

System

Laser	:Semiconductor laser, wavelength 650 nm
Signal system	: NTSC / PAL
Frequency response	: 20Hz to 20 kHz(1dB)
Signal-to-noise ratio	:More than 80 dB (ANALOG OUT connectors only)
Dynamic range	:More than 80 dB (DVD/CD)

Note: Design and specifications are subject to change prior notice.

1. Guarantee

Lenco offers service and warranty in accordance with the European law, which means that in case of repairs (both during and after the warranty period) you should contact your local dealer.

Important note: It is not possible to send products that need repairs to Lenco directly.

Important note: If this unit is opened or accessed by a non-official service center in any way, the warranty expires.

This device is not suitable for professional use. In case of professional use, all warranty obligations of the manufacturer will be voided.

2. Disclaimer

Updates to Firmware and/or hardware components are made regularly. Therefore some of the Instruction, specifications and pictures in this documentation may differ slightly from your particular situation. All items described in this guide for illustration purposes only and may not apply to particular situation. No legal right or entitlements may be obtained from the description made in this manual.

3. Disposal of the Old Device

This symbol indicates that the relevant electrical product or battery should not be disposed of as general household waste in Europe. To ensure the correct waste treatment of the product and battery, please dispose them in accordance to any applicable local laws of requirement for disposal of electrical equipment or batteries. In so doing, you will help to conserve natural resources and improve standards of environmental protection in treatment and disposal of electrical waste (Waste Electrical and Electronic Equipment Directive).2

4. CE Marking

Products with the CE marking comply with the EMC Directive (2004/108/EC) and the Low Voltage Directive (2006/95/EC) issued by the Commission of the European Community.

Hereby, Lenco Benelux BV, Thermiekstraat 1a, 6361 HB Nuth, The Netherlands, declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

The declaration of conformity may be consulted via [e-mail]

5. Service

For more Information and helpdesk support, please visit www.lenco.com Lenco Benelux BV, Thermiekstraat 1a, 6361 HB, The Netherlands.

DVD VCD: Use ZOOM to enlarge or shrink the video image. 1. Press ZOOM during playback or still playback to activate the Zoom function. The square frame appears briefly in the right bottom of the picture.
2. Each press of the ZOOM button changes the TV screen in the following sequence:

2X size 3X size 4X size 1 / 2 size 1 / 3 size 1 / 4 size normal size

JPEG: Use ZOOM to enlarge or shrink the picture.

1. Press 'ZOOM'
   2,Used "to enlarge,or" to shorten the picture.
   Use the button to move through the zoomed picture.

SETUP Menu-installingen

Pagina algemene instellingen

Druk op de SETUP knop om het instillingenmenu te openen. Gebruik de navigatiotoetsen 1 met selecteren.Druk na het instalten van de installingen nogmaals op SETUP om terug te keren aan de normale weergave. De volgende menu-items können worden ingesteld:

Pagina algemene Instellingen

DVD VCD: Use ZOOM to enlarge or shrink the video image. 1. Press ZOOM during playback or still playback to activate the Zoom function. The square frame appears briefly in the right bottom of the picture. 2. Each press of the ZOOM button changes the TV screen in the following sequence:

2X size 3X size 4X size 1/2 size 1/3 size 1/4size→normal size
JPEG: Use ZOOM to enlarge or shrink the picture.
1. Press 'ZOOM'.
2. Used "▶" to enlarge,or "←" to shorten the picture. Use the button to move through the zoomed picture.

Menu Configuration

Interruptor PBC on/off (VCD).

7.AUDIO

DVD VCD Use ZOOM to enlarge or shrink the video image.

1. Press ZOOM during playback or still playback to activate the Zoom function. The square frame appears briefly in the right bottom of the picture.
2. Each press of the ZOOM button changes the TV screen in the following sequence:

2X size 3X size 4X size 1/2 size 1/3 size 1/4size→normal size

JPEG: Use ZOOM to enlarge or shrink the picture. 1.Press 'ZOOM'.

2,Used"to enlarge,or"to shorten the picture. Use the button to move through the zoomed picture.

Menu de ajustes

General Setup Page

Closed Captions

'Dual Mono' y 'Dynamic'.

Dual Mono
