91959164_ BT7040_7940_7020_5065_5060_5042_5040_CEEMEA.indd 491959164_ BT7040_7940_7020_5065_5060_5042_5040_CEEMEA.indd 4 17.08.18 09:0117.08.18 09:01 Business Use - P&G AUTHORIZED POA-00067610 Rev 001 Effective Date 2018-08-20 Printed 2019-02-27 Page 4 of 725 English Read these instructions completely, they contain safety information. Keep them for future reference. Warnings The appliance is suitable for cleaning under running tap water. Detach the appliance from the power supply before cleaning it with water. The appliance is provided with a special cord set with integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it. Otherwise there is a risk of electric shock. Only use the special cord set provided with your appliance. If the appliance is marked 492, you can use it with any Braun power supply coded 492-XXXX. Never use the appliance with any damaged accessory like trimmers, combs or special cord set. Do not open the appliance! This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the safe use of the appliance and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised. Description 1a Precision beard comb (1–10 mm) 1b Precision hair comb (11–20 mm) 2a Trimmer head 91959164_ BT7040_7940_7020_5065_5060_5042_5040_CEEMEA.indd 591959164_ BT7040_7940_7020_5065_5060_5042_5040_CEEMEA.indd 5 17.08.18 09:0117.08.18 09:01 Business Use - P&G AUTHORIZED POA-00067610 Rev 001 Effective Date 2018-08-20 Printed 2019-02-27 Page 5 of 726 2b Detailed trimmer head* 2c Mini foil shaver head* 3 Length selector 4 On/off button 5 Charging indicator 6 Power socket 7 Special cord set (design can differ) 8 Charging stand*

• not with all models For electric specifications, see printing on the special cord set. Charging Recommended ambient temperature for charging is 5 °C to 35 °C. The battery may not charge properly or at all under extreme low or high temperatures. Recommended ambient temperature for trimming is 15 °C to 35 °C. Do not expose the appliance to temperatures higher than 50 °C for extended periods of time.

• Connect the appliance via the special cord set (7) to an electrical outlet.

• A full charge takes approx. 1 hour and provides up to 100 minutes of cordless operation time.

• Once the appliance is completely charged, discharge it through normal use. Then recharge again to full capacity. Charging indicator

• The charging indicator blinks green when the appliance is being charged.

• It lights up permanently green for a few seconds when the battery is fully charged. During usage it shines permanently green.

• The charging indicator shines permanently red when the battery is running low. Once it flashes red, connect the appliance to the mains. Usage

• Exchange the attachments only when the appliance is switched off.

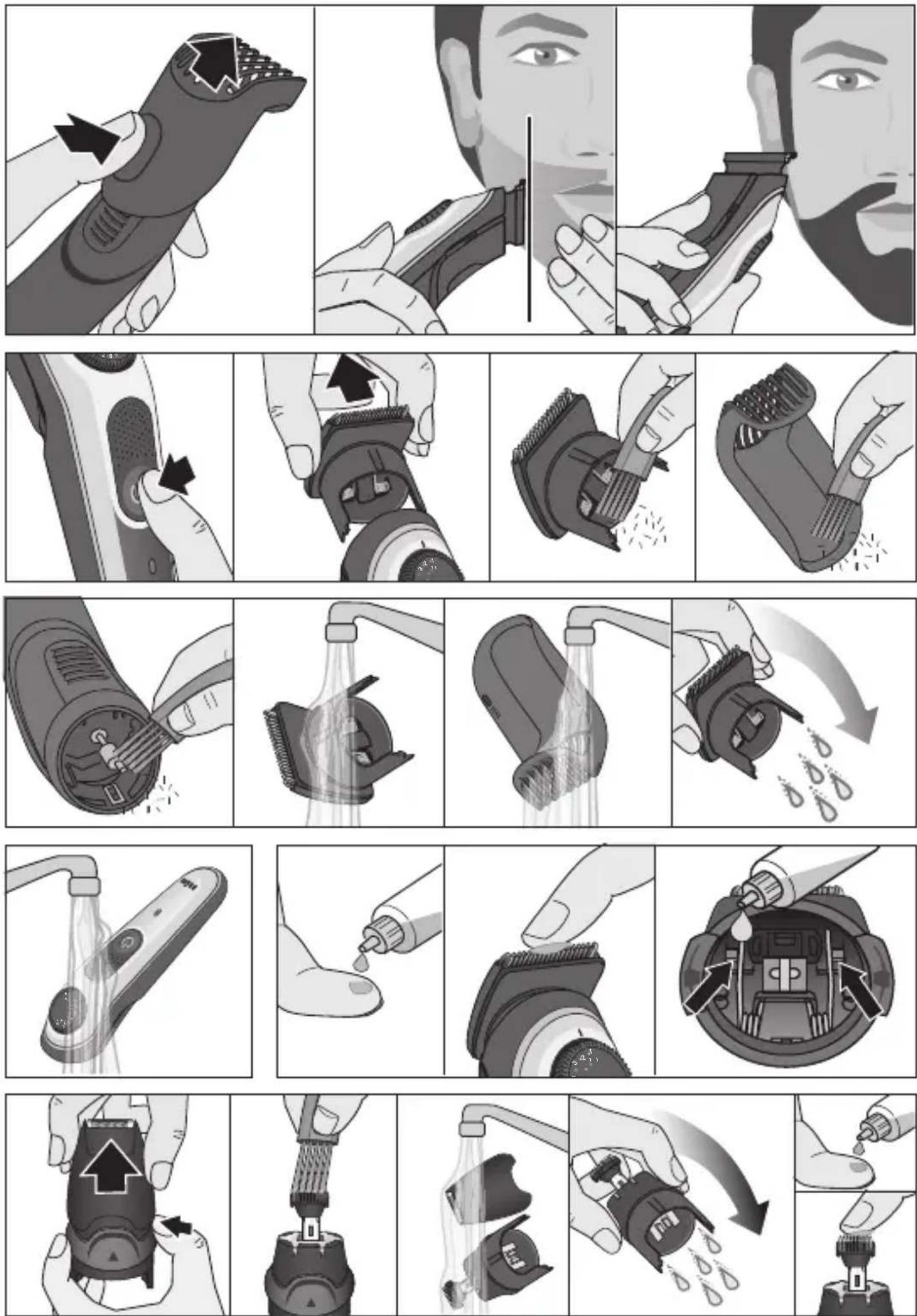

• Place one of the precision combs (1a, 1b) over the trimmer head (2). Beard Trimming / Hair Clipping

• Turn the length selector (3) to your desired cutting length. The comb slides automatically up or down.

• Length settings precision beard comb (1a): 1 to 10 mm in 0,5 mm steps. 91959164_ BT7040_7940_7020_5065_5060_5042_5040_CEEMEA.indd 691959164_ BT7040_7940_7020_5065_5060_5042_5040_CEEMEA.indd 6 17.08.18 09:0117.08.18 09:01 Business Use - P&G AUTHORIZED POA-00067610 Rev 001 Effective Date 2018-08-20 Printed 2019-02-27 Page 6 of 727

• Length settings precision hair comb (1b): 11 to 20 mm in 0,5 mm steps.

• Push the on/off button (4) to turn the appliance on.

• Trim against hair growth by guiding the flat comb part over the skin.

• Avoid clogging the comb with hair. Remove and clean it from time to time. Precision and Contour Trimming

• Use the trimmer head (2a) without comb attachment, the detailed trimmer head (2b) or the mini foil shaver head (2c) for shaping sideburns, moustaches and partial short beards. Travel lock Press the on/off button (4) for 3 seconds to lock the appliance. A beep confirms that the travel lock is activated. To unlock, press the on/off button 3 seconds. 3 beeps will sound when your unlock attempt failed. Try again or simply connect the appliance to the mains. Cleaning and maintenance

• Switch off the appliance.

• Take off the head and combs.

• Use the brush to clean the head, combs and the appliance.

• Do not clean any foil with a brush as those may be damaged.

• The mini foil shaver head can be disassembled for proper cleaning. In case the foil frame is pulled out, it can just be clicked into the housing again.

• The handle, heads and combs can be cleaned under running water. Rinse until all residues have been removed. Let dry completely before reassembling them.
