Brand	SunRed
Model	Nero 2400
Product type	Patio heater (outdoor heating under shelter)
Nominal power	2400 W
Power supply	220-240 V ~ 50 Hz
Electrical protection	30 mA max differential circuit breaker
Usage	Outdoor under shelter, uncovered
Safety distance to flammable objects	min 75 cm
Weight (approx)	15 kg
Height (approx)	220 cm
Base diameter (approx)	80 cm
Material	Metal, stainless steel reflector
Heating elements	Armored resistors with reflector
Number of power levels	2 (varies by model)
Ignition	Manual by switch
Safety	Overheat protection, tilt switch (if applicable)
Maintenance	Clean with a damp cloth, brush the heating elements and reflector
Disassembly	Unplug before any maintenance
Repairability	Spare parts available from the manufacturer
Disposal	Do not dispose with household waste, WEEE recycling
Warranty	2 years (standard)

Frequently Asked Questions - Nero 2400 SunRed

Can I use the Nero 2400 indoors?

No, the Nero 2400 is designed exclusively for outdoor use under shelter. Using it indoors poses a fire and intoxication risk.

What safety distance should I maintain around the appliance?

Maintain a distance of at least 75 cm between the appliance and any flammable objects (furniture, curtains, etc.).

How to clean the SunRed patio heater?

Unplug the appliance and let it cool down completely. Clean the exterior with a slightly damp cloth. For the heating elements and reflector, use a long, soft-bristled brush.

What to do if the power cord is damaged?

Unplug the power cord immediately. Never use the appliance with a damaged cord. Have it replaced by a qualified professional.

Can I leave the appliance on unattended?

It is not recommended to leave the appliance unattended. Do not use with a timer or automatic switch due to fire risk.

Can the heater be used in the rain?

No, the appliance must never be exposed to water or other liquids. It is intended for use under shelter, protected from weather.

How to dispose of the Nero 2400 at end of life?

Do not dispose of it with household waste. Take it to a collection point for waste electrical and electronic equipment (WEEE) for recycling.

Can I use an extension cord?

Yes, but it must be suitable for the appliance's power (2400 W) and fully extended. Make sure it is in good condition and grounded.

Does the appliance come with a differential circuit breaker?

The appliance must be plugged into a grounded outlet protected by a differential circuit breaker of max 30 mA. This device is not included but is mandatory.

What to do if the appliance does not heat up?

Check the power supply and that the switch is in the on position. If the problem persists, contact SunRed after-sales service.

USER MANUAL Nero 2400 SunRed

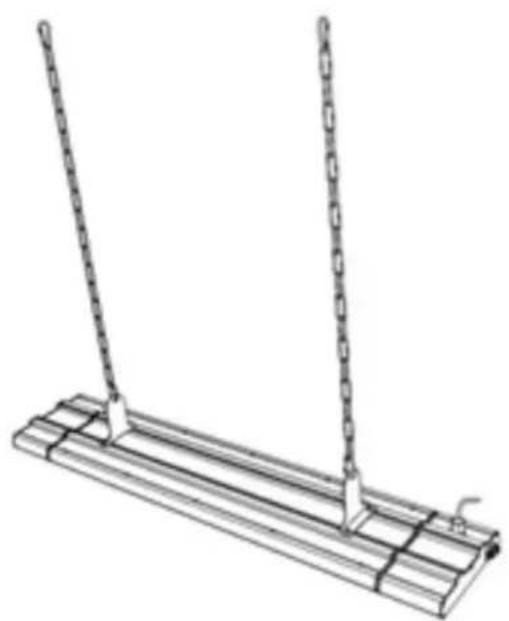

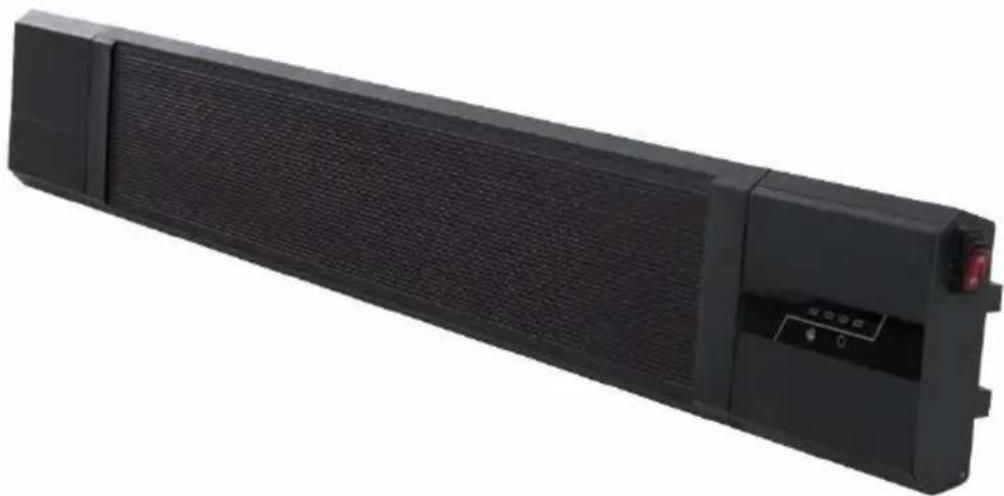

NER2400W Wall/Hanging heater

GB Ratio SI Infra peč za DE Terrassenheizstrahler Heater uporabo na tera-sah

FR Radiateur HU Teraszhó sugárzó NL Terrasverwarmer de terrasse HR Elektricna grijalica NO Terrassevarmer za terasu

IT Irradiatore BA Elektricna DK Terrassevarmer di calore grijalica za da ter- terasu

CZ Terasovy RO Radiator pentru SE Terrasevarmare ohrivac terasa

SK Terasovy RU O6orpeBaTeNb ES Estufa Terraza ohriyac Ira Teppacbl

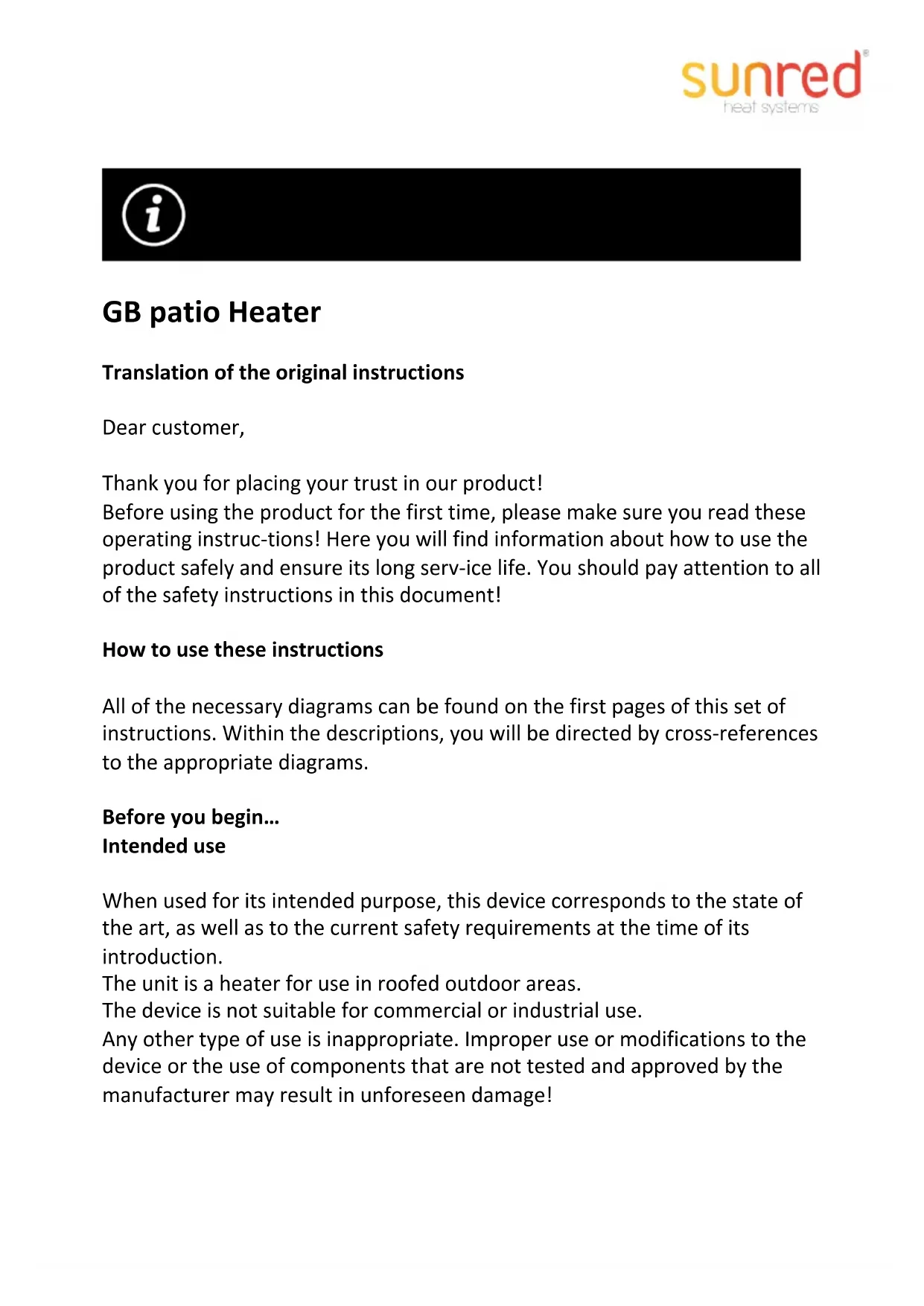

Translation of the original instructions

Dear customer,

Thank you for placing your trust in our product!

Before using the product for the first time, please make sure you read these operating instruc-tions! Here you will find information about how to use the product safely and ensure its long service life. You should pay attention to all of the safety instructions in this document!

How to use these instructions

All of the necessary diagrams can be found on the first pages of this set of instructions. Within the descriptions, you will be directed by cross-references to the appropriate diagrams.

Before you begin...

Intended use

When used for its intended purpose, this device corresponds to the state of the art, as well as to the current safety requirements at the time of its introduction.

The unit is a heater for use in roofed outdoor areas.

The device is not suitable for commercial or industrial use.

Any other type of use is inappropriate. Improper use or modifications to the device or the use of components that are not tested and approved by the manufacturer may result in unforeseen damage!

Any use that deviates from its intended use and is not included in these instructions is considered unauthorised use and relieves the manufacturer from his or her legal liability.

For your safety

General safety instructions

• To operate this device safely, the user must have read and understood these instructions for use before using the device for the first time.

• Observe all safety instructions! Failure to do so may cause harm to you and others.

• Retain all instructions for use, and safety instructions for future reference.

• If you sell or pass the device on, you must also hand over these operating instructions.

• The device must only be used when it functions properly. If the product or part of the product is defective, it must be taken out of operation and disposed of correctly.

• Never use the device in a room where there is a danger of explosion or in the vicinity of flammable liquids or gases.

• Always ensure that a device which has been switched off cannot be restarted unintentionally.

• Do not use devices with an on/off switch that does not function correctly.

• Keep children away from the device! Keep the device out of the way of children and other unauthorised persons.

• Do not overload the device. Do not use the device for purposes for which it is not intended.

• Exercise caution and only work when in good condition: If you are tired, ill, if you have ingested alcohol, medication or illegal drugs, do not use the device, as you are not in a condition to use it safely.

• This product is not intended to be used by persons (including children) or who are limited in their physical, sensory or mental capacities or who lack experience and/or knowledge of the product unless they are supervised, or have been instructed on how to use the product, by a person responsible for their safety.

• Ensure that children are not able to play with the device.

• Always comply with all applicable domestic and international safety, health, and working regulations.

Electrical safety

• The device may only be connected to a socket that is correctly installed and grounded.
• The fuse must be a residual current circuit-breaker with a measured residual current of no more than 30mA .
• Make sure that the power supply corresponds with the connection specifications of the device before it is connected.
• The tool may only be used within the specified limitations for voltage and power (see type plate).
• Do not touch the mains plug with wet hands! Always pull out the mains plug at the plug and not by the cable.
• Do not bend, crush, pull or drive over the power cable, protect from sharp edges, oil and heat.
• Do not lift the device using the cable or use the cable for purposes other than intended.
• Check the plug and cable before each use.
• If the power cable is damaged immediately disconnect the plug. Never use the device if the power cable is damaged.

• If the device is not in use make sure the plug is pulled out.

• Make sure that the device is switched off before plugging in the mains cable.

• Make sure that the device is switched off before unplugging it.
• Disconnect the power supply before transporting the device.

Device-specific safety instructions

The unit may not be operated indoors.
- The unit may not be operated in the vicinity of swimming pools, garden ponds etc.
- Do not move the unit when it is in use.
- Do not tilt the unit when it is in use.
- Never feed objects through the ventilation slots into the unit. Risk to life!

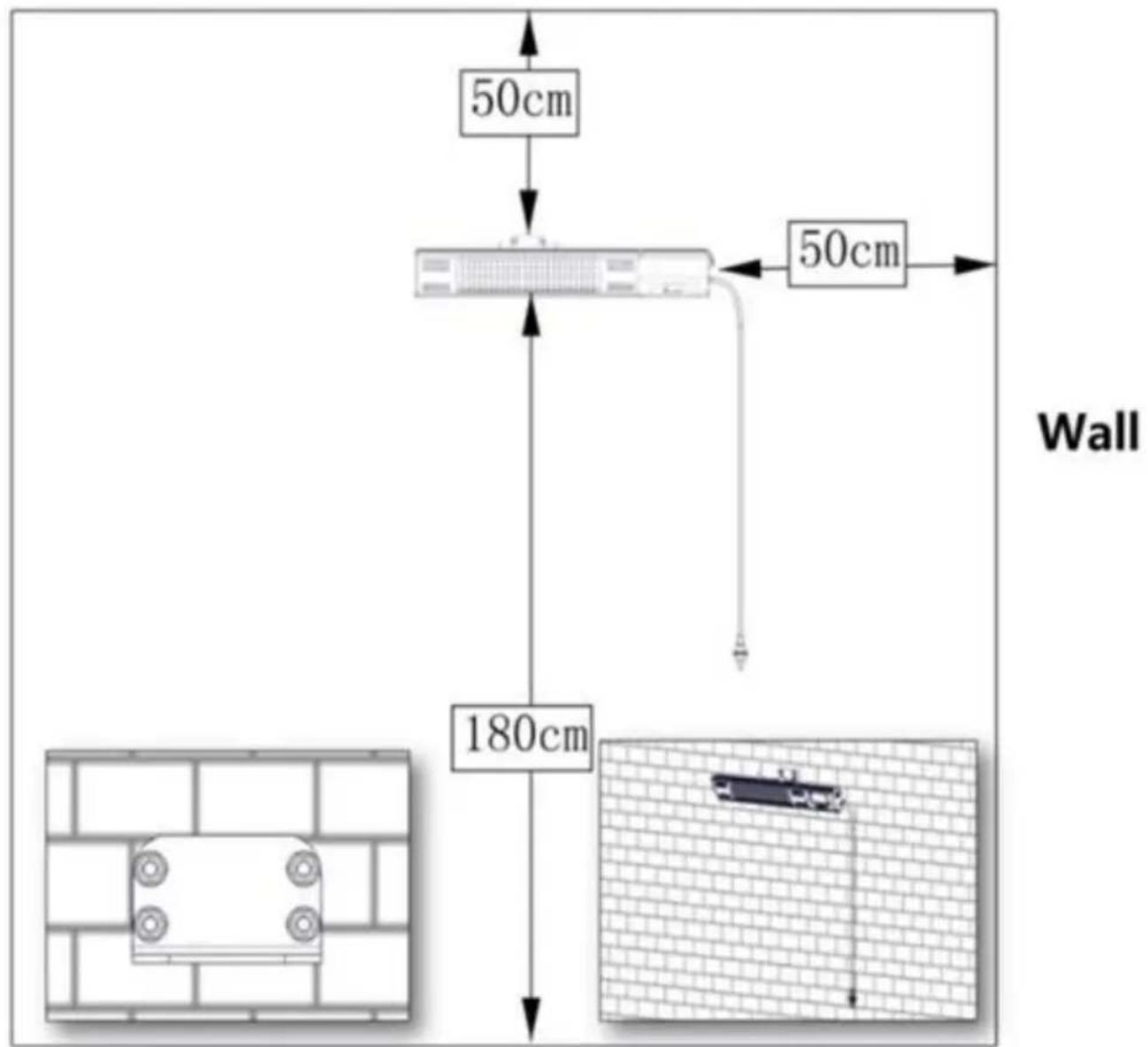

- The gap between the ventilation slots and flammable objects must be at least 75~cm .
The unit may not be covered. This causes a risk of fire.
- The unit must be assembled on an even, horizontal surface with space surrounding it. The safety gaps must always be adhered to.
- Never expose the unit to water or other liquids.
- Never use the heater with a timer or another switch that activates the unit automatically as this carries a risk of fire.
- The heater may not be set up directly underneath a wall power socket.
- Symbols affixed to your unit may not be removed or covered. Information on the unit that is no longer legible must be replaced immediately.

Floor

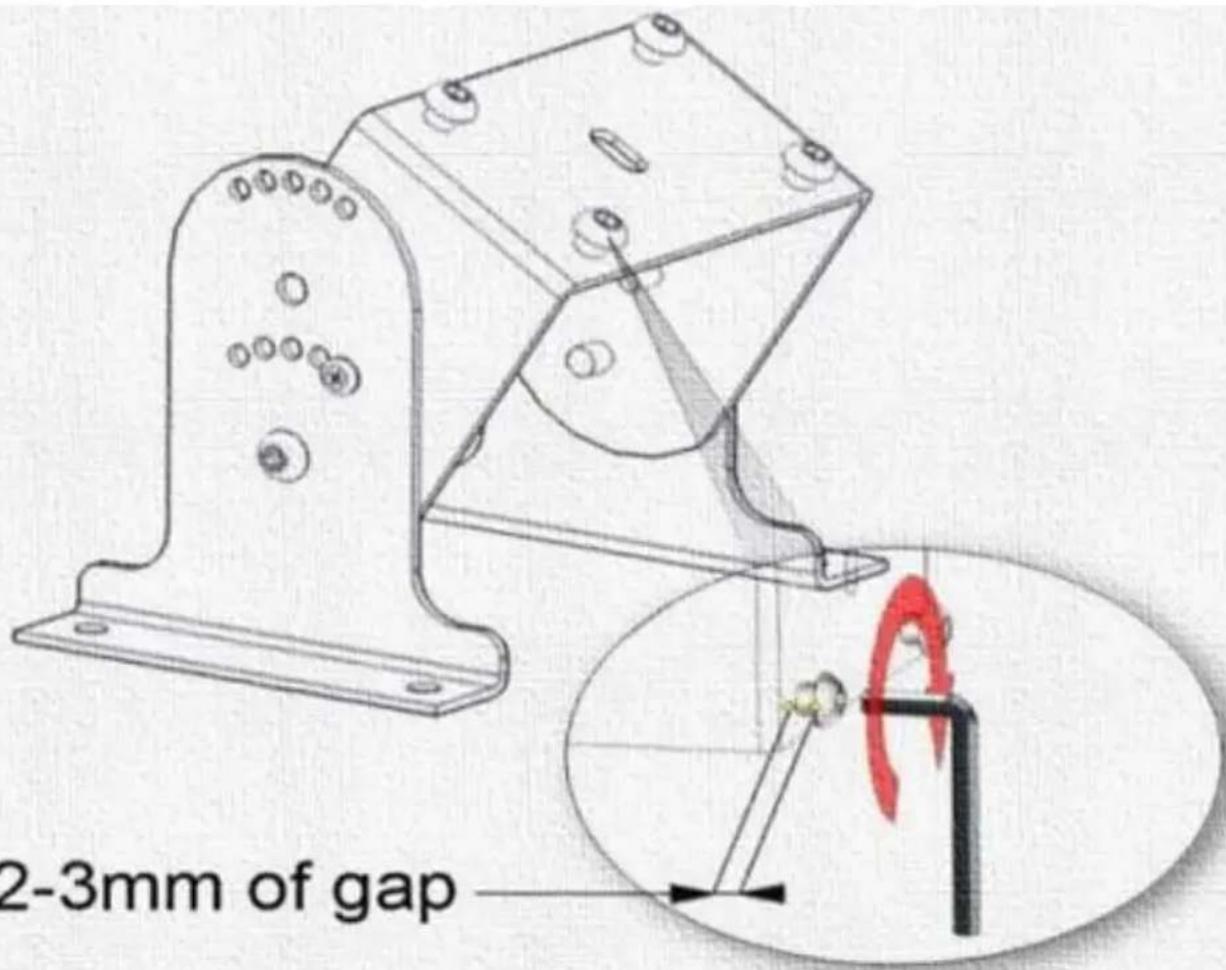

2-3mm of gap

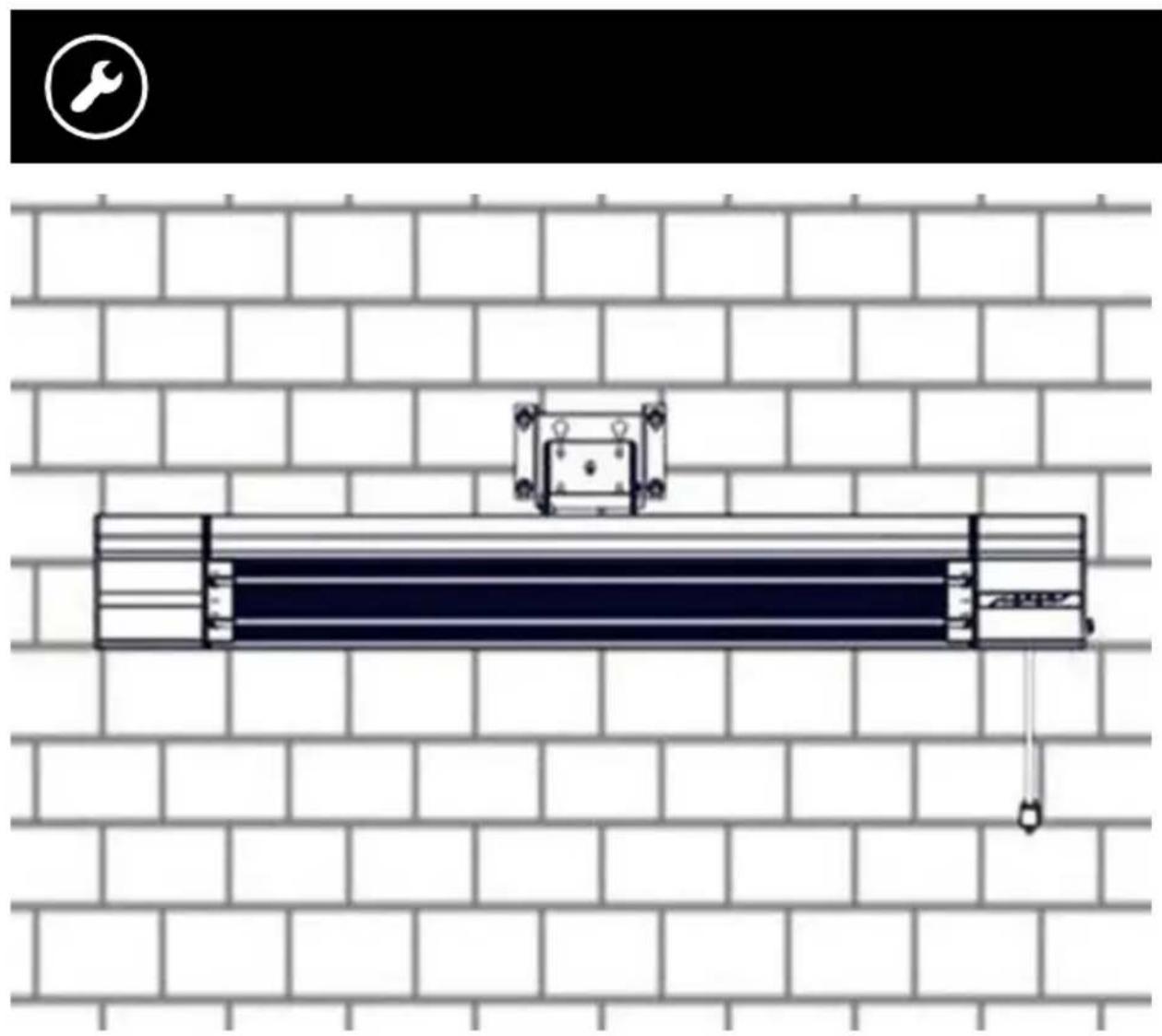

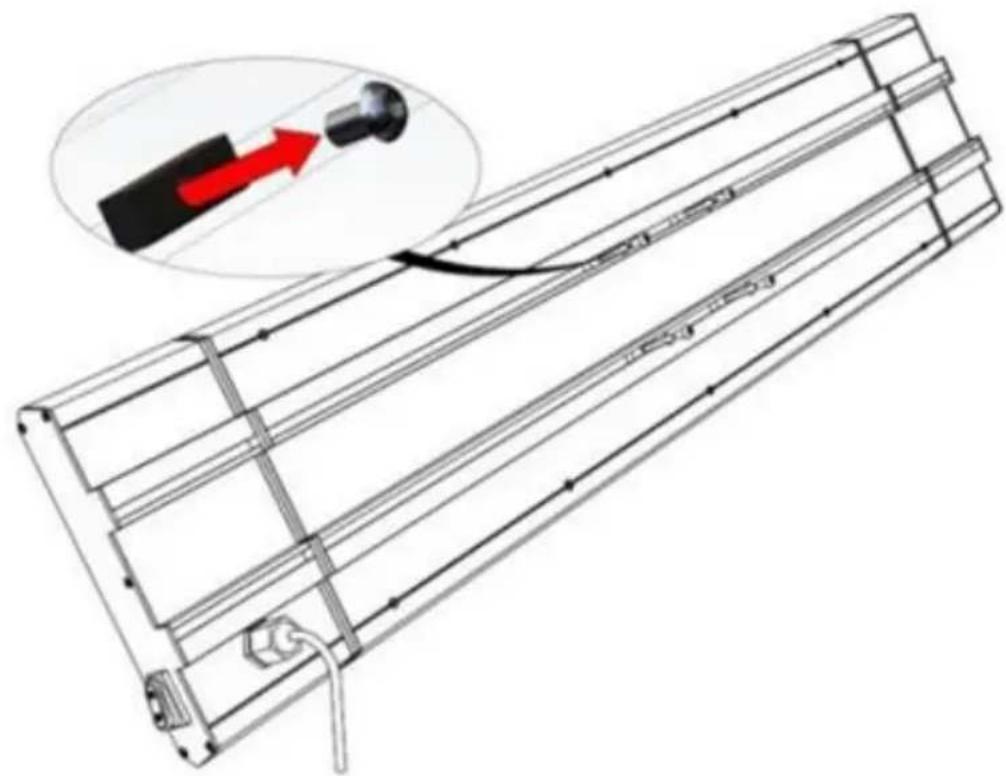

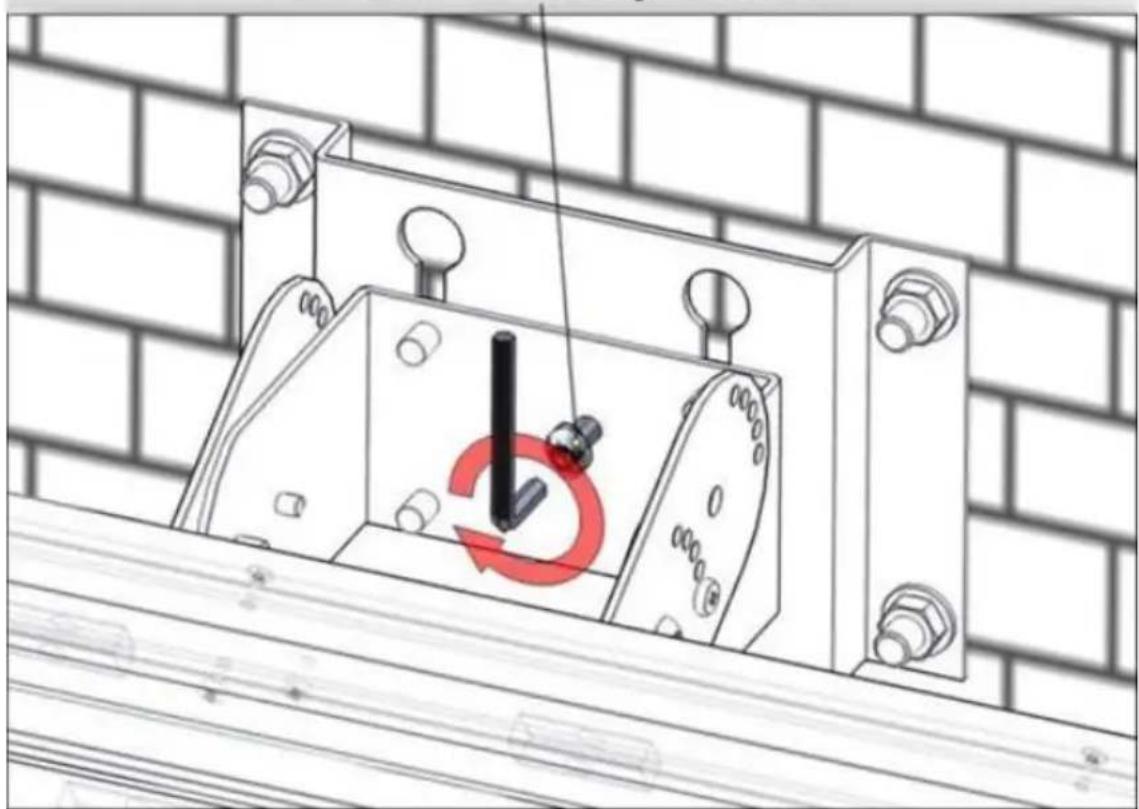

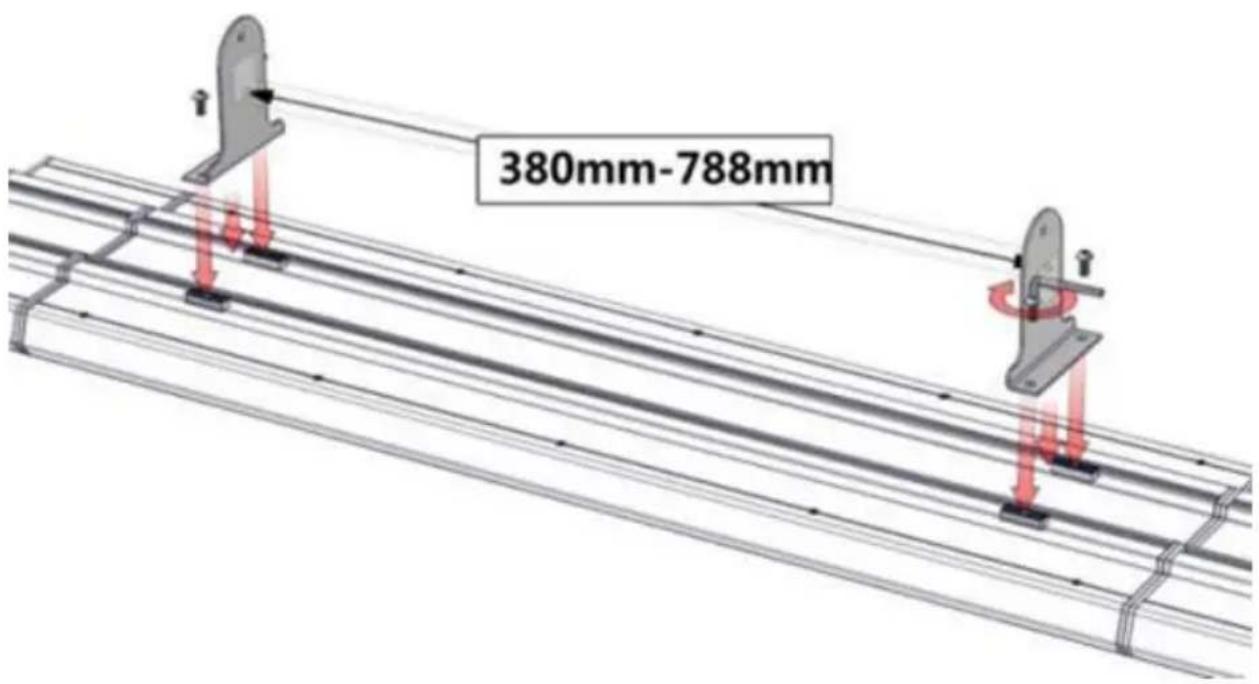

M6X10 Security Screw

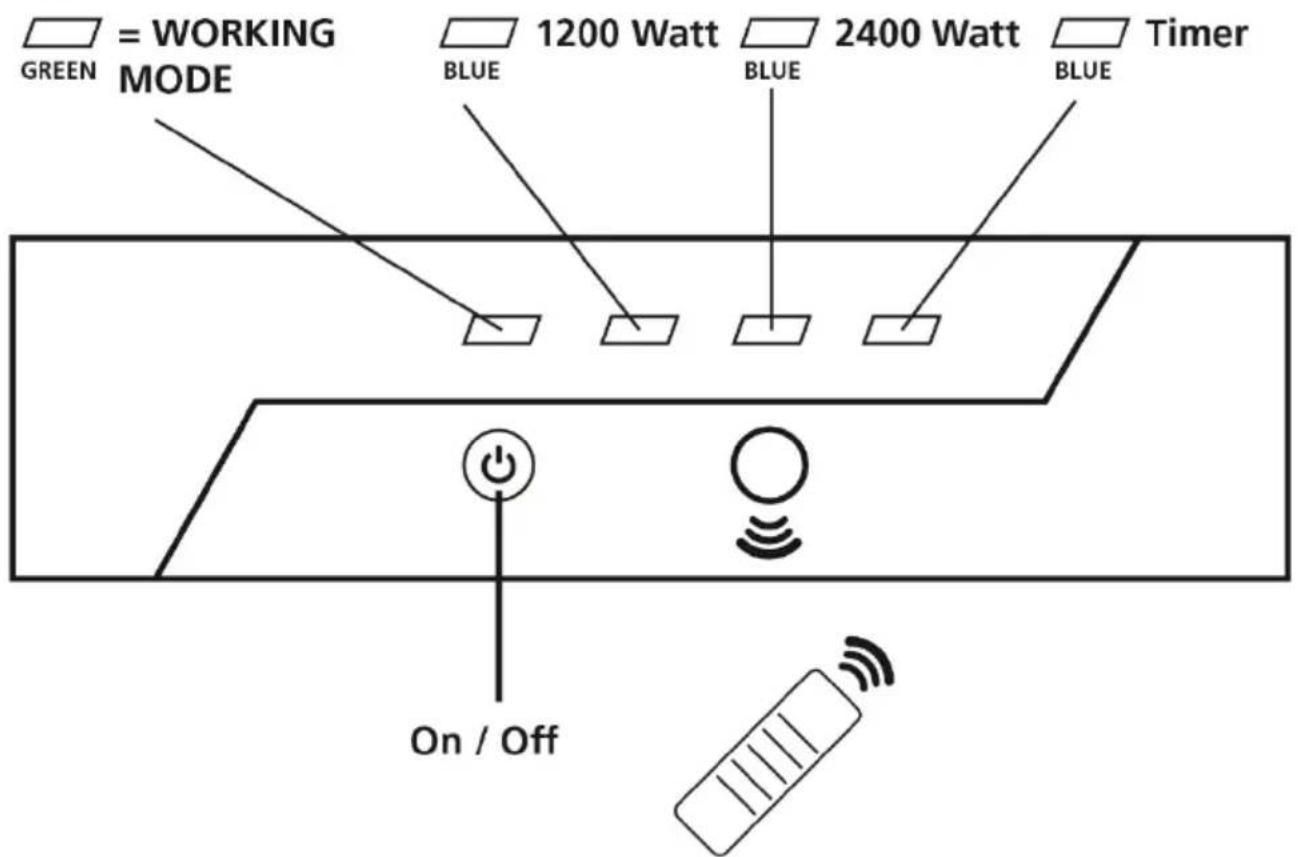

RED = READY

Although the heater is shower proof, DO NOT use when raining or in wet conditions.

Always disconnect the power cable from the electrical supply when the patio heater is not in use.

Cleaning

• Switch the unit off and allow it to cool down completely.
• Unplug from the power source.
• Wipe the unit with a damp cloth.
• To clean the heating bars and the reflector, use a brush with long, soft bristles

Disposal

Disposal of the appliance

Appliances which are labelled with the adjacent symbol must not be disposed of in household waste. You must dispose of such old electrical and electronic equipment separately.

Through separate disposal you send old equipment for recycling or for other forms of re-use. You will thus help to avoid in some cases that damaging material gets into the environment.

Disposal of the packaging

The packaging consists of cardboard and correspondingly marked plastics that can be recycled.

• Make these materials available for recycling.

220-240V 50Hz
Black heat / 8000 H
2400W
116x15x5cm
6,2 kg
Insulation: class 1
IP55
CE, GS, PAH, ROHS
CE

All measurements are approximate.
