Product type	Halogen heater
Brand	SunRed
Model	WMGT13S
Dimensions (L x W)	57 cm x 12 cm
Net weight	1.8 kg
Power supply	230 V ~ 50 Hz
Maximum power	2000 W
Insulation class	I
Lifespan of halogen elements	5000 hours
Power cable length	1.9 m
Installation type	Wall-mounted (wall mounting with supplied bracket)
Recommended installation height	At least 1.8 m from the floor
Minimum safety distances	50 cm from side walls, 30 cm from ceiling, 2 m from flammable materials
Intended use	Domestic only, indoor or outdoor sheltered from rain
Included accessories	Remote control, bolts M6x50 (x4), M6 wrench, hex key
Maintenance	Clean with a damp cloth after cooling and disconnecting
Replacement of heating elements	Performed by a qualified electrician
Safety	Overheat protection (do not cover), mandatory grounding, do not use with an external timer
Protection index	Waterproof (but do not expose to rain)
Surface temperature	Very hot during operation, remains hot after shutdown
Certifications	Compliant with applicable legal provisions

Frequently Asked Questions - WMGT13S SunRed

How to correctly install the WMGT13S heater?

Drill four holes in the wall, insert the expansion bolts M6x50, fix the bracket, then hang the heater. Ensure a minimum height of 1.8 m from the floor and a distance of at least 50 cm from side walls and 30 cm from the ceiling.

Can I use this heater in a bathroom?

No, despite its waterproofness, it must not be used near bathtubs, showers, or swimming pools. Use in damp rooms is not recommended.

What is the power of this device?

The maximum power is 2000 W with a power supply of 230 V ~ 50 Hz.

How to clean the heater?

Unplug the device, wait for it to cool down, then clean the surface with a damp cloth. Never use solvents or corrosive products.

Is the remote control included?

Yes, a remote control is supplied with the heater for remote use.

How to replace the halogen tube?

Replacement must be carried out by a qualified electrician or an authorized service center. Do not attempt to do it yourself.

Can I use an extension cord with this heater?

It is not recommended to use an extension cord. Plug the heater directly into a 13 amp power outlet that is easily accessible.

What is the minimum installation height?

The minimum installation height is 1.8 m from the floor to ensure optimal safety.

What to do if the heater does not turn on?

Check the power supply, the switch in position I, and the remote control. If the problem persists, contact a professional for inspection.

Is it safe to leave the heater on overnight?

It is not recommended to leave the device on unattended, especially in a room with children or pets. Turn it off before sleeping.

USER MANUAL WMGT13S SunRed

Manual Wall-mounted Patio Heater (UK)

HandbuchTerrassenheizungWandmodell (DE)

Handleiding Electrische Patio Heater Wandmodel (NL)

Manual Appareil de chauffagemural (FR)

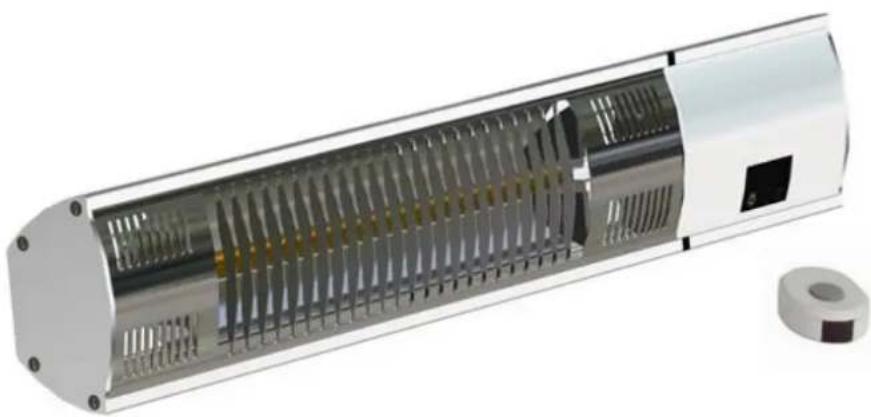

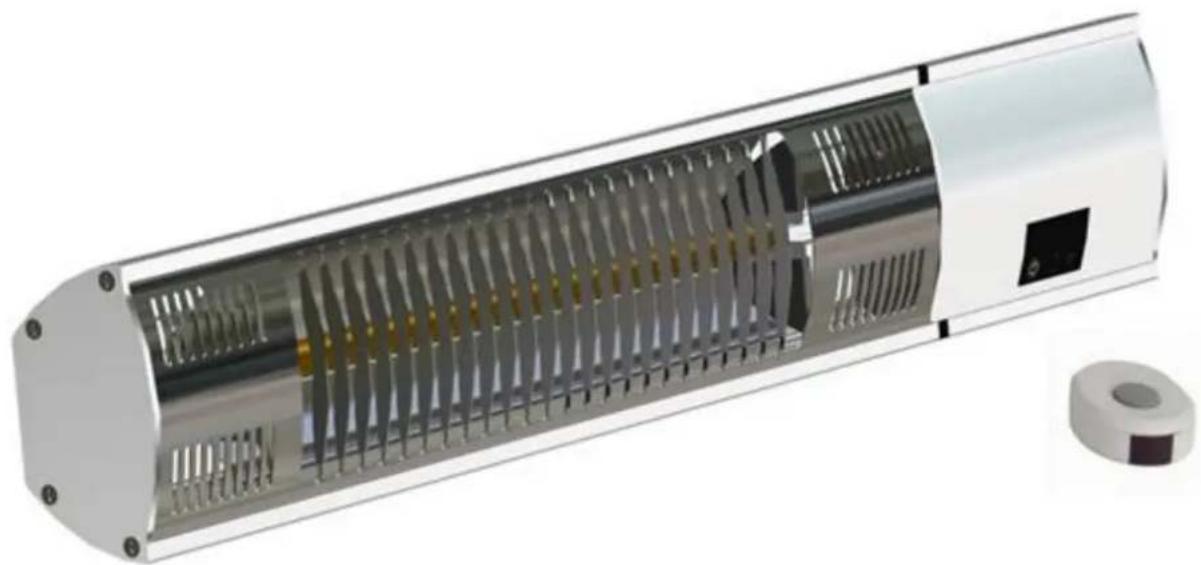

WMGT13S – Wall-mounted Electric Patio Heater

3D rendering of a cylindrical heating element with internal cooling fins and a separate inset showing a small circular component (no text or symbols visible)

Wall-mounted Electric Patio Heater (WMGT13S)UK

User instructions - please keep for future reference

3D rendering of a cylindrical heating element with internal cooling fins and a separate circular component (no text or symbols visible)

TECHNICAL INFORMATION

Wattage: max 2000W

Element type: Halogen

Expected Life span elements: 5000 hrs.

Weight: 1.8kg

Ingress Protection Rating: IP55

Certificates: CE, GS, PAH, Rohs

Cable Cord: 1.9 Meters

Dimensions: W 12cm; L 57cm

Remarks: Remote control included

All measurements are approximate

IMPORTANT – Carefully remove any packaging before use, but retain the safety instructions.

These instructions form part of the product.

Please take note of all the safety warning listed in these instructions.

Please read these instructions in their entirety and retain them for future reference.

These instructions should be stored with the product.

This product is for domestic use ONLY and should not be used commercially or for contract purposes.

Please read these instructions carefully before using your new heater

Unpack the heater to make sure that all the items are present and that there are no components left in the box and that the heater head is free from any packing material.

Using the detailed drawing, follow the steps to assemble your heater.

Do not connect the heater to the electrical supply until the assembly is complete.

Do not connect the heater to the electrical supply if any of the components or the power cord is damaged in any way.

If in doubt contact your supplier.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

WARNING: This heater is not equipped with a device to control the room temperature. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

Children of less than 3 years should be kept away unless continuously supervised.

Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

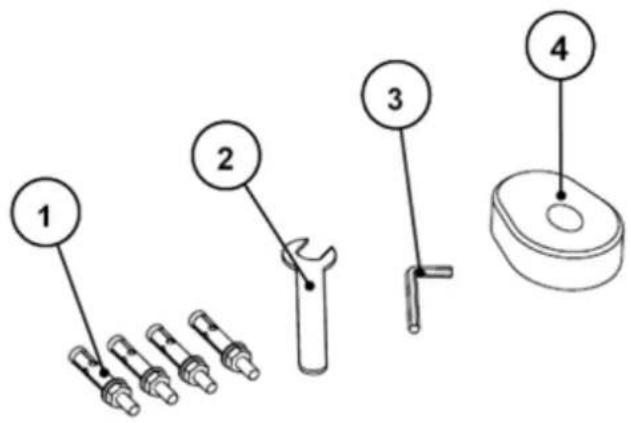

Accessories

Diagram showing four labeled mechanical components with numbered parts and connecting lines, likely illustrating a assembly or assembly process.

Ref.	Name	Qty
1	Explosive bolt M6*50	4
2	M6 spanner	1
3	‘L’ hexagonal wrench	1
4	Remote control	1

Installation

Heater WMGT13S is built with the best quality components in accordance to the prevailing legal regulations and certified for safety in use. For best results from the appliance please ensure that the installation is done by a qualified electrician in accordance with the following instructions and taking full account of current regulations. When using the heater, please carefully follow the instructions and recommendations below.

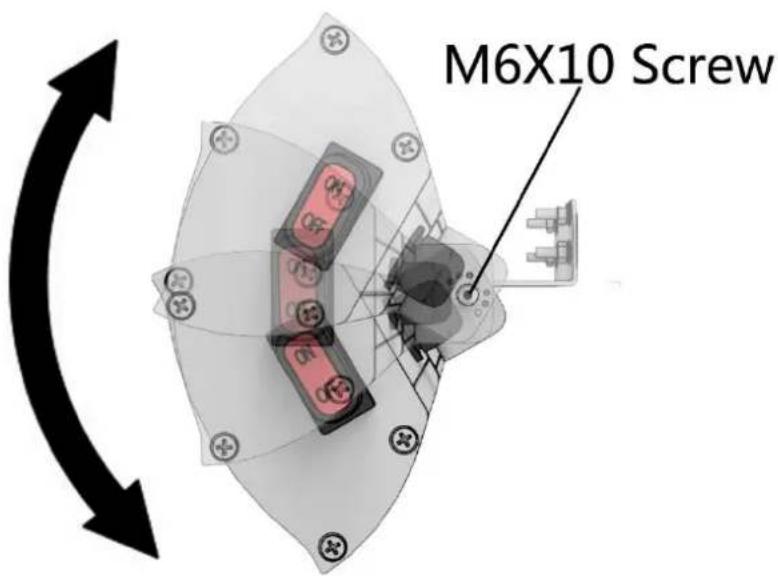

- You could loosen the two M6*10 screws to change the best angle of heating. Then retighten them.

M6X10 Screw

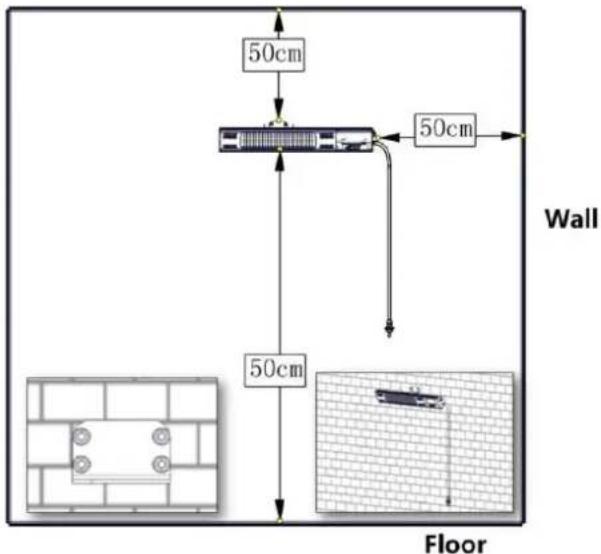

Installation to Wall

a) When fixing the heater to a wall, ensure hinges are in the underside so that the lid hands down in the open position.
b) Minimum required distances:

a) 500mm from the side wall
b) 500 mm from the ceiling
c) Installation height above 1.8M

50cm 50cm Wall 50cm Floor

c) The heater must be fixed to a wall with the bracket supplied to allow adequate ventilation.
d) Never fix or place heater near flammable or combustible materials.
e) Generally heaters must be placed at a safe distance (clear space) of at least 2.0m from combustible materials and glass walls. If installed in workshops or garages where inflammable or combustible paints are used, the heaters must be installed at a distance of at least 4.0m from the source of danger.
f) If the heaters are placed in areas where spray painting of any description is taking place, they should not be used during the painting operations.
g) Never use the heater in particularly dusty and explosive areas.

Connection to 220-240 Volts Power Supply

• It is important to ensure that the electricity supply is of adequate capacity for the electrical load required by the appliance being installed.
  ● These appliances must be earthed.

Assembly

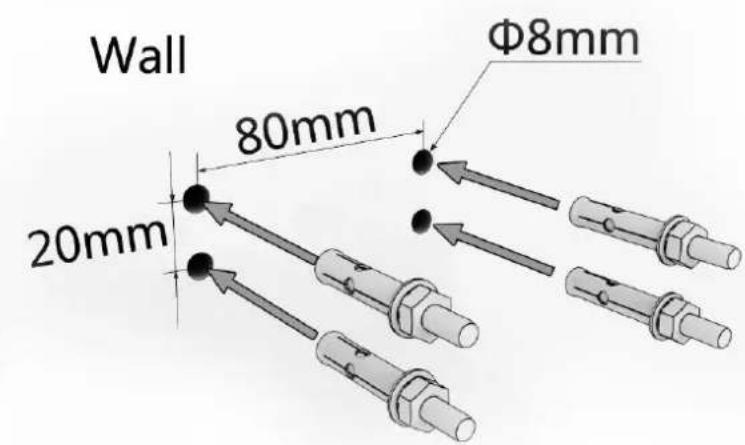

Step 1:

Drill four holes in the wall, hammer the four explosive bolts M6*50 (1) into the wall.

Wall Φ8mm 80mm 20mm

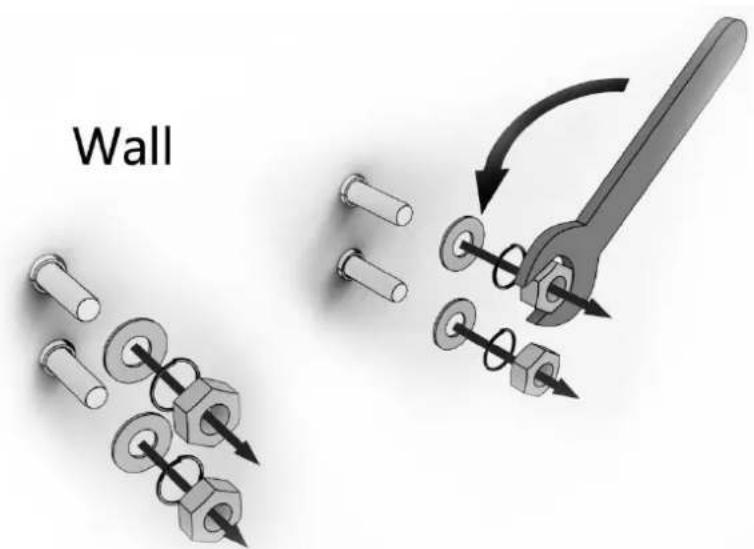

Step 2:

Take off the nuts, the spring locks washers and the plain washers from four explosive bolts. Retain them for the next step.

Wall

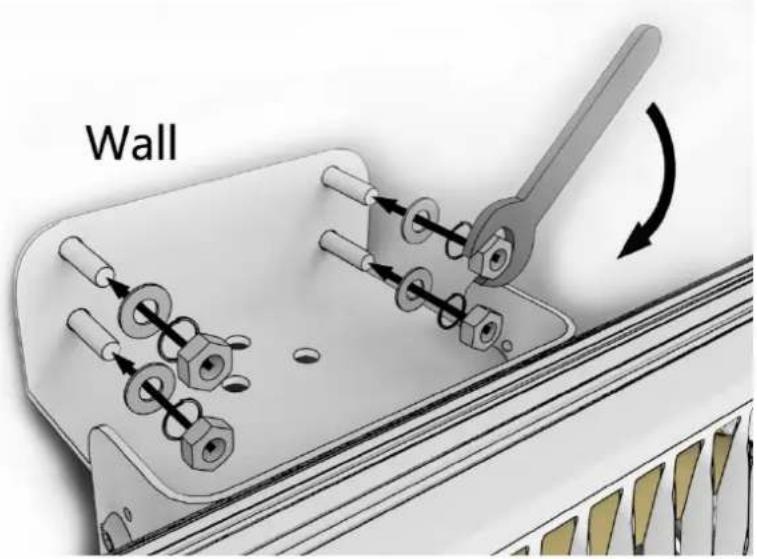

Step3:

Fix the heater (2) on the wall.

Wall

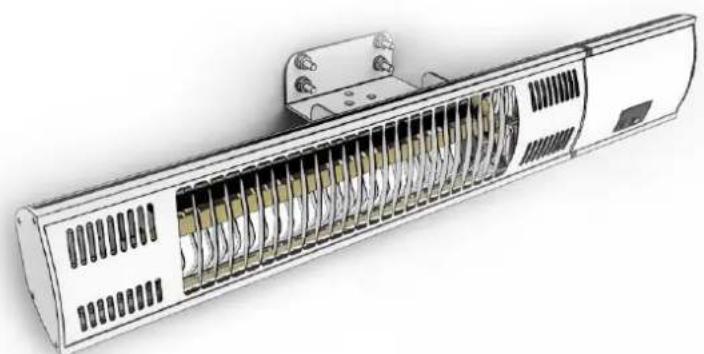

Complete!

Illustration of a rectangular industrial fan or radiator unit with cooling fins and mounting bracket (no text or symbols)

Caution

Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

1. Mount the heater outside or in a large open area and well away from any obstructions such as branches or where the heater is near any objects that can be affected by heat, such as furniture, curtains or other inflammable objects (minimum distance 1 meter).

2. Do not position immediately above or below an electrical socket.

3. The unit must be placed with the clearance of 180cm to the floor and 30cm to the ceiling.

4. When the power supply cord is damaged, it must be replaced by authorized agent or other professional people to avoid danger.

5. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

6. Children should be supervised to ensure that they do not play with the appliance.

7. Do not use it near bath tubs, washing areas, showers or swimming pools.

8. Do not use it in unventilated areas.

9. Do not use where gas, petrol, paint or other inflammable goods are stored.

10. Do not move when connected to an electrical supply and always wait until the patio heater cool down before storing away.

11. Do not touch the heater head when in use.

12. Do not leave after turn it on and unattended especially when children or animals are in the vicinity.

13. The indication of different positions of switches should be visible from a distance of 1m at least.

14. The marking concerning covering shall be visible after the heater has been installed. It shall not be placed on the back of heaters.

15. The heater must be correctly installed according to the instructions.

16. The heater must be securely placed on a horizontal and flat wall surface.

17. The heater will be at high temperature when in use. It keeps hot for a period after shut down. Potential danger would occur when you touch it during this period.

18. Don't place the heater closed to curtain or other flammable objects. Otherwise there will be a danger of catching fire.

19. Don't cover the heater with anything when in use or a short time after it is shut down.

20. Don't wrap the power supply cord around the heater.

21. The heater must be handled with care; avoid vibration or hitting.

22. The heater must be securely grounded when in use.

23. If the heater gets damaged, it must be repaired by a professional electrician.

24. When assembling, keep away from any board or flammable material.

25. The heater must be supervised by adults when it is used by a child.

26. The heater is for household use only. It is not safe to use on a building site, greenhouse, barn or stable where there's flammable dust.

27. The heater is at high temperature when in use. Unplug the heater and wait until it cools down before cleaning.

28. Don't use this heater in place where causticity or volatile air exists, such as dust, steam, gas, etc.

29. Don't use this heater as a cloth drier or towel drier.

30. Don't use this heater as a sauna heater.

31. Don't use this heater for animal propagating and raising.

32. Don't immerse this heater into water for cleaning.

33. The heater should be plugged in a socket which is easily visible and reachable.

34. WARNING! In order to avoid overheating, do not cover the heater

35. Do not use this heater with a programmer, timer, separate remote-control system or any other device that switches the heater on automatically, since a fire risk exist if the heater is covered or positioned incorrectly.

36. After startup and shutdown in a few minutes, the machine will beep, due to thermal expansion. This is a normal situation, please rest assured.

Operation

Connect the power cable to a 13 amp supply which is located in a safe, dry area.

- The switch on the heater is used to control the heater. Position (1) means on; the first indicator light will turn red, indicating that the heater is in ready mode. Position (0) means off.

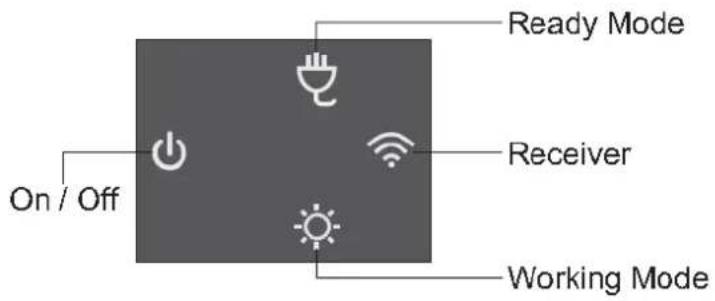

The panel control:

Ready Mode Receiver On / Off Working Mode

• Although the patio heater is waterproof, do not use when raining or in wet conditions.
  ● Never connect the power cable from the electrical supply, when the patio heater is not in use.

Care and maintenance

• When disconnected from the electrical supply, clean the surface of the patio heater with a damp cloth. Never use corrosive or solvent cleaners or immerse in water.
• Any maintenance or repairs including replacing the halogen tube should only be carried out by a qualified electrician or by a recommended service center.

Technical specification

• Power supply 230V\~ 50Hz
• Wattage max 2000W
• Net weight 1.8 kg
• Insulation class I
• Width 12cm; Length:57cm

3D rendering of a cylindrical heating element with internal cooling fins and a separate circular component (no text or symbols visible)

TECHNISCHE DATEN

Leistung: max 2000W

Diagram showing four labeled mechanical components with numbered parts and connecting lines, likely illustrating a assembly or assembly process.

M6X10 Screw

Wandmontage

Wall Φ8mm 80mm 20mm

Step 2:

Technical illustration of a wall-mounted industrial fan or enclosure with ventilation slots and mounting bracket (no text or symbols)

Warnung

Simple line drawing of a rectangular electronic component with a circular button and mounting holes (no text or symbols)

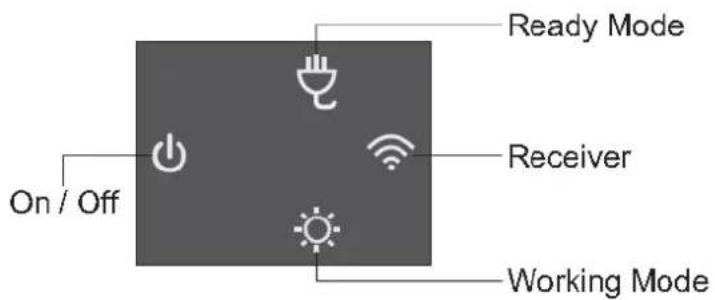

Die Schalttafel:

Ready Mode Receiver Working Mode On / Off

3D rendering of a cylindrical heating element with internal cooling fins and a separate inset showing a washer (no text or symbols visible)

TECHNISCHE SPECIFICATIES

Vermogen: max 2000W

Element type: Halogeen

Verwachte levensduur elementen: 5000 hrs.

Gewicht: 1,8kg

IP waardering: IP55

Certificaten: CE, GS, PAH, Rohs

Afmetingen: L 57cm; B 12cm

Snoer: 1.9 Meter

Afstandsbediening inbegrepen

Diagram showing four labeled mechanical components with numbered parts and connecting lines, likely illustrating a assembly or assembly process.

M6X10 Screw

Wall 20mm 80mm Φ8mm

Step 2:

Technical illustration of a wall-mounted industrial fan or enclosure with ventilation slots and mounting brackets (no text or symbols)

Waarschuwing

Ready Mode Receiver Working Mode On / Off

3D rendering of a cylindrical heating element with internal cooling fins and a separate mounting base (no text or symbols visible)

INFORMATION TECHNIQUE

Puissance: max 2000W

Qualification IP: IP55

Certificates: CE, GS, PAH, Rohs

Dimensions: L 57cm; L 12cm

Diagram showing labeled mechanical components with numbered parts, including a cylindrical component and a base with four circular features.

M6X10 Screw

Installation au mur

- Distances requises minimum:

Wall 80mm Φ8mm 20mm

Step 2:

3D rendering of a white industrial air conditioner unit with cooling fins and ventilation slots (no text or symbols visible)

Attention

Ready Mode Receiver Working Mode On / Off
