USER MANUAL RoboVac R550C eufy

For FAQs and more information, please visit www.eufylife.com

Owner's Manual

RoboVac R550C (T2106)

01
29
57
85
113
141

English

Table of Contents

02 Important Safety Instructions

04 About Your RoboVac

What's in the Box
RoboVac Anatom

08 Using Your RoboVac

Important Tips Before Use
Install the Charging Base
Charge Your RoboVac
Start/Stop Cleaning
Select a Cleaning Mode
Schedule Cleaning
Use Your RoboVac with the EulyHome App
Use Your RoboVac with Amazon Alexa/
the Google Assistant (Optional)
Use the Boundary Strip

19 Cleaning and Maintenance

Clean the Dusl Collector and Fillers

Clean the Rolling Brush

Clean the Sensors and Charging Pins

Clean the Side Brushes

Replace the Side Brushes

Troubleshooting

Wi-Fi Connection

27 Specifications

27 Notice

28 Customer Service

Thank you for purchasing RoboVac R550C. Read all instructions before using this product, and keep it properly for future reference.

EnglishEng

Important Safety Instructions

To reduce the risk of injury or damage, read these safety instructions carefully and keep them at hand when setting up, using, and maintaining this device.

eufy RoboVac R550C - Important Safety Instructions - 1

WARNING SYMBOLS USED

This is the safety alert symbol. This symbol alerts you to potential hazards that could result in property damage and/or serious bodily harm or death.

  • This device can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the device in a safe way and understand the hazards involved.
    Children should be supervised to ensure they do not play with the device.
  • Cleaning and maintenance should not be performed by children without adult supervision.
  • This device is only to be used with the power supply unit provided.
  • For the purposes of recharging the battery, only use the detachable power supply unit provided with this device.
  • The battery must be removed from this device before this device is disposed of. To remove the battery from this device, first remove the screws on the bottom, then remove the main PCB and unscrew the battery cover with a screwdriver. Remove the battery by disconnecting the quick connector.
  • The used battery should be placed in a sealed plastic bag and disposed of safely according to local environmental regulations.
  • The external flexible cable or cord of the power supply unit cannot be replaced; if the cord is damaged, the power supply unit should be disposed of.

This device is for indoor use only.
- This device is not a toy. Do not sit or stand on this device. Small children and pets should be supervised when this device is operating.
- Store and operate this device in room temperature environments only.
Clean with a cloth dampened with water only.
- Do not use this device to pick up anything that is burning or smoking.
- Do not use this device to pick up spills of bleach, paint, chemicals, or anything wet.
- Before using this device, pick up objects like clothing and loose paper, lift up cords for blinds or curtains, and move power cords and fragile objects out of the way. If the device passes over a power cord and drags it, an object could be pulled off a table or shelf.
- If the room to be cleaned has a balcony, a physical barrier should be used to prevent access to the balcony and to ensure safe operation.
- Do not place anything on top of this device.
- Be aware that the device moves around on its own. Take care when walking in the area where the device is operated to avoid stepping on it.
- Do not operate the device in areas with exposed electrical outlets on the floor.
- Do not expose the electronics of this device, its battery, or the integrated Charging Base. There are no user-serviceable parts inside.
- Do not use this device on an unfinished, unsealed, waxed or rough floor. It may result in damage to the floor and the device. Use only on hard floor surfaces or low-pile carpet.
- This device has been designed to be used on floors without scratching them. We still recommend that you test the device on a small area to ensure no scratches are left before cleaning the whole room.

EnglishEng

About Your RoboVac

eufy RoboVac R550C - About Your RoboVac - 1

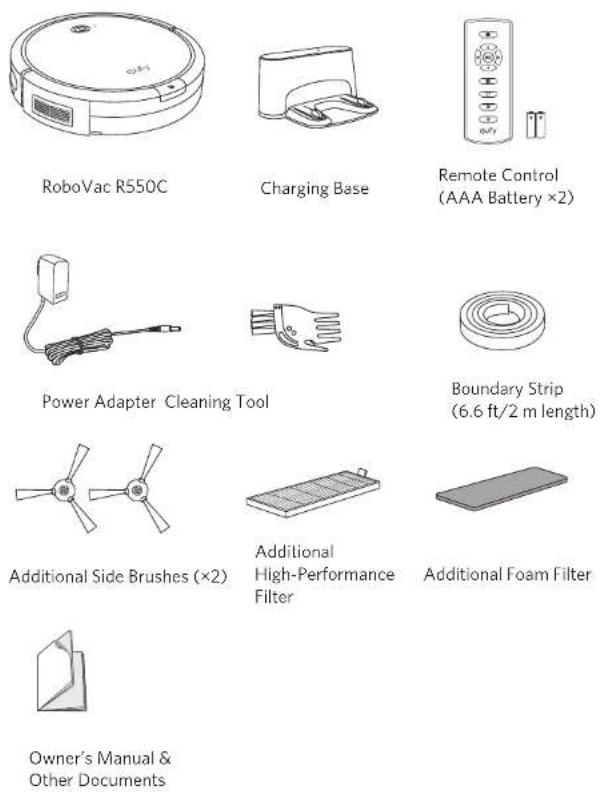

What's in the Box

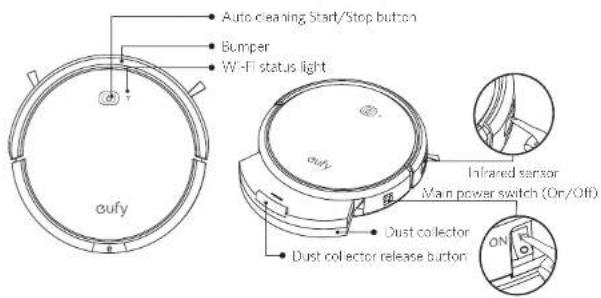

RoboVac Anatomy

eufy RoboVac R550C - RoboVac Anatomy - 1
Top & Side

eufy RoboVac R550C - RoboVac Anatomy - 2

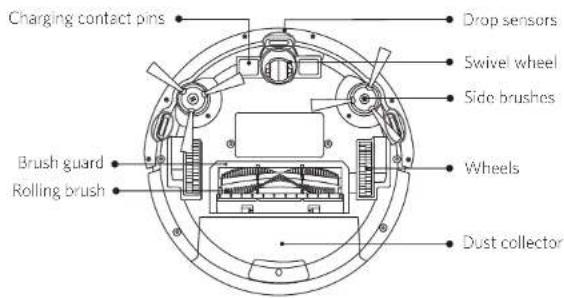

Bottom

EnglishEng

eufy RoboVac R550C - EnglishEng - 1

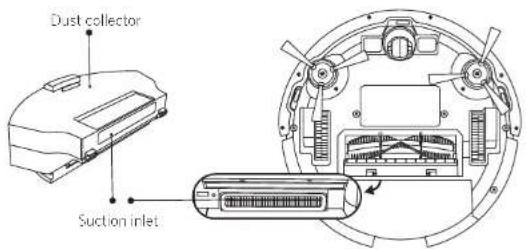

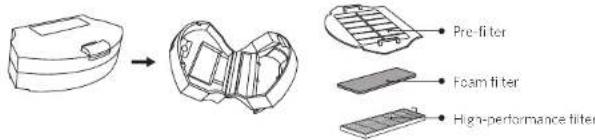

Dust Collector

eufy RoboVac R550C - EnglishEng - 2
Charging Base

eufy RoboVac R550C - EnglishEng - 3
Suction Inlet

eufy RoboVac R550C - EnglishEng - 4
Remote Control

1 Return RoboVac to Changing Base
2 Start/Stop Auto cleaning
3 Contrc clearing direction manually
4 Start Spot cleaning
5 Start Edge cleaning
6 Start Single Room cleaning
Adjust suction power level in Auto/Single Room Cleaning mode

eufy RoboVac R550C - EnglishEng - 5

Install 2 AAA batteries before using the remote control for the first time. Make sure the positive and negative ends are facing the correct polarity direction as marked in the battery compartment.

EnglishEng

Using Your RoboVac

Important Tips Before Use

eufy RoboVac R550C - Important Tips Before Use - 1

eufy RoboVac R550C - Important Tips Before Use - 1
6

eufy RoboVac R550C - Important Tips Before Use - 2
C

eufy RoboVac R550C - Important Tips Before Use - 3

eufy RoboVac R550C - Important Tips Before Use - 1
e

eufy RoboVac R550C - Important Tips Before Use - 2
f

Remove power cords and small objects from the floor that may entangle RoboVac.
Fold lasse edges of area rugs underneath to prevent tangling RoboVac. Avoid cleaning very dark-colored high-pile rugs or rugs thicker than 0.87 in/22 mm as they may cause RoboVac to malfunction.
Keep RoboVac away from spaces lower than 3.9 in/100 mm to prevent RoboVac from getting stuck. If necessary, place a physical barrier to block off the problem areas.
Keep RoboVac away from wet areas
RoboVac may climb on top of objects less than 0.59 in/15mm in height. Remove these objects if possible.
Anti-drop sensors prevent RoboVac from tumbling down slats and steel drops. They may work less effectively if dirty or used on reflective/very dark-co orec floors. Although the Boundary Stri(c) can be applied to block off the areas you do not want RoboVac to clean, they should not be solely relied upon to avoid a potentially dangerous situation. In such cases, it is recommended to place physical barriers to block off problem areas where RoboVac may fall.

eufy RoboVac R550C - Important Tips Before Use - 3

Place physical barriers in front of fireplaces and areas that may cause damage to RoboVac if entered.

Install the Charging Base

Place the Charging Base on a hard, level surface and against a wall.

eufy RoboVac R550C - Install the Charging Base - 1

eufy RoboVac R550C - Install the Charging Base - 2

Remove objects within 3 ft/1 m of the left and right side and within 6 ft/2 m of the front of the Charging Base.

eufy RoboVac R550C - Install the Charging Base - 3

3 Connect the round connector of the adapter into the power socket on the Charging Base and the other end into a wall outlet.

eufy RoboVac R550C - Install the Charging Base - 4

eufy RoboVac R550C - Install the Charging Base - 5

Install the Charging Base in o location that RoboVac can easily access.

  • Always keep the Charging Base plugged in, otherwise RofoVac will not automatically return to it.

eufy RoboVac R550C - Install the Charging Base - 6

The IFO indicator on the Charging Base is SOL ID GREEN when RobaVac is NOT docked. The IFO indicator on the Charging Base is OFF when RobaVac is docked.

EnglishEng

Charge Your RoboVac

RoboVac has a pre-installed rechargeable battery that has to be fully charged before use.
Robovac returns to the Charging Base at the end of a cleaning cycle or when its battery is running low.
Make sure the main power switch on the side of RoboVac is turned on before charging.

Method 1: Attch RoboVac to the Charging Base by aligning its charging pins with the charging pins on the base.

eufy RoboVac R550C - Charge Your RoboVac - 1

Method 2: Press in the remote control to return RoboVac to the Charging Base.

eufy RoboVac R550C - Charge Your RoboVac - 2

(Status Light) Status
Breathing blue Charging
Solid blue Standby / ClearingReturning to Charging Base
Solid purplish-red Low power and returning to Charging Base
Flashing / Solid red + BeepingRoboVac has an error
OH• RoboVac is off. • To conserve power, the light automatically turns off; • When RoboVac is not docked to the Charging Base and has been inactive for 10 minutes; • After RoboVac is docked to the Charging Base and has been fully charged for 10 minutes.

eufy RoboVac R550C - Charge Your RoboVac - 3

  • Ta enter Reduced Power Strobably mode when RoboVac is being charged, press and hold on RoboVac for 20 seconds and wait for two beeps. Wi-Fi is disabled in this mode. Press to exit Reduced Power Standby mode.
  • I um off the power switch it RoboVac will not be used for a long period of time. Io preserve the pottery's lifespan, recharge at least once every 3 months.

Start/Stop Cleaning

1. Turn on the main power supply

Press the main power switch on the side of RoboVac to turn on the main power supply.

eufy RoboVac R550C - Turn on the main power supply - 1

2. Start cleaning

PressOn RoboVac or the remote control to start cleaning in Auto Mode

eufy RoboVac R550C - Start cleaning - 1

3. Stop cleaning

PressOn RoboVac or the remote control to stop cleaning

Select a Cleaning Mode

1. Auto cleaning

RoboVac automatically clears in a back-and-forth, straight-line pattern. This is the most commonly used cleaning mode.

PressOn RoboVac or the remote control to start cleaning in Auto Mode

eufy RoboVac R550C - Auto cleaning - 1

eufy RoboVac R550C - Auto cleaning - 2

  • RoboVac will return to the Charging Base automatically when the power level becomes low or when RoboVac finishes cleaning.

By default, RoboVoc starts in Auto cleaning mode when it is turned on.

EnglishEng

BoostIQ™ Feature

When the BoostIQTM feature is enabled, RoboVac will automatically increase the suction power if it detects stronger power is needed to ensure the best clean. BoostIQTM is ideal for clearing thicker carpets and hard-to-sweep messes, which will recycle the total cleaning time, but increase the noise level. If the vacuuming noise caused by BoostIQTM disturbs you, you can disable this feature. This feature only works in Auto and Single Room cleaning modes.

In Auto or Single Room clearing mode, press the remote control repeatedly to adjust the suction power level.
You will hear a series of beeps that correspond to the selected suction power.

Suction Power Level Beeps
Standard power
Boost:IQTM(Default, automatically switches between Standard and Enhanced power)●●
Maximum power●●●
When Rabi War starts cleaning in Auto or Singlet Room mode the next time, it will clean according to the suchan power level you previously selected.

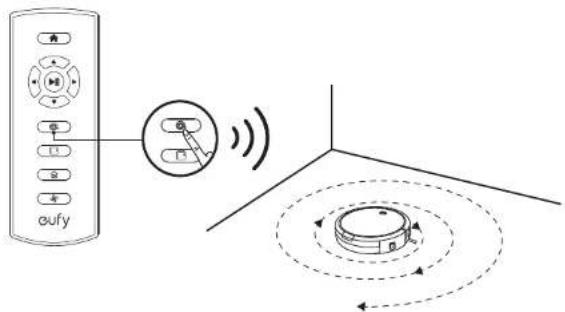

2. Spot cleaning

RoboVac intensively cleans a specific area in a spiral pattern, useful if there is a concentrated area of dust or debris. RoboVac will stop cleaning after 2 minutes in Spot mode.
Press on the remote control to start clearing in Spot mode.

eufy RoboVac R550C - Spot cleaning - 1

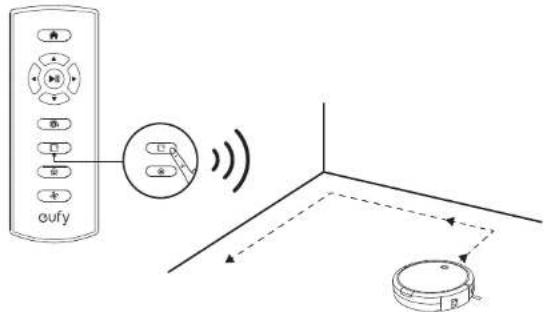

3. Edge cleaning

RoboVac reduces its speed when it detects a wall and then follows the wall to ensure the edge is cleaned thoroughly. In Edge mode, RoboVac will clean for 20 minutes and return to the Charging Base.

Press on the remote control to start cleaning in Edge mode.

eufy RoboVac R550C - Edge cleaning - 1

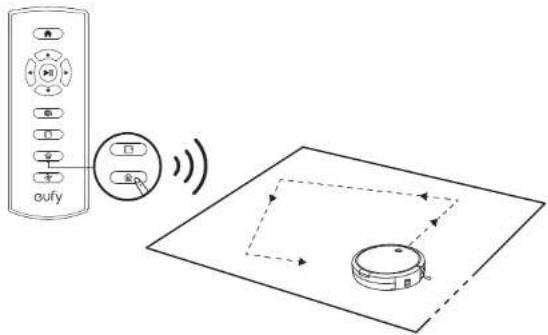

4. Single Room cleaning

RoboVac intensively cleans one single room and stops after 30 minutes. Select this mode only when one specific room needs to be cleaned. Make sure to continue RoboVac to the room by closing the door.

Press the remote control to start cleaning in Single Room Mode.

eufy RoboVac R550C - Single Room cleaning - 1

EnglishEng

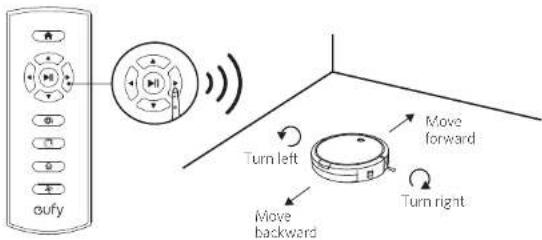

5. Manual cleaning

You can direct RoboVac to clean a particular area by using the directional buttons or the remote control.

eufy RoboVac R550C - Manual cleaning - 1

Schedule Cleaning

With the EufyHome app, you can schedule RoboVac to start cleaning at a specific time.

eufy RoboVac R550C - Schedule Cleaning - 1

You can set the time and customize the cleaning schedules from Sunday to Saturday in the EufyHome app. Cleaning schedules can only be set using the EufyHome app.

Use Your RoboVac with the EufyHome App

To enjoy all available features, it is recommended to control your RoboVac via the EufyHome app.

Before you start, make sure that:

  • Your smartphone or tablet is connected to a Wi-Fi network
  • Your smartphone or tablet is running iOS 8.0 (or above) or Android 4.3 (or above).
  • Your wireless router supports the 2.4GHz and 802.11b/g/n bands, the 5GHz band is not supported.
    RoboVac is attached to the Charging Base to ensure it has enough power during setup.
    The Wi-Fi status light on RoboVac is slowly flashing blue.

eufy RoboVac R550C - Before you start, make sure that: - 1

eufy RoboVac R550C - Before you start, make sure that: - 2

Download on the

AppStore

eufy RoboVac R550C - Before you start, make sure that: - 3

GETITON

Google Play

Download the Eufy Home app from the App Store (OS devices) or Google Play (Android devices).
2 Open the app and create a user account.
3 Tap the "i" icon in the top right corner to add RoboVac to your EufyHome account.
4 Follow the instructions in the app to set up the Wi-Fi connection.

  • After connecting successfully, you can control RoboVac via the app.

  • With the app, you can select a cleaning mode, set the time, schedule a cleaning, view the system status, receive notifications and access additional features.

Wi-Fi Status Light

eufy RoboVac R550C - Before you start, make sure that: - 4

Slowly flashing blue Waiting for connection

Rapidly flashing blue Connecting with your wireless router

Solid blue Connected with your wireless router

eufy RoboVac R550C - Before you start, make sure that: - 5

If you have any problems during the Wi-Fi setup process, refer to the

"Troubleshooting > Wi-Fi connection section in this manual

If RoboVac gets stuck in any space, top Find My Robot in the app to find the machine

This function is available in the app only.

Reset the Wi-Fi Connection

Press and hold on RoboVac for 10 seconds to reset the Wi-Fi connection if necessary.

  • You will hear a beep when the Wi-Fi connection has been reset and the Wi-Fi status light will slowly flash blue. Now you can follow the Wi-Fi instructions in the EufyHome app to set up the Wi-Fi connection.

EnglishEng

Use Your RoboVac with Amazon Alexa / the Google Assistant (Optional)

Amazon Alexa or the Google Assistant is a smart voice control device that enables you to control RoboVac with your voice.

Before you start, make sure that:

RoboVac is attached to the Charging Base to ensure there is enough power.
RoboVac is connected with the EufyHome app.
- You have an Alexa-enabled device (i.e. Sufy Genie, Amazon Echo, Echo Dot and Amazon Tap) or a device enabled with the Google Assistant (i.e. Google Home). These devices are sold separately.
- The Amazon Alexa app or Google Home app is already installed on your smart device, and you have created an account.

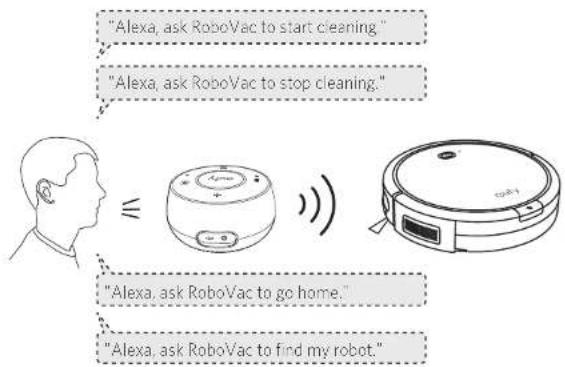

To control RoboVac with Amazon Alexa:

The Amazon Alexa service is currently available in English only. More languages may be available later with the update of the service.

Open the Amazon Alexa app and select "Skills" from the menu.
On the Skills screen, search for "EutyHome - RoboVac".
Once you have found the "EutyHome - RoboVac" skill, tap Enable
4 Logi with your EutyHome account so that Alexa can control your RoboVac.
5 Say simple commands to Alexa:

eufy RoboVac R550C - To control RoboVac with Amazon Alexa: - 1

To control RoboVac with the Google Assistant:

The Google Assistant service is currently available in English only. More languages may be available later with the update of the service.

RoboVac now works with the Google Assistant on devices like the Google Home.

Open the Google Home app.
Say "Ok Google, talk to RoboVac" to the Google Assistant-enabled device to initiate the Google action for RoboVac.
Follow the instructions in the Google Home app to authorize the Google Assistant with your EufyHome account.

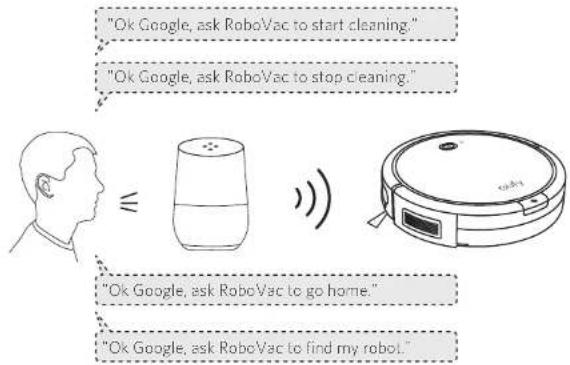

To control RoboVac with your voice, say simple commands to Google Assistant.

eufy RoboVac R550C - To control RoboVac with the Google Assistant: - 1

eufy RoboVac R550C - To control RoboVac with the Google Assistant: - 2

EnglishEng

Use the Boundary Strip

With the Boundary Strip, you can keep RoboVac away from any area or item you do not want RoboVac to clean. RoboVac will recognize the Boundary Strip and will not cross into the blocked-off area.

1 Identify the area or item you do not want RoboVac to clean.
If necessary, use scissors to cut the boundary Strip to a shorter length. Be sure to correctly measure the length before cutting. The minimum length you should cut to is 19 in/483 mm.

eufy RoboVac R550C - Use the Boundary Strip - 1

eufy RoboVac R550C - Use the Boundary Strip - 2

eufy RoboVac R550C - Use the Boundary Strip - 3

eufy RoboVac R550C - Use the Boundary Strip - 4

Apply adhesive tape to lay the Boundary Strip flat on the floor. Make sure the strip is placed FLAT on the floor.

eufy RoboVac R550C - Use the Boundary Strip - 5

eufy RoboVac R550C - Use the Boundary Strip - 6

  • If the boundary Strip is rolled up, remove and then re-apply on the floor with adhesive tape. Otherwise the boundary Strip may not work well.
  • Be careful not to damage the floor when using adhesive tape. It is not recommended (or use an epoxy).
  • Keep the Boundary Strip away from objects that emit excessive heat.

Cleaning and Maintenance

Clean the Dust Collector and Filters

Press the dust collector release button to pull the dust collector out.
Open and empty the dust collector.

eufy RoboVac R550C - Clean the Dust Collector and Filters - 1

eufy RoboVac R550C - Clean the Dust Collector and Filters - 2

3 Separate the pre-filter by pulling the hooks as shown.
Take out the foam filter and high-performance filter.

eufy RoboVac R550C - Clean the Dust Collector and Filters - 3
3
4

eufy RoboVac R550C - Clean the Dust Collector and Filters - 4

Clean the dust collector and filters with a vacuum cleaner or a cleaning brush.

eufy RoboVac R550C - Clean the Dust Collector and Filters - 5

eufy RoboVac R550C - Clean the Dust Collector and Filters - 6

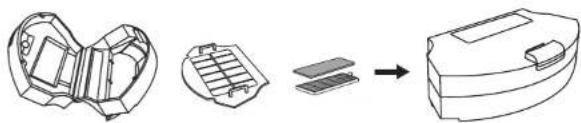

Put the filters back together in the dust collector.

eufy RoboVac R550C - Clean the Dust Collector and Filters - 7

EnglishEng

7 Push the dust collector back into the main unit.

eufy RoboVac R550C - EnglishEng - 1

eufy RoboVac R550C - EnglishEng - 2

It is recommended to empty the dust collector and clean the filter after every use. You can wash the dust collector, pre-filter and foam filter with water. Be sure to dry them thoroughly before reassembling. Do not wash the high-performance filter with water, as it may damage the filter and reduce the suction power.

Clean the Rolling Brush

Pull on the release taps to unlock the brush guard as shown.
Lift the rolling brush to remove.
Clean the rolling brush with the provided cleaning tool or a vacuum cleaner.
Reinstall the rolling brush by inserting the fixed protruding end first and then clicking into pace.
Press down to snap the brush guard into place.

eufy RoboVac R550C - Clean the Rolling Brush - 1
0

eufy RoboVac R550C - Clean the Rolling Brush - 2
2

eufy RoboVac R550C - Clean the Rolling Brush - 3

eufy RoboVac R550C - Clean the Rolling Brush - 4

eufy RoboVac R550C - Clean the Rolling Brush - 5
4

eufy RoboVac R550C - Clean the Rolling Brush - 6
5

Clean the Sensors and Charging Pins

To maintain the best performance, clean the drop sensors and charging pins regularly.

  • Dust off the drop sensors and charging contact pins using a cloth or cleaning brush.

eufy RoboVac R550C - Clean the Sensors and Charging Pins - 1

eufy RoboVac R550C - Clean the Sensors and Charging Pins - 2

Clean the Side Brushes

Foreign substances, such as hair, can easily get tangled in the side brushes, and dirt may adhere to them. Be sure to clean them regularly.
Carefully unwind and pull off any hair or string that is wrapped between the main unit and the side brushes.
Use a cloth dampened with warm water to remove dust from the brushes or to gently reshape them.

eufy RoboVac R550C - Clean the Side Brushes - 1

eufy RoboVac R550C - Clean the Side Brushes - 2

Use the side brushes only when they are completely dry.

EnglishEng

Replace the Side Brushes

The side brushes may become bent or damaged after being used for a period of time. Follow the instructions below to replace them.

Use a Phillips screwdriver to unscrew the screws on the side brushes.
Pull off the old side brushes and snap the new ones into place.

eufy RoboVac R550C - Replace the Side Brushes - 1

Screw down the screws to faster the side brushes.

Troubleshooting

Problems Solutions
RoboVac cannot be activated.Make sure the main power switch is in the ON position. Make sure the battery is fully charged. Replace the batteries (2 AAA) in the remote control. Make sure the remote control is within range (less than 10 ft/3 m from RoboVac). If you still have trouble, turn off the main power switch and then turn it back on.
The remote control does not work.Replace the batteries in the remote control. Make sure RoboVac is turned on and fully charged. If RoboVac works properly but does not respond to the remote control's commands, it may be because the remote control has not been paired with RoboVac. In this case, do not dock RoboVac to the Charging Base. Turn off the main power switch and then: (1) press and hold in the remote control for 3 seconds. (2) turn on the main power switch. You will hear three beeps after successful pairing.
RoboVac stops working suddenly.Check if RoboVac is trapped or stuck on an obstacle. Check if the power level is too low. If you still have trouble, turn off the main power switch, wait for 2 seconds, and then turn it back on.
You cannot schedule cleanings.You can set the time and scheduled cleaning time via the EutryHome app. Make sure the scheduled time has been set correctly. Check if RoboVac's power is too low to start cleaning.
Suction power is weak.Check if any obstructions are blocking the suction inlet. Empty the dust collector. Clean the filters with a vacuum cleaner or a cleaning brush
RoboVac cannot be charged.Check if the Charging Base is plugged into the outlet. Dust off the charging contact pins with a dry cloth.
RoboVac cannot return to the Charging Base.Remove objects within 3 ft/1 m of the left and right side and within 5 ft/2 m of the front of the Charging Base. When RoboVac is in the vicinity of the Charging Base, it will return more quickly. However, if the Charging Base is located far away, RoboVac will need more time to return. Please be patient as it works its way back. Clean the charging contact pins.
The rolling brush does not rotate.Clean the rolling brush. Check if the rolling brush has been installed properly.

EnglishEng

Problems Solutions
RoboVac movements or travel path are abnormal.Clean the sensors carefully with a dry cloth.Restart RoboVac by turning the power switch off and on.
RoboVac cannot connect to a Wi-Fi network.Make sure your Wi-Fi router supports the 2.4GHz and 802.11a/g/n bands; the 5GHz band is not supported. For details refer to the "Troubleshooting >Wi-Fi connection" section in this manual.
You cannot control RoboVac with Amazon Alexa.Check if there are any Internet connection problems. Check whether you have installed the Amazon Alexa app onto your smart device and enabled "EufyHome - RoboVac" Skill in the Amazon Alexa app. For details, refer to the "Use Your RoboVac with Amazon Alexa / the Google Assistant (Optional)" section in this manual. Make sure you have an EufyHome account. Make sure you are using correct Alexa voice-guidelines. The "EufyHome - RoboVac" Skill for Alexa is currently only available in English.
You cannot control RoboVac with the Google Assistant.Check if there are any Internet connection problems. Check if you have installed the Google Home app onto your smart device and initiated the "EufyHome" action in the Google Home app. For details, refer to the "Use Your RoboVac with Amazon Alexa / the Google Assistant (Optional)" section in this manual. Check if you are using the proper commands when taking to the Google Assistant. When making your request, first say "the wake words "Ok Google".Repeat your question. Speak clearly to the Google Assistant.

Error Tones

When RoboVac is in trouble, it will emit a series of short or long beeps and the red indicator on RoboVac will be solid or flashing.

Flashing red indicator light

Error Tone Cause Solution
One beepRoboVac's drop sensors are dirty.Clean the drop sensors gently with a dry cloth.
Two beepsRoboVac's power level is too low.Change RoboVac fan at least 5 hours.
Three beepsRoboVac is hanging over a legc or is trapped.Turn off RoboVac and restart in a new location.
Four beepsRoboVac's suction fan is stuck.• Turn off RoboVac, then remove and empty the dust collector. • Make sure the suction inlet is not blocked by any hair or debris.
Five beepsRoboVac's infrared sensor on the bumper is dirty.Clean the infrared sensor gently with a dry cloth

Solid red indicator light

Error Tone Cause Solution
One beepRoboVac's left/right wheel is stuck.Turn off RoboVac and remove any hair or debris from the left/right wheel.
Two beepRoboVac's side brush is stuck.Turn off RoboVac and remove any hair or debris from the side brush.
Three beepRoboVac's rolling brush is stuck.Turn off RoboVac and remove any hair or debris from the rolling brush.
Four beepRoboVac's bumper is stuck.Tap RoboVac's bumper several times to dislodge any debris that may be trapped underneath.

Wi-Fi Connection

Before Wi-Fi setup, make sure RoboVac and your Wi-Fi network meet the following requirements.

Wi-Fi Setup Requirements

RoboVac:

RoboVac is fully charged and the main power switch on the side of RoboVac is turned on.
Wi-Fi status light flashes blue slowly.

2 Wi-Fi Network:

Use the correct password for your network.
Do not use a VPN (Virtual Private Network) or Proxy Server.
- Your Wi-Fi router supports 802.11b/g/n and IPv4 protocol.
- You are using a 2.4GHz router or a dual-band router that is configured to support a 2.4GHz frequency band. RotoVac does not support 5GHz frequency band

If RoboVac cannot connect to the Wi-Fi network and you are using a 2.4/5GHz mixed network, switch to a 2.4GHz network for Wi-Fi setup. You can switch back once your setup is complete.
When connecting to a hidden network, make sure you enter the correct network name,SSID (case sensitive), and connecting to a 2.4GHz wireless network.
When using a network extender/repeater, make sure the network name (SSID) and password are the same as your primary network.
The firewall and port settings of your Wi-Fi router allow RoboVac to connect with the fully servers.

Network Security Requirement

WPA and WPA2 using TKIP, PSK, AES/CCMP encryption.
WEP EAP (Enterprise Authentication Protocol) is not supported

EnglishEng

Wi-Fi Channels

The FCC requires all wireless devices in the United States are operated on wireless spectrum channels 1-11.
Some countries outside North America can use spectrum channels above channel IT. Refer to your local regulatory agency to determine which channels are accessible.
- A future software release will support access to channels above 11 for users outside North America. Until then, use channels 1-11.

If you cannot control RoboVac with your smartphone, find the solutions below to solve the problem. If the problem persists, contact the Eufy service center for help.

Wi-Fi Status Light Cause Solution
Solid blueRoboVac has connected to your router, but cannot access the Internet.Check if your router is connected to the Internet. Check with your Internet provider to see if there is any internet connection problem.
Rapidly flashing blueRoboVac cannot connect to your wireless router.Check if you have modified your network name and password. Reset the Wi-Fi connection if necessary. Refer to the "Use Your RoboVac with the EufyHome App > Reset the Wi-Fi connection" section in this manual.
Slowly flashing blueWi-Fi connection is reset or has not been set up before.Set up Wi-Fi connection with RoboVac. Refer to the "Use Your RoboVac with the EufyHome App" section in this manual. Reset Wi-Fi connection if necessary. Refer to the "Use Your RoboVac with the EufyHome App > Reset the Wi-Fi connection" section in this manual.
Off• RoboVac is turned off • RoboVac's power level is low • RoboVac is in Sleep mode.Charge RoboVac by attaching it to the Charging Base. Make sure the main power switch on the side of RoboVac is turned on.

Specifications

Product Model T2106 Input 19 V=±6 A Battery Voltage DC 14.4 V Power Consumption 30 W Battery Type DC 14.4 V Lithon 2500 mAh Cleaning Time Max:100 mins Charging Time 300 - 360 mins
Input 19 V=±6 A Output 19 V=±6 A

Notice

eufy RoboVac R550C - Notice - 1

This symbol on the device or its packaging indicates:

Do not dispose of electrical appliances as unsorbed municipal waste; use separate collection facilities. Contact your local authority for information

regarding the collect on systems avai able, if electrical appliances are

disposed of in landfills or dumps, hazardous substances can leak into the groundwater and gel into the food chain, damaging your health and wellbeing. When replacing old appliances with new ones, the retailer is legally obliged to take back your old appliance for disposal at least free of charge.

Trademark Notice

Amazon, Echo, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates.

Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc., registered in the U.S. and other countries.

Google Play and the Google Play logo are trademarks of Google Inc.

Google Home is a trademark of Google Inc.

Customer Service

support@eufylife.com

www.eufylife.com

eufy RoboVac R550C - Customer Service - 1

(US)+1800)9887973 Mon-Fr 9:00pm-5:00pm (PT)

UK+44(0)1604936200Mon-Fn6.00-11:00(GMT)

(DE)+49(0)69.95797960Mon-16-00-11:00

(中国)-864000550036周一至周五9:00-17:30

Anker Innovations Limited

Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hong Kong

Inhaltsverzeichnis

Download on the App Store

eufy RoboVac R550C - Inhaltsverzeichnis - 1

GETON Google Play

[US]+1[800]988.7973 Mon-Fri 9:00pm-5:00pm (PT)

(LK) +44(0)1604936200 Mon-Fri 6:00-11:00(GMT)

(DE)+49(0)6995792960Mon-Fr16:00-12:00

(中国)-864000550036周一至周五9:00-17:30

Indicator: dI state WI-FL

eufy RoboVac R550C - Indicator: dI state WI-FL - 1

(US)+1800)9887973 Mon-Fr 9:00pm-5:00pm (PT)

UK+44(0)1604936200Mon-Fn6.00-11:00(GMT)

(DE)+49(0)69.95797960Mon-16-00-11:00

(中国)-864000550036周一至周五9:00-17:30

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : eufy

Model : RoboVac R550C

Category : Robot vacuum
