USER MANUAL KITCHENminis 04.1522.0011 WMF

Set-up of the one-egg boiler

1 Cover with gripping surface
2 Egg insert
3 Stainless steel heating bowl
4 On/off button
5 Eggcup
6 Measuring jug with integrated egg piercer

80% Energicersparnis*

100% Leistung

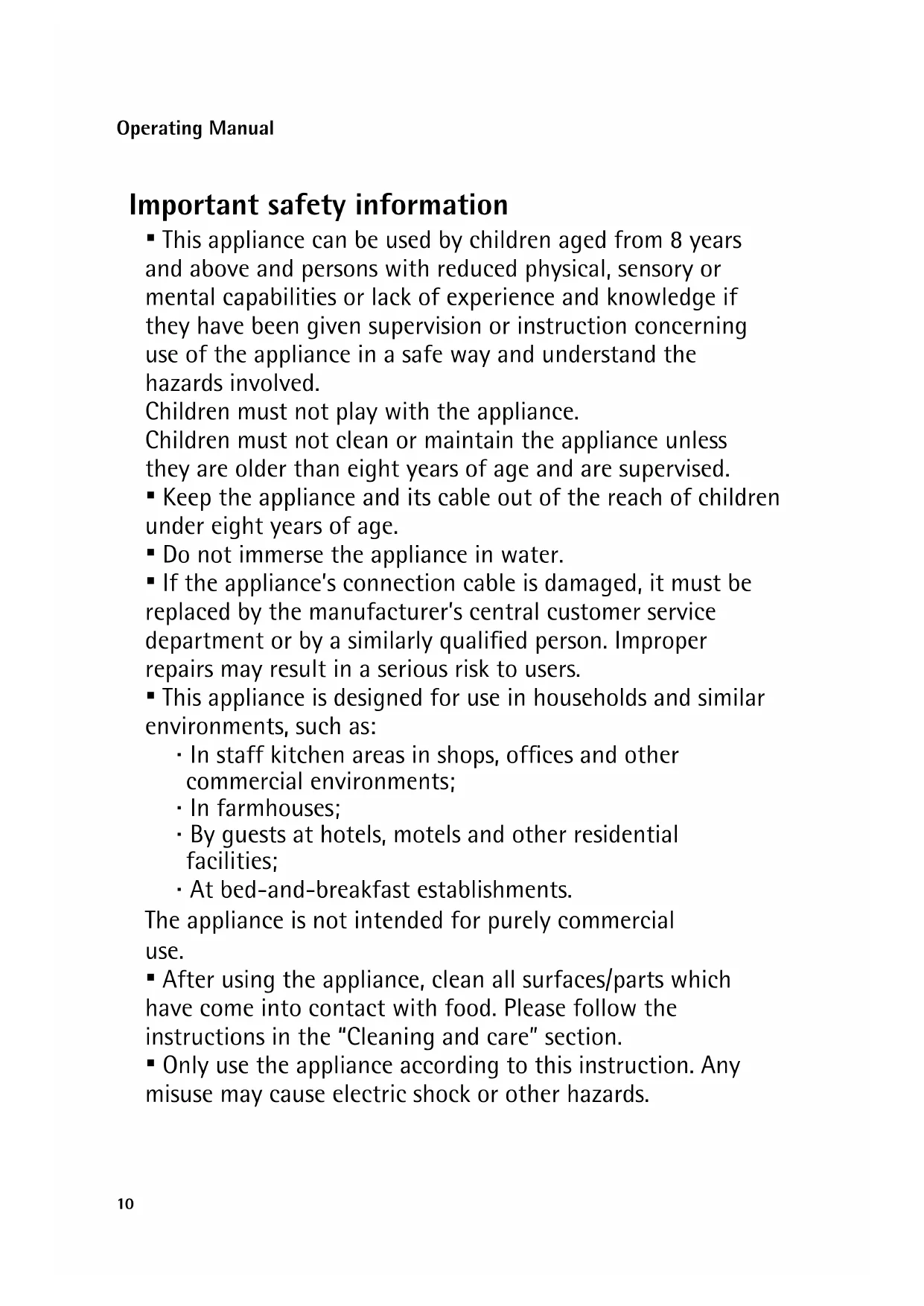

Important safety information

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children must not play with the appliance.

Children must not clean or maintain the appliance unless

they are older than eight years of age and are supervised.

• Keep the appliance and its cable out of the reach of children under eight years of age.
• Do not immerse the appliance in water.
• If the appliance's connection cable is damaged, it must be replaced by the manufacturer's central customer service department or by a similarly qualified person. Improper repairs may result in a serious risk to users.

• This appliance is designed for use in households and similar environments, such as:

• In staff kitchen areas in shops, offices and other commercial environments;
  In farmhouses;

• By guests at hotels, motels and other residential facilities;
• At bed-and-breakfast establishments.

The appliance is not intended for purely commercial use.

• After using the appliance, clean all surfaces/parts which have come into contact with food. Please follow the instructions in the "Cleaning and care" section.

• Only use the appliance according to this instruction. Any misuse may cause electric shock or other hazards.

• Caution: risk of burns! Accessible surfaces can become very hot. They also remain hot for some time after the appliance has been switched off.

• Caution: Be careful when handling the egg piercer. Risk of injury!

Before use

Read the instructions for use carefully. They contain important information about the use, safety and maintenance of the appliance.

They should be kept in a safe place and passed on to any subsequent users.

The safety precautions must be observed during use.

Technical data

Voltage: 220-240 V~50-60 Hz

Power consumption: 56 W

Protection class: II

Additional safety information

• The appliance should be connected only to earthed wall sockets that have been installed in accordance with the regulations. The power cable and plug must be dry.

• Do not pull or clamp the connection cable over sharp edges. Do not leave it dangling. Protect it from heat and oil. You must not touch the hot heating bowl or the cover.

• Never pull the mains plug out of the socket by the cable or with wet hands.

• Do not place the appliance on hot surfaces such as hotplates or operate it near naked flames.

• Do not place the appliance on water-sensitive surfaces. SPLashed water can damage such surfaces.

• Caution: the appliance gets hot. Risk of scalding from escaping steam. Do not move the appliance during operation and do not pull on the mains cable.

The appliance must be supervised when in use.

• Stop using the appliance and/or pull the mains plug out of the socket immediately if

• the appliance or mains cable is damaged;

• the appliance is leaking;
• you suspect the appliance is faulty after dropping it, for example.

In such cases, arrange for the appliance to be repaired.

Pull the mains plug:

• if the appliance malfunctions during use;
• before cleaning and care;

• after use.

• Descale the appliance regularly.

• We accept no liability for any damages caused as a result of misuse, incorrect operation or improper repairs.

Warranty claims are likewise excluded in such cases.

• Packaging materials such as plastic bags must be kept out of the reach of children.

Use

This appliance enables you to cook eggs to perfection. You can choose between soft-boiled, medium and hard-boiled eggs. The WMF KITCHENminis® My Egg one-egg boiler is suitable for cooking size S-XL eggs.

84% Space savings*

63% Resource savings*

80% Energy savings*

100% Performance

• Compared with the WMF STELIO egg cooker.

Tested by technikzuhause.de. The resources saved relate to the materials used and transport volume. The energy saved was measured on the basis of cooking one egg (medium).

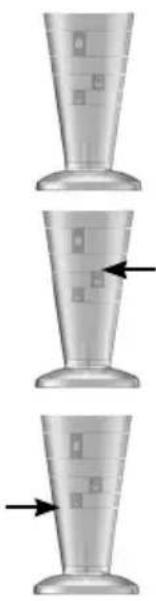

Measuring jug

The measuring jug with integrated egg piercer (6) is made of high-quality Tritan® and BPA-free. The water volumes indicated on the measuring jug (6) are guidelines. Deviations may occur due to the size, storage time and temperature of the egg. The hardness of the water also influences the cooking process.

The symbols for the different levels of hardness of the boiled eggs are indicated on the measuring jug:

Hard-boiled egg

Medium egg

Soft-boiled egg

The upper and lower edge of the respective symbol shows the different egg sizes, from S to XL.

Example: Water quantity for medium-boiling a size XL egg.

Water quantity for soft-boiling a size S egg.

Getting started

• Place the appliance on a dry, slip-resistant and even horizontal surface.

Make sure the appliance is not connected to the mains power supply.

• Remove the cover (1). Always use the gripping surface when handling the cover (1).
• Fill the measuring jug (6) with the required water quantity for the desired hardness.
• Pour the measured water quantity into the cold heating bowl (3).

Make sure you do not fill the heating bowl (3) with more water than is specified for the desired preparation. Otherwise you risk overboiling the water.

• To prevent eggs cracking open while boiling, pierce them use the egg piercer (6) built into the measuring jug.
• Place the egg on the egg insert (2) and fit the cover (1) on the appliance.
• Now insert the mains plug into the socket.
• Press the on/off button (4) to turn the appliance on. The indicator light is lit white to indicate that the appliance is in operation.
• When the egg is cooked, the appliance emits an acoustic signal.
• Press the on/off button (4) on the appliance to turn it off, then pull out the mains plug. Note: You can turn the appliance off at any time by pressing the on/off button (4).
• Carefully remove the cover (1). Always use the gripping surface when handling the cover (1).

Caution: Risk of scalding from escaping steam!

• Remove the egg insert (2) and rinse the egg under cold water to halt the cooking.

Safety system

If the egg boiler is operated accidentally without water, a thermostat switches the appliance off to protect it from overheating. You must allow the egg boiler to cool down before you operate it again.

Should the first thermostat malfunction due to improper use, an additional temperature limiter provides reliable protection.

Cleaning and care

Cleaning

Unplug the mains cord and allow the appliance to cool down. Do not immerse the appliance in water, but rather clean it using a damp cloth with a little washing-up liquid and then dry it. Do not use harsh or abrasive cleaning agents.

The heating bowl (3) is made of stainless steel. If rust spots do appear however, they are merely deposits that have formed on the surface.

They should be removed immediately with a stainless steel cleanser. The egg insert (2) and cover (1) are dishwasher-safe.

Dscaling

Limescale deposits lead to energy loss and adversely affect the lifespan of the appliance as well as the cooking results. The appliance switches off prematurely if the layer of limescale is too thick. The limescale is then very difficult to remove.

Therefore descale the appliance regularly.

• Prior to descending, unplug the appliance from the mains and allow it to cool down.
• Pour descending agent into the heating bowl (3) and leave the appliance to stand until the limescale has detached from the base.
• Then pour out the water and rinse thoroughly with cold tap water.

Do not heat the solution during descaling.

Caution: the warranty does not cover damage caused by failure to observe the descaling instructions.

For UK use only

• This product is supplied with a 13 A plug conforming to BS 1363 fitted to the mains lead. If the plug is unsuitable for your socket outlets or needs to be replaced, please note the following. If the plug is a non-rewireable one, cut it from the mains lead and immediately dispose of it. Never insert it into a socket outlet as there is a very great risk of an electric shock.
• The replacement of the plug at the mains lead has to be done according to the following instructions:

Warning - This appliance must be earthed!

Important: The wires in this mains lead are coloured in accordance with the following code:

green/yellow Earth

blue Neutral

brown Live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

• the wire which is coloured green and yellow must be connected to the terminal which is marked with the letter E or by the earth symbol 12 , or coloured green or green and yellow,
• the wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black,

• the wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

• If a 13 A (BS 1363) plug is used it must be fitted with a 3 A fuse conforming to BS 1362 and be ASTA approved. If any other type of plug is used, the appliance must be protected by a 5 A fuse either in the plug or adapter or at the distribution board. If in doubt - consult a qualified electrician.

• Never use the plug without closing the fuse cover.

The appliance complies with the European directives 2014/35/EU, 2014/30/EU and 2009/125/EU.

At the end of its lifetime this product must not be disposed of through the normal domestic waste, but it should be handed to an assembly point for the recycling of electrical and electronical appliances. You can inquire about details at the local administration.

Subject to technical changes.
