USER MANUAL Lucas Nano 602 HK AUDIO
Important Safety Instructions! Read before connecting!
This product has been built by the manufacturer in accordance with IEC 60065 and left the factory in safe working order. To maintain this condition and ensure non-risk operation, the user must follow the advice and warning comments found in the operating instructions. If this product shall be used in vehicles, ships or aircraft or at altitudes exceeding 2000m above sea level, take care of the relevant safety regulations which may exceed the IEC 60065 requirements. WARNING: To prevent the risk of fire and shock hazard, do not expose this appliance to moisture or rain. Do not open case - no user serviceable parts inside. Refer service to qualified service personnel.
This symbol, wherever it appears, alerts you to the presence of undulated dangerous voltage inside the enclosure - voltage that is sufficient to constitute a risk of shock.
This symbol, wherever it appears, alerts you to the presence of externally accessible hazardous voltage. External wiring connected to any terminal marked with this symbol must be a "ready made cable" complying with the manufacturers recommendations, or must be a wiring installed by instructed persons only.
This symbol, wherever it appears, alerts you to important and maintenance instructions in the accompanying e. Read the manual.
This symbol, wherever it appears, tells you: Take care! Hot To prevent burns you must not touch.
All electrical and electronic products including batteries be disposed of separately from the municipal waste stream via fixed collection facilities appointed by the government or the authorities.
Read these instructions. Keep these instructions. Follow all steps and instructions marked on the product and in this manual.
- Do not use this product near water. Do not place the product near water, baths, wash basins, kitchen sinks, wet areas, swimming pools or damp rooms.
- Do not place objects containing liquid on the product - vases, glasses, bottles etc.
Clean only with dry cloth.
- Do not remove any covers or sections of the housing.
- The set operating voltage of the product must match the local mains supply voltage. If you are not sure of the type of power available consult your dealer or local power company.
- Before connecting the device, please ensure that the mains supply you are using is equipped with adequate protection against short circuiting and grounding faults when the device is plugged in.
To reduce the risk of electrical shock, the grounding of this product must be maintained. Use only the power supply cord provided with this product, and maintain the function of the center (grounding) pin of the mains connection at any time. Make sure the mains outlet used provides a proper protective ground connection.
- Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obolete outlet.
- Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the device! Power supply cords should always be handled carefully. Periodically check cords for cuts or sign of stress.
especially at the plug and the point where the cord exits the device. Never use a damaged power cord.
- Unplug this product during lightning storms or when unused for long periods of time.
-
This product can be fully disconnected from mains only by pulling the mains plug at the unit or the wall socket. The product must be placed in such a way at any time, that disconnecting from mains is easily possible.
-
Fuses: Replace with IEC127 (5x20mm) type and rated fuse for best performance only! It is prohibited to use "patched fuses" or to short the fuse-holder. Replacing any kind of fuses must only be carried out by qualified service personal.
Refer all servicing to qualified service personnel. Servicing is required when the unit has been damaged in any way, such as: - When the power cord or plug is damaged or frayed.
- If liquid has been spilled or objects have fallen into the product.
- If the product has been exposed to rain or moisture.
- If the product does not operate normally when the operating instructions are followed.
- If the product has been dropped or the cabinet has been damaged.
- Do not connect external speakers to this product with an impedance lower than the rated impedance given on the product or in this manual. Use only cables with sufficient cross section according to the local safety regulations.
- Keep away from direct sunlight.
- Do not install near heat sources such as radiators, heat registers, stoves or other devices that produce heat.
- This apparatus is for moderate climates areas use, not suitable for use in tropical climates countries.
- Do not block any ventilation openings. Install in accordance with manufacturer's instructions. This product must not be placed in a built-in installation such as a rack unless proper ventilation is provided.
Always allow a cold device to warm up to ambient temperature, when being moved into a room. Condensation can form inside it and damage the product, when being used without warming up.
- Do not place naked flame sources, such as lighted candles on the product.
The device must be positioned at least 20~cm / 8^ away from walls.
- Use only with the cart, stand, tripod, bracket or table specified by the manufacturer or sold with the product. When a cart is used, use caution when moving the cart/product combination to avoid injury from tip-over.
- Use only accessories recommended by the manufacturer, this applies for all kind of accessories, for example protective covers, transport bags, stands, wall or ceiling mounting equipment. In case of attaching any kind of accessories to the product, always follow the instructions for use, provided by the manufacturer. Never use fixing points on the product other than specified by the manufacturer.
- This appliance is NOT suitable to be used by any person or persons (including children) with limited physical, sensorial or mental ability, or by persons with insufficient experience and/or knowledge to operate such an appliance. Children under 4 years of age must be kept away from this appliance at all times.
- Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in risk of fire or electric shock.
- This product is capable of delivering sound pressure levels in excess of 90 dB, which may cause permanent hearing damage! Exposure to extremely high noise levels may cause a permanent hearing loss. Wear hearing protection if continuously exposed to such high levels.
- The manufacturer only guarantees the safety, reliability and efficiency of this product if:
Assembly, extension, re-adjustment, modifications or repairs are carried out by the manufacturer or by persons authorized to do so.
- The electrical installation of the relevant area complies with the requirements of IEC (ANSI) specifications.
- The unit is used in accordance with the operating instructions.
- This product is optimized for use with music and speech signals. Using this product with sine wave, square wave or other kind of measuring signals at higher level may lead to severe damage of the product.
General Notes on Safety for Loudspeaker Systems
Mounting systems may only be used for those loudspeaker
systems authorized by the manufacturer and only with the mounting accessories specified by the manufacturer in the installation instructions. Read and heed the manufacturer's installation instructions. The indicated load-bearing capacity cannot be guaranteed and the manufacturer will not be liable for damages in the event of improper installation or the use of unauthorized mounting accessories.
The system's load-bearing capacity cannot be guaranteed and the manufacturer will not be liable for damages in the event that loudspeakers, mounting accessories, and connecting and attaching components are modified in any way.
Components affecting safety may only be repaired by the manufacturer or authorized agents, otherwise the operating permit will be voided.
Installation may be performed qualified personnel only, given only at pick-points with sufficient load-carrying capacity compliance with local building regulations. Use only the existing hardware specified by the manufacturer in the installation instructions (screws, anchors, etc.). Take all the precautions necessary to ensure bolted connections and other threaded locking devices will open.
Fixed and portable installations (in this case, speakers mounting accessories) must be secured by two independent ties to prevent them from falling. Safeties must be able to accessories or parts that are loose or may become loose. compliance with the given national regulations when using acting, attaching, and rigging devices. Factor potential dynamic (jerk) into the equation when determining the proper size and bearing capacity of safeties.
1 Be sure to observe speaker stands' maximum load-bearing capacity. Note that for reasons of design and construction, most center stands are approved to bear centric loads only; that is, the speakers' mass has to be precisely centered and balanced. Ensure center stands are set up stably and securely. Take appropriate added measures to secure speaker stands, for example when:
-
the floor or ground surface does not provide a stable, secure base.
-
they are extended to heights that impede stability.
-
high wind pressure may be expected.
-
there is the risk that they may be knocked over by people.
Special measures may become necessary as precautions against unsafe audience behavior. Do not set up speaker stands in evacuation routes and emergency exits. Ensure corridors are wide enough and put proper barriers and markings in place when setting speaker stands up in passageways. Mounting and dismounting are especially hazardous tasks. Use aids suitable for this purpose. Observe the given national regulations when doing so.
Wear proper protection (in particular, a helmet,
gloves, and safety shoes) and use only suitable means of ascent (ladders, scaffolds, etc.) during installation. Compliance with this requirement is the sole responsibility of the company performing the installation.
WARNING: After installation, inspect the system comprised mounting fixtures and loudspeakers to ensure it is properly d.
The operator of loudspeaker systems (fixed or portable) must regularly inspect or task a third party to regularly inspect all system components in accordance with the given country's regulations and have possible defects repaired immediately.
We also strongly recommend maintaining a logbook or the like to document all inspections.
When installing speakers for longer lasting or permanent outdoor operation, be sure to take into account the stability and load-bearing capacity of platforms and surfaces; loads and forces exerted by wind, snow, and ice; as well as thermal influences. Also be sure to provide sufficient safety margins for the rigging points used for flow systems. Observe the given national regulations when doing so.
- Ask the manufacturer if your product is allowed for outdoor usage!
Professional loudspeaker systems can produce harmful levels. Even prolonged exposure to seemingly harmless levels (e.g. at about 95 dBA SPL) can cause permanent hearing damage! We therefore recommend that everyone who is exposed to high levels produced by loudspeaker systems wears professional hearing protection (earplugs or earmuffs).
Manufacturer: Stamer Musikanlagen GmbH, Magdeburger Str. 8, 66606 St. Wendel, Germany
LUCAS NANO 602
Welcome to the HK Audio family!
Thank you for choosing a brand-name product made by our company. Rest assured, we engineered and built it with the greatest care so it will serve you well for many tomorrows to come.
Even if your experience with sound systems runs deep, some things about this product are sure to be new to you. This is why we ask that you do not set this manual aside without reading it first. Be sure to keep it in a safe place for later reference.
Here's wishing you the best sound at every occasion!
Your HK Audio team
Warranty
Register your LUCAS NANO 602 to extend your warranty to five years free of charge! Use the convenient online registration option at www.hkaudio.com.
If you are unable to register online, please fill out the enclosed warranty card, ensuring all information is legible and complete, and mail or fax it to us.
The registration is only valid if the warranty registration card is fi Iled out and returned to HK AUDIO or the device is registered online within 30 days of the date of purchase.
We are also interested in learning where and by whom our devices are used. This information will help us design future products. Your data are of course protected by German privacy laws.
Thank you!
HK AUDIO
Technischer Service
Postfach 1509
66595 St. Wendel, Germany
Fax:+496851905100
Strong electromagnetic interference or electrostatic discharge may prevent the product from functioning normally. If this happens, the product may be returned to normal operation by powering off and on again. Should this not result in the product functioning normally again, please move the product away from the source of disturbance and try again.
1 General Info
Contents
When you first unpack your LUCAS NANO 602, take a quick inventory to make sure the package comes complete with all the contents. LUCAS NANO 602 consists of a powered subwoofer and two satellites. A speaker pole adapter sleeve (M33 to M20), a protective cap for the speaker pole and a mains cable are also included, which you'll find in the box holding the power cord.
The System's Components
The Subwoofer
The subwoofer houses the 10" woofer, the system's active circuitry and the Class D power amplifiers. The speaker outputs for connecting satellites and the mains socket are located on the rear. That's where you'll also find the transport bay for the satellites and a recessed Auto Sleep button that activates an automatic power-saving function.
S-Connect (M33)
Speaker OutEasy-Click Signal c
On top of the housing, you'll find an Easy-Click guide rail with built-in signal-carrying terminals and an M33 pole mount that is also able to route the signal. The M33 is designed to take the S-CONNECT POLE LN speaker extension pole. The included adapter sleeve (M33 to M20) lets you attach standard M20 speaker poles, but they don't have a built-in signal bus.
Speaker pole adapter sleeve (M33 to M20)

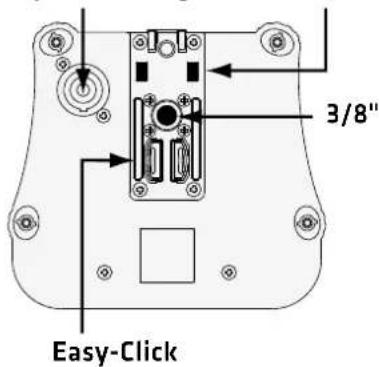

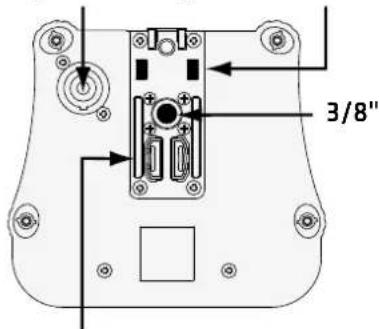

The Satellites
The two satellites are loaded with one each 4.5'' broadband speaker and a 1'' horn in coaxial array. The speakers are fronted with an acoustic lens—HK Audio's proprietary Multicell Transformer—that delivers higher sound pressure, less distortion and enhanced directivity.
A 3/8" threaded insert on the bottom of the housing serves to mount the satellite on a standard microphone stand. The optionally available Pole Mount Adapter lets you mount the satellite on a standard 35mm pole. On the bottom of the enclosure is an Easy-Click connector with a built-in signal bus. It lets you slot the satellites right into the subwoofer's Easy-Click locking mechanism. Two contacts establish an audio link with the subwoofer, so you don't need any speaker cords to route signals.
Speaker In Signal contacts
On top of the housing is another guide rail that takes two upside down satellites. It establishes audio and mechanical connections, and couples the speakers acoustically to achieve even more sound pressure and greater reach.
S-CONNECT POLE LN (optional)
The S-CONNECT POLE LN A is a freely adjustable speaker extension pole with a built-in signal bus. It provides a very elegant way of mounting satellites on the subwoofer without having to use speaker cords. The S-CONNECT POLE LN screws into the S-CONNECT insert on the subwoofer, and the satellites snap right onto the pole's Easy-Click connector. This also links up with the built-in signal bus so you don't need an external cable.
Signal contacts
Setting Up
The LUCAS NANO 602 satellites are locked in place in the bay on the rear of the subwoofer. Here's how to undo the transportation latches:
- Carefully set the subwoofer face down on the speaker front and turn the T-grips on both sides to unlock the spring-mounted locking pins. Remove the two satellites from the transport bay.
- Always make sure the locking pins are engaged to fix the two satellites in place when transporting your LUCAS NANO 602.
Wireless Convenience, the Easy-Click Way

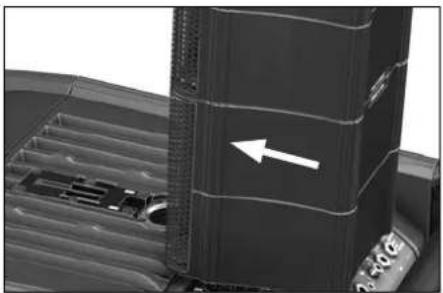

The Easy-Click connector snaps in place to physically link the two satellites; what's more, it also establishes an electrical connection.
To disconnect the satellites, turn the speaker pair to the position shown in the figure below, and press the top satellite—that is, the one with the inscription that reads 'push to release'—forward and out of the guide rail.
- The procedure is reversed 180^ to lock the satellites in place. Hold the speaker pair as shown in the diagram below and slide the top satellite—that is, the one with the inscription that reads 'push to connect'—forward into the guide rail until it clicks firmly into place.
Wireless Setup Options with Easy-Click
Signal via Easy-Click
Mono Cube No cables needed
Mono System with S-CONNECT POLE LN No cables needed
Mono Cube
The mono cube is your simplest option for setting up LUCAS NANO 602. In this configuration, the connected pair of satellites is mounted right on top of the subwoofer. In this setup, the Easy-Click connector also serves to route the signal between the subwoofer and satellite array.
- To this end, place the subwoofer upright.
- Hold the paired satellites with the speakers facing forward as shown in the figure on the left. Now push on the back of the enclosures, sliding the pair forward into the guide rail until they click firmly into place.
Be advised note that you will not be able to tap the system's full audio potential with this setup.
A Mono System with an S-CONNECT POLE LN
Another wireless setup option is the mono system with the optional S-CONNECT POLE LN, a signal-routing speaker pole. This pole's base end screws straight into the M33 pole mount on the subwoofer and its top end connects to the satellite array via Easy-Click.
Be sure to set the Setup selector to 'Satellite Array' when you use these two wireless setup options (for more on this, see section 8):
Your LUCAS NANO 602 is now ready to go.
For details on setup options (such as stereo and twin stereo systems) as well as descriptions of the add-ons that are available for these setups, read Chapter 3 - Setups and Accessories.
2 Connectors and Control Features
Power
This button switches LUCAS NANO 602 on and off .
Status Indicator
This dual-color LED indicates the following statuses:
- Green = power on
Red = limit/mute or error
If it flashes briefly red from time to time, this tells you that the limiter is responding to signal peaks.
Heads up! If the Status LED stays red while LUCAS NANO 602 is up and running, the system is being overloaded. Turn down the signal level! If you are not feeding a signal in and the Status LED stays red, a malfunction has occurred.
Note: There are situations when LUCAS NANO 602 remains muted for about two seconds to give the amplifier unit time to ramp up and to prevent switching noise (the Status LED lights up red during this time). It does this:
- when you press the Power button to switch the system on
- when you press the Setup button
If the light remains on, a malfunction has occurred and you need to get in touch with our Technical Service team.
Gain/Volume
Use this rotary knob to adjust the given input's signal level. Twist it counterclockwise to the far left to turn the signal level all the way down and clockwise to the far right to turn it all the way up.
Stereo Input 1/2 (XLR/1/4")
These balanced combination input ports - XLR/1/4" (6.3 mm) jacks - serve to connect a line signal. Channel 1's signal is routed to the left; Channel 2's to the right.
Stereo Input 1/2 (mini jack)
Use this 3.5 mm mini jack to connect high-gain audio devices such as CD and MP3 players, DJ mixing consoles and computers.
Heads up: The input combination ports (4) are muted when you insert a plug into this mini jack.
Sub
Use this rotary knob to adjust the bass level within a range of - to +6 dB, with 0 dB being at the center or 12 o'clock position.
Balance
Use this rotary knob to adjust the left and right channels' relative levels. The Balance knob should normally remain at the center or 12 o'clock position for a single LUCAS NANO 602 for stereo (Stereo Satellite) or mono (Satellite Array) setups.
If you're using two LUCAS NANOs as a twin stereo system, set the left LUCAS NANO system's Balance knob to the far left and the right system's knob to the far right, or vice versa if you want to flip the sides (see also 8 and chapter 3).
8 Setup
Stereo Satellite
Satellite Array
This switch configures the system for the target setup. LUCAS NANO 602 provides different signals tuned specifically for Stereo Satellite and Satellite Array setups (see also chapter 3, Setups and Accessories).
Stereo Satellite mode: The left channel of the stereo signal is sent to the Easy-Click connector, the S-CONNECT mount (both are on top of the subwoofer), and the left Speaker Out on the subwoofer's rear panel. The right channel of the stereo signal is always routed to the right Speaker Out port.
Satellite Array mode: This setting optimizes the EQ for the two interconnected satellites. The signal is routed via Easy-Click and S-CONNECT to the left Speaker Out. The right Speaker Out is disabled (the right speaker LED lights up orange).
9Thru L/R
This is a parallel, balanced circuit that routes input signals from Input 1/2 (4) to another destination such as a monitor or serves as DI output. This ports taps the signal at the XLR/1/4" (6.3 mm) Combi port, before it is amplified. The stereo mini-jack's signal cannot be tapped. The Thru outputs are balanced.

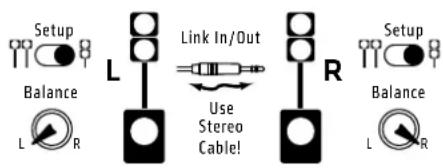

10 Link In/Out
This 1/4'' (6.3 mm) stereo jack serves to connect one LUCAS NANO 602 to another LUCAS NANO to configure a twin stereo system. It's imperative that you use a shielded cord equipped with stereo 1/4'' (6.3 mm) jack plugs such as the optional LUCAS NANO LINK CABLE to do this. No other type of cable will do.
Heads up: Do not connect the two systems with the power on. Be sure both are switched off; otherwise, the volume level may spike when you plug in the Link cable.
See section 3.6 for details on configuring a twin stereo system.
1 Speaker Out to Satellite L/R
Connect these speaker outputs to LUCAS NANO 602 satellites only—and to no other device of any kind—using speaker cables equipped with Speakon® NL2-compatible connectors (+1/-1). If you connect any other device, you may destroy it and LUCAS NANO 602 as well.
Heads up: Be sure to rotate speaker connectors clockwise until they lock in place.
12 Speaker LED
These dual-color LEDs indicate the status of each Speaker Out port.
Green = active speaker output
Orange = inactive speaker output
The Setup button (B) activates and deactivates these outputs.
Heads up: After you press the Setup button, the outputs of the LUCAS NANO 602 are muted for around two seconds, during which time the LEDs light up orange.
13 Auto Sleep (switch in the transport bay)
LUCAS NANO 602 features an automatic power-saving mode that is activated and deactivated using the Auto Sleep switch in the satellite transport bay at the back of the enclosure. The system ships with the switch set to the 'On' position so that Auto Sleep is activated by default. If LUCAS NANO 602 does not get an input signal for around four and a half hours, the power amp will switch over to standby mode. To power the system up again, engage the Power On/Off switch or disconnect and reconnect mains power. Set Auto Sleep to the 'Off' position if you wish to disable this standby function.
14 Mains Socket
Use the factory-included mains cord to connect this socket to a wall outlet. Caution! Make sure the local mains voltage matches the voltage specified on LUCAS NANO 602. Connecting it to the wrong mains voltage may destroy its electronic components.
3 Setups and Accessories
You can deploy LUCAS NANO 602 in various configurations. The optional HK Audio accessories listed in section 3.7 let you do this with the greatest fI exibility and convenience.
3.1 Mono System
With the S-CONNECT POLELN
(see the picture below)
No speaker cables
Screw the S-CONNECT POLE LN into the M33 pole mount on the subwoofer's top panel. Then attach the satellite array to the S-CONNECT POLE LN adapter sleeve via the Easy-Click connector. The signal bus is built in, so you don't need to connect any speaker cables for this setup. Be sure to set the Setup selector to 'Satellite Array' and the Balance knob to the center or 12 o'clock position.
- Required accessories: S-CONNECT POLE LN

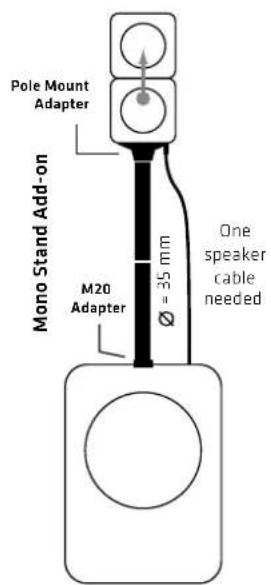

3.2 Mono System
With the LUCAS NANO 600 MONO STAND ADD-ON or in combination with a standard 35mm / M20 speaker extension pole (see the picture below)
Use Speaker Cut L
Screw the included M33-to-M20 adapter sleeve into the pole mount on the subwoofer's top panel. Screw the speaker pole that comes with the MONO
STAND ADD-ON kit into the pole mount and attach the POLE MOUNT ADAPTER included in the ADD-ON kit to the speaker pole's top end. Then attach the satellite array to the POLE MOUNT ADAPTER via the Easy-Click connector.
Be advised that the POLE MOUNT ADAPTER does not route the signal to the satellites; you will have to use a speaker cable to connect the subwoofer's Speaker Out L port to the satellite array.
Be sure to set the Setup selector to 'Satellite Array' and the Balance knob to the center or 12 o'clock position.
- Required accessories: MONO STAND ADD-ON (1 two-piece speaker pole with stand adapter, 1 speaker cord, 1 bag)
This setup option works with any standard 35 mm/M20 speaker extension pole. All you need is the POLE MOUNT ADAPTER to attach the satellites.

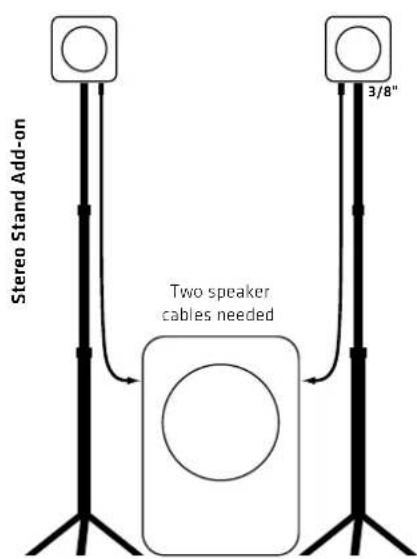

3.3 Stereo System
With the LUCAS NANO 600 STEREO STAND ADD-ON or in combination with standard microphone stands with a 3/8 thread (see the picture below)
Place the two LUCAS NANO 602 satellites on the STEREO STAND ADDON speaker stands' 3 / 8'' threads and screw them down. Now connect the satellites to the subwoofer's two Speaker Outs using speaker cables. Be sure to set the Setup selector to 'Stereo Satellite' and the Balance knob to the center or 12 o'clock position.
- Required accessories: STEREO STAND ADD-ON (2 height-adjustable speaker stands, 2 speaker cords, 1 bag)
This setup option works with any standard microphone stand, provided it is fitted with a 3/8" thread.
Signal via Easy-Click
Bold black: Part of the listed accessories
3.1 Mono System with S-CONNECT POLE LN No cables needed
3.2 Mono System with MONO STAND ADD-ON
3.3 Stereo System with STEREO STAND ADD-ON (also works with microphone stands)

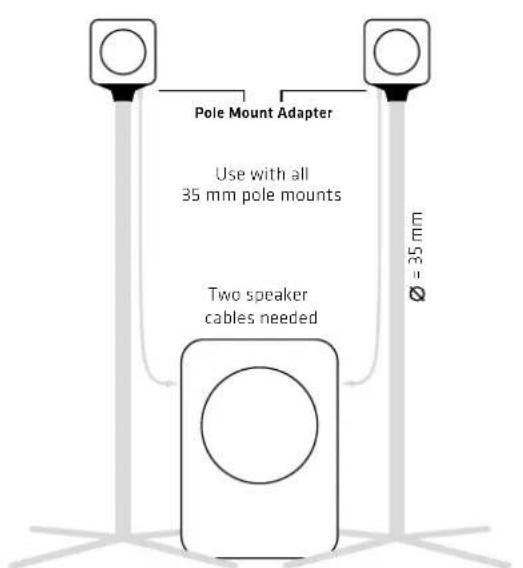

3.4 Stereo System
With standard speaker stands and the POLE MOUNT ADAPTER (see the picture below)
Use L/R Speaker Outs
Insert the POLE MOUNT ADAPTERs onto the 35 mm-diameter speaker stands and use the Easy-Click connector to attach each satellite to a POLE MOUNT ADAPTER. Be advised that the POLE MOUNT ADAPTER does not route the signal to the satellite; you will have to use two speaker cables to connect the subwoofer's Speaker Outs to the two satellites. Be sure to set the Setup selector to 'Stereo Satellite and the Balance knob to the center or 12 o'clock position.
- Required accessories: 2 POLE MOUNT ADAPTERs

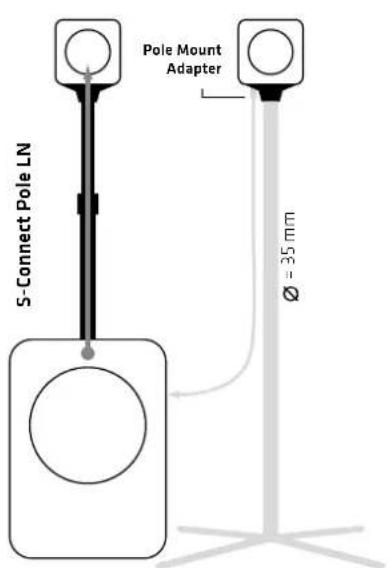

3.5 Stereo System
With an S-CONNECT POLE LN in combination with standard microphone stands with a 3/8'' thread or standard speaker tripods and the POLE MOUNT ADAPTER
Use Speaker Out R
Screw the signal-carrying S-CONNECT POLE LN into the M33 mount on top of the subwoofer. Lock one satellite in place with the S-CONNECT POLE LN's Easy-Click mechanism. This satellite renders the left channel of the stereo image. Attach the POLE MOUNT ADAPTER to the (35 mm diameter) speaker pole. Connect the other satellite to the POLE MOUNT ADAPTER via Easy-Click. Be advised that the POLE MOUNT ADAPTER does route the signal in this setup. You have to plug one end of a speaker cable into the subwoofer's Speaker Out R port and the other into the satellite's Speaker In
port to connect the two. Be sure to set the Setup switch to Stereo Satellite mode and the Balance knob to the center or 12 o'clock position.
This setup option works with any standard microphone stand with a 3/8" thread, in which case you won't need the POLE MOUNT ADAPTER.
- Required accessories: 1x S-CONNECT POLE LN, 1x POLE MOUNT ADAPTER
3.6 Twin Stereo System
With 2 S-CONNECT POLE LNs + 1 LUCAS NANO LINK CABLE (see the picture below)
For usage without S-CONNECT POLE LN. use the Speaker Out L on both systems
It takes two LUCAS NANOs to set up a twin stereo system. First set up each as a mono system as described in section 3.2, and then link the two to create a twin stereo system using the two subwoofer's Link In/Out jacks (10). You will need the LUCAS NANO LINK CABLE or a shielded stereo cord equipped with 1 / 4'' (6.3 mm) jack plugs to do this.
Heads up: One system's Balance knob has to be turned to the left and other's to the right.
Pairing up two systems to configure a twin stereo system gives you twice the number of channels. The Master knob on each LUCAS NAND controls the overall volume of that unit's master mix; that is, the channels that have been blended to a composite signal. Be sure to set the Setup switches on both systems to 'Satellite Array'.
- Required accessories: 2x S-CONNECT POLE LN / 1x LUCAS NANO LINK CABLE
3.4 Stereo System with two POLE MOUNT ADAPTERs and standard pole mounts
3.5 Stereo System with one 5-CONNECT POLE LN +one POLE MOUNT ADAPTER
3.6 Twin Stereo System with two 5-CONNECT POLE LN +one NANO LINK CABLE
3.7 Accessories for LUCAS NANO 602
1. S-CONNECT POLE LN
Content: 1 signal-routing speaker pole including a pole mount adapter (height adjustable from 83 to 137~cm ), 1 bag
2. MONO STAND ADD-ON (LUCAS NANO 600 SERIES)
Content: 1 two-part speaker extension pole, height: 55 or 110 cm, 1 pole mount adapter, 1 speaker cable, 1 bag
3. STEREO STAND ADD-ON (LUCAS NANO 600 SERIES)
Content: 2 speaker stands with tripod base (height adjustable from 76 to 170 cm), 2 speaker cables, 1 bag
4. LUCAS NANO POLE MOUNT ADAPTER
Content: 2 adapters for 35 mm-diameter speaker pole
5. LUCAS NANO LINK CABLE
Content: 1 stereo cable with 1/4'' (6.3 mm) jacks for connecting two LUCAS NANO
6. ROLLER BAG (LUCAS NANO 600 SERIES)
Content: 1 padded trolley for LUCAS NANO 600 series systems
7. DESK/WALL MOUNT (LUCAS NANO 600 SERIES)
Content: 2 wall mounts/desktop stands, 2 cables with angled 1/4'' (6.3 mm) jacks, 2 1/4" (6.3 mm) stereo jack adapters
8. LUCAS NANO DRUM RACK ADAPTER
Content: 2 rods with 3/8 threads, 25 cm long and 18 mm in diameter, that attach to rack clamps
4 Aiming Satellites
4.1 Vertical Alignment
The vertical directivity of a single LUCAS NANO 602 satellite in stereo mode is +10^× -45^ . Vertical directivity changes to 30^ when you use the two satellites in an array.
Always line up LUCAS NANO 602 satellites with the audience's ear level to achieve the most balanced audio image.
4.2 Horizontal Alignment
The satellites' horizontal directivity comes to around 90^ . Depending on room size and whether it's a mono or stereo setup, you may want to turn the satellites as necessary.
5 Technical Specifications
| LUCAS NANO 602 System |
| Total power output (RMS)1460 W Class D |
| Calculated peak power 1500 W |
| Frequency response +/- 3 dB 43 Hz - 20 kHz |
| Active protective circuits Mult Band Limiter, Subsonic Filter, Thermo Protection, Overload Protection |
| Inputs 2 1/4" (6.3 mm) jack/XLR combo ports, 3.5 mm mini jack (stereo), Link In (for Twin Stereo mode) |
| Outputs Speaker Out, Easy-Clack, Thru, Link Out (for Twin Stereo mode) |
| Enclosure | Coated polypropylene |
| Optional accessories S-Connect Pole LN (signal-routing speaker pole), Stereo Stand Add-on, Roller Bag (padded trolley), Desk/Wall Mount, Link Cable, Drum Rack Adapter |
| Weight 16.3 kg / 35.9 lbs. | |
| LUCAS NANO 602 Subwoofer |
| Max SPL peak2 123 dB | |
| Frequency response +/- 3 dB 43 Hz - 190 Hz |
| Bass woofer | 10" |
| Nominal impedance | 8 ohms |
| Pole mount | M33 for the (signal-routing) S-Connect Pole LN, a speaker pole adapter sleeve (M33 to M20) is included |
| Dimensions (WxHxD) | 35 x 49 x 47 cm |
| Weight | 13.9 kg / 30.6 lbs. |
| LUCAS NANO 600 Series Satellite |
| Max SPL peak2 | 124 dB (Single Satellite)
130 dB (Satellite Array) |
| Frequency response +/- 3 dB 10Hz - 20 kHz |
| Woofer 4.5" | |
| HF driver | 1" HK Audio Multicell Transformer |
| Horn directivity | 90° x +10/-45° (Single Satellite)
90° x 30° (Satellite Array) |
| Nominal impedance | 8 ohms (Single Satellite)
4 ohms (Satellite Array) |
| Inputs Speaker In, Easy-Click | |
| Pole Mount Adapter | 3/8" thread |
| Dimensions (WxHxD) | 14.5 x 14.5 x 13.5 cm |
| Weight | 1.2kg / 2.6 lbs. |
| General Technical Specifications |
| Current consumption
pursuant to EN 60065a | 0.7 A / 220-240 V AC |
| 1.5 A / 100-120V AC |
| Inrush current | 45 A at 120 V and 230 V |
1 Short-term RMS value measured using a sine burst signal with a 1/4 cycle rate and a resulting crest factor of 9 dB at a frequency that is representative of the system
2@10% THD, Halfspace
3 Current consumption (mains power) was measured at the internal amplifier's output at 1/8 power by inputting a sine wave as specified in the EN60065 standard. This value represents the average current drawn from the mains grid when operating the system with standard music signals.
Speaker In Signal contacts
Easy-Click
Signal via Easy-Click
Mono Cube No cables needed
Mono System with S-CONNECT POLE LN No cables needed
Mono Cube
Speaker Out to Satellite L/R
Use L/R Speaker Outs
Signal via Easy-Click
Bold black: Part of the listed accessories
3.1 Mono System with S-CONNECT POLE LN No cables needed
3.2 Mono System with MONO STAND ADD-ON
3.3 Stereo System with STEREO STAND ADD-ON (also works with microphone stands)
3.4 Stereo System
Use L/R Speaker Outs
For usage without S-CONNECT POLE LN, use the Speaker Out L on both systems
3.4 Stereo System with two POLE MOUNT ADAPTERs and standard pole mounts
3.5 Stereo System with one 5-CONNECT POLE LN +one POLE MOUNT ADAPTER
3.6 Twin Stereo System with two 5-CONNECT POLE LN +one NANO LINK CABLE
Speaker OutEasy-Click Signal cou
Speaker In Signal contacts
Easy-Click
Signal via Easy-Click
Mono Cube
No cables needed
Mono System with S-CONNECT POLE LN No cables needed
Mono Cube
11 Sorties Speaker Out to Satellite L/R
Use L/R Speaker Outs
Signal via Easy-Click
Bold black: Part of the listed accessories
3.1 Mono System with S-CONNECT POLE LN No cables needed
3.2 Mono System with MONO STAND ADD-ON
3.3 Stereo System with STEREO STAND ADD-ON (also works with microphone stands)
3.4 Stereo System
Use L/R Speaker Outs
For usage without S-CONNECT POLE LN, use the Speaker Out L on both systems
3.4 Stereo System with two POLE MOUNT ADAPTERs and standard pole mounts
3.5 Stereo System with one S-CONNECT POLE LN +one POLE MOUNT ADAPTER
3.6 Twin Stereo System with two 5-CONNECT POLE LN +one NANO LINK CABLE
Speaker OutEasy-Click Signal c
Speaker In Signal contacts
Mono Cube No cables needed
Mono System with S-CONNECT POLE LN No cables needed
Mono Cube
"Speaker Out to Satellite L/R"
Use L/R Speaker Outs
Signal via Easy-Click
Bold black: Part of the listed accessories
3.1 Mono System with S-CONNECT POLE LN No cables needed
3.2 Mono System with MONO STAND ADD-ON
3.3 Stereo System with STEREO STAND ADD-ON (also works with microphone stands)
3.4 Stereo System
Use L/R Speaker Outs
For usage without S-CONNECT POLE LN, use the Speaker Out L on both systems
3.4 Stereo System with two POLE MOUNT ADAPTERs and standard pole mounts
3.5 Stereo System with one 5-CONNECT POLE LN +one POLE MOUNT ADAPTER
3.6 Twin Stereo System with two 5-CONNECT POLE LN +one NANO LINK CABLE
Speaker In Signal contacts
Signal via Easy-Click
Mono Cube No cables needed
Mono System with S-CONNECT POLE LN No cables needed
Mono Cube
Speaker Out to Satellite L/R
Use L/R Speaker Outs
Signal via Easy-Click
Bold black: Part of the listed accessories
3.1 Mono System with S-CONNECT POLE LN No cables needed
3.2 Mono System with MONO STAND ADD-ON
3.3 Stereo System with STEREO STAND ADD-ON (also works with microphone stands)
3.4 Stereo System
Use L/R Speaker Outs
For usage without S-CONNECT POLE LN, use the Speaker Out L on both systems
3.4 Stereo System with two POLE MOUNT ADAPTERs and standard pole mounts
3.5 Stereo System with one 5-CONNECT POLE LN +one POLE MOUNT ADAPTER
3.6 Twin Stereo System with two S-CONNECT POLE LN +one NANO LINK CABLE
