SRU9600_IFU_EU_v02.qxd 20-01-2006 09:22 Pagina 1 SRU9600

Instructions for Use

Quick & Easy Setup www.philips.com/urc SRU9600_IFU_EU_v02.qxd 20-01-2006 09:22 Pagina 2

SRU9600_IFU_EU_v02.qxd 20-01-2006 09:22 Pagina 3 ENGLISH - Instructions for Use

Introduction Thank you for purchasing the Philips SRU9600 universal remote control. After installing the remote control you can operate a maximum of 8 different appliances with it:TV, DVD, satellite or cable decoders, audio systems and many more. Please refer to the illustration on page 2. Standby key Page keys Setup key Menu key Guide key Back/Exit key Jog Mode key Volume Up key Volume Down key Previous Program key Upper part of the display for: - Instructions - Selected device - Extra functions Touch screen keys Rotary wheel Cursor keys and OK key Info key Channel Up key Channel Down key Mute key You can find information about how to prepare this remote control for use in the next chapter “Installing the Remote Control”. Installing the Remote Control Your remote control has been in demo mode since you purchased it.To start installing and using the remote control:

Turn the rotary wheel clockwise or anticlockwise until the Philips logo appears. The remote control then begins the Installation Wizard to guide you through the installation. ENGLISH Contents SRU9600_IFU_EU_v02.qxd 20-01-2006 09:22 Pagina 4

Turn the rotary wheel clockwise or anticlockwise to select your preferred language. Press the OK key to confirm the selected language. The SRU9600 will guide you through the setup process via questions in the upper part of the display. Follow the instructions on the remote control. Replacing Batteries When the batteries are almost empty, the Battery Low icon will start blinking, indicating the critical battery level. Note If the Battery Low icon is blinking, you can still operate the remote control, however you will no longer be able to enter the Setup menu.

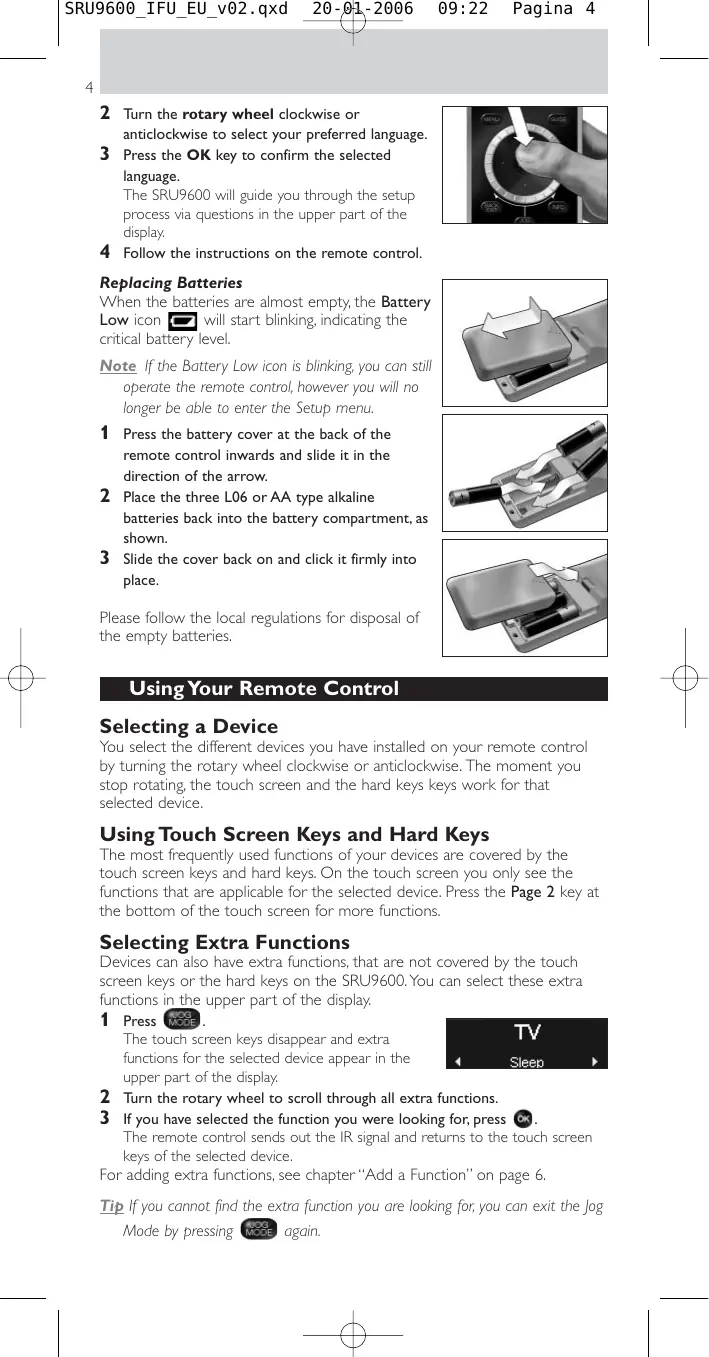

Press the battery cover at the back of the remote control inwards and slide it in the direction of the arrow. Place the three L06 or AA type alkaline batteries back into the battery compartment, as shown. Slide the cover back on and click it firmly into place. Please follow the local regulations for disposal of the empty batteries. Using Your Remote Control Selecting a Device You select the different devices you have installed on your remote control by turning the rotary wheel clockwise or anticlockwise. The moment you stop rotating, the touch screen and the hard keys keys work for that selected device. Using Touch Screen Keys and Hard Keys The most frequently used functions of your devices are covered by the touch screen keys and hard keys. On the touch screen you only see the functions that are applicable for the selected device. Press the Page 2 key at the bottom of the touch screen for more functions. Selecting Extra Functions Devices can also have extra functions, that are not covered by the touch screen keys or the hard keys on the SRU9600. You can select these extra functions in the upper part of the display.

Press The touch screen keys disappear and extra functions for the selected device appear in the upper part of the display. Turn the rotary wheel to scroll through all extra functions. If you have selected the function you were looking for, press The remote control sends out the IR signal and returns to the touch screen keys of the selected device. For adding extra functions, see chapter “Add a Function” on page 6. Tip If you cannot find the extra function you are looking for, you can exit the Jog Mode by pressing again. SRU9600_IFU_EU_v02.qxd 20-01-2006 09:22 Pagina 5 Using Activities An activity is a sequence of key presses that you can program. For example, for watching a DVD you normally would have to:

Turn on the TV; Turn on the DVD; Turn on the surround sound system; Select the correct input on your TV and surround sound system; Press the Play button to start the DVD. With an activity the remote control executes all these steps with just one key press. Your programmed activities appear, together with the devices, in the upper part of the display when you turn the rotary wheel. When you press , the remote control executes the sequence of key presses automatically. For programming activities, see chapter “Add an Activity” on page 6. Setting Up the Remote Control To change settings of the remote control you use the Setup menu.The Setup menu provides the following options: Option Add device Delete device Fix a key Add a function Add an activity Delete an activity Change language Backlight timeout Copy volume Full reset Description Adds a new device Removes a programmed device Fixes a key that is not working correctly, by learning it from your original remote control Adds an extra function by learning it from your original remote control Combines a sequence of different IR signals Removes a programmed activity Changes the language of the remote control Changes the time-out setting of the remote control Copies the volume keys from one device to another Resets the SRU9600 and deletes all your settings Press and hold for 3 seconds. The first item of the Setup menu appears. Press The touch screen keys of the last selected device appear again. Add a Device To be able to operate your devices with your SRU9600, you will have to add these devices to the remote control.You can add up to 8 devices from the available list. You cannot add a device twice. Once you have added a device to your remote control, it disappears from the list. However, the list of devices contains ‘TV-2’ and ‘VCR-2’ for when you want to program a second TV or a second VCR.

Select the option Add a device in the Setup menu and press Select the device you want to add. Follow the instructions on the remote control. The selected device is programmed and added to your remote control. You can select the device by turning the rotary wheel.The touch screen keys appear for the selected device. ENGLISH

Note Some devices do not have any extra functions available in the onboard database. However, you can copy additional functions from your original remote by learning keys. See “Add a Function” on page 6. SRU9600_IFU_EU_v02.qxd 20-01-2006 09:22 Pagina 6

Delete a Device You can delete a programmed device from your remote control.

Select the option Delete a device in the Setup menu and press Select the device you want to delete. Confirm you want to delete the device. The device is deleted. The deleted device is available again in list of devices that you can add. Note Keys of the deleted device that are used elsewhere, e.g. in an activity or the volume keys you copied, will be deleted as well. Check the activities you programmed and Volume keys for your devices and reprogram them if necessary. Fix a Key If a hard key, touch screen key or extra function is not working properly with your device, you can learn the key from your original remote control in your SRU9600. You can learn up to 200 keys.

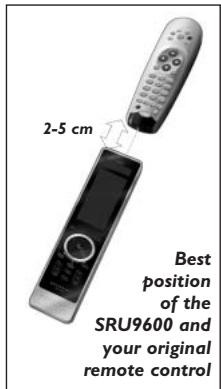

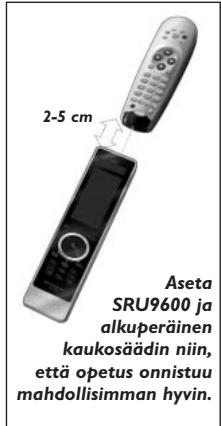

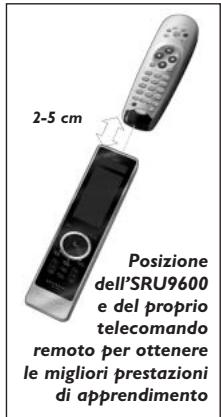

Select the option Fix a key in the Setup menu and press Select the device for which you want to fix a key. Confirm you have a working original remote control available to learn from. Select the hard key, touch screen key or extra function you want to fix. Extra functions can be selected by pressing the Jog Mode key, selecting the function with the rotary wheel and pressing OK. Follow the instructions on the remote control. The key is learned and fixed. 2-5 cm Best position of the SRU9600 and your original remote control Note Fixing a key overwrites the key’s data that was stored in your SRU9600. Add a Function You can add extra functions to your SRU9600.

Select the option Add a function in the Setup menu and press Select the device you want to add a function to. Select the label you want to use for the extra function. Learn the function from your original remote. The extra function is added to your remote control.You can access the extra functions by pressing

Add an Activity You can add activities to your SRU9600. An activity consists of several key presses that will be sent out by your remote control with just one key press. By default the SRU9600 inserts a delay of 300ms between every key press to make sure your devices are responding correctly to the IR signals.You can overwrite this default delay.

If one of your devices needs a longer delay before receiving the next IR signal, you can insert a delay of 3 seconds. If an activity needs no delay between the different key presses, e.g. turning up the volume, you can add the option ‘no delay’. Select the option Add an activity in the Setup menu and press Select the label you want to use for the activity. Follow the instructions on the remote control. SRU9600_IFU_EU_v02.qxd 20-01-2006 09:22 Pagina 7

1 Turn the rotary wheel to select a device from the list, press OK and ENGLISH add a key press to the activity. 2 Turn the rotary wheel to select ‘3 seconds’ delay and press OK. 3 Turn the rotary wheel to select ‘no delay’ and press OK.

Repeat step 3 to create the activity. The activity is added to your remote control.You can select the activity by turning the rotary wheel. Delete an Activity You can delete an activity from your remote control.

Select the option Delete an activity in the Setup menu and press Select the activity you want to delete. Confirm you want to delete the activity. The activity is deleted. The activity is available again in the list of activities that you can add.

Change Language You can change the language of your remote control to one of the following languages:

English; ■ French; ■ German; ■ Spanish. Select the option Change language in the Setup menu and press Select the language you want to use on your remote control. Confirm the selected language. The language used in the Setup menu is changed.

Backlight Time Out When you use the remote control, the backlight, the touch screen and the upper part of the display are switched on. After 5 seconds these components are switched off again. You can change this time out setting to one of the following options:

3 seconds; ■ 5 seconds; ■ 10 seconds; ■ 15 seconds. Select the option Backlight timeout in the Setup menu and press Select your desired backlight time. Confirm the new time out. The time out is changed for your remote control.

Note The backlight time out has an impact on the lifetime of the batteries, the longer the backlight stays on, the faster the batteries will be drained. Copy Volume After adding devices, the SRU9600 automatically copies the Volume keys, as follows:

Video devices, like DVD, DVDR,VCR and Satellite box, use the Volume keys of the TV (provided that you have programmed a TV). Audio devices, like CD, MD,Tape and Tuner, use the Volume keys of the Amplifier or Receiver (provided that you have programmed an Amplifier or Receiver). You can change which Volume keys are used, for instance when you want to use the Volume keys of the Amplifier for the DVD.

Select the option Copy volume in the Setup menu and press Select the device you want to copy the Volume keys from (e.g.TV or Amp). Select the device you want to copy the Volume keys to (e.g. DVD or SAT box). Confirm you want to copy the Volume keys from one device to the other. The Volume keys are copied. SRU9600_IFU_EU_v02.qxd 20-01-2006 09:22 Pagina 8

Full reset You can reset the SRU9600 completely, deleting all programmed devices, activities, learned keys and other settings. After the reset, you will have to install your remote control again.

Select the option Full reset in the Setup menu and press Select Yes and press to confirm you want to reset your remote control. Press to reconfirm. The remote control deletes all settings and restarts.This can take up to one minute. Support Troubleshooting Problem Cause Solution One or more buttons The function may not be are not working with available in the database of my device. the SRU9600. The SRU9600 can learn the correct function from your original remote control. Go to Setup menu and select Fix a key. I cannot find the The brand is not available in Select ‘Not in list’ when the brand of my device in the database of the SRU9600 asks to select the brand of the SRU9600. SRU9600. your device.The SRU9600 will search the entire database for working functions. The SRU9600 does not respond to any key, except for the OK key. The SRU9600 is in demonstration mode when you buy it in the shop. It starts to run as soon as you press the OK key. Take out the batteries for 5 seconds and insert them again.The remote should now initialise with the Philips logo and you can install the remote control for your devices. I cannot enter the Setup menu. The battery level is too low. Take out the batteries and insert new batteries. I cannot wake-up the The battery level is too low. Take out the batteries and insert SRU9600 anymore. new batteries. Need help? If you have any questions about the SRU9600, you can always contact us. You will find our contact details on page 81 of these Instructions for Use. Read these Instructions for Use carefully before you call us. When you call our helpline, make sure the device is at hand so that our operators can help you determine whether your remote control is working properly. The model number of your Philips universal remote control is SRU9600/10. Date of purchase: ......../......../........ (day/month/year) SRU9600_IFU_EU_v02.qxd 20-01-2006 09:22 Pagina 9 SRU9600_IFU_EU_v02.qxd 20-01-2006 09:22 Pagina 10
