Product Type	Electric toothbrush for children
Model	NKZ 2 A1
Brand	Nevadent
Power source	2 LR03 AAA 1.5 V batteries (non-rechargeable)
Protection rating	IPX4 (protected against water splashes)
Number of included brush heads	4 interchangeable brush heads
Brush head replacement	Every 3 months or after an infection
Recommended brushing duration	2 minutes (hourglass included)
Accessories included	1 toothbrush, 4 brush heads, 2 batteries, 1 travel case, 1 hourglass, 4 decorative stickers, instruction manual
Weight (estimated with batteries)	Approx. 120 g
Dimensions (estimated)	Approx. 20 cm height
Handle material	Plastic
Bristle material	Nylon
Recommended usage	Gentle brushing, without excessive pressure
Child safety	Battery compartment lock, small parts to keep out of reach of children under 36 months
Maintenance	Rinse and dry after each use; do not immerse
Warranty	3 years from date of purchase
Customer service	HOYER Handel GmbH, tel. [phone] (France), 0842 665566 (Switzerland)

Frequently Asked Questions - NKZ 2 A1 NEVADENT

How to insert the batteries?

Turn the battery compartment lock clockwise until the ▲ mark aligns with the • mark on the handle. Remove the handle, insert the batteries respecting polarity, then replace the handle and turn the lock counterclockwise to lock.

Can I use this toothbrush in the shower?

Yes, the brush is protected against water splashes (IPX4), but it is not recommended to submerge it. After use, rinse and dry thoroughly.

How often should I change the brush head?

It is recommended to change the brush head every 3 months or after an oral infection to ensure optimal hygiene.

Can children use the toothbrush alone?

Yes, provided they are supervised and have understood the safety instructions. Children should not clean or maintain the appliance without supervision.

What to do in case of bleeding gums?

Bleeding may occur during the first few days. If bleeding persists, consult a dentist. Avoid pressing too hard when brushing.

How to clean the toothbrush?

Rinse the brush head and handle thoroughly after each use. Dry well before storing in the travel case. Never immerse the appliance in water.

What to do if the toothbrush stops working?

First check the battery insertion and polarity. If the problem persists, contact customer service (tel. [phone]) before returning the appliance.

Can I use any toothpaste?

Yes, you can use any conventional toothpaste. Wet the brush, apply toothpaste, then start the brush once the head is in your mouth.

Is the toothbrush waterproof?

It is protected against water splashes (IPX4) but is not waterproof. Do not immerse it in water and do not wash it in the dishwasher.

How to store the toothbrush?

After drying, store the brush and its heads in the provided travel case. Keep it out of reach of children and avoid direct exposure to sunlight or heat.

USER MANUAL NKZ 2 A1 NEVADENT

Operating instructions

IAN 104108

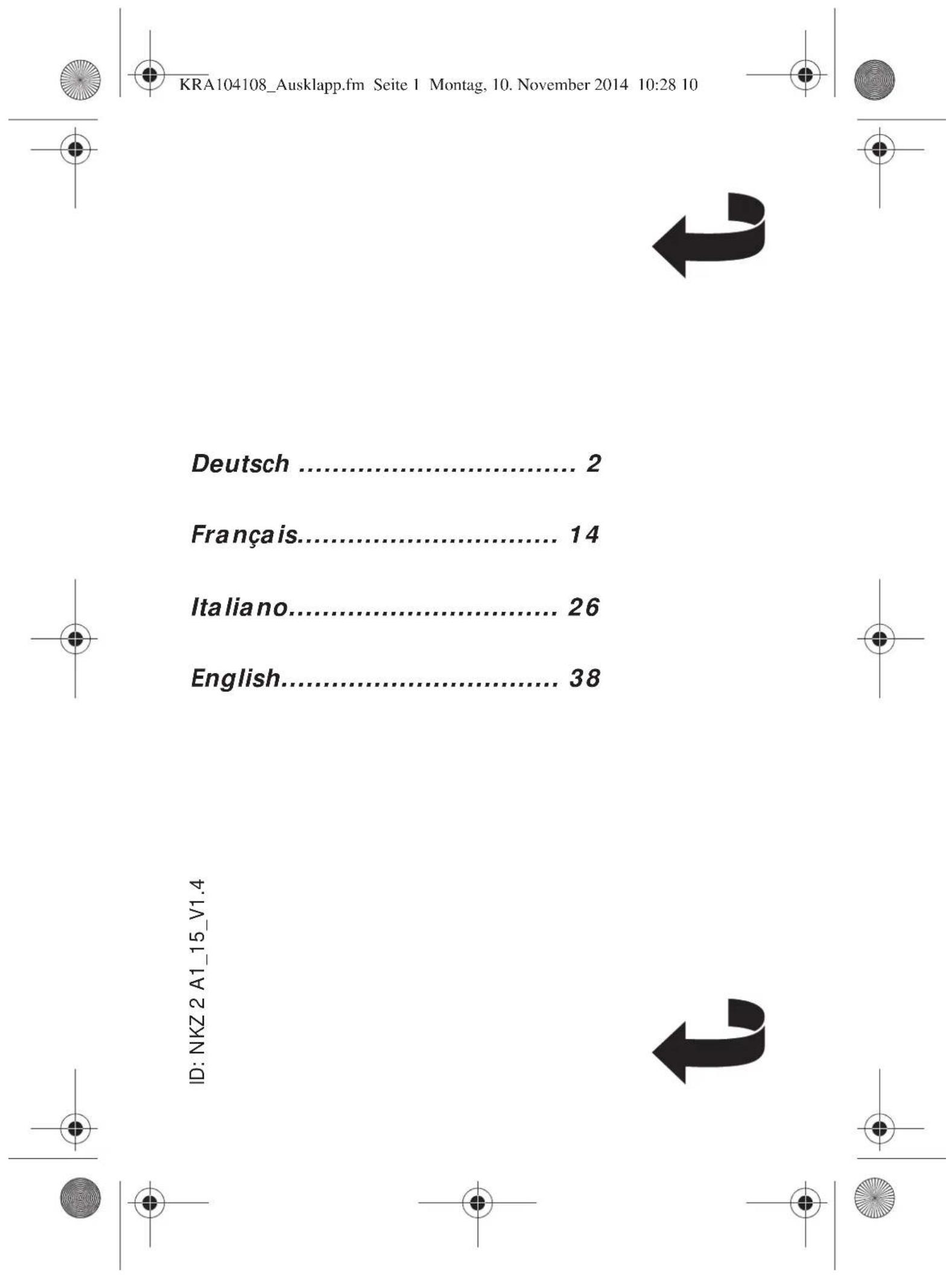

DE AT CH

FR IT GB

Chere cliente, cher client,

1. Overview 38
2. Intended purpose 40
3. Safety information 40
4. Items supplied 42
5. Before using for the first time 43
6. Operation 44
7. Cleaning / Hygiene requirements 45
8. Disposal 45
9. Technical specifications 46
   10.Warranty of HOYER Handel GmbH 46

1. Overview

1 Off Switch
2 I On Switch
3 Brush head
4 Toothbrush head (replaceable)
5 Marking ring
6 Handle with battery compartment
7 Battery compartment locking mechanism with marking
8 Marking on the handle:

Close

Open

9 Battery LR03, AAA, 1.5 V

not shown:

10 Transport box
11 Hourglass
12 Decorative stickers

38

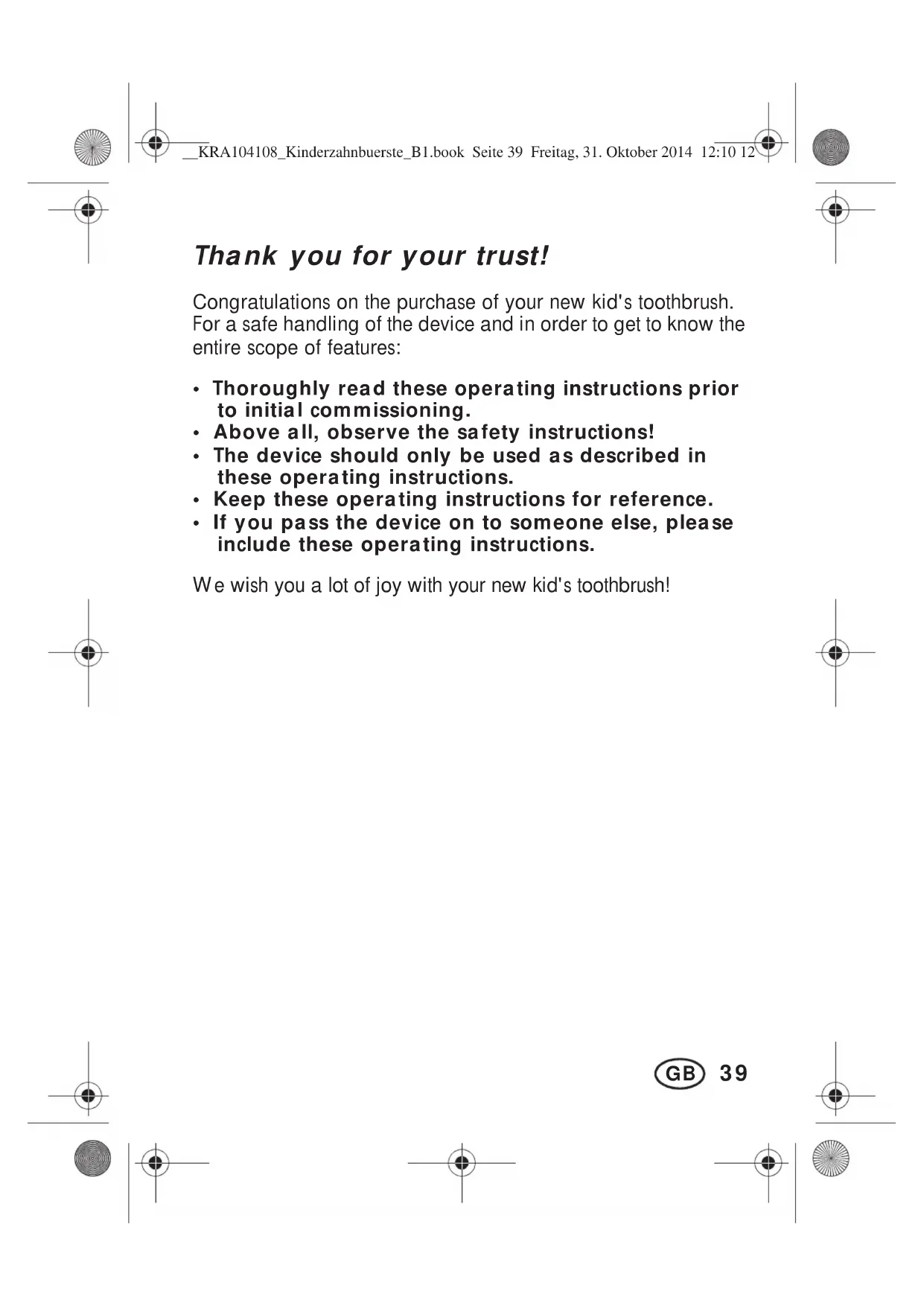

Thank you for your trust!

Congratulations on the purchase of your new kid's toothbrush. For a safe handling of the device and in order to get to know the entire scope of features:

• Thoroughly read these operating instructions prior to initial commissioning.
• Above all, observe the safety instructions!
• The device should only be used as described in these operating instructions.
• Keep these operating instructions for reference.
• If you pass the device on to someone else, please include these operating instructions.

We wish you a lot of joy with your new kid's toothbrush!

2. Intended purpose

The kid's toothbrush is intended solely for tooth cleaning and oral hygiene for humans.

The device is designed for private, domestic use. This device must not be used for commercial purposes.

3. Safety information

Warnings

If necessary, the following warnings will be used in these operating instructions:

DANGER! High risk: failure to observe this warning may result in injury to life and limb.

WARNING! Moderate risk: failure to observe this warning may result in injury or serious material damage.

CAUTION: low risk: failure to observe this warning may result in minor injury or material damage.

NOTE: circumstances and specifics that must be observed when handling the device.

DANGER as small parts may be swallowed

The toothbrush heads and batteries are small and could be swallowed. Keep these away from children under the age of 36 months.

DANGER for children and people with disabilities

• Packing materials are not children's toys. Children should not be allowed to play with the plastic bags: there is a risk of suffocation!

40

• This device can be used by children and people with restricted physical, sensory or intellectual abilities or people without adequate experience and/ or understanding, if they are supervised or instructed on how to use this device safely and if they are aware of the resulting danger. Cleaning and user maintenance must not be performed by children unless they are supervised.
  Children must not play with the device.
  Keep the device out of the reach of children.

WARNING! Risk of material damage

Do not immerse the kid's toothbrush in water or other liquids.
To avoid any risk, do not make modifications to the device. Repairs must be carried out by a specialist workshop or the Service Centre.

CAUTION

• Users could possibly experience mild bleeding of the gums during the first days of electric toothbrush usage. Should the bleeding continue over several days, a dentist should be consulted.
  Exert only light pressure when brushing to prevent damage to the gums and to increase the service life of the bristles.

Batteries

• Do not use batteries of differing types or brands, or use both new and used batteries or batteries with different capacities together. Be sure to observe the polarity (+/−) when inserting the batteries.
• The batteries included must not be charged or reactivated by other means, nor must they be dismantled, thrown into a fire or short-circuited.
  Always remove used batteries immediately, as these could leak and therefore cause damage.
• Always replace all batteries as appropriate and dispose of the old batteries according to regulations.

• Clean the battery and device terminals before you insert the batteries.
• Remove the batteries from the toothbrush if the device is not going to be used for an extended period of time.
• Do not subject batteries to extreme conditions, e.g. do not place the toothbrush on radiators or under direct sunlight. Otherwise, there is an increased danger of batteries leaking.
• If battery acid has leaked, avoid contact with the skin, eyes and mucous membranes. In case of contact with the acid, rinse the affected area at once with plenty of clean water and seek medical assistance immediately.

4. Items supplied

1 Kid's toothbrush
4 Toothbrush heads 4
2Batteries LR03, AAA, 1.5 V 9
1 Transport box 10
1 Hourglass 11
4 Decorative stickers12
1 Operating Instructions

5. Before using for the first time

• Remove all packing material.
• Check that the device is undamaged.

Insert Batteries

1. Figure A: open the battery compartment in the handle 6 by turning the locking mechanism 7 with your thumb and finger tip in a clockwise direction. Turn until the marking on the locking mechanism points to the marking on the handle.
2. Pull the handle 6 off and place the batteries 9 inside. Please pay attention to the polarity (+ / -) as indicated in the battery compartment.
3. Slide the handle 6 over the battery compartment.
4. Lock the battery compartment in the handle 6, by turning the locking mechanism 7 anti-clockwise with your thumb and finger tip. Turn until the marking on the locking mechanism points to the marking on the handle.

Replacing the toothbrush head

• Figure B: pull the toothbrush head 4 off the toothbrush and replace with another toothbrush head 4. Press the toothbrush head 4 firmly onto the toothbrush until it clicks in audibly.

6. Operation

CAUTION:

Users could possibly experience mild bleeding of the gums during the first days of electric toothbrush usage. Should the bleeding continue over several days, a dentist should be consulted.
Exert only light pressure when brushing to prevent damage to the gums and to increase the service life of the bristles.

1. Moisten the bristles, squeeze some toothpaste on and switch on the toothbrush only when the brush head 3 is already in your mouth.
2. Press the on switch (I) 2, to switch on the toothbrush.
3. Slowly guide the brush head 3 from tooth to tooth without exerting too much pressure. Carefully clean all tooth surfaces, the inner surfaces of the teeth and the tooth edges. The recommended brushing duration is at least 2 minutes. This is approximately the duration of the hourglass 11.
4. Press the off switch 1 to switch off the toothbrush. Remove the brush head 3 only when the toothbrush has been switched off.

NOTES:

We recommend that you replace the toothbrush head 4 every 3 months or after infections.
- Replacement toothbrush heads 4 can be ordered:

• on www.hoyerhandel.com or
• through the service centre hotline which is listed in Chapter "Warranty of HOYER Handel GmbH" on page 46.

44

7. Cleaning / Hygiene requirements

• To ensure the hygienic functionality of the toothbrush heads 4, they must be rinsed thoroughly after every use. Rinse the kid's toothbrush as well and wipe it dry.
• The kid's toothbrush and toothbrush heads 4 must be dry when placed in the transport box 10.

8. Disposal

The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products identified with this symbol may not be discarded with normal household waste, but must be taken to a collection point for recycling electric and electronic appliances. Recycling helps to reduce the consumption of raw materials and protect the environment.

Batteries must not be discarded with your household waste. Spent batteries must be disposed of properly. Special containers are available for this purpose in shops selling batteries and at municipal collection points.

(Rechargeable) batteries marked with the following letters contain harmful substances such as:

Cd (cadmium), Hg (mercury), Pb (lead).

Packaging

When disposing of the packaging, make sure you comply with the environmental regulations applicable in your country.

9. Technical specifications

Model: NKZ 2 A1
Type of protection:	IPX4 (splash water protection)
Batteries: 2x LR03, AAA, 1.5 V

Subject to technical modification.

10. Warranty of HOYER Handel GmbH

Dear Customer,

your device is provided with a 3 year warranty starting with the purchase date. In the event of product defects, you are entitled to statutory rights against the vendor. These statutory rights are not restricted by our warranty presented in the following.

Warranty conditions

The warranty period starts with the purchase date. Please keep the original purchase receipt in a safe place. This document is required to verify the purchase.

If within three years from the purchase date of this product a material or factory defect occurs, the product will be repaired or replaced by us - at our discretion - free of charge to you. This warranty implies that within the period of three years the defective device and the purchase receipt are presented, including a brief written description of the defect and the time it occurred. If the defect is covered by our warranty, the repaired or a new product will be returned to you. No new warranty period starts with a repair or replacement of the product.

Warranty period and statutory claims for defects

The warranty period is not extended when the warranty has been claimed. This also applies to replaced and repaired parts. Any damages and defects already existing at the time of purchase must be reported immediately upon unpacking. Repairs arising after the expiration of the warranty period are subject to a charge.

Warranty coverage

The device was produced carefully according to strict quality guidelines and tested diligently prior to delivery.

The warranty applies to material or factory defects. This warranty does not include product parts that are subject to standard wear and therefore can be considered wear parts; the same applies to damages at fragile parts, e.g. switches, rechargeable batteries or parts made of glass.

This warranty expires if the product is damaged, not used as intended or not serviced. For the proper operation of the product, all instructions listed in the operating instructions must be observed carefully. Any form of use and handling that is advised against in the operating instructions or warned against must always be avoided.

The product is only intended for private and not for commercial use. In the case of incorrect and improper treatment, use of force and interventions not performed by our authorised Service Centre, the warranty shall cease.

Handling in case of a warranty claim

In order to ensure prompt processing of your matter, please observe the following notes:

• Please keep the article number IAN: 104108 and the purchase receipt as a purchase verification for all inquiries.

• If faulty operation or other defects occur, first contact the Service Centre listed in the following by telephone or email.
• Then, you are able to send a product reported as defective free of charge to the service address specified to you, including the purchase receipt and the information on the defect and when it occurred.

Please visit www.lidl-service.com to download this and many other manuals, product videos and software.

Service Centre

GB Service Great Britain

Tel.: [phone] (£ 0.10/ Min.)

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/ Min., (peak)) (0,06 EUR/ Min., (off peak))

E-Mail: [e-mail]

IAN:104108

Supplier

Please note that the following address is no service address.

First contact the aforementioned Service Centre.

HOYER Handel GmbH

Kühnhöfe 5

22761 Hamburg

Germany

48
