Product Type	Robot Vacuum Mop
Brand	ECOVACS
Model	Deebot Ozmo Slim 10 (DK3G)
Color	Black
Height	7.7 cm (estimated)
Diameter	34 cm (estimated)
Weight	Approximately 2.8 kg (estimated)
Dustbin Capacity	0.3 L (estimated)
Water Tank Capacity	0.15 L (estimated)
Battery Runtime	Approximately 90 minutes (estimated)
Charging Time	Approximately 4 hours (estimated)
Battery Type	Rechargeable lithium-ion (replaceable only by a professional)
Robot Input Voltage	20 V ---, 0.8 A
Docking Station (Model)	CH1630A
Station Power Supply	100-240 V ~, 50/60 Hz, 25 W
Connectivity	Wi-Fi 2.4 GHz (built-in module)
Mobile App	ECOVACS HOME (iOS 9.0+, Android 4.0+)
Main Functions	Suction, mopping (advanced system), scheduling via app, automatic return to station, anti-drop sensors, side brushes, MAX mode
Noise Level	Approximately 60 dB (estimated)
Filter Maintenance	Sponge filter and high-efficiency filter: clean once a month, replace every 3 to 6 months
Side Brush Maintenance	Clean every 2 weeks, replace every 3 to 6 months
Mopping Cloth Maintenance	Clean after each use, replace every 50 washes
Available Spare Parts	Side brushes, filters, mopping cloth, battery (via customer service)
Repairability Score	Battery replaceable only by a professional; other parts accessible
Warranty	2 years (estimated, refer to customer service)
Included Documents	Instruction manual, quick start guide

Frequently Asked Questions - Deebot Ozmo Slim 10 ECOVACS

How to charge the DEEBOT?

Place the robot on the docking station, aligning the charging contacts. Make sure the robot is powered on. Charging starts automatically. If the battery is completely discharged, reactivate it by turning the robot on, placing it on the station for 3 minutes, removing it, and repeating this 3 times before charging normally.

Why is my DEEBOT not returning to the docking station?

Check that the docking station is positioned correctly (on a flat, clear surface with 0.5 m of space on each side and 1.5 m in front). Make sure the charging contacts and station pins are clean.

The robot stops during cleaning, what should I do?

The DEEBOT may be blocked by a power cord, curtain, or carpet fringe. Remove obstacles manually. If the problem persists, turn off the robot, clean the dustbin, brushes, and suction head.

How to schedule a cleaning?

Use the ECOVACS HOME app to set cleaning schedules. Make sure the robot is powered on, connected to Wi-Fi, and the battery is sufficiently charged (leave it on the docking station).

Why is the DEEBOT not cleaning the entire area?

Before cleaning, tidy the room: remove small objects, cords, and fold up carpet fringes. Check that the anti-drop sensors are clean. If the problem persists, clean the brushes and filter.

Water is not flowing from the mopping tank, what should I do?

Check that the water tank is filled. Clean the water outlets under the robot and under the tank. Unscrew the water outlet under the tank and clean the filter.

My DEEBOT is not connecting to Wi-Fi, how to reset?

Make sure the robot is powered on and Wi-Fi is enabled (switch in ON position). Press the reset button (auto mode) for 3 seconds until you hear a melody and the Wi-Fi indicator flashes slowly. Check that your smartphone is up to date (iOS 9.0+ or Android 4.0+).

How to replace the battery?

The battery is replaceable only by qualified personnel. Contact ECOVACS customer service. Do not remove the battery yourself, as this could damage the device.

What does the flashing red light mean?

A steady red light indicates low battery. A flashing red light indicates a problem. Refer to the 'Alarm Sounds' section of the manual: one beep = side brush stuck, two beeps = anti-drop sensor dirty, three beeps = dustbin not installed correctly, continuous beeps = robot suspended or drive wheel blocked.

How to maintain the DEEBOT?

Clean the dustbin and filters (sponge and high-efficiency) once a month. Replace filters every 3 to 6 months. Clean the side brushes every 2 weeks and replace them every 3 to 6 months. Wash the mopping cloth after each use and replace it every 50 washes. Use the included multi-function cleaning tool.

USER MANUAL Deebot Ozmo Slim 10 ECOVACS

EU-Declaration of conformity 152

Congratulations on the purchase of your ECOVACS ROBOTICS DEEBOT! We hope it brings you many years of satisfaction. We believe that your new robot will help keep your home clean and give you more quality time to do other things.

Live Smart. Enjoy Life.

Should you encounter situations that have not been properly addressed in this Instruction Manual, please contact our Customer Service Center where a technician will be able to help you with your specific problem or question.

For more information, please visit the ECOVACS ROBOTICS official website: www.ecovacs.com

The company reserves the right to make technological and/or design changes to this product for continuous improvement.

Thank you for choosing DEEBOT!

Contents

1. Important Safety Instructions.. 4
2. Package Contents 8
3. Operating and Programming 11
4. Maintenance 16
5. Alarm Sounds 21
   6.Troubleshooting 22
6. Technical Specifications 23

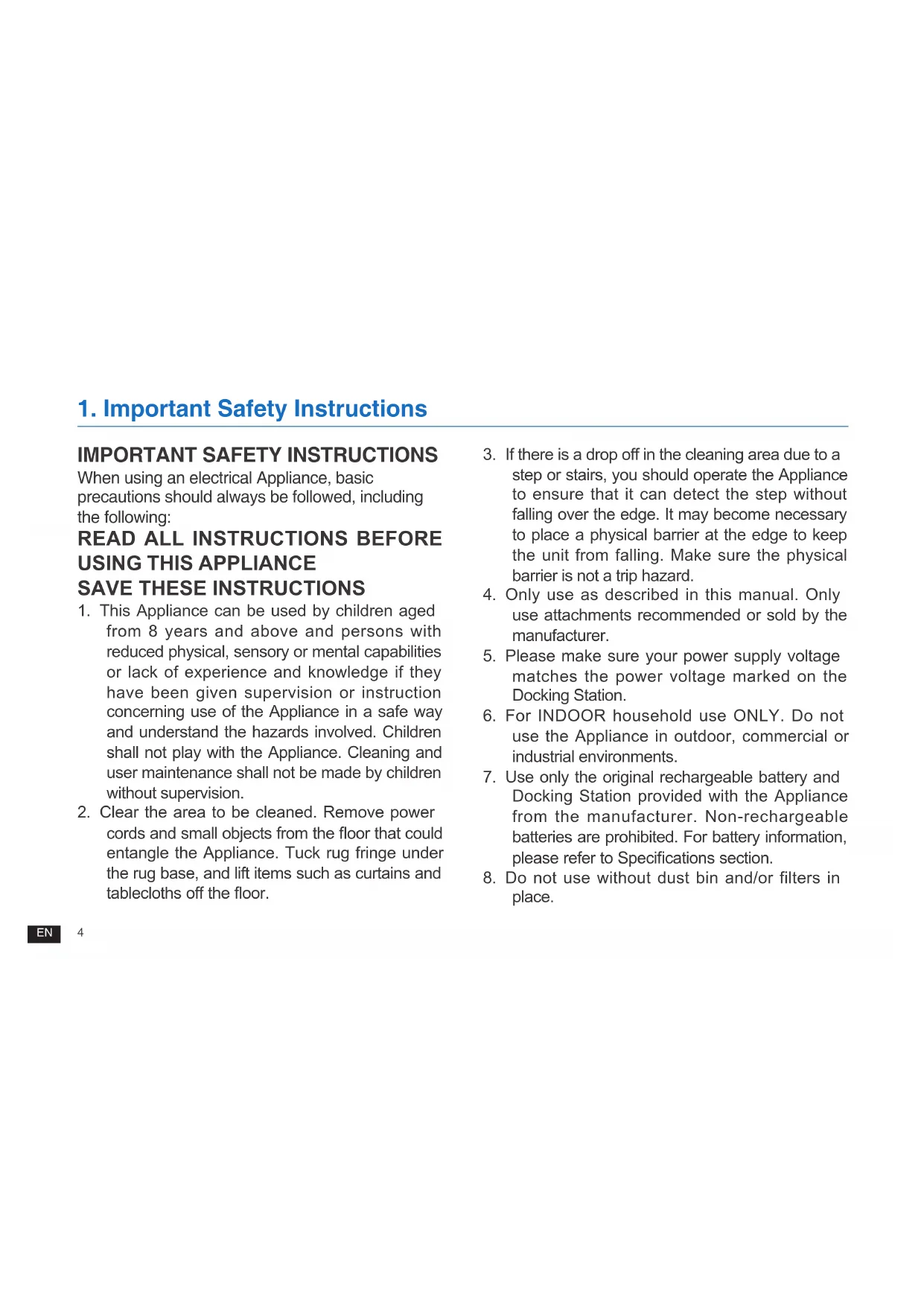

1. Important Safety Instructions

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical Appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE SAVE THESE INSTRUCTIONS

1. This Appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the Appliance in a safe way and understand the hazards involved. Children shall not play with the Appliance. Cleaning and user maintenance shall not be made by children without supervision.

2. Clear the area to be cleaned. Remove power cords and small objects from the floor that could entangle the Appliance. Tuck rug fringe under the rug base, and lift items such as curtains and tablecloths off the floor.

3. If there is a drop off in the cleaning area due to a step or stairs, you should operate the Appliance to ensure that it can detect the step without falling over the edge. It may become necessary to place a physical barrier at the edge to keep the unit from falling. Make sure the physical barrier is not a trip hazard.

4. Only use as described in this manual. Only use attachments recommended or sold by the manufacturer.

5. Please make sure your power supply voltage matches the power voltage marked on the Docking Station.

6. For INDOOR household use ONLY. Do not use the Appliance in outdoor, commercial or industrial environments.

7. Use only the original rechargeable battery and Docking Station provided with the Appliance from the manufacturer. Non-rechargeable batteries are prohibited. For battery information, please refer to Specifications section.

8. Do not use without dust bin and/or filters in place.

1. Important Safety Instructions

1. Do not operate the Appliance in an area where there are lit candles or fragile objects.
2. Do not use in extremely hot or cold environments (below -5^ / 23^ or above 40^ / 104^ ).
3. Keep hair, loose clothing, fingers, and all parts of body away from any openings and moving parts.
4. Do not operate the Appliance in a room where an infant or child is sleeping.
5. Do not use Appliance on wet surfaces or surfaces with standing water.
6. Do not allow the Appliance to pick up large objects like stones, large pieces of paper or any item that may clog the Appliance.
7. Do not use Appliance to pick up flammable or combustible materials such as gasoline, printer or copier toner, or use in areas where they may be present.

8. Do not use Appliance to pick up anything that is burning or smoking, such as cigarettes, matches, hot ashes, or anything that could cause a fire.

9. Do not put objects into the suction intake. Do not use if the suction intake is blocked. Keep the intake clear of dust, lint, hair, or anything that may reduce air flow.

10. Take care not to damage the power cord. Do not pull on or carry the Appliance or Docking Station by the power cord, use the power cord as a handle, close a door on the power cord, or pull power cord around sharp edges or corners. Do not run Appliance over the power cord. Keep power cord away from hot surfaces.
11. If the power cord is damaged, it must be replaced by the manufacturer or its service agent in order to avoid a hazard.
12. Do not use the Docking Station if it is damaged.
13. Do not use with a damaged power cord or receptacle. Do not use the Appliance or Docking Station if it is not working properly, has been dropped, damaged, left outdoors, or come in contact with water. It must be repaired by the manufacturer or its service agent in order to avoid a hazard.

1. Important Safety Instructions

1. Turn OFF the power switch before cleaning or maintaining the Appliance.
2. The plug must be removed from the receptacle before cleaning or maintaining the Docking Station.
3. Remove the Appliance from the Docking Station, and turn OFF the power switch to the Appliance before removing the battery for disposal of the Appliance.
4. The battery must be removed and discarded according to local laws and regulations before disposal of the Appliance.
5. Please dispose of used batteries according to local laws and regulations.
6. Do not incinerate the Appliance even if it is severely damaged. The batteries can explode in a fire.
7. When not using the Docking Station for a long period of time, please unplug it.

8. The Appliance must be used in accordance with the directions in this Instruction Manual. The manufacturer cannot be held liable or responsible for any damages or injuries caused by improper use.

9. The robot contains batteries that are only replaceable by skilled persons. To replace the robot's battery, please contact Customer Service.

10. If the robot will not be used for a long time, power OFF the robot for storage and unplug the Docking Station.
11. WARNING: For the purposes of recharging the battery, only use the detachable supply unit CH1630A provided with the appliance.

To disable Wi-Fi module on DEEBOT, power the robot ON.

Place the robot on the Docking Station making sure the Charging Contacts on DEEBOT and the Docking Station Pins make a connection.

Press and hold the AUTO Mode Button on the robot for 20 seconds until DEEBOT emits 3 beeps.

To enable Wi-Fi module on DEEBOT, power the robot OFF and then power ON. The Wi-Fi module is turned on when DEEBOT is restarted.

1. Important Safety Instructions

To satisfy RF exposure requirements, a separation distance of 20~cm or more should be maintained between this device and persons during device operation.

To ensure compliance, operations at closer than this distance is not recommended. The antenna used for this transmitter must not be co-located in conjunction with any other antenna or transmitter.

Class II

Short-circuit-proof safety isolating transformer

Switch mode power supply

For indoor use only

For EU Countries

For EU Declaration of Conformity information, visit https://www.ecovacs.com/global/compliance

Correct Disposal of this Product

This marking indicates that this product should not be disposed of with other household waste throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To recycle your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can safely recycle this product.

2. Package Contents

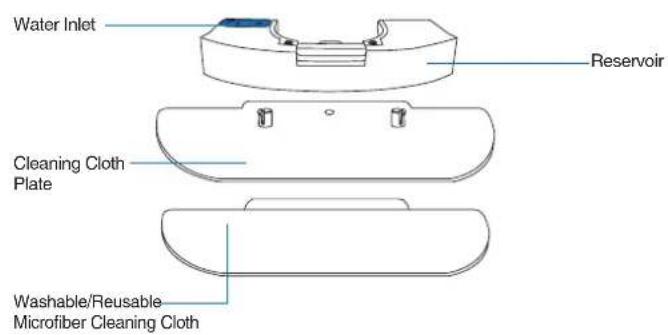

2.1 Package Contents

Robot (4) Side BrushesDocking Station

Instruction Manual+ Quick Start Guide

Cleaning Cloth Plate

Washable/Reusable Microfiber Cleaning Cloth

Sponge Filter and High-efficiency Filter

Note: Figures and illustrations are for reference only and may differ from actual product appearance. Product design and specifications are subject to changes without notice.

2. Package Contents

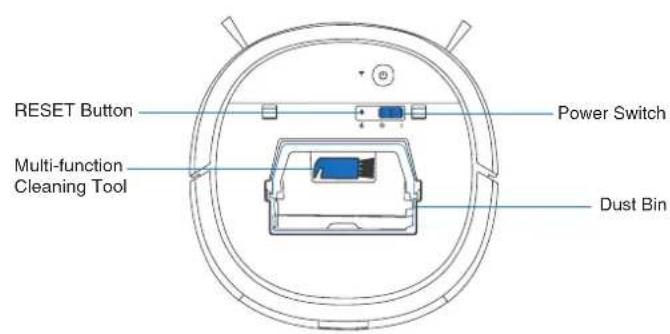

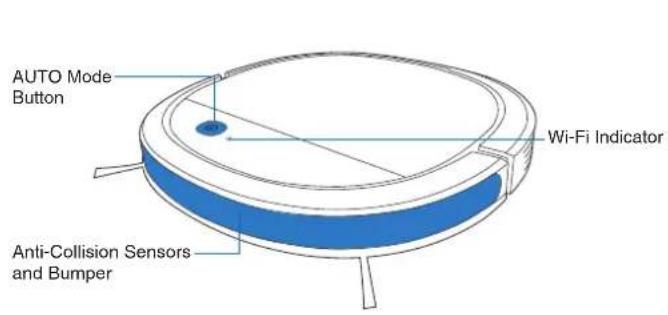

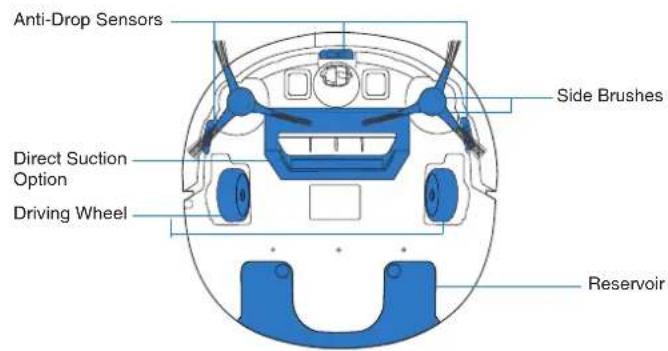

2.2 Product Diagram Robot

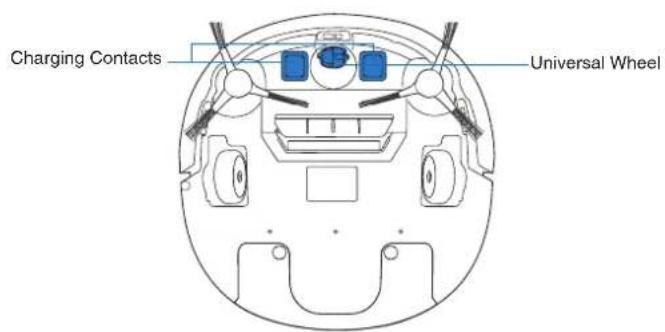

Bottom View

2. Package Contents

Docking Station Advanced Mopping System

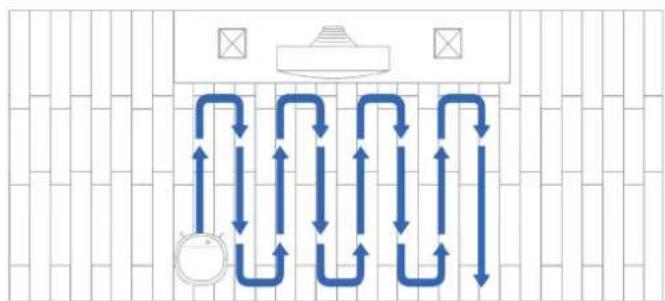

3. Operating and Programming

3.1 Notes Before Cleaning

WARNING: Do not use DEEBOT on wet surfaces or surfaces with standing water.

Before using the product on a rug with tasseled edges, please fold the rug edges under.

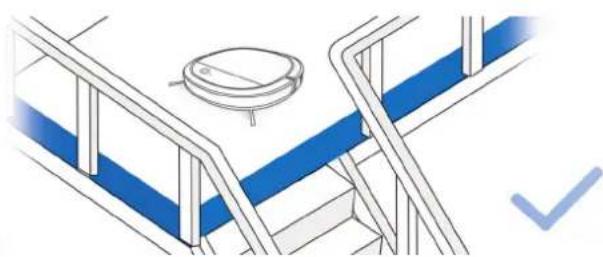

It may be necessary to place a physical barrier at the edge of a drop to stop the unit from falling over the edge.

Tidy up the area to be cleaned by putting furniture, such as chairs, in their proper place.

Remove power cords and small objects from the floor that the robot could be obstructed by.

3. Operating and Programming

3.2 Preparation

1 Remove Protection Strip

2 Remove Protection Film

3 Docking Station Placement

4 Install Side Brushes

5 Power ON

6 Charge DEEBOT

Note: When DEEBOT completes the cleaning cycle or when battery power gets low, DEEBOT automatically returns to the Docking Station to recharge itself.

3. Operating and Programming

7 Start

All the functions mentioned above can be enabled on the App. Download ECOVACS App to access more features, including MAX Mode, Scheduled Cleaning, etc.

3. Operating and Programming

3.3 Pause, Wake Up, Power Off

1 Pause

Note: The robot's Control Panel stops glowing after the robot is paused for a few minutes. Press the AUTO Mode Button on DEEBOT to wake up the robot.

3 Power OFF

Note: When DEEBOT is not working, it is recommended to keep it switched ON and charging.

2 Wake Up

Press the AUTO button on DEEBOT to wake it up

3. Operating and Programming

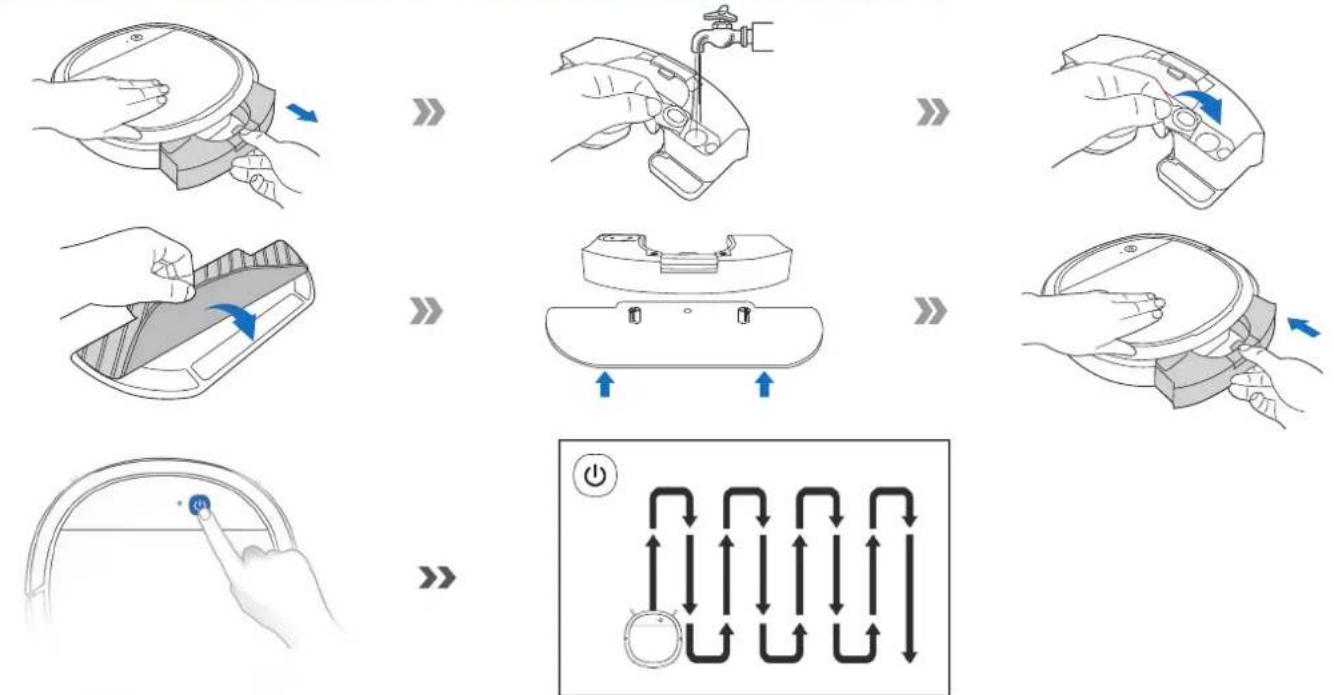

3.4 Optional Mopping System

Note: Empty the Reservoir and remove the Cleaning Cloth Plate before cleaning on carpet. When using the mopping system, fold area rug edges under themselves so DEEBOT will avoid the rug.

Note: After DEEBOT finishes mopping, empty any remaining water from the Reservoir.

4. Maintenance

Before performing cleaning and maintenance tasks on DEEBOT, turn the robot OFF and unplug the Docking Station.

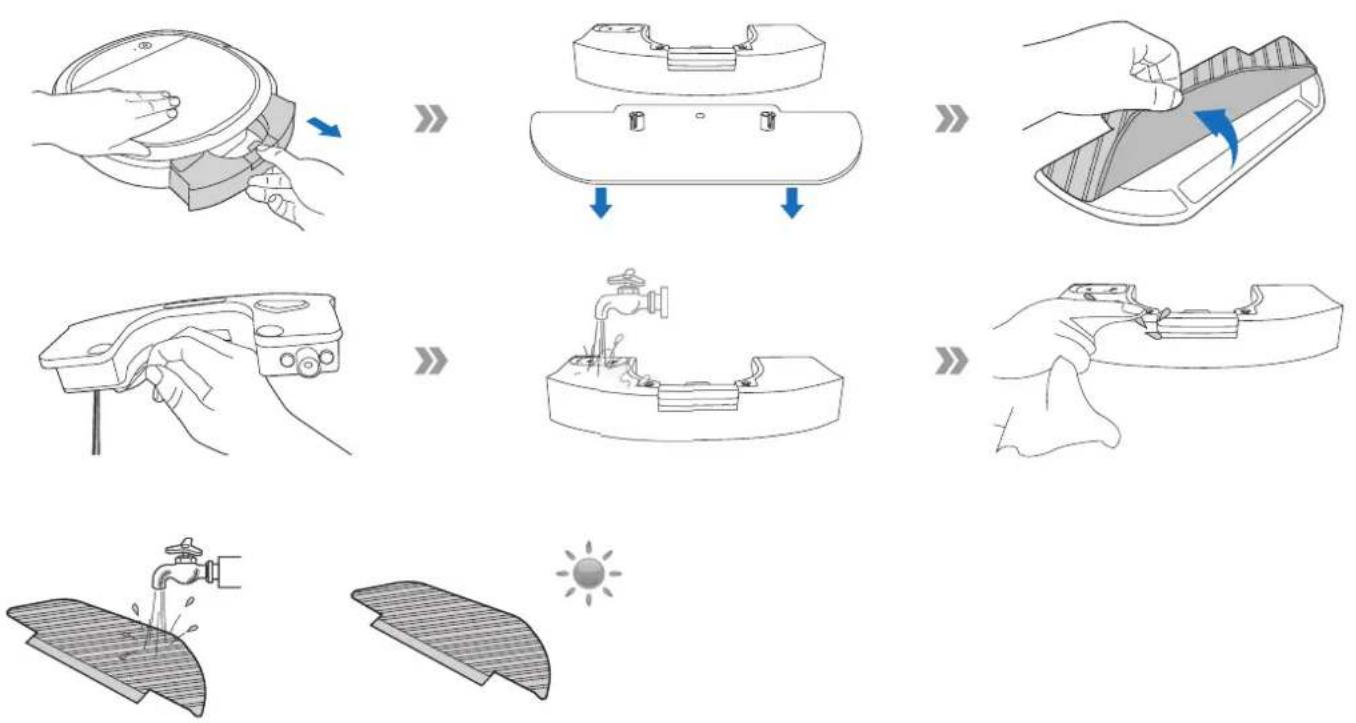

4.1 Optional Mopping System

4. Maintenance

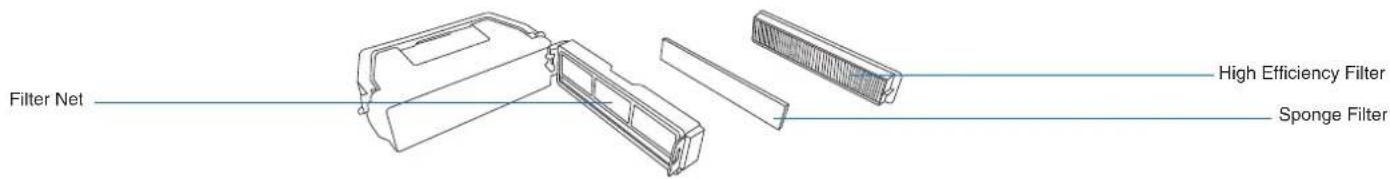

4.2 Dust Bin and Filters Dust Bin

4. Maintenance

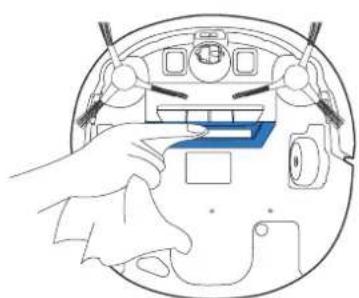

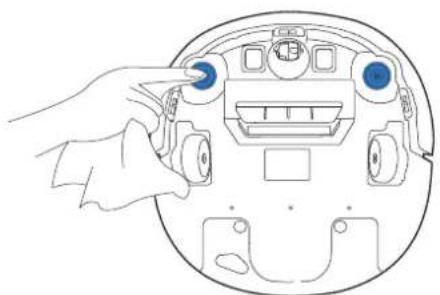

4.3 Direct Suction Option and Side Brushes

Note: A Multi-Function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.

Direct Suction Option Side Brushes

1

2

3

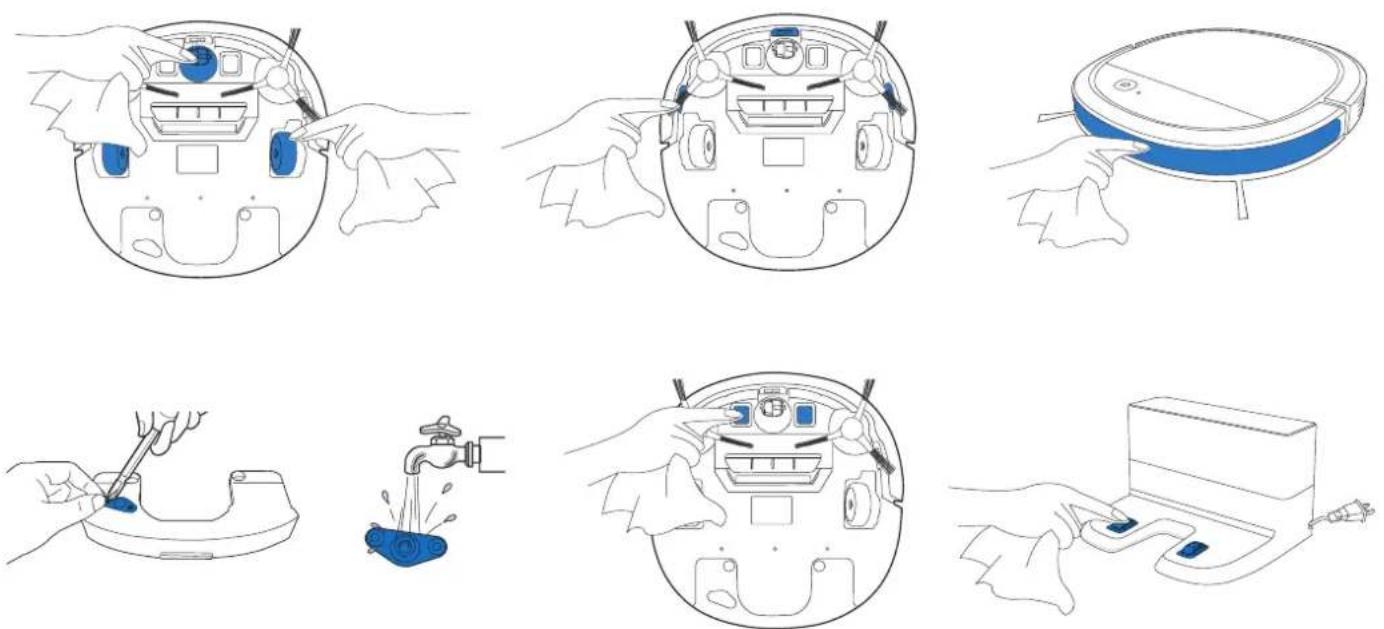

4.4 Other Components

Note: Before cleaning the robot's Charging Contacts and Docking Station Pins, turn the robot OFF and unplug the Docking Station.

4. Maintenance

4.5 Regular Maintenance

To keep DEEBOT running at peak performance, perform maintenance tasks and replace parts with the following frequencies:

Robot Part Maintenance	Frequency Replacement Frequency
Cleaning Cloth After each use	Every 50 washings
Side Brush Once every 2 weeks	weeks Every 3-6 months
Sponge Filter/ High Efficiency Filter Once per week Every 3-6 months
Universal Wheel Anti-Drop Sensors Bumper Charging Contacts Docking Station Pins	Once per week /

A Multi-Function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.

Note: ECOVACS manufactures various replacement parts and fittings. Please contact Customer Service for more information on replacement parts.

5. Alarm Sounds

DEEBOT will tell you something is wrong with an alarm indicator light and sounds. More detailed support is available through the ECOVACS HOME and online website.

Indicator Lights

Scenario Indicator Light
The robot is cleaning AUTO Mode Button glows a solid WHITE
The robot is charging AUTO Mode Button flashes WHITE
The robot has low battery AUTO Mode Button glows a solid RED
The robot has a problem AUTO Mode Button flashes RED

Alarm Sounds

Alarm Sound Problems	Solution
One Beep Side Brush is tangled.	Clean Side Brush as mentioned in Section 4 Maintenance.
Two Beeps Anti-Drop Sensor Malfunction	Use a cleaning cloth to wipe the Anti-Drop Sensor clean.
Three Beeps Dust Bin is not properly installed.	Make sure the Dust Bin has been installed; if it has, take it out and put it back in properly.
Continuous Beeps	The Robot is suspended or the Driving Wheels are tangled.	Put the Robot back on the ground or gently pat the bumper and clean the Driving Wheels as mentioned in Section 4 Maintenance.

6. Troubleshooting

No.	Malfunction Possible Causes Solutions
1	DEEBOT is not charging.	DEEBOT is not switched ON. Switch ON DEEBOT.
		DEEBOT has not connected to the Docking Station.	Be sure that the robot's Charging Contacts have connected to the Docking Station Pins.
		The battery is completely discharged.	Re-activate the battery. Switch ON DEEBOT. Place DEEBOT on the Docking Station by hand, remove after charging for 3 minutes, repeat 3 times; then charge normally.
2	DEEBOT cannot return to the Docking Station.	The Docking Station is not correctly placed. Refer to section 3.2 to correctly place the Docking Station.
3	DEEBOT gets stuck while working and stops.	DEEBOT is tangled with something on the floor (electrical wires, curtains, carpet fringing, etc.).	DEEBOT will try various ways to free itself. If it is unsuccessful, manually remove the obstacles and restart.
4	DEEBOT returns to the Docking Station before it has finished cleaning.	When the battery gets low, DEEBOT automatically switches to Return to Charger Mode and returns to the Docking Station to recharge itself.	This is normal. No solution necessary.
		Working time varies according to floor surface, room complexity and the Cleaning Mode selected.	This is normal. No solution necessary.

6. Troubleshooting

No.	Malfunction Possible Causes Solutions
5	DEEBOT does not clean automatically at the scheduled time.	Time Scheduling function is cancelled.	Program DEEBOT to clean at specific times using the ECOVACS HOME.
		DEEBOT is switched OFF. Switch ON DEEBOT.
		The robot's battery is low.	Keep DEEBOT switched ON and connected to the Docking Station to make sure it has a full battery to work at any time.
		The robot's Suction Intake is blocked and/or there is debris stuck in its components.	Power OFF DEEBOT, clean the Dust Bin and invert the robot. Clean the robot's Suction Intake, Side Brushes and the Main Brush as described in Section 4.
		The robot's Suction Intake is blocked and/or there is debris stuck in its components.	Power OFF DEEBOT, clean the Dust Bin and invert the robot. Clean the robot's Suction Intake, Side Brushes and the Main Brush as described in Section 4.
6	DEEBOT does not clean the whole area.	The cleaning area is not tidy.	Remove small objects from the floor and tidy up the cleaning area before DEEBOT starts cleaning.
7	The water is not coming out of the Reservoir when DEEBOT is mopping.	The Reservoir runs out of water. Add water into the Reservoir.	the Reservoir.
		The water outlets on the bottom of DEEBOT are clogged.	Check the water outlets on the bottom and clean.
		The water inlet filter on the bottom of Reservoir is clogged.	Unscrew the water inlet on the bottom of Reservoir and clean the filter.

6. Troubleshooting

No.	Malfunction Possible Causes Solutions
8	DEEBOT is not able to connect to the home Wi-Fi network.	Incorrect home Wi-Fi username or password entered.	Enter the correct home Wi-Fi username and password.
		DEEBOT is not within range of your home Wi-Fi signal.	Make sure DEEBOT is within range of your home Wi-Fi signal.
		Network setup started before DEEBOT was ready.	Turn ON Power Switch. Press the RESET Button for 3 seconds. DEEBOT is ready for network setup when it plays a musical tune and its Wi-Fi Indicator light flashes slowly.
		Your smartphone's operating system needs to be updated.	Update your smartphone's operating system. The ECOVACS HOME runs on iOS 9.0 and above, Android 4.0 and above.

7. Technical Specifications

Model DK3G
Rated Input 20V	=, 0.8A
Docking Station Model CH1630A
Rated Input	100-240 V ~, 50-60 Hz, 25 W	Rated Output 20 V	=, 0.8 A
Frequency Bands 2400MHz~2483.5MHz
Off/Standby Mode Power Less than 0.50 W
Networked Standby Power Less than 2.00 W

RF of Wi-Fi module output power is less than 100mW .
Note: Technical and design specifications may be changed for continuous product improvement.

iOS 9.0 or later Android 4.0 or later

https://www.ecovacs.com/global/compliance

OuNCTKa I NOJIb3OBaTeJIbCKoe TEXHnueckoe 06cIyXnBaHne He DOJIxKhbl BbIIOJnHrTbcR DeTbMn 6e3 npNCMOtpa.

2.Ocbo6oNTe NOBepxHocTB,POndexKaUyO ounctke.Y6epntecnoJa npoBoa n He6oJbWne npedMetbl,KOTOpBle MoryT nomewatb nepeDnXKeHHIO np6opa. 3anpaBtbe baxpomy KOBpa noKD KBep n OndHMnte 3aHaBeckn i cKateptn HAD noJOM.

1. Ecnn nobepxhoctb dny oucnk nmeet nepenadbl Blicot, Hanpimep ctyneH, ynpabnIte np6opom, yto6bl y6eintbcra, yto OH pacno3haet nx Hne naaet c kpa. Bo3moXHO, Heo6xoImo 6ydet yctaHOBtB pN3ueeckoe npenrTCTBne, yTO6bl npedOTbPAITb naeHne np6opa. Pn3ueeckoe npenrTCTBne He doJnxHo npedCTabnTb onachoctb naeHnA Dnna YeIOBeka.

4.ИспоьзуиTe npибopToькВ COOTBETCTBnCданнblm pykoBoDcTBOM.ИспоьзуиTeToькTe KOMПлЕКТУОши,КOTOPbIe

6. YctpaHHe HeNCpPaBHOCTe

6. YctpaHenne HeNCnPaBHOCTeI

6. YctpaHHe HeNCpPaBHOCTe

BbXoHnA MoOHOCTb MoDyIa Puy NiN Wi-Fi—He 6onee 100 MBT.

PpHmueaHne. TexnHeckme XapaKTepeNtMn BHeuHn BnD MOrT 6bIb N3MeHeHbC cJeIbO yCoBepHeCTBOBaHn npi6opa.

EU-Declaration of conformity

Document number:0042

Manufacturer: Ecovacs Robotics Co., Ltd.

Address:No.18, Youxiang Road, Wuzhong District, Suzhou City, Jiangsu Province, China.

We hereby declare that the following products listed below are in accordance with the provisions in the latest version of EC in this document.

Product designation:	Automatic battery-operated cleaner
Brand:	ECOVACS ROBOTICS
Model:	DK3G,DK3G.xy (x could be 0-9, indicate for different color,y could be 0-9, indicate for different accessories.)
Specification:	Electrical appliances for household and similar purposes

EC Regulations or Directives:

RED Directive 2014/53/EU

RoHS Directive 2011/65/EU

WEEE Directive 2012/19/EU

REACH Directive1907/2006/EC

Eco-design Directive 2009/125/EC

Standards the product is in conformity with:

EN 60335-2-2:2010 + A11:2012 + A1:2013 EN 55014-1:2017 Draft EN 301 489-1 V2.2.0

EN 60335-1:2012+A11:2014+A13:2017 EN 55014-2:2015 Draft EN 301 489-3 V2.1.1

EN 61558-1:2005 + A1:2009 EN 61000-3-2:2014 EN 62311:2008

EN 61558-2-16:2009 + A1:2013 EN 61000-3-3:2013 EN 50564: 2011

EN 62233:2008 EN 300 328 V2.1.

Signature:

General Manager: Zhuang Jianhua

Date: 2018-08-23

For EU Declaration of Conformity Information in multiple languages, visit https://www.ecovacs.com/global/compliance

No. 18 You Xiang Road, Wuzhong District, Suzhou City,

Jiangsu Province, P.R.China

451-1715-0148
