USER MANUAL UR210BR Soundmaster

English Français (French) Deutsch (German) Italiano (Italian)

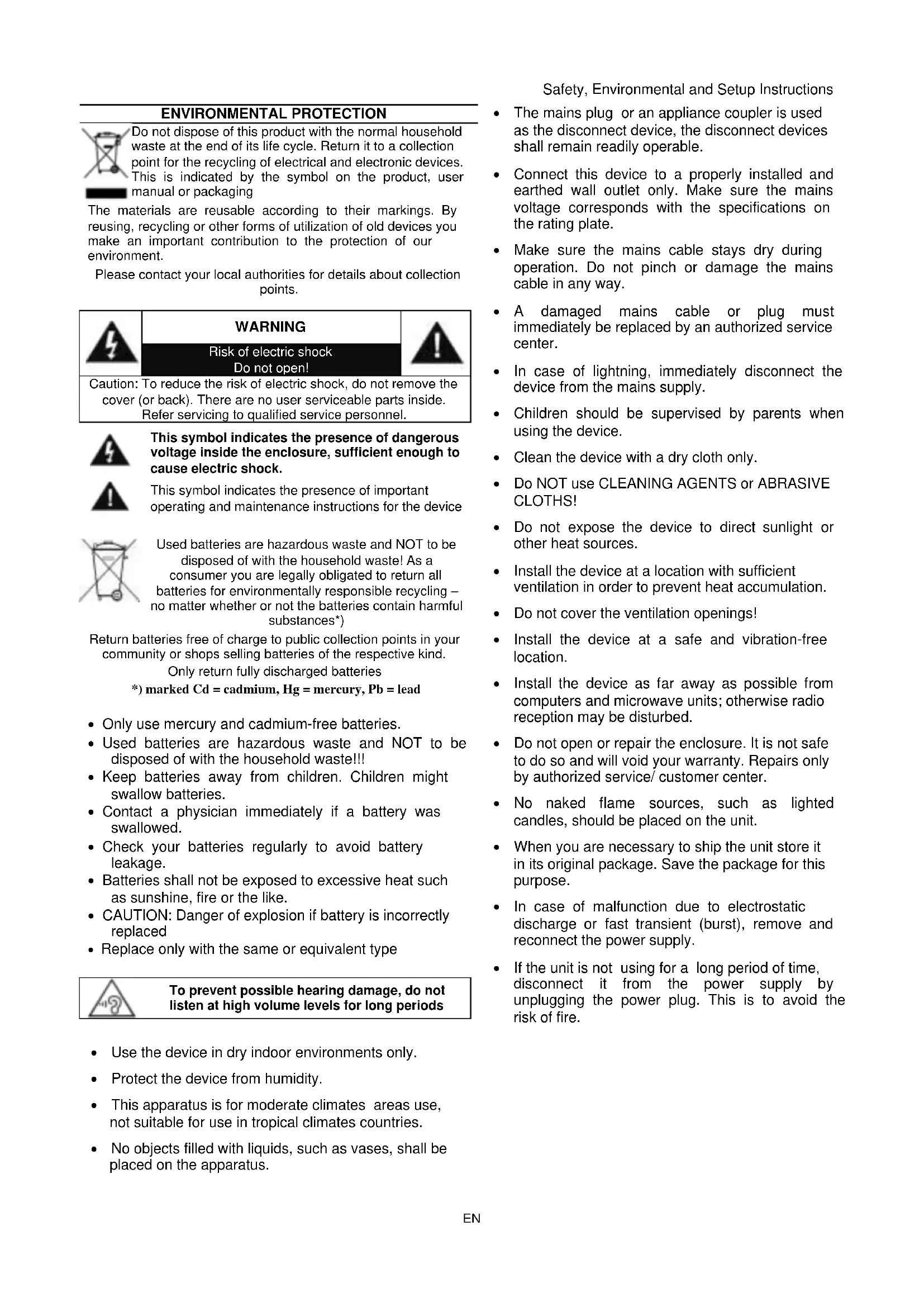

Do not dispose of this product with the normal household waste at the end of its life cycle. Return it to a collection point for the recycling of electrical and electronic devices. This is indicated by the symbol on the product, user manual or packaging The materials are reusable according to their markings. By reusing, recycling or other forms of utilization of old devices you make an important contribution to the protection of our environment. Please contact your local authorities for details about collection points.

Risk of electric shock Do not open! Caution: To reduce the risk of electric shock, do not remove the cover (or back). There are no user serviceable parts inside. Refer servicing to qualified service personnel.

This symbol indicates the presence of dangerous voltage inside the enclosure, sufficient enough to cause electric shock.

This symbol indicates the presence of important operating and maintenance instructions for the device

Used batteries are hazardous waste and NOT to be disposed of with the household waste! As a consumer you are legally obligated to return all batteries for environmentally responsible recycling – no matter whether or not the batteries contain harmful substances*)

Return batteries free of charge to public collection points in your community or shops selling batteries of the respective kind. Only return fully discharged batteries *) marked Cd = cadmium, Hg = mercury, Pb = lead

Only use mercury and cadmium-free batteries. Used batteries are hazardous waste and NOT to be disposed of with the household waste!!! Keep batteries away from children. Children might swallow batteries. Contact a physician immediately if a battery was swallowed. Check your batteries regularly to avoid battery leakage. Batteries shall not be exposed to excessive heat such as sunshine, fire or the like. CAUTION: Danger of explosion if battery is incorrectly replaced Replace only with the same or equivalent type

To prevent possible hearing damage, do not listen at high volume levels for long periods

Use the device in dry indoor environments only. Protect the device from humidity. This apparatus is for moderate climates areas use, not suitable for use in tropical climates countries. No objects filled with liquids, such as vases, shall be placed on the apparatus. The mains plug or an appliance coupler is used as the disconnect device, the disconnect devices shall remain readily operable. Connect this device to a properly installed and earthed wall outlet only. Make sure the mains voltage corresponds with the specifications on the rating plate. Make sure the mains cable stays dry during operation. Do not pinch or damage the mains cable in any way. A damaged mains cable or plug must immediately be replaced by an authorized service center. In case of lightning, immediately disconnect the device from the mains supply. Children should be supervised by parents when using the device. Clean the device with a dry cloth only. Do NOT use CLEANING AGENTS or ABRASIVE CLOTHS! Do not expose the device to direct sunlight or other heat sources. Install the device at a location with sufficient ventilation in order to prevent heat accumulation. Do not cover the ventilation openings! Install the device at a safe and vibration-free location. Install the device as far away as possible from computers and microwave units; otherwise radio reception may be disturbed. Do not open or repair the enclosure. It is not safe to do so and will void your warranty. Repairs only by authorized service/ customer center. No naked flame sources, such as lighted candles, should be placed on the unit. When you are necessary to ship the unit store it in its original package. Save the package for this purpose. In case of malfunction due to electrostatic discharge or fast transient (burst), remove and reconnect the power supply. If the unit is not using for a long period of time, disconnect it from the power supply by unplugging the power plug. This is to avoid the risk of fire.UR210 / English Instruction Manual

USB jack (for charging external devices)

Care and maintenance Clean the radio with a soft damp cloth and let all parts dry completely after cleaning. Do not use any aggressive cleaners, brushes with nylon bristles, sharp or metallic cleaning utensils, knives, hard scrapers and the like. They could damage the surfaces of the radio. Do not immerse the radio in water and do not let water getting into the housing of the radio. Storage Unplug the power adapter and clean the radio before storage. Always store the radio in a dry and clean place.UR210 / English Instruction Manual

1. Connect the cord of the power adapter to

the DC IN jack of the radio.

2. Connect the plug of the power adapter to

a wall socket. The radio is powered and in standby mode when you see the display is switched on.

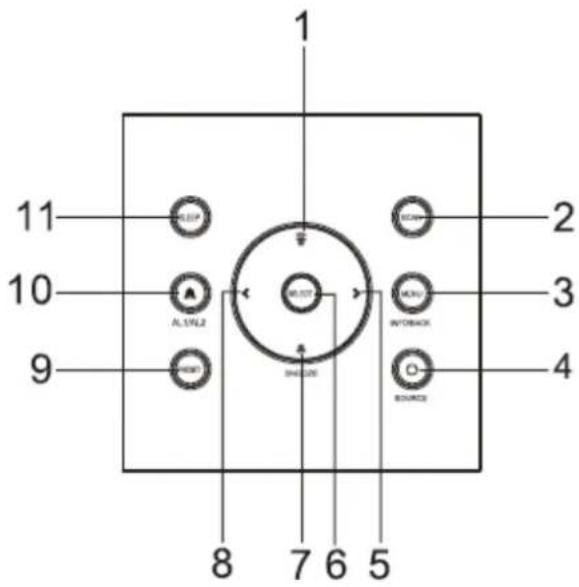

1. Press the /”SOURCE” button (4) in standby mode to turn the radio on.

2. Press and hold the /”SOURCE” button (4) when the radio is turned on to switch it to

standby mode. The time and date show on the display in standby mode. To completely disconnect the radio from power, remove the plug of the power adapter from the wall socket. Setting the clock The date and time of the radio is automatically set once it receives radio broadcast signals (and when such info is available). You may also set the date and time through the setting menu. To do so:

3. Press the or button (8/5) until you see “System” on

4. Press the or button (8/5) until you see “Time” on the

5. Press the or button (8/5) until you see “Set Time/Date” on the display and then press the

“SELECT” (6) button.

6. Press the or button (8/5) to set hour time and then press the “SELECT” button (6) to

7. Repeat step 6 to continue setting minute time, date, month and year.

For more date and time settings, see chapter “Time”. Using the antenna Unroll and extend the antenna to improve DAB/ FM signal reception. Controlling the volume Press the or button (1/7) to adjust the volume.UR210 / English Instruction Manual

Scanning for DAB stations The first time you use the radio, or if the station list is empty, the radio automatically performs a station search. You may also perform a station search manually. To do so: In DAB mode, press the “SCAN” button (2) to activate the automatic station search.

The radio automatically stores radio stations with sufficient signal strength. After the search is complete, the first stored station is broadcast automatically. Tuning to a DAB station

1. In DAB mode, the or button (8/5) to cycle through

the DAB stations in the station list.

2. Press the “SELECT” button (8/5) to tune to the selected

Storing preset stations You can store up to 10 DAB stations as preset stations.

1. Tune to a DAB station.

2. Press and hold the “PRESET” button (9) until “Preset

4. Press the “SELECT” button (6) to confirm.

The DAB station is stored with the selected preset number. Repeat steps 1-4 to store more preset stations.

5. To tune to a preset station, press the “PRESET” button (9) once, then press the or

button (8/5) to cycle through the list of preset stations and then press the “SELECT” button (6) to confirm the selection. To change the DAB station assigned to a preset number, repeat steps 1 to 4 above to overwrite the existing DAB station. Displaying DAB information Press the “INFO” button (3) repeatedly to cycle through the following information (if available). Dynamic label segment (DLS) Signal strength Program type (PTY) Ensemble name Frequency Signal error rate Bitrate codec Time DateUR210 / English Instruction Manual

1. In DAB mode, press and hold the “MENU” button (3) to access the DAB menus.

2. Press the or button (8/5) to cycle through the below options.

Full scan Manual tune DRC Prune System See below for details of each option. Full scan Full scan is used to perform a wide range search for DAB stations. Press the “SELECT” button (6) to start scanning for available DAB stations. After the scanning is complete, the first detected station is broadcast automatically.

1. Press the “SELECT” button (6) to confirm the

selection “Manual tune”.

2. Press the or button (8/5) to tune the frequency

DRC (Dynamic Range Control) DRC adds or removes a degree of compensation for the differences in the dynamic range between radio stations.

1. Press the “SELECT” button (6) to confirm the selection “DRC”.

2. Press the or button (8/5) to cycle through the below options. The asterisk behind the

option indicates the current setting. DRC off: No compensation applied. DRC low: Medium compensation applied. DRC high: Maximum compensation applied.

3. Press the “SELECT” button (6) to confirm the selected option.

Prune This feature removes any stations that are in the list but have no service in your area.

1. Press the “SELECT” button (6) to confirm the selection “Prune”.

2. Press the or button (8/5) to cycle through the below options.

No: Return to the previous menu. Yes: Remove invalid stations from the station list.

3. Press the “SELECT” button (6) to confirm the selected option.

1. Press the / “SOURCE” button (4) to turn the radio on.

Scanning for FM stations In FM mode, press the “SCAN” or “SELECT” button (2 or 6) to activate the automatic search for the next available FM station. After a strong FM radio station is detected, the search stops. The FM radio station is broadcast.

Tuning the FM frequency In FM mode, press the or button (8/5) to tune down or up the frequency. Once you have tuned up or down the frequency, press the “SCAN” or “SELECT” button (2 or

6) to activate the automatic search for the next available FM station in the selected tune up

or down direction. Storing preset stations You can store up to 10 FM stations as preset stations.

1. Tune to an FM station.

2. Press and hold the “PRESET” button (9) until “Preset Store” shows on the display.

3. Press the or button (8/5) to select a preset number.

4. Press the “SELECT” button (6) to confirm.

The FM station is stored with the selected preset number. Repeat steps 1-4 to store more preset stations.

5. To tune to a preset station, press the PRESET button (9) once, then press the or button

(8/5) to cycle through the list of preset stations and then press the “SELECT” button (6) to confirm the selection. To change the FM station assigned to a preset number, repeat steps 1 to 4 above to overwrite the existing FM station. Displaying RDS information Radio Data System (RDS) is a service that allows FM stations to transmit additional information. When you tune to an FM radio station that transmits RDS signals, the station name is displayed. Press the “INFO” button (3) repeatedly to cycle through the following RDS information (if available). Radio text Program type (such as NEWS, SPORT, POP M,….) Program service Time DateUR210 / English Instruction Manual

1. In FM mode, press and hold the “MENU” button (3) to access the FM menus.

2. Press the or button (8/5) to cycle through the below options.

Scan setting System See below for details of each option. Scan setting

1. Press the “SELECT” button (6) to confirm the selection

2. Press the or button (8/5) to cycle through the below

options. The asterisk behind the option indicates the current setting.

Strong stations only: Search for strong stations only. All stations: Search for all stations regardless of the signal strength.

3. Press the “SELECT” button (6) to confirm the selected option

Setting alarms The radio lets you have 2 alarm settings. To set the alarm:

1. Press the button(10) to select between Alarm 1 and

Alarm 2 and then press the “SELECT” button (6) to confirm the selection.

2. Press the or button (8/5) to set the hour time of the

3. Press the or button (8/5) to cycle through the

duration options and then press the “SELECT” button (6) to confirm the selection

The duration defines the time before the radio returns to standby mode if the alarm is not deactivated. Duration options: 15, 30, 45, 60, 90 and 120 minutes.

4. Press the or button (8/5) to cycle through the source options and then press the

“SELECT” button (6) to confirm the selection. The source defines the sound source of the alarm. Source options: DAB, FM and Buzzer. If DAB or FM is selected, you will also be prompted to select the last played station or one of the preset stations (if set) as the alarm.

5. Press the or button (8/5) to cycle through the interval

options and then press the “SELECT” button (6) to confirm the selection The interval defines on which days the alarm is active. Interval options: Daily, Once, Weekends and Weekdays. If “Once” is selected, you will also be prompted to set a specific date.

and then press the “SELECT” button (6). This setting defines the sound volume of the alarm.

7. Press the or button (8/5) to select alarm on or off

and then press the “SELECT” button (6) to confirm the selection.

When the alarm setting is active, the corresponding alarm icon “A1” for alarm 1 and “A2” for alarm 2 will show on the display. At the set time, the alarm will sound. The volume will increase gradually until it reaches the set volume level. The corresponding alarm icon will also flash on the display.UR210 / English Instruction Manual

Turning the alarms on or off in standby mode

1. In standby mode, press the button (10) repeatedly to cycle through the alarm on or off

settings. See the table below for details. Pressing Alarm 1 Alarm 2

2. Press the “SELECT” button (6) to confirm the setting.

When the alarm setting is active, the corresponding alarm icon (A1) for alarm 1 and( A2 ) for alarm 2) will show on the display. Deactivating a sounding alarm Press the / “SOURCE” button (4) or button (10) to switch the radio to standby mode. Snooze “Snooze buttons”: or or or or “SELECT” (button1 or 8 or 5 or 7 or 6). To temporarily silence a sounding alarm, press one of the “SNOOZE” buttons. To change the snooze period, press one of the “SNOOZE” buttons repeatedly (options: 5, 10, 15 or 30 minutes). The radio will return to standby mode during the snooze period. The alarm will sound again when the snooze period is over. To cancel the snooze period and the alarm, press the / “SOURCE” button (4). Sleep This sleep function defines the duration of time before the radio switches itself off automatically.

1. When the radio is switched on, press the “SLEEP”

button(11) repeatedly to select a sleep period (Options: Off, 15, 30, 45, 60 and 90 minutes).

2. Press the “SELECT” button (6) to confirm the selection.

Once a sleep period is set, the sleep icon ( ) will show on the display. The radio will automatically switch off when the sleep period is over.

1. Press and hold the “MENU” button (3) in DAB or FM

2. Press the or button (8/5) to cycle through the

options until you see “System”.

3. Press the “SELECT” button (6) to confirm the selection

4. Press the or button (8/5) to cycle through the below options.

1. Press the “SELECT” button (6) to confirm the selection

2. Press the or button (8/5) to cycle through the below

options. The asterisk behind the option indicates the current setting.

1. Press the “SELECT” button (6) to confirm the selection “Auto Update”.

2. Press the or button (8/5) to cycle through the below options. The asterisk behind the

option indicates the current setting. Update from Any: Update the time and date from any available signals. Update from DAB: Update the time and date from DAB signals. Update from FM: Update the time and date from FM signals. No update: Do not update the time and date.

3. Press the “SELECT” button (6) to confirm the selected option.

1. Press the “SELECT” button (6) to confirm the selection “Set 12/24 hour”.

2. Press the or button (8/5) to cycle through the below time format options. The asterisk

behind the option indicates the current setting. 12: Show the time in 12-hour format. 24: Show the time in 24-hour format.

3. Press the “SELECT” button (6) to confirm the selected option.

1. Press the “SELECT” button (6) to confirm the selection “Set date format”.

2. Press the or button (8/5) to cycle through the below date format options. The asterisk

behind the option indicates the current setting. DD-MM-YYYY MM-DD-YYYY

3. Press the “SELECT” button (6) to confirm the selected option.

1. Press the “SELECT” button (6) to confirm the selection

2. Press the or button (8/5) to cycle through the below

options. The asterisk behind the option indicates the current setting.

Timeout This setting defines the duration of the backlight before it is dimmed.

1. Press the “SELECT” button (6) to confirm the selection “Timeout”.

2. Press the or button (8/5) to cycle through the below timeout options (in seconds).

The asterisk behind the option indicates the current setting. On (the backlight does not dim) 10 sec 20 sec 30 sec 45 sec 60 sec 90 sec 120 sec 180 sec

3. Press the “SELECT” button (6) to confirm the selected option.

On level This setting defines the brightness level when the backlight is switched on.

1. Press the “SELECT” button (6) to confirm the selection “On level”.

2. Press the or button (8/5) to cycle through the below brightness levels. The asterisk

behind the option indicates the current setting. Low Medium High

3. Press the “SELECT” button (6) to confirm the selected option.

Dim level This setting defines the brightness level when the backlight is dimmed.

1. Press the “SELECT” button (6) to confirm the selection “Dim level”.

2. Press the or button (8/5) to cycle through the below brightness levels. The asterisk

behind the option indicates the current setting. Low Medium High

3. Press the “SELECT” button (6) to confirm the selected option.

Inactive Standby This setting defines the duration of time before the radio switches itself on automatically.

1. Press the “SELECT” button (6) to confirm the selection

2. Press the or button (8/5) to cycle through the below

time options. The asterisk behind the option indicates the current setting.

3. Press the “SELECT” button (8/5) to confirm the selected option.UR210 / English Instruction Manual

Language This setting defines the language used in the menus.

1. Press the “SELECT” button (6) to confirm the selection

2. Press the or button (8/5) to cycle through the below

language options. The asterisk behind the option indicates the current setting.

English Français (French) Deutsch (German) Italiano (Italian)

3. Press the “SELECT” button (6) to confirm the selected option.

Factory Reset This setting clears all user-defined settings and replaces them with the original default settings.

1. Press the “SELECT” button (6) to confirm the selection

2. Press the or button (8/5) to select “Yes” and then

Software Version This option displays the current software version. Press the “SELECT” button (6) to confirm the selection “SW version”.

“On” (PÅ) “Off” (Av)

“Off” (Av) “On” (PÅ)

English Français (French) Deutsch (German) Italiano (Italian)
