USER MANUAL RCD1180 Soundmaster

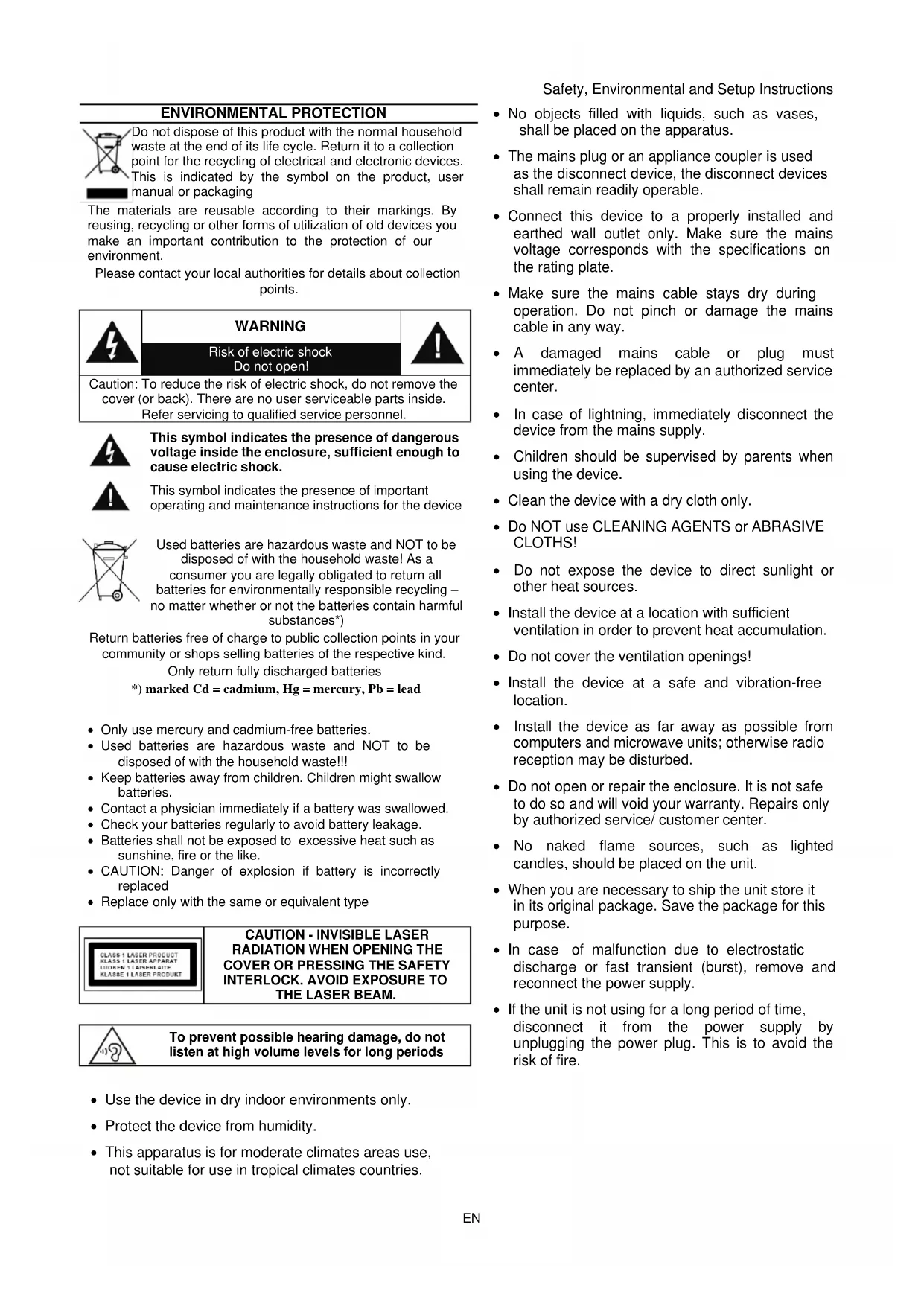

Do not dispose of this product with the normal household waste at the end of its life cycle. Return it to a collection point for the recycling of electrical and electronic devices. This is indicated by the symbol on the product, user manual or packaging

The materials are reusable according to their markings. By reusing, recycling or other forms of utilization of old devices you make an important contribution to the protection of our environment.

Please contact your local authorities for details about collection points.

警告	WARNING
	Risk of electric shock Do not open!
Caution: To reduce the risk of electric shock, do not remove the cover (or back). There are no user serviceable parts inside. Refer servicing to qualified service personnel.

This symbol indicates the presence of dangerous voltage inside the enclosure, sufficient enough to cause electric shock.

This symbol indicates the presence of important operating and maintenance instructions for the device

Used batteries are hazardous waste and NOT to be disposed of with the household waste! As a consumer you are legally obligated to return all batteries for environmentally responsible recycling - no matter whether or not the batteries contain harmful substances*)

Return batteries free of charge to public collection points in your community or shops selling batteries of the respective kind. Only return fully discharged batteries *) marked Cd = cadmium, Hg = mercury, Pb = lead

• Only use mercury and cadmium-free batteries.
• Used batteries are hazardous waste and NOT to be disposed of with the household waste!!!
• Keep batteries away from children. Children might swallow batteries.
• Contact a physician immediately if a battery was swallowed.
• Check your batteries regularly to avoid battery leakage.
• Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• CAUTION: Danger of explosion if battery is incorrectly replaced
• Replace only with the same or equivalent type

CAUTION - INVISIBLE LASER RADIATION WHEN OPENING THE COVER OR PRESSING THE SAFETY INTERLOCK. AVOID EXPOSURE TO THE LASER BEAM.

To prevent possible hearing damage, do not listen at high volume levels for long periods

• Use the device in dry indoor environments only.
• Protect the device from humidity.
• This apparatus is for moderate climates areas use, not suitable for use in tropical climates countries.

Safety, Environmental and Setup Instructions

• No objects filled with liquids, such as vases, shall be placed on the apparatus.
• The mains plug or an appliance coupler is used as the disconnect device, the disconnect devices shall remain readily operable.
• Connect this device to a properly installed and earthed wall outlet only. Make sure the mains voltage corresponds with the specifications on the rating plate.
• Make sure the mains cable stays dry during operation. Do not pinch or damage the mains cable in any way.
• A damaged mains cable or plug must immediately be replaced by an authorized service center.
• In case of lightning, immediately disconnect the device from the mains supply.
  Children should be supervised by parents when using the device.
• Clean the device with a dry cloth only.
• Do NOT use CLEANING AGENTS or ABRASIVE CLOTHS!
• Do not expose the device to direct sunlight or other heat sources.
• Install the device at a location with sufficient ventilation in order to prevent heat accumulation.
• Do not cover the ventilation openings!
• Install the device at a safe and vibration-free location.
• Install the device as far away as possible from computers and microwave units; otherwise radio reception may be disturbed.
• Do not open or repair the enclosure. It is not safe to do so and will void your warranty. Repairs only by authorized service/ customer center.
• No naked flame sources, such as lighted candles, should be placed on the unit.
• When you are necessary to ship the unit store it in its original package. Save the package for this purpose.
• In case of malfunction due to electrostatic discharge or fast transient (burst), remove and reconnect the power supply.
• If the unit is not using for a long period of time, disconnect it from the power supply by unplugging the power plug. This is to avoid the risk of fire.

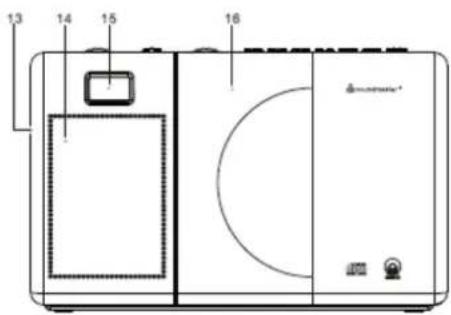

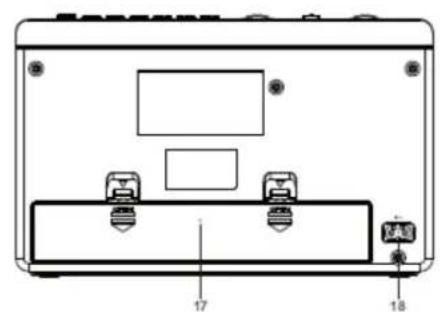

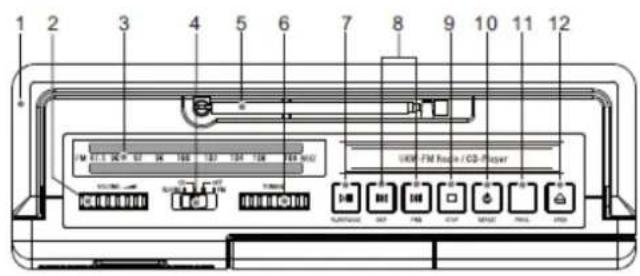

LOCATION OF CONTROLS

1 Handle
2 Volume Control
3 Dial Scale
4 Function Switch
5 FM Antenna
6 Tuning Control
7 Play/Pause Button
8 Back/Skip Button
9 Stop Button

10 Repeat Button
11 Prog Button
12 Door Eject Button
13 Phones Jack
14 Speaker
15 LCD Display
16 CD Door
17 Battery Door
18 AC Socket

AC OPERATION

Before operation, please make sure that the VOLTAGE mentioned on the unit is same as the voltage of your local area. Unravel the AC power cord, insert one end into the AC socket on the set, and the other end into a standard AC outlet.

Attention

1. Do not plug or unplug the power cable while you have wet hands.
2. When planning not to use this unit for a long time, disconnect the power cable from the wall outlet.
3. When disconnecting the power cord from the wall outlet, do not pull on the cord in order to avoid shock risks caused by damaged cable.

BATTERY OPERATION

Disconnect the AC cord set completely. Open the battery compartment door and insert 4 pieces UM-2 "C" size batteries into the battery compartment with battery polarity as shown inside the battery compartment.

HEADPHONE

1. Insert the headphone cable (requires 3.5mm stereo plug, not supplied) into the headphone jack on the unit.
2. Tune the desired volume level on the main unit.

RADIO

1. Set the FUNCTION switch to FM position.
2. Rotate the TUNING control to tune to your desired radio station.
3. Adjust the sound level by rotating the VOLUME control.
4. To turn off the radio, set the FUNCTION switch to OFF position.

For best reception, fully extend the FM Antenna to receive FM stations.

CD MODE

1. Set the FUNCTION switch to the CD position.
2. Insert the CD disc in the CD compartment and close the CD door, the unit will start reading the disc, the LCD display will show the total number of tracks of the entire disc after reading.
3. To start playing the CD, press the button.
4. To pause CD playback, press the button again.
5. Adjust the VOLUME Control to the desired volume level.
6. To stop playing the CD, press the STOP button.

Skip Mode

1. During play or pause mode, press the button to go to the next track.
2. During play or pause mode, press the button to go back to the beginning of the track.
3. During play mode, press the button twice will go back to the previous track.

Programming the CD Player

The programming of the CD player should be done during STOP mode.

1. Press the PROG button, the LCD display will show '01' and "PROG" flash continuously.
2. Press the or buttons to select the desired track.
3. Press the PROG button again to store this track in memory, the LCD will show '02' and flash continuously.
4. Repeat steps from 2 to 3 to store more tracks in memory. You can store up to 20 tracks in the memory.
5. Press the button to play the disc in the programmed order.
6. To stop playing, press the STOP button.
7. To cancel the programming list, press the STOP button and open the CD door or set the FUNCTION switch to OFF position.

Repeat Mode

Repeat 1: Press the REPEAT button once, the REPEAT 1 indicator will show on the LCD display. This single track will be repeated.

Repeat All: Press the REPEAT button twice, the REPEAT ALL indicator will show on LCD display. The whole disc will be played continuously.

To Cancel Repeat Function: Press the REPEAT button until indicator turned off.

CD resume function

RESUME - continuing from where you have stopped

1. Set the FUNCTION switch to RESUME position.
2. To start playing the CD, press the button.
3. Press STOP in once whenever you want to stop playback.
4. Press to resume playback.
5. Playback continues from where you have stopped.

To deactivate RESUME, set the function switch to "CD", "FM" or "OFF".

Note:

Opening the CD door during playback, RESUME function is also activated.

Important Note

Automatic standby switching

To comply with the ERP2 directive, the unit automatically switches to standby after approximately 10 minutes without a signal. To switch the unit on again, press the button on the unit.

If the button is pressed continuously for 5 seconds, the unit switches to standby mode. To switch the unit on again, press the button on the unit.

TECHNICAL SPECIFICATION

Power supply : 230V~50/60Hz

Battery supply : DC6V-4× 1.5V “C” size / UM-2

FM range : 87.5 - 108MHz

IMPORTER

CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KCLASS 1 LASER APPARAT
PRODUCTO LASER CLASE 1

ATTENTION - RADIATION

LASER INVISIBLE LORSQUE VOUS OUVREZ LE COUVERCLE

OU APPUYEZ SUR L'ENCLENCHEMENT DE SECURITE. EVITEZ TOUTE EXPOSITION AU RAYON LASER

CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KCLASS 1 LASER APPARAT
PRODUCTO LASER CLASE 1

WAARSCHUWING-ONZICTBARE LASERSTRALING WANNEER DE BEHUIZING GEOPEND WORDT OF DE INTERNE BEVEILIGING UITGESCHAKELD. VERMIJD BLOOTSTELLING AAN DE LASERSTRAAL.

CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KCLASS 1 LASER APPARAT
PRODUCTO LASER CLASE 1

PRECAUCION - RADIACION INVISIBLE DE LASER AL ABRIR LA TAPA O PULSAR EL INTERBLOQUEO DE SEGURIDAD. EVITE LA EXPOSICION AL HAZ DE LASER.

*) markerade Cd = kadmium, Hg = kvicksilver, Pb = bly

VARNING-OSYNLIG LASERSTRALNING NAR DU ÖPPNAR LOCKET ELLER TRYCKER PÄ SÄKERHETSSPÄRREN. UNDVIK EXPONERING FÖR LASERSTRÄLEN.

D 90556 Cadolzburg, Germany

Tel: [phone]

Fax: [phone]

E-Mail: [e-mail]

Internet: www.soundmaster.de

Hereby, Worlein GmbH declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.

A copy of the declaration of conformity can be obtained from the above address.
