Product type	Split air conditioner
Brand	Panasonic
Model	CSXE15NKE3
Power supply	Single-phase, 230 V / 50 Hz
Technology	Inverter
Operating modes	Auto, Heat, Cool, Dehumidification, Fan
Temperature range (cooling)	16 °C to 32 °C (indoor)
Temperature range (heating)	16 °C to 30 °C (indoor)
Air purification	nanoe-G (built-in generator)
Energy saving functions	ECONAVI (human activity sensor + sunlight sensor)
Sensors	Human activity sensor (presence and movement detection); Sunlight sensor
Remote control	Wireless, maximum range 8 m
Timer	2 ON/OFF timer settings
Air filter	Washable, cleaning recommended every 2 weeks
nanoe-G generator maintenance	Clean with a dry cotton swab every 6 months
Front panel cleaning	Removable and washable with soapy water
Safety	Automatic shutdown in case of anomaly; recommendation of a residual current device
Compressor protection	3-minute restart delay
Refrigerant	R32 (type not specified in the manual, standard estimate)

Frequently Asked Questions - CSXE15NKE3 PANASONIC

How to use the remote control to turn on the device?

Press the POWER button on the remote control. Make sure the display shows OFF before turning on. The POWER indicator flashes during startup.

How to clean the air filter?

Remove the front panel, then the filter. Wash it with clean water (not exceeding 40 °C) without harsh detergent. Dry it completely in the shade before reinstalling. It is recommended to clean it every two weeks.

What to do if the TIMER indicator flashes?

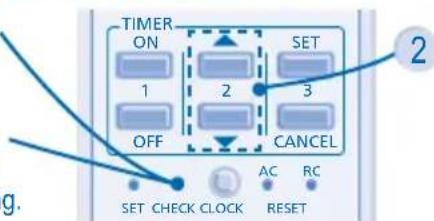

Use the remote control to retrieve the error code: hold the TIMER ON button for 5 seconds, then press SET until you hear a beep. Note the code and contact an authorized dealer.

How to activate ECONAVI mode?

Press the ECONAVI button on the remote control. The human activity indicator flashes for about 1 minute. The sensor then adjusts the temperature and airflow based on occupancy and movement.

How to use the nanoe-G function?

Press the NANOE-G button. This function can be activated even when the unit is off. It eliminates harmful microorganisms (viruses, bacteria). In normal mode, it starts automatically with the unit.

What to do if the device is not heating enough?

First, check the temperature setting (recommended between 20 °C and 24 °C). Close doors and windows. Clean the air filter. Make sure the air inlets/outlets are not obstructed. If the problem persists, contact an authorized dealer.

How to set the timer to turn on the device?

Press TIMER ON to select timer 1 or 2. Set the desired time with the +/- buttons, then press SET to confirm. The timer repeats daily.

What is the recommended temperature range for heating?

To save energy, set the temperature between 20 °C and 24 °C in heating mode. Avoid exceeding 30 °C.

How to clean the nanoe-G generator?

Turn off the power before cleaning. Use a dry cotton swab to clean the nanoe-G generator. It is recommended to do this every 6 months.

What to do if the device stops and the POWER indicator flashes in heating mode?

This is normal: the unit is in a defrost cycle to prevent frost on the outdoor unit. The flap is closed and the fan may stop temporarily. Wait a few minutes, heating will resume automatically.

USER MANUAL CSXE15NKE3 PANASONIC

Illustration of a blue water drop plant in a snowy landscape with a large air conditioner unit above (no text or symbols)

Panasonic®

Operating Instructions Air Conditioner

Model No.

Indoor Unit Outdoor Unit

CS-E15NKE-3 CU-E15NKE-3

CS-XE15NKE-3 CU-E15NKE-3

ENGLISH

Before operating the unit, read these operating instructions thoroughly and keep them for future reference.

FRANÇAIS

Thank you for purchasing Panasonic Air Conditioner

TABLE OF CONTENTS

SAFETY PRECAUTIONS
	4~5
REMOTE CONTROL	6~8
INDOOR UNIT	9
TROUBLESHOOTING	10
INFORMATION	11
QUICK GUIDE	BACK COVER

OPERATION CONDITION
Use this air conditioner under the following temperature range

Temperature (°C)		Indoor Outdoor
		*DBT *WBT *DBT *WBT
COOLING	Max. 32	23 43 26
	Min. 16	11 5 4
HEATING	Max. 30	- 24 18
	Min. 16	- -15 -16

* DBT: Dry bulb temperature * WBT: Wet bulb temperature

NOTICE: This model is not suitable for 24 hours non-stopping operation in heating mode below -15°C. When the outdoor temperature is below -15°C and you use this model out of above conditions, the outdoor unit might be frozen up and stop operation for protection control at -18°C.

NOTE : The illustrations in this manual are for explanation purposes only and may differ from the actual unit. They are subjected to change without notice for future improvement.

FRANÇAIS

To prevent personal injury, injury to others, or property damage, please comply with the following.

Incorrect operation due to failure to follow instructions below may cause harm or damage, the seriousness of which is classified as below:

WARNING

This sign warns of death or serious injury.

CAUTION

This sign warns of injury or damage to property.

The instructions to be followed are classified by the following symbols:

This symbol denotes an action that is PROHIBITED.

These symbols denote an actions that is COMPULSORY.

WARNING

INDOOR UNIT AND OUTDOOR UNIT

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Please consult authorized dealer or specialist to clean the internal parts, repair, install, remove and reinstall the unit. Improper installation and handling will cause leakage, electric shock or fire.

Confir rm to authorized dealer or specialist on usage of specifi ed refrigerant type. Using of refrigerant other than the specifi ed type may cause product damage, burst and injury etc.

Do not install the unit in a potentially explosive or fl ammable atmosphere. Failure to do so could result in fi re.

Do not insert your fingers or other objects into the air conditioner indoor or outdoor unit, rotating parts may cause injury.

Do not touch the outdoor unit during lightning, it may cause electric shock.

Do not expose yourself directly to cold air for a long period to avoid excess cooling.

Do not sit or step on the unit, you may fall down accidentally.

REMOTE CONTROL

Do not allow infants and small children to play with the remote control to prevent them from accidentally swallowing the batteries.

POWER SUPPLY

Do not use a modified cord, joint cord, extension cord or unspecified cord to prevent overheating and fire.

To prevent overheating, fire or electric shock:

• Do not share the same power outlet with other equipment.
• Do not operate with wet hands.
• Do not over bend the power supply cord.
• Do not operate or stop the unit by inserting or pulling out the power plug.

WARNING
POWER SUPPLY
	If the supply cord is damage, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
	It is strongly recommended to be installed with Earth Leakage Circuit Breaker (ELCB) or Residual Current Device (RCD) to prevent electric shock or fi re.
	To prevent overheating, fi re or electric shock:Insert the power plug properly.Dust on the power plug should be periodically wiped with a dry cloth.
	Stop using the product if any abnormality/failure occurs and disconnect the power plug or turn off the power switch and breaker.(Risk of smoke/fi re/electric shock)Examples of abnormality/failureThe ELCB trips frequently.Burning smell is observed.Abnormal noise or vibration of the unit is observed.Water leaks from the indoor unit.Power cord or plug becomes abnormally hot.Fan speed cannot be controlled.The unit stops running immediately even if it is switched on for operation.The fan does not stop even if the operation is stopped.Contact your local dealer immediately for maintenance/repair.
	This equipment must be earthed to prevent electrical shock or fi re.
	Prevent electric shock by switching off the power supply and unplug when:- Before cleaning or servicing.- Extended non-use.- Abnormally strong lightning activity.

CAUTION

	CAUTION
INDOOR UNIT AND OUTDOOR UNIT
	Do not wash the indoor unit with water, benzene, thinner or scouring powder to avoid damage or corrosion at the unit.
	Do not use for preservation of precise equipment, food, animals, plants, artwork or other objects. This may cause quality deterioration, etc.
	Do not use any combustible equipment in front of the airflow outlet to avoid fire propagation.
	Do not expose plants or pet directly to airflow to avoid injury, etc.
	Do not touch the sharp aluminium fin, sharp parts may cause injury.
	Do not switch ON the indoor unit when waxing the floor. After waxing, aerate the room properly before operating the unit.
	Do not install the unit in oily and smoky areas to prevent damage to the unit.
	Do not dismantle the unit for cleaning purpose to avoid injury.
	Do not step onto an unstable bench when cleaning the unit to avoid injury.
	Do not place a vase or water container on the unit. Water may enter the unit and degrade the insulation. This may cause an electric shock.
	Do not open window or door for long time during COOL/DRY mode operation.
	Ensure drainage pipe is connected properly and keep drainage outlet clear of gutters, containers or does not immersed in water to prevent water leakage.
	After a long period of use or use with any combustible equipment, aerate the room regularly.
	After a long period of use, make sure the installation rack does not deteriorate to prevent the unit from falling down.
REMOTE CONTROL
	Do not use rechargeable (Ni-Cd) batteries. It may damage the remote control.
	To prevent malfunction or damage of the remote control:Remove the batteries if the unit is not going to be used for a long period of time.New batteries of the same type must be inserted following the polarity stated.
POWER SUPPLY
	Do not pull the cord to disconnect the plug to prevent electric shock.

REMOTE CONTROL

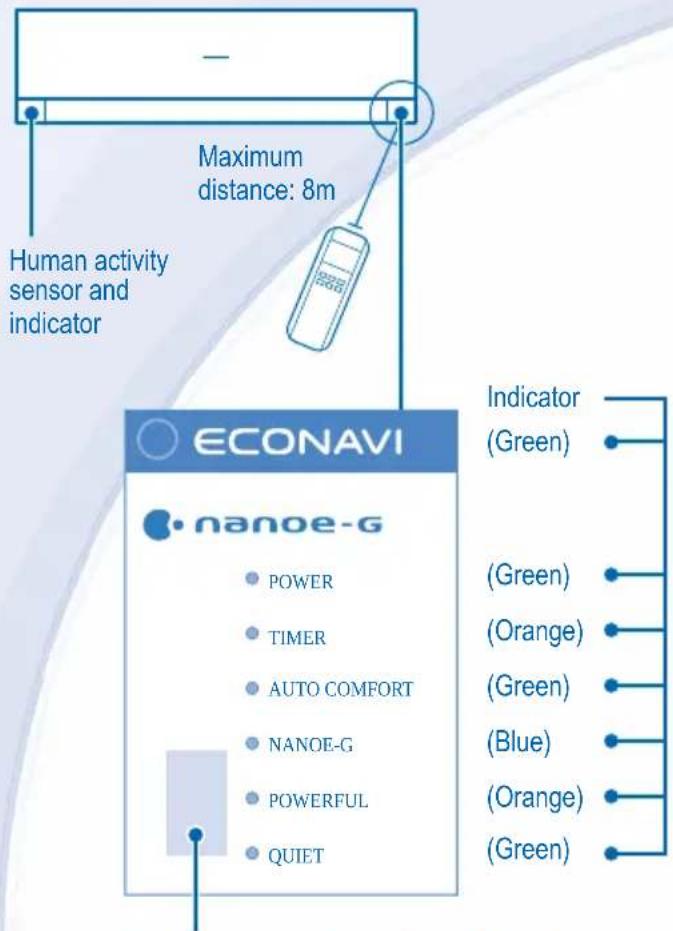

Maximum distance: 8m Human activity sensor and indicator ECONAVI • nanoe-G • POWER • TIMER • AUTO COMFORT • NANOE-G • POWERFUL • QUIET Indicator (Green) (Green) (Orange) (Green) (Blue) (Orange) (Green)

Sunlight sensor and remote control receiver

Remote Control display

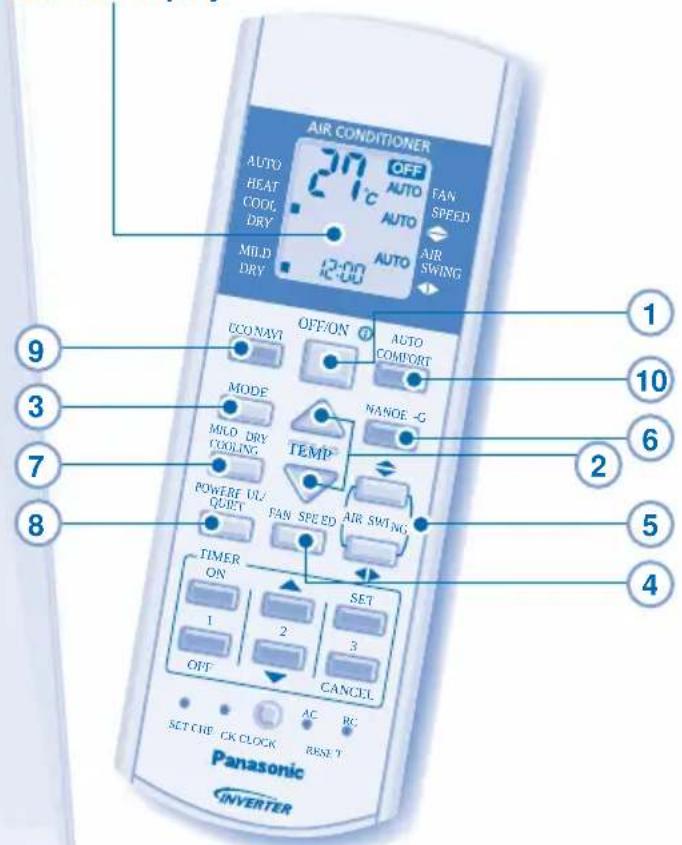

AIR CONDITIONER AUTO HEAT COOL DRY MILD DRY OFF/ON AUTO COMPORT ECONAVI MODE MLO DRY COOLING TEMP POWER UL/ QUET FAN SPEED AIR SWING SET AC RC SET CHECK CLOCK RESET 1 2 3 4 5 6 7 8 9 10 11c 21c AUTO FAN SPEED AUTO AIR SWING

Press the remote control's button

1

TO TURN ON OR OFF THE UNIT

POWER

- Please be aware of the OFF indication on the remote control display to prevent the unit from starting/stopping improperly.

2

TO SET TEMPERATURE

• Selection range: 16^ C 30^ C .
• Operating the unit within the recommended temperature could induce energy saving.
  HEAT mode : 20°C \~ 24°C.
  COOL mode : 26°C \~ 28°C.
  DRY mode: 1°C \~ 2°C lower than room temperature.

3

• During operation mode selection the power indicator blinks.
• Unit selects operation mode every 10 minutes according to temperature setting and room temperature.

HEAT mode - To enjoy warm air

- Unit takes a while to warm up. The power indicator blinks during this operation.

COOL mode - To enjoy cool air

- Use curtains to screen off sunlight and outdoor heat to reduce power consumption during cool mode.

DRY mode - To dehumidify the environment

- Unit operates at low fan speed to give a gentle cooling operation.

4

TO SELECT FAN SPEED (5 OPTIONS)

FAN SPEED

- For AUTO, the indoor fan speed is automatically adjusted according to the operation mode.

5

TO ADJUST AIRFLOW DIRECTION (5 OPTIONS)

AIR SWING

• Keeps the room ventilated.
• In COOL/DRY mode, if AUTO is set, the louver swing left/right and up/down automatically.
• In HEAT mode, if AUTO is set, the horizontal louver fi x at predetermined position. The vertical louver swing left/right after the temperature rises.

6

TO PURIFY THE AIR

NANOE-G

• Removes/deactivates harmful micro-organisms such as viruses, bacteria, etc.
• Can be activated even when the unit is turned off. In this condition, fan speed and air swing cannot be adjusted.
• nanoe-G starts automatically with the unit switched on OFF/ON ^1

with

7

TO IMPROVE HUMIDITY AND MOISTURE LEVEL

• This operation reduces air dryness and provides you with a comfortable living environment during COOL mode only.
• When vertical airflow direction is set to AUTO, it stops at lower position to avoid cold air contact. However, you can adjust the louver direction manually.

8

TO SWITCH BETWEEN POWERFUL & QUIET

POWERFUL/QUIET

→ QUIETPOWERFUL NORMAL

POWERFUL

TO REACH TEMPERATURE QUICKLY

POWERFUL

This operation stops automatically after 20 minutes.

QUIET

• This operation reduces airflow noises.

9

10

TO MONITOR HUMAN PRESENCE & ACTIVITY, SUNLIGHT FOR ENERGY SAVING & COMFORT

ECONAVI

To optimize energy saving

ECONAVI

AUTO COMFORT

To maximize comfort

AUTO COMFORT

• When either operation is activated, the unit will start to initialize for approximately 1 minute. Human activity indicator is blinking in sequence.
• After initialization, the human activity sensor will start to detect the level of heat source & movement, the unit adjusts the temperature and airflow to keep you comfort consistently.

Heat Source & Movement	LowHighNormalNone
COOL/DRY Mode Set Temperature	+1°C		+2°C
Set Fan Speed	+1 tap*	-1°C	≤ Medium Fan

HEAT Mode Set Temperature	+0.3°C
Set Fan Speed	-2°C	-2°C

* For first 15 minutes or until set temperature is reached.
- The human activity sensor will also scan for area of heat source and movement in a room.

Human activity indicator	Heat source & movement
	At left area of the room
	At right area of the room
	At centre area or multiple areas of the room.

- The unit will determine the heat source & movement hotspot, and automatically adjust horizontal airflow direction louver either fi x at predetermined position or swing left/right.

Detection area (top view)

7m 120°

• When manual AIR SWING is selected, the ECONAVI and AUTO COMFORT operation will be cancel.
• The human activity sensor may not detect moving objects further than 7m away or beyond detection angle.
• The human activity sensor sensitivity is influenced by indoor unit location, movement speed, temperature range, etc.
• The human activity sensor may:
• Mistakenly detects an object with heat source & movement similar to human, such as pets, etc. as human being.
• Mistakenly detects as non-heat source & movement if a person stays motionless for certain period of time.
• During ECONAVI operation, the sunlight sensor detects sunlight intensity coming through windows and differentiates between sunny and cloudy/night to further optimize energy saving by adjusting the temperature.

Ambient condition	Night	SunnyCloudDay/Night	Sunny
COOL/DRY Mode Set Temperature		+1°C
HEAT Mode Set Temperature		-1°C	-1°C

ECONAVI is activated while it is cloudy / night
ECONAVI is activated while it is sunny
- In a room without window or with thick curtain, the sunlight sensor will judge as cloudy/night.

REMOTE CONTROL

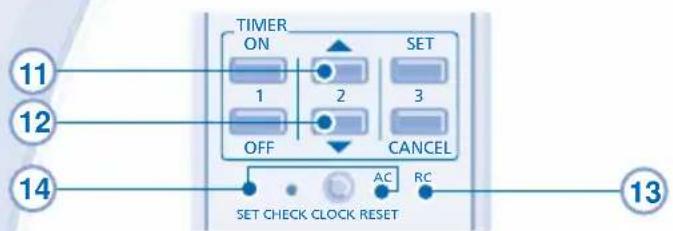

11 Press and hold for 5 seconds to dim or restore the unit's indicator brightness.
12 Press and hold for approximately 10 seconds to show temperature setting in °C or °F.
13 Press to restore the remote control's default setting.
14 Not used in normal operations.

TIMER ON 1 2 SET OFF 3 CANCEL AC RC SET CHECK CLOCK RESET 11 12 14 13

TO SET THE TIMER

• 2 sets of ON and OFF timers are available to turn ON or OFF the unit at different preset time.

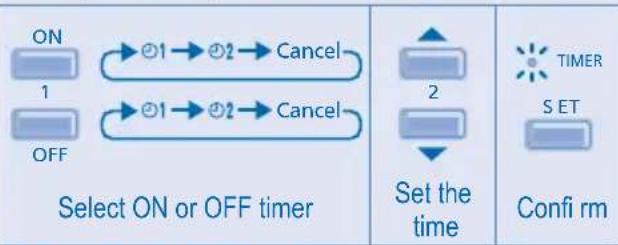

• Complete below procedures to set each timer:

• Example of application at living room:
Morning: ON 1 at 07:00 (Wake up)
OFF ⊙1 at 08:00 (Out for work)
Evening: ON at 17:00 (Back home)

OFF ⓞ2 at 22:00 (Sleep)

• To cancel ON or OFF timer, press ON or OFF to select respective or then press CANCEL.

- If timer is cancelled manually or due to power failure, you can restore the timer again by pressing ON or TO select respective OR then press SET.

- Upcoming timer will be displayed and will be activated in sequence.

- When ON Timer is set, the unit may start earlier (up to 35 minutes) before the actual set time in order to achieve the desired temperature on time.

- Timer operation is based on the clock set in the remote control and repeats daily once set. For clock setting, please refer to Remote Control Preparation on the back cover.

NOTES

- Can be activated in all modes and can be cancelled by pressing the respective button again.

• Cannot be selected at the same time.
• Cannot be activated during "MILD DRY COOLING" operation is activated.

CAUTION

• Switch off the power supply and unplug before cleaning.
• Do not touch the aluminium fin, sharp parts may cause injury.

CLEANING INSTRUCTIONS

• Do not use benzene, thinner or scouring powder.
• Use only soap (pH7) or neutral household detergent.
• Do not use water hotter than 40^ C .

HINT

- To ensure optimal performance of the unit, cleaning maintenance has to be carried out at regular intervals. Dirty unit may cause malfunction and you may see error code "H99". Please consult authorized dealer.

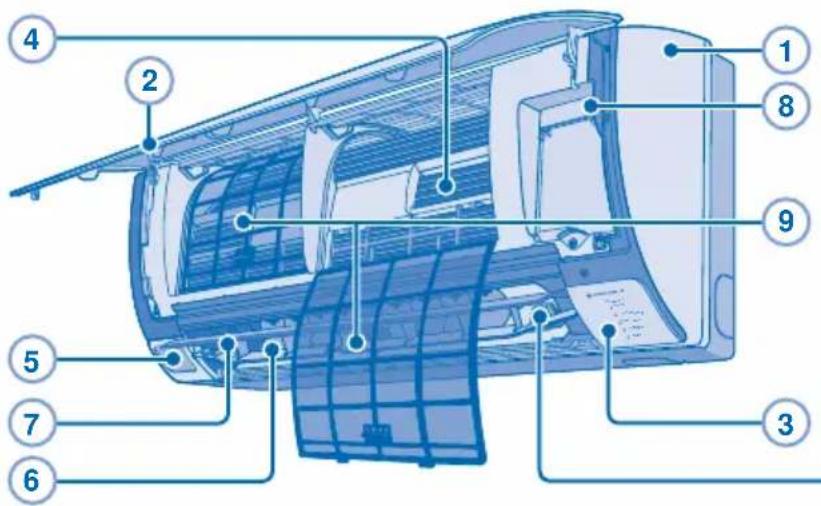

Labeled diagram of an air conditioner internal structure with numbered components

5 HUMAN ACTIVITY SENSOR

• Do not hit or violently press the sensor or poke it with a sharp object. This can lead to damage and malfunction.
• Do not place large objects near the sensor and keep away heating units or humidifi ers from the sensor's detection area. This may lead to sensor malfunction.

10 nanoe-G GENERATOR

- Do not touch during operation.

1 INDOOR UNIT

- Wipe the unit gently with a soft, dry cloth.

2 FRONT PANEL

Remove Front Panel

• Raise and pull to remove the front panel.
• Wash gently and dry.

Close Front Panel

- Press down both ends of the front panel to close it securely.

3 SUNLIGHT SENSOR AND REMOTE CONTROL RECEIVER

4 ALUMINIUM FIN

5 HUMAN ACTIVITY SENSOR

6 HORIZONTAL AIRFLOW DIRECTION LOUVER

- Do not adjust by hand.

7 VERTICAL AIRFLOW DIRECTION LOUVER

- Do not adjust by hand.

8 AUTO OFF/ON BUTTON

- Use when remote control is misplaced or a malfunction occurs.

Action Mode
Press once. Auto
Press and hold until 1 beep is heard, then release.	Cooling
Press and hold until 1 beep is heard, then release. Press again until 2 beeps, then release.	Heating
Press the button to turn off.

9 AIR FILTERS

• Air filter cleaning is required every two weeks.
- Wash/rinse the filters gently with water to avoid damage to the filter surface.
- Dry the filters thoroughly under shade, away from fire or direct sunlight.
- Replace any damaged filters.

10 nanoe-G GENERATOR

Clean with dry cotton bud.

• nanoe-G generator cleaning is recommended every 6 months.

TROUBLESHOOTING

The following symptoms do not indicate malfunction.

SYMPTOM		CAUSE
Mist emerges from indoor unit. ▶	Condensation effect due to cooling process.
Water flowing sound during operation.		Refrigerant flow inside the unit.
The room has a peculiar odor. ▶	This may be due to damp smell emitted by the wall, carpet, furniture or clothing.
Indoor fan stops occasionally during automatic fan speed setting.		This helps to remove the surrounding odours.
Airflow continues even after operation has stopped.		Extraction of remaining heat from the indoor unit (maximum 30 seconds).
Operation is delayed a few minutes after restarting.		The delay is a protection to the unit's compressor.
Outdoor unit emits water/steam. ▶	Condensation or evaporation occurs on pipes.
TIMER indicator is always on. ▶	The timer setting repeats daily once set.
POWER indicator blinks during HEAT mode with no warm air supply (and louver is closed).		The unit is in defrost mode (and AIR SWING is set to AUTO).
Indoor fan stops occasionally during heating operation.		To avoid unintended cooling effect.
POWER indicator blinks before the unit is switched on.		This is a preliminary step in preparation for the operation when the ON timer has been set.
Cracking sound during operation. ▶	Changes of temperature caused the expansion/contraction of the unit.
2 or more human activity indicator turns on simultaneously.		Judgement of heat source and movement area in progress.

Check the following before calling for servicing.

SYMPTOM	CHECK
Heating/Cooling operation is not working efficiently.	Set the temperature correctly.Close all doors and windows.Clean or replace the fil ters.Clear any obstruction at the air inlet and air outlet vents.
Noisy during operation.	Check if the unit has been installed at an incline.Close the front panel properly.
Remote control does not work.(Display is dim or transmission signal is weak.)	Insert the batteries correctly.Replace weak batteries.
The unit does not work.	Check if the circuit breaker is tripped.Check if timers have been set.
The unit does not receive the signal from the remote control.	Make sure the receiver is not obstructed.Certain fluorescent lights may interfere with signal transmitter. Please consult authorized dealer.

The unit stops and the TIMER indicator blinks.

Use remote control to retrieve error code.

1 Press for 5 seconds.
3 Press for 5 seconds to quit checking.
4 Turn the unit off and reveal the error code to authorized dealer.

TIMER ON 1 2 SET OFF 3 CANCEL AC RC SET CHECK CLOCK RESET g.

Press until you hear beep sound, then write down the error code.

Note:

- For certain errors, you may restart the unit for limited operation with 4 beeps when operation starts.

FOR SEASONAL INSPECTION AFTER EXTENDED NON-USE

• Checking of remote control batteries.
  • No obstruction at air inlet and air outlet vents.
• Use Auto OFF/ON button to select Cooling/Heating operation. After 15 minutes of operation, it is normal to have the following temperature difference between air inlet and air outlet vents:
  Cooling: ≥ 8°C Heating: ≥ 14°C

FOR EXTENDED NON-USE

• Activate Heat mode for 2\~3 hours as an alternative to remove moisture left in the internal parts thoroughly to prevent mould growth.
• Turn off the power supply and unplug.
• Remove the remote control batteries.

NON SERVICEABLE CRITERIAS

TURN OFF POWER SUPPLY AND UNPLUG then please consult authorized dealer under the following conditions:

• Abnormal noise during operation.
• Water/foreign particles have entered the remote control.
• Water leaks from Indoor unit.
• Circuit breaker switches off frequently.
• Power cord becomes unnaturally warm.
- Switches or buttons are not functioning properly.

Information for Users on Collection and Disposal of Old Equipment and Used Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol (bottom two symbol examples):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

CONSIGNES DE SÉCURITÉ

Labeled diagram of an air conditioner internal structure with numbered parts

5 CAPTEUR D'ACTIVITÉ HUMAINE

Labeled diagram of an air conditioner internal structure with numbered components

5 SENSOR DE PRESENCIA HUMANA

Labeled diagram of an air conditioner internal structure with numbered components

5 PERSONEN-AKTIVITÄTSSENSOR

UNITÀ INTERNA E UNITÀ ESTERNA

Labeled diagram of an air conditioner internal structure with numbered components

The image is too blurry to recognize any text content.

AUTO

COMFORT

(1) 本说明仅供参考。

-

ECONAVI

-

m = 311

m = 311

m = 311

AUTO

COMFORT

2.2.1 中国银行股份有限公司

-

ECONAV

-

m = 311

Labeled diagram of an air conditioner internal structure with numbered components

5 SENSOR MENSELIJKE ACTIVITEIT

Diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

4 5 6 TIMER ON 1 2 SET OFF 3 CANCEL AC RC SET CHECK CLOCK RESET

1 Pull out • Retirez • Quite • Nach unten ziehen • Estrarre • Verwijderen
2 Insert AAA or R03 batteries (can be used \~ 1 year) • Placez des piles AAA ou R03 (valables environ 1 an) • Inserte pilas AAA o R03 (puede ser usado \~ 1 año) • Batterien einlegen (AAA oder R03) (Betriebsdauer etwa ein Jahr) • Inserire batterie AAA o R03 (può essere utilizzato per circa 1 anno) • Plaats AAA- of R03-batterijen (kan \~ 1 jaar gebruikt worden)
3 Close the cover • Fermez le couvercle • Cierre la tapa • Batteriefach schließen • Chiudere il coperchio • Sluit het deksel
4 Press CLOCK • Appuyez sur CLOCK • Presione CLOCK • CLOCK drücken • Premere CLOCK • Druk op CLOCK
5 Set time • Réglez l'heure • Ajuste la hora • Uhrzeit einstellen • Impostare l'ora • Tijd instellen
6 Confirm • Confirmez • Confirmar • Bestätigen • Confermare • Bevestig

1 MODE

Select the desired mode.

Start/stop the operation.

Select the desired temperature.

Pursuant to at the directive 2004/108/EC, article 9(2)

Panasonic Testing Centre

Panasonic Service Europe, a division of

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, F.R. Germany
