Radio-controlled alarm clock with monthly calendar

Thank you for choosing this instrument from TFA.

1. Before you start using it

• Please make sure to read the instruction manual carefully.
  This information will help you to familiarise yourself with your new device, to learn all of its functions and parts, to find out impor-
  tant details about its first use and how to operate it and to get advice in the event of a malfunction.
• Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.
  rights arising from defects due to incorrect use
• We shall not be liable for any damage occurring as a result of non-following of these instructions. Likewise, we take no responsibility to provide information and the risks of the claim.
  Utility for any incorrect readings and for any car. Please take particular note of the safety advice!
• Please take particular note of the safety advice:
• Please keep this instruction manual for future reference.

2. Scope of delivery

• Radio-controlled alarm clock

- Batteries

• Instruction manual

3. Field of operation and all the benefits of your new instrument at a glance

• Highest precision radio-controlled clock - With time zone and manual setting option
• Alarm with snooze function - Indication of the whole current month
• Possibility of scrolling up and down the calendar - Indication of the day of the week, calendar week and date
• Memory function • Indication of the indoor temperature
• Moon phase - Backlight

4. For your safety

• This product is exclusively intended for the field of application described above. It should only be used as described within these instructions.
• Unauthorized repairs, modifications or changes to the product are prohibited.

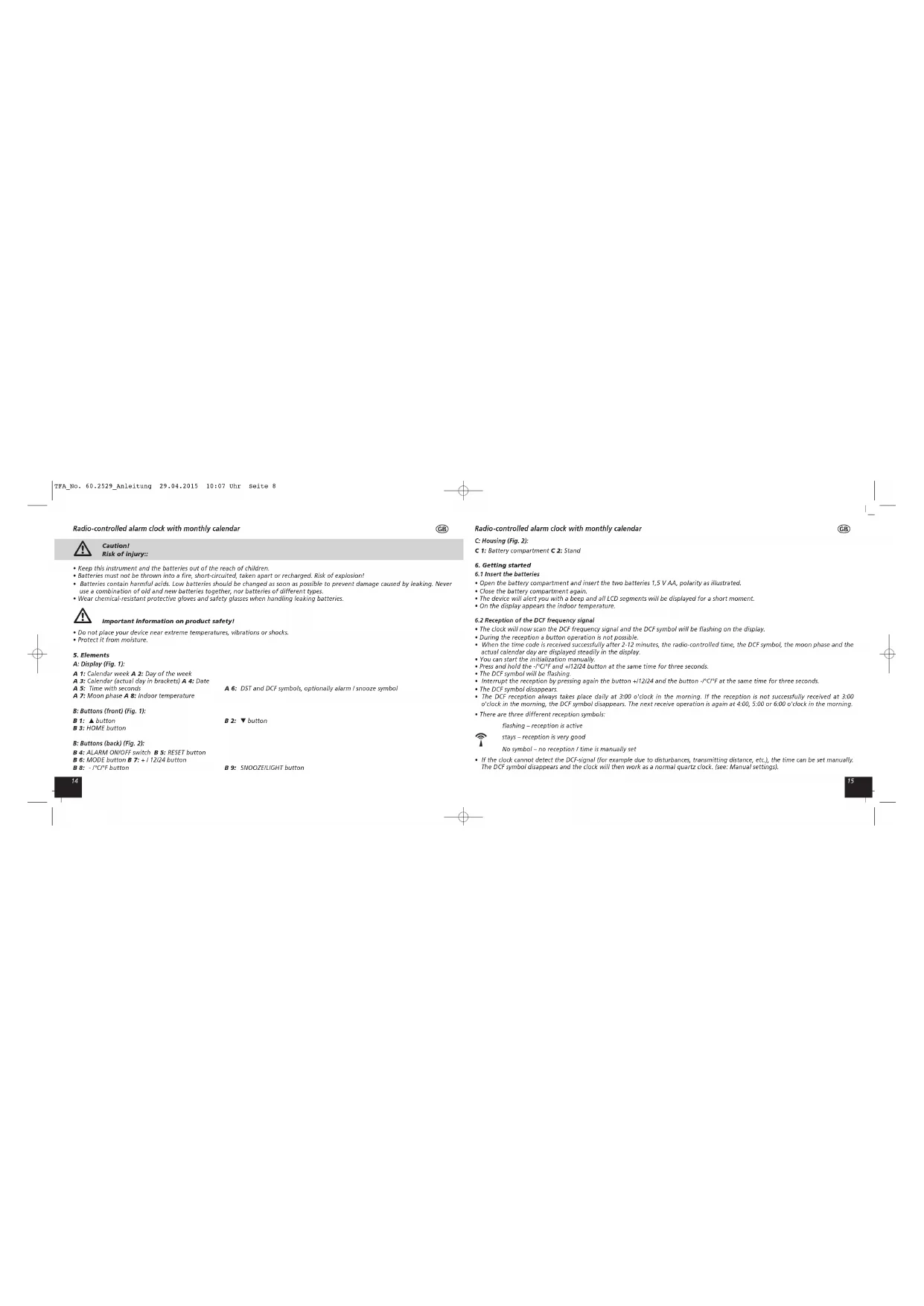

Radio-controlled alarm clock with monthly calendar

Caution! Risk of injury::

- Keep this instrument and the batteries out of the reach of children.

- Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion:

- Batteries contain harmful acids. Low batteries should be changed as soon as possible to prevent damage caused by leaking. Never

use a combination of old and new batteries together, nor batteries of different types.

- Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries.

Important information on product safety!

- Do not place your device near extreme temperatures, vibrations or shocks.

- Protect it from moisture.

5. Elements

A: Display (Fig. 1):

A 1: Calendar week A 2: Day of the week

A 3: Calendar (actual day in brackets) A 4: Date

A 5: Time with seconds

A 7: Moon phase A 8: indoor temperature

B: Buttons (front) (Fig. 1):

B 1: ▲ button

B 3: HOME button

B: Buttons (back) (Fig. 2):

B 4: ALARM ON/OFF switch B 5: RESET button

B 6: MODE button B 7: +1 12/24 button

B 8: -/°C/F button

A 6: DST and DCF symbols, optionally alarm / snooze symbol

B 2: ▼ button

B 9: SNOOZE/LIGHT button

Radio-controlled alarm clock with monthly calendar

C: Housing (Fig. 2):

C 1: Battery compartment C 2: Stand

6. Getting started

6.1 Insert the batteries

- Open the battery compartment and insert the two batteries 1,5 V AA, polarity as illustrated.

- Close the battery compartment again.

• The device will alert you with a beep and all LCD segments will be displayed for a short moment.

- On the display appears the indoor temperature.

6.2 Reception of the DCF frequency signal

• The clock will now scan the DCF frequency signal and the DCF symbol will be flashing on the display.

- During the reception a button operation is not possible.

- When the time code is received successfully after 2-12 minutes, the radio-controlled time, the DCF symbol, the moon phase and the

actual calendar day are displayed steadily in the display

- You can start the initialization manually.

- Press and hold the -1°C°F and +/12/24 button at the same time for three seconds.

• The DCF symbol will be flashing.

- Interrupt the reception by pressing again the button +/12/24 and the button - ^12 C/ ^12 F at the same time for three seconds.

• The DCF symbol disappears

• The DCF reception always takes place daily at 3:00 o'clock in the morning. If the reception is not successfully received at 3:00

o'clock in the morning, the DCF symbol disappears. The next receive operation is again at 4:00, 5:00 or 6:00 o'clock in the morning.

• There are three different reception symbols:

flashing - reception is active

stays - reception is very good

No symbol – no reception / time is manually set

- if the clock cannot detect the DCF-signal (for example due to disturbances, transmitting distance, etc.), the time can be set manually. The DCF symbol disappears and the clock will then work as a normal quartz clock. (see: Manual settings).

Radio-controlled alarm clock with monthly calendar

7. Note for radio-controlled time DCF

The time base for the radio-controlled time is a cesium atomic clock operated by the Physikaliench Technische Bundesanstalt Braunschweig. It has a time deviation of less than one second in one million years. The time is coded and transmitted from Mainlingen near Frankfurt via frequency signal DCF-77 (77.5 kHz) and has a transmitting range of approximately 1,500 km. Your radio-controlled clock receives this signal and converts it to show the precise time. Changeover from summer time or winter time is automatic. In Daylight Saving Time DST is shown on the LCD. The quality of the reception depends mainly on the geographic location. Normally there should be no rejection problems within a 1,500 km radius around Frankfurt.

Please take note of the following:

- The recommended distance to any interfering sources like computer monitors or TV sets is at least 1.5 - 2 meters.

- Inside ferro-concrete rooms (basements, superstructures), the received signal is naturally weakened. In extreme cases, please place the unit close to a window to improve the reception.

- During night-time, the atmospheric interference is usually less severe and reception is possible in most cases. A single daily reception is adequate to keep the accuracy deviation under 1 second.

8. Operation

- During the operation, all successful settings will be confirmed by a brief beep tone.

- The device will automatically quit the setting mode if no button is pressed for a long period of time.

- Press and hold the +12/24 or -7°C°F button in the setting mode for fast running.

8.1 Manual settings

- Press and hold the MODE button in normal mode. The device will alert you with a beep. The hour digit will be flashing. Press the +12/24 or -1°C*E button to adjust hours.

- Press the MODE button to make the settings in the following sequence: Minutes, seconds, year, month, day and time zone. Press the 4/12/24 or - ^o C ^i ^o F button to adjust it.

- Confirm with the MODE button.

- The manually set time will be overwritten by the DCF time when the signal is received successfully.

8.1.2 Setting of the time zone

- In the setting mode you can make the time zone correction (-12I+12).

- The time zone correction is needed for countries where the DCF signal can be received but the time zone is different from the German time (e.g. +1=one hour later).

Radio-controlled alarm clock with monthly calendar

• 0 appears on the display.
- Press the +12/24 or -1°C15F button.
- Confirm the setting with the MODE button.

8.1.3 Setting of the 12 and 24 hours display

• In the normal mode you can choose between the 12 - or 24 hour system.
- Press the +/12/24 button.
- In the 12 HR system AM (before 12 o'clock) or PM (after 12 o'clock) appears on the display.

8.2 Setting of the alarm time

• Press the MODE button once in normal mode.
• AL and 7:00 (default) or the last adjusted alarm time appear on the display.
• Press and hold the MODE button.
  • The hour digits start flashing
• Press the +12/24 or -/°CIF button to adjust the hours.
• Press the MODE button again and you can adjust the minutes with the +12/24 or -1°C°F button.
• Confirm the setting with the MODE button.
• Press the MODE button three times, to return to normal mode.
  • The display shows the current time.
• Slide the ON/OFF switch upwards. The alarm is activated.
  • The alarm symbol appears the display.
• When the adjusted alarm time is reached, the alarm will ring.
  • The alarm symbol will be flashing.
• Press any button and the alarm will stop.
• If the alarm is not stopped manually, the increasing alarm will automatically turn off after certain minutes and will be reactivated
  at the same time.
• When the alarm rings, press the SNOOZE/LIGHT button and the snooze function will be activated.
• Once the shodze function is activated, ZZ will be hashing on the display.
  • The alarm will be interrupted for five minutes
• You can activate the snobze function up to seven tubes.

GB

Radio-controlled alarm clock with monthly calendar

8.2.1 Activate and deactivate the alarm function

• Slide the ALARM ON/OFF switch downwards, to deactivate the alarm function.
  • The alarm symbol disappears.
• Slide the switch ALARM ON/OFF switch upwards, to activate the alarm function.
  • The alarm symbol appears on the display.

8.3 Setting of the event day

• Press the MODE button twice in normal mode.
• On the display appear a birthday cake, the possibility of setting of the date, EVENT and in the brackets the number 1 (default).
• You can set up to 8 events.
• Press and hold the MODE button.
  • The number in the brackets will be flashing.
• Press the -1/2/24 or -1°C°F button to set the numbers (1-8).
• Press the MODE button to make the settings in the following sequence: month and day. Press the +12/24 or -°C/F button to
  adjust the settings.
• Confirm with the MODE button.
  • The event day is framed (will be flashing).
• Press the MODE button twice, to return to normal mode.
  • The display shows the current time
• On the event day the birthday cake and EVENT will be flashing on the display.
  • For each new event start from the beginning.

8.4 Calendar

- With the ▲ or ▼ button you can switch to each single month.

- Press the HOME button to return to the actual month.

8.5 Setting of the dual time

• Press the MODE button three times in normal mode.
  • DUAL-T appears on the display
• Press and hold the MODE button.

Radio-controlled alarm clock with monthly calendar

• The hour and the minute digits will be flashing.
- Press the +12/24 or -1°C°F button to adjust the hours.
- Confirm the setting with the MODE button.
- Press the MODE button again to return to normal mode.
• The display shows the current time

8.6 Setting of the temperature unit

- Press the -/°C/F button to change between °C (Celsius) or °F (Fahrenheit) as temperature unit.

8.7 Backlight

- Press the SNOOZE/LIGHT button. The backlight will be activated for a few seconds.

1. Moon phase

A: New Moon B: Waxing Crescent

1. Positioning

2. Place the device onto any flat surface with the integrated stand at the back. Avoid the vicinity of any interfering field like computer monitors or TV sets and solid metal objects.

3. Care and maintenance
4. Clean the device with a soft damp cloth. Do not use solvents or scouring agents.
5. Remove the batteries if you do not use the device for a long period of time.
6. Keep the device in a dry place.

Radio-controlled alarm clock with monthly calendar

11.1 Battery replacement

- As soon as the battery symbol appears on the display beside the time, change the batteries.

- Open the battery compartment and insert two new batteries 1,5 V AA, polarity as illustrated.

12. Troubleshooting

Problems Solution

No display on the device → Ensure that the batteries polarities are correct

→ Change the batteries

No DCF reception	→ Press and hold simultaneously the +1/2/24 button and the -*C*F button and start the initalization manually
	→ Wait for attempted reception during the night
	→ Choose another place for your product
	→ Manual setting of the clock
	→ Check if there is any source of interference.
	→ Restart the device according to the manual

Incorrect indication → Use a pin to press the RESET button

→ Change the batteries

If your device fails to work despite these measures contact the supplier from whom you purchased it.

13. Waste disposal

This product has been manufactured using high-grade materials and components which can be recycled and reused.

Never dispose of empty batteries and rechargeable batteries in household waste. As a consumer, you are legally required to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment.

The symbols for the heavy metals contained are: Cd=cadmium, Hg=mercury, Pb=lead

GB

Radio-controlled alarm clock with monthly calendar

This instrument is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE). Please do not dispose of this instrument in household waste. The user is obligated to take end of life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal.

14. Specifications

Measuring range indoor temperature: -10°C... +50°C (+14... +122°F)

Indication LL.1/HH.H: Outside the measuring range

Power consumption: Batteries 2 x 1,5 V AA (included)

Dimensions: 176 x 50 x 120 mm

Weight: 265 g (instrument only)

IFA Dosumanc GmbH & Co.KG, Zum Ottersberg 12, D-97877 Wertheim.

No part of this manual may be reproduced without written consent of TFA Doztmann. The technical data are correct at the time of going to print and may change without prior notice. The latest technical data and information about your product can be found by entering your product number so our homepage

DECLARATION OF CONFORMITY

Herewith we declare, that this wireless transmission device does comply with the essentials requirements of RATTE Directive 1999/SEC. A copy of the signed and dated Declaration of Conformity is available on request via [e-mail].

www.tfa-dostmann.de 04/15
