USER MANUAL 60.2511 TFA

Operating Instructions

Radio controlled alarm clock

Thank you for choosing this instrument from TFA.

1. Before you use this product

• Please make sure to read the instruction manual carefully.
  This information will help you to familiarise yourself with your new device, to learn all of its functions and parts, to find out important details about its first use and how to operate it, and to get advice in the event of faults.
• Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.
• Likewise, we take no responsibility for any incorrect readings and for any consequences which may result from them.
  • We shall not be liable for any damage occurring as a result of non-following of these instructions.
• Please take particular note of the safety advice!
• Please keep this instruction manual for future reference.

22

23

Radio controlled alarm clock

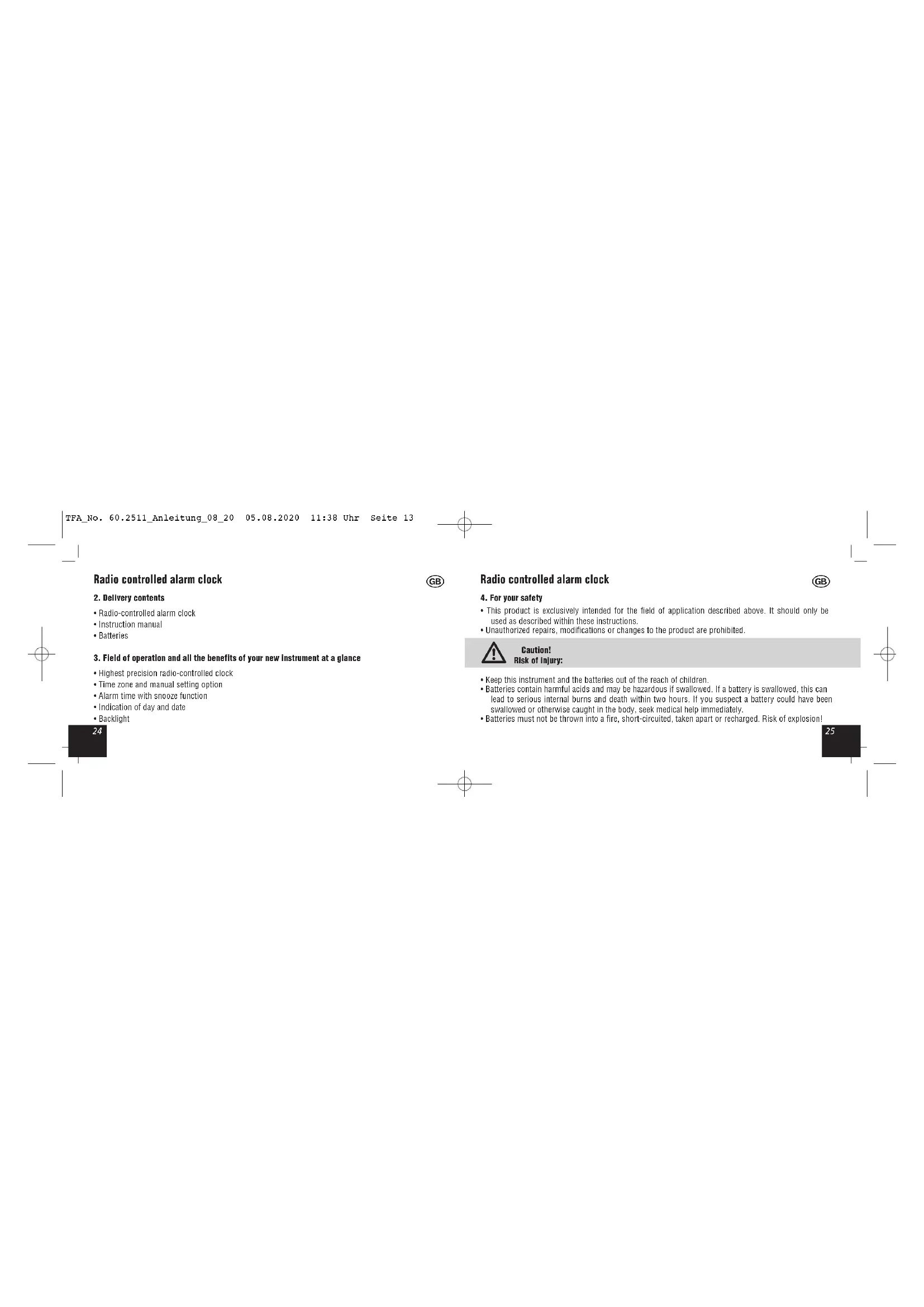

2. Delivery contents

• Radio-controlled alarm clock
• Instruction manual
• Batteries

3. Field of operation and all the benefits of your new instrument at a glance

• Highest precision radio-controlled clock
• Time zone and manual setting option
• Alarm time with snooze function
  • Indication of day and date
• Backlight

24

Radio controlled alarm clock

4. For your safety

• This product is exclusively intended for the field of application described above. It should only be used as described within these instructions.
• Unauthorized repairs, modifications or changes to the product are prohibited.

Caution! Risk of injury:

• Keep this instrument and the batteries out of the reach of children.
• Batteries contain harmful acids and may be hazardous if swallowed. If a battery is swallowed, this can lead to serious internal burns and death within two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help immediately.
• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!

25

Radio controlled alarm clock

• Low batteries should be changed as soon as possible to prevent damage caused by leaking. Never use a combination of old and new batteries together, nor batteries of different types.
• Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries.

Important information on product safety!

- Do not place your product near extreme temperatures, vibrations or shocks. - Protect it from moisture.

5. Elements

LCD 1. DCF signal 2. Time with seconds / Date with weekday 3. Alarm with alarm symbol

Radio controlled alarm clock

Buttons

1. SNOOZE/LIGHT button 5. MODE button

2. ALARM button

3. ▼ button

4. ▲ button

5. RESET button

Housing

1. Battery compartment

6. Getting started

- Open the battery compartment and insert the batteries 2 × 1.5 V AAA, polarity as illustrated. - A short beep will sound and all LCD segments will light up for about a few seconds.

Radio controlled alarm clock

• The clock will scan the DCF frequency signal and the DCF symbol flashes on the LCD. When the signal is received successfully after 3-5 minutes, the radio controlled time and the DCF symbol appear permanently.
• The clock automatically receives every day at 2:00 and 3:00 in the morning a radio signal. If the reception fails, the symbol disappears and scanning stops and will be repeated at 4.00 am and 5.00 am.
• Manual Initialization can be helpful. Press and hold ▼ and ▲ button at the same time. A short beep will sound and the symbol is flashing. If the reception fails, the symbol disappears and scanning stops and will be repeated in the next three hours (three times).
• Press and hold ▼ and ▲ button at the same time, to stop the initialization and the DCF-reception symbol disappears.
• In case the clock cannot detect the DCF-signal (for example due to disturbances, transmitting distance, etc.), the time can be set manually. The clock will then work as a normal quartz clock. (see: Setting of clock and calendar).

Radio controlled alarm clock

Radio controlled time reception:

The time base for the radio controlled time is a Gaesium Atomic Clock operated by the Physikalisch Technische Bundesanstalt Braunschweig which has a time deviation of less than one second in one million years. The time is coded and transmitted from Mainflingen near Frankfurt via frequency signal DCF-77 (77.5 kHz) and has a transmitting range of approximately 1500 km. The time is coded and transmitted from Mainflingen near Frankfurt via frequency signal DCF-77 (77.5 kHz) and has a transmitting range of approximately 1500 km. Your radio-controlled clock receives this signal and converts it to show the precise time in summer or wintertime. In Daylight Saving Time "DST" is shown on the LCD. The quality of the reception depends greatly on the geographic location. In normal cases, there should be no reception problems within a 1,500 km radius around Frankfurt.

Please take note of the following:

- Recommended distance to any interfering sources like computer monitors or TV sets is a minimum of 1.5 - 2 metres.

Radio controlled alarm clock

• Within ferro-concrete rooms (basements, superstructures), the received signal is naturally weakened. In extreme cases, please place the unit close to a window and/or point its front or back towards the Frankfurt transmitter.
• During night-time, the atmospheric disturbances are usually less severe and reception is possible in most cases. A single daily reception is adequate to keep the accuracy deviation below 1 second.
• After the reception of the radio controlled time you can set the alarm time (see: Alarm setting).

7. Operation

• Important: Please do not press any buttons during signal reception.
• During operation, all successful settings will be confirmed by an acoustical signal.
• The instrument will quit automatically the setting mode, if there is no button used within 15 seconds.
• Hold ▼ or ▲ button you will enter fast mode.

- With the MODE button you can switch between the display time and date with weekday.

Radio controlled alarm clock

7.1 Manual setting of clock and calendar

• Press and hold MODE button in normal mode.
  • The hour system (24 hr) is flashing.
• Press ▼ or ▲ button to choose 12 hr (PM or AM appears on the display) or 24 hr system.
• Confirm with MODE button.
  • The hour digit is flashing. Press ▼ or ▲ button to adjust hours.
• Press MODE button and the setting sequence is shown as follows: Minutes, seconds, year, month, day time range and day of working hours. Press ▼ on a button to make the desired settings.
  day, time zone and day-of-week language. Press ▼ or ▲ button to make the desired settings.
• Confirm with MODE button.
  • The manually set time will be overwritten by the DCF time when the signal is received successfully.

7.2 Selection of the language for the weekday

- Day-of-week language: German (GE), French (FR), Spanish (ES), Italian (IT), Dutch (NE), Danish (DA), Russian (RU) and English (EN).

Radio controlled alarm clock

7.3 Setting of time zone

• The time zone is used for countries where the DCF signal can be received but the time zone is different from the DCF time (e.g. +1=one hour later).
  • In the setting mode 00 is flashing.
• Press ▼ or ▲ button to adjust the time zone (+12/-12).

7.4 Alarm setting

• Press and hold ALARM button.
• The hour digits are flashing.
• Press ▼ or ▲ button to adjust the desired time.
• Confirm with ALARM button.
• Set minutes in the same way.
• Confirm with ALARM button.

Radio controlled alarm clock

• Press ALARM button again.
  • The alarm symbol appears on the display and the alarm is activated.
• Once the alarm starts to ring, the alarm symbol flashes.
• Press any button to stop the alarm.
• You can activate the snooze function by pressing the SNOOZE/LIGHT button.
• Zz flashes and the alarm will be interrupted for 5 minutes.
• You can activate the snooze function up to 7 times.
  • To turn off/activate the alarm function, press ALARM button.
  • The symbol disappears/appears on the display.

8. Backlight

• Press SNOOZE/LIGHT button.
  • The backlight will light for 5 seconds.

32

33

Radio controlled alarm clock

9. RESET function

- If the unit does not work properly use a pin to press the RESET button.

10. Care and maintenance

• Clean your instrument with a soft damp cloth. Do not use solvents or scouring agents.
• Remove the batteries if you do not use the product for a long period of time.
• Keep the instrument in a dry place.

10.1 Battery replacement

• Replace the batteries when the display becomes weak.
• Open the battery compartment and insert the two new batteries 1.5 V AAA. Ensure that the battery polarity is correct
• Close the battery compartment again.

Radio controlled alarm clock

11. Troubleshooting

Problem Solution

No display → Ensure that the batteries polarity are correct → Change the batteries
No DCF reception	→ Press and hold ▼ and ▲ button at the same time and start the reception manually → Choose another place for your product → Wait for attempted reception during the night → Check if there is any source of interference. → Restart the device according to the manual → Manual setting of the clock

Radio controlled alarm clock

Incorrect indication → Change the batteries

→ Use a pin to press the RESET button

If your device fails to work despite these measures contact the supplier from whom you purchased it.

12. Waste disposal

This product has been manufactured using high-grade materials and components which can be recycled and reused.

Never dispose of empty batteries and rechargeable batteries in household waste. As a consumer, you are legally required to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment. The symbols for the heavy metals contained are: Cd-cadmium, Hg-mercury, Pb-lead

Radio controlled alarm clock

This instrument is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE). Please do not dispose of this instrument in household waste. The user is obligated to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment. In order to ensure environmentally-compatible disposal.

13. Specifications

Power consumption: Batteries 2 x 1.5 V AAA

Housing dimension: 128 x 43 x 55 mm

Weight: 83 g (instrument only)

Radio controlled alarm clock

No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice.

The latest technical data and information about this product can be found in our homepage by simply entering the product number in the search box.
