Product type	Digital alarm clock with two metal bells
Brand	TFA
Model	60.2016
Power supply	3 AAA 1.5 V batteries (not included)
Dimensions (L × H × D)	106 × 73 × 108 mm
Weight	172 g (device only)
Number of alarms	2 independent alarms (weekday / weekend)
Snooze function	Yes, 5-minute interruption
Backlight	Yes, key activation (8 seconds)
Display	Time, date (month/day), year, day of week (MO-SU)
Time setting	12/24 h format, adjustment using UP/DOWN and SET buttons
Alarm activation	ON/OFF switches for each alarm
Housing material	Plastic, metal bells
Safety	Protected against humidity and light shocks
Cleaning	Soft, damp cloth, no solvent
Repairability	Not user repairable; contact seller in case of failure
Intended use	Bedside alarm clock, domestic use

Frequently Asked Questions - 60.2016 TFA

How to set the time and date?

Press and hold the SET button. The year flashes, use UP or DOWN to change it. Press SET to confirm and move to month, day, hours and minutes. Finally, choose the 12 or 24 h display with UP or DOWN and confirm with SET.

How to set alarm 1 (alarm clock 1)?

Press and hold the UP button. 'M-F, S-S' flashes: choose the days (all, week, weekend) with UP or DOWN, confirm with SET. Then set the alarm hours and minutes. Finally, slide the Alarm 1 switch to ON.

How to activate or deactivate an alarm?

Use the side switches Alarm 1 and Alarm 2. Position ON: alarm activated (ON icon displayed). Position OFF: alarm deactivated (OFF displayed).

How to use the snooze function?

When the alarm sounds, press the SNOOZE/LIGHT button on the top. The alarm stops and reactivates automatically after 5 minutes. The backlight turns on briefly.

How to change the batteries?

Open the battery compartment on the back (J in the diagram). Insert 3 AAA 1.5 V batteries respecting polarity (+/-). Close the compartment. In case of leakage, wear protective gloves.

What to do if the display is weak or absent?

Check the battery polarity and replace them if necessary. If the display remains abnormal, reset the device by removing and reinserting the batteries. If the problem persists, contact the seller.

Can I use rechargeable batteries?

The instruction manual does not mention rechargeable batteries. It is recommended to use standard 1.5V alkaline batteries. Rechargeable batteries (NiMH 1.2V) may cause unstable operation. Use them at your own risk.

How to clean the alarm clock?

Use a soft, slightly damp cloth. Never use solvents or abrasive products. Avoid excessive moisture. Remove the batteries before cleaning if possible.

What do the abbreviations M-F and S-S on the display mean?

M-F: Monday to Friday (weekdays). S-S: Saturday and Sunday (weekend). These options allow programming different alarms depending on the days.

Where to find the complete user manual?

The complete manual is available for free download in PDF format on the site notice-facile.com by searching for the reference 60.2016 from TFA. You can also request a translation by email.

USER MANUAL 60.2016 TFA

D:UP Taste
E: SET Taste
F:DOWN Taste

rechts (Fig. 3)

Thank you for choosing this instrument from TFA.

1. Before you use this product

• Please make sure you read the instruction manual carefully. This information will help you to familiarize yourself with your new device, to learn all of its functions and parts, to find out important details about its first use and how to operate it and to get advice in the event of a malfunction.
• Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.
• We shall not be liable for any damage occurring as a result of non following of these instructions.
• Please take particular note of the safety advice!
• Please keep this instruction manual safe for future reference.

2. Delivery contents

• Alarm clock - Instruction manual

3. Range of application and all the benefits of your new instrument at a glance

Metal double bell alarm
- 2 different alarm times (weekday, weekend)

Alarm clock

• Snooze function
• Indication of day of the week and date
• Backlight

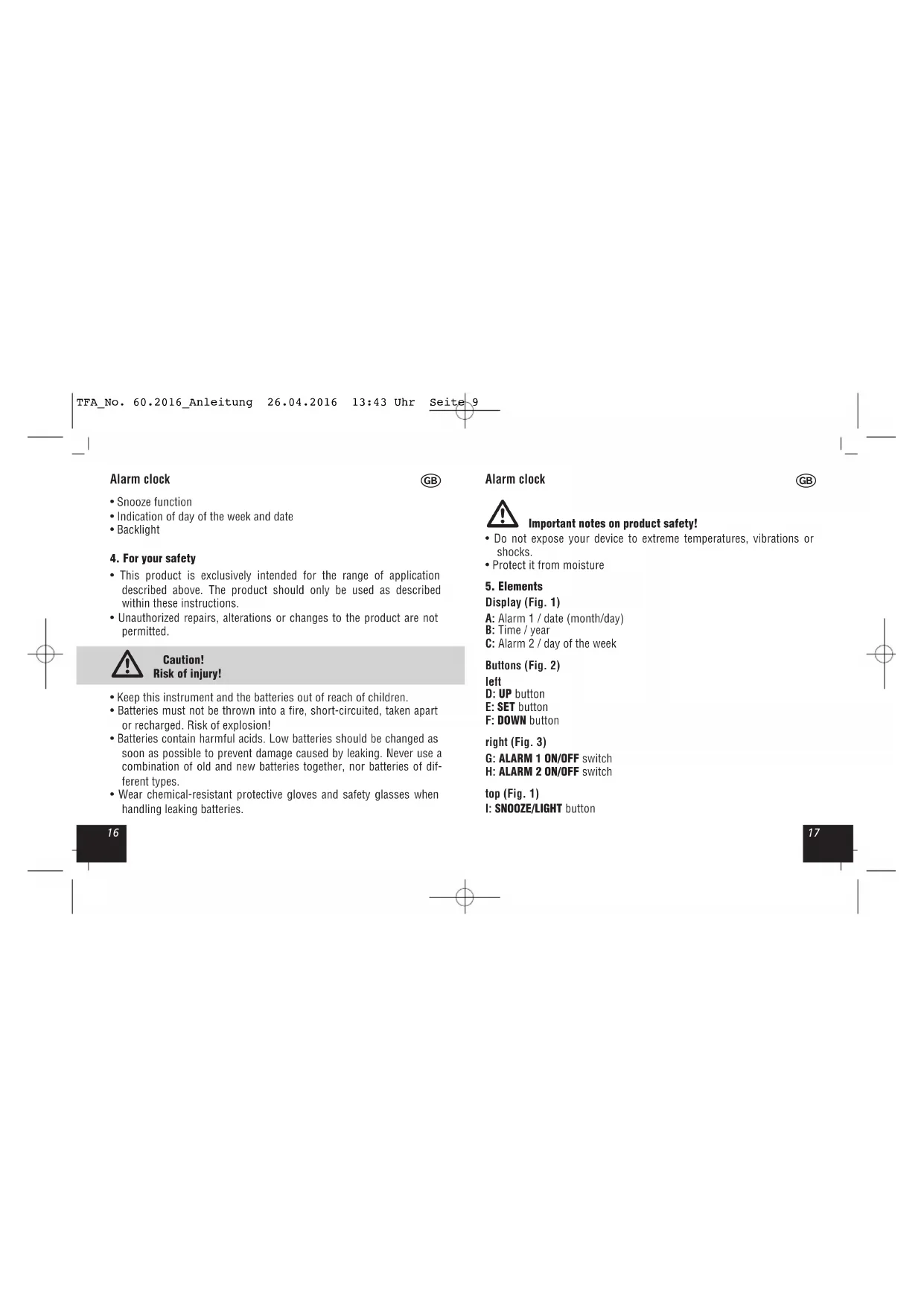

4. For your safety

• This product is exclusively intended for the range of application described above. The product should only be used as described within these instructions.
• Unauthorized repairs, alterations or changes to the product are not permitted.

Caution! Risk of injury!

• Keep this instrument and the batteries out of reach of children.
• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!
• Batteries contain harmful acids. Low batteries should be changed as soon as possible to prevent damage caused by leaking. Never use a combination of old and new batteries together, nor batteries of different types.
• Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries.

Alarm clock

Important notes on product safety!

• Do not expose your device to extreme temperatures, vibrations or shocks.
• Protect it from moisture

5. Elements

Display (Fig. 1)

A: Alarm 1 / date (month/day)
B: Time / year
C: Alarm 2 / day of the week

Buttons (Fig. 2)

left
D:UP button
E: SET button
F:DOWN button

right (Fig. 3)

G:ALARM1ON/OFF switch
H: ALARM 2 ON/OFF switch

top (Fig. 1)

I:SNOOZE/LIGHT button

Alarm clock

Housing (Fig. 4)

J: Battery compartment

6. Getting started

• Open the battery compartment and insert three new AAA 1.5 V batteries. Ensure the battery polarity is correct.
  The alarm starts to ring and the backlight will be activated briefly.
• Close the battery compartment again.

7. Operation

The device will automatically quit the setting mode if no button is pressed for 20 seconds.
- Press and hold the UP or DOWN button in the setting mode for fast mode.

7.1 Clock and calendar setting

• Press and hold the SET button in normal mode.
  The year indication will be flashing and you can adjust the year with the UP or DOWN button.
• Press the SET button again and the setting sequence is shown as follows: Month and day, hours, minutes and 24 or 12 hours display (PM appears on the display after 12 h) and adjust with the UP or DOWN button.

Alarm clock

• Confirm with the SET button.
  The display shows the current time.

7.2 Backlight and date

• Press the SNOOZE/LIGHT button at the top and the backlight will be activated for 8 seconds.
• Press the SNOOZE/LIGHT button again
  The date (month, day), the year and the weekday (MO, TU, WE, TH, FR, SA or SU) appear briefly on the display.

7.3 Alarm time setting

Alarm 1:

• Press and hold the UP button.
  M-F, S-S flashes.

• Press the UP or DOWN button to choose between the three set alarms below:

• Monday until Sunday (M-F, S-S appear on the display)

• Monday until Friday (M-F appear on the display)
  Saturday and Sunday (S-S appear on the display).

• Confirm the setting with the SET button.
  The hour display flashes.

• Press the UP or DOWN button to adjust the alarm time (hours).
• Press the SET button.
• Set minutes in the same way.

Alarm clock

• Confirm with the SET button.
• Slide the ALARM 1 ON/OFF switch to ON
  The alarm is activated. ON - the weekdays and the alarm time appear on the display.
• Once the alarm rings, the alarm symbol flashes.
• Press any button to stop the alarm or press the top of the instrument (SNOOZE/LIGHT) to activate the snooze function. The backlight turns on for a few seconds.
  The alarm will be interrupted for 5 minutes.
• Slide the ALARM 1 ON/OFF switch to OFF to deactivate the alarm. OFF appears on the display.

Alarm 2:

• Press and hold the DOWN button.
  M-F, S-S flashes.
• Set Alarm 2 in the same way as Alarm 1.

8. Care and maintenance

• Clean the device with a soft damp cloth. Do not use solvents or scouring agents.
• Remove the batteries if the device will not be used for an extended period of time.
• Keep the device in a dry place.

Alarm clock

8.1 Battery replacement

• Change the batteries when the device functions become weak.
• Open the battery compartment and insert three new batteries AAA 1,5 V. Ensure the batteries' polarity are correct.
• Close the battery compartment again.

9. Troubleshooting

Problems Solution

No display → Ensure the batteries' polarity are correct → Change the batteries

Incorrect indication Restart the instrument according to the manual
Change the batteries

If your device fails to work despite these measures contact the retailer where you purchased the product.

10. Waste disposal

This product has been manufactured using high-grade materials and components which can be recycled and reused.

Alarm clock

Never dispose of empty batteries and rechargeable batteries with ordinary household waste.

As a consumer, you are required by law to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment.

The symbols for the contained heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead

This product is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE).

Please do not dispose of this product in ordinary household waste. As a consumer, you are required to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal.

Alarm clock

11. Specifications

Power consumption: Batteries 3 × AAA 1,5 V (not included)

Housing dimension: 106 × 73 × 108 ~mm

Weight: 172g device only

TFA Dostmann GmbH & Co.KG, Zum Ottersberg 12, D-97877 Wertheim. No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice. The latest technical data and information about your product can be found by entering your product number on our homepage.

www.tfa-dostmann.de 04/16
