USER MANUAL WM73H Vonyx

WM73C Mic. UHF 2ch Combi with display WM73 Mic. UHF 2ch Handheld with display WM73H Mic. UHF 2ch Headset with display

Ref. nr.: 179.203 / 179.206 / 179.209

Black VONYX audio recording device with external earphones and a microphone (no visible text or symbols on main body)

INSTRUCTION MANUAL GEBRUIKSAANWIJZING GEBRAUCHSANLEITUNG MANUAL DE INSTRUCCIONES NOTICE D'UTILISATION

V1.1

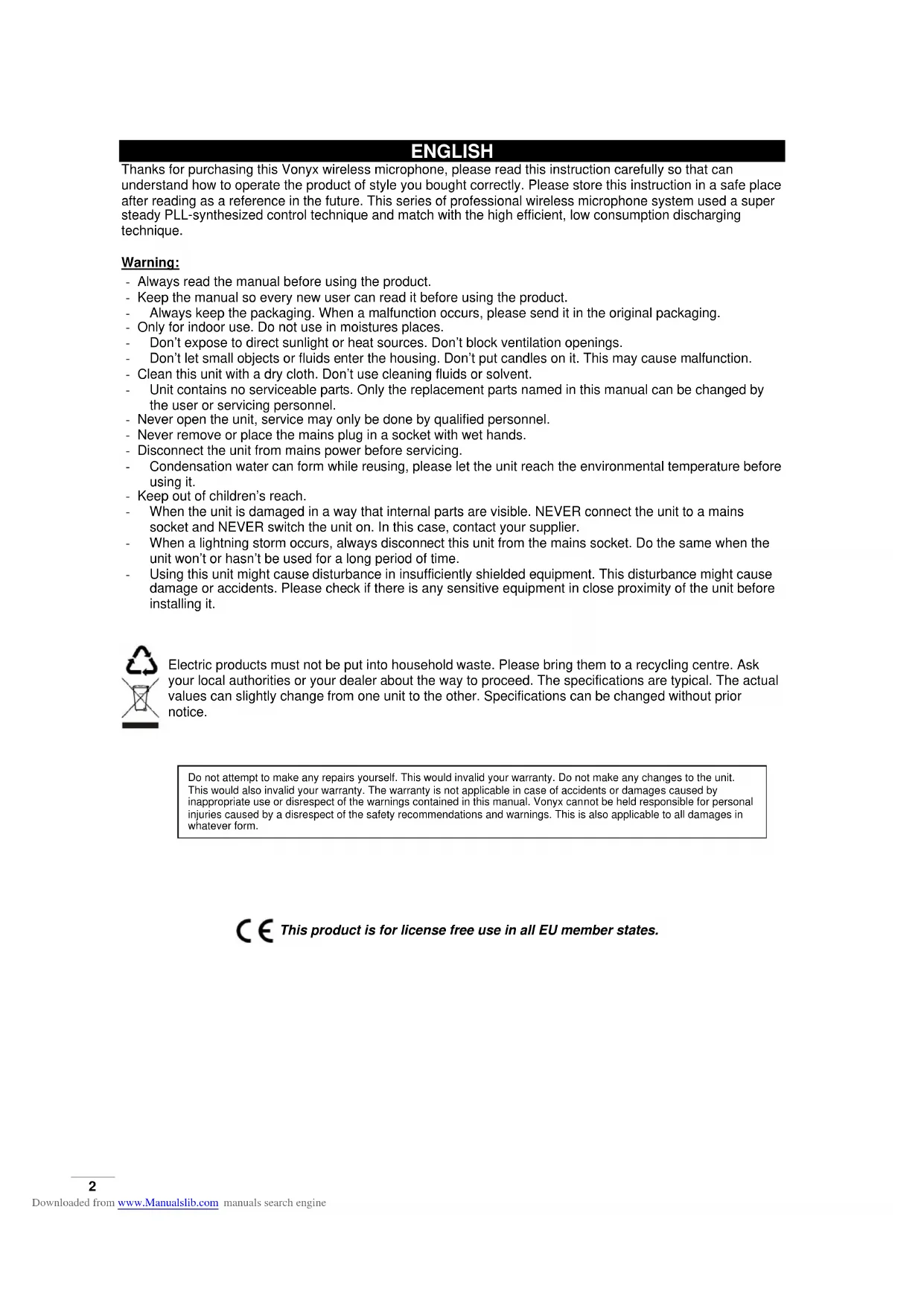

ENGLISH

Thanks for purchasing this Vonyx wireless microphone, please read this instruction carefully so that can understand how to operate the product of style you bought correctly. Please store this instruction in a safe place after reading as a reference in the future. This series of professional wireless microphone system used a super steady PLL-synthesized control technique and match with the high efficient, low consumption discharging technique.

Warning:

• Always read the manual before using the product.
• Keep the manual so every new user can read it before using the product.
• Always keep the packaging. When a malfunction occurs, please send it in the original packaging.
• Only for indoor use. Do not use in moistures places.
• Don't expose to direct sunlight or heat sources. Don't block ventilation openings.
• Don't let small objects or fluids enter the housing. Don't put candles on it. This may cause malfunction.
• Clean this unit with a dry cloth. Don't use cleaning fluids or solvent.
• Unit contains no serviceable parts. Only the replacement parts named in this manual can be changed by the user or servicing personnel.
• Never open the unit, service may only be done by qualified personnel.
• Never remove or place the mains plug in a socket with wet hands.
• Disconnect the unit from mains power before servicing.
• Condensation water can form while reusing, please let the unit reach the environmental temperature before using it.
• Keep out of children's reach.
• When the unit is damaged in a way that internal parts are visible. NEVER connect the unit to a mains socket and NEVER switch the unit on. In this case, contact your supplier.
• When a lightning storm occurs, always disconnect this unit from the mains socket. Do the same when the unit won't or hasn't be used for a long period of time.
• Using this unit might cause disturbance in insufficiently shielded equipment. This disturbance might cause damage or accidents. Please check if there is any sensitive equipment in close proximity of the unit before installing it.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Vonyx cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

This product is for license free use in all EU member states.

FRONT- AND BACKSIDE

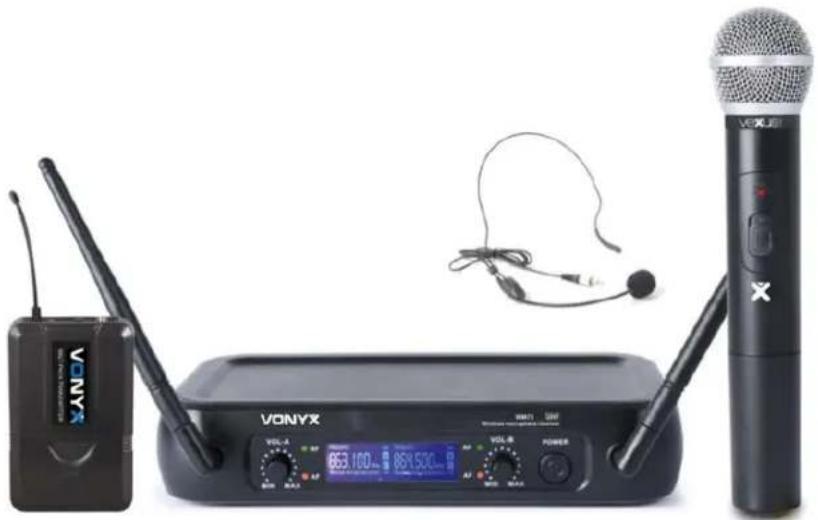

179.203 WM73C UHF 2ch Combi with display

179.206 WM73 UHF 2ch Handheld microphones with display

179.209 WM73H UHF 2ch Headset with display

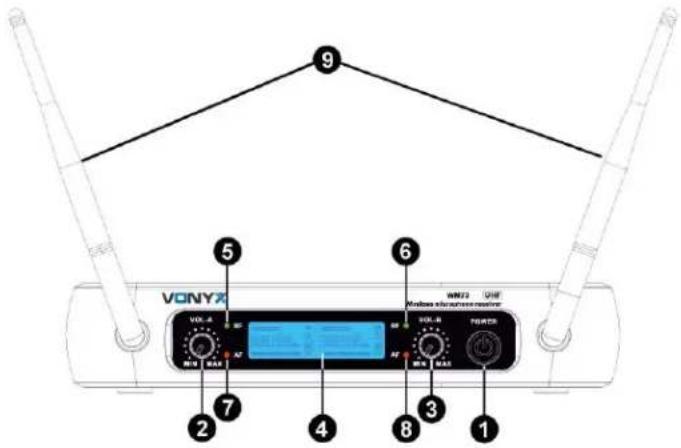

VONYX VOL A VOL B VOL C VOL D VOL E VOL F VOL G VOL H VOL I VOL J VOL K VOL L VOL M VOL N VOL O VOL P VOL Q VOL R VOL S VOL T VOL U VOL V VOL W VOL X VOL Y VOL Z VOL AA VOL AB VOL AC VOL AD VOL AE VOL AF VOL AG VOL AH VOL AI VOL AJ VOL AK VOL AL VOL AM VOL AN VOL AO VOL AP VOL AQ VOL AR VOL AS VOL AT VOL AU VOL AV VOL AW VOL AX VOL AY VOL AZ VOL BA VOL BC VOL BD VOL BE VOL BF VOL BG VOL BH VOL BI VOL BJ VOL BK VOL BL VOL BM VOL BN VOL BO VOL BP VOL BPB VOL BPC VOL BPD VOL BPE VOL BPF VOL BPG VOL BPH VOL BPI VOL BPJ VOL BPK VOL BPL VOL BPM VOL BPN VOL BPO VOL BPQ VOL BPR VOL BPS VOL BPT VOL BPU VOL BPU1 VOL BPU2 VOL BPU3 VOL BPU4 VOL BPU5 VOL BPU6 VOL BPU7 VOL BPU8 VOL BPU9 VOL BPU10 VOL BPU11 VOL BPU12 VOL BPU13 VOL BPU14 VOL BPU15 VOL BPU16 VOL BPU17 VOL BPU18 VOL BPU19 VOL BPU20 VOL BPU21 VOL BPU22 VOL BPU23 VOL BPU24 VOL BPU25 VOL BPU26 VOL BPU27 VOL BPU28 VOL BPU29 VOL BPU30 VOL BPU31 VOL BPU32 VOL BPU33 VOL BPU34 VOL BPU35 VOL BPU36 VOL BPU37 VOL BPU38 VOL BPU39 VOL BPU40 VOL BPU41 VOL BPU42 VOL BPU43 VOL BPU44 VOL BPU45 VOL BPU46 VOL BPU47 VOL BPU48 VOL BPU49 VOL BPU50

1. Power switch to switch ON/OFF the system
2. Volume channel A
3. Volume channel B
4. LCD Display
5. "RF" signal indicator channel A: Indicate when receive RF signal from transmitter.
6. "RF" signal indicator channel B: Indicate when receive RF signal from transmitter.
7. "AF" audio level indicator channel A: Indicate the wireless system audio signal level.
8. "AF" audio level indicator channel B: Indicate the wireless system audio signal level.
9. Antenna.

BALANCID-6 BALANCID-A ALIX DC INPUT 12 13 10 11 12

1. XLR- connector balanced channel A
2. XLR- connector balanced channel B
3. Aux 1/4" Jack connector
4. Power inlet, 13-15Vdc

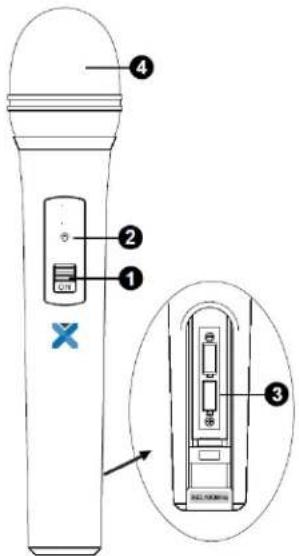

HANDHELD TRANSMITTER

Diagram of a handheld device with labeled parts and an inset view showing internal components

1. Power ON/OFF Switch.
2. Low battery indicator: Red light glows when the power is low and change the battery.
3. Battery Cover: Open it to install the battery. remove batteries in case of long time no use (prevent leakage).
4. Grille: Protects the cartridge and help reducing the breath sounds and wind noise.

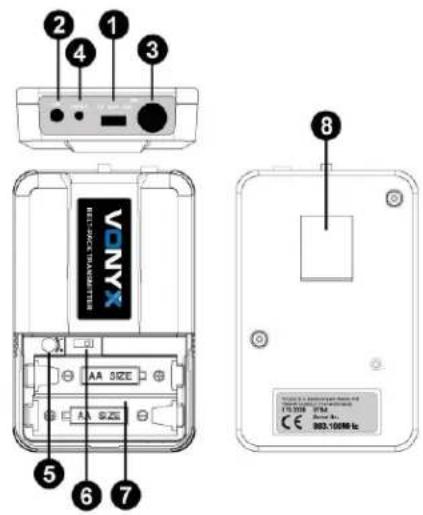

BODYPACK TRANSMITTER (OPTIONAL)

2 1 3 4 VONYX ELECTRICALS AR SIZE AA SIZE 5 6 7 8 CE 903.100MHz

1. Power ON/OFF and Audio mute switch.
2. Antenna
3. Microphone input Jack: it is suitable for lavalier tie-clip or headset system.
4. Low battery indicator (Red light glows when the power is low and change the battery)
5. Gain Adjusting Volume: Adjust the transmitter audio input gain.
6. State Setting Switch: Set the using state of lavalier tie-clip or headset system.
7. Battery Cover: Open it to install the battery. Remove batteries in case of long time no use (prevent leakage).
8. Belt Clip

Line drawings of two medical devices: a head with earplugs and a cord with connectors (no text or symbols)

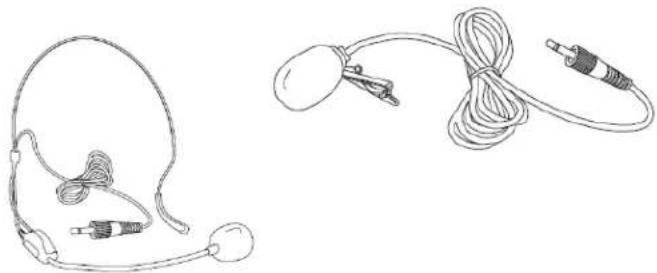

LAVALIER TIE-CLIP MICROPHONE

Connect the connector of supplied lavalier microphone to the connecting jack of transmitter (Shown as below). Set the transmitter work state in wireless lavalier system (6).

Line drawing of a handheld electronic device with a cable and connector (no text or symbols)

Illustration showing a person pointing to a small object with a dollar sign, possibly indicating a price or value.

HEADSET MICROPHONE

Connect the connector of supplied headset microphone to the connecting jack of transmitter (Shown as below). Set the transmitter work state in wireless headset system (6).

Line drawing of a handheld electronic device with a cable and connector (no text or symbols)

SYSTEM CONNECTIONS

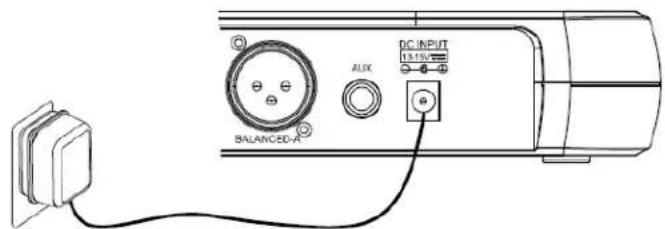

1. Receiver power connection: Connect the AC adapter into the DC power connector on the back of the receiver. Plug the AC adapter into a AC230V 50Hz outlet.

BALANCED-A AUX DC INPUT 1.5-1.5V DC INPUT

1. Antenna: Keep the position of antenna at a 45^ angle from vertical. Shown as below.

VONYZ 45

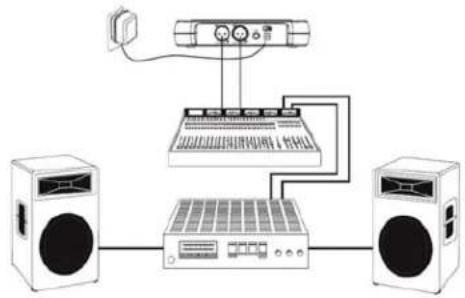

1. Audio connection: Connect the audio cable from the audio output on the receiver to the input on your amplifier equipment.

OPERATION

Turn off the system first, turn down the receivers volume to the minimum and then turn on the receiver, CPU initializes, the LCD screen begins to display and the system reverts to the last shutdown's state!

Tune to the desired frequency of the receiver and observe the RF- and AF signal level. If the signal level is displayed it means the receiver has interference from other signals or noise. The system has a mute circuit to avoid interference noise. If interfere with each other occurs it is recommended to use other frequencies. If the system is turned on look at the transmitter and receiver's frequency.

Then the receiver display shows RF signal level value, the antenna status will display antenna A or B. Adjust the volume to the desired level.

Volume adjustment

Adjust the receiver's volume to the 12 o'clock position, then adjust the volume of the amplifier or mixer to a desired level. If the receiver volume has been adjusted too loud the amplifier will produce a saturated distortion which will blow the amplifier or/and the loudspeaker(s)!

Best acoustics:

1. You should always see the receiver antenna from your transmitter location.
2. The distance between transmitter and receiver should be as short as possible.
3. If the receiver has two antennas, they should be adjusted 45° with a vertical line.
4. Keep the antennas away from metal surfaces and shelter.
5. Let the antennas not contact or cross each other.
6. Before using the system during the presence of public do a test to find out where the "dead spots" are. Avoid these spots when operational

TROUBLESHOOTING

PROBLEM INDICATOR SOLUTION

No sound Red transmitter indicator is not flash Slide transmitter POWER ON/OFF
		switch to ON position. Make sure battery is inserted properly, observing battery (+/-). If battery is inserted properly, replace with fresh battery.
No sound	Red transmitter indicator is flash.	Slide transmitter MUTE/ON switch to ON position.
No sound Red receiver indicator POWER light off. Make sure AC adapter is securely plugged into electrical outlet and into DC input connector.Make sure AC electrical outlet works and supplies proper voltage.
No sound Receiver signal indicators A/B lights glowing.		Turn up receiver volume control. Confirm that the output connections from the receiver to the external equipment are secure.
No sound Receiver signal indicators A/B lights off. Transmitter and receiver POWER light glowing.		Confirm transmitters and receivers frequencies match. Move transmitter closer to receiver.
Sound level differs from level of a cabled instrument.	Receiver signal indicators A/B lights glowing.	Adjust transmitter gain level to compessary.Adjust receiver volume as necessary.
Distortion level increases gradually	Receiver signal indicators A/B lights and transmitter LOW BATTERY light glowing	Replace transmitter battery
Bursts of noise or other audible radio signals present.	Signal indicators A/B/ lights on. Identify potential sources of interferences (other RF-sources) and turn off, remove or use a wireless system operating on a different frequency.
Momentary loss of sound as transmitter is moved around performing area.	Receiver signal indicator A/B lights of when sound is lost	Reposition receiver and perform walk-through test again. If audio dropouts persist, mark “dead” spots and avoid them during performance.

TECHNICAL SPECIFICATION

WM73C WM73 WM73H

Ref.nr:	179.203	179.206
Frequency range	863-865Mhz	863-865Mhz	863-865Mhz
Frequency response	50Hz-18kHz	50Hz-18kHz	50Hz-18Khz
Signal/Noise ratio	>85dB	>85dB >85dB
Class	1	1	1
Rated voltage	AC220~240V 50Hz	AC220~240V 50Hz	AC220~240V 50Hz
Adapter	13-15V DC / 500mA	13-15V DC / 300mA	13-15V DC / 300mA
Dimensions per unit	210 x 145 x 42 mm	210 x 145 x 42 mm	210 x 145 x 42 mm

79.209

	Bodypack STB4	Handheld STM4
Ref.nr:	179.203B	179.206H
Frequency range 863-	865Mhz 863-	865Mhz
Battery	2x 1.5V AA Battery	2x 1.5V AA Battery
RF output	>10dBm	>10dBm
Class	1	1
Dimensions per unit	100 x 65 x 30 mm	238 x 50 x 50 mm

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Class I product for use in Frequency band 863-865MHz.

NEDERLANDS

VONYX VOL-A VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-C VOL-C VOL-C VOL-C VOL-C VOL-C VOL-C VOL-C VOL-C VOL-C VOL-C VOL-C VOL-C VOL-C VOL-C VOL-C VOL-C VOL-C VOL-C VOL-C VOL-C VOL-C VOL-C VOL-C VOL-C VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-A VOL-A VOL-A VOL-A VOL-A VOL-A VOL-A VOL-A VOL-A VOL-A VOL-A VOL-A VOL-A VOL-A VOL-A VOL-A VOL-A VOL-A VOL-A VOL-A VOL-A VOL-A VOL-A VOL-A VOL-A VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-B VOL-C VOL-10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

Diagram of a handheld device with labeled parts and an inset view showing internal components

Line drawing of a medical headset with earplugs and cable (no text or symbols)

Line drawing of a cord with a small head and connector, no text or symbols present

DASSPELD MICROFOON

Line drawing of a handheld electronic device with a cable and connector (no text or symbols)

Illustration showing a person holding a device with an inset magnified view of a handheld device, likely illustrating a medical or laboratory procedure.

HOOFDMICROFOON

Line drawing of a handheld electronic device with a cable and sensor (no text or symbols)

SYSTEEM AANSLUITEN

VONYX VOL-A VOL-B VOL-H VOL-I VOL-II VOL-III VOL-IV VOL-IVI VOL-IVII VOL-IVIII VOL-IVIV VOL-IVIII VOL-IVIV VOL-IVIII VOL-IVIV VOL-IVIII VOL-IVIV VOL-IVIII VOL-IVIV VOL-IVIII VOL-IVIV VOL-IVIII VOL-IVIV VOL-IVIII VOL-IVIV VOL-IVIII VOL-IVIV VOL-VI VOL-VII VOL-VIII VOL-VII VOL-VIII VOL-VII VOL-VIII VOL-VII VOL-VIII VOL-VII VOL-VIII VOL-VII VOL-VIII VOL-VII VOL-VIII VOL-VII VOL-VIII VOL-VII VOL-VIII VOL-VII VOL-VIII VOL-VII VOL-VIIII VOL-VII VOL-VIIII VOL-VIIII VOL-VIIIIII VOL-VIIIIII VOL-VIIIIIIII VOL-VIIIIIIIIII VOL-VIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII II III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I

Diagram of a handheld device with labeled parts and an inset view showing internal components

Line drawing of a medical device with ear, ear cap, and connector (no text or symbols)

Simple line drawing of a medical or laboratory probe with coiled cable and probe tip (no text or symbols)

LAVALIER MIKROFONE

Line drawing of a handheld electronic device with cable and connector (no text or symbols)

Illustration of a person holding a device with an inset showing a magnified view of a device (no text or symbols present)

HEADSET MIKROFON

Line drawing of a handheld electronic device with a cable and connector (no text or symbols)

SYSTEMANSCHLÜSSE

Diagram of a handheld device with labeled parts and an inset view showing internal components

2 1 3 4 VDNX AA SIZE AA SIZE 5 6 7

8 175.200 303.100MHz CE Model No. © 2024-06-2019

Line drawing of a medical device with attached tubing (no text or symbols)

Line drawing of a medical or laboratory device with a coiled cable and connector (no text or symbols)

MICROFONO LAVALIER DE SOLAPA

Line drawing of a handheld electronic device with cable and connector (no text or symbols)

Diagram showing a person using a device with an inset close-up of the device's tip, likely illustrating a medical or laboratory procedure.

MICROFONO DE CABEZA

Line drawing of a handheld electronic device with a cable and connector (no text or symbols)

CONEXIONES

VONYX VOL.8 2 6 VOL.8 4 3 1 9 5 7 8 WNE2 0.01F Wireless information receiver

Diagram of a handheld device with labeled parts and an inset view showing internal components

Line drawings of two medical devices: a head with earplugs and a cord with attached sensors (no text or symbols)

MICROPHONE CRAVATE

Medical illustration showing a medical device and a person holding a tool (no text or symbols present)

MICROPHONE SERRE-TETE

Illustration of a handheld electronic device and a person holding a device (no text or symbols present)

BRANCHEMENTS
