KEEP THESE INSTRUCTIONS IN MIND:

1. Do not cover or block any ventilation openings. When placing the device on a shelf, leave 5cm (2^ ) free space around the whole device.
2. Install in accordance with the supplied user manual.
3. Keep the device away from heat sources such as radiators, heaters, stoves, candles and other heat-generating products or naked flame. The device can only be used in moderate climates. Extremely cold or warm environments should be avoided. Working temperature between 0^ and 35^
4. Avoid using the device near strong magnetic fields.
5. Electrostatic discharge can disturb normal usage of this device. If so, simply reset and restart the device following the instruction manual. During file transmission, please handle with care and operate in a static-free environment.
6. Warning! Never insert an object into the product through the vents or openings. High voltage flows through the product and inserting an object can cause electric shock and/or short circuit internal parts. For the same reason, do not spill water or liquid on the product.
7. Do not use in wet or moist areas such as bathrooms, steamy kitchens or near swimming pools.
8. The device shall not be exposed to dripping or splashing and make sure that no objects filled with liquids, such as vases, are placed on or near the apparatus.
9. Do not use this device when condensation may occur. When the unit is used in a warm wet room with damp, water droplets or condensation may occur inside the unit and the unit may not function properly; let the unit stand in power OFF for 1 or 2 hours before turning on the power: the unit should be dry before getting any power.
10. Although this device is manufactured with the utmost care and checked several times before leaving the factory, it is still possible that problems may occur, as with all electrical appliances. If you notice smoke, an excessive build-up of heat or any other unexpected phenomena, you should disconnect the plug from the main power socket immediately.
11. This device must operate on a power source as specified on the specification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company.
12. Keep away from animals. Some animals enjoy biting on power cords.
13. To clean the device, use a soft dry cloth. Do not use solvents or petrol based fluids. To remove severe stains, you may use a damp cloth with dilute detergent.
14. The supplier is not responsible for damage or lost data caused by malfunction, misuse, modification of the device or battery replacement.
15. Do not interrupt the connection when the device is formatting or transferring files. Otherwise, data may be corrupted or lost.
16. If the unit has USB playback function, the USB memory stick should be plugged into the unit directly. Don't use an USB extension cable because it can cause interference resulting in failing of data.
17. The rating label has been marked on the bottom or back panel of the device.
18. This device is not intended for use by people (including children) with physical, sensory or mental disabilities, or a lack of experience and knowledge, unless they're under supervision or have received instructions about the correct use of the device by the person who is responsible for their safety.

19. This product is intended for non professional use only and not for commercial or industrial use.

20. Make sure the unit is adjusted to a stable position. Damage caused by using this product in an unstable position vibrations or shocks or by failure to follow any other warning or precaution contained within this user manual will not be covered by warranty.

21. Never remove the casing of this device.
22. Never place this device on other electrical equipment.
23. Do not allow children access to plastic bags.
24. Only use attachments/accessories specified by the manufacturer.
25. Refer all servicing to qualified service personnel. Servicing is required when the device has been damaged in any way, such as the power supply cord or the plug, when liquid has been spilled or objects have fallen into the device, when the device has been exposed to rain or moisture, does not operate normally, or has been dropped.
26. Long exposure to loud sounds from personal music players may lead to temporary or permanent hearing loss.
27. If the product is delivered with power cable or AC power adaptor:

If any trouble occur, disconnect the AC power cord and refer servicing to qualified personnel.
Don't step on or pinch the power adaptor. Be very careful, particularly near the plugs and the cable's exit point. Do not place heavy items on the power adaptor, which may damage it. Keep the entire device out of children's reach! When playing with the power cable, they can seriously injure themselves.
Unplug this device during lightning storms or when unused for a long period.
The socket outlet must be installed near the equipment and must be easily accessible.
Do not overload ac outlets or extension cords. Overloading can cause fire or electric shock.
Devices with class 1 construction should be connected to a main socket outlet with a protective earthed connection.
Devices with class 2 construction do not require a earthed connection
Always hold the plug when pulling it out of the main supply socket. Do not pull the power cord. This can cause a short circuit.
Do not use a damaged power cord or plug or a loose outlet. Doing so may result in fire or electric shock.

1. If the product contains or is delivered with a remote control containing coin/cell batteries:

Warning:

• "Do not ingest battery, Chemical Burn Hazard" or equivalent working.
• [The remote control supplied with] This product contains a coin/button cell battery. If the battery is swallowed, it can cause severe internal burns in just

2 hours and can lead to death.

• Keep new and used batteries away from children.
  If the battery compartment does not close securely, stop using the product and keep it away from children.
  If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

• Caution about the use of Batteries:

• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
  Battery cannot be subjected to high or low extreme temperatures, low air pressure at high altitude during use, storage or transportation.
  Replacement of a battery with an incorrect type that can result in an explosion or the leakage of flammable liquid or gas.
  Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
  Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or that leakage of flammable liquid or gas.

A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.
- Attention should be drawn to the environmental aspects of battery disposal.

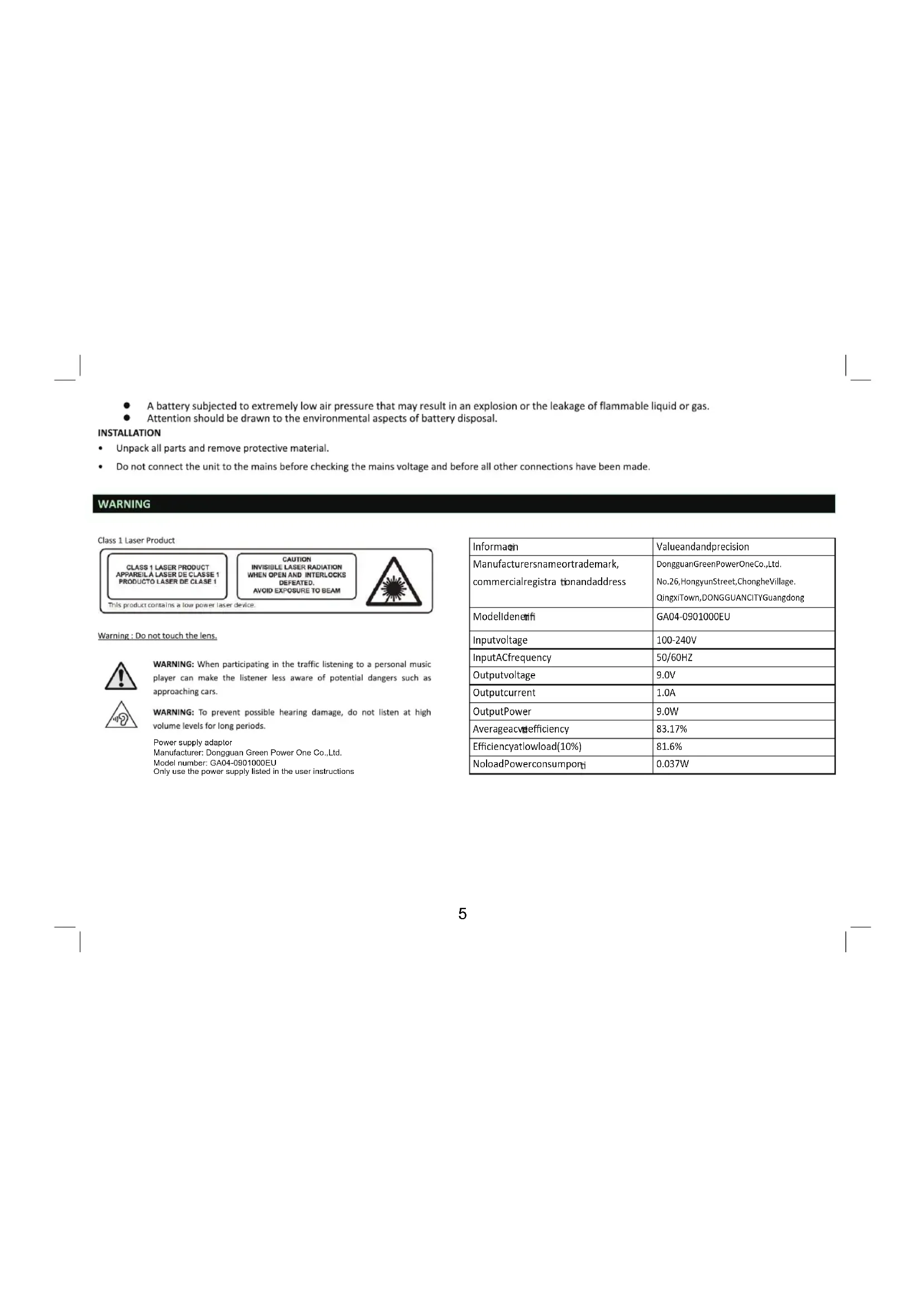

INSTALLATION

• Unpack all parts and remove protective material.
  Do not connect the unit to the mains before checking the mains voltage and before all other connections have been made.

WARNING

Class 1 Laser Product

CLASS 1 LASER PRODUCT APPAREL A LASER DE CLASSE 1 PRODUCTO LASER DE CLASE 1

This product contains a low power laser device.

Warning: Do not touch the lens.

WARNING: When participating in the traffic listening to a personal music player can make the listener less aware of potential dangers such as approaching cars.

WARNING: To prevent possible hearing damage, do not listen at high volume levels for long periods.

Power supply adaptor

Manufacturer: Dongguan Green Power One Co., Ltd.

Model number:GA04-0901000EU

Only use the power supply listed in the user instructions

Informaon	Valueandprecision
Manufacturersnameortrademark, commercialregistration and address	DongguanGreenPowerOneCo.,Ltd. No.26,HongyunStreet,ChongheVillage. QingxiTown,DONGGUANCITYGuangdong
Modelfinderifi	GA04-0901000EU
Inputvoltage	100-240V
InputACfrequency	50/60HZ
Outputvoltage	9.0V
Outputcurrent	1.0A
OutputPower	9.0W
Averageacvefficiency	83.17%
Efficiencyatoweload(10%)	81.6%
NoloadPowerconsumponi	0.037W

Mounting the DVD in a Car

Use the supplied mounting kit to install the DVD players on the back of the vehicle's headrests.

1. Align the angled support's bolt to the screw hole on the back of the DVD unit. Turn the bolt clockwise and secure the support.

1. Lift the headrest off its leg supports. Align the horizontal support with the headrest leg slots and ensure the horizontal support rests securely on the top of the car seat. Reattach the headrest.

Remark: If the legs of the headrest are too thick for the opening of the horizontal support bar of the bracket, please unscrew the 4 screws of the support bar of the bracket to adjust the opening. In case the screws are too short, use the longer screws (provided in the giftbox).

1. Grip the DVD firmly with both hands and slot the angled support firmly into the support bar. It will click. Ensure the entire unit is secure.

1. Adjust the angle of the DVD unit, then secure by tightening the bolt on the right.

2. To remove the DVD from the horizontal support bar, support the DVD unit with one hand. With the other hand, firmly squeeze the release buttons either side of the angled support and pull.

• This unit should never be used by the vehicle's driver or left unsecured in the vehicle while driving
• If this unit is being used in your vehicle, be sure that it is secured or held safely, and does not obstruct any safety device, including air bags or seat belts.
• All passengers should wear seat belts when using this unit in a moving vehicle.
• If in doubt, please contact your vehicle manufacturer for further advice.

Identificaiton of Controls

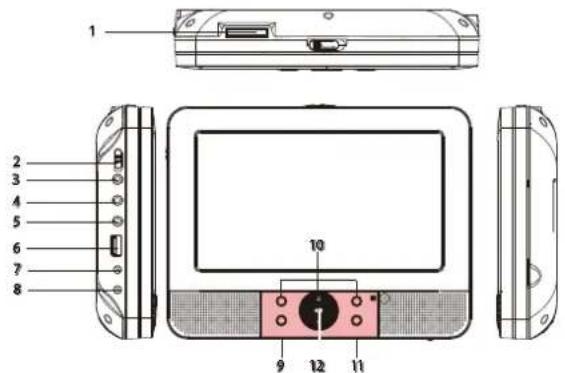

Main Unit

1.SD/MMC
2. POWER ON/OFF
3. HEADPHONE OUT JACKS
4.VIDEO/AUDIO OUT
5.VIDEO/AUDIO IN
6.USB
7.DC OUT
8. DC IN 9-12V
9. ENTER
10. UP/DOWN/LEFT/RIGHT
11. SOURCE
12 Battery Charging Indicator
Illuminates green flashing when the battery is charging.
Illuminates green when the battery is fully charged.
Illuminates red when the unit is switched on.

Insert the battery

1.Open the battery door.

2.Insert battery.

When using the remote control for the first time do not forget to remove the plastic card.

NOT

Remove battery dur ing storage or when you are not using the DVD player for a long time.

WARNING

Do not ingest the battery, Chemical Burn Hazard

(The remote control supplied with) This product contains a coin/buhton cell battery. If the coin/buhton cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children.

If the battery compartment does not close securely, stop using the product and keep it away from children.

If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

To prevent possible hearing damage, do not listen at high volume levels for long periods.

Identification of Controls

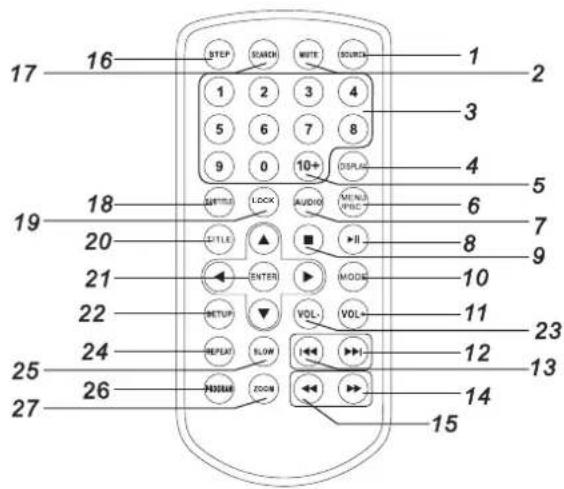

Remote control unit

1. SOURCE

DVD/CARD/USB

1. MUTE

Disable Audio output.

3.0-9 NUMBER BUTTON

Selects numbered items in a menu.

4.DISPLAY

To display the playtime and status information.

5.10+ BUTTON

In order to select a track 10 or greater, first press 10+ , For example; select track 12, first press 10+ , and then press number 2 button.

1. MENU/PBC

Return to DVD root menu(DVD).

PBC on/off switch (VCD).

7.AUDIO

DVD Press AUDIO repeatedly during playback to hear a different audio language or audio track, if available.

MP3 CD VCD Press AUDIO repeatedly during playback to hear a different audio channel (Left,Right,Mix,Stereo).

8.PLAY/PAUSE

Press PLAY/PAUSE once to pause playback, pressing PLAY/ PAUSE second time will resume the playback.

9.STOP

When this buttom is pressed once, the unit records the stopped point, from where playback will resume if PLAY() is pressed after wards. But if STOP button is pressed again instead of PLAY(), button, there will be no resume function.

10.MODE

Set LCD parameter(adjjust bightness, contrast, and saturation).

11.VOL+

23.VOL

Adjust volume

12.Forward Skip

Go to next chapter/ track.

13.Reverse Skip

Go to previous chapter/ track to the beginning.

14.▶ BUTTON

Press▶ BUTTON allow skipping ahead at 5-level speed(X2->X4->X8->X16->X32->PLAY), press PLAY button return to normal playback.

Identification of Controls

Remote control unit

15. BUTTON

Press BUTTON allow skipping back at 5-level speed(X2->X4-> X8->X16->X32->PLAY), press PLAY button return to normal playback.

16.STEP

Step the motion in DVD mode.

17.SEARCH

Goto time point, title or chapter you want in DVD Mode.

18.SUBTITLE

Press SUBTITLE repeatedly during playback to hear a different subtitle languages.

19. LOCK

Press the "LOCK" button on the remote control to lock the player/remote control buttons (except the EJECT button, ON/OFF switch and the "LOCK" button on the remote control).

Press the "LOCK" button again to unlock the buttons. When the player is switched off, the keylock function will be switched off automatically.

20. TITLE

Return to DVD title menu

21.ENTER

Confirms menu selection..

22. SETUP

Accesses or removes setup menu.

24.REPEAT

Press REPEAT during playback to select a desired repeat mode.

DVD :you can play select repeat chapter/title/off.

CD VCD:you can select repeat single/all/off.

MP3 :you can select repeat single/folder/off.

25.SLOW

Press Slow button repeatedly to enter slow playback, and cycle between different speeds. The speeds are 1/2, 1/4, 1/8, 1/16, and normal.

26.PROGRAM

DVD VCD :The program function enables you to store your favourite tracks from the disc. Press PROGRAM button, then PROGRAM MENU will appear on screen, now you can use the number key to direct input the titles, chapters or tracks number and select PLAY option. TO resume normal playback, press PROGRAM and select clear program option on the program menu,press PROGRAM again to exit program menu.

27.ZOOM

DVD VCD: Use ZOOM to enlarge or shrink the video image. 1.Press ZOOM during playback or still playback to activate the Zoom function. The square frame appears briefly in the right bot of the picture.

1. Each press of the ZOOM button changes the TV screen in the following sequence:

2X size 3X size 4X size 1/2 size 1/3 size 1/4 size normal size

JPEG: Use ZOOM to enlarge or shrink the picture.

1. Press 'ZOOM'

2,Used" "to enlarge,or" "to shorten the picture.

Use the button to move through the zoomed picture.

SETUP Menu Setting

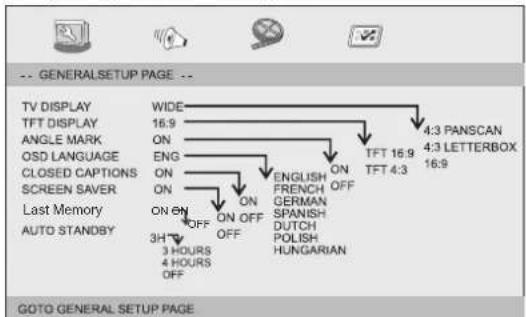

General Setup Page

Press SETUP button to get the setup menu. Use direction buttons ▲▼ ▲▶ to select the preferred item. After finishing settings, press

SETUP again to normal display

The following menu items can be changed:

General Setup Page

TV DISPLAY: selects the aspect ratio of the playback picture.

4:3 PANSCAN: if you have a normal TV and want both sides of the picture to be trimmed or formatted to fit your TV screen.

4:3 LETTERBOX: if you have a normal TV. In this case, a wide picture with black bands on the upper and lower portions of the TV screen will be displayed.

16:9:wide screen display.

TFT DISPLAY: Selects the TFT display to 16:9 or 4:3.

Angle Mark

Displays current angle setting information on the right hand corner of the TFT screen if available on the disc.

OSD Language

You can select your own preferred language settings.

Closed Captions

Closed captions are data that are hidden in the video signal of some discs.Before you select this function,please ensure that the disc contains closed captions information and your TV set also has this function.

Screen Saver

This function is used to turn the screen saver On or Off.

Last Memory

If this function is switched to ON, the DVD will resume play on the last known position, when the unit was stopped, powered down orDVD was reinserted.

Auto Standby

This function is used to select auto standby settings after 3 or 4 hours. 3 HOURS: the unit will turn to standby mode after 3 hours if there is no interaction from user within this period of time.

4 HOURS: the unit will turn to standby mode after 4 hours if there is no interaction from user within this period of time.

OFF: the auto standby function is disabled, and unit will stay in "on" mode even if no interaction from user.

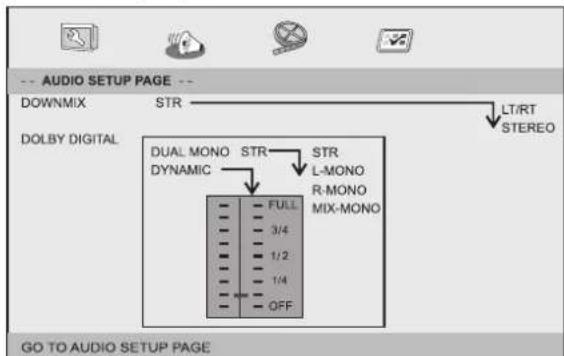

Audio Setup Page

Audio Setup Page

SETUP Menu Setting

Audio Setup Page

Downmix

This options allows you to set the stereo analog output of your DVD Player.
LT/RT:Select this option if your DVD Player is connected to a Dolby Pro Logic decoder.
Stereo :Select this option when output delivers sound from only the two front speakers.

Dolby digital

The options included in Dolby Digital Setup are: 'Dual Mono' and 'Dynamic'.

DualMono

Stereo: Left mono sound will send output signals to Left speaker and Right mono sound will send output signals to Right speaker.
L-Mono: Left mono sound will send output signals to Left speaker and Right speaker.
R-Mono:Right mono sound will send output signals to Left speaker and Right speaker.
Mix-Mono: Left and Right mixed mono sound will send output signals to Left and Right speakers.

Dynamic

Dynamic range compression.

Video Setup Page

Video Setup Page

Brightness, Contrast, Hue, Saturation: setting the video quality.

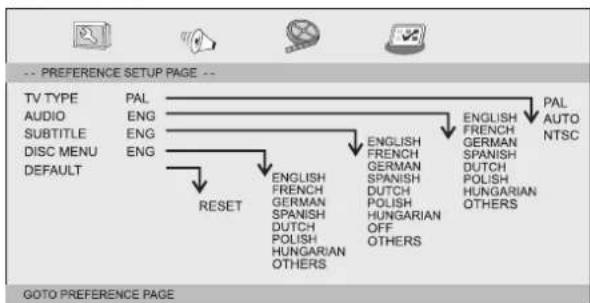

Preference Page

PreferencePage

TV Type

Selecting the colour system that corresponds to your TV when AV outputs. This DVD Player is compatible with both NTSC and PAL.

SETUP Menu Setting

Preference Page

PAL - Select this if the connected TV is PAL system. It will change the video signal of a NTSC disc and output in PAL format.

NTSC-Select this if the connected TV is NTSC system.It will change the video signal of a PAL disc and output in NTSC format.

Auto: Chang the video signal output automatic according to the playing disk format.

Audio:Selects a language for audio (if available).
Subtitle:Selects a language for subtitle (if available).
DiscMenu:Selectsalanguageefordiscmenu(ifavailable).
Default: Back to the factory setting.

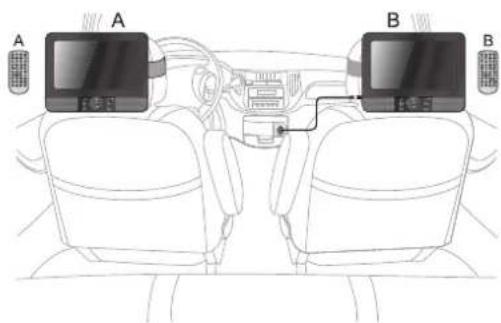

You can watch the same DVD on DVD player A and B at the same time.

Watching a DVD on DVD Player A and B

1. Connect DVD player A and B by using the included DC+AV Cable. Plug the AV Cable into AV OUT socket on the DVD player in which the DVD is inserted B; plug the other end of the AV Cable into AV IN socket of the other DVD player A.
2. Turn on DVD player A and B.
3. On the "slave" DVD player (the one where the DVD is Not inserted A) you must select the source AV.
4. Operate the controls of the DVD player in which the DVD is inserted B.

Connecting to a TV

If your TV has Audio/Video inputs, you can connect the DVD player to your TV using a standard AV cable.

Parameters and specifications

Electronical parameters

Item		Standard requirement
Power requirements		: AC 100-240 V, 50/60 Hz
Power consumption		<15W
Operating humidity		: 5 % to 90 %
Output	VIDEO OUT	:1 Vp-p (75Ω)
	AUDIO OUT	:1.0 Vrms (1 KHz, 0 dB)
	Audio	:Speaker:1WX2,Headphones output

Battery Parameters

Battery Parameters

Battery Specifications:

Output: 7.4V

Storage and work circumstances:

1. Storage circumstances Temperature Humidity

6 months -20°C - +45°C 65±20%

1 week -20°C ~ +65°C 65±20%

2.Work circumstances Temperature Humidity

Standard charge 0^ +45^ 65± 20%

Standard discharge -20°C ~ +65°C 65±20%

System

Laser	:Semiconductor laser, wavelength 650 nm
Signal system	:NTSC / PAL
Frequency response	:20Hz to 20 kHz(1dB)
Signal-to-noise ratio	:More than 80 dB (ANALOG OUT connectors only)
Dynamic range	:More than 80 dB (DVD/CD)

Note: Design and specifications are subject to change prior notice.

1. Guarantee

Lenco offers service and warranty in accordance to European law, which means that in case of repairs (both during and after the warranty period) you should contact your local dealer.

Important note: It is not possible to send products that need repairs to Lenco directly.

Important note: If this unit is opened or accessed by a non-official service center in any way, the warranty expires.

This device is not suitable for professional use. In case of professional use, all warranty obligations of the manufacturer will be voided.

2. Disclaimer

Up d t i t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t

3. Disposal of the Old Device

This symbol indicates that the relevant electrical product or battery should not be disposed of as general household waste in Europe. To ensure the correct waste treatment of the product and battery, please dispose them in accordance to any applicable local laws of requirement for disposal of electrical equipment or batteries. In so doing, you will help to conserve natural resources and improve standards of environmental protection in treatment and disposal of electrical waste (Waste Electrical and Electronic Equipment Directive).

4. CE Marking

Hereby, Lenco Benelux B.V., Thermiekstraat 1a, 6361 HB Nuth, The Netherlands, declares that this product is in compliance with the essential EU directive requirements.

The declaration of conformity may be consulted via [e-mail]

5. Service

For more information and helpdesk support, please visit www.lenco.com

Lenco Benelux BV, Thermiekstraat 1a, 6361 HB, The Netherlands.

Nederlands

LETOP:

DVD VCD: Use ZOOM to enlarge or shrink the video image. 1. Press ZOOM during playback or still playback to activate the Zoom function. The square frame appears briefly in the right bottom of the picture.
2. Each press of the ZOOM button changes the TV screen in the following sequence:

2X size 3X size 4X size 1/2 size 1/3 size 1/4size→normal size

JPEG: Use ZOOM to enlarge or shrink the picture.
1. Press 'ZOOM'
2,Used" to enlarge,or" to shorten the picture. Use the button to move through the zoomed picture.

SETUP Menu-installingen

Pagina algemene instellingen

Druk op de SETUP knop om het instillingenmenu te openen. Gebruik de navigatietoieten 1 selecteren.Druk na het instellen van de installingen nogmaals op
SETUP om terug te keren aan de normale weergave. De volgende menu-items können worden ingesteld:

Pagina algemene instellingen

DVD VCD: Use ZOOM to enlarge or shrink the video image. 1. Press ZOOM during playback or still playback to activate the

Zoom function. The square frame appears briefly in the right bottom of the picture.

1. Each press of the ZOOM button changes the TV screen in the following sequence:

2X size 3X size 4X size 1/2 size 1/3 size 1/4size→normal size

JPEG: Use ZOOM to enlarge or shrink the picture.

1. Press 'ZOOM'

2,Used"▶"to enlarge,or"▶"to shorten the picture.

Use the button to move through the zoomed picture.

Menu Configuration

DVD VCD: Use ZOOM to enlarge or shrink the video image.
1. Press ZOOM during playback or still playback to activate the Zoom function. The square frame appears briefly in the right bottom of the picture.
2. Each press of the ZOOM button changes the TV screen in the following sequence:

2X size 3X size 4X size 1/2 size 1/3 size 1/4size normal size

JPEG:Use

1. Press 'ZOOM'
   2,Used" "to enlarge,or" "to shorten the picture. Use the button to move through the zoomed picture.

Menu de ajustes

General Setup Page

'Dual Mono' y 'Dynamic'.

Dual Mono
