USER MANUAL GR200P Bimar

Passion Line

Grattugia cordless

Electric grater

Technical diagram of a device with numbered parts, including a lamp, plug, and internal components

1. Coperchio
2. Contenitore grattugia inox fine
3. Rullo
4. Corpo motore
5. Interruttore on/off
6. Presa connettore
7. Adattatore

8. Contenitore grattugia inox più grossolana

9. Lid

10. Stainless steel fine grater container

11. Roll

12. Motor body

13. ON/OFF switch

14. Connector socket

15. Adaptor

16. Stainless steel coarse grater container

17. Couvercle

18. Bac râpe inox fine

19. Rouleau

20. Partie moteur

21. Interrupteur marche/arrêt

22. Prise connecteur

23. Adaptateur

24. Bac râpe inox plus grossière

25. Abdeckung

26. Behälter Edelstahlreibe, fein

27. Rollen

28. Motorkörper

29. EIN/AUS-Schalter

30. Steckbuchse

31. Adapter

32. Behälter Edelstahlreibe, etwas grober

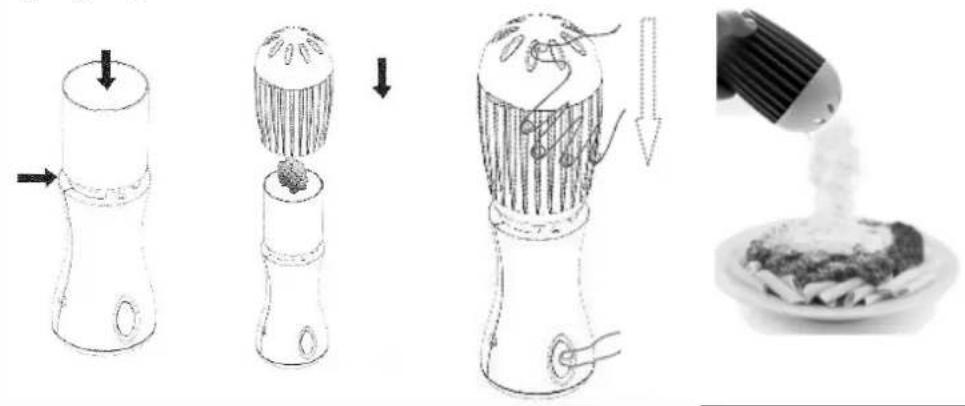

Fig.2 Fig.3 Fig.4

Diagram illustrating food preparation steps: dropping from a blender to a plate with food, with arrows indicating the process.

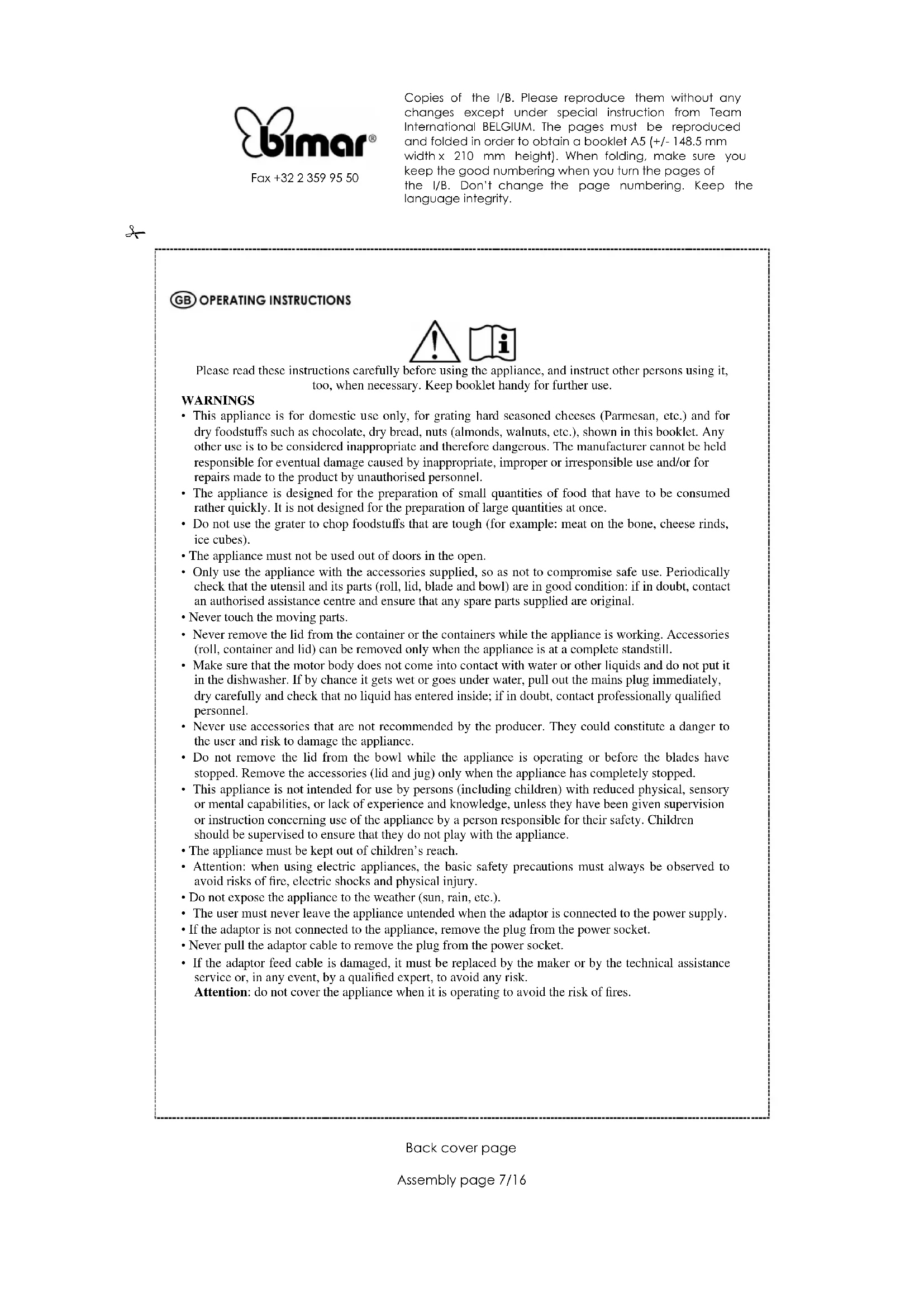

ISTRUZIONI PER L'USO

Please read these instructions carefully before using the appliance, and instruct other persons using it, too, when necessary. Keep booklet handy for further use.

WARNINGS

- This appliance is for domestic use only, for grating hard seasoned cheeses (Parmesan, etc.) and for dry foodstuffs such as chocolate, dry bread, nuts (almonds, walnuts, etc.), shown in this booklet. Any other use is to be considered inappropriate and therefore dangerous. The manufacturer cannot be held responsible for eventual damage caused by inappropriate, improper or irresponsible use and/or for repairs made to the product by unauthorised personnel.

- The appliance is designed for the preparation of small quantities of food that have to be consumed rather quickly. It is not designed for the preparation of large quantities at once.

- Do not use the grater to chop foodstuffs that are tough (for example: meat on the bone, cheese rinds, ice cubes).

• The appliance must not be used out of doors in the open.

- Only use the appliance with the accessories supplied, so as not to compromise safe use. Periodically check that the utensil and its parts (roll, lid, blade and bowl) are in good condition: if in doubt, contact an authorised assistance centre and ensure that any spare parts supplied are original.

- Never touch the moving parts.

- Never remove the lid from the container or the containers while the appliance is working. Accessories (roll, container and lid) can be removed only when the appliance is at a complete standstill.

- Make sure that the motor body does not come into contact with water or other liquids and do not put it in the dishwasher. If by chance it gets wet or goes under water, pull out the mains plug immediately, dry carefully and check that no liquid has entered inside; if in doubt, contact professionally qualified personnel.

- Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.

- Do not remove the lid from the bowl while the appliance is operating or before the blades have stopped. Remove the accessories (lid and jug) only when the appliance has completely stopped.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

- The appliance must be kept out of children's reach.

- Attention: when using electric appliances, the basic safety precautions must always be observed to avoid risks of fire, electric shocks and physical injury.

- Do not expose the appliance to the weather (sun, rain, etc.).

- The user must never leave the appliance untended when the adaptor is connected to the power supply.

- If the adaptor is not connected to the appliance, remove the plug from the power socket.

- Never pull the adaptor cable to remove the plug from the power socket.

- If the adaptor feed cable is damaged, it must be replaced by the maker or by the technical assistance service or, in any event, by a qualified expert, to avoid any risk.

Attention: do not cover the appliance when it is operating to avoid the risk of fires.

INSTALLATION

• After removing the packing materials, check the integrity of the appliance; if you are unsure, do not use it and ask for qualified professional help. The packing materials (plastic bags, polystyrene foam, nails, etc.) must be kept out of the reach of children because they are potential sources of danger; dispose of them in accordance with current law.
• Before connecting the appliance/adaptor, check that the voltage shown on the data plate matches that of your electricity and that the electric plug is grounded. In the event of incompatibility between the electric outlet and the plug of the appliance, have the outlet replaced with another more suitable type by professionally qualified personnel, who will make sure that the section of the wires of the outlet is appropriate for the absorbed power of the appliance. In general, the use of adapters or extension cords is not recommended; if their use is indispensable, they must conform to existing safety standards and their current capacity (amperes) must not be less than the maximum of the appliance.
• Before each use, verify that the appliance is in good condition and that the electrical cord is not damaged: in case of doubt, ask for professionally qualified help.
• Make sure that the cable is correctly positioned, that it is not touching hot elements or sharp edges, is not wound around the appliance, is not twisted up on itself or in the way to prevent the utensil from being pulled over.
• Position the utensil far from other sources of heat, objects or anything else that could come into contact with the hot parts. Check that the support surface is stable and flat to prevent the utensil from tipping over.
• Position the utensil far from liquid containers (washbasins for example, etc.), to protect against water splashes or from falling into the same.
• The power socket of the adaptor must be easy to reach so the plug can be removed quickly in case of emergency.
• The appliance comes into contact with foodstuffs and therefore requires accurate cleaning: read the paragraph "CLEANING AND MAINTENANCE". Regular cleaning guarantees greater hygiene for your food. We recommend cleaning the appliance every time different foods are grated (for example, if – after grating nuts – you need to grate cheese) since the presence of food residues could cause the contamination of the various foods.
• In the case of a breakdown or fault, switch off the appliance and have it checked by a professionally qualified technician; repairs made by unqualified persons can be dangerous and render void the warranty.
• Do not use the appliance with a timer or a programmer or with a system that can switch on the appliance automatically, to avoid the risk of fire, since a fire risk exists if the appliance is covered or positioned incorrectly.

Attention:

• make sure the battery is completely charged before using the appliance.
• leave the battery on charge for at least 24 hours before using for the first time, after which recharging time is 15 hours.
• never use the grater during recharge
• to lengthen the life of the rechargeable battery, we recommend leaving the battery to run flat before recharging
• avoid recharging at a temperature of less than 5^ C ( 40^ F) or more than 40^ C ( 105^ F), this would damage the batteries.
• should any liquid leak from the batteries, the appliance must not be used but taken to an authorised assistance centre for the batteries to be replaced.
• recharge the grater only with the original adaptor.

First Use

Before using for the first time, wash the roll, containers and lid carefully in soapy water and dry accurately before use. (Note: the motor body must never be immersed in water or other liquids, but cleaned with a slightly damp cloth).

Use

1. Position the roll (3) on the motor body (4), pressing it lightly until hearing the click that means it is locked in place "see fig. 2".
2. Place the chosen foods inside the food container (3) in small quantities at a time. If you are grating cheese, eliminate the rind and cut into dice before putting it into the container.
3. Position the fine grater (2) or the coarse grater (8) and relative lid (1) on the roll "see fig. 2".
4. Hold down the switch (5) to start the motor (vice versa, release it to switch off), pressing it lightly down the container for grating the food "see fig. 3".

The perforated lid allow the food to be distributed (for example, the cheese) directly onto a plate or into a recipient "see fig. 4".

Attention:

• do not put the appliance in the fridge otherwise the batteries will be damaged, but place only the container and lid.
• do not leave foodstuffs (cheese, chocolate, etc.) inside the container for several days, this is not hygienic and could cause the formation of bad odours and moulds. Therefore it is advisable to remove any food remaining, and to conserve it properly according to hygiene standards.

CLEANING AND MAINTENANCE

• To clean the motor body, use a soft, slightly damp cloth; do not use metal pads or abrasive products. Do not wash it under flowing water; do not submerge it in water; do not wash in the dishwasher. Before use, check that it is perfectly dry, especially the contacts.
• Wash the bowl and tops with soapy water and dry them carefully; do not wash them in the dishwasher. Before putting away or using them, check that they are perfectly dry.
• Wash the roll, container and lid with soapy water and dry them carefully; do not wash them in the dishwasher. Before putting away or using them, check that they are perfectly dry.
• A special tool is required to replace the electrical cable: contact an authorised assistance centre, also for any repairs.
• Contact one of our authorised assistance centres for the replacement of any parts or repairs.
• Should you decide not to use the appliance any more, we recommend making it inoperative by cutting the power cord (after making sure you have disconnected the plug from the socket) and make dangerous parts harmless if children are allowed to play with them (such as the roll).
• Do not dispose of non-biodegradable products in the environment but dispose of them in accordance with current law. At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources.
