DESCRIPTION - Portable speaker with 2 wireless microphones. - This portable speaker will accompany you at all your events or parties, a live performance or a live talk. It provides the perfect musical atmosphere, you can play music, do karaoke, record microphone input, sound your performances or amplify your voice. - Its high sound power will allow you to cover events of up to 50 people with excellent audio quality thanks to its definition in the high frequencies and its BASS REFLEX bass reinforcement. - The MALIBU-312 incorporates everything you need to amplify the sound. It includes two wireless microphones, one hand-held and one belt-pack with headset microphone, and two inputs for connecting two additional wired microphones. You can karaoke by activating the Voice Canceller function that cancels the voice over the music, assign voice priority to fade the music while speaking, and independently control the volume of the music and microphone, as well as the echo for the microphone. - It has a multifunctional Bluetooth

, USB/microSD, radio or line-in with remote control. It also offers the possibility to connect 2 speakers via Bluetooth and play the same content via the TWS function. - Its simple and intuitive use minimises set-up time. - Highly versatile, adaptable to a multitude of uses and very easy to transport thanks to its trolley design and highly efficient lightweight components, such as the class D amplifier and the rechargeable lithium battery, which requires little maintenance and provides great autonomy. - It is the perfect loudspeaker for users without extensive audio knowledge, who need to create a musical atmosphere for family parties and small events, as well as for more professional users for classes, courses or presentations, or for artists who want to give small live performances or street music recitals with guitar.

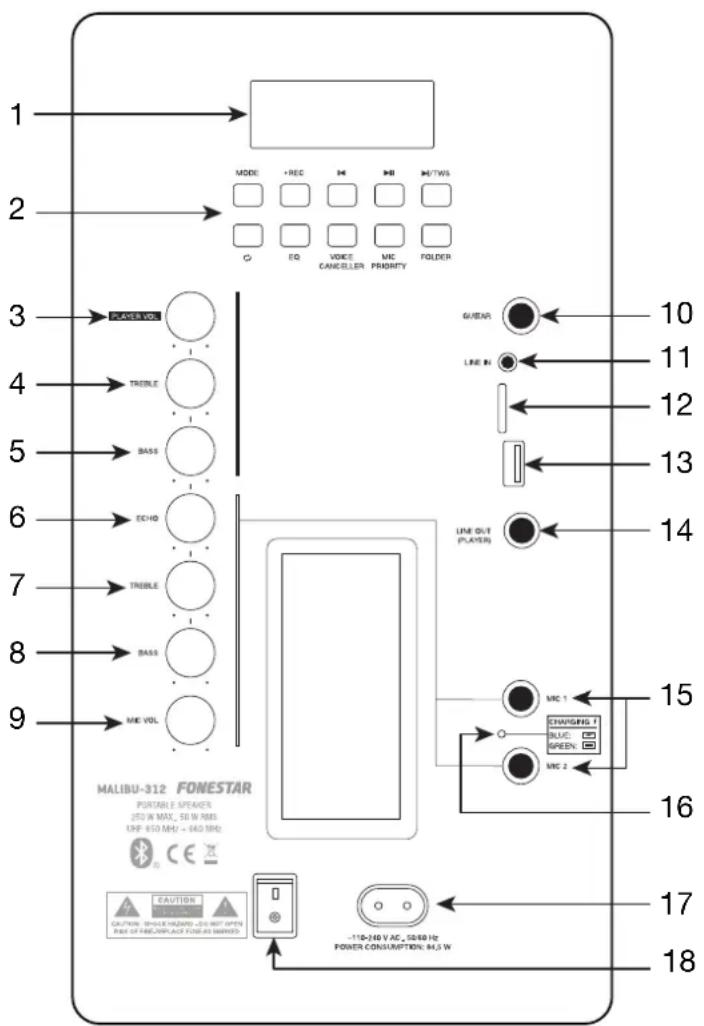

a.- MODE: short presses of this button allow you to change the mode on the player to choose the desired audio source: USB, microSD (CArD), Bluetooth (BLUE), FM radio (display shows frequency), line-in (LINE). b.- REC: a short press of this button starts/stops the recording of the microphone audio. A long press allows the recorded tracks to be played back. Once you have started playback, you can control it with the buttons , and . c.- : in Bluetooth, USB and micro SD mode,a short press will skip to the previous song and a press in FM mode will skip to the previous stored frequency. d.- : in Bluetooth and USB and micro SD mode, starts/pauses audio playback; in FM mode, it automatically memorises all frequencies detected with sufficient signal quality. e.- /TWS: in Bluetooth, USB and micro SD mode, a short press allows you to skip to the next song. In FM mode, switches to the next stored frequency. A long press on this button activates the TWS function, for more information see OPERATION. f.- : in USB and micro Sdmode,mode, activates/deactivates shuffle playback. - ONE: plays the same song over and over again. - ALL: plays the songs in order and restarts at the end. g.- EQ: allows you to select between the different existing equalisations: FLAT (no EQ), POP, ROCK, JAZZ, CLASSIC. h.- VOICE CANCELLER: removes the voice from songs by equalizing to enhance the karaoke experience. The display shows rON when the function is activated and rOFF when it is deactivated. i.- MIC PRIORITY: activate microphone priority over music. The music will fade out when there is a signal from either microphone: MIC 1, MIC 2 or wireless microphones. The display shows PON when the function is activated and POFF when it is deactivated. j.- FOLDER: in USB and microSD mode, allows you to select the folder to be played. 3.- PLAYER VOL: player volume control. 4.- TREBLE: control that boosts or attenuates the player’s treble frequencies. 5.- BASS: control that boosts or attenuates the player’s bass frequencies. 6.- ECHO: control of the echo function on the microphones. Allows adjustment of the number of echo repeats of MIC 1, MIC 2 and wireless microphones. 7.- TREBLE: control that boosts or attenuates the high frequencies of the microphones MIC 1, MIC 2 and wireless microphones. 8.- BASS: control that boosts or attenuates the low frequencies of the microphones MIC 1, MIC 2 and wireless microphones. 9.- MIC VOL: microphone volume control MIC 1, MIC 2 and wireless microphones. 10.- GUITAR: guitar input, 6.3 mm mono jack plug. 11.- LINE IN: stereo line-level auxiliary input, 3.5 mm jack plug. 12.- MicroSD memory card connection port. 13.- USB storage device connection port. 14.- LINE OUT (PLAYER): mono auxiliary output of the player’s signal, RCA connector. 15.- MIC 1, MIC 2: balanced mic level input, 6.3 mm jack plug. 16.- CHARGING BATTERY: battery charging process indicator light. This indicator will illuminate blue while the battery is charging and will turn green when the battery is fully charged. 17.- Input to connect AC power supply cable. 18.- On/off loudspeaker switch.EN

correct battery level, CHA MHzCHA MHz

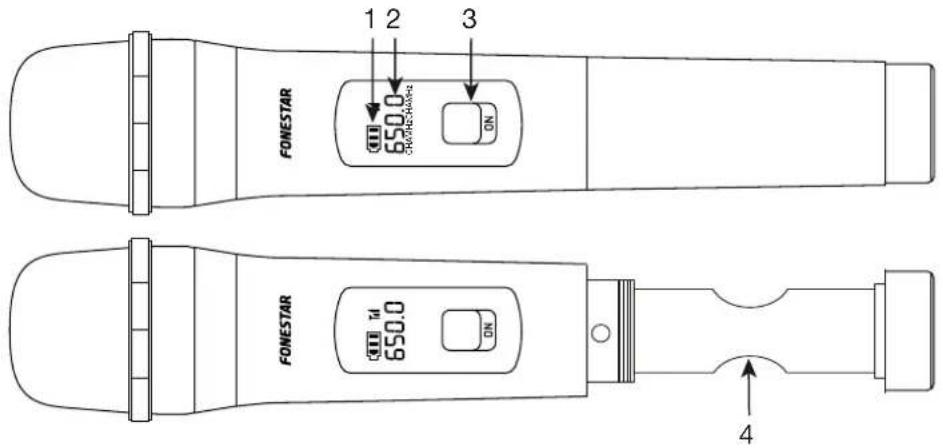

low battery level. 2.- Transmission frequency indicator 3.- Hand-held microphone on/off switch. 4.- Battery holder. Use 2 x 1.5 V batteries type LR6-AA, preferably alkaline. When inserting the batteries, make sure that the polarity is correct. BELT-PACK MICROPHONE

correct battery level, CHA MHzCHA MHz

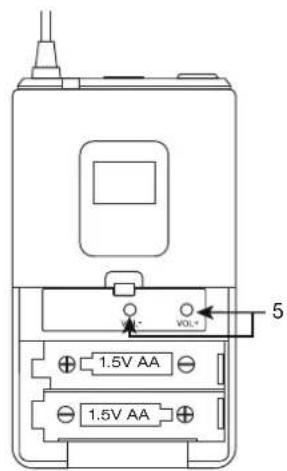

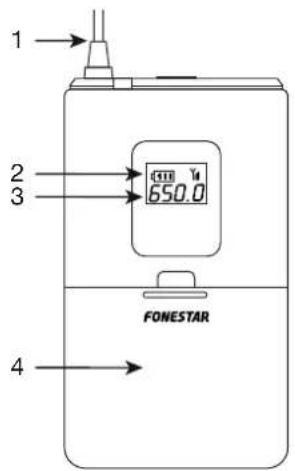

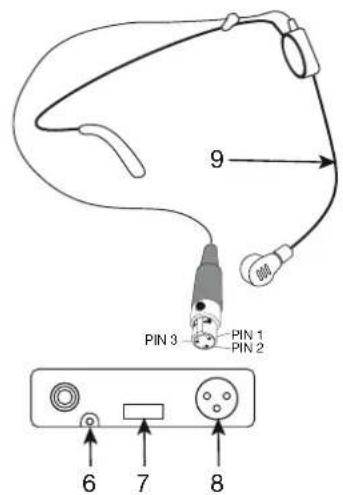

low battery level. 3.- Transmission frequency indicator 4.- Battery holder. Use 2 x 1.5 V batteries type LR6-AA, preferably alkaline. When inserting the batteries, make sure that the polarity is correct. 5.- VOL-/VOL+: microphone audio volume control. 6.- LED power indicator. 7.- Belt-pack microphone on/off button by long pressing of the button. 8.- Microphone connector, miniXLR connector. 9.- Clip-on belt-pack microphone. MiniXLR connector (PIN 1: ground, PIN 2: not connected, PIN 3: signal).EN

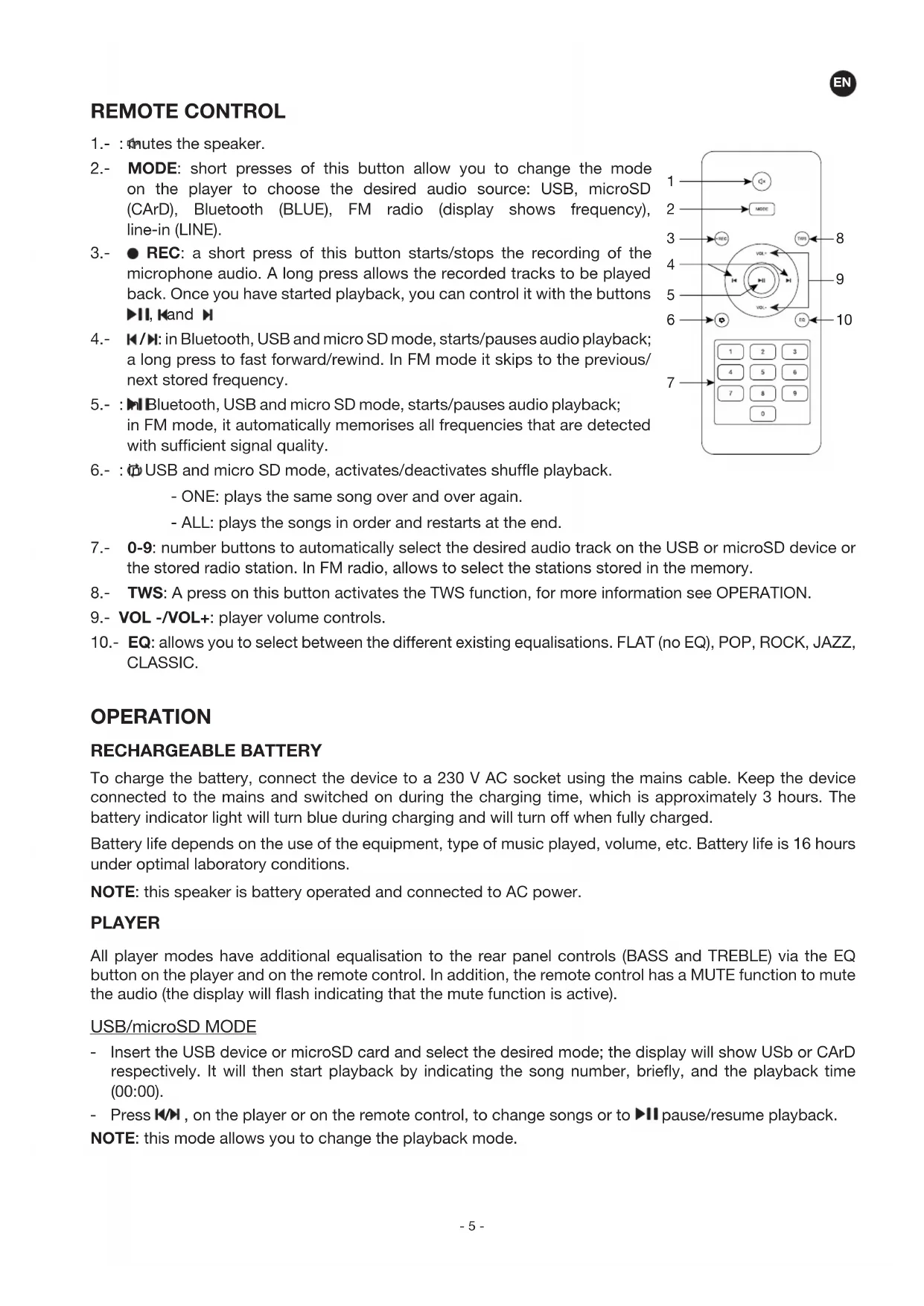

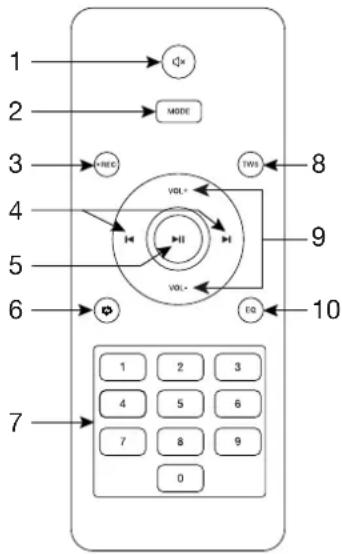

1.- : mutes the speaker. 2.- MODE: short presses of this button allow you to change the mode on the player to choose the desired audio source: USB, microSD (CArD), Bluetooth (BLUE), FM radio (display shows frequency), line-in (LINE). 3.- REC: a short press of this button starts/stops the recording of the microphone audio. A long press allows the recorded tracks to be played back. Once you have started playback, you can control it with the buttons , and . 4.- / : in Bluetooth, USB and micro SD mode, starts/pauses audio playback; a long press to fast forward/rewind. In FM mode it skips to the previous/ next stored frequency. 5.- : in Bluetooth, USB and micro SD mode, starts/pauses audio playback; in FM mode, it automatically memorises all frequencies that are detected with sufficient signal quality. 6.- : in USB and micro SD mode, activates/deactivates shuffle playback. - ONE: plays the same song over and over again. - ALL: plays the songs in order and restarts at the end. 7.- 0-9: number buttons to automatically select the desired audio track on the USB or microSD device or the stored radio station. In FM radio, allows to select the stations stored in the memory. 8.- TWS: A press on this button activates the TWS function, for more information see OPERATION. 9.- VOL -/VOL+: player volume controls. 10.- EQ: allows you to select between the different existing equalisations. FLAT (no EQ), POP, ROCK, JAZZ, CLASSIC. OPERATION RECHARGEABLE BATTERY To charge the battery, connect the device to a 230 V AC socket using the mains cable. Keep the device connected to the mains and switched on during the charging time, which is approximately 3 hours. The battery indicator light will turn blue during charging and will turn off when fully charged. Battery life depends on the use of the equipment, type of music played, volume, etc. Battery life is 16 hours under optimal laboratory conditions. NOTE: this speaker is battery operated and connected to AC power. PLAYER All player modes have additional equalisation to the rear panel controls (BASS and TREBLE) via the EQ button on the player and on the remote control. In addition, the remote control has a MUTE function to mute the audio (the display will flash indicating that the mute function is active). USB/microSD MODE - Insert the USB device or microSD card and select the desired mode; the display will show USb or CArD respectively. It will then start playback by indicating the song number, briefly, and the playback time (00:00). - Press / , on the player or on the remote control, to change songs or to pause/resume playback. NOTE: this mode allows you to change the playback mode.EN

BLUETOOTH MODE - Select Bluetooth mode. The display will show BLUE. BLUE flashing indicates that no connection has been established with a device and when it stops flashing it indicates that it is connected. - To connect your device, open the Bluetooth settings screen on your smartphone or tablet. Activate the Bluetooth function, select the MALIBU-312 and pair with it. NOTE: this player remembers the last connected device. So, you will not need to do this linking process and the linking will be done automatically. - Select the music on your smartphone/tablet and start playback. - Make sure your smartphone/tablet is loud enough to be heard through the speaker. In this way, you can control the volume from the MALIBU itself at a later time without having to manipulate any other equipment. - Press / , on the player or on the remote control, to change songs or to pause/resume playback. FM MODE - Select FM mode. The display will show the tuned frequency (000.0 MHz). - Perform an automatic tuning of the stations to start using this mode by short pressing the button . - Once you have finished, you can select the station you want to listen to from among those tuned in with / in the front panel or on the remote control. LINE MODE - Connect your audio device (Smartphone, tablet, PC, etc.) via a stereo audio cable to the LINE IN input on the rear panel. - Select line input mode. The display will show LINE. - Select the music on your device and start playback. - Make sure your device is loud enough to be heard through the speaker. In this way, you can control the volume from the MALIBU itself at a later time without having to manipulate any other equipment. MICROPHONE RECORDER The recording function will only record the signal from the microphones regardless of the mode selected on the player. 1.- Connect the microphones you wish to record (wired or wireless) and adjust their volume, echo effect and equalisation. 2.- Connect a recording drive to the USB port or microSD slot. While recording you can listen to the music as you record the voice by selecting the mode on the player as long as it is not the same mode you are using for the recording. NOTE: USB device has priority over microSD card. 3.- Press the REC button on the player or remote control and press it again to stop recording. Pressing again will start a new recording. The recording can be paused and resumed with the button. 4.- To play back these recordings, long press the REC button on the player or on the remote control. The recordings are stored in a REC folder on the USB or microSD card and will be named 00000.MP3.

CONNECTING MULTIPLE SPEAKERS

When several speakers are connected, the signal shared between them is that of the player (USB, microSD, Bluetooth, FM or Line In). In case you want to listen to the wireless microphones, the speakers have a UHF receiver of the same frequency, that is to say, using one of the microphones of each frequency, the signal will be received and reproduced in both speakers. WIRED You can daisy-chain several speakers by interconnecting the LINE OUT PLAYER output with the LINE IN input, so they will all play the same signal.EN

FUNCIÓN TWS (TRUE WIRELESS STEREO) The TWS function allows the player’s audio (USB, microSD, Bluetooth, FM or LINE IN) to be played through 2 speakers in stereo. For this function there will always be a master speaker playing the left channel of the stereo signal, and a slave speaker playing the right channel. To do this you must have 2 MALIBU-308, MALIBU-310, MALIBU-312 or MALIBU-315 speakers and follow these steps: 1.- Turn both MALIBU speakers on and activated Bluetooth mode. 2.- On the slave speaker, press the TWS button and SLAU will both show and flash on the display.. 3.- Wait a few seconds, the displays on both speakers will stop flashing indicating that they are connected. 4.- Select the playback mode on the master speaker and start playback. Both speakers can be used to control the player’s functions: , , and . But it will only be possible to switch modes from the master loudspeaker. NOTE: all other speaker inputs such as MIC or GUITAR will only be heard through the speaker to which they are connected. Please note that if the wireless microphones of both loudspeakers are of the same frequency, both cannot be used.

CONNECTION AND OPERATION

- Before making any connections: - Make sure that all equipment is switched off and disconnected from the power supply socket. - Check the condition of the speaker battery and the wireless microphone batteries. - Set the volume controls to minimum. - Connect the device(s) you need: - USB device in the USB port. - MicroSD card in the microSD slot. - PC, tablet, smartphone, etc. in the LINE IN input. - Microphone cable in inputs MIC 1 and MIC 2. - For Bluetooth mode you will have to wait for the speaker to turn on and pair it. - Turn on the devices connected in the previous step and the wireless microphones, and lastly, turn on the loudspeaker. You can use the MALIBU powered directly from the mains or using the internal battery. - Select the operating mode and adjust the PLAYER VOL and MIC VOL volume controls. NOTE: if a microphone (wireless and/or wired) is to be used, be sure not to stand in front of the loudspeaker and at a distance to avoid feedback and other disturbing noises. - After use, do not forget to switch off and disconnect the equipment from the mains.EN

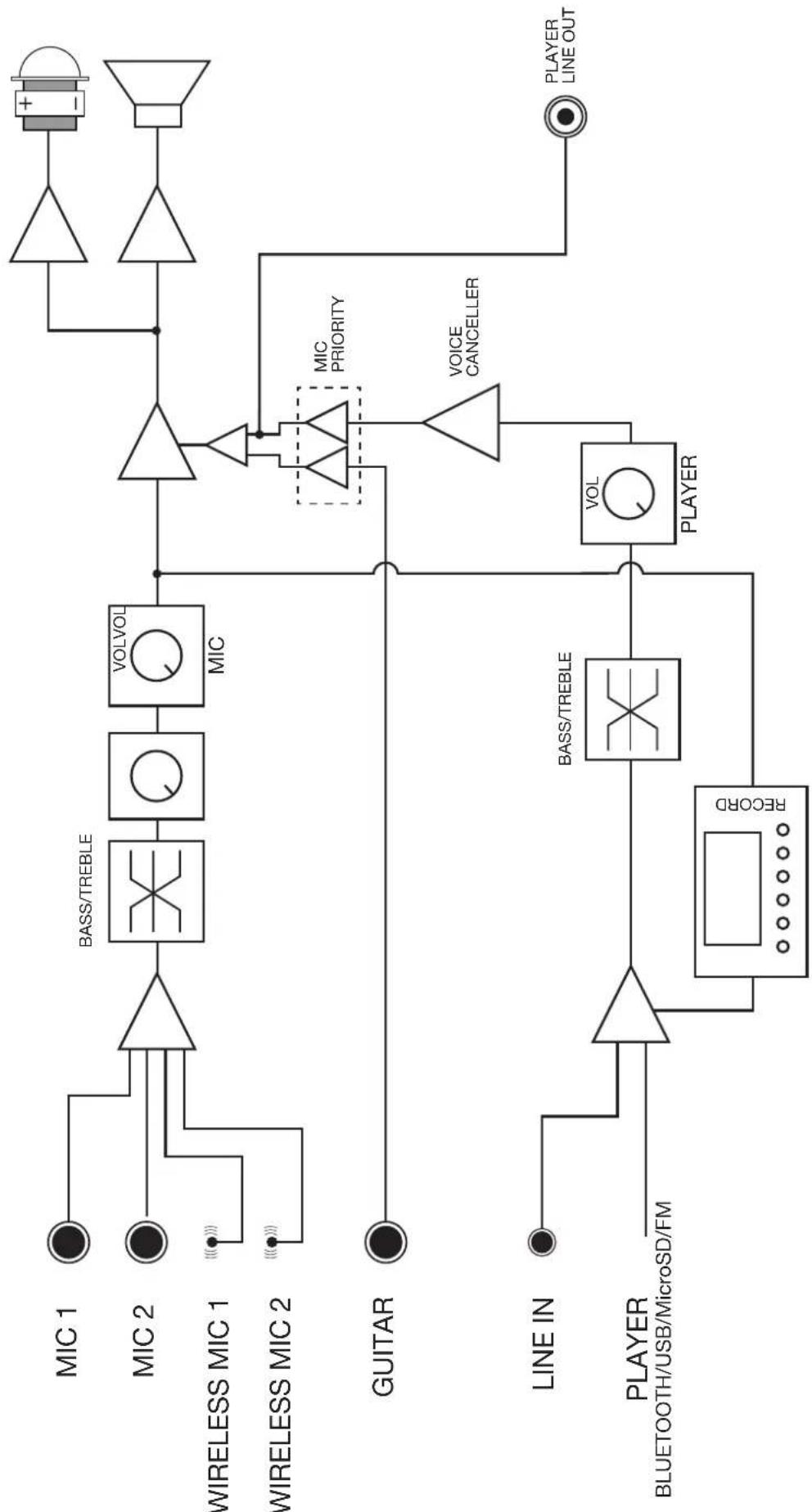

BLOCK DIAGRAM BASS/TREBLE BASS/TREBLE VOICE CANCELLER PLAYER LINE OUT MIC PRIORITY WIRELESS MIC 1 WIRELESS MIC 2 MIC 1 MIC 2 LINE IN GUITAR PLAYER BLUETOOTH/USB/MicroSD/FM MIC VOLVOL PLAYER VOL RECORDEN TECHNICAL SPECIFICATIONS MALIBU-312 FEATURES Portable speaker. 2 x UHF wireless microphones, 1 hand-held and 1 head-worn (650 MHz and 660 MHz). Bluetooth/USB/microSD/FM/LINE player and microphone audio recorder. Bluetooth receiver 5.0. Karaoke function with Voice Canceller, priority, microphone controls (echo, bass and treble) and independent volume control of music and microphones. TWS function for Bluetooth pairing of two loudspeakers and transmit USB, microSD, FM or LINE IN. Guitar input. Input for microphone with cable. Rechargeable Li-ion battery. BASS REFLEX reinforcement. Remote control of the player. Trolley transport cart. Hole in the base for 35 mm tube. POWER 250 W maximum, 50 W RMS LOUDSPEAKERS 1 x 12” woofer 1 x 1” tweeter INPUTS 2 x mic input, 6.3 mm jack, 4,700 Ω 59.6 mV 1 x stereo line, 3.5 mm jack, 10,000 Ω 392 mV 1 x guitar input, 6.3 mm jack, 101 mV OUTPUTS 1 x aux, RCA CONTROLS Microphone volume with echo, bass and treble control. Player volume with bass and treble control. Player with source selection, playback control, recording, TWS (transmit USB, microSD, FM or LINE IN), voice eliminator, voice priority, playback mode and equalisation. Battery charge indicator.

POWER SUPPLY 110-240 V CA, 84.5 W

Battery Li-ion 7.4 V, 5,000 mAh Autonomy with rechargeable battery: 16 h* Battery charging time: 3 h

At 50% of the volume. Depending on the type of music and volume, the battery life may be reduced Works while recharging Wireless microphones: 2 x LR6-AA batteries Remote control: 2 x LR03-AAA batteries DIMENSIONS 390 x 580 x 300 mm depth OPTIONAL FAL-M12: carrying bag

SIMPLIFIED EU DECLARATION OF CONFORMITY

FONESTAR SISTEMAS S.A. hereby declares that the Portable speaker MALIBU-312 complies with the Directive 2014/53/EU. The complete text of the EU Declaration of Conformity is available at the following internet address: fonestar.com/MALIBU-312EN
