USER MANUAL MILÙ 8 Palazzetti

This manual is an integral part of the product. Read the instructions carefully before installing, servicing or operating the product. Translation of the original instructions

Dear Customer, We’d like to thank you for having purchased one of our products and congratulate you on your choice. To make sure you get the most out of your product, please carefully follow the instructions provided in this manual.

9 PRIMA ACCENSIONE 27

NOTE:phase protection,added by customer.Do not change polarity!

1.3 Purpose and content of the manual 35

1.4 Preservation of the manual 35

1.5 Update of this manual 35

1.8 Responsibility of the manufacturer 36

1.9 Technical assistance and maintenance 37

1.12 Delivery of the appliance 37

2.1 Warnings for the installer 38

2.2 Warnings for technical maintenance personnel 39

3.1 Fuel characteristics 42

4.3 Technical features 45

5.1 Transportation 48

5.2 Checking the floor where the appliance will be placed 48

6 PREPARING THE PLACE OF INSTALLATION 49

6.1 General considerations 49

6.2 Safety Precautions 49

6.3 Place of installation 50

6.6 Roof exhaust with traditional fireplace 53

7.1 General considerations 54

7.2 Levelling of the appliance 54

10.1 Routine maintenance cleaning schedule 58

10.2 Ordinary cleaning 59

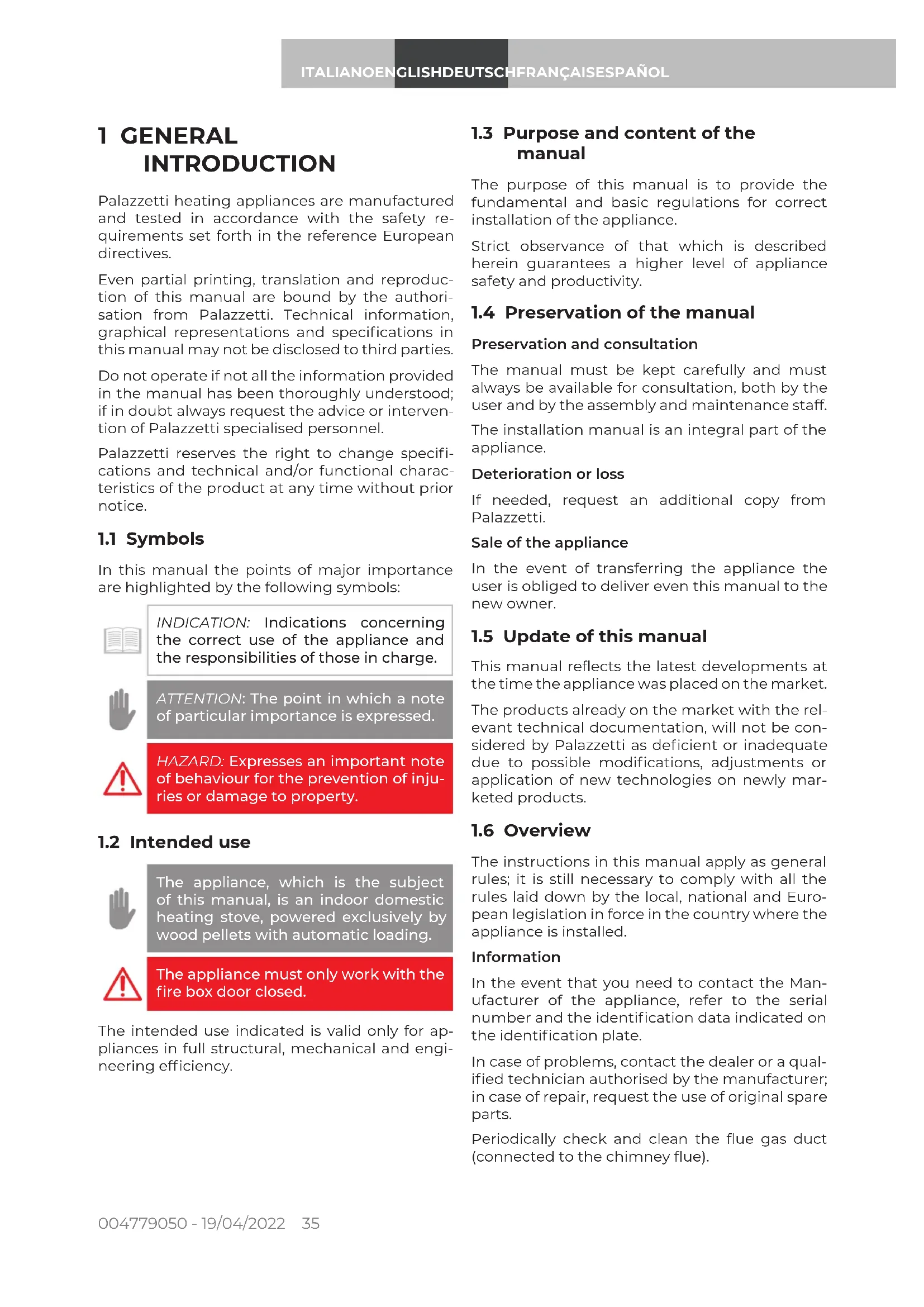

ITALIANO ENGLISH DEUTSCH FRANÇAIS ESPAÑOL 1 GENERAL INTRODUCTION Palazzetti heating appliances are manufactured and tested in accordance with the safety re- quirements set forth in the reference European directives. Even partial printing, translation and reproduc- tion of this manual are bound by the authori- sation from Palazzetti. Technical information, graphical representations and specifications in this manual may not be disclosed to third parties. Do not operate if not all the information provided in the manual has been thoroughly understood; if in doubt always request the advice or interven- tion of Palazzetti specialised personnel. Palazzetti reserves the right to change specifi- cations and technical and/or functional charac- teristics of the product at any time without prior notice.

In this manual the points of major importance are highlighted by the following symbols: INDICATION: Indications concerning the correct use of the appliance and the responsibilities of those in charge. ATTENTION: The point in which a note of particular importance is expressed. HAZARD: Expresses an important note of behaviour for the prevention of inju- ries or damage to property.

The appliance, which is the subject of this manual, is an indoor domestic heating stove, powered exclusively by wood pellets with automatic loading. The appliance must only work with the fire box door closed. The intended use indicated is valid only for ap- pliances in full structural, mechanical and engi- neering efficiency.

1.3 Purpose and content of the

manual The purpose of this manual is to provide the fundamental and basic regulations for correct installation of the appliance. Strict observance of that which is described herein guarantees a higher level of appliance safety and productivity.

1.4 Preservation of the manual

Preservation and consultation The manual must be kept carefully and must always be available for consultation, both by the user and by the assembly and maintenance staff. The installation manual is an integral part of the appliance. Deterioration or loss If needed, request an additional copy from Palazzetti. Sale of the appliance In the event of transferring the appliance the user is obliged to deliver even this manual to the new owner.

1.5 Update of this manual

This manual reflects the latest developments at the time the appliance was placed on the market. The products already on the market with the rel- evant technical documentation, will not be con- sidered by Palazzetti as deficient or inadequate due to possible modifications, adjustments or application of new technologies on newly mar- keted products.

The instructions in this manual apply as general rules; it is still necessary to comply with all the rules laid down by the local, national and Euro- pean legislation in force in the country where the appliance is installed. Information In the event that you need to contact the Man- ufacturer of the appliance, refer to the serial number and the identification data indicated on the identification plate. In case of problems, contact the dealer or a qual- ified technician authorised by the manufacturer; in case of repair, request the use of original spare parts. Periodically check and clean the flue gas duct (connected to the chimney flue).36 004779050 - 19/04/2022 The pellet stove is not a cooking device. Store this instruction manual, which is an inte- gral part of the stove, for its entire service life. If the stove is sold or transferred to another user, always make sure it is accompanied by the prod- uct booklet. In case of loss, contact the manufacturer or au- thorised retailer to receive another copy. Maintenance Maintenance operations must be carried out by qualified personnel authorised to work on the appliance to which this manual refers. Responsibility for the works of installation Responsibility for the works carried out for the in- stallation of the appliance cannot be considered to be taken on by Palazzetti; it is and remains the responsibility of the installer, who is responsible for carrying out the checks relating to the flue, the air intake and how right the proposed instal- lation solutions are.

1.8 Responsibility of the

manufacturer With the delivery of this manual, Pala- zzetti declines all responsibility, both civil and criminal, direct or indirect, due to:

  • installation that does not comply with stand- ards in force in the country and with safety directives;
  • partial or total non-compliance with the in- structions contained in this manual;
  • installation by unqualified and/or untrained personnel;
  • use not in compliance with the safety direc- tives;
  • modifications and/or repairs carried out on the appliance that are not authorised by the man- ufacturer;;
  • lack of maintenance;
  • exceptional events.004779050 - 19/04/2022 37 ITALIANO ENGLISH DEUTSCH FRANÇAIS ESPAÑOL

1.9 Technical assistance and

maintenance Palazzetti has a dense network of service centres with specialised, trained and skilled technicians. The headquarters and our sales network is at your disposal to direct you to the nearest authorised service centre.

Use only original spare parts. Do not wait until the components are worn by use before proceeding to their replacement. Replace a worn component before its breaking favours the prevention of accidents arising from accidents caused by the sudden breakage of components which may cause serious damages to persons and objects.

The serial identification plate (A) is positioned on the rear (Fig. 1) and shows all the characteristic data relating to the appliance, including details of the Manufacturer, the Serial number and brand .

Fig. 1 The Serial number must always be indicated for any type of request regarding the appliance.

1.12 Delivery of the appliance

The appliance is delivered perfectly packaged and fixed to a wooden platform which allows handling it using fork lift trucks and/or other means. The following material accompanies the appliance:

  • manual for use, installation and main- tenance;

2.1 Warnings for the installer

Observe the prescriptions contained in this manual. The instructions for assembly and disassembly of the appli- ance are reserved for specialist technicians only. The installation, use and maintenance of the product must be in accordance with the manufacturer’s instructions and in compliance with the regulations. Failure to comply with the instructions and any incorrect operations may give rise to hazardous situations, damage to property, animals, health problems or malfunctioning. Installation, electrical connection, oper- ational testing and maintenance must be carried out exclusively by authorised and qualified personnel. The installation and maintenance of the product must be carried out exclusively by qualified personnel with suitable knowledge of the product itself. Use only original spare parts recommend- ed by the manufacturer. Responsibility for the works carried out in the location of the appliance is, and remains, with the user; the latter is also responsible for carrying out the checks relating to the proposed installation solutions. The installer must comply with all local, national and European safety regulations. The appliance must be installed on floors with adequate load bearing capacity. Check that the chimney flue and air inlet set-ups conform to the type of installation. Do not carry out on-the-fly electrical connections with temporary or uninsu- lated cables. Check that the earthing of the electri- cal system is efficient. Before starting the assembly or dis- assembly phases of the appliance, the installer must observe the safety precautions required by law and the following indications in particular:

  • do not operate in adverse conditions;
  • they must operate in perfect psy- chophysical conditions and must check that the personal protective equipment is intact and functioning perfectly;
  • they must wear gloves and safety shoes;
  • they must use tools with electrical insulation;
  • they must make sure that the area used during assembly/dismantling is free from obstacles. The product must only be installed in rooms that are not at risk of fire and equipped with all the necessary servic- es including air and electrical supplies and flue gas exhausts. Evaluate the static conditions of the surface bearing the weight of the prod- uct and provide suitable insulation if it is composed of flammable materials (e.g. wood, carpet, plastic). Live electrical parts: power the prod- uct only once it has been completely assembled.004779050 - 19/04/2022 39 ITALIANO ENGLISH DEUTSCH FRANÇAIS ESPAÑOL

2.2 Warnings for technical

maintenance personnel Maintenance operations must be car- ried out only by authorised and quali- fied personnel. Observe the prescriptions contained in this manual. Always use personal protective equip- ment and other means of protection. Before starting any maintenance work ensure that the appliance, if it has been used, has cooled down. Even if only one of the safety devices is not working, the appliance is to be considered not working. Disconnect the appliance from the mains before carrying out any mainte- nance operations. Disconnect the appliance from the electrical mains before working on electrical and electronic parts, connec- tors and moving parts (pellet loading systems, automatic burn pot cleaning systems, etc.).

2.3 Warnings for users

To ensure correct use of the product and electronic appliances connected thereto and to prevent accidents, it is important to always follow the instruc- tions provided in this manual. The appliance has particularly hot external surfaces (door, handle, glass, flue gas outlet pipes, etc.). Contact with these parts must therefore be avoided unless wearing suitable protective clothing or equipment, such as heat resistant gloves or in the presence of “cold handle” operating systems. For this reason, maximum caution is recommended during operation and in particular: Do not touch and do not get close to the glass of the firebox door, it may cause burns, do not stare at the flame for a long time. Do not hang laundry directly over the appliance for drying: fire hazard.

  • do not touch the flue gas outlet;
  • do not perform any type of cleaning;
  • do not remove the ashes;
  • do not open the firebox door;
  • do not open the ash drawer (where provided). The appliance cannot be used by chil- dren under the age of 8 and by people with reduced physical, sensory or mental abilities, or without experience or the necessary knowledge, unless they are under supervision or after they have received instructions relating to the safe use of the appliance and to understanding the inherent dangers.40 004779050 - 19/04/2022 Children must not play with the ap- pliance. Cleaning for which the user is responsible must not be carried out by unsupervised children. Before performing any type of opera- tion, the user or whoever is operating the product must have read and fully understood the contents of this instal- lation and use manual. Errors or bad settings may cause hazardous condi- tions and/or irregular operation. Unskilled users must be protected from access to any part that could expose them to danger. Therefore, they must not be allowed to intervene on internal parts at risk (electrical or mechanical), even if the disconnection of the power supply is required. Respect the instructions and warnings highlighted on the sign plates dis- played on the appliance. The sign plates are accident prevention devices, therefore they must always be perfectly legible. If these are damaged and unreadable, it is mandatory to replace them, requesting the original spare parts from the Manufacturer. Follow the routine and extraordinary maintenance schedule carefully. Do not use the appliance without having first carried out daily cleaning. Do not use the appliance if operation is abnormal, you suspect a breakage or if there are unusual noises. In case of failure or malfunction, turn the appliance off and immediately con- tact your specialised technician. Do not throw water on the appliance in operation or to extinguish the fire in the burn pot. Do not switch the appliance off by disconnecting the mains electrical connection. Do not lean on open doors, this could compromise the stability of the appliance. Do not use the appliance as an anchor support of any kind. It is prohibited to use the product as a ladder or support structure. Do not clean the appliance until the structure and ashes have completely cooled. Only touch the door when the appli- ance is cold. In case of flue gas leaks in the room or explosions detrimental to the device, turn it off, ventilate the room and im- mediately contact your installer/service technician. In case of fire in the chimney flue, turn the appliance off, disconnect it from the power supply and do not open the door. Then call the competent authorities. In case of failure of the ignition system, do not ignite the appliance with flam- mable materials. In electrically powered devices, if un- burned gas/fumes accumulate inside the fire box, do not disconnect the electrical power supply and move as far away from the appliance as possible. In case of malfunction of the appliance due to a poor flue draught, clean the flue in accordance with the procedure described in section "10.3.3 Mainte- nance of the smoke system" on page

Do not touch the painted parts during operation to avoid damage to the paintwork. All responsibility for improper use of the product is fully borne by the user, who relieves the manufacturer of any civil and criminal liability.004779050 - 19/04/2022 41 ITALIANO ENGLISH DEUTSCH FRANÇAIS ESPAÑOL It is prohibited to operate the appliance with the door open. It is prohibited to use the appliance if the door glass or gaskets are damaged. Any type of unauthorised handling or replacement with non-original spare parts shall place the safety of the opera- tor at risk and relieve the manufacturer of any civil and criminal liability. It is prohibited to manually load pellets into the burn pot; this type of incorrect behaviour may generate an abnormal amount of unburned gas, giving rise to the risk of explosion inside the chamber. Unburned pellet deposits in the burn pot after a failed ignition must be re- moved before making a new ignition attempt. If the burn pot is not cleaned and regu- larly serviced, malfunctions and explo- sions may occur inside the appliance. Be sure to remove all traces of material and deposits from the holes of the burn pot and to clean them each time the ash is emptied or after each failed ignition attempt. Make sure the burn pot holes don’t decrease in size as this may have a negative effect on the safe operation of the appliance. Do not wash the product with water. Water may infiltrate the unit and damage the electrical insulation, caus- ing electric shocks. Do not sit/stand in front of the product in operation for long periods. Incorrect use of the product or incor- rect maintenance works may create a serious risk of explosion in the combus- tion chamber. Only use the fuel recommended by the manufacturer. The product must never be used as an incinerator. It is prohibited to use benzene, lamp fuel, kerosene, liquid firelighter for wood, ethyl alcohol or similar liquids to light or rekindle a flame in this ap- pliance. Keep these liquids at a due distance from the appliance during operation. It is prohibited to insert other types of fuels in the tank other than wood pellets. Some tips to avoid corrosion phenomena:

  • carry out routine cleaning operations to avoid the build-up of ash deposits;
  • feed the appliance only with fuel having the characteristics described in the section "Fuel characteristics";
  • Do not use solvents, acids, aggressive detergents or products to directly clean the glass or other components of the product;
  • avoid leaving the product in unfavour- able ambient conditions (humidity, airborne salinity, storms, etc.);
  • if the appliance is not used for long periods (e.g. during the summer), disconnect the combustion air inlet pipe and place dessicant bags in the combustion chamber to absorb the humidity in the air, making sure to remove them when the product is re-ignited.42 004779050 - 19/04/2022 3 FUEL CHARACTERISTICS

3.1 Fuel characteristics

The pellet (Fig. 2) is a compound made from various types of wood pressed together with mechanical procedures in compliance with envi- ronment protection regulations, and it is the only fuel required for this type of appliance. Fig. 2 The efficiency and thermal potential of the appli- ance may vary according to the type and quality of the pellets used. We recommend the use of class A1 pellets (ISO 17225-2 standard, ENplus A1, DIN Plus or NC 444 category "High Performance NF Pellets Biofuel Quality"). Use pellets with standard length be- tween 3 and 40 mm. Using poor quality pellets or pellets that do not comply with the manufac- turer’s indications may compromise the normal operation of the appliance, cause damage (including aesthetic damage) to the product and result in the warranty being voided. It is prohibited to use the appliance as an incinerator to burn rubbish. The appliance is equipped with a pellet storage tank having the capacity indicated in table "4.3 Technical features" on page 45. The loading compartment is positioned at the top, it must always be open for loading of the pel- lets and must remain closed while the appliance is operating.

Pellets must be kept in a dry place, not too cold and the bags must be kept sealed. It is advisable to keep a number of bags of pellets in the room where the appliance is being used or in an adjacent room provided it is at the correct temperature and humidity and at a safe distance (at least one meter) away from heat sources. Wet and/or cold pellets (5 °C) reduce the ther- mal potential of the fuel resulting in the need for more cleaning maintenance of the burn pot (unburned material) and of the fire box. Pay particular attention to the stor- age and handling of pellet bags. Their crushing and the formation of sawdust must be avoided. If sawdust is placed in the appliance tank it could cause the pellet loading system to block.004779050 - 19/04/2022 43 ITALIANO ENGLISH DEUTSCH FRANÇAIS ESPAÑOL

4.3 Technical features

Flue gas outlet mm Ø 80 Combustion air inlet mm Ø 25 Outside air intake mm Ø 100 Fuel Wooden pellets Flue draught Pa 12 ± 2 Minimum draught for chimney sizing Pa 0.0 Stove suitable for rooms no smaller than m

Feeding tank capacity kg 16 Weight kg 100 No. of room fans no. - Room fan flow rate m

/h - Electrical data MILÙ 6 MILÙ 8 Voltage V 230 Frequency Hz 50 Max power absorbed during operation W 50 Power absorbed at electric ignition W 36046 004779050 - 19/04/2022

Fig. 5 F Fuel PImax Max. thermal power input PImin Min. thermal power input Pmax Rated thermal power Pmin Reduced thermal power EFFmax Efficiency at rated power EFFmin Efficiency at reduced power COmax CO emissions at rated power (13%O

COmin CO emissions at reduced power (13%O

Dust Dusts at rated power (13%O

Tf Flue gas temperature X1/X2/Y Minimum distance from flammable materials V Voltage f Frequency Wmin Max power absorbed during operation Wmax Max power absorbed during ignition004779050 - 19/04/2022 47 ITALIANO ENGLISH DEUTSCH FRANÇAIS ESPAÑOL

NOTE:phase protection,added by customer.Do not change polarity!

Make sure that the lifting carriage has a payload higher than the weight of the appliance to be lifted. The full responsi- bility of the lifting of loads lies with the person handling the lifting equipment. Ensure wood or timber floors are prop- erly protected in order to prevent the weight of the appliance from damag- ing them during movement. During lifting, avoid jerking or abrupt movements. Pay attention to overbalancing.

5.2 Checking the floor where the

appliance will be placed Check the load capacity of the floor slab. If a floor is not suitable for supporting the weight of the appliance, install appropriate steel plates (A-Fig. 8) or concrete base (A-Fig.

9) equipped with 10x10x6 electro-welded

mesh (B - Fig. 9) to distribute the weight. For the dimensions of the plates and the concrete base, use a qualified technician. 5 HANDLING AND TRANSPORTATION The appliance is delivered complete with all the parts required. Pay attention to the tendency for the appliance to become unbalanced. The centre of gravity of the appliance is carried towards the front. Bear in mind the above also when moving the appliance on the transport stand. It is advisable to unpack the appliance only when it has arrived at the installation site. The product must be handled and un- packed using suitable means. Make sure that children do not play with the pack- aging components (e.g. films and polystyrene): Danger of suffocation! During moving, lifting, and unpacking of the appliance the following is absolutely necessary:

  • always keep it upright;
  • never tip it over into a horizontal position;
  • never tilt it on the front to avoid breaking the glass of the fire box door.
  • Removal of the transport pallet Disposal can be entrusted to a third party, provid- ed only companies authorised for the recovery and elimination of the materials in question are used. Always follow the regulations in force in the country in which the appliance is being used for disposal of materials and possibly for the disposal report. To remove the appliance from the transport pallet:
  • Unscrew the side fixing screws

6.1 General considerations

The following paragraphs contain some guide-lines to be followed to obtain the maximum efficiency of the product purchased and to ensure safe operation. The following indications are however subject to compliance with any possible national, regional and municipal laws and regulations in force in the country where the appliance is installed.For Italy, installation must be carried out by qual-ified personnel in compliance with the UNI 10683 standard.

6.2 Safety Precautions

The operations for assembly and disassembly of the appliance are reserved for specialist techni-cians only.It is recommended to be sure of their qualifica-tions and their actual capacity.For Italy, these technicians must be in possession of the letter "C" qualifica-tion issued by the chamber of com-merce based on the Ministerial Decree. 37/08. 10 mm

6.3 Place of installation

For the minimum distances that must be re- spected when positioning the appliance with respect to flammable materials and objects, refer to the instructions in Fig. 10.

Fig. 10 Model X1 X2 Y1 Y2 Z MILù 800 200 200 200 600 mm Floors made of flammable material such as wood, parquet, linoleum, laminate or floors covered with carpets must be protected by a fireproof base under the appliance that also protects the front during cleaning from any falling burning residues. The manufacturer declines all responsibility for any variations in the characteristics of the mate- rial constituting the floor under the protection. Set up an accessible technical space for any maintenance work. Remember to respect the minimum distance from flammable materials (X), shown on the identification plate of the pipes used to make the chimney (Fig. 11). Pi = Flammable wall Pp = Floor protection

Product image is for illustrative proposes only Fig. 11 Set up the electricity supply line to arrive near the appliance for the connection of the power cable.004779050 - 19/04/2022 51 ITALIANO ENGLISH DEUTSCH FRANÇAIS ESPAÑOL

The appliance, during its operation, requires combustion air. The inflow of combustion air can be obtained in the following ways:

  • it can come directly from outside with direct connection to the combustion chamber (Fig. 12).
  • it can come from the installation room or suita- ble adjacent rooms (Fig. 13) Extraction of combustion air from outside In this case it is possible to connect the combus- tion air inlet of the appliance to the air inlet with a suitable duct (Fig. 12). Product image is for illustrative proposes only Fig. 12 Extraction of combustion air in the room Create the air inlet on the wall (Fig. 13 - PA = Air Inlet), and allow the appliance to take air into the room.

Product image is for illustrative proposes only Fig. 13 If the rear wall of the appliance is an external wall, make a hole for the intake of combustion air at a height of about 20-30 cm from the ground, observing the dimensions on the technical data sheet in section "4.3 Technical features" on page

A non-closable permanent aeration grid must be placed externally; in areas that are particularly windy and exposed to weathering, provide rain and wind protection. Ensure that the air intake is positioned so that it won't be accidentally obstructed. If it is impossible to create an external air intake in the wall behind the appliance (non-perimeter wall), a hole must be made in an external wall of the room where the appliance is positioned. If it is not possible to create the fresh air intake in the room, an external hole can be created in an adjacent room provided it is permanently inter- connected by means of a transfer grille. It is forbidden to take combustion air from ga- rages, warehouses of combustible material or places with activities at risk of fire.52 004779050 - 19/04/2022 If there are other heating or extraction appliances in the installation room, combustion malfunctions may occur due to a lack of combustion air.The combustion air intakes must therefore be sized correctly, in order to ensure the necessary supply of air for the correct operation of all devices.

The appliance works with the combustion cham-ber at negative pressure. It is therefore essential to make sure that the flue gas evacuation is airtight (this is the responsibility of the installer).The appliance must be connected to its own flue gas duct, not shared, and which is suitable for ensuring adequate dispersion of the combustion products into the atmosphere, in accordance with the regulations in force in the country of installation.The components making up the flue gas ducting system must be declared suitable for the specific operating con-ditions and provided with CE marking.It is mandatory to create a first vertical section measuring at least 1.5 meters to guarantee correct expulsion of the flue gases.It is advisable to make a maximum of 3 direction changes, in addition to that resulting from the rear connection of the appliance to the chimney, using 45 - 90 ° bends or Tee fittings (Fig. 14).Always use a Tee fitting with inspection cap at each horizontal and vertical change of the flue gas route (Fig. 14).The horizontal sections must have a maximum length of 2-3 m with an upward slope of 3-5% (Fig. 14).Anchor the pipes with suitable collars to the wall.The flue gas fitting MUST NOT BE connected:• to a chimney used by other generators (boilers, stoves, fireplaces, etc. ...);• to air extraction systems (hoods, vents etc. ...) even if "ducted".It is forbidden to install shut-off and draught valves.

MAX 2 - 3 m C > 3 - 5% MIN 1,5 m Product image is for illustrative proposes onlyFig. 14 On the first vertical tee, at the flue gas outlet of the appliance, a pipe must be connected at the bottom to drain any condensate that may form in the chimney (Fig. 15).Fig. 15004779050 - 19/04/2022 53 ITALIANO ENGLISH DEUTSCH FRANÇAIS ESPAÑOL

6.6 Roof exhaust with traditional

fireplace The chimney for the evacuation of flue gases must be made by qualified personnel in compli- ance with standards UNI 10683- EN 1856-1-2- EN 1857-EN 1443- EN 13384-1-3- EN 12391-1 both in terms of the dimensions and the materials used in its construction. The evacuation of flue gases via a traditional chimney (Fig. 16) can be done as long as you are sure of the state of maintenance of the chimney. In the case of an old chimney, it is advisable to renew it using ducting. The flue gas exhaust must be on the roof.

Product image is for illustrative proposes only Fig. 16

If the chimney has a larger section, it must be “intubated” with a suitably in- sulated steel pipe (with diameter suita- ble for the route) (Fig. 17). Make sure that the connection to the brickwork chimney is properly sealed. In case of pipes that pass through wooden roofs or walls, it is recommend- ed to use special certified ducting kits commonly available on the market.

Product image is for illustrative proposes only Fig. 17

7.1 General considerations

In the following paragraphs some indications are provided to be respected in order to obtain the maximum performance from the purchased product. The following indications are how- ever subject to compliance with any possible national, regional and mu- nicipal laws and regulations in force in the country where the appliance is installed.

7.2 Levelling of the appliance

The appliance must be levelled with the help of a spirit level, by regulating the adjustable feet (Fig. 18). A = Spirit level.

Product image is for illustrative proposes only Fig. 18

7.3 Electrical connection

Simply connect the appliance to the electrical system using the supplied plug (Fig. 19). The electrical connection (plug) must be easily accessible after appliance installation as well. If the power supply cable is damaged it must be replaced by the technical assistance service or a qualified techni- cian in order to prevent any risk. Fig. 19 The system must be equipped with an earth connection and a differential switch in compliance with the laws in force. The flue gas evacuation duct must be equipped with its own earth connection.

7.4 Fuel optimisation

Excellent fuel depends on different factors (type of installation, operating and maintenance con- ditions, type of pellets, etc.) Upon first ignition, the stove can be regulated for optimum combustion performance. Generally speaking, if at the end of combustion, there is a lot of residue in the burn pot, you should change the combustion configuration (by increasing the value) until you find the best solution. Refer to function “(14) Combustion” of the use and functionality manual.004779050 - 19/04/2022 55 ITALIANO ENGLISH DEUTSCH FRANÇAIS ESPAÑOL 8 INITIAL CONFIGURATION Depending on the type of installation it is necessary to set up the ideal configuration for correct operation. There are two possible configurations: Description Configuration Room probe (default) 1 Room thermostat 2

8.1 Configuration 1 - Room probe

Room sensor Fig. 20 Configuration 1 is the default configu- ration for this appliance. In this case it is not necessary to make any changes. The appliance leaves the factory with the room probe already connected to the terminals and positioned on the rear panel (Fig. 20). It is possible to place the room probe in another place to detect the desired room temperature. Set configuration 1 to switch the appliance on and off either manually or according to a program. The appliance modulates the power according to the room temperature read by the room probe placed on the stove itself. You can set the “Eco-mode” function to have the appliance switch off or on again according to the room tempera- ture set. The antifreeze function can also be set in this configuration. It is important to check that the appli- ance is set to Configuration 1. This configuration can also be used to switch the appliance on and off manually or in a pro- grammed way (with the Timer function active).56 004779050 - 19/04/2022

Room sensor Room thermostat Fig. 21 In configuration 2, the appliance is controlled by an external thermostat (or programmable thermostat) (not supplied), which switches the appliance on and off depending on the set tem- perature (Fig. 21). When the temperature is satisfied, the thermo- stat opens the circuit and switches off the stove. The stove switches back on automatically when the temperature falls below the value set on the external thermostat (closed circuit). This configuration can also be used to switch the appliance on and off manually or in a pro- grammed way (with the Timer function active); to do this, it is necessary to remove the jumper between the two terminals and connect the room thermostat. If the thermostat allows scheduled programming, to avoid overlapping operation time slots, it is advisable to deactivate the appliance timer by set- ting it to OFF. In this configuration the appliance turns off when the external thermo- stat is satisfied, or it will modulate the power (to keep consumption to a mini- mum) when the set room temperature is reached.004779050 - 19/04/2022 57 ITALIANO ENGLISH DEUTSCH FRANÇAIS ESPAÑOL 9 FIRST IGNITION The first ignition must be carried out by the installer.

  • Close the hatch. The appliance, which is the subject of this manual, is an indoor domestic heating stove, powered exclusively by wood pellets with automatic loading.

During the first ignition of the stove, make sure the rooms are properly ven- tilated as unpleasant odours or fumes may be generated due to the evapo- ration or drying of certain materials used. This phenomenon will gradually disappear. Connect the appliance to the mains, operate the power switch on the back of the appliance by turning it to "I". Fig. 24 If the connection is correct, the appliance emits a series of intermittent noises and the display lights up. See the display manual.58 004779050 - 19/04/2022

10 CLEANING AND MAINTENANCE

Cleaning can be carried out by the user. Maintenance operations must be performed by an authorised technical assistance centre. Before performing any maintenance operation, take the following precautions:

  • Ensure that all appliance parts are cold.
  • Make sure that the ashes are completely extinguished.
  • Use personal protective equipment provided for by Directive 89/391/EEC.
  • Make sure that the general line switch is turned off.
  • Make sure that the power supply cannot be accidentally reactivated. Remove the plug from the wall socket.
  • Always use appropriate equipment for maintenance.
  • Once maintenance or repair operations have been completed, before putting the appliance back into service, reinstall all the safety guards and reactivate all the safety devices.

10.1 Routine maintenance cleaning schedule

10.1.1 Routine cleaning (User)

1 YEAR (*) Door and burn pot seals X Smoke collector (Fig. 28) X Door safety X Flue gas system ("10.3.3 Maintenance of the smoke system" on page 60)

10.2 Ordinary cleaning

10.2.1 Cleaning the inside of the firebox

Daily or before each ignition, it is necessary to check that the burn pot is clean to ensure the free flow of combustion air from the holes of the burn pot itself. Vacuum the ash accumulated in the burn pot (Fig. 25). Remove the ash from the combustion chamber as the salts present cause cor- rosion of the metal. In addition, the ash could block the passage of air, varying the development of the flame which, if it approaches the glass, would increase corrosion. After cleaning the burn pot, remove it from its housing and clean the space where it is con- tained (Fig. 25). Product image is for illustrative proposes only Fig. 25 If necessary, remove the ash drawer and empty it, making sure to remove any residue in the compartment where it is contained (Fig. 26). Using an ash vacuum can simplify the cleaning operations Product image is for illustrative proposes only Fig. 26

10.2.2 Cleaning the glass

This is done with a damp cloth or damp paper towel passed through the ash (Fig. 27). Rub until the glass is clean. Do not clean the glass while the stove is on and do not use abrasive sponges. Do not use solvents, acids or deter- gents, liquid detergents or aggressive products. Product image is for illustrative proposes only Fig. 2760 004779050 - 19/04/2022

Remove the ash drawer and, using a special ash vacuum, remove any residues in the compart- ment that contains it. Use a flexible brush to clean the exchanger pipes in the combustion chamber (Fig. 28). Remove any residues that fall in the flue manifold using an ash vacuum. Fig. 28

In order to guarantee the correct and safe operation of the fire box door, it is necessary to lubricate the springs of the closing mechanism, which may be located at the hinges (A) or at the door closing latch (B).

10.3.3 Maintenance of the smoke system

If there are horizontal sections, it is necessary to check and remove any deposits of ash and soot before they obstruct the passage of fumes. The incrustations inside the flue affect the optimum forced draught. When they reach a thickness of 5-6 mm, with high temperatures and sparks, they can ignite with easily imagina- ble consequences both for the flue and for the house. In the event of failure to clean or inadequate cleaning the appliance may have operating problems including:

  • blackening of the glass;
  • blockage of the burn pot with accumulation of ash and pellets;
  • deposit of ash and excessive deposits on the exchanger with consequent poor performance.004779050 - 19/04/2022 61 ITALIANO ENGLISH DEUTSCH FRANÇAIS ESPAÑOL

10.3.4 Appliance maintenance

To be carried out at least once a year, or every time the appliance signals maintenance request. During the maintenance operation, the techni- cian must:

  • clean the flue gas transit area thoroughly and completely;
  • check the condition and tightness of all the seals;
  • check the condition of all internal components and make sure they are clean;
  • make sure the flue gas outlet connection is sealed and clean;
  • remove any deposits of pellet residues in the tank;
  • check that there are no pellets or pellet resi- dues in the appliance installation space;
  • check the correct operation of the appliance;
  • reset any warnings or alarms.62 004779050 - 19/04/2022 11 DEMOLITION AND DISPOSAL The demolition and disposal of the ap- pliance is the sole responsibility of the owner, who must comply with the cur- rent regulations in the country where the appliance is in use for the dispos- al of materials and, if required, for a declaration of disposal, with regard to safety, respect and protection of the environment. Disposal can be entrusted to a third party, provid- ed only companies authorised for the recovery and elimination of the materials in question are used. All dismantling for demolition must be carried out with the appliance sta- tionary and with the power supply cut, where present. Leaving the appliance in accessible areas is a serious danger to people and animals. The differentiated disposal of the product makes it possible to avoid potentially negative conse- quences on the environment and health, and also allows recycling of the materials making up the product in order to achieve significant energy and resource savings. Any liability for damage to people and animals always falls on the owner. Upon demolition, the EC marking, this manual and other documents relating to this appliance must be destroyed.

11.1 Disposal of electrical

  • Remove all the electrical equipment.
  • Separate the accumulators on the electronics boards.
  • Scrap the structure of the appliance with the assistance of authorised companies.

Please replace the battery when its electric charge is exhausted: at the end of its useful life this bat- tery must not be disposed of together with un- sorted waste. It must be delivered at appropriate selective collection centres for municipal waste or to resellers who provide this service. Disposing of a battery separately allows you to avoid possi- ble adverse effects on the environment and on human health resulting from improper disposal and allows to recover and recycle the materials of which it is composed, with substantial savings on energy and resources. In order to emphasize on the obligation to dispose of separately the batter- ies, on the battery itself there is the crossed-out wheeled bin symbol. Abusive disposal of the product by the user involves the application of administrative sanctions provided by law. A crossed-out wheelie bin symbol on the equipment label indicates that the product must not be disposed of as unsorted waste, but should be sent to separate collection facilities for recov- ery and recycling. Pursuant to art.13 of Italian Legislative Decree no. 151 of 25 July 2005 implementing Directive 2002/96/EC of 23 February 2003 on Waste Elec- trical and Electronic Equipment relating to the measures and procedures designed to prevent the production of waste electrical and electronic equipment, called WEEE, promoting the reuse, recycling and other forms of recovery so as to reduce the quantity to be disposed of and im- proving the intervention of the parties involved in the life cycle of such products.004779050 - 19/04/2022 63 ITALIANO ENGLISH DEUTSCH FRANÇAIS ESPAÑOL INHALTSVERZEICHNIS Benutzer und Installateur Installateur 1 ALLGEMEINES 65

4 DAS PRODUKT KENNEN 73

4 DAS PRODUKT KENNEN

NOTE:phase protection,added by customer.Do not change polarity!

NOTE:phase protection,added by customer.Do not change polarity!

NOTE:phase protection,added by customer.Do not change polarity!

Manual assistant
Powered by ChatGPT
Waiting for your message
Product information

Brand : Palazzetti

Model : MILÙ 8

Category : Pan
