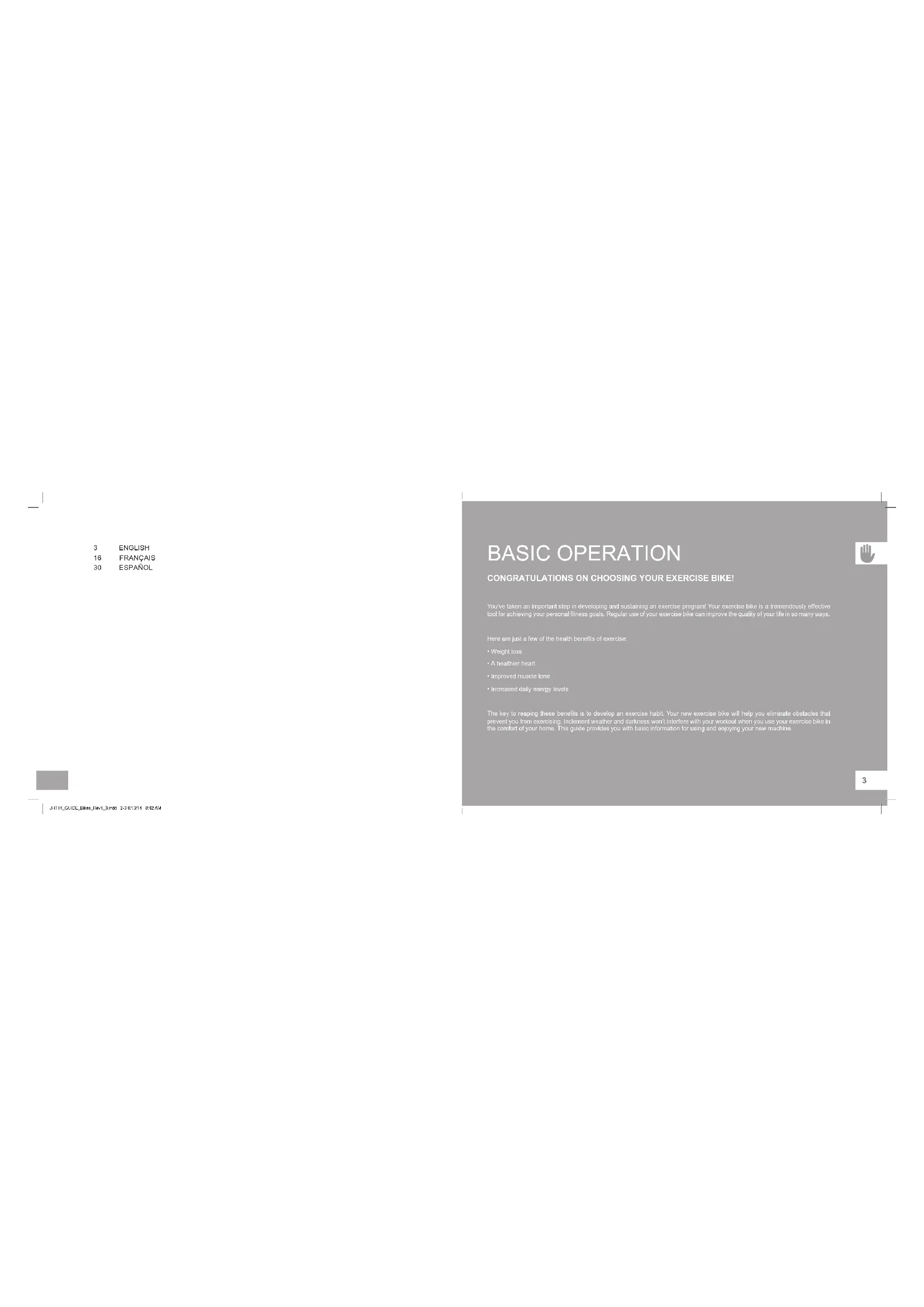

USER MANUAL Elite R7 Horizon Fitness
You'll take an important step in developing and sustaining an exercise program . Yet , exercise bike is a tremendously effective way to achieve your personal fitness goals . Regular use of your exercise bike can improve the quality of your life in so many ways .
Here are just a few of the health benefits of exercise:
Weight loss
A healthy heart
Improved muscle tone
Increased daily energy levels
The key to reseling these benefits is to develop an exercise habit. Your new exercise bike will help you eliminate obstacles that prevent you from exercising. Inclement weather and darkness won't interfere with your workout when you use your exercise bike in the comfort of your home. This guide provides you with basic information for using and enjoying your new mechaine.
Place the exercise bike on a level surface. There should be one foot in front of the exercise bike for the power card. For ease of access, there should be an accessible space preferentially on both sides of the exercise bike equal to 30^ (915 mm) to allow a user access to the machine from the outside. The machine should be located at least 20 meters away from the outdoor exercise bike entrance. The exercise bike should not be located in a garage, covered palis, near water or outdoors.
MOVING THE EXERCISE BIKE
Your exercise bike has a pair of transport wheels built into the front stabilizer tube. Remove the power supply before attempting to move the bike.
WARNING
Our exercise sikes are heavy, use care and additional help if necessary.
When moving, Failure to follow these instructions could result in injury.
Your exercise bike should be level for optimum use. Place your exercise bike where you intend to use it. Adjust the two rear levers so that the bike is level on the floor. Then adjust the third lever located under the base frame tube just so it is snug with the floor. Once you have levated your exercise bike, place it on the ground and use the nuts against the frame. Actual levers may differ from image below and may not include the lock.
LOCK ADJUSTMENT
SEAT POSITIONING
To determine proper sepal position, sit on the seat and position the ball of your foot on the center of the pedal. Your knee should bend slightly at the furthest pedal position. You should be able to pedal without locking your knees or shifting your weight from side to side. NOTE: It is recommended that you do not sit on the seat while adjusting its position.
UPRIGHT BIKES - SEAT ADJUSTMENT
Upright Sikcs feature a locking seat adjustment knob to easily and safely adjust the seat height. To adjust, get off the bike seat and loosen the adjustment knob by turning it two half turns counter-clockwise. Pull out the knob to unlock the post, and adjust the post up or down to the desired setting. Release the knob to lock in place. Turn the knob clockwise until lightened. Please check to be sure seat post is locked in place before each use.
RECUMBENT BIKES - SEAT ADJUSTMENT
Turn the handle up into its middle position making the handle feel loose. Then, slide the seal to a position that puts you in a comfortable position. The handle is then bent (right bent in your knee while your legs are in the extended position). Look the mechanism by rotating it down until handle lighten up.
RECUMBENT BIKES - MESH SEAT BACK ADJUSTMENT
Some Recumbent Bikes are equipped with a sitting mesh seat back. Fit adjustments are made with a rotating lever on the user's right side, located slightly behind the handbarrel. Not all mesh seat backs have an adjustment lever so check the ASSEMBLY GUIDE.
To adjust the tilt angle of the seat back, rotate the lever down (counter-clock wise) and lean back on the mesh seat back until the desired position is achieved. When the position is set, rotate the lever upward (clock wise) until it is snug. The seat back comes equipped with a spring return system to return the seat back to its original position when the adjustment lever is reloaded and the user is not leaning against the seat back.
POWER
Your exercise bike is powered by a power supply. The power must be plugged into the power jack, which is located in the front of the machine near the stabilizer tube. Unpin cord when not in use.
WARNING
Never operate product if it has a damaged cord or plug, if it is not working properly, if it has been damaged, or immersed in water. Please reference contact information on the INFORMATION CARD for assistance.
USING THE HEART RATE FUNCTION
Your exercise bike could be equipped with either heart rate pulse gyrs or a thumb pulse sensor. To find out what your model has, refer to the beginning of the ASSEMBLY section of your ASSEMBLY GUIDE.
The heart rate function on this product is not a medical device. While heart rate grips or a thumb pulse sensor can provide a relative estimation of your actual heart rate, they should not be relied on when accurate readings are necessary. Some people, including those in a cardiac rehab program, may benefit from using an alternate heart rate monitoring system like a chest or wrist strap. Various factors, including movement of the user, may affect the accuracy of your heart rate reading. The heart rate reading is intended only as an exercise aid in determining heart rate trends in general. Please consult your physician.
PULSE GRIPS
Place the aim of your hands directly on the grip pulse handlebars. Both hands must grip the bars for your heart rate to register. It takes 5 consecutive heart beats (15-20 seconds) for your heart rate to register. When gripping the pulse handlebars, do not grip tightly. Holding the grips tightly may elevate your blood pressure. Keep a loose, cupping hold. You may experience an erratic readout if consistently holding the grip pulse handlebars. Make sure to clean the pulse sensors to ensure proper contact can be maintained.
THUMB PULSE
Place and hold your thumb LIGHTLY over the thumb sensor. The sensor may not work properly if you prees too hard. The sensor window should be completely covered by your finger. Wait for a few seconds, and your heart rate will show in the heart rate window. The thumb sensor can also read a pulse from your index finger.
CAUTION
Do not press excessively hard on the sensor as this may cause damage.
Some exercise bikes also include a built-in wireless heart rate receiver. When used in conjunction with a wireless chest transmitter, your heart rate can be transmitted wirelessly to the exercise bike and displayed on the console. Your exercise bike may or may not include a wireless chest transmitter (see the beginning of the ASSEMBLY section of your ASSEMBLY GUIDE).
Prior to wearing the wireless chest transmitter on your chest, moisten the two rubber electrodes with water. Center the chest strap just below the breast or peridural muscles, directly over your sternum, with the legs facing out. NOTE: The chest strap must be light and properly placed in a comfortable position and consistent residual. If the chest strap is too loose, or positioned improperly, you may receive an erratic or inconsistent heart rate readout.
TROUBLESHOOTING & MAINTENANCE
HT14_GUEE_Bus_Rev_3ind 823794 8424A
COMMON PRODUCT QUESTIONS
ARE THE SOUNDMY EXERCISE BIKE MAKES NORMAL?
Our exercise bikes are some of the quietest available because they use bell drives and friction free magnetic resistance. We use the highest grade bearings and belts to minimize noise. However, because the resistance system itself is so quiet, you will occasionally hear other slight mechanical noises. Unlike older, louder technologies, there are no fans, friction belts, or alternator noises to mask these sounds on our exercise bikes. These mechanical noises, which may or may not be intermittent, are normal and are caused by the transfer of significant amounts of energy to a rapidly spinning flywheel. All bearings, belts and other rotating parts will generate some noise which will transmit through the casing and frame. It is also normal for these sounds to change slightly during a workout and over time because of thermal expansion of the parts.
WHY IS THE EXERCISE BIKE I HAD DELIVERED LOUDER THAN THE ONE AT THE STORE?
All fitness products seem quieter in a large store showroom because there is generally more background noise than your home. Also, there will be less reverberation on a carpeted concrete floor than on a wood overlay floor. Sometimes a heavy rubber mat will help reduce reverberation through the floor. If a fitness product is placed close to a wall, there will be more reflected
HOW LONG WILL THE DRIVE BELT LAST?
The computer modelling we have done indicated virtually thousands of maintenance free hours. You should not have to replace the treet as long as you have the exercise bike.
CAN I MOVE THE EXERCISE BIKE EASILY ONCE IT IS ASSEMBLED?
Your exercise bike has a pair of transport wheels built into the front stabilizer tube. Please follow the MOVING THE EXERCISE BIKE section to transport your exercise bike. It is important that you place your exercise bike in a comfortable and inviting room. Your exercise bike is designed to use minimal floor space. Many people will place their exercise bikes facing the TV or a picture window. If at all possible, avoid putting your exercise bike in an unfinished basement. To make exercise a desirable daily activity for you, the exercise bike should be in a comfortable setting.
2HT14GUIDE_Bics_Prt1_3ind 10-115#3*482AM
BASIC TROUBLESHOOTING
PROBLEM: The console does not light up.
SOLUTION: Verify the following:
The outlet the machine is plugged into is functional. Double check that the breaker has not tripped.
The correct power cord is being used. Only use the power cord provided.
The power cord is not pinched or damaged and is properly plugged into the outlet AND the machine.
- Unplug power card, remove the console and check that all connections to the console are secure and not damaged or pinched
PROBLEM: The console lights up but the Distance/Watts/RPMs do not count.
SOLUTION: Verify the following:
- Unplug power card, remove the console and check that all connections to the console are secure and not damaged or pinched.
If doing the above does not fix the problem, the speed sensor and/or magnet may have become dislodged or damaged.
PROBLEM: The resistance levels seem to be incorrect, seeming too hard or too easy.
SOLUTION: Verify the following:
The correct power cord is being used. Only use the power cord provided.
- Reset the console and allow the resistance to reset to the default position. Restart and retry the resistance levels.
PROBLEM: The exercise bike makes a squeaking or chirping noise.
SOLUTION: Verify the following:
The exercise bike is on a level surface.
- Loosen all bolts attached during the assembly process, grease the threads, and tighten again.
1110
PROBLEM: When MP3 player is connected there is no sound coming from the speakers or the speakers sound fuzzy. SOLUTION: Make sure audio cable is plugged in securely to both the console and MP3 Player jacks.
TROUBLESHOOTING HEART RATE
Check your exercise environment for sources of interference such as fluorescent lights, computers, underground fencing, home security systems or appliances containing large motors. These items may cause erratic heart rate maduits.
ou may experience an erratic readout under the following conditions:
- Gripping the heart rate handlebars too light. Try to maintain moderate pressure while holding onto the heart rate handlebars.
- Constant movement and vibration due to constantly holding the heart rate handpieces while exercising. If you are receiving erratic heart rate readouts, try to only hold the grips long enough to monitor your heart rate.
- When you are breathing heavily during a workout.
- When your hands are constricted by wearing a ring.
- When your hands are dry or cold. Try to moisten your palms by rubbing them together to warm.
- Anyone with heavy arrhythmia.
- Anyone with arteriosclerosis or peripheral circulation disorder.
- Anyone whose skin on the measuring palm is especially thick.
If this troublesomehaping section does not remedy the problem, discontinue use and turn the power off.
PLEASE REFERENCE CONTACT INFORMATION ON THE BACK COVER
OF THE INFORMATION CARD FOR ASSISTANCE.
The following information may be asked of you when you call. Please have these items readily available:
Model Name
Serial Number
Proof of Purchase (receipt or credit card statement)
You may find more troubleshooting suggestions, exploded diagrams and parts lists on the customer support section of our website.
Some common Troubleshooting questions that may be asked are:
How long has this problem been occurring?
- Does this problem occur with every use? With every user?
If you are hearing a noise, does it come from the front or the back? What kind of noise is it (thumping, grinding,
squeaking, chirping etc.7
Answering these and other questions will give the technicians the ability to send proper replacement parts and the services necessary to get you and your exercise bike running again!
MAINTENANCE
WHAT KIND OF ROUTINE MAINTENANCE IS REQUIRED?
We use sealed bearings throughout our bikes so lubrication is not needed. The most important maintenance step is to simply wipe your perspiration off the bike after each use.
HOW DO I CLEAN MY BIKE?
Clean with soap and water cleaners only. Never use solvents on plastic parts. Cleaniness of your bike and its operating environment will keep maintenance problems and service calls to a minimum. For this reason, we recommend that the following preventive maintenance schedule be followed:
AFTER EACH USE (DAILY)
-
Tum off the bike by unplugging the power card from the wall outlet
-
Wipe down the bike with a damp cloth. Never use solvents, as they can cause damage to the bike.
Inspection of power cord. If the power cord is damaged, refer to
contact information on the back cover of the INFORMATION CARD
for a replacement.
WARNING
To remove power from the exercise bike,
the power cord must be disconnected from
10.1.1.1.1
Make sure the power cord is not underneath the bike or in any other area where it can become pinched or cut
EVERY WEEK
Clean underneath the bike, following these steps:
Tum of the bike.
- Move the bike to a remote location.
Wipe or vacuum any dust particles or other objects that may have accumulated underneath the bike.
- Return the bike to its previous position.
EVERY MONTH
- Inspect all assembly bolts and pedals on the machine for proper tightness.
Clean any debris off of the seat guide rail.
FRANÇAIS
FONCTIONNEMENT DE BASE
FÉLICITATIONS POUR L'ACHAT DE VOTRE VÉLO D'EXERCICE!
esconlction. In case of a conforment side, estar descorected el calomacortelle.
If a question or problem arises please see INFORMATION CARD for contact information.
Exercise Bike Guide Rev. 1.3 | © 2014 Johnson Health Tech
