USER MANUAL MÄSTERLIG 802.228.27 IKEA

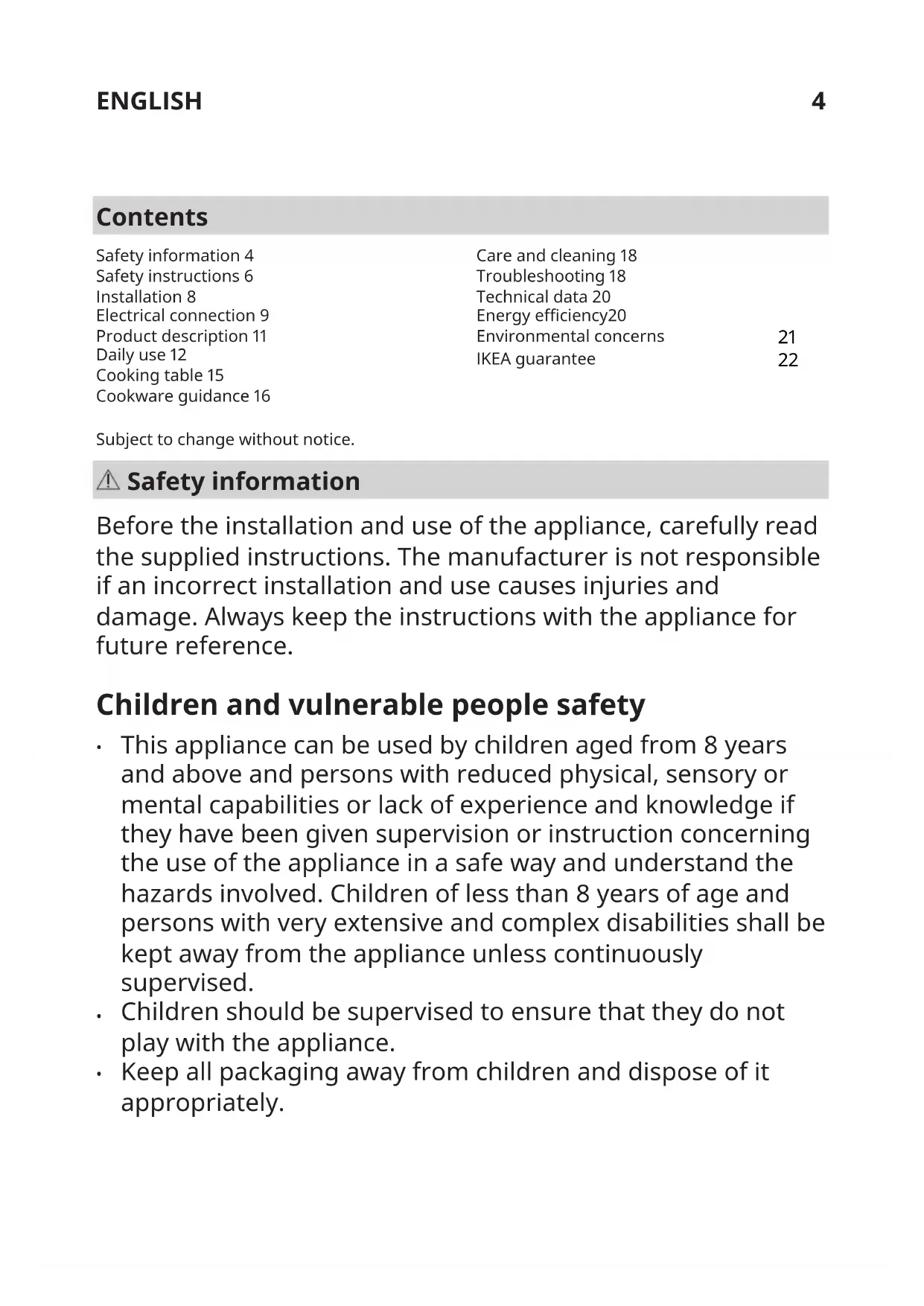

Subject to change without notice. Safety information Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damage. Always keep the instructions with the appliance for future reference. Children and vulnerable people safety

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children of less than 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.

Children should be supervised to ensure that they do not play with the appliance.

Keep all packaging away from children and dispose of it appropriately. ENGLISH 4• WARNING: The appliance and its accessible parts become hot during use. Keep children and pets away from the appliance when in use and when cooling down.

• If the appliance has a child safety device, it should be activated.

• Children shall not carry out cleaning and user maintenance of the appliance without supervision. General Safety

This appliance is for cooking purposes only.

• This appliance is designed for single household domestic use in an indoor environment.

• This appliance may be used in oces, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.

• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.

Do not operate the appliance by means of an external timer or separate remote-control system.

WARNING: Unattended cooking on a hob with fat or oil can

be dangerous and may result in re.

Never use water to extinguish the cooking re. Switch o the appliance and cover ames with e.g. a re blanket or lid.

CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

WARNING: Danger of re: Do not store items on the cooking

Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.

Do not use the appliance before installing it in the built-in structure. ENGLISH 5• Disconnect the appliance from the electrical supply before maintenance.

• Do not use a steam cleaner to clean the appliance.

• After use, switch o the hob element by its control and do not rely on the pan detector.

• WARNING: If the surface is cracked, switch o the appliance to avoid the possibility of electric shock. In case the appliance is connected to the mains directly using junction box, remove the fuse to disconnect the appliance from power supply. In either case contact the Authorised Service Centre.

• If the supply cord is damaged, it must be replaced by the manufacturer, the Authorised Service Centre or similarly qualied persons in order to avoid a hazard.

• WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents. Safety instructions Installation Warning! The appliance must be installed by the authorised installer. Follow the Assembly instructions supplied with the appliance.

• Remove all the packaging.

• Do not install or use a damaged appliance.

• Keep the minimum distance from other appliances and units.

• Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.

• Seal the cut surfaces with a sealant to prevent moisture from causing swelling.

• Protect the bottom of the appliance from steam and moisture.

• Do not install the appliance next to a door or under a window. This prevents hot cookware from falling from the appliance when the door or the window is opened.

• Make sure that the space underneath the hob is sucient for air circulation.

• The bottom of the appliance can get hot. If the appliance is installed above the drawers, make sure to install a non- combustible separation panel under the appliances to prevent access to the bottom. ENGLISH 6Electrical Connection Warning! Risk of re and electric shock.

• All electrical connections should be made by the authorised installer.

• The appliance must be earthed.

• Before carrying out any operation make sure that the appliance is disconnected from the power supply.

• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.

• Make sure the appliance is installed correctly. Loose and incorrect electricity mains cable or plug (if applicable) can make the terminal become too hot.

• Make sure that a shock protection is installed.

• Use the strain relief clamp on the cable.

• Make sure the mains cable or plug (if applicable) does not touch the hot appliance or hot cookware, when you connect the appliance to the near sockets.

• Do not use multi-plug adapters and extension cables.

• Make sure not to cause damage to the mains plug (if applicable) or to the mains cable. Contact our Authorised Service Centre or an electrician to change a damaged mains cable.

• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.

• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.

• If the mains socket is loose, do not connect the mains plug.

• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.

• The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm. Use Warning! Risk of injury, burns and electric shock.

• Do not change the specication of this appliance.

• Remove all the packaging, labelling and protective lm (if applicable) before rst use.

• Make sure that the ventilation openings are not blocked.

• Do not let the appliance stay unattended during operation.

• Set the cooking zone to “o” after each use.

• Do not put cutlery or saucepan lids on the cooking zones. They can become hot.

• Do not operate the appliance with wet hands or when it has contact with water.

• Do not use the appliance as a work surface or as a storage surface.

• If the surface of the appliance is cracked, disconnect immediately the appliance from the power supply. This to prevent an electrical shock.

• Users with a pacemaker must keep a distance of minimum 30 cm from the induction cooking zones when the appliance is in operation.

• When you place food into hot oil, it may splash.

• Do not use aluminum foil or other materials between the cooking surface and the cookware, unless otherwise specied by the manufacturer of this appliance.

• Use only accessories recommended for this appliance by the manufacturer. Warning! Risk of re and explosion. ENGLISH 7• Fats and oil when heated can release ammable vapours. Keep ames or heated objects away from fats and oils when you cook with them.

• The vapours that very hot oil releases can cause spontaneous combustion.

• Used oil, that can contain food remnants, can cause re at a lower temperature than oil used for the rst time.

• Do not put ammable products or items that are wet with ammable products in, near or on the appliance. Warning! Risk of damage to the appliance.

• Do not keep hot cookware on the control panel to avoid the risk of burns.

• Do not put a hot pan cover on the glass surface of the hob.

• Do not let cookware boil dry.

• Be careful not to let objects or cookware fall on the appliance. The surface can be damaged.

• Do not activate the cooking zones with empty cookware or without cookware.

• Cookware made of cast iron or with a damaged bottom can cause scratches on the glass / glass ceramic. Always lift these objects up when you have to move them on the cooking surface. Care and cleaning

• Clean the appliance regularly to prevent the deterioration of the surface material.

• Switch o the appliance and let it cool down before cleaning.

• Clean the appliance with a moist soft cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects, unless otherwise specied. Service

• To repair the appliance contact the Authorised Service Centre. Use original spare parts only.

• Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination. Disposal Warning! Risk of injury or suocation.

• Contact your local authority for information on how to dispose of the appliance.

• Disconnect the appliance from the mains supply.

• Cut o the mains electrical cable close to the appliance and dispose of it. Installation Warning! Refer to Safety chapters. ENGLISH 8General information min. 28 mm min. 5 mm max. R 5 mm

520 mm 590 mm min. 55 mm min. 500 mm min. 28 mm min. 100 mm Installation process must follow the laws, ordinances, directives and standards (electrical safety rules and regulations, proper recycling in accordance with the regulations, etc.) in force in the country of use!

• For further information on the installation refer to the Assembly Instruction.

• If there is no oven beneath the hob, install a separation panel under the appliance according to the Assembly Instruction.

• Do not use silicon sealant between the appliance and the worktop. Electrical connection Warning! Refer to Safety chapters. Warning! All electrical connections must be made by an authorised installer. Electrical connection

• Before connecting, check if the nominal voltage of the appliance, provided on the rating plate, corresponds to the available supply voltage. The rating plate is located on the lower casing of the hob.

• Follow the connection diagram (it is located on the underneath surface of the casing of the hob).

• Use only original spare parts provided by spare parts service.

• The appliance is not provided with a mains cable. Buy the right one from a specialized dealer. Single phase or two- phase connection requires a mains cable of minimum 70°C temperature stability. Cable needs mandatory end sleeves. According to IEC regulations use for one- phase connection: mains cable 3 x 4mm² and for two-phase connection: mains cable 4 x 2.5mm². Please respect specic national regulations in the rst priority. ENGLISH 9• You must have the means for disconnection incorporated in the xed wiring.

• You must have the connection and the connecting links carried out as shown in the connection diagram.

• The earth lead is connected to terminal and must be longer than leads carrying electric current.

Insert the shunts between the screws as shown. Main power connection 1-phase Main power connection 2-phase L N L1 L2 L3 N Wiring colours: Wiring colours: Yellow / green Yellow / green N Blue N Blue L Black or brown L1 Black L2 Brown Tighten the terminal screws securely! Once you connect the hob to the mains, check if all the cooking zones are ready to use. Place a pot with some water on a cooking zone and set the power setting for each zone to the maximum level for a short time. If or symbol comes on the display after you switch on the hob for the rst time, refer to "Troubleshooting". ENGLISH 10Product description Cooking surface layout

Single cooking zone (180 mm) 1800 W, with Booster 2500 W

Single cooking zone (145 mm) 1400 W Control panel layout

ENGLISH 11Press the symbol to operate the appliance. The display, indicators and sounds tell which function operate.

To activate and deactivate the Lock or the Child Safety Device.

Power selector to select power settings.

/ To increase or to decrease the Timer. Power setting displays Display Description The cooking zone is deactivated.

The cooking zone operates. + digit There is a malfunction. Refer to "Troubleshooting". A cooking zone is still hot (residual heat). Lock / Child Lock operates. Incorrect or too small cookware or no cookware on the cooking zone. Automatic Switch O operates. Pause operates. Residual heat indicator Warning! Risk of burns from residual heat! After you switch o the appliance, the cooking zones need some time to cool down. Look at the residual heat indicator

Use residual heat for melting and keeping food warm. Daily use Switching on / o Touch for 1 second to switch the appliance on / o. ENGLISH 12Positioning cookware Do not cover the control panel with cookware or any other objects. Do not place hot cookware on the control panel. There is a risk of burns and damage to the electronic parts. Place the cookware in the centre of the selected zone. Make sure the cookware does not go beyond the zone marking. Adjusting the power setting Touch the power selector at a desired power setting. Adjust to the left or the right, if necessary. Do not release before you reach a desired power setting. Using the Booster function The Booster function makes additional power available for the induction cooking zones. Touch to activate it, lights up on the display. After a maximum of 10 minutes, the induction cooking zones automatically return to the power setting. Booster function of the double cooking zone Booster function of the inner zone starts when the appliance senses the cookware with a smaller diameter than 180 mm. Booster function of the outer zone starts when the appliance senses the cookware with a larger diameter than 180 mm. Power exchange function

• Cooking zones are grouped according to the location and number of the phases in the hob. See the illustration.

• Each phase has a maximum electricity loading of 3700 W.

• The function divides the power between cooking zones connected to the same phase.

• The function activates when the total electricity loading of the cooking zones connected to a single phase exceeds 3700

• The function decreases the power of the other cooking zones connected to the same phase.

• The power setting display of the reduced zones changes between two levels. ENGLISH 13Using the Timer Touch repeatedly until the indicator of a desired cooking zone ashes. For example for the front right zone. Touch or of the Timer to set the time between 00 and 99 minutes. When the indicator of the cooking zone ashes more slowly, the time counts down. Set the power setting. If the power setting is set and the time set has elapsed, an acoustic signal sounds, 00 ashes, and cooking zone deactivates. If cooking zone is not in use and the time set has elapsed an acoustic signal sounds and 00 ashes. Touch to deactivate the function for the selected cooking zone and the indicator for this cooking zone ashes faster. Touch and the remaining time counts backwards to

00. The indicator of the cooking zone goes

out. STOP+GO The function sets all cooking zones that operate to the lowest power setting

When the function operates, you cannot change the power setting. The function does not stop the Timer function.

• To activate this function touch . The symbol comes on.

• To deactivate this function touch . The power setting that you set before comes on. Lock When the cooking zones operate, you can lock the control panel, but not deactivate the appliance. It prevents an accidental change of the power setting. First set the power setting. To start this function touch . The symbol comes on for 4 seconds. The Timer stays on. To stop this function touch . The power setting that you set before comes on. When you stop the appliance, you also stop this function. Child Lock This function prevents an accidental operation of the appliance. To activate the function:

• Switch on the appliance with . Do not set the power settings.

• Touch for 4 seconds. The symbol comes on.

• Switch o the appliance with . To deactivate the function:

• Switch on the appliance with . Do not set the power settings. Touch for 4 seconds. The symbol comes on.

• Switch o the appliance with . To override the function for only one cooking time:

• Switch on the appliance with . The symbol comes on.

• Touch for 4 seconds. Set the power setting in 10 seconds. You can operate the appliance.

• When you switch o the appliance with , the function operates again. Automatic Switch O The function deactivates the appliance automatically if: ENGLISH 14• all cooking zones are deactivated.

• you do not set the power setting after activating the appliance.

• you cover any symbol with an object (a pan, a cloth, etc.) for longer than approx. 10 seconds.

• you do not deactivate a cooking zone after a certain time, or you do not modify the power setting, or if the overheating occurs (e.g. when a pan boils dry). The symbol lights up. Before using again, you must set the cooking zone to . Power setting Automatic switch o after

If cookware that is not suitable is used, lights up on the display and after 2 minutes the indicator for the cooking zone deactivates itself. OSound Control - Deactivating and activating the sounds Deactivating the sounds Switch o the appliance. Touch for 3 seconds. The displays comes on and goes out. Touch for 3 seconds. comes on, the sound is on. Touch , comes on, the sound is o. When this function operates, you can hear the sounds only when:

• you put something on the control panel. Activating the sounds Switch o the appliance. Touch for 3 seconds. The displays come on and go out. Touch for 3 seconds. comes on, because the sound is o. Touch , comes on. The sound is on. Cooking table Heat setting Use to: Time (min) Hints 1 Keep cooked food warm. as nec‐ essary Put a lid on the cookware.

5 - 25 Mix from time to time.

10 - 40 Cook with a lid on.

ENGLISH 15Heat setting Use to: Time (min) Hints

2 - 3 Simmer rice and milkbased

dishes, heat up ready-cooked meals.

25 - 50 Add at least twice as much liq‐

uid as rice, mix milk dishes halfway through the proce‐ dure.

3 - 4 Steam vegetables, sh, meat. 20 - 45 Add a couple of tablespoons of

4 - 5 Cook larger quantities of food,

don bleu, cutlets, rissoles, saus‐ ages, liver, roux, eggs, pan‐ cakes, doughnuts. as nec‐ essary Turn halfway through.

5 - 15 Turn halfway through.

9 Boil water, cook pasta, sear meat (goulash, pot roast), deep-fry chips. Boil large quantities of water. Booster is activated. The data in the table is for guidance only. Cookware guidance Warning! Refer to Safety chapters. What pots to use Only use cookware which is suitable for induction hobs. The cookware must be made of a ferromagnetic material, such as:

• stainless steel (most types);

• aluminium with ferromagnetic coating or a ferromagnetic plate. To determine if a pot or pan is suitable, check for the symbol (usually stamped on the bottom of the cookware). You can also hold a magnet to the bottom. If it clings to the underside, the cookware will work on the induction hob. To ensure optimum eciency, always use pots and pans with a at bottom that distributes the heat evenly. If the bottom is uneven, this will aect power and heat conduction. Cookware sizes Minimum diameter of pot / pan base for the dierent cooking areas To ensure that the hob operates properly, the cookware must have a suitable minimum ENGLISH 16diameter as well as cover one or more of the reference points indicated on the surface of the hob. Always use the cooking zone that best corresponds to the diameter of the bottom of the cookware. Cooking zone Minimum diameter of cookware base [mm] Right rear cooking zone

Left rear cooking zone

Left front cooking zone

Empty or thin-based pots / pans Do not use empty pots / pans or cookware with thin bases on the hob as it will not be able to monitor the temperature, or will turn o automatically if the temperature is too high. This may result in the damage of the cookware or the hob surface. If such a situation occurs, do not touch anything and wait for all components to cool down. If an error message appears, refer to "Troubleshooting". Hints / tips Noises during cooking When a cooking zone is active it may hum briey. This is characteristic of all induction cooking zones and does not impair either the function or the life of the appliance. The noise depends on the cookware used. If it causes considerable disturbance, it might help to change the cookware. Normal operating noises of the induction hob lnduction technology is based on the creation of electromagnetic elds to generate heat directly on the bottom of cookware. Pots and pans may cause a variety of noises or vibrations depending on how they are manufactured. These noises are described as follows:

• Low humming (like a transformer): this noise is produced when cooking at a high heat level. lt is based on the amount of energy transferred from the cooktop to the cookware. The noise ceases or quiets down when the heat level is reduced.

• Quiet whistling: this noise is produced when the cooking vessel is empty. lt ceases once liquids or food are placed in the vessel.

• Crackling: this noise occurs with cookware comprised of various materials layered one upon the other. lt is caused by the vibrations of the surfaces where dierent materials meet. The noise occurs on the cookware and can vary depending on the amount of food or liquid and the cooking method (e.g., boiling, simmering, frying).

• Loud whistling: this noise occurs with cookware comprised of dierent materials layered one upon the other, and when they are additionally used at maximum output and also on two cooking zones. The noise ceases or quiets down when the heat level is reduced.

• Fan noises: for proper operation of the electronic system, it is necessary to regulate the temperature of the cooktop. For this purpose, the cooktop is equipped with a cooling fan, which is activated to reduce and regulate the temperature of the electronic system. The fan may also continue to run after the appliance is turned o if the detected temperature of the cooktop is still too hot after turning it

• Rhythmic sounds, similar to the ticking sound of a clock: this noise occurs only when at least three cooking zones are operating and disappears or weakens when some of them are switched o. The noises described are a normal element of the described induction technology and should not be regarded as defects. ENGLISH 17Care and cleaning General information Warning! Switch o the appliance and let it cool down before you clean it. Warning! For safety reasons, do not clean the appliance with steam blasters or high-pressure cleaners. Warning! Sharp objects and abrasive cleaning agents will damage the appliance. Clean the appliance and remove the residues with water and dish soap after each use. Remove also the remnants of the cleaning agents. Scratches or dark stains on the glass ceramic that cannot be removed do not aect the functioning of the appliance. Removing the residues and stubborn residues Food containing sugar, plastics, or tin foil residues should be removed at once. A scraper is the best tool for cleaning the glass surface. It is not supplied with the appliance. Place a scraper on the hob surface at an angle and remove residues by sliding the blade over the surface. Clean the appliance using a damp cloth and some dish soap. Finally, wipe the glass surface dry with a clean cloth. Limescale rings, water rings, fat splashes, or shiny metallic discolourations should be removed after the appliance has cooled down. Use only a specialised cleaner for glass ceramic or stainless steel. Troubleshooting Warning! Refer to Safety chapters. ENGLISH 18What to do if… Problem Possible cause Remedy You cannot switch on the appliance or operate it. The appliance is not connec‐ ted to an electrical supply or it is connected incorrectly. Check if the appliance is cor‐ rectly connected to the electri‐ cal supply. Ensure a correct in‐ stallation by calling an author‐ ised installer. More than 10 seconds passed since you switched on the appliance. Switch on the appliance again. Child Lock or Lock is on . Deactivate Child Lock. Refer to " Child Lock" or " Lock". Several symbols on the con‐ trol panel were touched at the same time. Touch only one symbol at a time. There is water or fat stains on the control panel. Clean the control panel and wait for a few seconds before switching on again. An acoustic signal sounds and the appliance switches

One or more symbols on the control panel have been cov‐ ered for longer than 10 sec‐ onds. Remove any objects from the symbols. The display keeps switch‐ ing between two power settings. Power exchange function is reducing the power of this cooking zone. Refer to " Power exchange function". Residual heat indicator is not displaying anything. The cooking zone was only on for a short time and is therefore not hot. If the cooking zone is supposed to be hot, call the After Sales Service. There is no signal when you touch panel symbols. The signals are deactivated. Activate the signals. Refer to "OSound Control". comes on. Unsuitable cookware. Use suitable cookware. No cookware on the cooking zone. Place cookware on the cooking zone. The diameter of the bottom of the cookware is too small for the cooking zone. Move onto a smaller cooking zone. ENGLISH 19Problem Possible cause Remedy and a number come on. There is an error in the hob. Disconnect the hob from the electrical supply for some time. Disconnect the fuse from the electrical system of the house. Connect it again. If comes on again, speak to an author‐ ised installer. comes on. Automatic Switch O and the overheating protection for the cooking zone operate. Switch o the appliance. Re‐ move the hot cookware. After approximately 30 seconds acti‐ vate the cooking zone again. should disappear, Residual heat indicator can stay. Cool down the cookware and check it with "Cookware guidance". If there is a fault, try to resolve it by following the troubleshooting guidelines. If the problem cannot be resolved, contact your IKEA store or the After Sales Service. You can nd a full list of IKEA appointed contacts at the end of this user manual. If you operated the appliance wrongly, or the installation was not carried out by an authorised installer, the visit from the After Sales Service technician or dealer may not take place free of charge, even during the warranty period. Technical data Rating Plate Model 00000000PNC 000 000 000 00 S No .................... 220V-240V AC 50-60 HzTyp 61 83A 02 AA 7.35kW Made in ...21552 MODEL © Inter IKEA Systems B.V. 2021PI-000000-0IKEA of Sweden ABSE - 343 81 Älmhult The graphic above serves to represent the rating plate of the appliance. The actual rating plate is located on the bottom of the casing. The serial number is specic to each product. Dear Customer, keep the additional rating plate with the user manual. This will allow us to assist you better by identifying precisely your hob, in case you need our assistance in the future. Thank you for your help! Energy eciency ENGLISH 20Product Information according to EU Ecodesign Regulation Model identication MÄSTERLIG

Type of hob Built-In Hob Number of cooking zones 3 Heating technology Induction Diameter of circular cooking zones (Ø) Left front Left rear Right rear

Energy consumption per cooking zone (EC electric cooking) Left front Left rear Right rear

Energy consumption of the hob (EC electric hob) 184.8 Wh/kg IEC / EN 60350-2 - Household electric cooking appliances - Part 2: Hobs - Methods for meas‐ uring performance. Energy saving You can save energy during everyday cooking if you follow below hints.

• When you heat up water, use only the amount you need.

• If it is possible, always put the lids on the cookware.

• Before you activate the cooking zone put the cookware on it.

• Put the smaller cookware on the smaller cooking zones.

• Put the cookware directly in the centre of the cooking zone.

• Use the residual heat to keep the food warm or to melt it. Product Information for power consumption and maximum time to reach applicable low power mode Power consumption in o mode 0.3 W Maximum time needed for the equipment to automatically reach the applicable low power mode 2 min Environmental concerns Recycle materials with the symbol . Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal oce. ENGLISH 21IKEA guarantee How long is the IKEA guarantee valid? This guarantee is valid for 5 years from the original date of purchase of your appliance at IKEA. The original sales receipt is required as proof of purchase. If service work is carried out under guarantee, this will not extend the guarantee period for the appliance. Who will execute the service? IKEA service provider will provide the service through its own service operations or authorized service partner network. What does this guarantee cover? The guarantee covers faults of the appliance, which have been caused by faulty construction or material faults from the date of purchase from IKEA. This guarantee applies to domestic use only. The exceptions are specied under the headline “What is not covered under this guarantee?” Within the guarantee period, the costs to remedy the fault e.g. repairs, parts, labour and travel will be covered, provided that the appliance is accessible for repair without special expenditure. On these conditions the EU guidelines (Nr. 99/44/EG) and the respective local regulations are applicable. Replaced parts become the property of IKEA. What will IKEA do to correct the problem? IKEA appointed service provider will examine the product and decide, at its sole discretion, if it is covered under this guarantee. If considered covered, IKEA service provider or its authorized service partner through its own service operations, will then, at its sole discretion, either repair the defective product or replace it with the same or a comparable product. What is not covered under this guarantee?

• Normal wear and tear.

• Deliberate or negligent damage, damage caused by failure to observe operating instructions, incorrect installation or by connection to the wrong voltage, damage caused by chemical or electro-chemical reaction, rust, corrosion or water damage including but not limited to damage caused by excessive lime in the water supply, damage caused by abnormal environmental conditions.

• Consumable parts including batteries and lamps.

• Non-functional and decorative parts which do not aect normal use of the appliance, including any scratches and possible color dierences.

• Accidental damage caused by foreign objects or substances and cleaning or unblocking of lters, drainage systems or soap drawers.

• Damage to the following parts: ceramic glass, accessories, crockery and cutlery baskets, feed and drainage pipes, seals, lamps and lamp covers, screens, knobs, casings and parts of casings. Unless such damages can be proved to have been caused by production faults.

• Cases where no fault could be found during a technician’s visit.

• Repairs not carried out by our appointed service providers and/or an authorized service contractual partner or where non- original parts have been used.

• Repairs caused by installation which is faulty or not according to specication.

• The use of the appliance in a non- domestic environment i.e. professional use.

• Transportation damages. If a customer transports the product to their home or other address, IKEA is not liable for any damage that may occur during transport. However, if IKEA delivers the product to the customer's delivery address, then damage to the product that occurs during this delivery will be covered by this guarantee.

• Cost for carrying out the initial installation of the IKEA appliance. However, if an IKEA ENGLISH 22service provider or its authorized service partner repairs or replaces the appliance under the terms of this guarantee, the service provider or its authorized service partner will re-install the repaired appliance or install the replacement, if necessary. This restriction do not apply to fault-free work carried out by a qualied specialist using our original parts in order to adapt the appliance to the technical safety specications of another EU country. How country law applies The IKEA guarantee gives you specic legal rights, which covers or exceed local demands. However these conditions do not limit in any way consumer rights described in the local legislation. Area of validity For appliances which are purchased in one EU country and taken to another EU country, the services will be provided in the framework of the guarantee conditions normal in the new country. An obligation to carry out services in the framework of the guarantee exists only if the appliance complies and is installed in accordance with:

• the technical specications of the country in which the guarantee claim is made;

• the Assembly Instructions and User Manual Safety Information; The dedicated After Sales Service for IKEA appliances: Please do not hesitate to contact IKEA After Sales Service to:

1. make a service request under this

2. ask for clarication on installation of the

IKEA appliance in the dedicated IKEA kitchen furniture. The service won’t provide clarications related to:

• the overall IKEA kitchen installation;

• connections to electricity (if machine comes without plug and cable), to water and to gas since they have to be executed by an authorized service engineer.

3. ask for clarication on user manual

contents and specications of the IKEA appliance. To ensure that we provide you with the best assistance, please read carefully the Assembly Instructions and/or the User Manual section of this booklet before contacting us. How to reach us if you need our service Please refer to the last page of this manual for the full list of IKEA appointed contacts and relative national phone numbers. In order to provide you with a quicker service, we recommend that you use the specic phone numbers listed at the end of this manual. Always refer to the numbers listed in the booklet of the specic appliance you need an assistance for. Before calling us, assure that you have to hand the IKEA article number (8 digit code) and the Serial Number (8 digit code that can be found on the rating plate) for the appliance of which you need our assistance. SAVE THE SALES RECEIPT! It is your proof of purchase and required for the guarantee to apply. Note that the receipt reports also the IKEA article name and number (8 digit code) for each of the appliances you have purchased. Do you need extra help? For any additional questions not related to After Sales of your appliances, please contact our nearest IKEA store call centre. We recommend you read the appliance documentation carefully before contacting us. ENGLISH 23Table des matières Informations de sécurité 24 Consignes de sécurité 26 Installation 29 Branchement électrique 30 Description de l'appareil 32 Utilisation quotidienne 33 Tableau de cuisson 37 Conseils pour les ustensiles 38 Entretien et nettoyage 39 Dépannage 40 Caractéristiques techniques 42 Rendement énergétique 42 En matière de protection de l'environnement
