USER MANUAL 508322 Intellinet

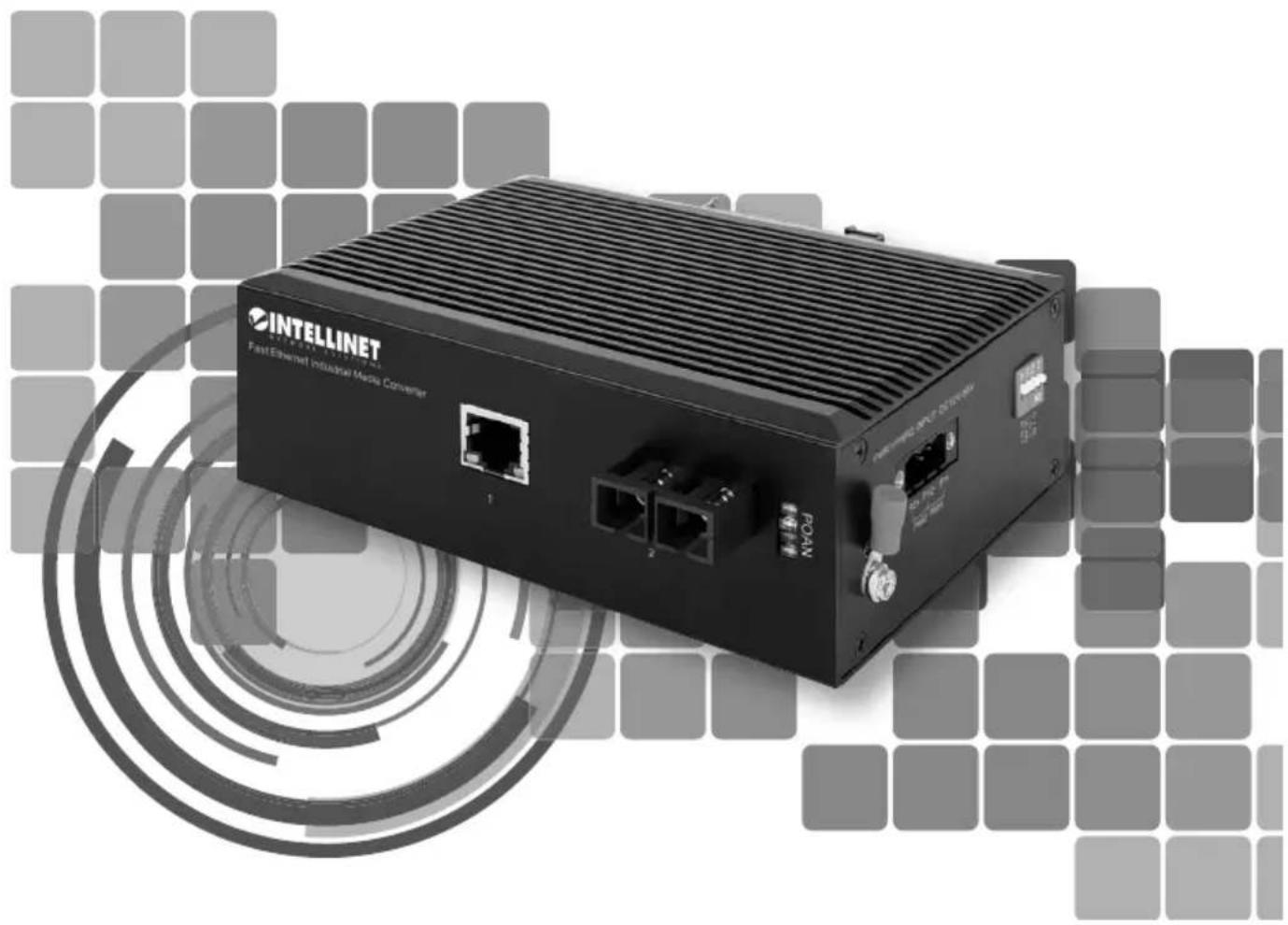

Model 508322 (IMCI-SMSCF20KM)

Important: Read before use. • Important: Leer antes de usar.

For additional benefits:

or go to: register.intellinet-network.com/r/508322

Media converters connect two Ethernet networks over a longer distance using fiber optic cable.

For specifications, visit intellinetnetwork.com. Register your product at register.intellinet-network.com/r/508322 or scan the QR code on the cover.

Features

One 10/100 RJ45 port supporting a maximum distance of 100m (300 ft.)
One 100Base-FX fiber SC single-mode port supporting a maximum distance of 20km (12.4 mi.)
- IP40 slim-type metal housing to withstand harsh industrial conditions
- Option for DIN-rail installation
- Two redundant DC inputs (12 - 58 V) with I/O terminal block

Connections

Twisted Pair - RJ45

Connect the UTP port of the media converter to an RJ45 port on the network (e.g., to an Ethernet switch). Cat5e or better cabling is recommended.

Fiber Optic

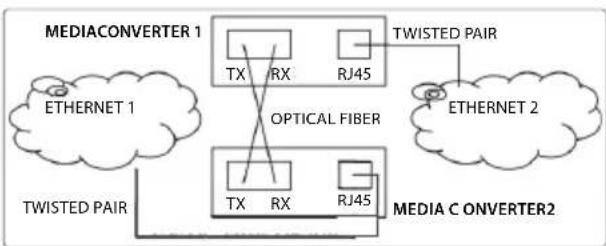

As shown, two fiber optic cables need to be connected between two ideally identical media converters.

Make a connection from Media Converter 1 TX to Media Converter 2 RX, and from Media Converter 1 RX to Media Converter 2 TX. Maximum length and fiber cable specification depend on the model. (See Models.)

Example

Front panel

Item LED Color Status Description
RJ45 Port	Port activity Green		Flashing Sending or receiving data.
			On Port is connected.
			Off Port is not connected.
	Speed Yellow		On 100 Mbps speed.
			Off 10 Mbps speed.
P — Power	Power and power-supply-under-voltage alarm (priority of under-voltage alarm is higher than power LED)	Green	Flashing every 1s	Equipment power supply is lower than the lower limit of the input range of DC 12 V, indicating an under-voltage alarm.
			On Power channel is powered.
			Off Power channel is not powered.
O — Optical Fiber Port	Fiber port and power supply overvoltage alarm (priority for overvoltage alarm is higher than fiber port Link/Act LED)	Green	Flashing every 0.5s	The power supply of the device exceeds the upper limit of the input range of DC 58 V, indicating an overvoltage alarm.
			On Fiber port is connected.
			Off Fiber port is not connected.
			Flashing Sending or receiving data.
A — Alarm	Device alarm and data transmission indicator	Red	Flashing	Console/R5232/R5485 port is sending data (LED flashes to the rhythm of data being sent).
			On An issue has been detected (temperature, dying gasp, etc.).
			Off No alarm issue detected.
N — NMC	Management indicator and data receiving	Green	Flashing	Console/R5232/R5485 port is receiving data (LED flashes to the rhythm of data being received).
			On Module embedded and initialization is complete.
			Off No embedded module.

A—Grounding

ATTENTION: When installing unit, connect the chassis ground first; when uninstalling unit, disconnect chassis ground last.

Wire the grounding terminal to an earth-grounding object to prevent power spikes.

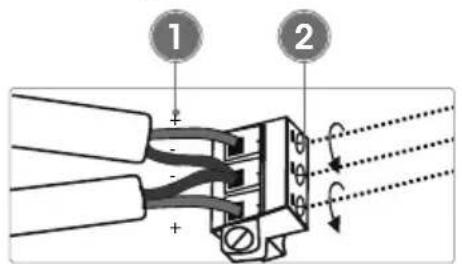

B—Terminal Block Installation

NOTE: Ensure all power is off/disconnected before beginning!

1 Loosen appropriate screws. Insert bare power-supply wires into appropriate terminal slots (positive wire into positive slot; negative wire into negative slot).
2 Tighten appropriate screws to secure wires.
3 Install block into the device and tighten screws.

C-DIP Switch

Switch Position Description
1 — C/D Console/Data selector	On Enable remote PD reset function.
	Off Turn off remote PD reset function.
2 — LGY Legacy	On Supports standard and non-standard PD power supply.
	Off Only supplies power to standard PD; non-standard PD power supplies not supported.
3 — VLAN Unused
4 — RST Manual Reset	On Reset the remote PD device after 24 hours.
	Off Release reset.

Placement

Desktop Installation

Prior to use, place/position the device:

• on a level surface with at least 25mm (approx. 1^ ) of clearance for ventilation;
• away from sources of electrical noise: radios, transmitters, broadband amplifiers;
• within 100m (approx. 328^ ) of network devices it's to be connected to.

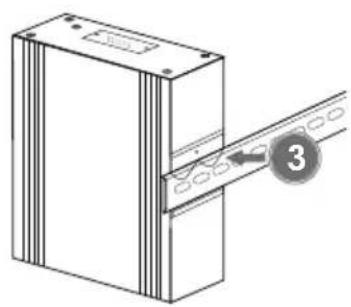

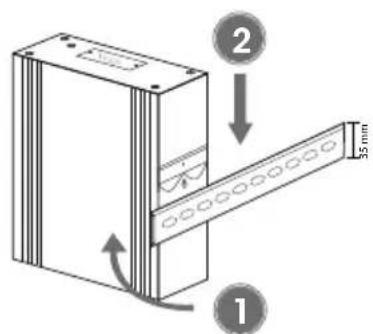

DIN-Rail Installation

1 Angle spring of mounting clip over top lip of DIN rail.
2 Push device down till clip clicks onto rail.
3 Ensure installation is stable.
