USER MANUAL Pro AIR Conservatory DOMETIC

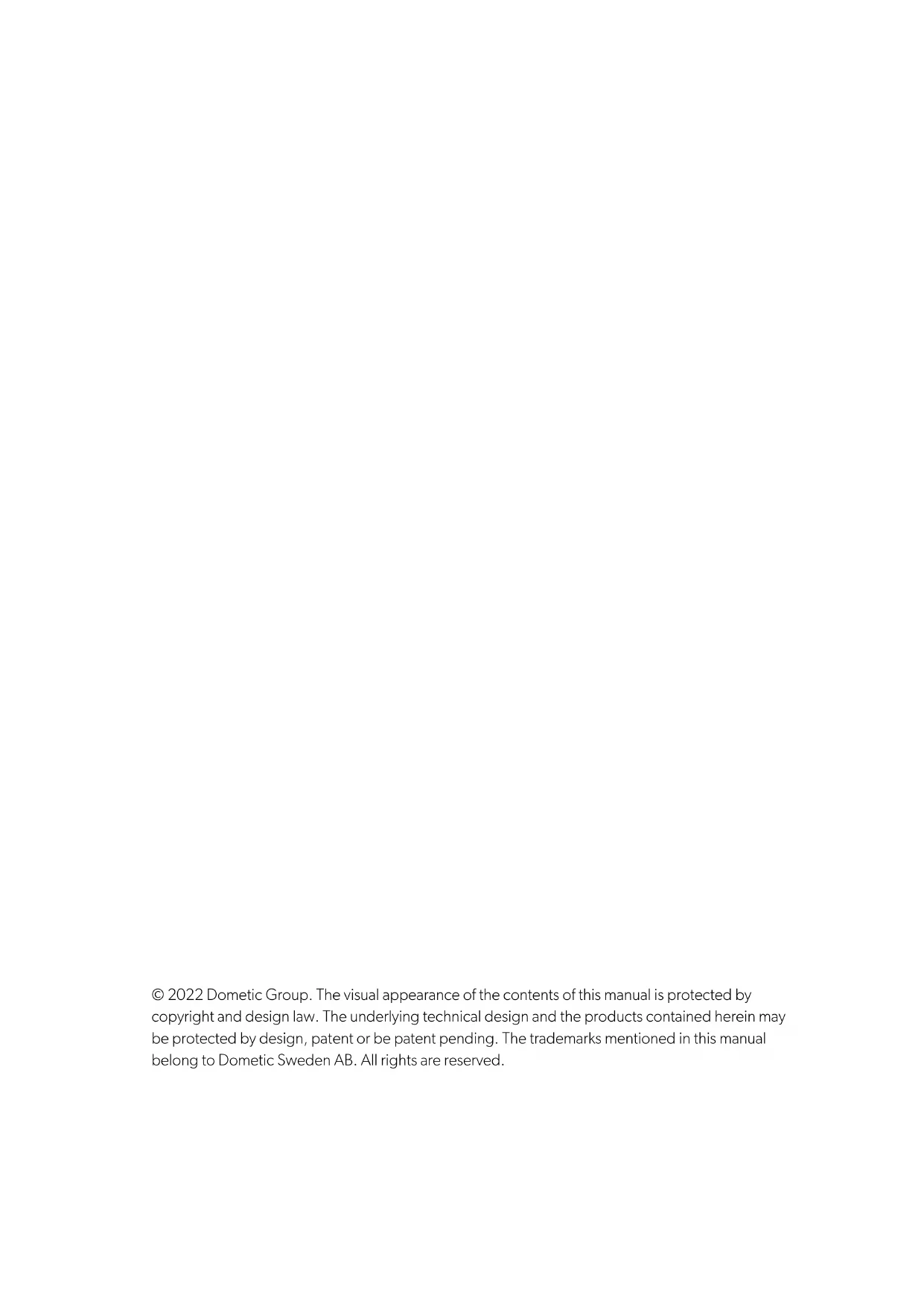

HU© 2022 Dometic Group. The visual appearance of the contents of this manual is protected by copyright and design law. The underlying technical design and the products contained herein may be protected by design, patent or be patent pending. The trademarks mentioned in this manual belong to Dometic Sweden AB. All rights are reserved.EN

Please read these instructions carefully and follow all instructions, guidelines, and warnings included in this product manual in order to ensure that you install, use, and maintain the product properly at all times. These instructions MUST stay with this product. By using the product, you hereby confirm that you have read all instructions, guidelines, and warnings carefully and that you understand and agree to abide by the terms and conditions as set forth herein. You agree to use this product only for the intended purpose and application and in accordance with the instructions, guidelines, and warnings as set forth in this product manual as well as in accordance with all applicable laws and regula- tions. A failure to read and follow the instructions and warnings set forth herein may result in an injury to yourself and others, damage to your product or damage to other property in the vicinity. This product manual, including the instructions, guidelines, and warnings, and related documentation, may be subject to changes and updates. For up-to-date product information, please visit documents.dometic.com, dometic.com. Explanation of symbols

DANGER! Failure to obey this instruction will cause death or serious injury. Hazard of carbon monoxide poisoning

• Never use a fuel-burning appliance such as barbecues or gas heaters inside the annexe. The burning process pro- duces carbon monoxide which accumulates inside the annexe as there is no flue.

WARNING! Failure to obey these warnings could result in death or serious injury. Fire hazard

• Ensure you know the fire precaution arrangements on the site.

• Do not cook inside the annexe or use open flames. Beware of suffocation

• Ensure ventilation openings are open all the time to avoid suffocation.

CAUTION! Failure to obey these cautions could result in minor or moderate injury. Risk of injury

• This device is not intended for use by persons (including children) with reduced physical, sensory or mental capa- bilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the device by a person responsible for their safety.

• Do not allow children to play around the annexe and ensure that suitable protective footwear is worn. Guy lines are a trip hazard and pegs can be sharp.

• Cleaning and user maintenance may not be carried out by unsupervised children.

• Keep passage ways clear. Scope of delivery Intended use This annexe is suitable for:

• light to moderate weather

• touring This annexe is not suitable for:

• very strong winds or snowfall

• seasonal pitch* or commercial use

• All-Season models have been designed for use on seasonal pitches. This product is only suitable for the intended purpose and application in accordance with these instructions. This manual provides information that is necessary for proper installation and/or operation of the product. Poor installation and/or improper oper- ating or maintenance will result in unsatisfactory performance and a possi- ble failure. The manufacturer accepts no liability for any injury or damage to the prod- uct resulting from:

• Incorrect assembly or connection, including excess voltage

• Incorrect maintenance or use of spare parts other than original spare parts provided by the manufacturer

• Alterations to the product without express permission from the manu- facturer

• Use for purposes other than those described in this manual Dometic reserves the right to change product appearance and product specifications. Using the annexe

Before first use Familiarize yourself with the product by carrying out a test set up before the product is used for the first time. Check if the scope of delivery is complete. Choosing a site Choose a flat site that is protected from wind:

1. If necessary, use a windbreak.

2. Choose a shaded site to avoid UV degradation of the fabric.

3. Avoid pitching under trees as falling branches, resin, etc. can damage

4. Clear the site of sharp stones and debris to avoid damaging the

5. Set up the product with the doors facing away from the wind.

DANGER! Safety instruction: Indicates a hazardous situation that, if not avoided, will result in death or serious injury. WARNING! Safety instruction: Indicates a hazardous situation that, if not avoided, could result in death or serious injury. CAUTION! Safety instruction: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury. NOTICE! Indicates a situation that, if not avoided, can result in prop- erty damage. NOTE Supplementary information for operating the product. Component Quantity

Inner tent (not for Pro AIR Conservatory) 1 Pole set 1 Roof spreader bar (only for Tall Annexes and Pro AIR Conservatory)

Peg bag 1 Transportation bag 1 CAUTION! Risk of injury and material damage Never open the zipper on the protective sleeve while an air pole is inflated. This will result in the air pole bursting.EN

Keep the following tips in mind while setting up the annexe:

• The figures provide a general overview of the set-up. The actual set-up will vary slightly based on the model of annexe.

• Get help. The set-up is easier with more people.

• After standing the annexe upright, check the corner pegs and re-peg if necessary. The groundsheet on the inside should be taut and in a rectangular shape.

• Peg the guy lines so that the annexe is under tension without distorting the shape.

• If available, attach the storm straps.

• Check the guy lines from time to time to ensure adequate tension, if necessary use the runners to adjust. The annexe can be fitted to either side off the awning tent, or both. The side panels can also be reversed. Set up the annexe as follows:

1. To protect the annexe from dirt and damage, lay down a ground-

sheet or footprint before unpacking.

2. Unpack the annexe.

3. Separate and identify the different components.

4. Remove the relevant side panel from the awning tent by unpegging

and unzipping the panel.

5. Zip the annexe into place of the panel.

6. Unscrew the top cap of the inflation valve and attach the pump noz-

7. Start to pump. The ideal inflation pressure is 9 psi (0.62 bar).

8. Once inflated, pull or push the front of the annexe outwards so that

the air poles can assume their correct shape.

9. Peg out the annexe starting with the two corners closest to the

Inside the annexe, attach the internal spreader bar between the awning and the annexe. The spreader bar should be tensioned to ensure that the roof is taut.

11. Peg out the guy lines.

12. Ensure that the sides and the roof of the annexe are taut. If necessary,

re-peg. Finish the set up of the annexes (except Pro AIR Conservatory):

1. The inner tent can be attached to the annexe using the supplied buck-

les and O rings on the inside of the annexe. The front two corners of the inner tent groundsheet should be pegged.

2. The divider can be attached using the supplied O rings on the inside

1. Remove any dirt on the outside.

2. Close all window blinds or remove curtains.

3. Close all doors and openings.

4. Remove all lines and straps.

5. Remove all pegs between the corner pegs.

6. Open the valves on each pole.

7. Wait until most of the air has been expelled.

8. Remove the corner pegs.

9. Fold/roll the annexe towards the valve to expel more air.

10. When deflated, roll the annexe to fit into the carry bag.

11. Ensure that all parts are clean before packing them into the carry bag.

12. If the annexe is wet or damp, dry fully as soon as possible.

Cleaning and maintenance

1. If necessary, clean the product with clean water and a soft brush.

2. Apply impregnation against water and UV radiation before each trip.

2. Air fully and ensure the annexe is totally dry before packing away.

3. Store in a well ventilated dry place.

CAUTION! Risk of injury and material damage

• Do not use any type of compressor designed to inflate car tires.

• Only inflate the air poles under control of a pressure gauge with a pressure of 9 psi (0.62 bar). NOTICE! Material damage

• Do not open or close the zippers by force. NOTE

• The annexe comes with heavy duty pegs. These will be suitable for many sites but for some types of ground special pegs will be needed. Ask your dealer.

• Drive the pegs at a 45° angle away from the annexe into the ground.

• Peg the guy lines in line with the seam it starts from. NOTICE! Material damage Do not use force when dismantling the annexe. Otherwise you might damage any material. NOTICE! Damage hazard

• Do not use sharp or hard objects or cleaning agents for cleaning.

• Do not use alcohol based materials, chemicals, soap and detergents for cleaning.

• Remove bird droppings and tree resin as soon as possible to avoid permanent damage to the material. NOTE

• Fully set up the annexe for cleaning.

• Choose a sunny day for cleaning to ensure the material will dry thoroughly. NOTE

• During first exposure to water there may be some moisture at the seams. Through this moisture the threads will swell and fill the holes that are created in the sewing process.

• A fully equipped spare parts kit should include: – Waterproofer – Repair tape and repair solution – Silicone spray for the zippers – Spare pegsEN

Condensation All annexes suffer from internal condensation if one or more of the following conditions apply:

• high ground moisture

• a drop in temperature Severe condensation can run down the inside of the roof and drip off ties, tapes and other internal fittings and can be mistaken for leaking. ➤ Increase ventilation by opening doors and/or windows. ➤ Install a waterproof groundsheet. Repairing a puncture in the air pole If the air pole loses air, proceed as follows:

5. Unzip the protective sleeve to expose the inflatable tube.

6. Blow some air into the inflatable tube.

7. Submerge the tube in water.

8. Locate the puncture.

9. Use repair tape and repair solution to seal the hole.

10. Zip the inflatable tube back into the protective sleeve.

11. Zip the air pole back into the outer sleeve.

Disposal Warranty The statutory warranty period applies. If the product is defective, please contact your retailer or the manufacturer's branch in your country (see dometic.com/dealer). For repair and warranty processing, please include the following docu- ments when you send in the product:

• A copy of the receipt with purchasing date

• A reason for the claim or description of the fault Note that self-repair or nonprofessional repair can have safety conse- quences and might void the warranty. The warranty covers manufacturing defects, materials and parts. The warranty does not cover fading of the cover and wear and tear due to UV radiation, misuse, accidental damage, storm damage, or permanent, semi-permanent or commercial use. It does not cover any resulting damage. Please contact your dealer for claims. This does not affect your statutory rights. Problem Solution Annexe only inflates with difficulties ➤ Check that the valve is fully screwed into the air pole. ➤ Check if the inflation tube is twisted at the valve.This may be indicated by noise. Untwist the inflation tube. ➤ Check that the hand pump is working. Air poles are kinked ➤ Add more air (9 psi /0.62 bar). Air leak ➤ Check that the valve is fully screwed into the air pole and the ring seal is in place. ➤ Check that the cap of the valve is done up tightly. ➤ Check for punctures, see chapter “Repairing a puncture in the air pole” on page 5. Water leak ➤ Check for leaky seams, damaged tapings and moist areas. ➤ If you cannot find any leaks, see chapter “Con- densation” on page 5. ➤ If you find any leaks, apply seam sealant. Rip in the fabric ➤ Use repair tape to seal the fabric. ➤ Have repairs carried out by an authorized specialist. ➤ Place the packaging material in the appropriate recycling waste bins wherever possible. ➤ Consult a local recycling center or specialist dealer for details about how to dispose of the product in accordance with the applicable disposal regulations.DE
