Technical Specifications	Model: SHX21PTC2000KE, Type: Electric Heater, Power: 2000 W, Voltage: 230 V
Usage	Ideal for heating living spaces, offices, or workshops, with quiet operation.
Maintenance and Repair	Regularly check the filter and clean it if necessary, consult a professional for any repairs.
Safety	Equipped with a safety thermostat, overheat protection, compliant with current safety standards.
General Information	2-year warranty, optimized energy consumption, compact and modern design.

Frequently Asked Questions - SHX21PTC2000KE SHX

How do I set the temperature on the SHX SHX21PTC2000KE?

To set the temperature, use the thermostat located on the control panel. Turn the knob clockwise to increase the temperature and counterclockwise to decrease it.

The heater is not working, what should I do?

First, check if the device is properly plugged in and if the power switch is turned on. If the problem persists, check the fuse or circuit breaker in your electrical installation.

How do I clean the SHX SHX21PTC2000KE?

Unplug the device before cleaning. Use a soft, dry cloth to wipe the surface. Avoid using harsh chemicals or water directly on the device.

The fan is making noise, is this normal?

A slight fan noise can be normal during operation. If the noise is excessive or unusual, check if objects are obstructing the fan or if parts are loose.

What is the heating power of the SHX SHX21PTC2000KE?

The SHX SHX21PTC2000KE has a heating power of 2000 W, making it suitable for heating medium-sized rooms.

Can I use the heater in a bathroom?

It is recommended not to use this device in damp areas such as bathrooms unless it is specifically designed for that purpose. Make sure to follow the manufacturer's instructions.

How do I know if the heater has reached the desired temperature?

The device is equipped with an indicator light that turns on when the heater is running. Once the desired temperature is reached, the thermostat will turn off the heater and the indicator light will go off.

The heater emits a smell on first use, is this normal?

Yes, it is common for heaters to emit a slight burnt dust smell during the first uses. This should disappear after a few uses.

How do I store the SHX SHX21PTC2000KE during summer?

Before storing, clean the device thoroughly, unplug it, and store it in a dry, cool place away from moisture.

What is the product warranty?

The SHX SHX21PTC2000KE typically comes with a 2-year warranty. Please check the specific warranty terms on your receipt or in the user manual.

USER MANUAL SHX21PTC2000KE SHX

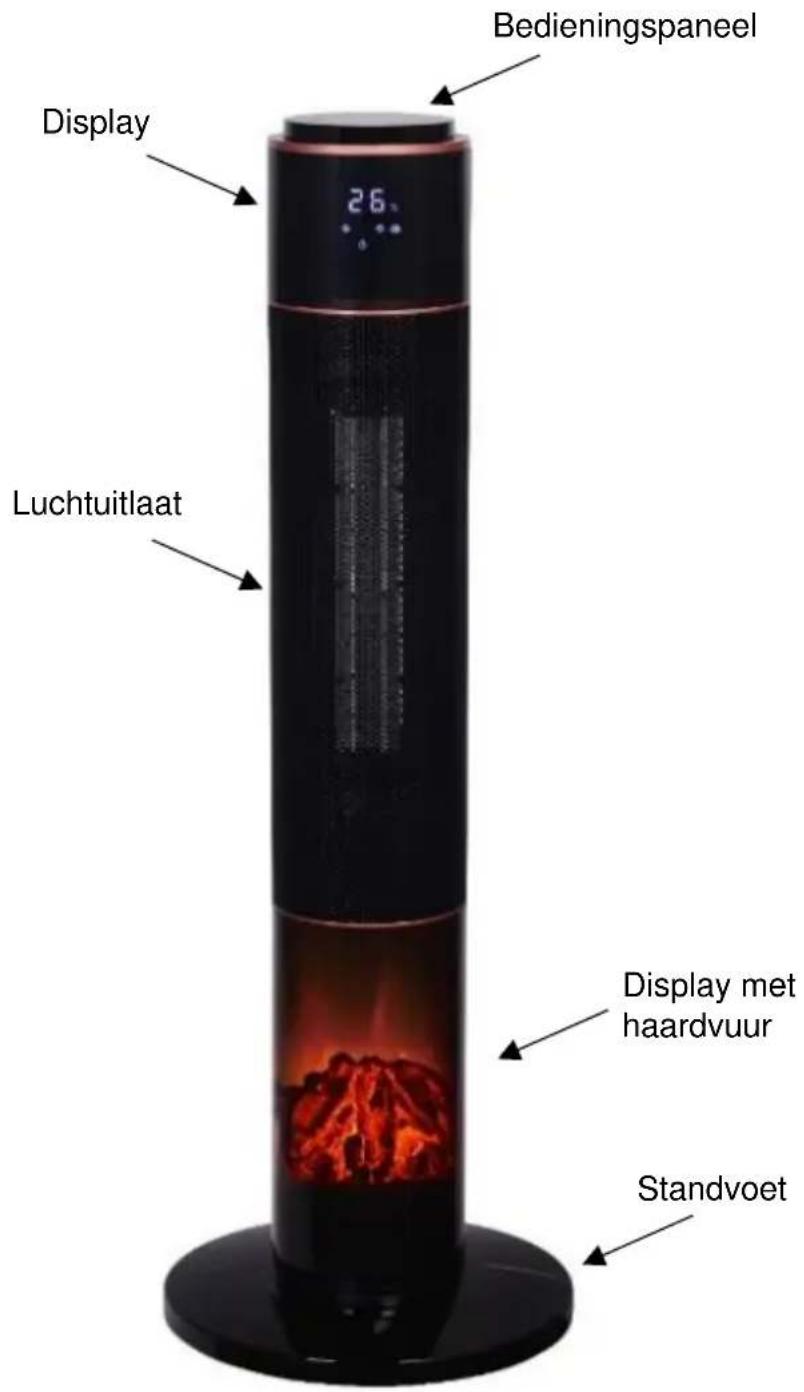

BESCHRIJVING VAN HET APPARAAT

INGEBRUIKNAME

1. MONTAGE en INSTALLATIE

ČINNOSTI NA KONCI SEZÖNY

CINNOSTI PRD ZAHAJENÍM SEZÖNY

ČINNOSTI NA KONCI SEZÖNY

Zariadenie vypnite a vytiahnite von sie'tovu zastrcku.
Starostlivo vyprázdnite vodnú nádržku.
- Zariadenie jabalte a uschovajte ho na chladnom, suchom mieste.

ČINOSTI NA ZACIATKU SEZÖNY

• Skontrolujte, Či je kábel napajania elektrickým prudom v poriadku a Či je uzemnenie funkčné.
  Vždy dokladne doržiavajte pokyny pre instaláciu a bezpečnost'.

TECHNICKE INFORMACIE

Technické informária
Číslo tovaru:	SHX21PTC2000KE
Vstupné napătie:	220-240V~
Frekvencia:	50-60Hz
Intenzita prúdu:	2 000 W
Rozsah ohrevu:	18 až 45°C
Dial'kové ovládanie:	CR2025 3V
Hmotnost'	3,4 kg
Rozmery	300 x 300 x 860 mm
Kontaktná adresa pre d'alšie informária a servisná linka:	Schuss Home Electronic GmbH Scheringgasse 3, A-1140 Wien Servisná linka: [phone] www.schuss-home.at Č. v OR: 236974 t / OR vedený pri sude: Vieden

Vä rugam sā reṭineṭi:

Cand temperatura setata este egal sau mai mica decat temperatura incaperii, inczitorul tip turn va opri automat inczirea.
- Daca temperatura setata este cu 1 - 2^ mai mare decat temperatura incaperii, dispositivul incalzeste doar putin.
- Daca temperatura setata este cu 3^ (sau mai mult) mai mare decat temperatura incaperii, dispositivul va incalzi puternic.
- Daca disposizitivul este inclinat sau piciorul de sustinere este ridicat de la sol, disposizitivul se va opri automat.
Indicatie: Cand o functie este activata, indicatorul luminos asociat se va

aprinde.

DISPOZITIVE DE PROTECTIE

Incalzitorul tip turn SHX este echipat cu un dispositiv de protectie care atat protejeazdispositivul,cat si elimina riscul de incendiu. Retini ca mecanismul nu este o oprire automata sau o alta functie de comfort.Oprii intotdeauna dispositivul, scoatei stecarul din priza si astepta riacirea aerotermei inainte de a muta, curata sau deposita dispositivul.

PROTECTIA IMPOTRIVA SUPRAÍNCÁLZIRII

THANK YOU FOR PURCHASING A PRODUCT FROM SHX.

This product is intended for use in well-insulated areas and for occasional use only.

TABLE OF CONTENTS

Important information on safety, place of use and electrical connections

Recycling, disposal and Declaration of Conformity

Scope of delivery

Description of the appliance

Starting up and functions

Safety features

Cleaning and maintenance

Activities at the start/end of the season

Technical information

Required data for single-room electrical heating devices

PLEASE READ THE OPERATING MANUAL CAREFULLY BEFORE BEGINNING ASSEMBLY., INSTALLATION, OPERATION OR MAINTENANCE. PROTECT YOURSELF AND OTHERS BY FOLLOWING THE SAFETY INSTRUCTIONS. FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE AND/OR LOSS OF CLAIMS UNDER WARRANTY.

Intended Use

This appliance is intended exclusively for the heating of domestic living spaces and may not be used for any other purpose.

IMPORTANT INFORMATION ON SAFETY, STANDARDS AND ELECTRICAL CONNECTIONS

1. Use this appliance only in accordance with the guidelines in this operating manual. Any other use not recommended by the manufacturer may result in fire, electrical shock or personal injury.
2. This appliance is intended exclusively for the heating of domestic living spaces and may not be used for any other purpose.
3. Remove the packaging and check that the appliance is not damaged. If you are in doubt, do not use the appliance and contact your dealer.
4. Before connecting to the mains power supply, check that the mains voltage and type matches the information provided on the type plate of the appliance.
5. The electrical socket to which you connect the appliance must not be defective or loose, must be suitable for the current load required, and above all must be reliably earthed.
6. Avoid using an extension cable, because this could overheat and cause a fire.

7. Do not situate the appliance directly beneath a wall power socket. In case of doubt, have your electrical installation checked by a qualified electrician.

8. It is forbidden to adapt or modify the properties of this appliance in any way. Use only replacement parts and accessories recommended by the manufacturer (failure to do so may result in loss of warranty cover).

9. Do not use this heater if it shows visible signs of damage.
10. Do not operate the appliance unattended. Whenever you leave the room, always switch off the appliance.
11. Do not use the appliance in small rooms where people are present who are unable to leave the room by themselves, unless they are under constant supervision.
12. Do not allow children to play with the appliance. Keep children under 3 years away from the appliance unless they are under constant supervision.
13. Keep children away from the packaging materials. If swallowed, these pose a risk of suffocation.
14. The appliance is not suitable for continuous or high-precision operation.
15. Do not use this heater if it has previously been dropped.
16. This appliance is for use in dry indoor spaces only.
17. Do not use the appliance near water or high humidity, e.g. in damp cellars, or hear swimming pools, baths or showers. Make sure that water cannot get into the appliance.

18. Do not use the appliance in close proximity to petrol, gas, oil, alcohol or other explosive or flammable liquids or gases.

19. To minimise the risk of fire, ensure a distance of at least one metre between the air outlet of the appliance and any flammable materials such as:

a. Pressurised containers (e.g. spray cans)
b. Furniture
c. Textiles of any kind

1. This heater should only be operated on a level, stable surface.

2. Never cover the appliance while it is in operation or while cooling down after use.

3. Ensure that no objects come between the appliance and the mounting wall that could touch the heating surface.

4. Always switch the appliance off before unplugging it.
5. Do not pull the mains cable to disconnect the appliance from the mains supply. Always pull by the plug to disconnect the mains cable.
6. Unplug the appliance when you are not using it and before cleaning it or performing any maintenance.
   Do not allow children to clean or perform user maintenance on the appliance without supervision.
7. To avoid electric shocks, do not touch the plug with wet hands.

ATTENTION	RISK OF INJURY This appliance becomes hot while it is in operation! Never touch the appliance while it is in operation → this may result in severe BURNS.
ATTENTION	RISK OF FIRE Do not cover the appliance while it is in operation!
ATTENTION	SAFE DISTANCE Maintain a safe distance of at least one metre from flammable items such as furniture, curtains, paper and similar. PLACE OF USE Position the appliance in such a way that air can flow in and out without hindrance. RISK OF BURNS This appliance becomes very hot during use and can cause burns. Take particular care if children or vulnerable persons are present. RISK OF OVERHEATING Do not use the appliance in rooms with a volume less than 4m3.

Symbol markings on the appliance

Symbol:

Meaning:

Attention! Do not cover

The symbol on the device indicates that it is not permitted to suspend any item (e.g. towels, clothing etc.) above the appliance or directly in front of it. To prevent overheating and the risk of fire, the heater must not be covered!

Symbol:

Meaning:

Protection class 2

This symbol indicates that the appliance is classified as protection class 2 (double insulated).

Class 2 appliances are not connected to the earth of the electricity supply.

Instead, they feature an enhanced or doubled insulation up to the rated insulation voltage between the live parts and the parts that can be touched.

Accordingly, electrically conductive surfaces or other parts that can be touched are isolated by an enhanced or doubled insulation from live parts.

Recycling, disposal and Declaration of Conformity

RECYCLING The packaging materials can be recycled. It is recommended that you dispose of them in separated waste.

DISPOSAL The pictogram with the crossed out dustbin indicates that electrical and electronic appliances must be disposed of separately from household waste (WEEE). Electrical and electronic appliances can contain harmful and environmentally hazardous materials. Do not dispose of them in unsorted residual waste, but at a registered collection centre for waste electrical and electronic equipment. By doing so, you will help to conserve resources and protect the environment. For further information please consult your dealer or your local authorities. Directive 2012/19/EU

DISPOSAL OF BATTERIES In accordance with Legislative Decree no. 188 of 20 November 2008 implementing Directive 2006/66/EC on batteries, accumulators and their associated waste, the symbol of the crossed-out dustbin shown on the battery indicates that it is prohibited to dispose of batteries in household waste. Batteries and accumulators contain environmentally hazardous substances. Users are obliged to dispose of used batteries at municipal collection centres or in collectors set up for the purpose. This service is free of charge. This ensures that the legal requirements are complied with and the environment is preserved. You may find the following symbols on batteries: Li = battery contains lithium Al = battery contains alkali Mn = battery contains manganese CR 2025 (Li); AA (Al, Mn); AAA (Al, Mn)

DECLARATION OF CONFORMITY We hereby confirm that this article complies with the essential requirements, regulations and guidelines of the EU. The detailed declaration of conformity can be viewed at any time via following link: https://www.schuss-home.at/downloads

Errata and technical changes reserved.

SCOPE OF DELIVERY

The scope of delivery for the SHX tower heater includes:

• 1 × tower heater
• 1 × base
• 4 × fixing screws
• 1 × remote control
• 1 × operating manual

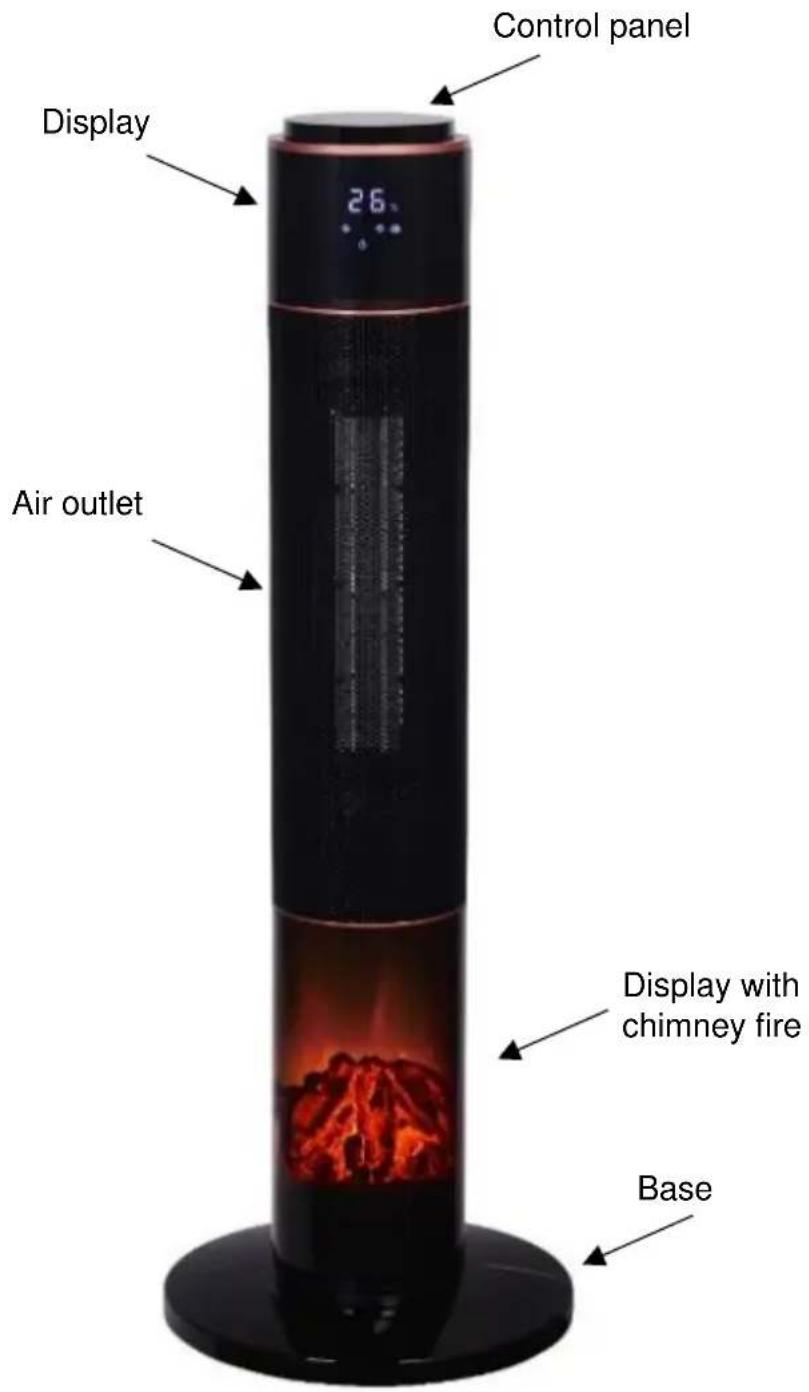

DESCRIPTION OF THE APPLIANCE

COMMISSIONING

1. ASSEMBLY AND INSTALLATION

1. Remove the tower heater from the packaging and remove all packaging materials.
2. Check the appliance for possible damage.

3. Unwind the power cable and check it for damage too.

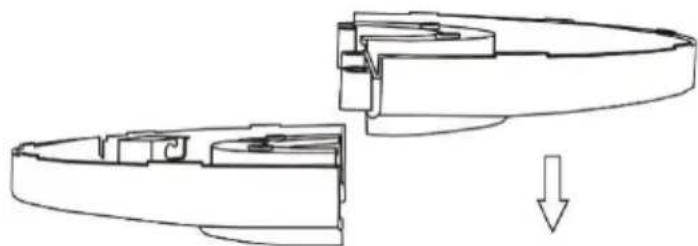

4. Slide the two base halves together as illustrated.

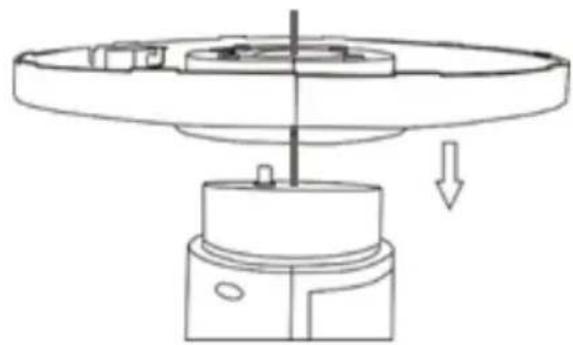

1. Now place the base on the underside of the tower heater and while doing so pull the cable through the middle of the base.

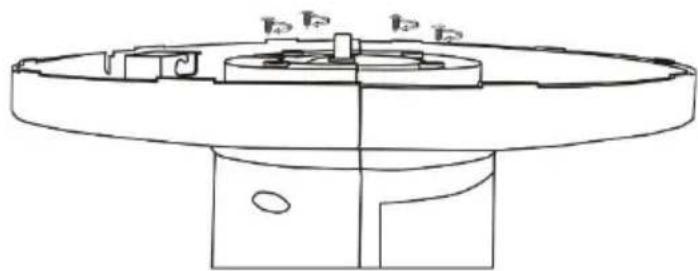

1. Now use the supplied fixing screws to screw the base and tower together in order to fasten the tower heater.

1. Finally, guide the power cable on the underside of the base through the opening provided on the side of the base to the outside.

2. This will ensure the stable footing of the tower heater and provide strain relief for the power cable.

3. Set the tower heater up on a stable, level surface where it will not tip over and which is not heat-sensitive.

4. Now insert the power plug into a suitable power socket.

ATTENTION

Please follow the instructions on assembling the appliance provided in the safety information section very carefully.

2. DESCRIPTION OF THE CONTROL PANEL AND REMOTE CONTROL

The fan heater functions can be set with the remote control or directly on the appliance using the control panel buttons.

To operate the appliance via the remove control, point it directly at the sensor on the housing to ensure smooth operation.

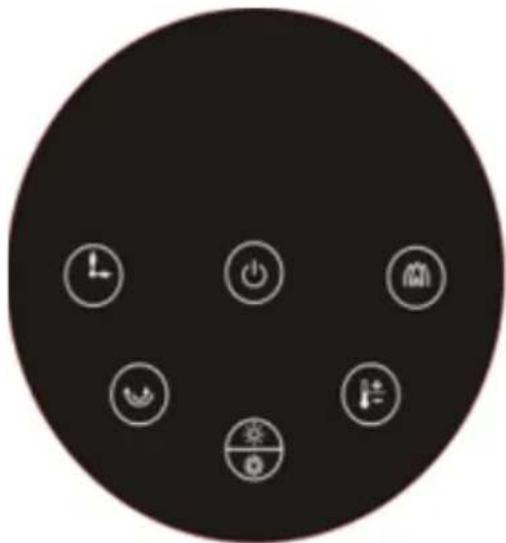

Control panel

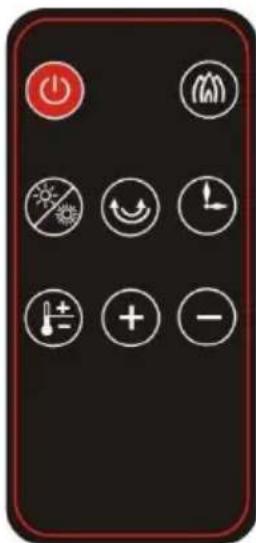

Remote control

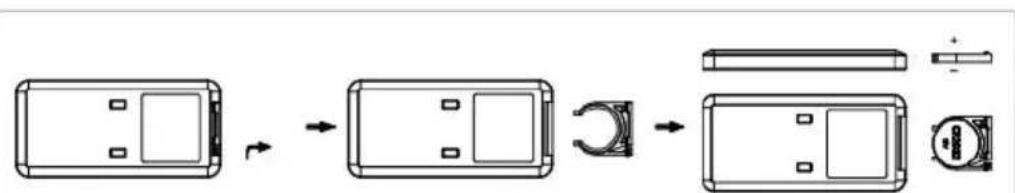

3. PREPARING THE REMOTE CONTROL

Please follow the steps below to make it operate correctly:

1. To operate the appliance via remote control, please remove the plastic protection from the battery compartment.
2. To change the batteries, carry out the following steps: Pull out the battery holder on the back of the remote control, remove the old battery and then insert a new one:

1. Please always pay attention to the polarity markings (+/-) on the battery and the battery holder:

1. Then insert the battery holder back into the remote control.

4. SETTING THE FUNCTIONS

Operation	Indicator on the display
Press the main switch on the back. The appliance will switch to stand-by mode. The room temperature appears on the display.	25℃
SWITCHING ON/OFF THE APPLIANCE Press 'on the control panel to switch the appliance on and off: q. ON (only the fan is switched on) r. OFF → Please note here that if you have just heated, the fan will continue to run for 30 seconds	25℃ L C H
SETTING THE HEATING STRENGTH Press 'to set the heating level: q. Low heating level r. High heating level	25℃ H C H
SETTING THE TEMPERATURE Press 'to set the temperature. You can select between 18-45℃. q. Making settings on the control panel → Repeatedly press the button until the desired temperature appears on the display.	2H℃ e.g. 35 degrees
r. Making settings with the remote control → Press the button first and then use the ‘+’ and ‘-’ buttons to set the temperature.
OSCILLATION Press ‘once to switch on the Oscillation’ function and then twice to switch it off.	25℃ ※ ◎
TIMER Press ‘to switch off the appliance in a time-controlled manner. Repeatedly press the TIMER button until the desired time appears on the display.	2H℃ ※ ◎ e.g. 2 hours

CHIMNEY EFFECT Press ‘’to switch the flame on and off.

25℃

Please note:

• The tower heater automatically stops heating when the temperature setting is either below or the same as the room temperature.
• The appliance will only heat on a low level if the temperature setting is 1 - 2^ higher than the room temperature.
• The appliance will heat on a high level if the temperature setting is 3^ C (or more) higher than the room temperature.
• The appliance will automatically switch off if the appliance tips over or if the base is lifted off the floor.
• Note: When a function is switched on, the corresponding light indicator will light up.

SAFETY FEATURES

This SHX tower heater features a protection system designed to protect the appliance and to minimise the risk of fire.

Please be aware that the mechanisms are not intended to act as an auto-stop or other convenience function. Always switch the appliance off, unplug from the power socket and allow the fan heater to cool before moving, cleaning or putting it in storage.

OVERHEATING PROTECTION

If there is any danger of the appliance overheating (e.g. because something is covering it or due to power supply overload ...), the indicator light will light up and the built-in overheating protection will switch the appliance off.

Once it has cooled, the appliance switches back on automatically and resumes its previous operation.

ATTENTION

A common cause of overheating is among other things the build-up of dust or fluff inside the appliance. You are advised to clean the appliance regularly and to use a vacuum cleaner to remove such build-up..

CLEANING INSTRUCTIONS

Before cleaning the appliance, switch the tower heater off, unplug from the power socket and wait until the appliance has cooled completely.

CLEANING

Clean the appliance with a soft, moderately damp cloth, then wipe with a dry cloth.

ATTENTION

• Do not immerse the fan heater in water or other liquids or allow it to come into contact with these.
• Never use benzene, alcohol or solvents to clean the appliance – this could be dangerous.
• Do not spray insecticides or similar agents onto the fan heater.
• Do not use the appliance in wet rooms.
  DO NOT COVER - RISK OF FIRE!

ACTIVITIES AT THE BEGINNING/END OF THE SEASON

ACTIVITIES AT THE END OF THE SEASON

• Switch off the appliance and disconnect the mains plug.
• Carefully empty the water tank.
• Pack away the appliance and store it in a cool, dry place.

ACTIVITIES AT THE START OF THE SEASON

• Check that the power supply cable is in good condition and that the earthing is functioning.
• Follow the installation and safety instructions carefully.

TECHNICAL INFORMATION

Technical Information
Article number:	SHX21PTC2000KE
Input voltage:	220-240 V~
Frequency:	50-60 Hz
Power:	2000 W
Heating temperature range:	18-45°C
Remote control:	CR2025 3V
Weight:	3.4 kg
Dimensions:	300 × 300 × 860 mm
Contact addresses for more information and Serviceline:	Schuss Home Electronic GmbH Scheringgasse 3, A-1140 Vienna, Austria Serviceline: [phone] www.schuss-home.at FB no.: 236974 t / FB court: Vienna

Required data for single-room electrical heating devices

Article number SHX21PTC2000KE
Information	Symbol	Value	Unit		Information
Heat output				Single-room electric storage heaters only:Method of heat transfer control
Nominal heat output	Pnom	2.0	kW	Manual control of heat transfer with integrated thermostat	No
Minimum heat output(guideline)	Pmin	1.0	kW	Manual control of heat transfer with feedback of room and/or outside temperature	No
Maximum continuous heat output	Pmax,c	2.0	kW	Electronic control of heat transfer with feedback of room and/or outside temperature	No
Auxiliary current consumption				Fan-assisted heat outlet	No
AtNominal heat output	eImax	N/A	kW	Type of heat output/room temperature control
AtMinimum heat output	eImin	N/A	kW	Single heat output level, no room temperature control	No
Instandby mode	eIb	0.00068	kW	Two or more manually settable output levels, no room temperature control	No
				Room temperature control with mechanical thermostat	No
				With electronic room temperature control	Yes
				Electronic room temperature control and timed control through the day	No
				Electronic room temperature control and timed control through the week	No
				Other control options
				Room temperature control with presence detection	No
				Room temperature control with detection of open windows	No
				With remote control option (WiFi)	No
				With adaptive start-up control	No
				With operating time limiter	Yes
				With ball-type sensor	No
Contact information:	Schuss Home Electronic GmbHScheringgasse 3 - 1140 Vienna - Austriahttps://www.schuss-home.at/

WARRANTY

By purchasing this SHX quality product, it means you have decided to place trust in durability, reliability and innovation.

For this SHX appliance, we grant a warranty period of 2 years from the date of purchase valid in Austria and Germany!

If, contrary to expectations, service work on your appliance is still necessary during this period, we hereby guarantee either free repairs (spare parts and working time) or (at the discretion of Schuss) that we will replace the product. If it is not possible to either repair or exchange the product for economic reasons, we reserve the right to create a time value credit.

In any case, please contact the customer hotline as a first step (see the operating manual - 'contact addresses for further information and service line').

We would like to point out that repair work that has not been performed by authorised contract workshops will immediately terminate the validity of this warranty.

This warranty does not cover:

• Damage due to non-adherence to the operating manual
  Repair or replacement of parts due to normal wear and tear
• Appliances that are used commercially, even in part
• Appliances mechanically damaged due to external influence (any fall(s), impact(s), breakage(s), improper use, etc.) as well as signs of wear and tear of an aesthetic nature
• Appliances that have been improperly treated
• Appliances that have not been opened by our authorised service workshop
• Unfulfilled consumer expectations
• Damage caused by force majeure, water, lightning and overvoltage
• Appliances that have had their type designation and/or serial number on the appliance changed, deleted, made illegible or removed
  Defects due to extreme contamination
• Services outside our contract workshops, the transport costs to either an authorised workshop or to us and back, and the associated risks

We would like to expressly point out that a fixed amount of €60 (indexed basis CPI 2015, June 2020) will be charged within the warranty period in the event of operating errors or if no error has been detected.

The provision of a warranty service (repairs or replacement of the appliance) does not extend the absolute warranty period of 2 years from the date of purchase.

The 2-year warranty is only valid upon presentation of the proof of purchase (must include the name and address of the dealer as well as the complete appliance designation) and the corresponding warranty certificate, on which the appliance type and the serial number (on the box and on both the back and underside of the appliance) are to be noted! Without presenting the warranty certificate, only the legal warranty applies! We would like to expressly point out that the statutory warranty rights are unaffected by this warranty and continue unabated.

A liability for damage on the part of Schuss Home Electronic GmbH and its vicarious agents only exists in the event of gross negligence or intent. In any event, liability for lost profits, expected but not occurred savings, consequential damage and damage arising from claims of third parties is excluded.

The contact address of the respective service workshop is available on our homepage www.schuss-home.at.

Congratulations on making your choice. We wish

you a lot of pleasure with the SHX appliance!

ADDRESS

SHX Vertrieb

Schuss Home Electronic GmbH

A-1140 Vienna (Austria), Scheringgasse 3

Type designation:

Serial number:

Tel.: [phone]
