USER MANUAL Cage Buster Carson

Before using your product for the first time or ordering any spare parts, check that your manual is fully up-to-date. This manual contains the technical appendices, important instructions for correct start-up and use and product information, all fully up-to

date before going to press. The contents of this manual and the technical data of the product can change without prior notice.

For the latest version of your manual, see: www.carson-modelsport.com

FR // Remarque importante

We congratulate you for buying this CARSON product, which is designed and manufactured using state of the art technology.

According to our policy of continued development and product improvement we reserve the right to make changes in specifications regarding equipment, material and design at any time without notice.

Specifications or designs of the actual product may vary from those shown in this manual or on the box.

The manual forms part of this product. Should you ignore the operating and safety instructions, the warranty will be void.

Keep this guide for future reference.

Limited Warranty

This product is warranted by CARSON against manufacturing defects in materials and workmanship under normal use for 24 months from the date of purchase from authorised franchisees and dealers. In the event of a product defect during the warranty period, return the product along with your receipt as proof of purchase to any CARSON store.

CARSON will, at its option, unless otherwise provided by law:

(a) Correct the defect by repairing the product without charging for parts and labour;
(b) Replace the product with one of the same or similar design.

All replacement parts and products, and products on which a refund is made, become the property of CARSON. New or reconditioned parts and products may be used in the performance of warranty services.

Repaired or replaced parts and products are warranted for the remainder of the original warranty period. You will be charged for repair or replacement of the product made after the expiration of the warranty period.

The Warranty does not cover:

• Damage or failure caused by or attributable to acts of God, abuse, accident, misuse, improper or abnormal usage, failure to follow instructions, improper installation or maintenance, alteration, lightning or other incidence of excess voltage or current;
• Damage caused by losing control of your model;
• Any repairs other than those provided by a CARSON authorised service facility;
• Consumables such as fuses or batteries;
• Cosmetic damage;
• Transportation, shipping or insurance costs; or
• Costs of product removal, installation, set-up service adjustment or reinstallation;
• Any changes to plugs and cables, open the housing and damage the sticker.

This warranty gives you specific legal rights, and you may also have other rights which may vary according to the country of purchase.

Declaration of conformity

TAMIYA-CARSON Modellbau GmbH & Co. KG hereby declares that the radio equipment type 500402130 conforms to Directive 2014/53/EU. The complete text for the EU declaration of conformity is available at the following Internet address.

The explanation of the symbol on the product, packaging or instructions: Electronic devices are valuable products and should not be disposed of with the household waste when they reach the end of their service life! Help us to protect the environment and respect our resources by delivering this appliance to the relevant recycling point.

We wish you a lots of fun using your CARSON product!

Before use, read this manual carefully!

CONTENTS

Preface 11

Scope of delivery. 12

Technical data. 12

Safety Precautions. 13

Safety Precautions lithium batteries. 14

Chassis. 15

Removing the Body. 15

Charge battery pack. 16

Inserting the drive batteries 16

Your Transmitter 16

Installing the transmitter batteries. 17

Turn on the RC System. 17

Binding 17

How to Control Your Model 18

Troubleshooting 19

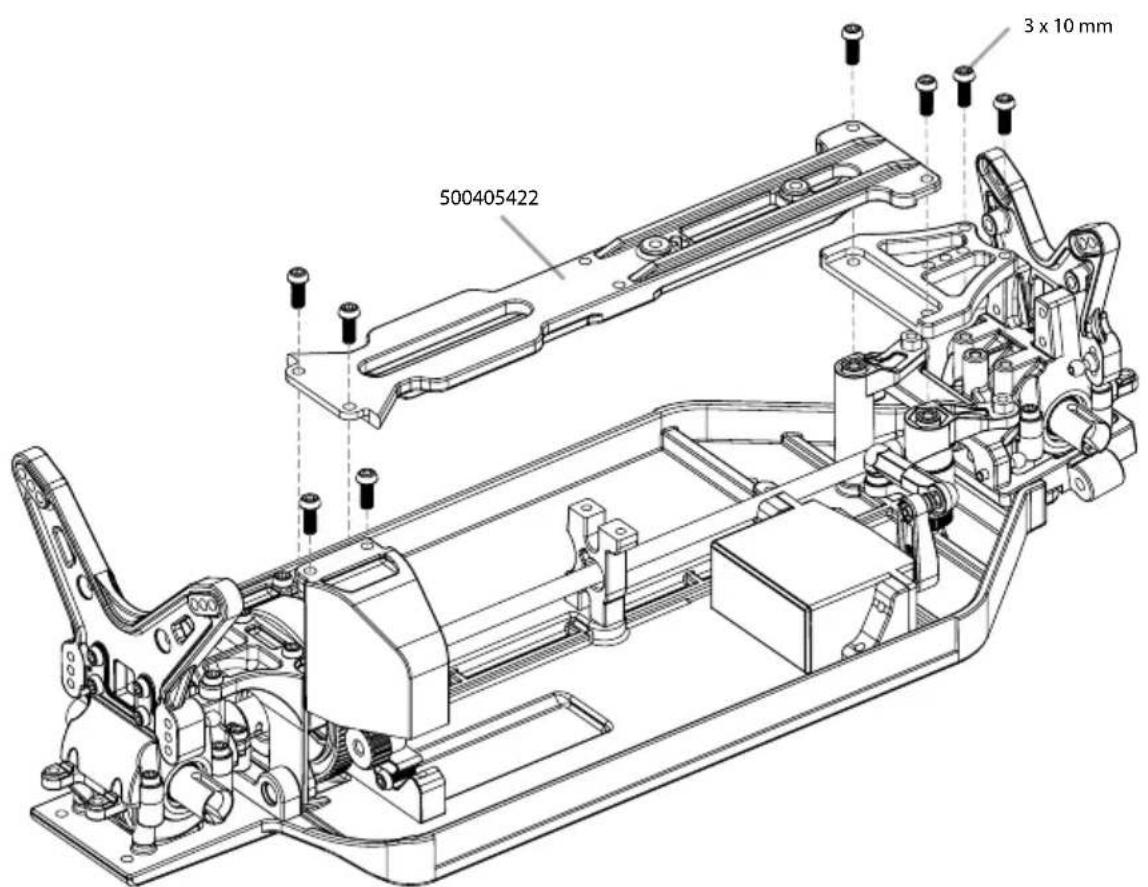

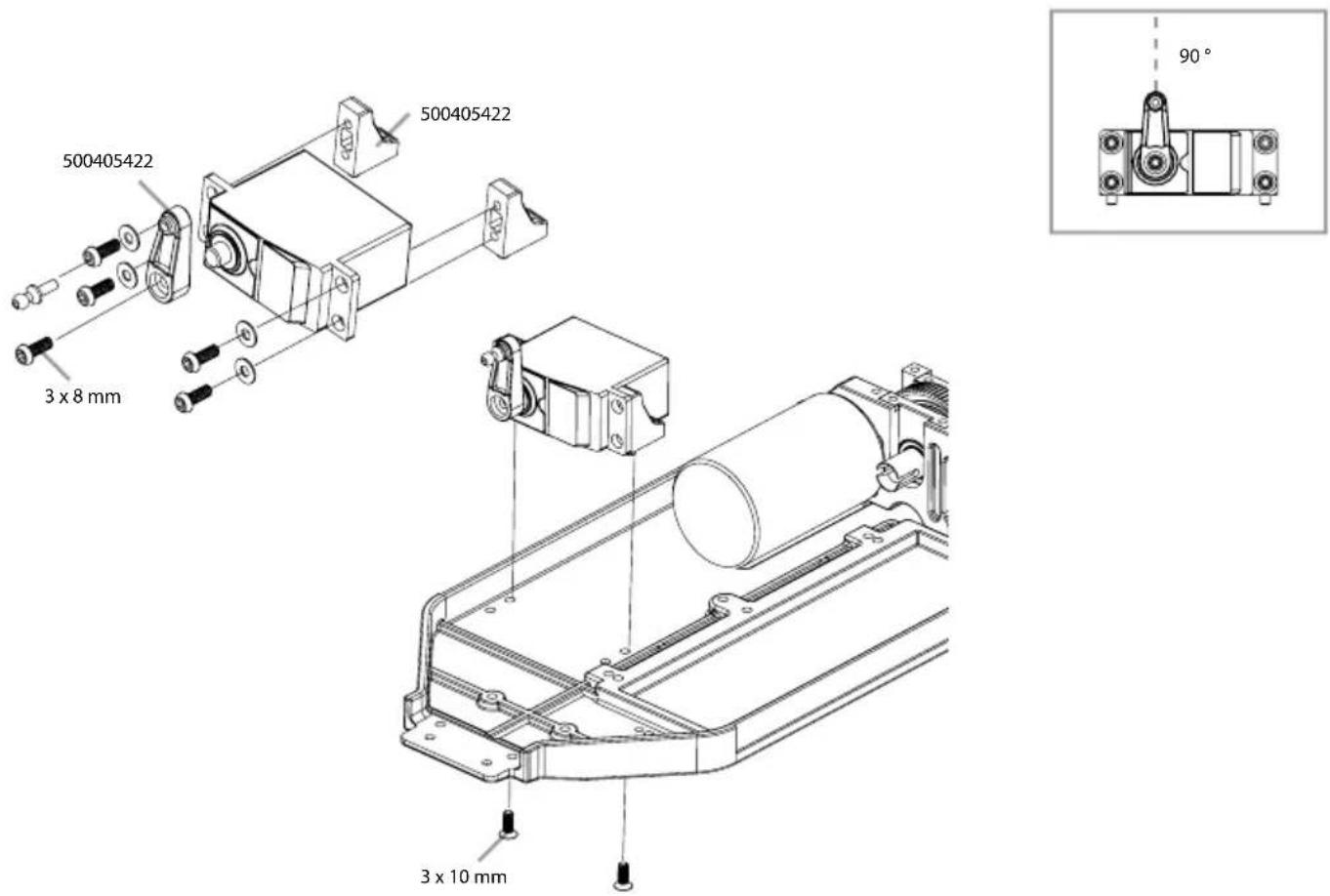

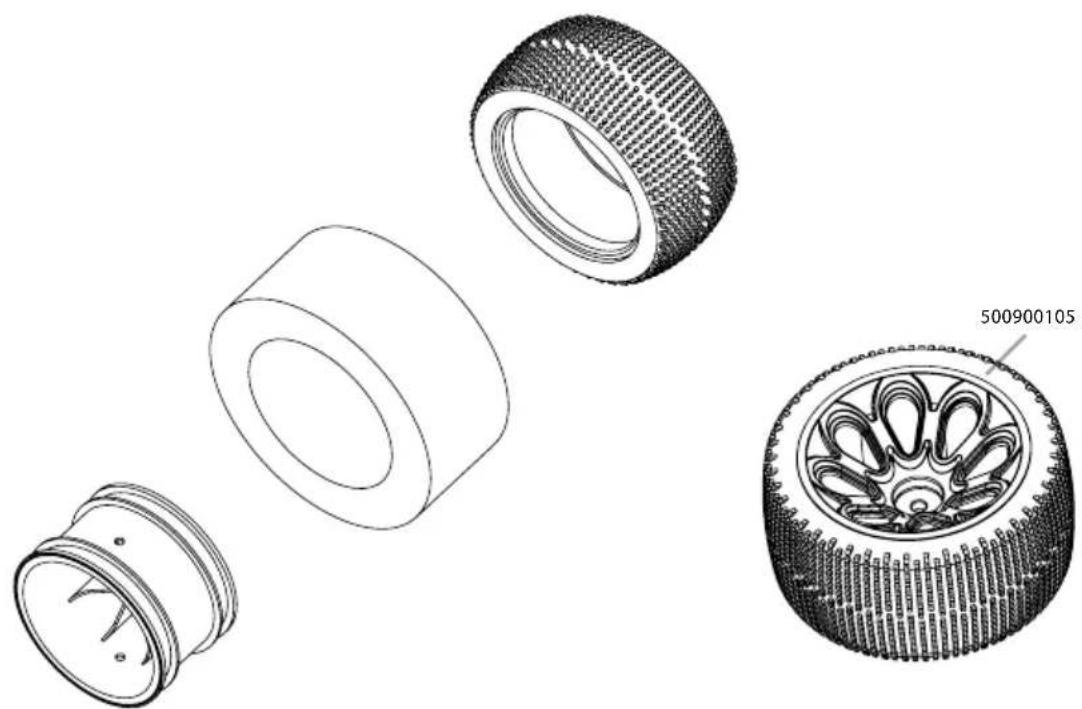

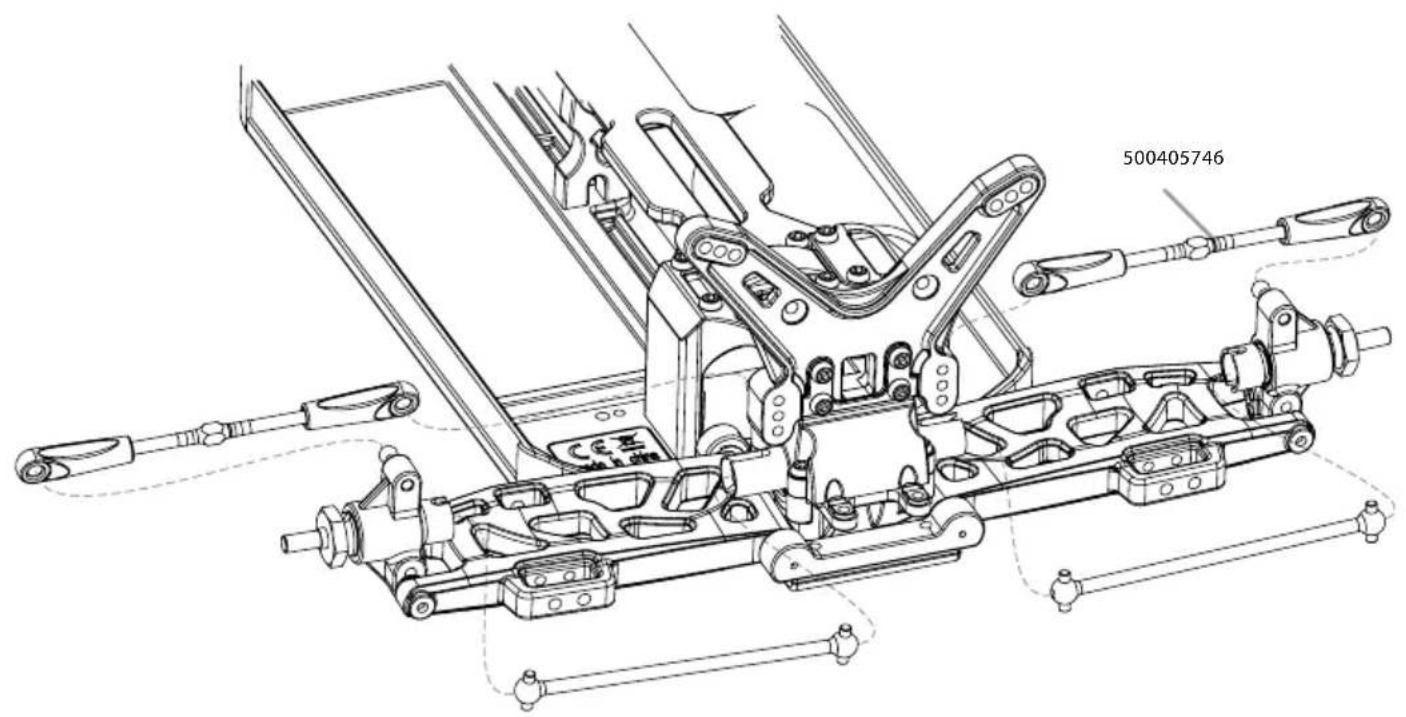

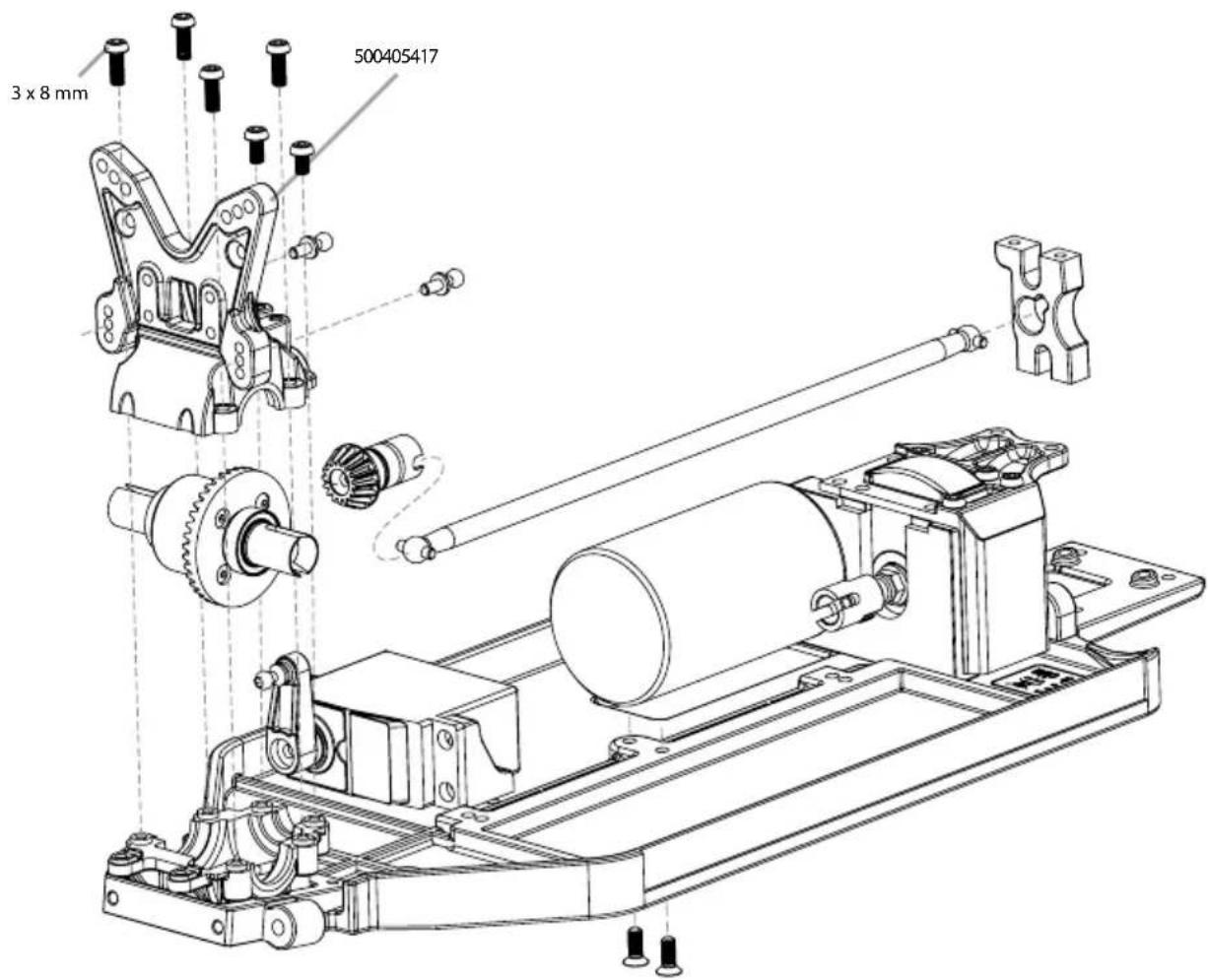

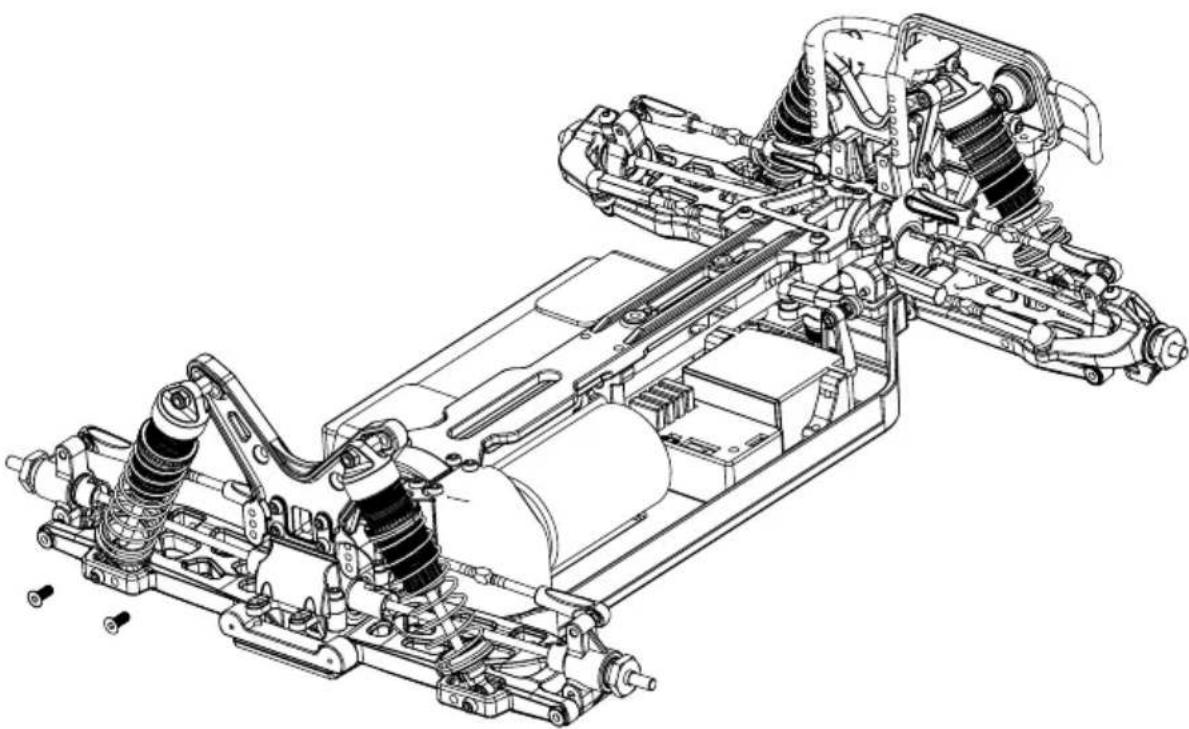

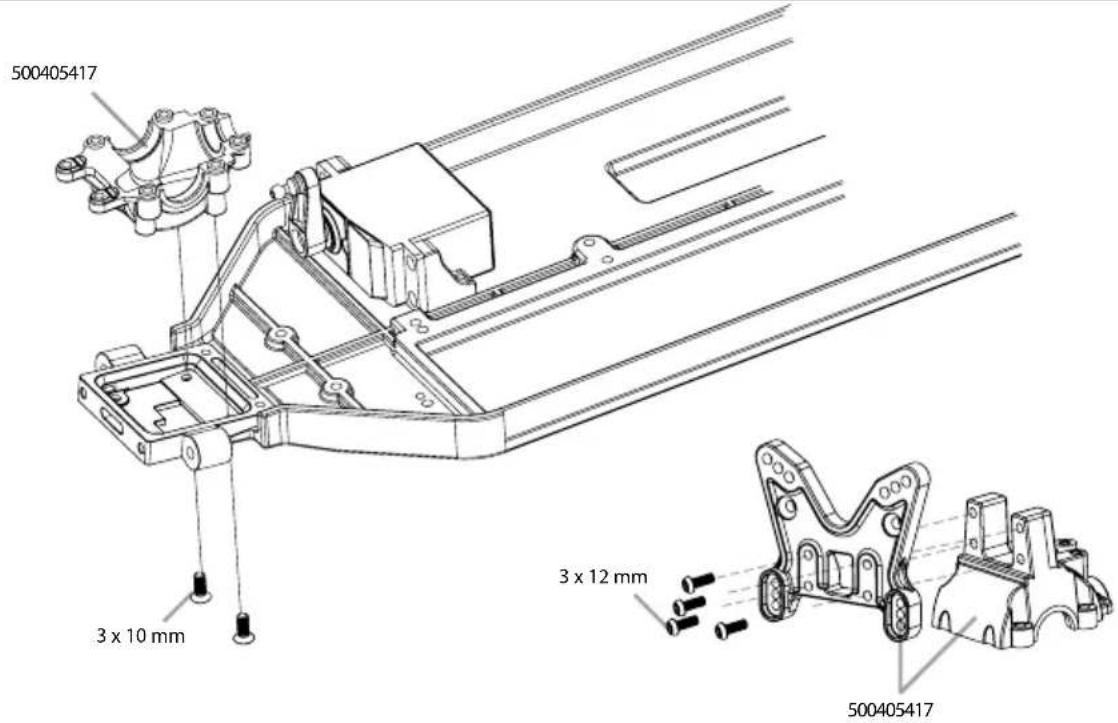

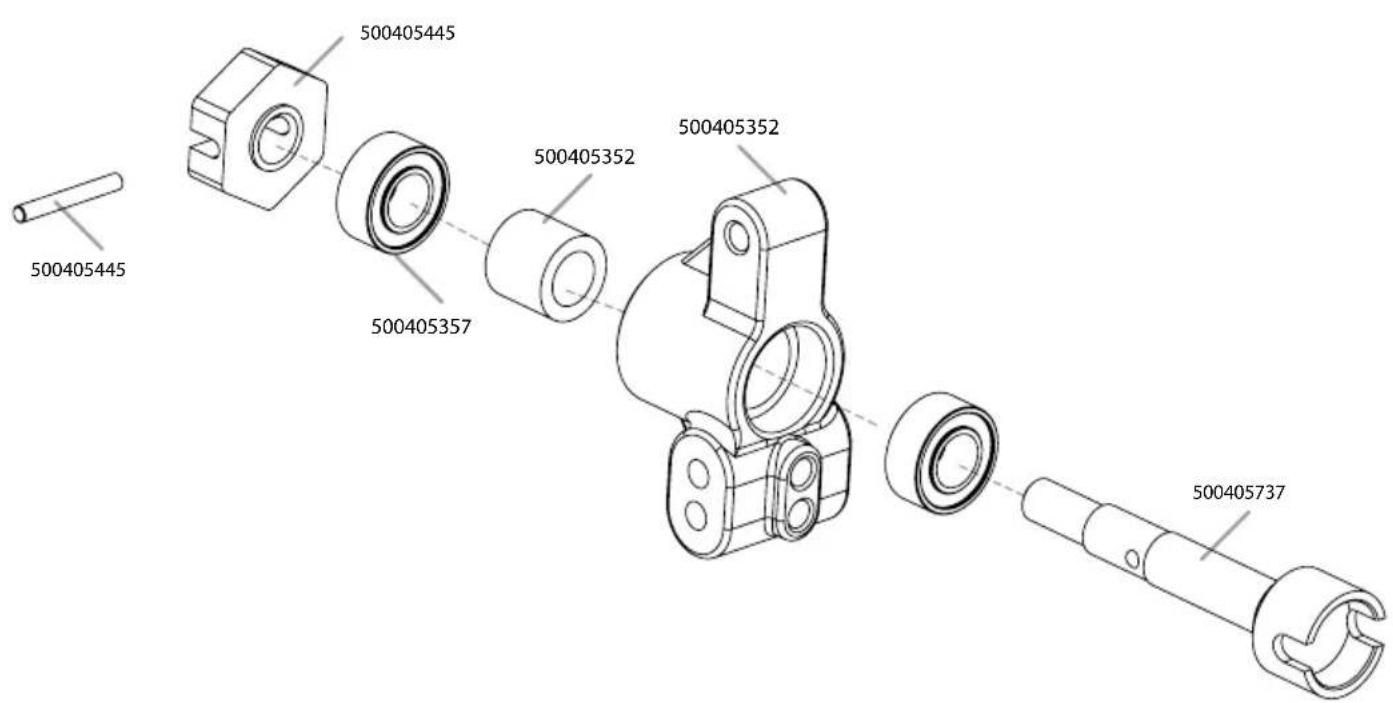

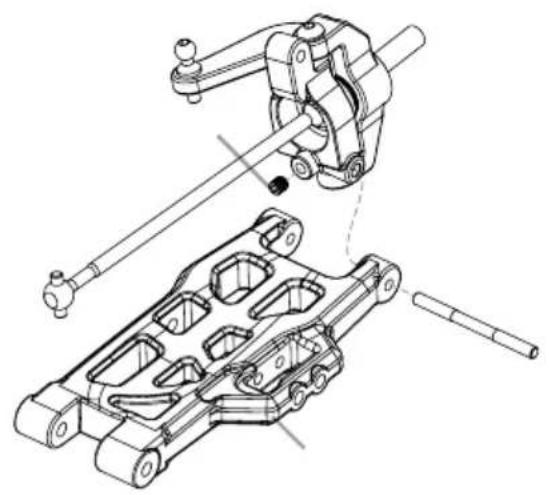

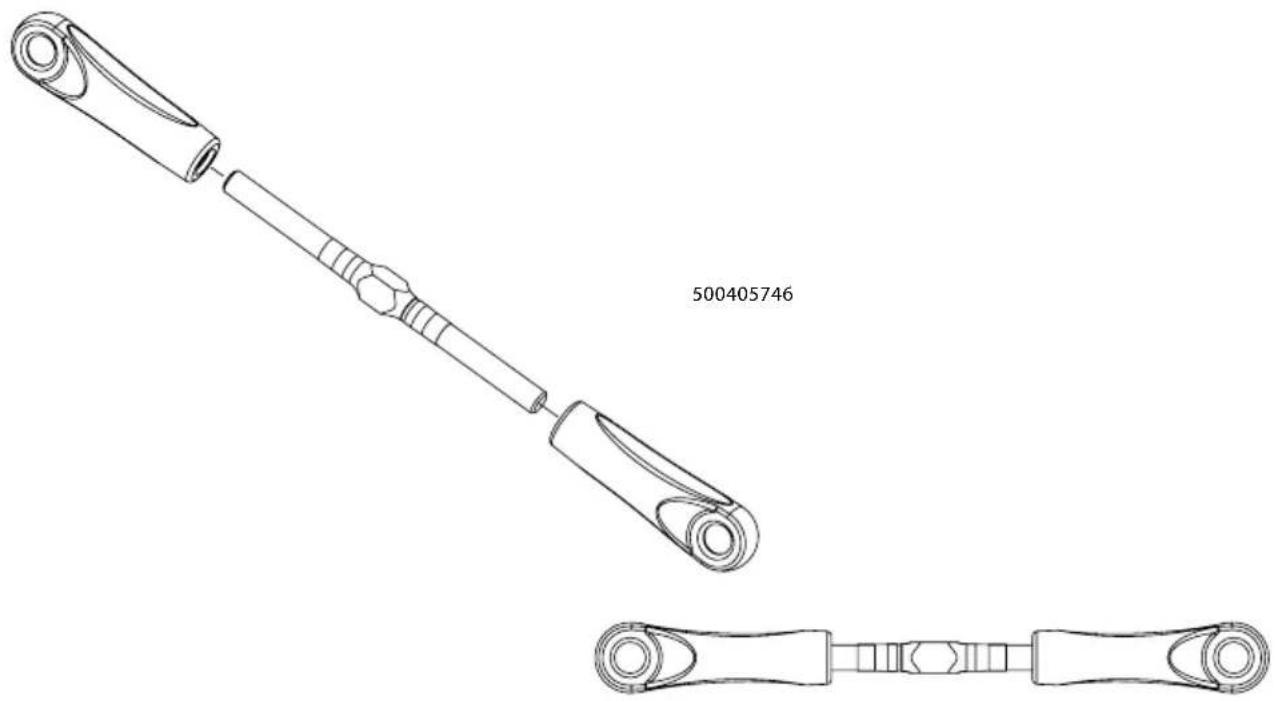

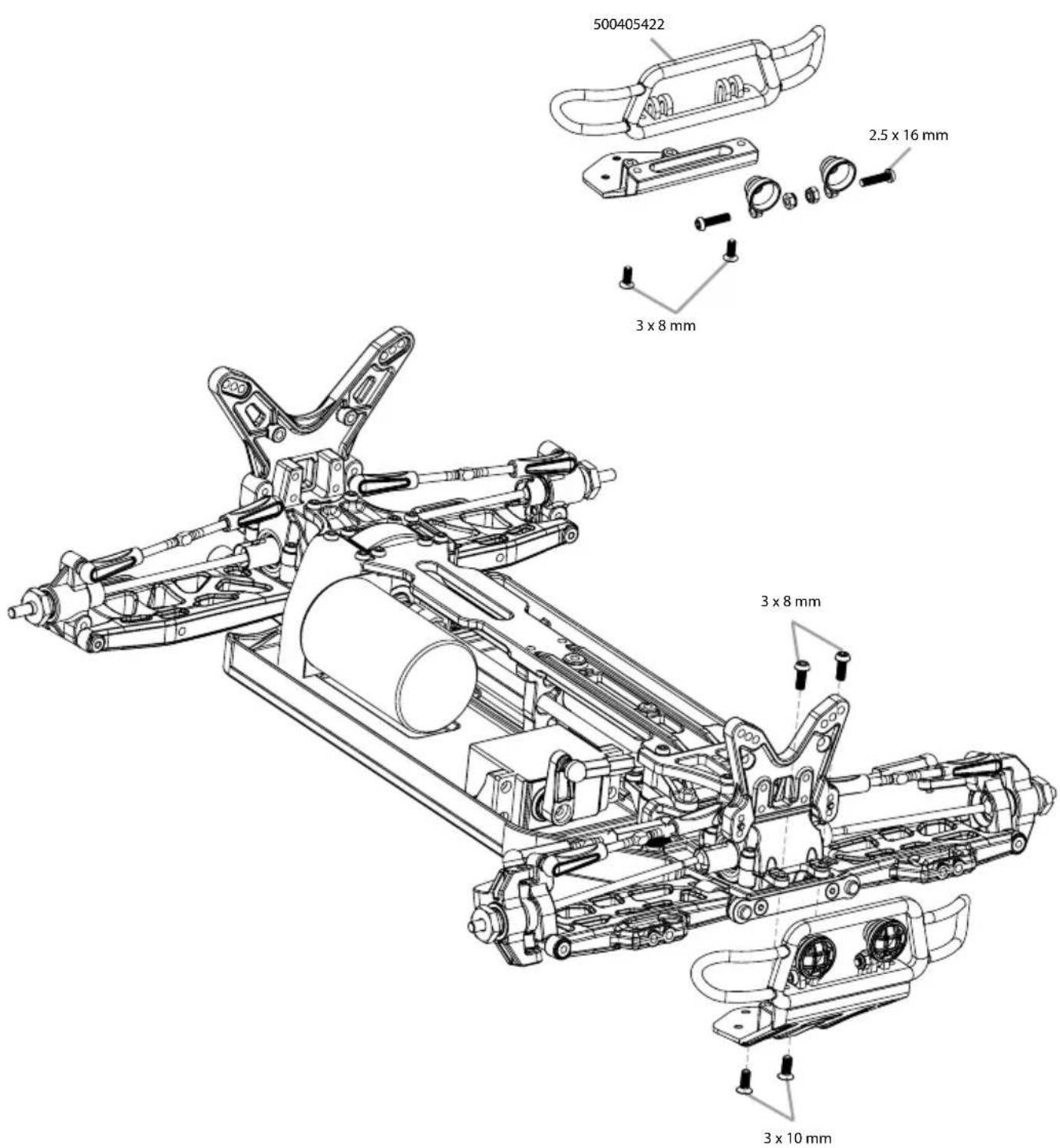

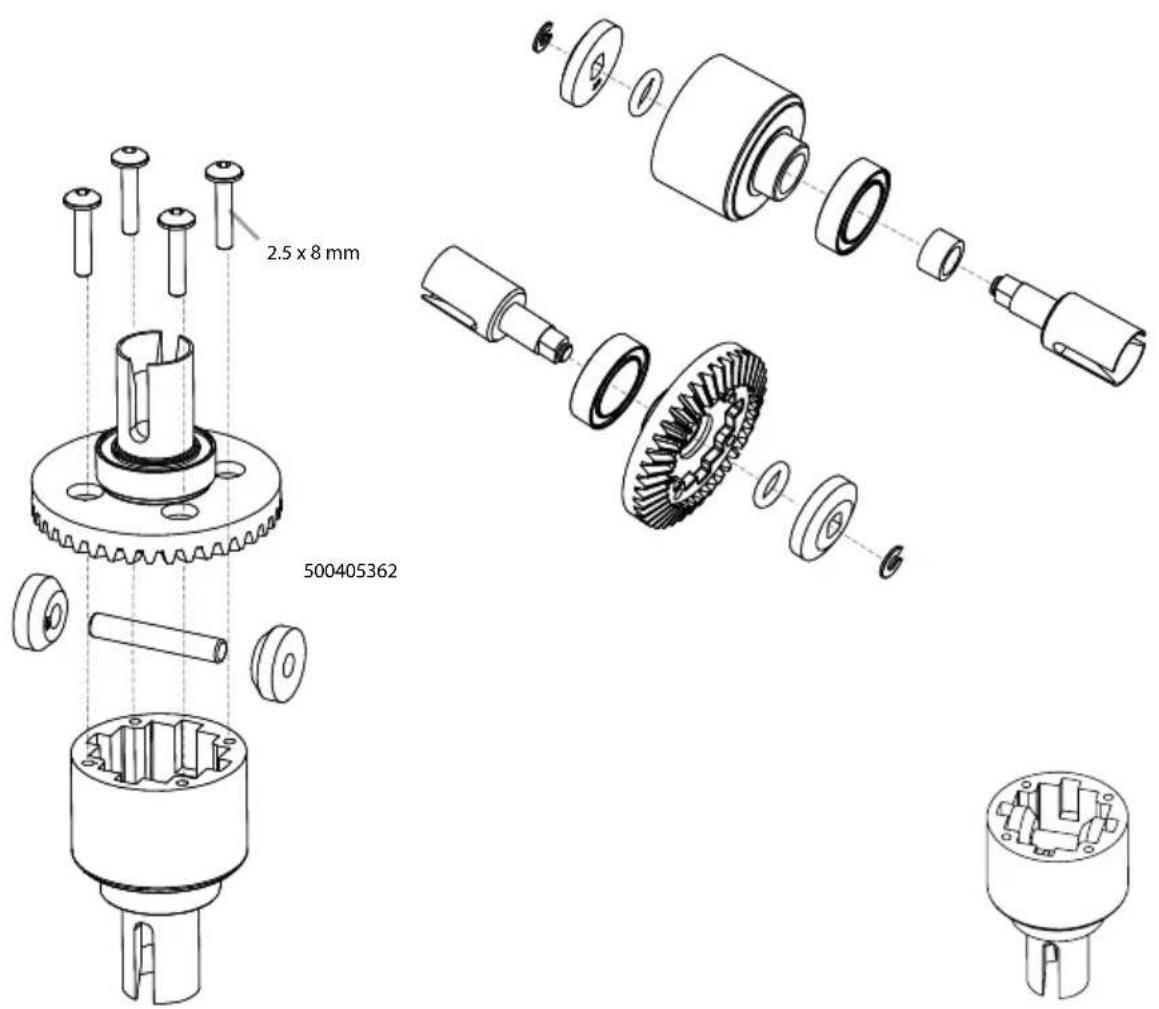

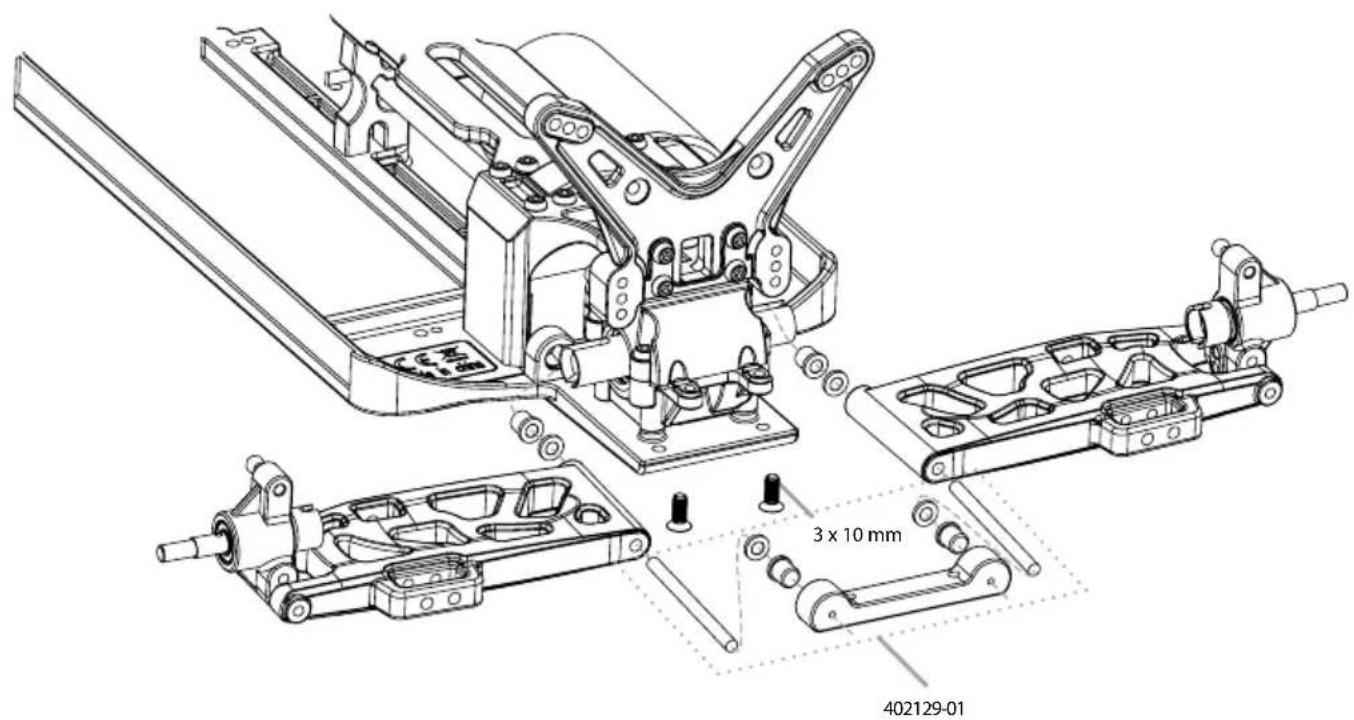

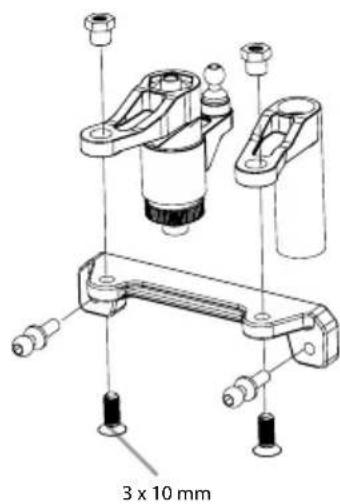

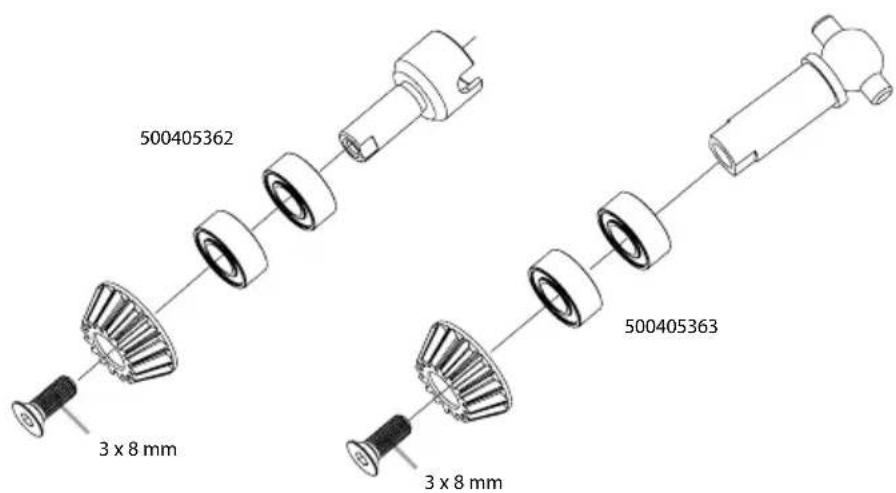

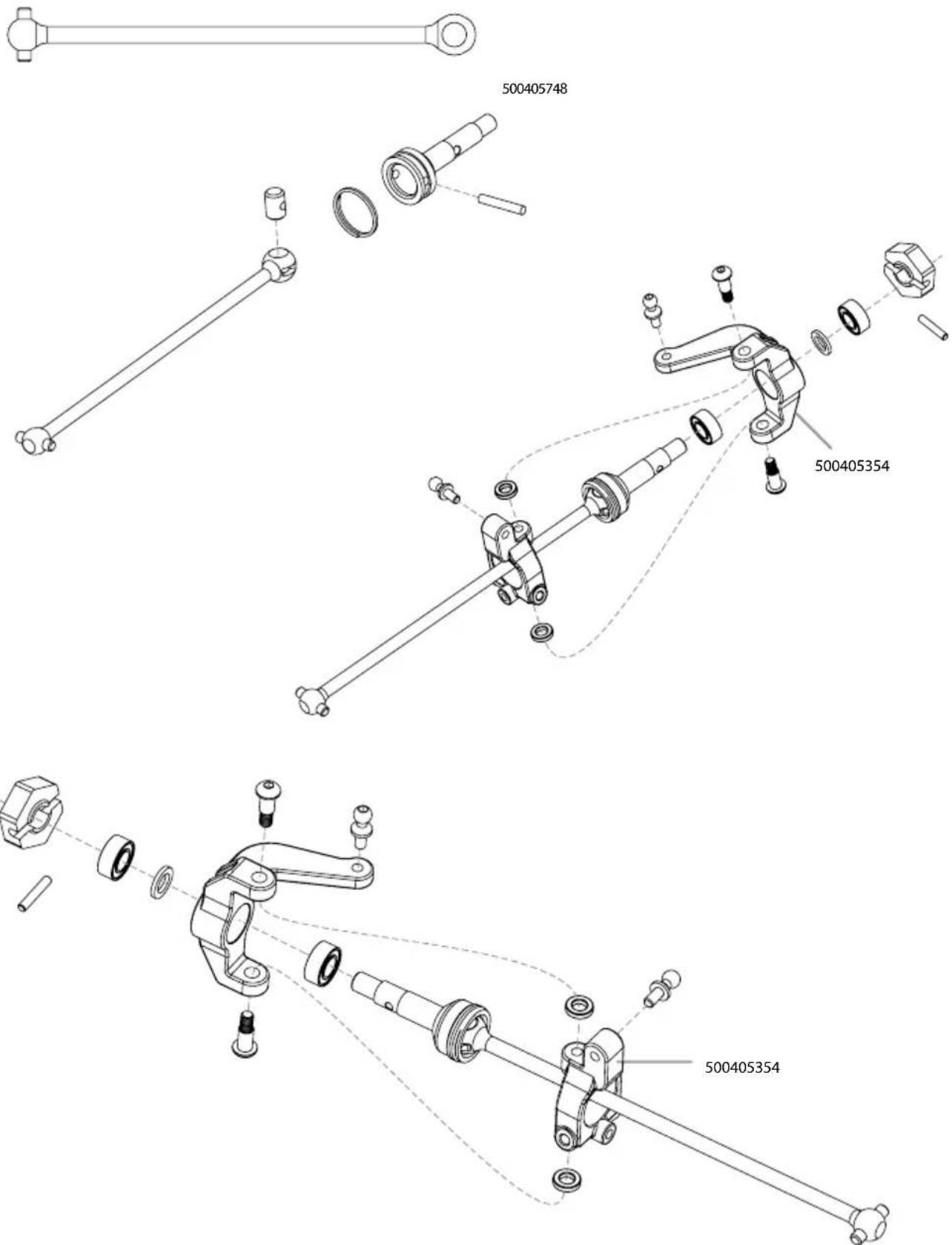

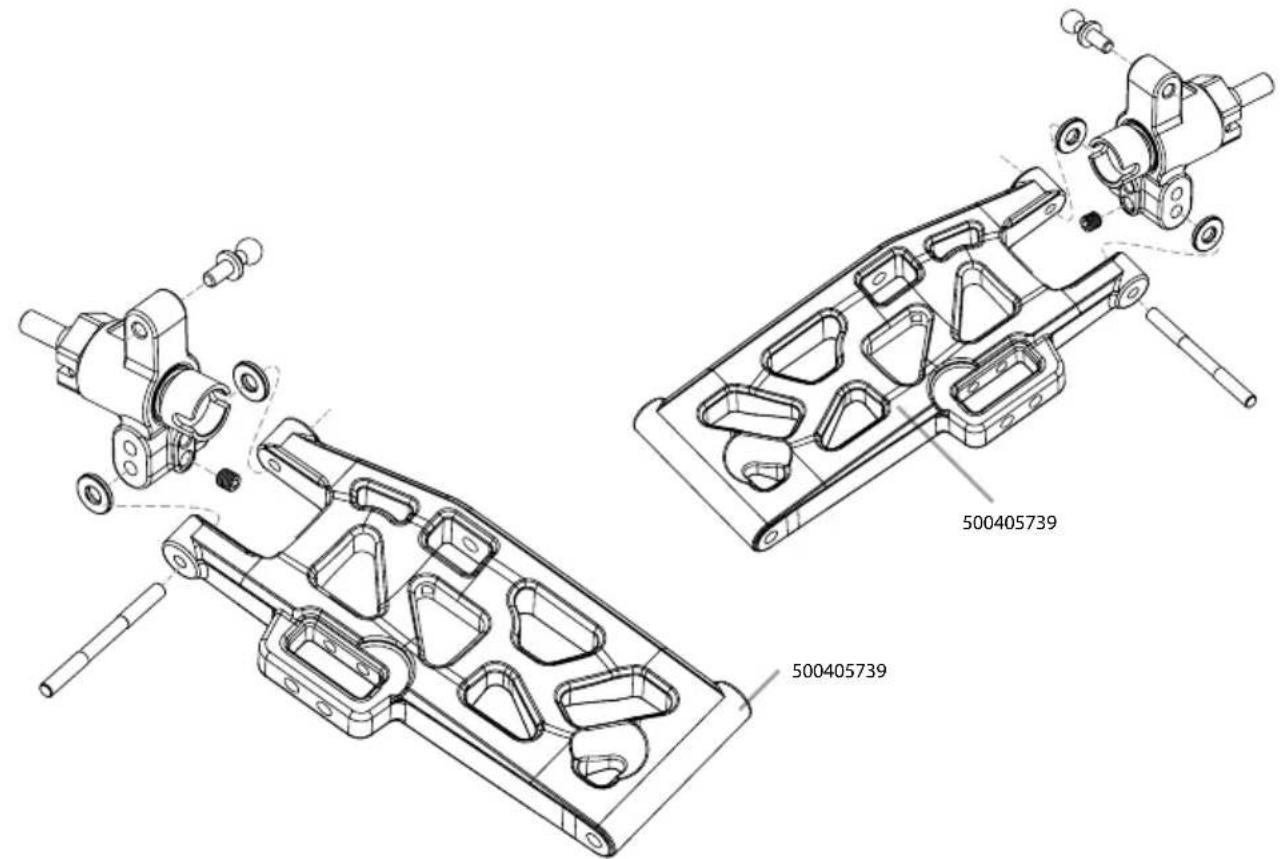

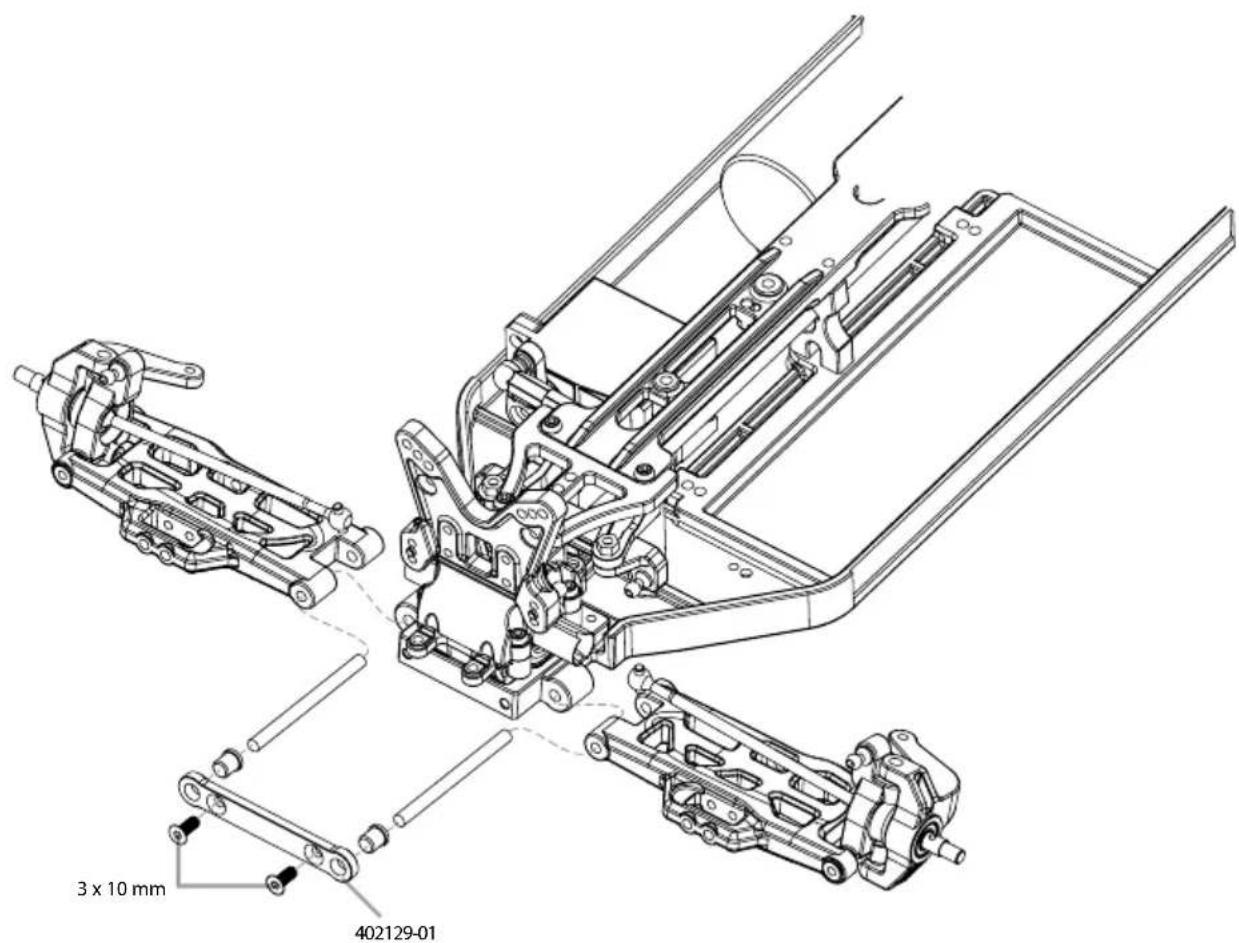

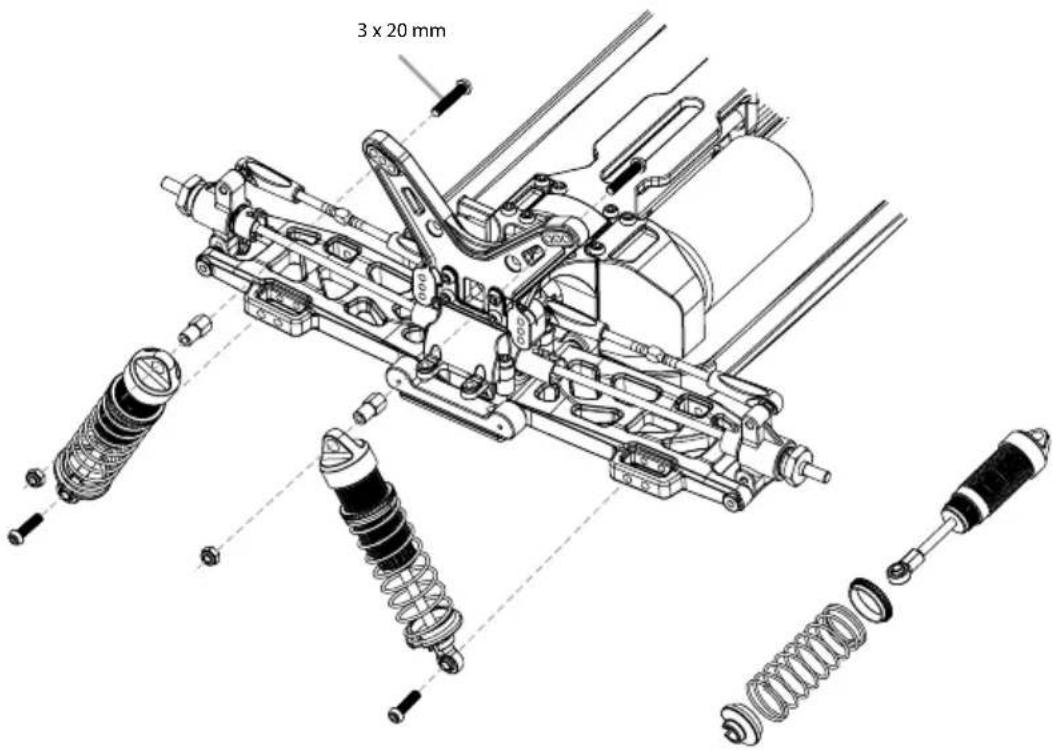

Assembly instructions 31

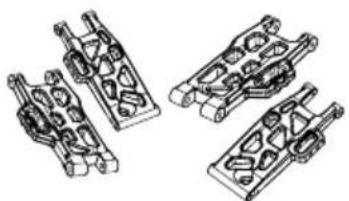

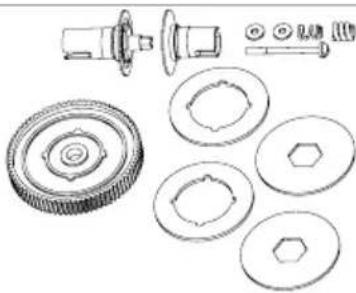

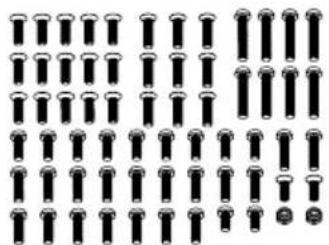

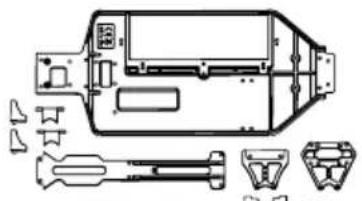

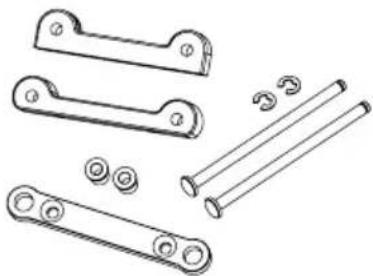

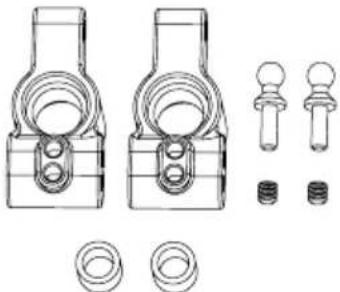

Spare Parts 51

SCOPE OF DELIVERY

1. RC model
2. Remote Control

3. Li-lon battery 7.4 V

4. 1.5V AA (LR06) transmitter batteries

5. USB charger
6. Manual

TECHNICAL DATA

• Model with 2.4 GHz RC system (max. transmitter power 10mW )
  Transmitter operating voltage: 4.8-6 V
  Vehicle operating voltage: 7.4 V

Function:

• Move forwards/backwards/brake
• Steering left/right
  Dual rate function: ride/steering

SAFETY PRECAUTIONS

Safety Instructions and Intended Use

This product is designed exclusively for hobby use and may only be used on tracks and areas intended for this purpose.

No persons or animals may be transported with this model.

To avoid operator errors, it is mandatory that the user manual is read before use!

These models may only be used with bodywork that is correctly fitted.

When removing the bodywork, please note that, during operation, certain parts can become very hot.

Please note that various models can generate very high noise levels and should, therefore, not be operated in your immediate proximity.

Please make sure, before every driving session, that the tank is correctly closed or the power pack is correctly inserted.

To avoid faulty operation of the control system causing the model to run out of control, it must be checked that the transmitter and model batteries are in good condition.

It is essential to check that the model is correctly assembled both before and after use; if need be, tighten nuts and bolts.

This model is not a toy!

• This product is not a toy, its operation must be learned step by step.
• Children under 14 years of age should operate the model only if supervised by an adult.

Operating RC models is a fascinating hobby that, however, must only be exercised with proper precautions and care. Since the weight of this model is considerable and it can reach a very high speed it can, if it runs out of control, cause significant damage and injury for which you, as the operator, are liable.

Only a correctly assembled model will work and react as expected.

Never improvise with unsuitable materials but, when the need arises, use only original spare parts. Even if the model is pre-assembled, all joints and fastenings should be checked for correct seating and tightness.

Before use, you must make sure of the following points:

• All rechargeable batteries must be fully charged.
  Before starting, check the radio range.
• Check that the model reacts correctly to the control signals.
• All functional parts of the product are in a faultless condition and have been checked.
• All screw fastenings are firmly seated.
• Do not drive under high-voltage power lines or radio masts or with nearby thunderstorms!
• Atmospheric interference can influence the operation of your model.
• The electrical parts of the model are not water-tight. Do not, therefore, drive it in rain or snow or through puddles or wet grass.
• The remote controlled model may be driven only on suitable areas and must not be used on the public highway.
• Do not use near people or animals!
• Do not use it when tired or if your reactions are otherwise impaired.
  Always maintain direct visual contact with your model.
• Regular maintenance and care are required for firt class driving performance.
• The model has parts that become hot in operation, e.g. the top of the motor, the metal gearbox, amongst many others. Touching these parts during operation can cause injury.

Pay attention to the charge level indication on your transmitter.

• With power packs or batteries that are half discharged, you can lose control of the model.
• In the transmitter, never mix fully charged batteries, rechargeable or not, with half discharged batteries or rechargeable batteries of different capacity.
• Never try to charge non-rechargeable batteries (dry cells), only batteries specified as rechargeable can be charged.

SAFETY PRECAUTIONS LITHIUM BATTERIES

1. General

Lithium batteries (accumulators) are energy storage devices with a high energy density and can present risks. For this reason, particular care is needed when charging, discharging, storing and handling.

Read these instructions very carefully before first using the battery. Do not fail to take note of the warning notices and instructions for use.

Misuse can lead to risks such as explosion, overheating or fire.

Failure to observe the instructions for use leads to early failure and other defects.

The instructions should therefore be kept in a safe place and it is essential that they are handed over to the second user if the batteries are passed on.

2. Warning notices

• Avoid short-circuits. A short-circuit may well destroy the product. Cables and connections must be well insulated.
  It is essential when connecting the battery to ensure that the polarity is correct.
• Original plug connectors and cables may not be cut off or changed - if need be, use an adapter cable.
• Do not expose the battery to excessive heat or cold or to direct sunlight. Do not throw in the fire. Do not place the battery in contact with water or other liquids.
• Charge the battery only with charging units intended for the purpose and always use the balancer connection. It is only by using the balancer connection that optimum charging can be ensured. If this connection is not used, charging is subject to the risks mentioned above. Before charging, always first allow the battery to cool to ambient temperature. Never charge while hot.
• When charging, place the battery on a non-flammable, heat-resistant support. There should be no flammable or readily ignited objects in the vicinity of the battery.
• During charging or operation, never leave the battery unsupervised.
• Do not fail to keep to the recommended charge/discharge current.
• The battery casing must not be damaged. It is essential to avoid damage by sharp objects such as knives or the like, from dropping, impact, bending etc. Damaged batteries may no longer be used.
• Batteries are not toys. They should be kept away from children.

3. Charging instructions

Lithium batteries are charged according to the CC-CV procedure. CC stands for "constant current", which is applied during the first

phase of charging. Once the battery reaches the maximum voltage configured in the charger, it switches to CV (constant voltage) for the second phase of charging. The battery voltage no longer increases. The charging current now falls continuously until the battery is fully charged. The maximum charging current for the battery is 1C (C=nominal capacity of the battery, e.g. for a battery with a nominal capacity of 2700mA , the maximum charging current for the battery is 2700mA (2.7 A)). Never charge several batteries together from a single charger. Differing states of charge and capacities can lead to overcharging and destruction.

4. Storage instructions

Lithium batteries should be stored charged to 20 - 50% of their capacity and at a temperature of 15 - 18^. If the cell voltage falls below 3V, they should be recharged. Deep discharge and storage when discharged (call voltage < 3V) will render the battery unusable.

5. General terms of guarantee

There is a legal guarantee for production and material faults as applicable at the time of dispatch. No liability is accepted for normal wear and tear. This guarantee does not apply for defects attributable to improper use, inadequate maintenance, third-party interference or mechanical damage. This applies, in particular, to used batteries and batteries clearly showing signs of use.

Damage and loss of performance due to improper handling and/ or overload are not product faults. Batteries are consumables and subject to a certain ageing. This is influenced by factors such as the charge/discharge currents, the charging procedure, the operating and storage temperatures and the state of charge during storage. The ageing shows itself in, among other things, an irreversible loss of capacity. In the model field, where batteries are frequently used to supply motors, very high currents can flow from time to time.

6. Exclusion of liability

Since we are unable to have any control over charge/discharge, handling, compliance with assembly and operating instructions, battery replacement and its care and maintenance, Tamiya / Carson can accept no liability for loss, damage or costs incurred.

Any claim for damages that may result from operation, failure or faulty operation or that is in any way related thereto will therefore be refused. We accept no liability for personal injury or material damage and their consequences that arise from our delivery.

7.Disposal instructions

Batteries are hazardous waste. Damaged or unusable cells must be disposed of in the correct manner.

No liability for printing errors, we reserve the right to make changes!

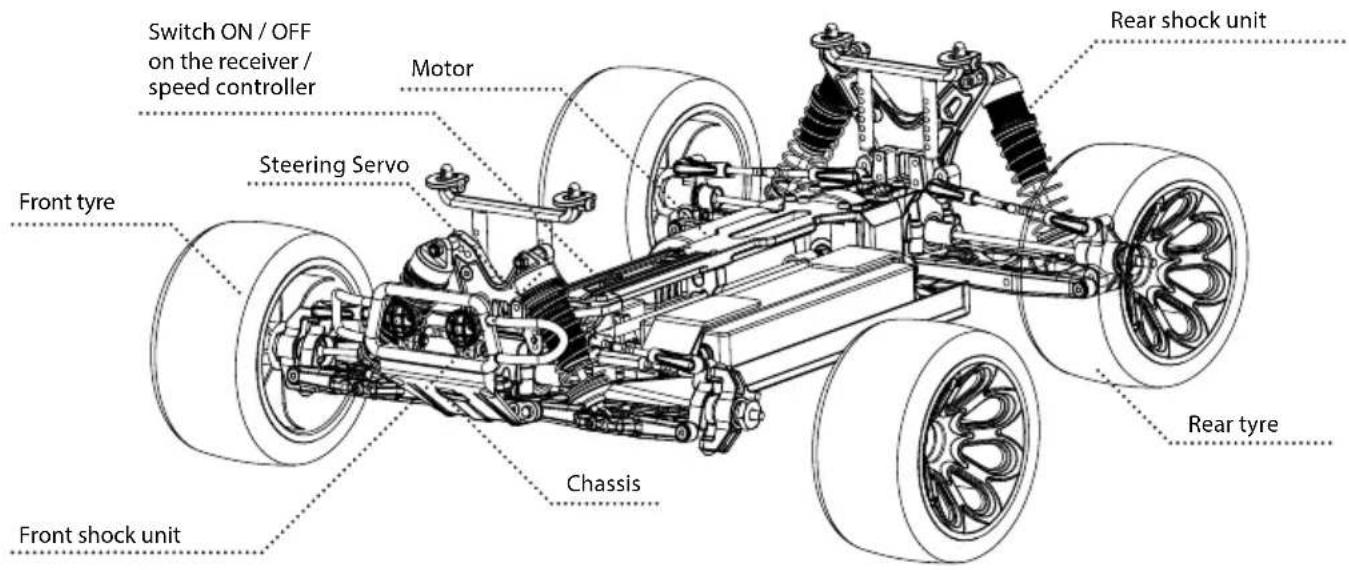

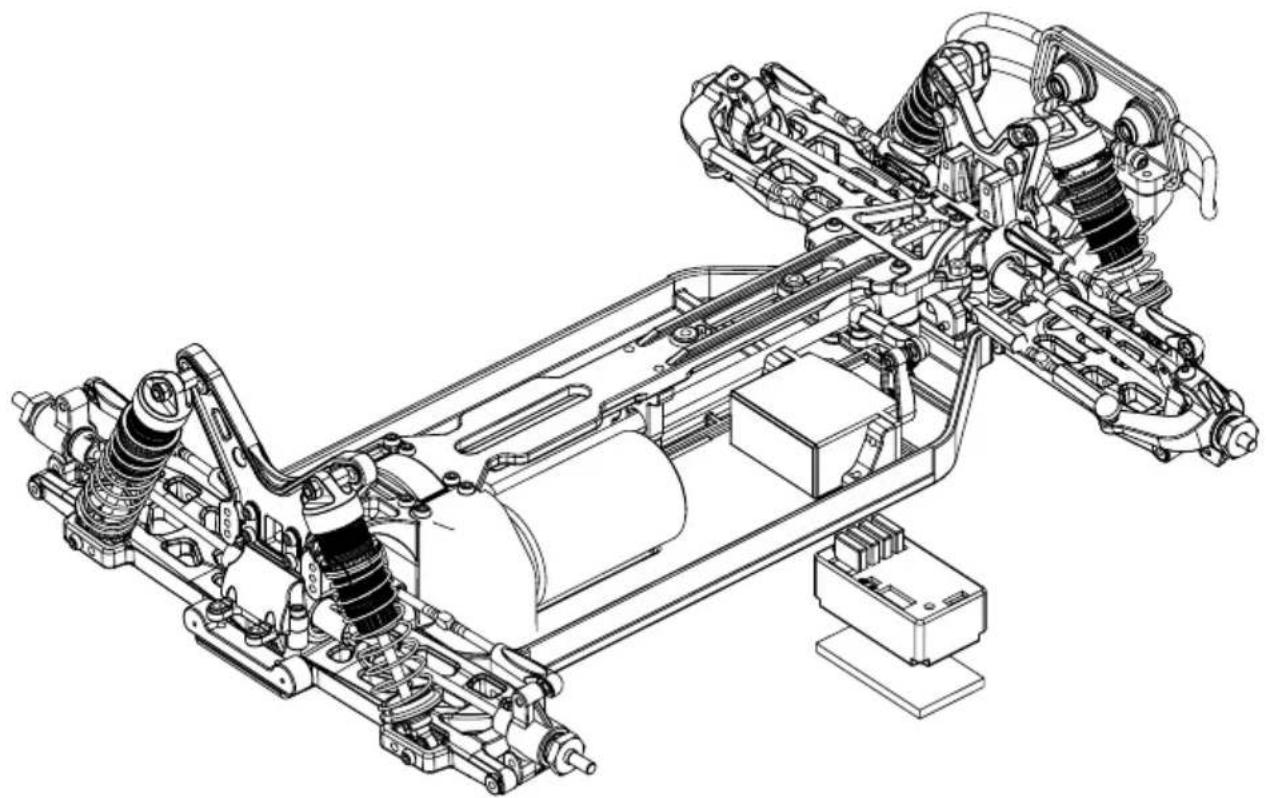

CHASSIS

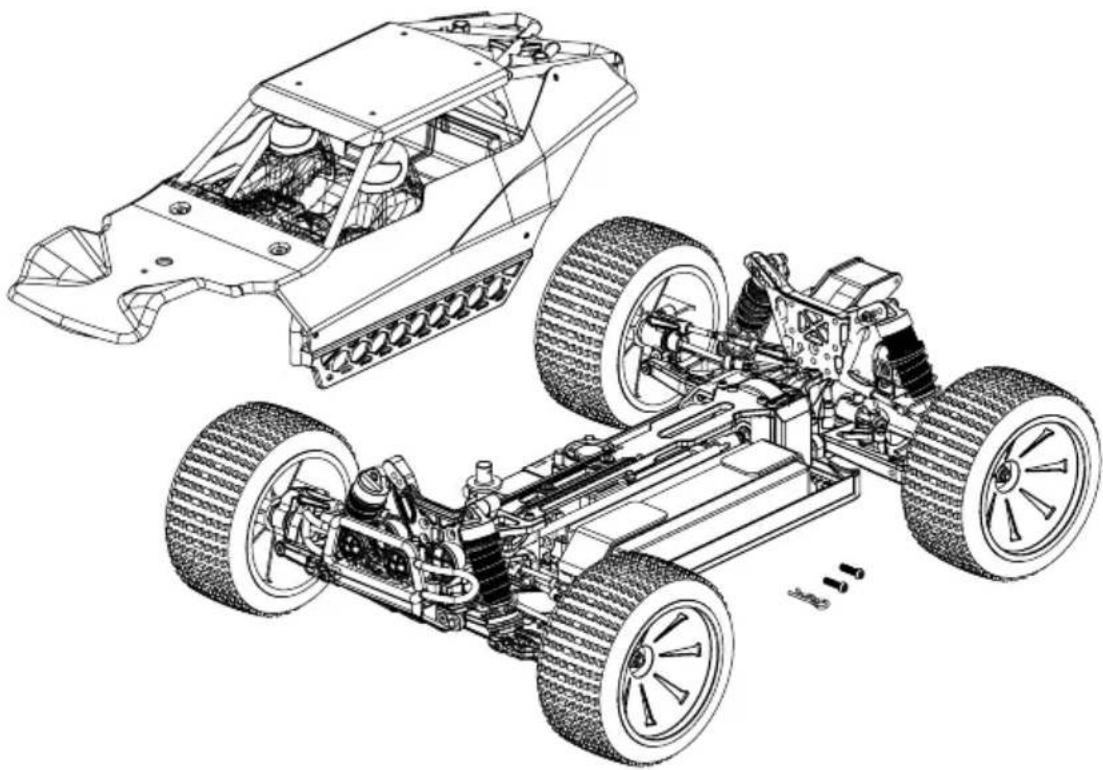

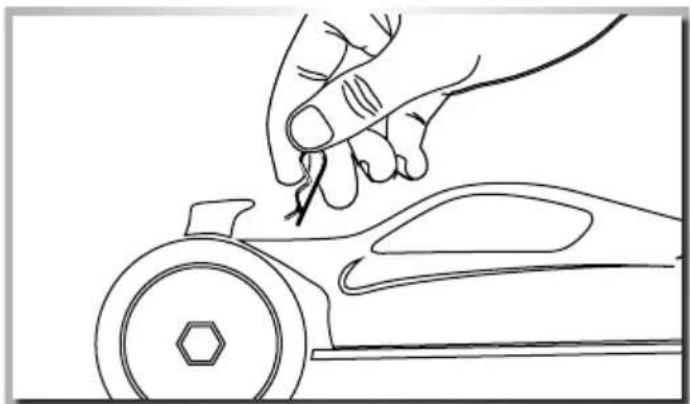

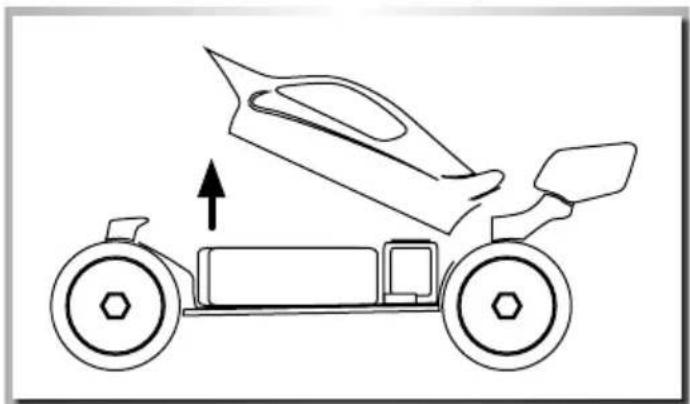

REMOVING THE BODY

• Remove hook pin (1) and - Take body off.

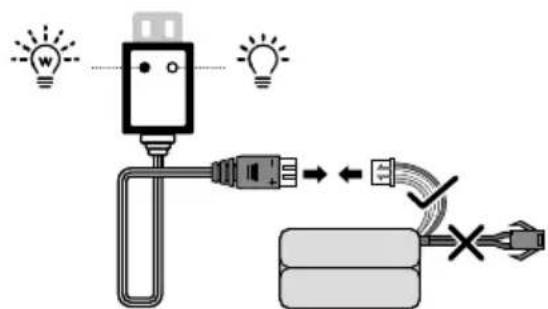

CHARGE BATTERY PACK

LiPo 7.4 V 1700 mAh

2h LED green LED red

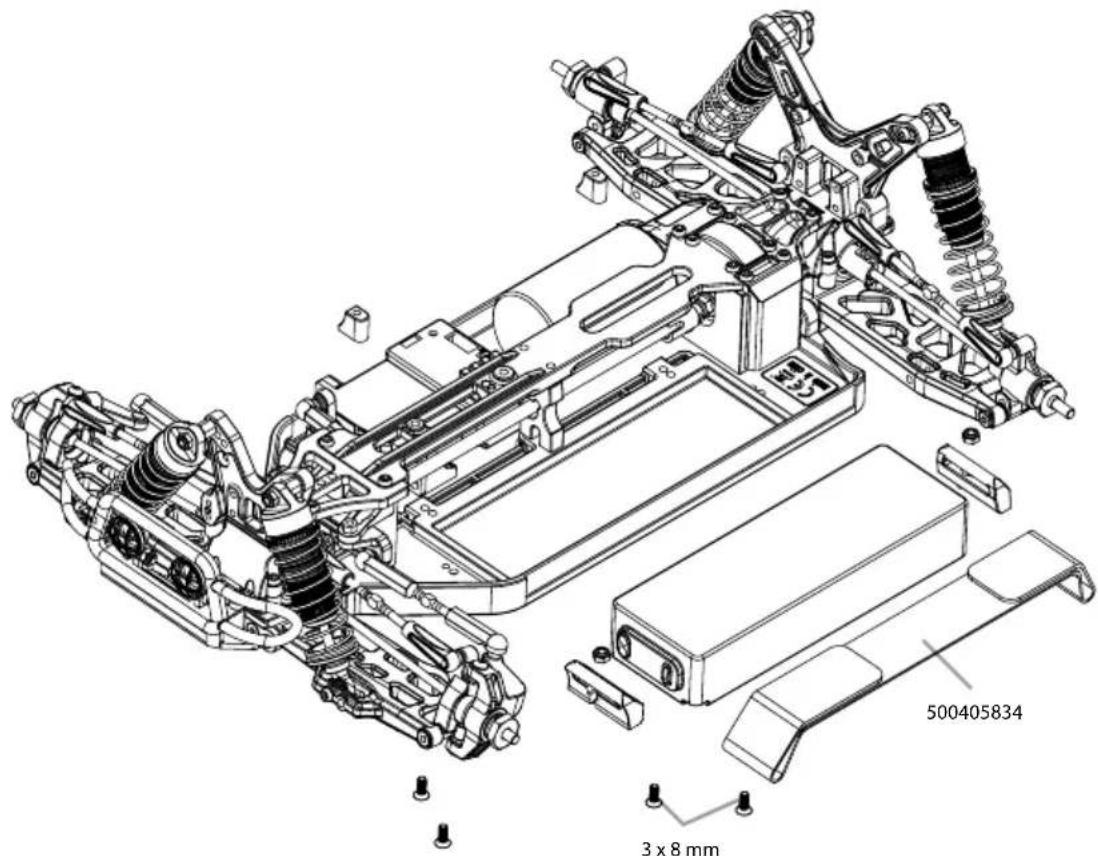

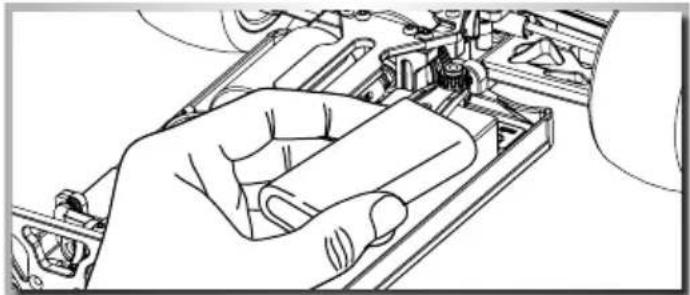

INSERTING THE DRIVE BATTERIES

1 Insert the batteries
2 Put the battery plate on it and
3 Fix it with the battery holder

Advice

• Non-rechargeable batteries are not to be recharged.
• Rechargeable batteries are to be removed from the toy before being charged.
• Rechargeable batteries are only to be charged under adult supervision.
• Batteries are to be inserted with the correct polarity.
• Exhausted batteries are to be removed from the toy.

• The supply terminals are not to be short-circuited.
• Regular examination of transformer or battery charger for any damage to their cord, plug, enclosure and other parts.

YOUR TRANSMITTER

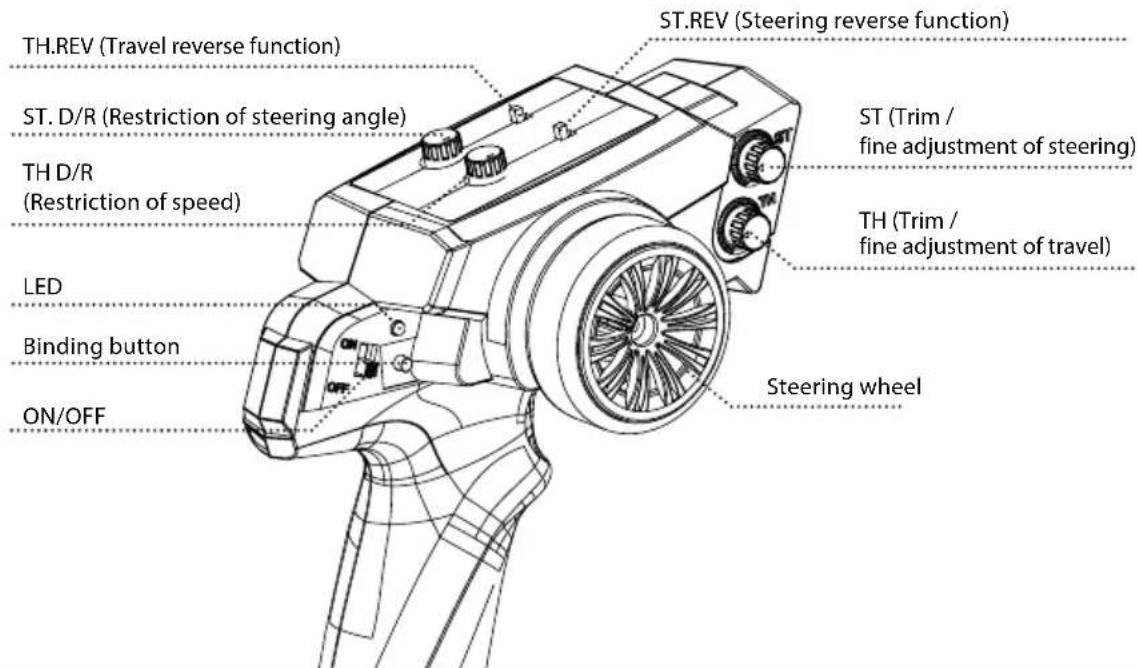

Transmitter overview

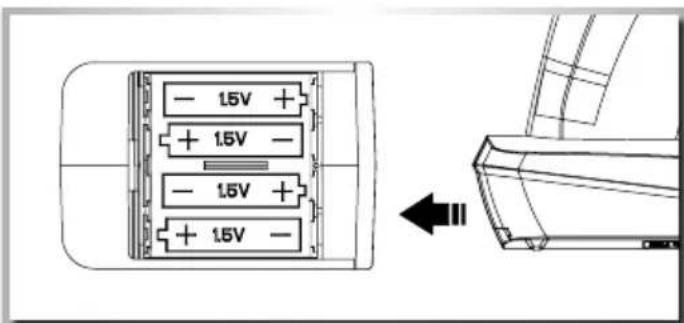

INSTALLING THE TRANSMITTER BATTERIES

1. Open the battery compartment lid on the underside of the transmitter.
2. Insert fully charged rechargeable batteries or new AA batteries observing the correct polarity. Close the cover on the battery compartment again. Ensure that the cover clicks properly into place. Check that it is in its correct position.

TURN ON THE RC SYSTEM

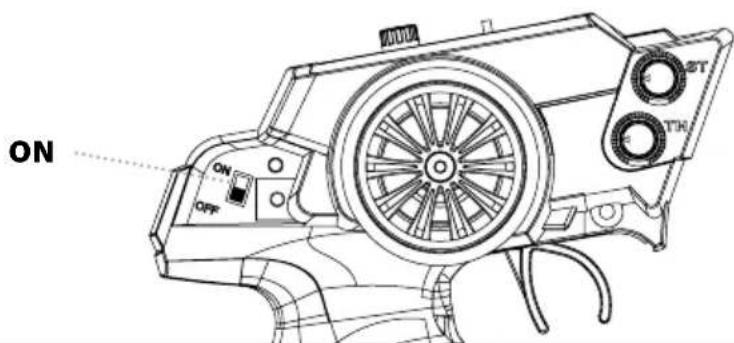

CAUTION!

Always turn the transmit - ter's power switch ON first!

Please change batteries when LED status flashes on transmitter!!!

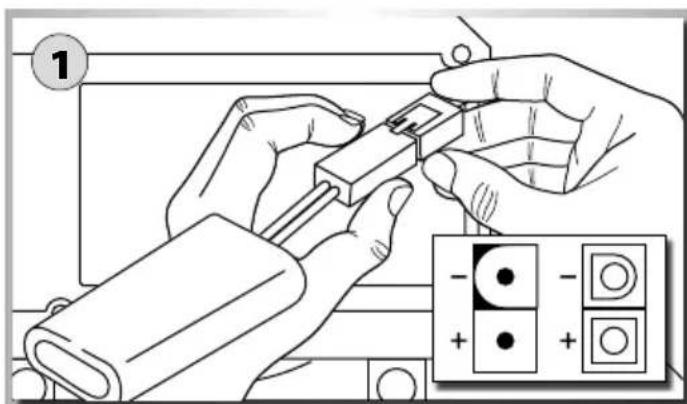

1 Connect the rechargeable battery for the driving.

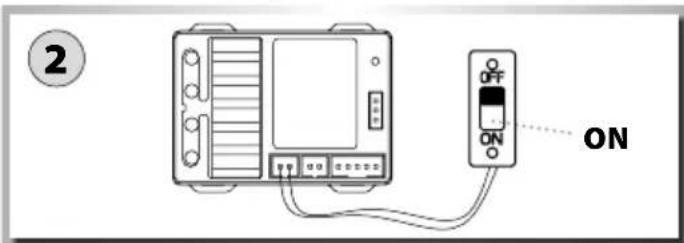

2 Switch on the receiver.
3 Put the body on and fix it with the body split pins.

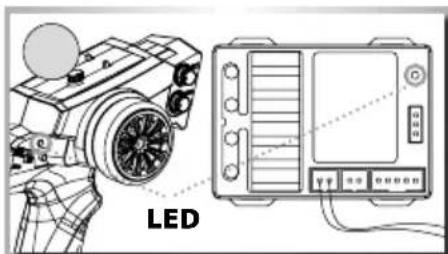

BINDING

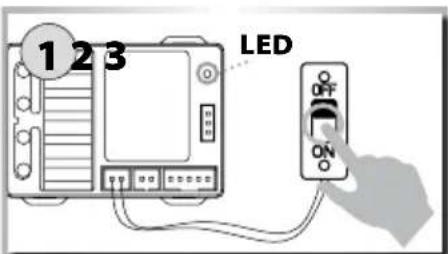

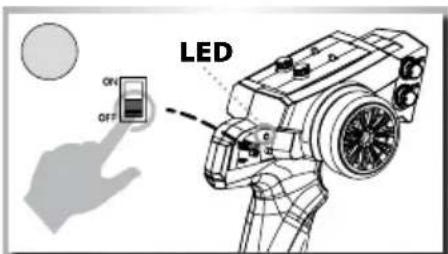

Connecting transmitter and receiver:

The vehicle is ready to drive when it leaves the factory. In normal circumstances, therefore, the binding function is not necessary!

The binding function should only be used if there are any connection problems between the vehicle and the transmitter or if the transmitter/receiver is replaced.

Switch on the receiver. The LED on the receiver then flashes rapidly!

Press and hold down the Binding button on the transmitter and then switch on the transmitter. The LED lights red.

The binding process is completed when the LED on the receiver is permanently and on the transmitter green illuminated.

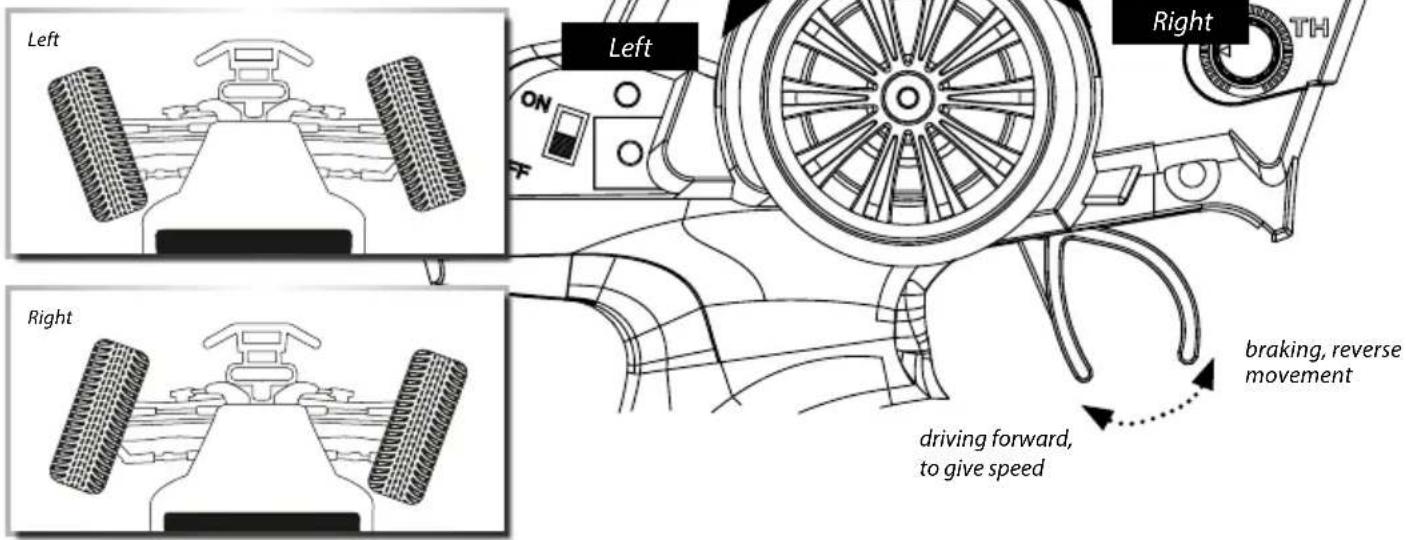

HOW TO CONTROL YOUR MODEL

• Raise the tyres off the ground
• Turn the steering wheel to the right and left as far as it will go. The wheels are to follow the steering direction.

• If the wheels operate in the opposite direction, operate the servo Reverse switch (ST in position REV).
  To regulate the driving speed, actuate the throttle/brake

• backwards (forward driving, accelerating) or

• forwards (braking, reversing)

TROUBLESHOOTING

Problem Cause Correction
Model doesn’t move Transmitter or chassis	power switch is not“ON”	Switch power on receiver or transmitter
	Polarity or battery type is wrong Check polarity and type of battery
	Batteries have run down Change batteries or charge them
Loss of control	Batteries have run down	Change batteries or charge them
	Antenna is missing or not attached properly Attach receiver antenna
Doesn’t run straight	Steering trim is not adjusted correctly	Make adjustment
	Front and rear wheel nuts are too lose Tighten wheel nuts
Doesn’t stop	Throttle trim is not adjusted correctly	Make adjustment
Doesn’t reverse	Throttle trim is not adjusted correctly	Make adjustment
	Wrong action	Control properly
Running too slowly	Batteries have run down	Change batteries or charge them
	Motor has lost power	Change to spare motor
	Rear wheel nuts are too lose	Tighten wheel nuts
	Dust or foreign objects are inside gears	Turn the power switch “OFF” and clean out gears

Cher client

Tenga cuidado cuando retire la carrocería, ya que algunos piezasSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEQ

Here is the manual for the slipper-clutch device that offers both traction control and protection for the transmission. The slipper is primarily used to help absorb sudden impacts on the drivetrain due to landing big jumps or driving in hard terrain. Additionally, it can be used to smooth out the flow of power to the wheels and limit wheel spin when running on extremely slick surfaces.

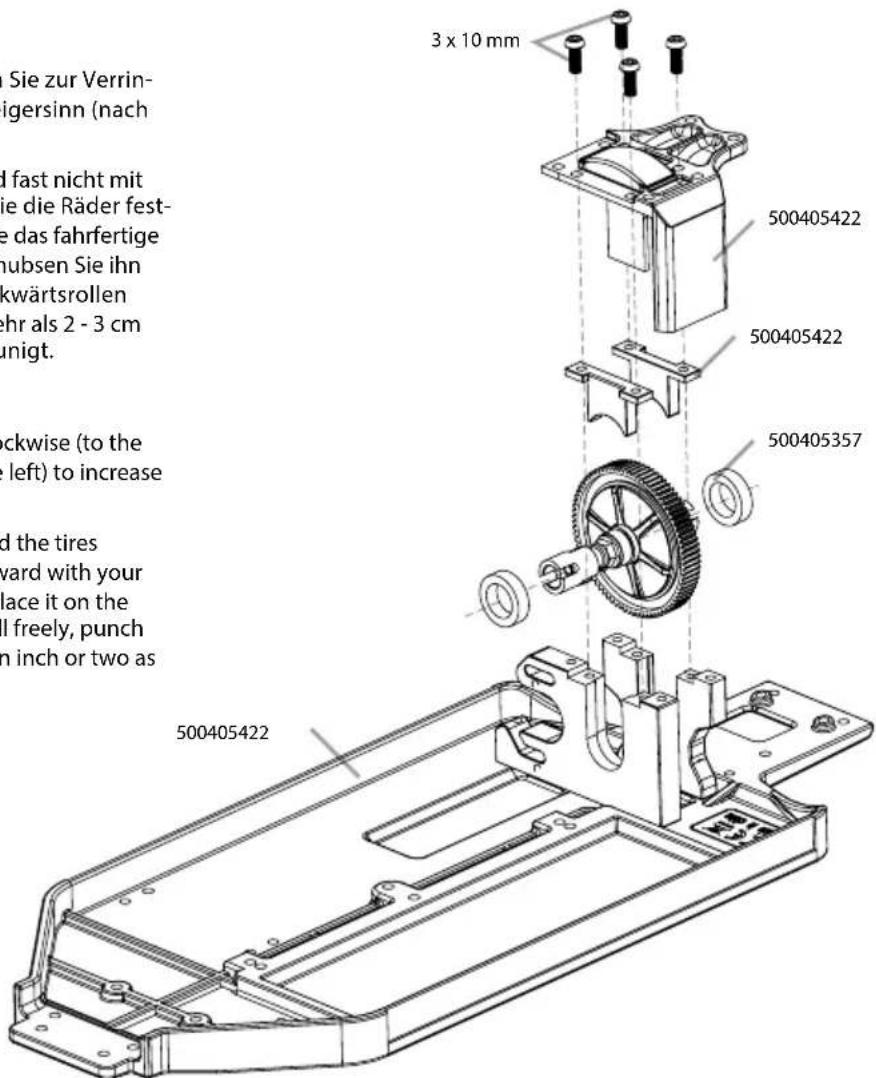

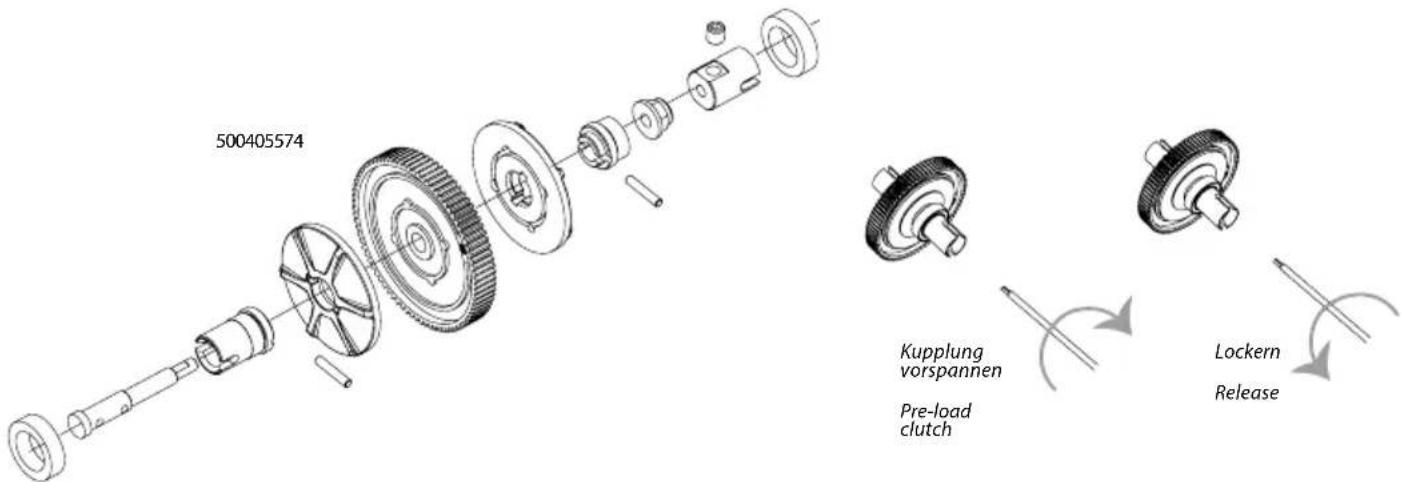

Slipper-clutch adjustments

Adjustments are made adjusting the slipper nut clockwise (to the right) to reduce the slip or counterclockwise (to the left) to increase the slip.

When adjusted properly, you should be able to hold the tires firmly and barely be able to push the spur gear forward with your thumb. To track test, switch the modelcar on and place it on the ground. As you push it backwards, allowing it to roll freely, punch the throttle. The slipper should slip no more than an inch or two as it accelerates.

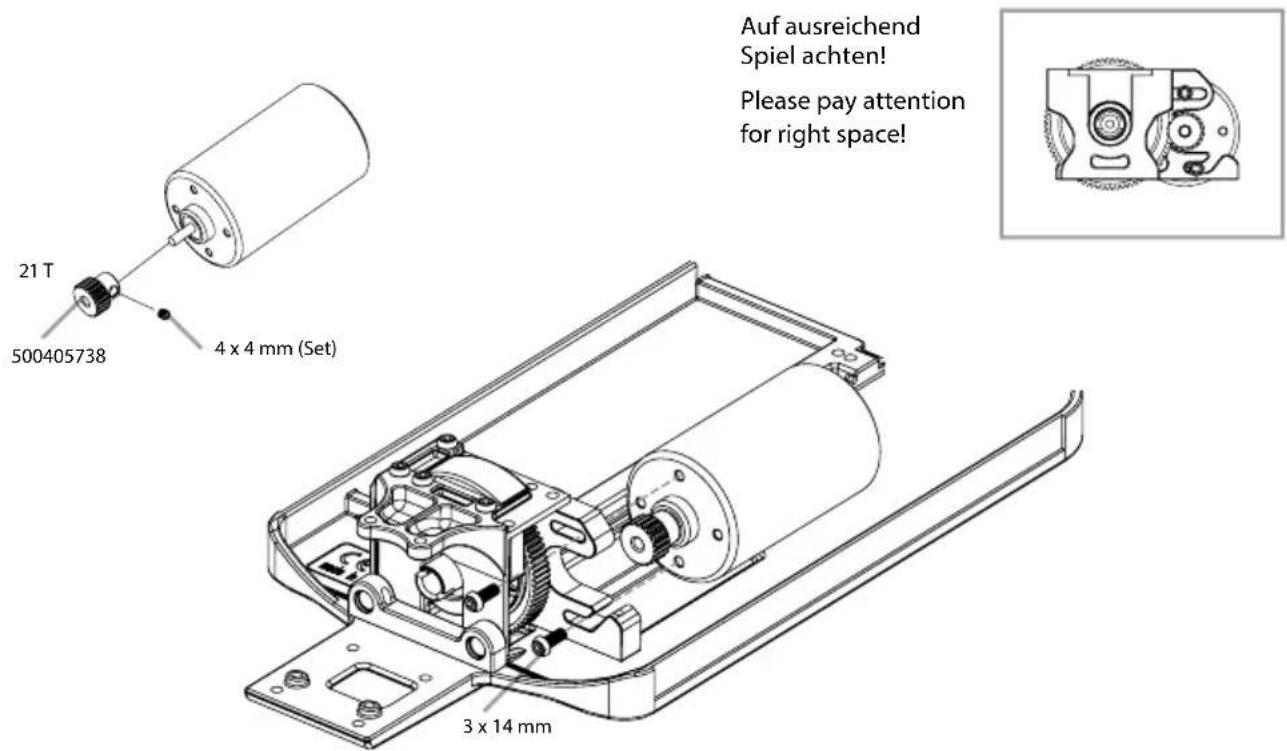

4. MONTAGE MOTOR·MOTOR ASSEMBLY

5. MONTAGE SERVO·SERVO ASSEMBLY

6. MONTAGE DIFFERENZIAL · DIFF ASSEMBLY

7. DAMPFERBRÜCKE HINTEN · REAR SUSPENSION MOUNT

8. MONTAGE ANTRIEB · DRIVE ASSEMBLY

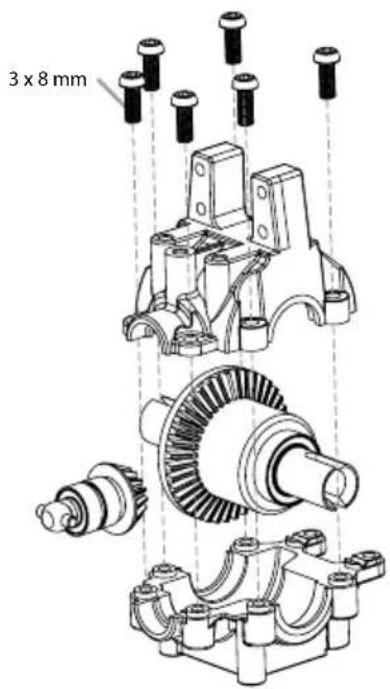

9. GETRIEBEBOX · GEAR HOUSING

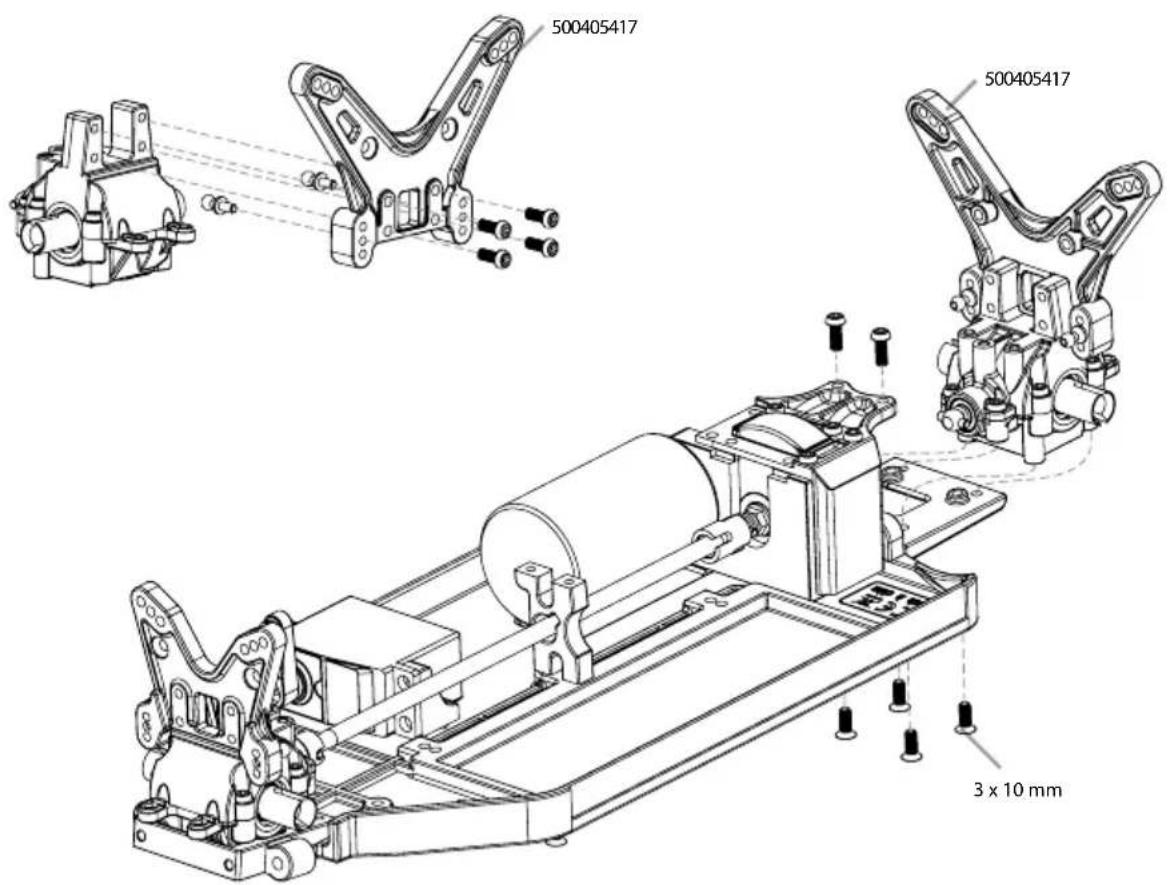

10. DÄMPFERBRÜCKEN · SUSPENSION MOUNTS

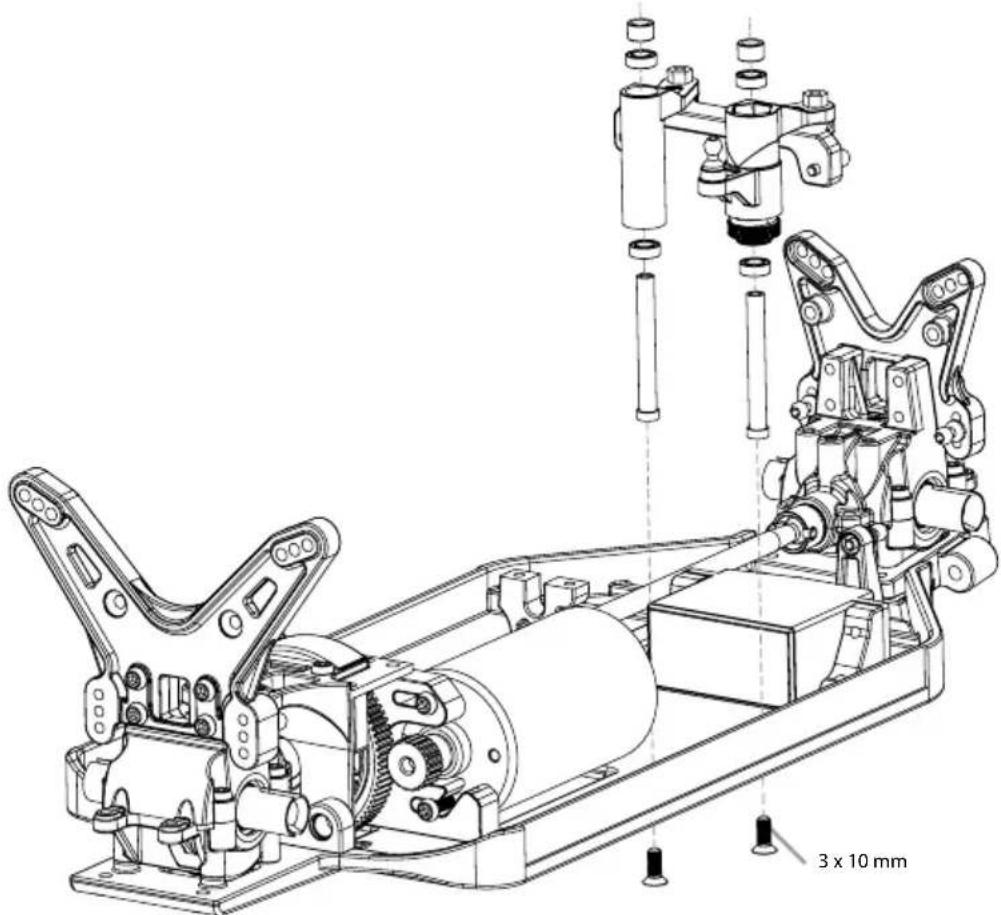

11. MONTAGE LENKUNG • STEERING ASSEMBLY

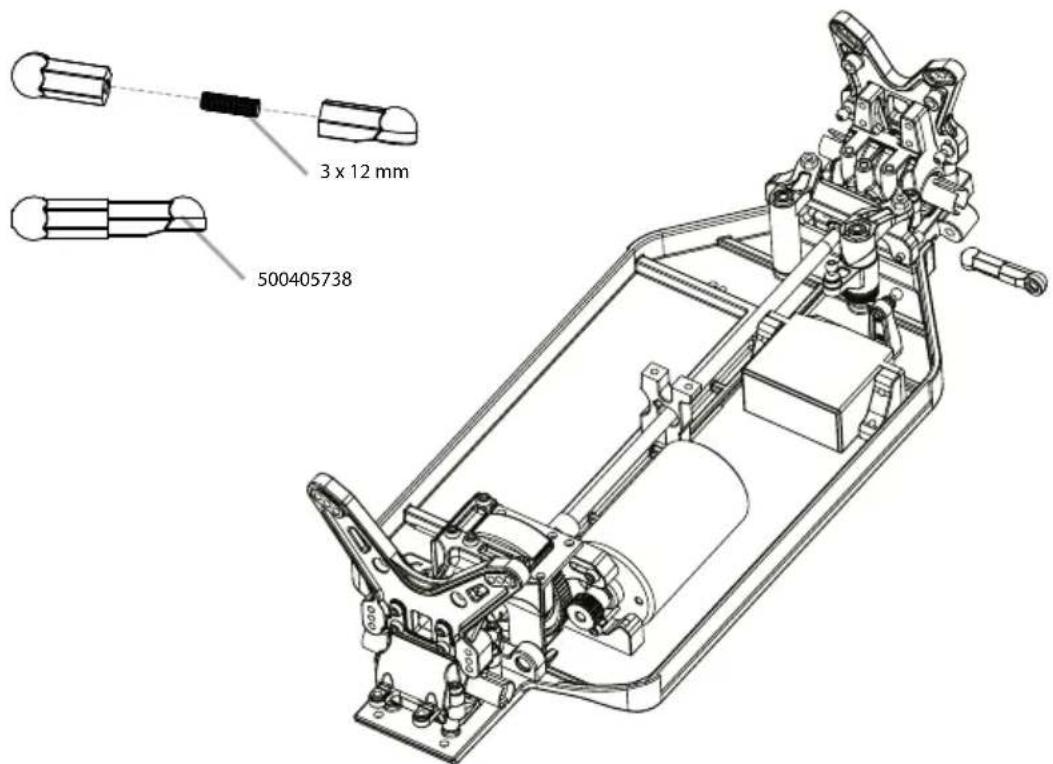

12. MONTAGE LENKUNG • STEERING ASSEMBLY

13. MONTAGE ANTRIEB VORNE · FRONT DRIVE ASSEMBLY

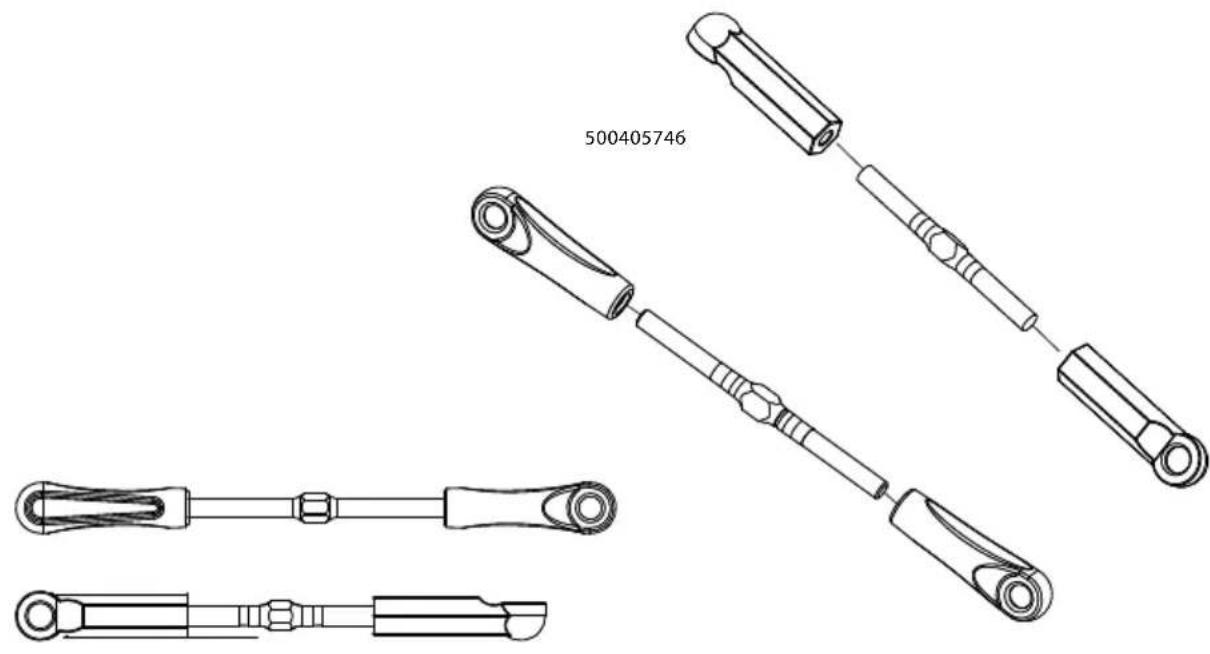

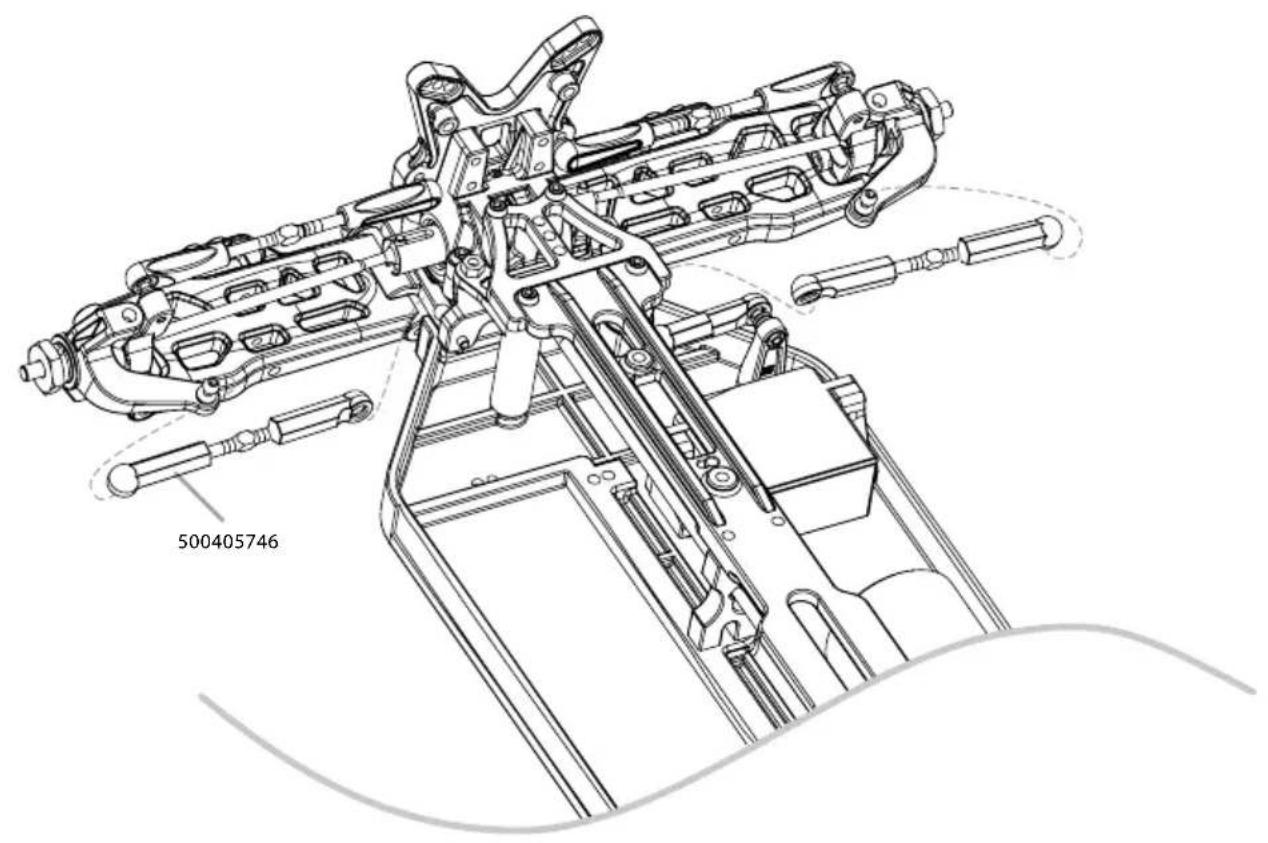

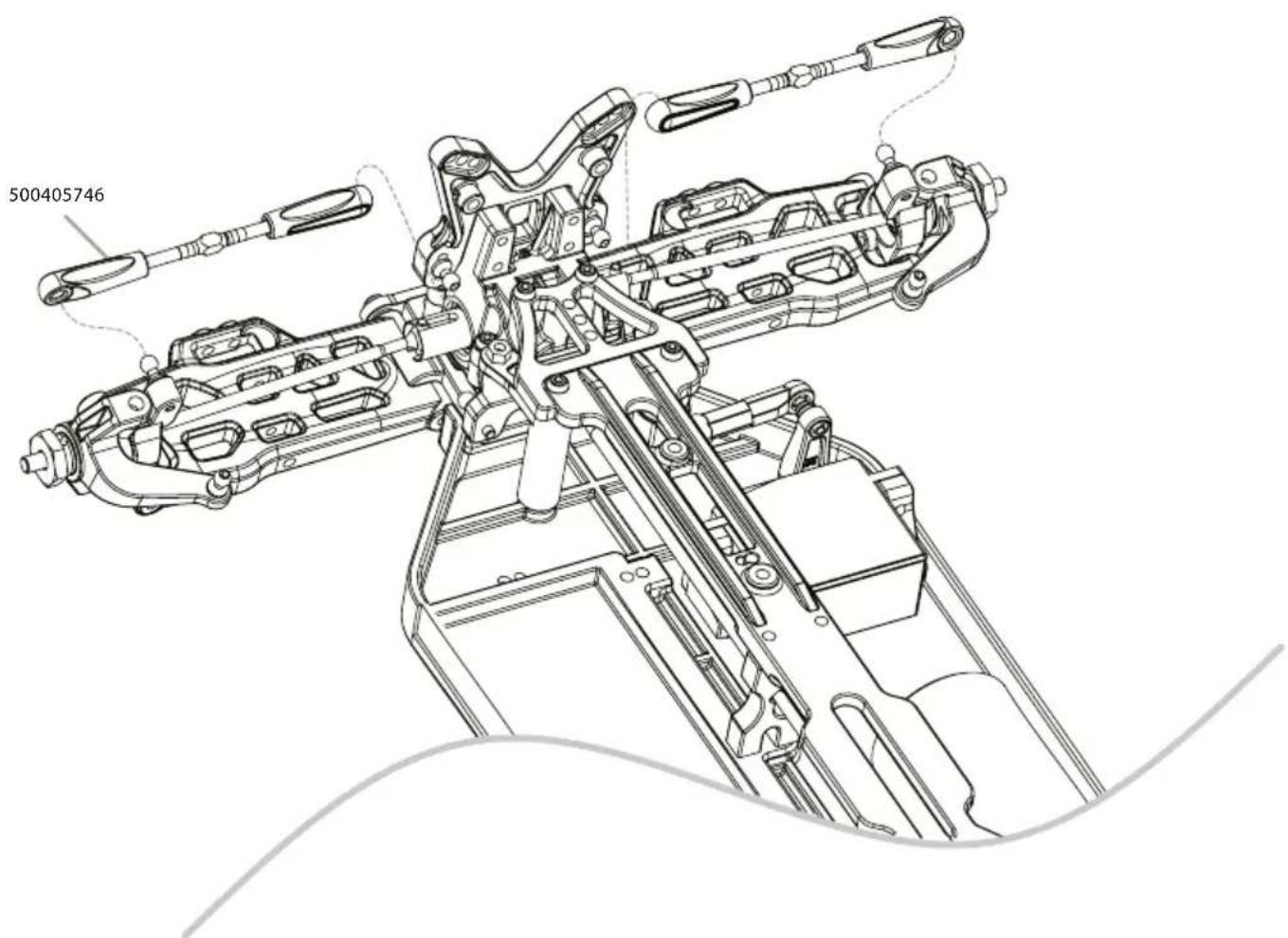

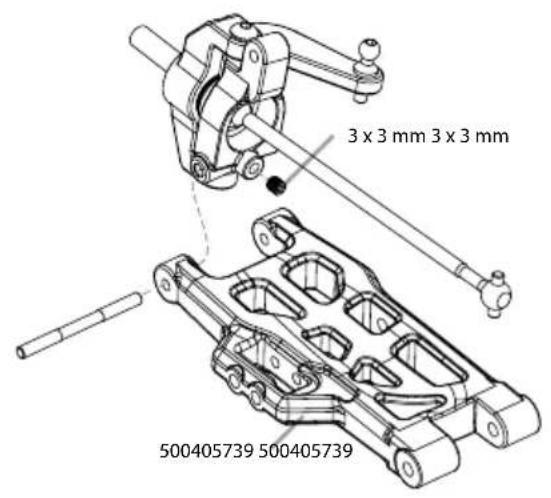

14. MONTAGE QUERLENKER · SUSPENSION ARMS ASSEMBLY

15. MONTAGE GESTÄNGE·TURNBUCKLE ASSEMBLY

16. MONTAGE LENKUNG • STEERING ASSEMBLY

17. QUERLENKER HINTEN · REAR SUSPENSION ARMS

18. MONTAGE ANTRIEBSKNOCHEN · DOGBONES ASSEMBLY

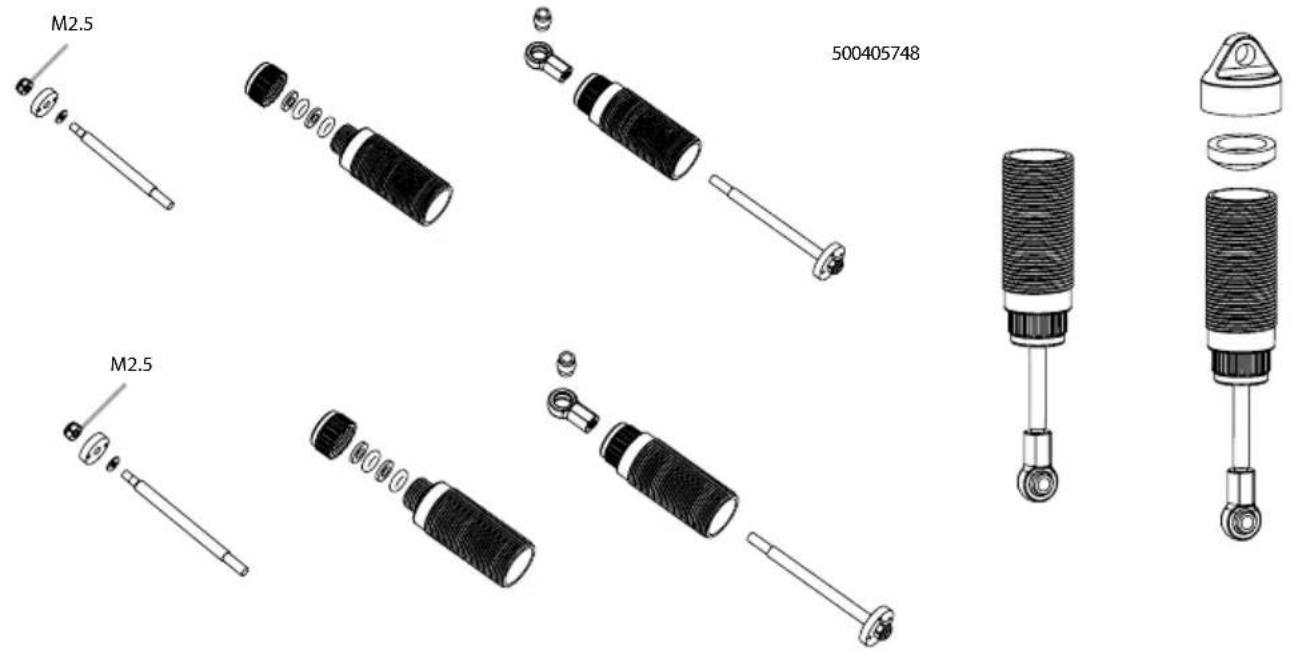

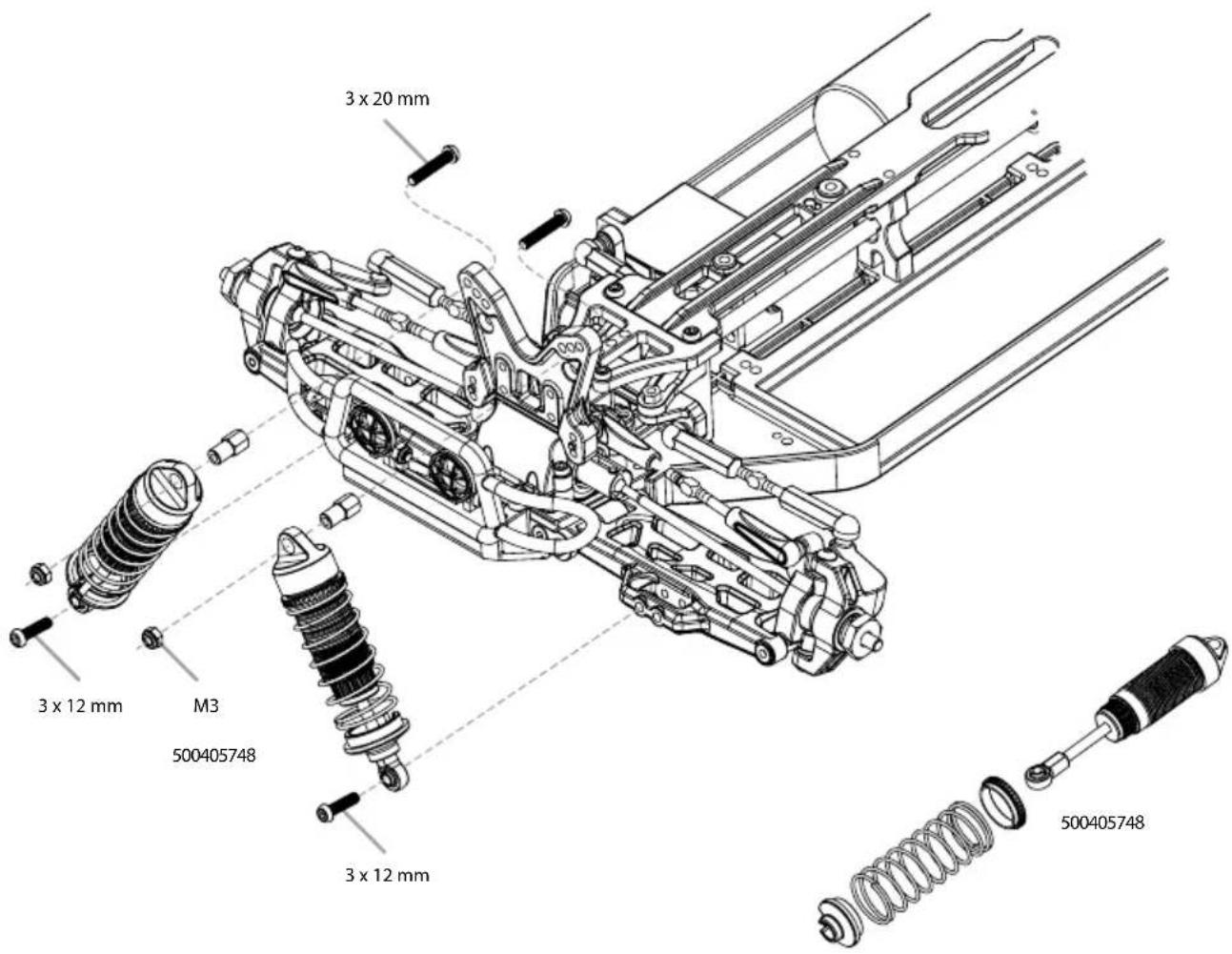

19. MONTAGE STABILISATOREN · SWAY BAR ASSEMBLY

20. MONTAGE STOSSDÄMPFER · SHOCK SET ASSEMBLY

21. MONTAGE STOSSDÄMPFER · SHOCK SET ASSEMBLY

22. MONTAGE RC-SYSTEM · ASSEMBLY RC SYSTEM

23. MONTAGE AKKUHALTER · BATTERY HOLDER ASSEMBLY

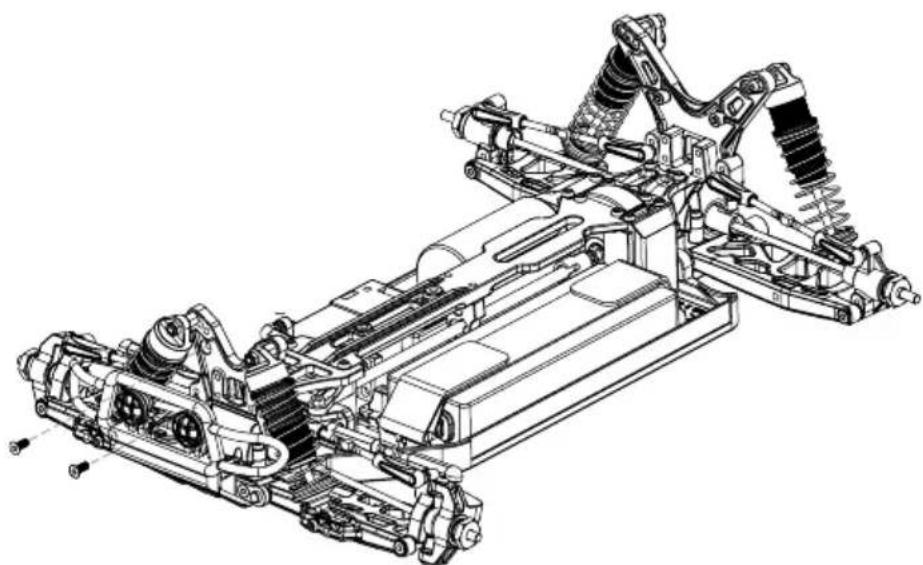

24. MONTAGE LICHT·LIGHT ASSEMBLY

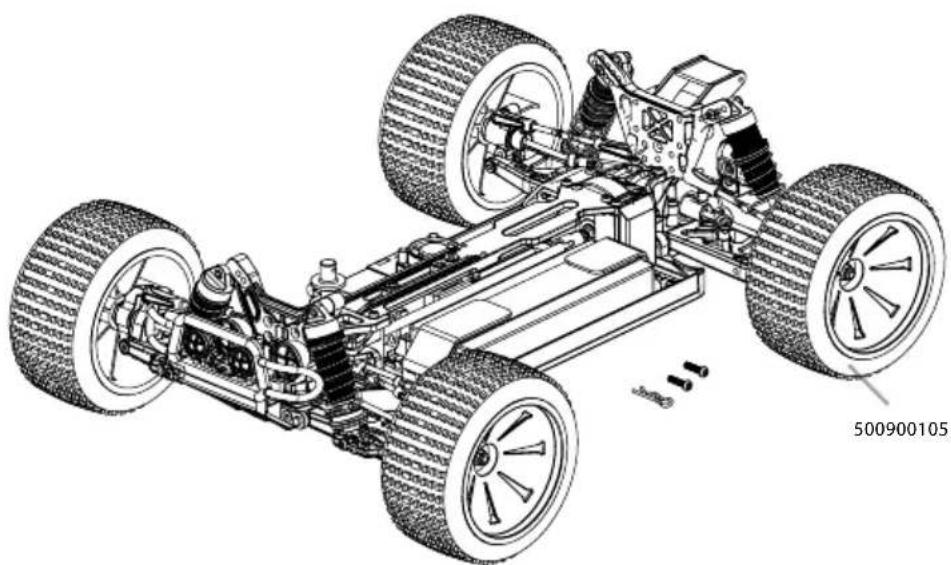

25. MONTAGE RÄDER·WHEEL ASSEMBLY

27. KAROSSERIE + SPOILER · BODY + WING

ERSATZTEILE·SPARE PARTS

500405567 Querlenkerhalter-Set v/h Suspension armholder set f/1

500405569 Motorhalter Engine mount

500405574 Rutschkupplung-Set + Zahnrad / Slipper clutch set + gear

500405350 Querlenker-/Achsschenkel-stifte v/h Suspension/c-hub pin f/r

500405357 Kugellager-Set Ball bearing set

500405362 Differenzial vorne kompletT Diff complete front

500405352 2x Achsschenkel-Set hinten 2x Rear hub set

Shock tower / gear box set

书

500405421 Schrauben-Set, X10EB

Screw set "X10EB"

Chassis plates replacement set

中

2x Rear dogbone + drive cup

500405738 Motorritzel 21 Z

Pinion gear 21 T

500405739 Querlenker Set

Suspension arm

500405746 7x Gestange-Set

7x Full turnbuckle set

Suspension armholder

NOTIZEN / NOTES
