Product type	All-terrain remote control car
Brand	Carson
Model	Mountain Warrior Sport 2.0
Category	Model making / RC modeling
Dimensions (approx.)	450 x 300 x 200 mm
Weight (approx.)	2.5 kg
Model power supply	Lithium (LiPo) battery 7.4 V (not included)
Transmitter power supply	4 AA batteries (not included)
Motor type	Electric motor (brushed or brushless depending on version)
Radio range	Approximately 100 m (depending on conditions)
Main functions	Forward/reverse, left/right steering
Max speed (approx.)	30 km/h
Maintenance and cleaning	Check screws and nuts before/after use; clean with a dry cloth; do not use water
Safety	Read safety instructions carefully; do not use in rain; keep out of reach of children under 14 without supervision
Spare parts and repairability	Use only original Carson parts; repairs by an approved service center
Warranty	24 months from date of purchase (manufacturing defects)
General information	Compliant with directive 2014/53/EU; do not dispose of with household waste
Recommended age	From 14 years (use under adult supervision)
Intended use	Leisure on suitable terrain (off public roads)

Frequently Asked Questions - Mountain Warrior Sport 2.0 Carson

What type of battery should I use for the model?

The model operates with a lithium (LiPo) battery of 7.4 V. Use only batteries compatible with the appropriate charger and follow the safety instructions specific to lithium batteries.

How do I properly charge the battery?

Charge the battery with a charger suitable for LiPo batteries using the balance plug. Respect the maximum charging current of 1C and never charge a hot battery. Place the battery on a heat-resistant surface and never leave it unattended during charging.

Can I use the model in the rain or on wet grass?

No, the model is not waterproof. Do not use it in rain, snow, puddles, or wet grass to avoid electrical damage.

What should I do if the model no longer responds to the remote control?

First check the transmitter batteries and the charge state of the model's battery. Ensure the radio range is sufficient and that there is no atmospheric disturbance (storm, high voltage lines). If the problem persists, inspect the connections and components.

How do I regularly maintain my model?

Before and after each use, check that all screws and nuts are tight, the body is properly mounted, and hot parts (motor, transmission) have cooled down. Clean the exterior with a dry cloth. Replace worn parts with original parts.

What is the range of the remote control?

The range is approximately 100 meters under optimal conditions. Before each use, check that the range is sufficient to control the model safely.

Is the model suitable for children?

This model is not a toy. It is recommended for persons over 14 years of age. Children under 14 must be supervised by an adult.

Where can I find spare parts?

Spare parts are available from authorized Carson distributors. Use only original parts to ensure proper functioning and safety.

How do I adjust the brakes or steering?

Refer to the complete user manual for precise adjustments. Generally, the steering and speed trims are adjusted on the transmitter. For mechanical adjustments (brakes, suspension), consult the manual or contact an authorized service center.

What does the Carson warranty cover?

The 24-month warranty covers manufacturing and material defects under normal use conditions. It does not cover damage due to misuse, normal wear (consumables), batteries, or unauthorized repairs.

USER MANUAL Mountain Warrior Sport 2.0 Carson

Mountain Warrior Sport 2.0

ASSEMBLED READY-TO-RUN MODEL

Achtung - Attention - Attention

Attenzione - Atención - Pas op 02

Before using your product for the first time or ordering any spare parts, check that your manual is fully up-to-date. This manual contains the technical appendices, important instructions for correct start-up and use and product information, all fully up-to-

date before going to press. The contents of this manual and the technical data of the product can change without prior notice.

For the latest version of your manual, see: www.carson-modelsport.com

FR // Remarque importante

Line drawing of a hand using a tool to adjust or install a small vehicle component (no text or symbols present)

Technical line drawing of a vehicle chassis with structural supports and mounting brackets (no text or symbols)

AUFLADEN DES FAHRAKKUS

LiPo 7.4 V 850 mAh

2h (1)

(1)

(2)

(2)

EINLEGEN DES FAHRAKKUS

Technical line drawing of a mechanical assembly with hands and springs (no text or symbols)

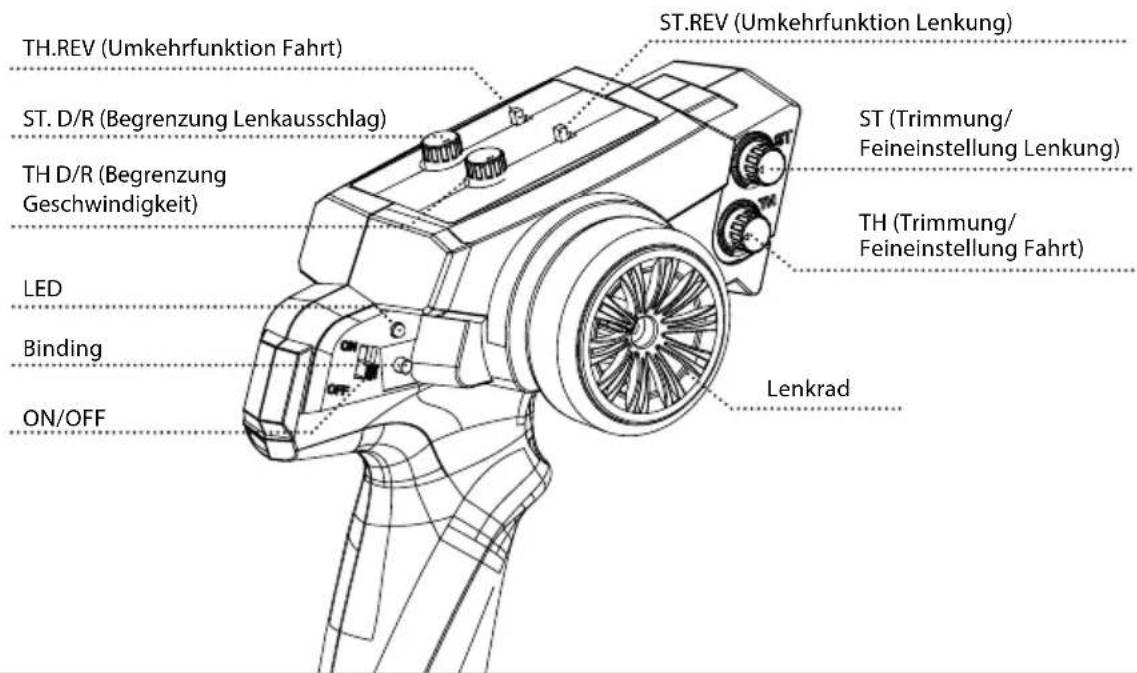

IHR FERNSTEUERSENDER

Erklärung Sender

BINDING

Diagram of a car front view showing two tires and a steering wheel (no text or symbols)

Diagram of a vehicle showing front wheel, rear wheels, and center body (no text or symbols)

We congratulate you for buying this CARSON product, which is designed and manufactured using state of the art technology.

According to our policy of continued development and product improvement we reserve the right to make changes in specifications regarding equipment, material and design at any time without notice.

Specifications or designs of the actual product may vary from those shown in this manual or on the box.

The manual forms part of this product. Should you ignore the operating and safety instructions, the warranty will be void.

Keep this guide for future reference.

Limited Warranty

This product is warranted by CARSON against manufacturing defects in materials and workmanship under normal use for 24 months from the date of purchase from authorised franchisees and dealers. In the event of a product defect during the warranty period, return the product along with your receipt as proof of purchase to any CARSON store.

CARSON will, at its option, unless otherwise provided by law:

(a) Correct the defect by repairing the product without charging for parts and labour;
(b) Replace the product with one of the same or similar design.

All replacement parts and products, and products on which a refund is made, become the property of CARSON. New or reconditioned parts and products may be used in the performance of warranty services.

Repaired or replaced parts and products are warranted for the remainder of the original warranty period. You will be charged for repair or replacement of the product made after the expiration of the warranty period.

The Warranty does not cover:

• Damage or failure caused by or attributable to acts of God, abuse, accident, misuse, improper or abnormal usage, failure to follow instructions, improper installation or maintenance, alteration, lightning or other incidence of excess voltage or current;
• Damage caused by losing control of your model;
• Any repairs other than those provided by a CARSON authorised service facility;
• Consumables such as fuses or batteries;
• Cosmetic damage;
• Transportation, shipping or insurance costs; or
• Costs of product removal, installation, set-up service adjustment or reinstallation;
• Any changes to plugs and cables, open the housing and damage the sticker.

This warranty gives you specific legal rights, and you may also have other rights which may vary according to the country of purchase.

Declaration of conformity

TAMIYA-CARSON Modellbau GmbH & Co. KG hereby declares that the radio equipment type 500404197 conforms to Directive 2014/53/EU. The complete text for the EU declaration of conformity is available at the following Internet address.

The explanation of the symbol on the product, packaging or instructions: Electronic devices are valuable products and should not be disposed of with the household waste when they reach the end of their service life! Help us to protect the environment and respect our resources by delivering this appliance to the relevant recycling point.

We wish you a lots of fun using your CARSON product!

Before use, read this manual carefully!

CONTENTS

Preface ....11

Scope of delivery....12

Technical data....12

Safety Precautions....13

Safety Precautions lithium batteries.... 14

Chassis....15

Removing the Body....15

Charge battery pack....16

Inserting the drive batteries 16

Your Transmitter 16

Installing the transmitter batteries....17

Turn on the RC System....17

Binding 17

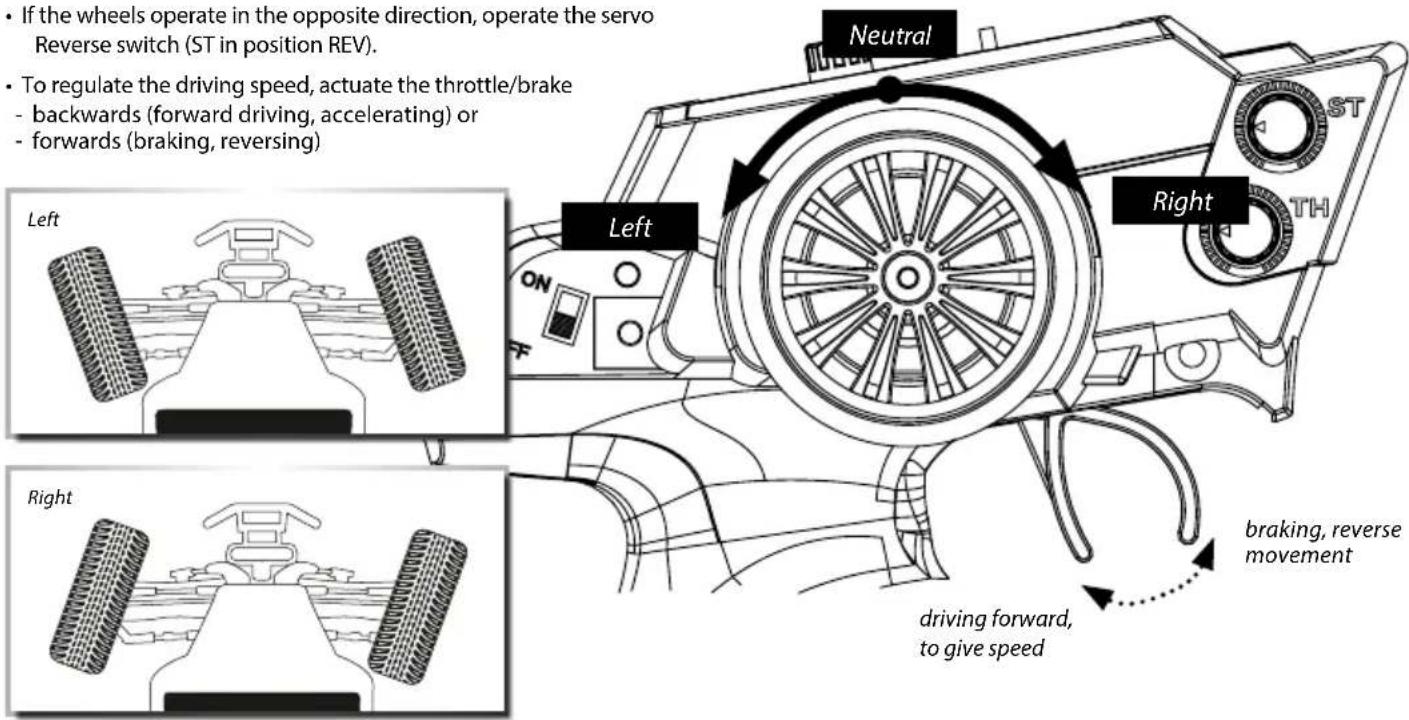

How to Control Your Model.... 18

Troubleshooting....19

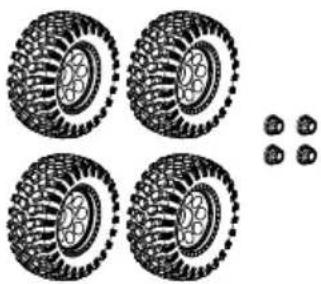

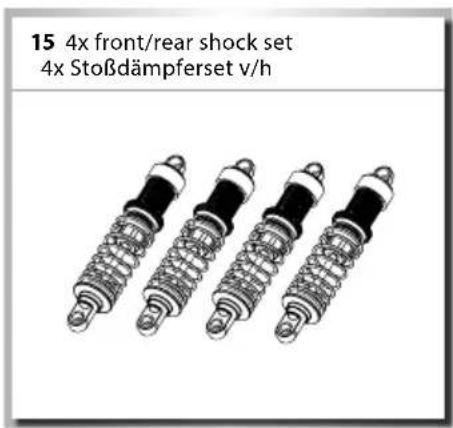

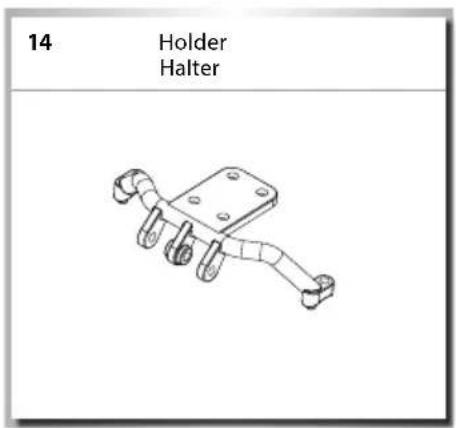

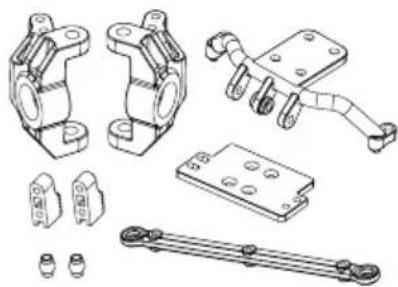

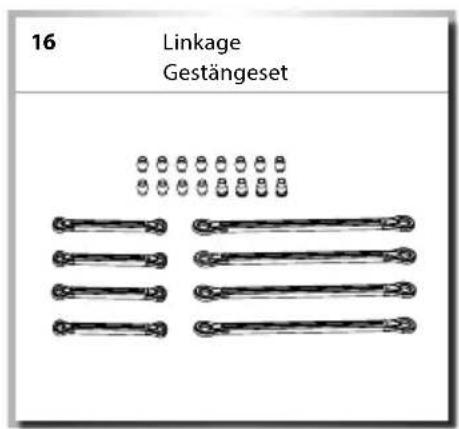

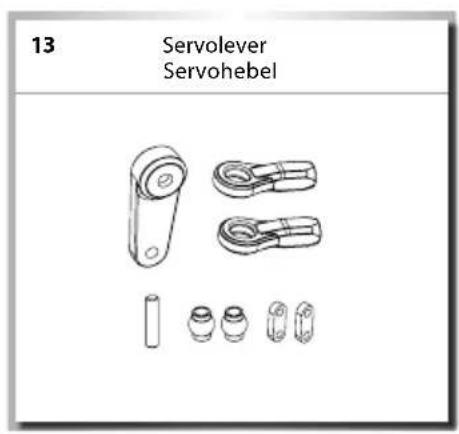

Spare Parts 31

SCOPE OF DELIVERY

1. RC model

2. Remote Control

3. Li-Ion battery 7.4 V

4. 1.5V AA (LR06) transmitter batteries

5. Plug-in charger

6. Manual

TECHNICAL DATA

- Model with 2.4 GHz RC system (max. transmitter power 10 mW)

• Transmitter operating voltage: 4.8-6 V

• Vehicle operating voltage: 7.4 V

- Function:

- Move forwards/backwards/brake

- Steering left/right

- Dual rate function: ride/steering

SAFETY PRECAUTIONS

Safety Instructions and Intended Use

This product is designed exclusively for hobby use and may only be used on tracks and areas intended for this purpose.

No persons or animals may be transported with this model.

To avoid operator errors, it is mandatory that the user manual is read before use!

These models may only be used with bodywork that is correctly fitted.

When removing the bodywork, please note that, during operation, certain parts can become very hot.

Please note that various models can generate very high noise levels and should, therefore, not be operated in your immediate proximity.

Please make sure, before every driving session, that the tank is correctly closed or the power pack is correctly inserted.

To avoid faulty operation of the control system causing the model to run out of control, it must be checked that the transmitter and model batteries are in good condition.

It is essential to check that the model is correctly assembled both before and after use; if need be, tighten nuts and bolts.

This model is not a toy!

• This product is not a toy, its operation must be learned step by step.
• Children under 14 years of age should operate the model only if supervised by an adult.

Operating RC models is a fascinating hobby that, however, must only be exercised with proper precautions and care. Since the weight of this model is considerable and it can reach a very high speed it can, if it runs out of control, cause significant damage and injury for which you, as the operator, are liable.

Only a correctly assembled model will work and react as expected. Never improvise with unsuitable materials but, when the need arises, use only original spare parts. Even if the model is pre-assembled, all joints and fastenings should be checked for correct seating and tightness.

Before use, you must make sure of the following points:

• All rechargeable batteries must be fully charged.
  • Before starting, check the radio range.
• Check that the model reacts correctly to the control signals.
• All functional parts of the product are in a faultless condition and have been checked.
• All screw fastenings are firmly seated.
• Do not drive under high-voltage power lines or radio masts or with nearby thunderstorms!
• Atmospheric interference can influence the operation of your model.
• The electrical parts of the model are not water-tight. Do not, therefore, drive it in rain or snow or through puddles or wet grass.
• The remote controlled model may be driven only on suitable areas and must not be used on the public highway.
• Do not use near people or animals!
• Do not use it when tired or if your reactions are otherwise impaired.
  • Always maintain direct visual contact with your model.
• Regular maintenance and care are required for first class driving performance.
• The model has parts that become hot in operation, e.g. the top of the motor, the metal gearbox, amongst many others. Touching these parts during operation can cause injury.

Pay attention to the charge level indication on your transmitter.

• With power packs or batteries that are half discharged, you can lose control of the model.
• In the transmitter, never mix fully charged batteries, rechargeable or not, with half discharged batteries or rechargeable batteries of different capacity.
• Never try to charge non-rechargeable batteries (dry cells), only batteries specified as rechargeable can be charged.

SAFETY PRECAUTIONS LITHIUM BATTERIES

1. General

Lithium batteries (accumulators) are energy storage devices with a high energy density and can present risks. For this reason, particular care is needed when charging, discharging, storing and handling.

Read these instructions very carefully before first using the battery. Do not fail to take note of the warning notices and instructions for use.

Misuse can lead to risks such as explosion, overheating or fire.

Failure to observe the instructions for use leads to early failure and other defects.

The instructions should therefore be kept in a safe place and it is essential that they are handed over to the second user if the batteries are passed on.

2. Warning notices

• Avoid short-circuits. A short-circuit may well destroy the product. Cables and connections must be well insulated.
• It is essential when connecting the battery to ensure that the polarity is correct.
• Original plug connectors and cables may not be cut off or changed - if need be, use an adapter cable.

- Do not expose the battery to excessive heat or cold or to direct sunlight. Do not throw in the fire. Do not place the battery in contact with water or other liquids.

- Charge the battery only with charging units intended for the purpose and always use the balancer connection. It is only by using the balancer connection that optimum charging can be ensured. If this connection is not used, charging is subject to the risks mentioned above. Before charging, always first allow the battery to cool to ambient temperature. Never charge while hot.

- When charging, place the battery on a non-flammable, heat-resistant support. There should be no flammable or readily ignited objects in the vicinity of the battery.

- During charging or operation, never leave the battery unsupervised.

- Do not fail to keep to the recommended charge/discharge current.

- The battery casing must not be damaged. It is essential to avoid damage by sharp objects such as knives or the like, from dropping, impact, bending etc. Damaged batteries may no longer be used.

- Batteries are not toys. They should be kept away from children.

3. Charging instructions

Lithium batteries are charged according to the CC-CV procedure. CC stands for "constant current", which is applied during the first phase of charging. Once the battery reaches the maximum voltage configured in the charger, it switches to CV (constant voltage) for the second phase of charging. The battery voltage no longer increases. The charging current now falls continuously until the battery is fully charged. The maximum charging current for the battery is 1C (C=nominal capacity of the battery, e.g. for a battery with a nominal capacity of 2700 mA, the maximum charging current for the battery is 2700 mA (2.7 A)). Never charge several batteries together from a single charger. Differing states of charge and capacities can lead to overcharging and destruction.

4. Storage instructions

Lithium batteries should be stored charged to 20-50 % of their capacity and at a temperature of 15-18 °C. If the cell voltage falls below 3 V, they should be recharged. Deep discharge and storage when discharged (call voltage <3 V) will render the battery unusable.

5. General terms of guarantee

There is a legal guarantee for production and material faults as applicable at the time of dispatch. No liability is accepted for normal wear and tear. This guarantee does not apply for defects attributable to improper use, inadequate maintenance, third-party interference or mechanical damage. This applies, in particular, to used batteries and batteries clearly showing signs of use.

Damage and loss of performance due to improper handling and/or overload are not product faults. Batteries are consumables and subject to a certain ageing. This is influenced by factors such as the charge/discharge currents, the charging procedure, the operating and storage temperatures and the state of charge during storage. The ageing shows itself in, among other things, an irreversible loss of capacity. In the model field, where batteries are frequently used to supply motors, very high currents can flow from time to time.

6. Exclusion of liability

Since we are unable to have any control over charge/discharge, handling, compliance with assembly and operating instructions, battery replacement and its care and maintenance, Tamiya / Carson can accept no liability for loss, damage or costs incurred.

Any claim for damages that may result from operation, failure or faulty operation or that is in any way related thereto will therefore be refused. We accept no liability for personal injury or material damage and their consequences that arise from our delivery.

7.Disposal instructions

Batteries are hazardous waste. Damaged or unusable cells must be disposed of in the correct manner.

No liability for printing errors, we reserve the right to make changes!

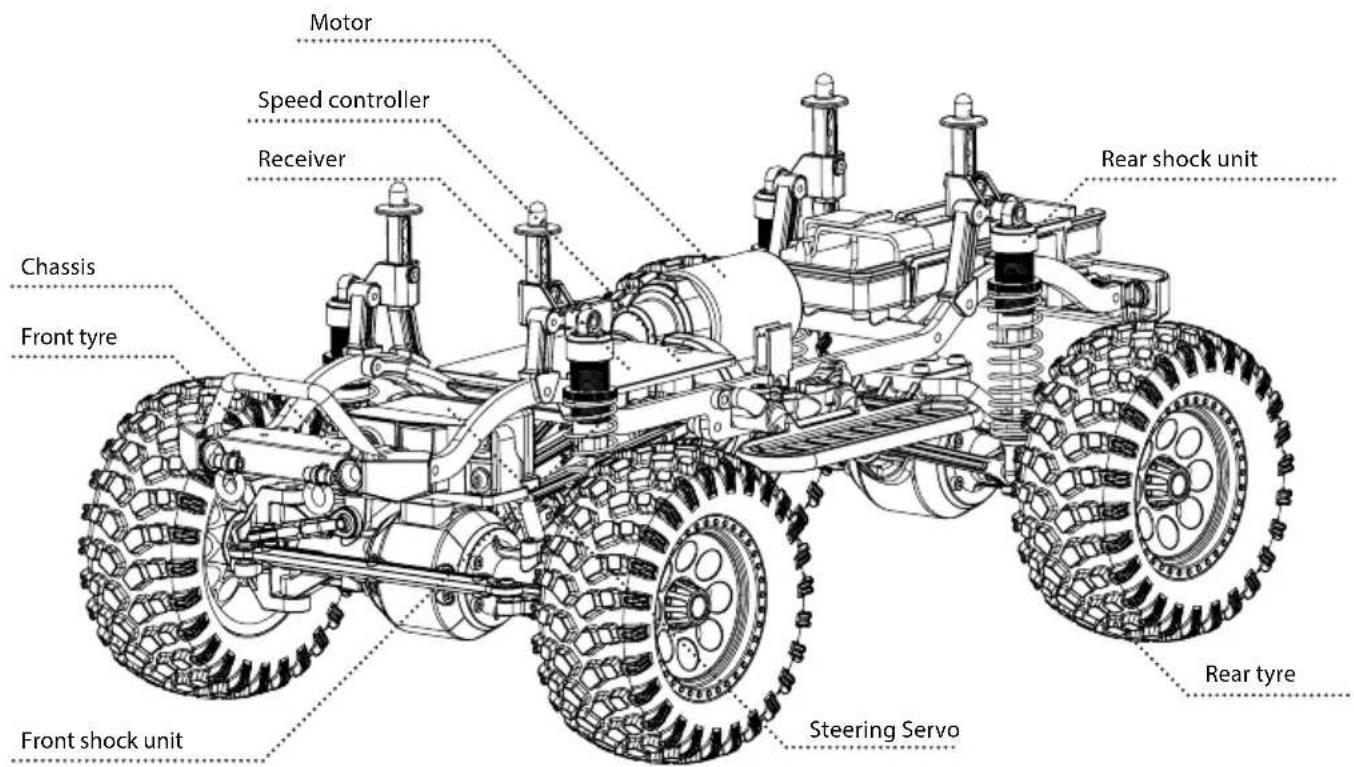

CHASSIS

REMOVING THE BODY

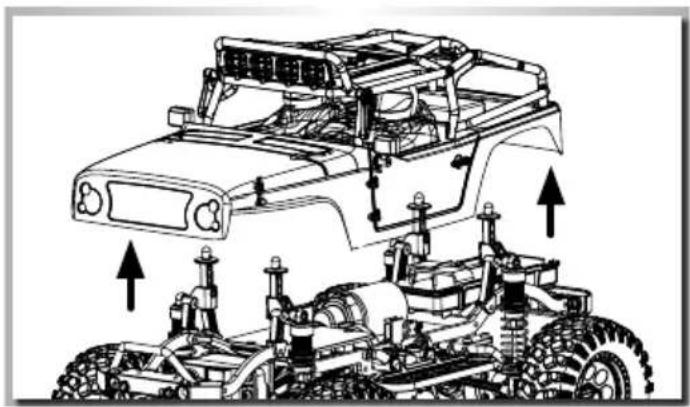

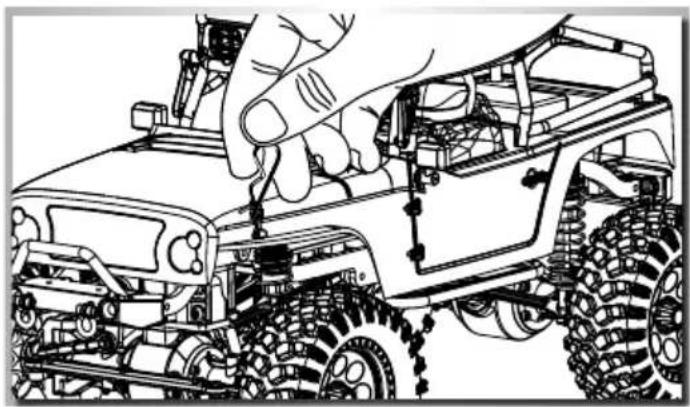

- Remove hook pin and - Take body off.

Line drawing of a hand using a tool to adjust or install a small vehicle component (no text or symbols present)

Technical line drawing of a vehicle chassis with structural components and upward arrows indicating motion (no text or symbols)

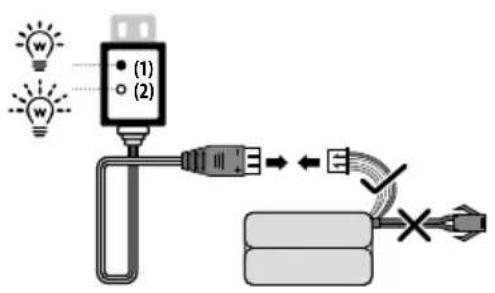

CHARGE BATTERY PACK

LiPo 7.4 V 850 mAh

2h (1)

(1)

(2)

(2)

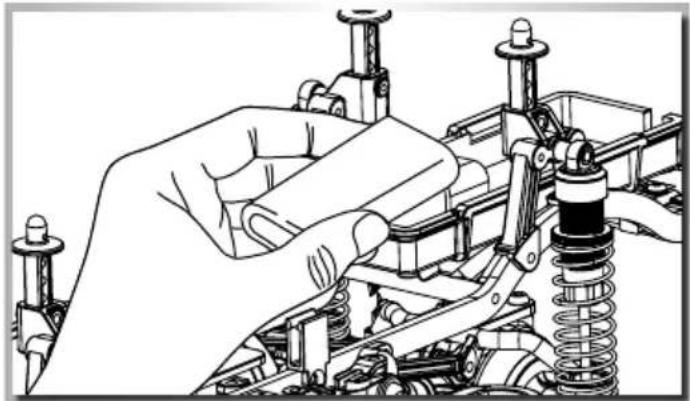

INSERTING THE DRIVE BATTERIES

1 Insert the battery.
2 Fix it with the clips.

Advice:

• Non-rechargeable batteries are not to be recharged.
- Rechargeable batteries are only to be charged under adult supervision.
- Batteries are to be inserted with the correct polarity
- Exhausted batteries are to be removed from the model.
- The supply terminals are not to be short-circuited.
- Regular examination of transformer or battery charger for any damage to their cord, plug, enclosure and other parts.

Technical line drawing of a mechanical assembly with hands and springs (no text or symbols)

YOUR TRANSMITTER

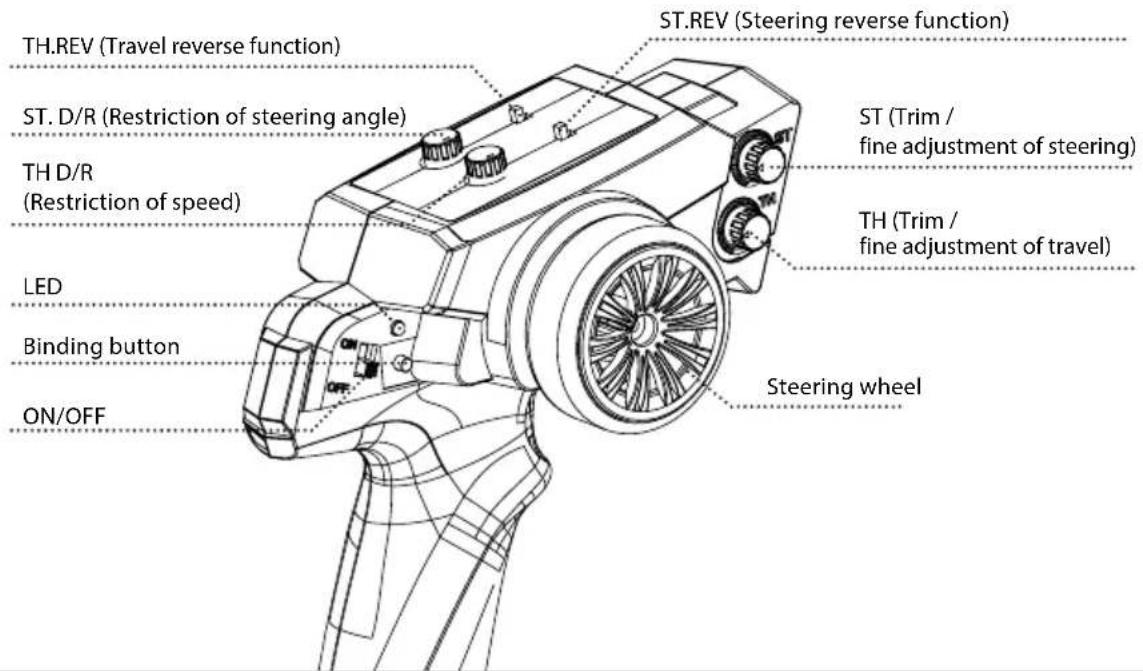

Transmitter overview

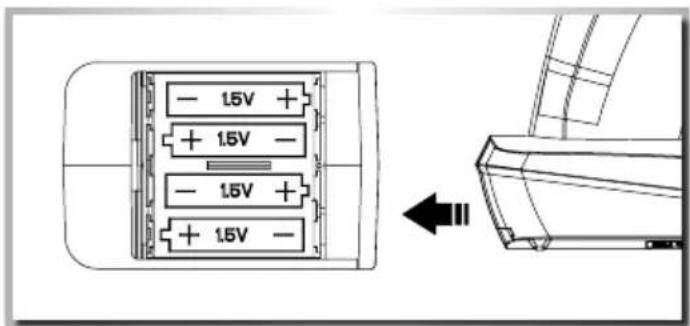

INSTALLING THE TRANSMITTER BATTERIES

1. Open the battery compartment lid on the underside of the transmitter.
2. Insert fully charged rechargeable batteries or new AA batteries observing the correct polarity. Close the cover on the battery compartment again. Ensure that the cover clicks properly into place. Check that it is in its correct position.

TURN ON THE RC SYSTEM

CAUTION!

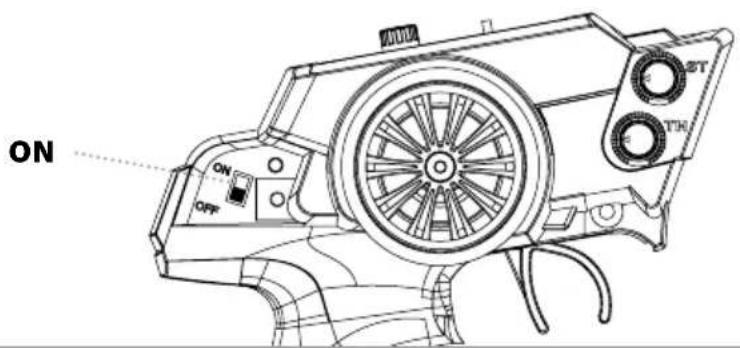

Always turn the transmit - ter's power switch ON first!

Please change batteries when LED status flashes on transmitter!!!

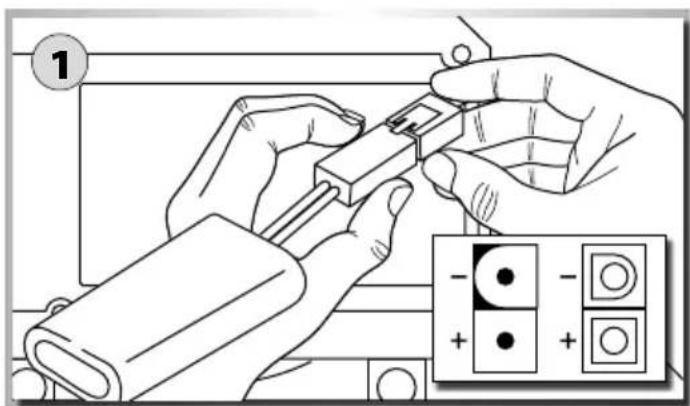

1 Connect the rechargeable battery for the driving.

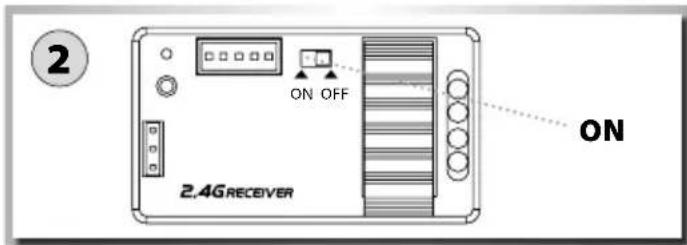

2 Switch on the receiver.
3 Put the body on and fix it with the body split pins.

BINDING

Connecting transmitter and receiver:

The vehicle is ready to drive when it leaves the factory. In normal circumstances, therefore, the binding function is not necessary!

The binding function should only be used if there are any connection problems between the vehicle and the transmitter or if the transmitter/receiver is replaced.

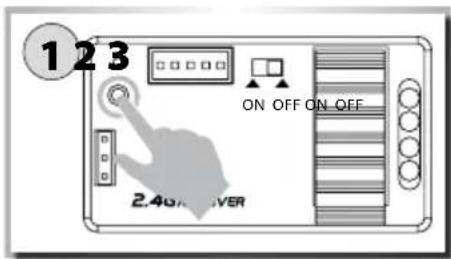

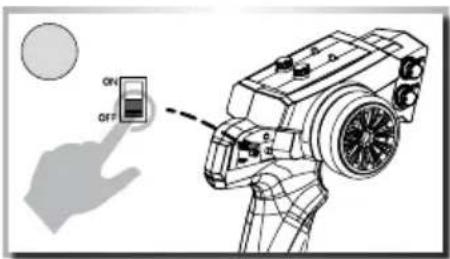

Press and hold down the Binding button on the receiver and then switch on the receiver. The LED on the receiver then flashes rapidly!

Press and hold down the Binding button on the transmitter and then switch on the transmitter.

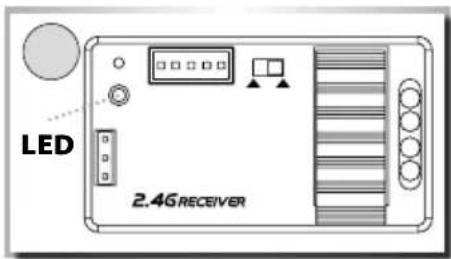

The binding process is completed when the LED on the receiver is permanently illuminated.

HOW TO CONTROL YOUR MODEL

• Raise the tyres off the ground

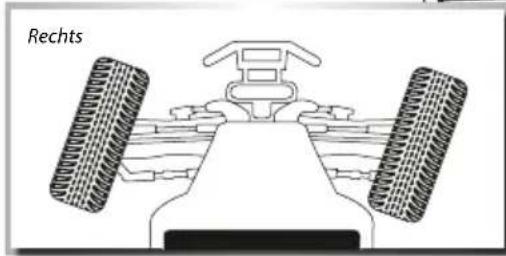

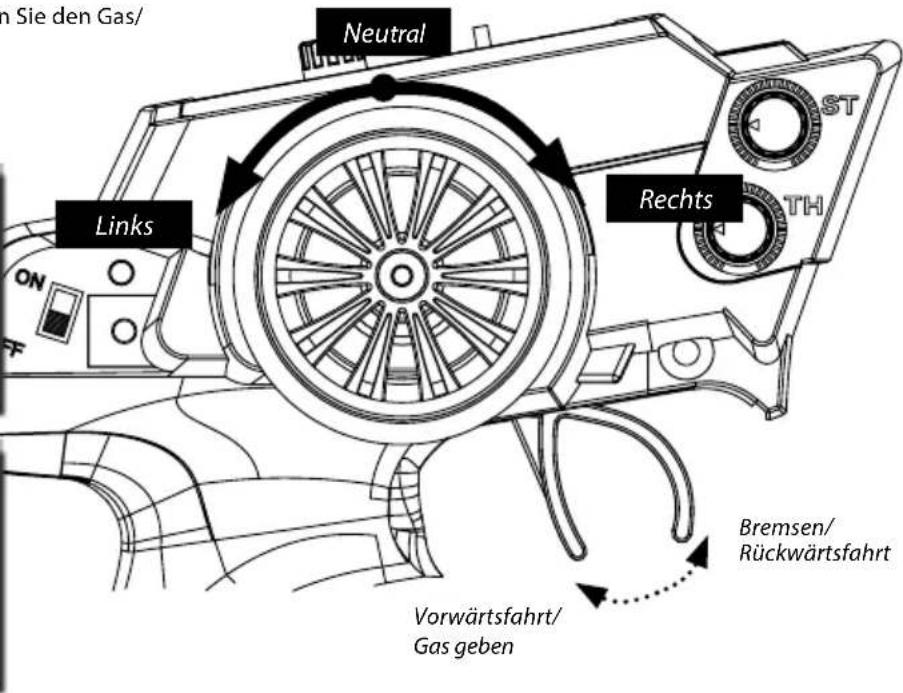

• Turn the steering wheel to the right and left as far as it will go. The wheels are to follow the steering direction.
• If the wheels operate in the opposite direction, operate the servo Reverse switch (ST in position REV).
• To regulate the driving speed, actuate the throttle/brake
• backwards (forward driving, accelerating) or
• forwards (braking, reversing)

TROUBLESHOOTING

Problem Cause Correction
Model doesn’t move Transmitter or chassis power switch is not “ON”		Switch power on receiver or transmitter
Loss of control	Batteries have run down	Change batteries or charge them
	Antenna is missing or not attached properly Attach receiver antenna
Doesn’t run straight	Steering trim is not adjusted correctly	Make adjustment
	Front and rear wheel nuts are too lose Tighten wheel nuts
Doesn’t stop	Throttle trim is not adjusted correctly	Make adjustment
Doesn’t reverse	Throttle trim is not adjusted correctly	Make adjustment
	Wrong action	Control properly
Running too slowly	Batteries have run down	Change batteries or charge them
	Motor has lost power	Change to spare motor
	Rear wheel nuts are too lose	Tighten wheel nuts
	Dust or foreign objects are inside gears	Turn the power switch “OFF” and clean out gears

Cher client

Technical line drawing of a vehicle chassis frame with structural components (no text or symbols)

2 Lenkservo CS 3 500502015 Steering Servo CS 3

Line drawing of a mechanical device with a central knob and mounting flanges (no text or symbols)

Two curved, elongated lines with evenly spaced ends, resembling mechanical or electrical components (no text or symbols)

5 Wheelset (4) Räderset (4)

Four identical tire illustrations arranged in a 2x2 grid, with additional small circular icons below (no text or symbols)

6 Ball bearing Set Kugellager-Set

7 Differential Differenzial

Technical drawings of mechanical components including bolts, gears, and housing (no text or labels)

Technical drawings of mechanical components including gears, housing, and housing (no text or labels)

Four technical line drawings of mechanical components with flanges and brackets (no text or symbols)

Technical line drawing of two mechanical shafts with flanges and end caps (no text or symbols)

Technical line drawing of two cylindrical mechanical components with flanges (no text or symbols)

12 Front hub set Achsschenkel-Set vorne

Technical line drawings of mechanical components including brackets, levers, and linkages (no text or labels)

ERSATZTEILE • SPARE PARTS

Technical line drawings of mechanical components including brackets, gears, and housing (no text or labels)
