USER MANUAL ELPMB48 EPSON

Read this document carefully to assemble and install this product safely and correctly. Be sure to follow the safety precautions. Keep these instructions close to hand to help solve any points you do not understand. So that you can use the product safely and correctly, symbols are applied in this guide and on the product to indicate possible harm to the user or to others and the risk of damage to property. The indications and their meaning are as follows. Make sure you understand them properly before reading this guide. Carefully read the warnings in "Safety Instructions / Support and Service Guide" supplied with your projector before starting the installation to determine a suitable place to install it. Safety Instructions Warning This symbol indicates information that, if ignored, could possibly result in death or personal injury due to incorrect handling. Caution This symbol indicates information that, if ignored, could possibly result in personal injury or physical damage due to incorrect handling. Warning v The installation work should be performed only by specialists with the required technical know-how and ability. Incomplete assembly or installation could cause the projector and ceiling mount to fall and cause injury. v This product weighs approximately 16 kg. When transporting or moving the product, handle it with care to avoid injury. v Do not install the ceiling mount on an inclined or weak surface. The ceiling must be strong enough to install the projector and ceiling mount. Before starting the installation, carefully check the weight of the projector and the ceiling mount. Make sure the ceiling is strong enough and use the most appropriate methods to prevent the projector from falling. v Do not install the product in a location where it might be exposed to vibration or shock. Otherwise the product or the installation surface could be damaged. If the product falls, it could result in death or personal injury.22 v Always follow the instructions below when installing the ceiling mount. If installation work is not carried out correctly, the projector and ceiling mount could fall and cause injury.

• Check the structure and materials of the mounting location and use the most appropriate construction method.

• Do not hang or mount anything except the specified projector from or on the ceiling mount. The projectors that can be mounted on this ceiling mount are listed in the catalogs.

• Do not hang from the ceiling mount or apply excessive force to it during or after installation.

• Tighten the screws firmly. Also, never loosen or remove any screws carelessly when mounting or removing the ceiling mount.

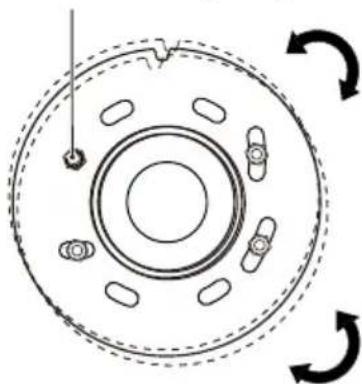

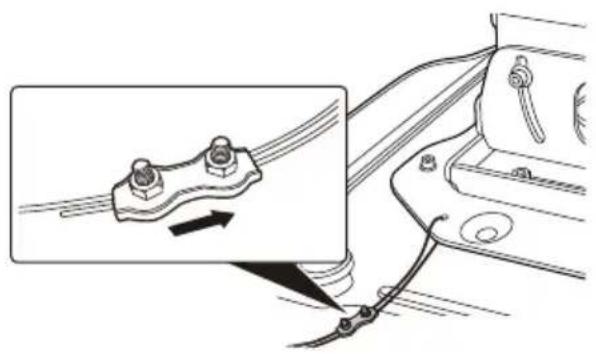

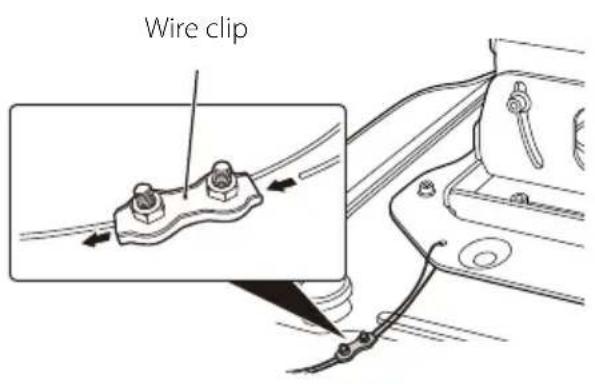

• Never disassemble or remodel the ceiling mount unless indicated in this manual. v Install the supplied safety wire to prevent the projector from falling. The safety wire also prevents the projector from swaying during an earthquake or vibration. sp.32 v Applying a screw-locking adhesive, lubricant, oil or other substance to the points at which the projector is fixed to the ceiling mount can make the case crack and the projector fall, leading to damage or injury. Do not use any sort of adhesive, lubricant or oil when installing or adjusting the ceiling mount. v Never loosen any bolts, screws, or nuts after installation. Also, check periodically that no screws have come loose. If you find a loose screw, tighten it firmly. v Do not use the ceiling mount and refer all repairs to qualified service personnel under the following conditions:

• The ceiling mount fell off or was broken before installation.

• The supplied parts have problems and do not work correctly. v Unplug the projector before installing. v Handle the power cord carefully. Incorrect handling could cause fire or electric shock. Observe the following precautions when handling:

• Do not handle the cord with wet hands.

• Do not use a cord that is damaged or modified. v Do not install or use the projector in locations where it could be splashed with water such as outdoors, in a bathroom or shower room, and do not install in locations subject to high levels of humidity. This could cause fire or electric shock. v When cleaning, do not use a wet cloth or alcohol, benzine, thinner, and so on. If water enters the projector, the casing may degrade and break which could cause an electric shock. v Do not strongly pull or pinch the projector's power cord during installation. Be careful especially when passing the power code through the pole. If the power cord is damaged, it could cause fire or an electric shock. Contact your dealer if the wires of the power cord become exposed or broken. Warning23 Carefully read the warnings in "Safety Instructions / Support and Service Guide" supplied with your projector before starting the installation to determine a suitable place to install it. In particular, pay attention to the following items. v Set the projector up in a location where direct sunlight or strong light from fluorescent lamps does not shine onto the receiver for the remote control. Strong light shining onto the receiver for the remote control may interfere with remote control operations. v Install the projector so it is away from the air outlet of air conditioners or other similar devices. If air from an air conditioner blows directly onto the projector, the surrounding temperature increases and the projector may not operate correctly. v Make sure there is a big enough gap between the projector and the wall. See the User's Guide supplied with your projector for details on the necessary distance. If the projector is too close to the wall, the surrounding temperature increases and the projector may not operate correctly. v To limit the effect of external noise, we recommend that you position the projector so that the cable connecting it to a computer or other devices is no longer than 20 meters. v The projector should be installed in a location that is free from dust and moisture to prevent the lens and internal optical parts from becoming dirty. v Do not install the projector in a location beyond its operating temperature range. Doing so can cause it to malfunction. v Closing the curtains in a bright room makes the projected image easier to see. Caution At least two people are needed for the installation. Make sure to provide a sturdy scaffold for this work. Otherwise, you may fall or drop the projector and cause injury. Precautions on Where to Mount the Projector24 Removing the Ceiling Plate from the Projector Plate The ceiling plate is fitted to the projector plate at the factory. Use the following procedure to separate them. A Remove the screws for the vertical tilt adjustment points on both sides using the supplied M8 hexagon wrench. B Remove the ceiling plate from the projector plate. Installation Procedure25 Installing the Ceiling Plate to the Ceiling Determine the distance to the screen and locate the mounting position before mounting the ceiling plate. The distance varies according to the type of the lens unit installed on the projector. See the "User's Guide" supplied with the projector. Refer to the ceiling template below to cut the bolt-mounting holes into the ceiling. When installing this product after uninstalling the ELPMB22, you can use the mounting holes that are already in the ceiling as they are. After installing, you cannot rotate the projector beyond ±5 ° to the left or right. Check that the projector is facing in the correct direction before installing. Procedure Note Ceiling template (units: mm) Turn the side of this cutout to the screen. The center of rotation when adjusting horizontally Holes for horizontal rotation adjustment The direction of the projector can be adjusted at up to ±5 degrees by rotating it. When installing this product after uninstalling the ELPMB22, use these holes.26 Adjusting the Length of the Pole You can hide the gap between the pole and the ceiling surface by attaching the decorative plate to the pole beforehand. Place the pole through the hole in the decorative plate, and then tighten the screws on the decorative plate to secure it. A Remove the two fixing bolts using the supplied M8 hexagon wrench. B Remove the four assist-screws on both sides using the supplied M6 hexagon wrench. C There are eight length adjustment holes at 20 mm intervals on the pole. Align the two appropriate adjustment holes with the holes for the fixing bolts,and put the two fixing bolts into the holes and tighten them firmly. D Tighten the four assist-screws on both sides using the supplied M6 hexagon wrench. Note Procedure27 Mounting to a Concrete Ceiling When installing the ceiling mount on a concrete ceiling, use 4 anchor bolts (M12). You need to purchase commercially available anchor bolts. Before installing the ceiling plate, check that the projector is facing in the correct direction. The ceiling plate can be horizontally rotated at ±5 degree. Adjust the direction of the projector using four bolts secured loosely. After adjusting the direction, tighten the hexagon nuts securely. Caution v Make sure in advance that the concrete on which this product is installed can hold the weight and lateral movement of the projector and ceiling mount. If the concrete is not strong enough or has deteriorated, fortify it with reinforcing bars or something similar. v Install the anchor bolts according to the specifications and methods of the manufacturer of the materials so they do not come out, become loose, or shift. v Tighten the screws firmly during installation or after adjusting the angles. After tightening the screws, retighten them firmly and make sure that they are not loose. v Epson accepts no responsibility for any damage or injury caused by lack of wall strength or inadequate installation. Warning Female type anchors Concrete Hanger bolts Flat washers Hexagon nut At least 3 threads Ceiling surface Spring washers Hexagon nut The center of rotation when adjusting the direction28 Fitting the Projector Plate to the Projector

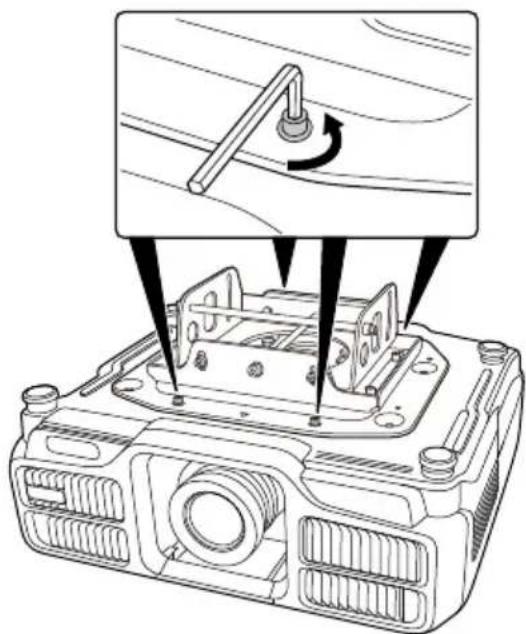

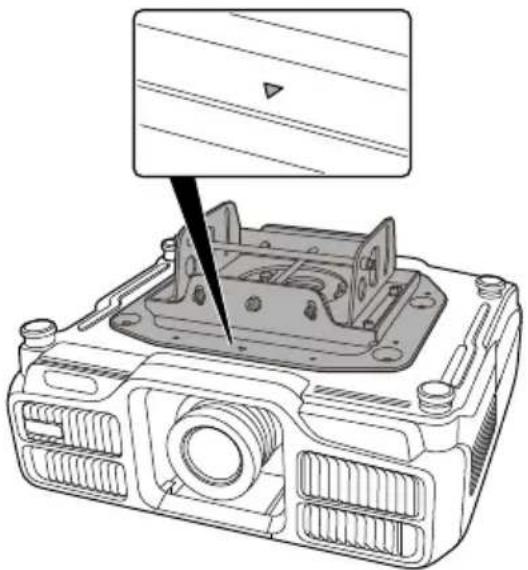

Attach the projector so that the on the projector plate is on the same side as the projector's lens. Align the screw holes for the ceiling mount fixing points with the holes for the projector plate. See the "User's Guide" supplied with the projector for details on the position of the projector's ceiling mount fixing points. B Tighten the supplied four screws (M6 x 16) in the screw holes of the projector plate using the supplied M6 hexagonal wrench. Tighten and secure the three remaining screws. When attaching the projector plate to the projector, make sure you use the screws supplied. Procedure Caution v Tighten the screws firmly. After tightening the screws, retighten them firmly and make sure that they are not loose. v Install the supplied safety wire to prevent the projector from falling. sp.32 v Applying a screw-locking adhesive, lubricant, oil or other substance to the points at which the projector is fixed to the ceiling mount can make the case crack and the projector fall, leading to damage or injury. Do not use any sort of adhesive, lubricant or oil when installing or adjusting the ceiling mount. Warning29 Fitting the Projector Plate to the Ceiling Plate

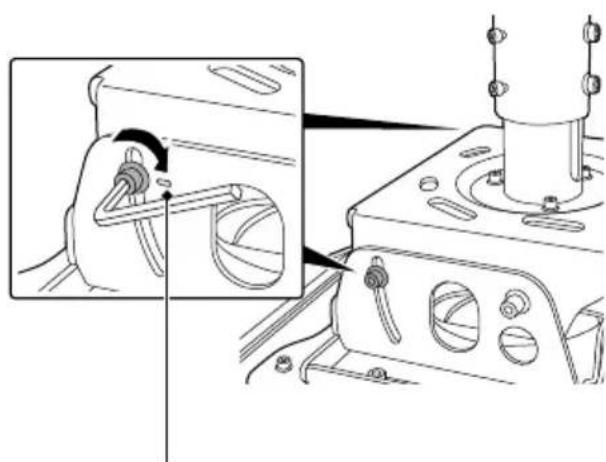

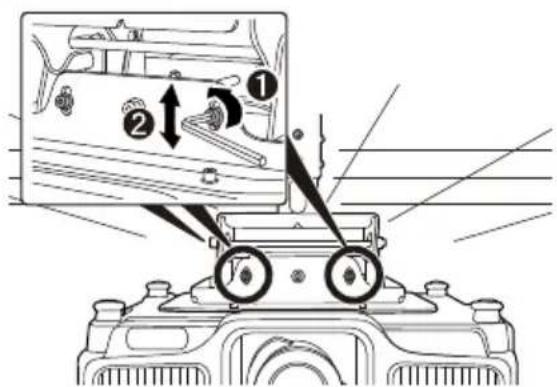

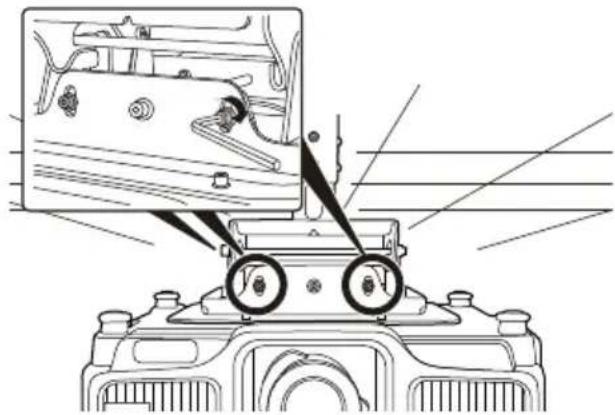

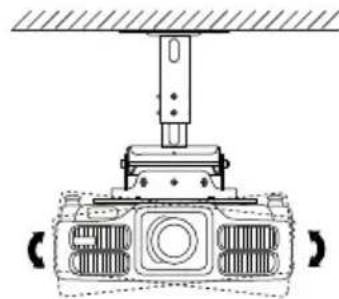

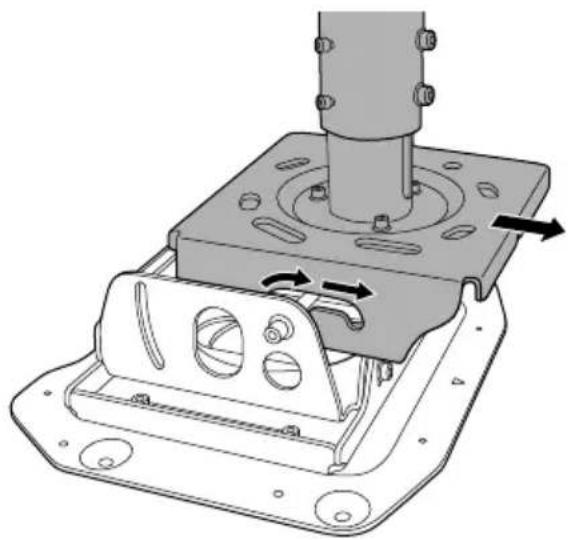

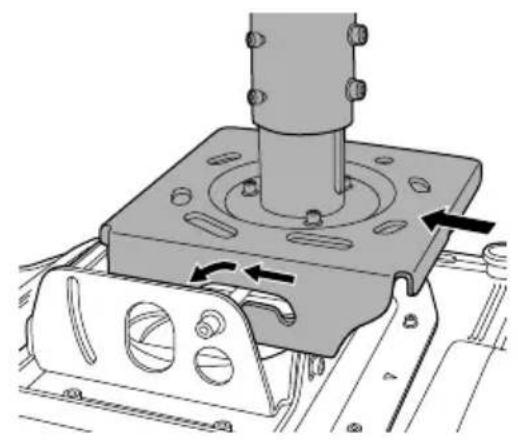

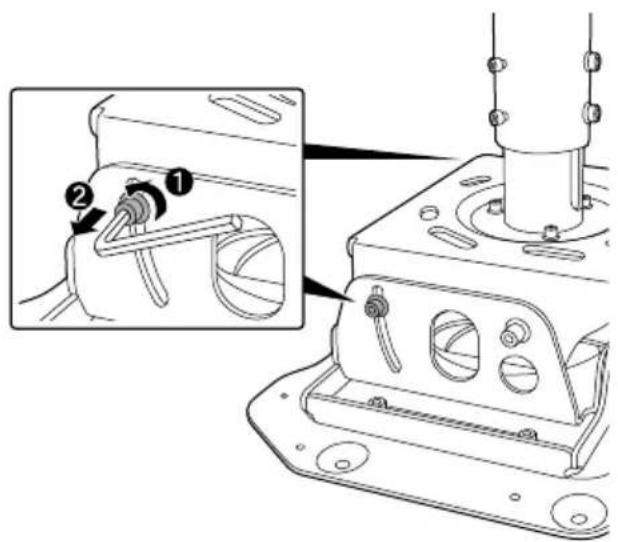

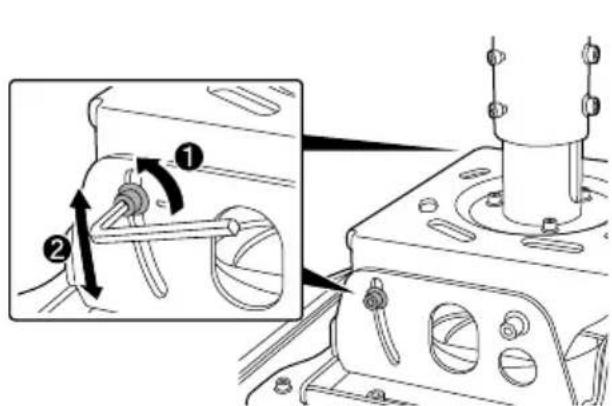

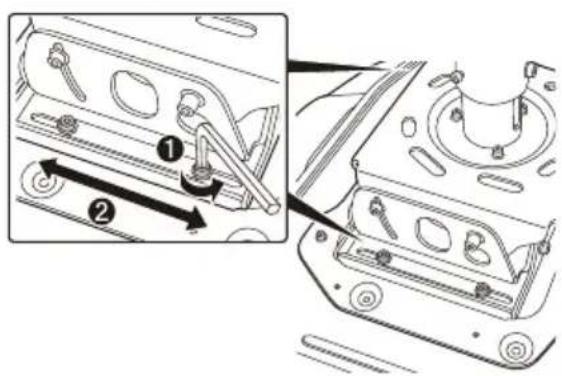

• Put the shaft of the projector plate into the grooves of the ceiling plate and place it securely in the horseshoe-shaped points. Do not release your hands from the projector until mounting is complete. B Put the screws for the vertical angle adjustment points that were removed when removing the ceiling plate from the projector plate in the screw holes. Secure the two screws in the angle adjustment points as shown in the left illustration, using the supplied M8 hexagon wrench to fix the projector. For details on adjusting the angle of the projector, see the next section "Adjusting the Installation Position". C Secure the four screws for the horizontal roll adjustment points as shown in the left illustration, using the supplied M8 hexagon wrench to fix the projector. For details on adjusting the angle of the projector, see the next section "Adjusting the Installation Position". Procedure Secure the screws at the height of these marks so that the projector is set up almost horizontally. Use them as a guide.30 Moving the Projected Images Higher or Lower When the images are projected higher or lower compared to the screen, adjust the projection position using the lens shift of the projector. When moving the projection position vertically over the adjustable range of the lens shift, the projection position can be adjusted up by 5 degrees and down by 25 degrees by tilting the projector. When tilting the projector, the projected images may be twisted. The images twisted in a trapezoidal shape can be corrected by using the keystone adjustment. However, the image goes out of focus as the inclination angle increases. For details on the lens shift and keystone, see the "User's guide" supplied with the projector. A Loosen the two screws for the vertical angle adjustment points on the left and right using the supplied M8 hexagon wrench. B Tilt the rear of the projector vertically to adjust the angle until the position of the projected images fits the screen. C After adjusting the angle, secure the screws on both sides using the M8 hexagon wrench. Adjusting the Installation Position Procedure v Never loosen or remove any screws needlessly when adjusting the position. Doing so could cause the projector to fall and lead to an accident. v Retighten all screws and make sure that they are not loose after adjustment. Warning31 Tilting the Projected Images to the Right or Left When the projected image is tilted to the right or left compared to the screen, tilt the projector ±5 degrees to adjust the projection position. A Loosen the four screws for the horizontal roll adjustment points at the front and rear using the supplied M8 hexagon wrench. B Tilt the projector to the left or right to adjust the angle until the position of the projected images fits the screen. C After adjusting the angle, secure the screws on both sides using the M8 hexagon wrench. Adjusting the Size of the Projected Images When the projected images are too big or too small for the screen, try adjusting the size of the image on the projector first. For details on adjusting the size of the image, see the "User's Guide" supplied with the projector. To adjust the size of the image, you can slide the projector forward or backward by ±30 mm by following the steps below. A Loosen the four screws for the front/rear slide adjustment points on the left and right using the supplied M8 hexagon wrench. B Slide the projector forward or backward to adjust the projected image until it fits the screen. C After adjusting the position, secure the screws using the M8 hexagon wrench. Procedure Procedure32 After installing the projector on the ceiling, take additional precautions to secure it in place and prevent it from falling or rolling. Pass the wires provided diagonally through the projector plate using the wire clips to prevent the projector from falling. A Locate the four commercially available anchor bolts on the ceiling at the end of each diagonal line. We recommend locating the anchor bolts within 1 meter from the center of the projector. Use M12 anchor bolts. B Loop the four safety wires around the four bolts and secure them firmly. Make sure that the wire loops are under the flat washers, and then tighten the hexagon nuts. Installing the Safety Wires Procedure v Make sure in advance that the concrete on which this product is installed can hold the weight and lateral movement of the projector and ceiling mount. If the concrete is not strong enough or has deteriorated, fortify it with reinforcing bars or something similar. v Install the anchor bolts according to the specifications and methods of the manufacturer of the materials so they do not come out, become loose, or shift. Warning Anchor bolts(M12)Within 1 m(recommended)Within 1 m(recommended) Wire rope Anchor bolt Flat washer (φ 24 - φ 26mm) SpringwasherHexagon nut33 C Loosen the screws of the wire clip, and then pass the end of the safety wire through the wire clip and a hole on the projector plate. D Pull the end of the wire rope out from under the projector plate and pass it through the wire clip. E Stretch the safety wire as tight as possible without causing the position of the projected image to move, and then tighten the screws of the wire clip loosely to secure the wire. After installing the safety wire, check the following points. If by any chance the wire is damaged, replace it with a commercially available wire rope of 1.5 mm or more in diameter. v The wire is not frayed or unraveling. v The wire is not bent at an acute angle against the edge of the flat washer or other object. F Perform steps 3 to 5 again for other safety wires and fix them to the projector plate as well. G After installing the safety wires, move all the wire clips in the direction shown in the illustration and tighten the screws of the clips. v If the supplied safety wires are too short for where you are installing the projector, use commercially available wire ropes of 1.5 mm or more in diameter. v Cut off any extra wire rope after installation. Caution Caution Wire clip34 Inquiries can be directed to the contact information given in the manual of the projector. Inquiries Specifications Dimensions 400 (W) x 428 (H) x 330 (D) mm Weight Approx. 16 kg Maximum load capacity Approx. 75 kg Adjustable range Vertical tilt adjustment 5 to -25° Horizontal roll adjustment 0 to ±5° Horizontal rotation adjustment 0 to ±5° Front/rear slide ±30 mm Vertical tilt adjustment Horizontal roll adjustment Horizontal rotation adjustment Front/rear slide35 Liste des élément fournis p. 36
• Consignes de sécurité p. 37
• Précautions relatives à l'emplacement de montage du projecteur p. 39
• Installation p. 40
• Retrait de la plaque de plafond de la plaque du projecteur p. 40

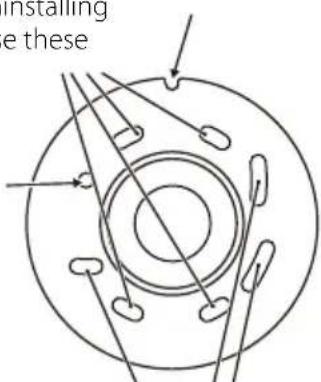

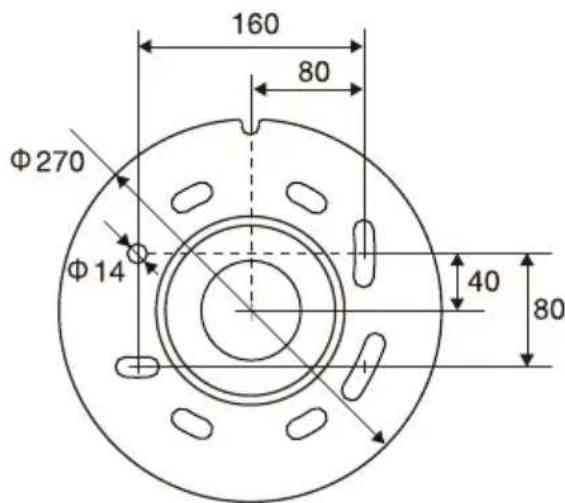

• Installation de la plaque de plafond au plafond p. 41

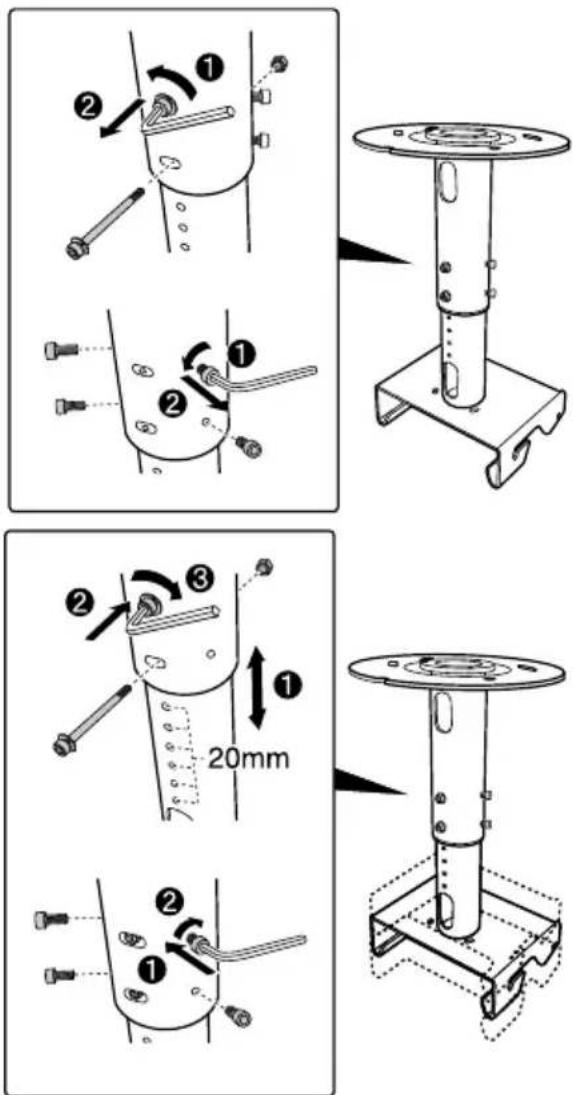

• Réglage de la longueur de la perche p. 42

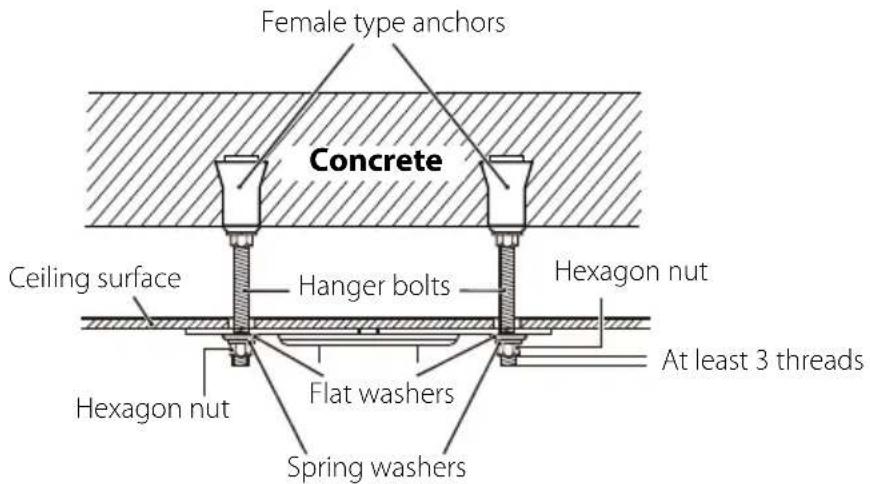

• Montage sur un plafond en béton p. 43
• Fixation de la plaque du projecteur sur le projecteur p. 44
• Fixation de la plaque du projecteur sur la plaque du plafond p. 45
• Réglage de la position d'installation p. 46
• Relever ou abaisser les images projetées p. 46
• Inclinaison des images projetées vers la droite ou vers la gauche p. 47
• Réglage de la taille des images projetées p. 47
• Installation des cordons de sécurité p. 48
• Questions p. 50

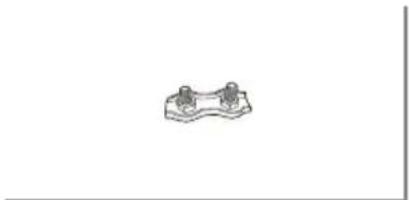

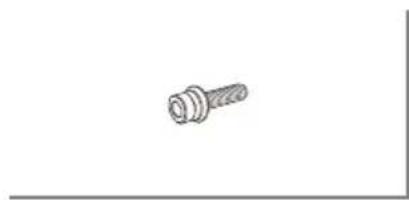

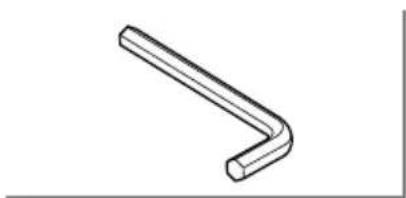

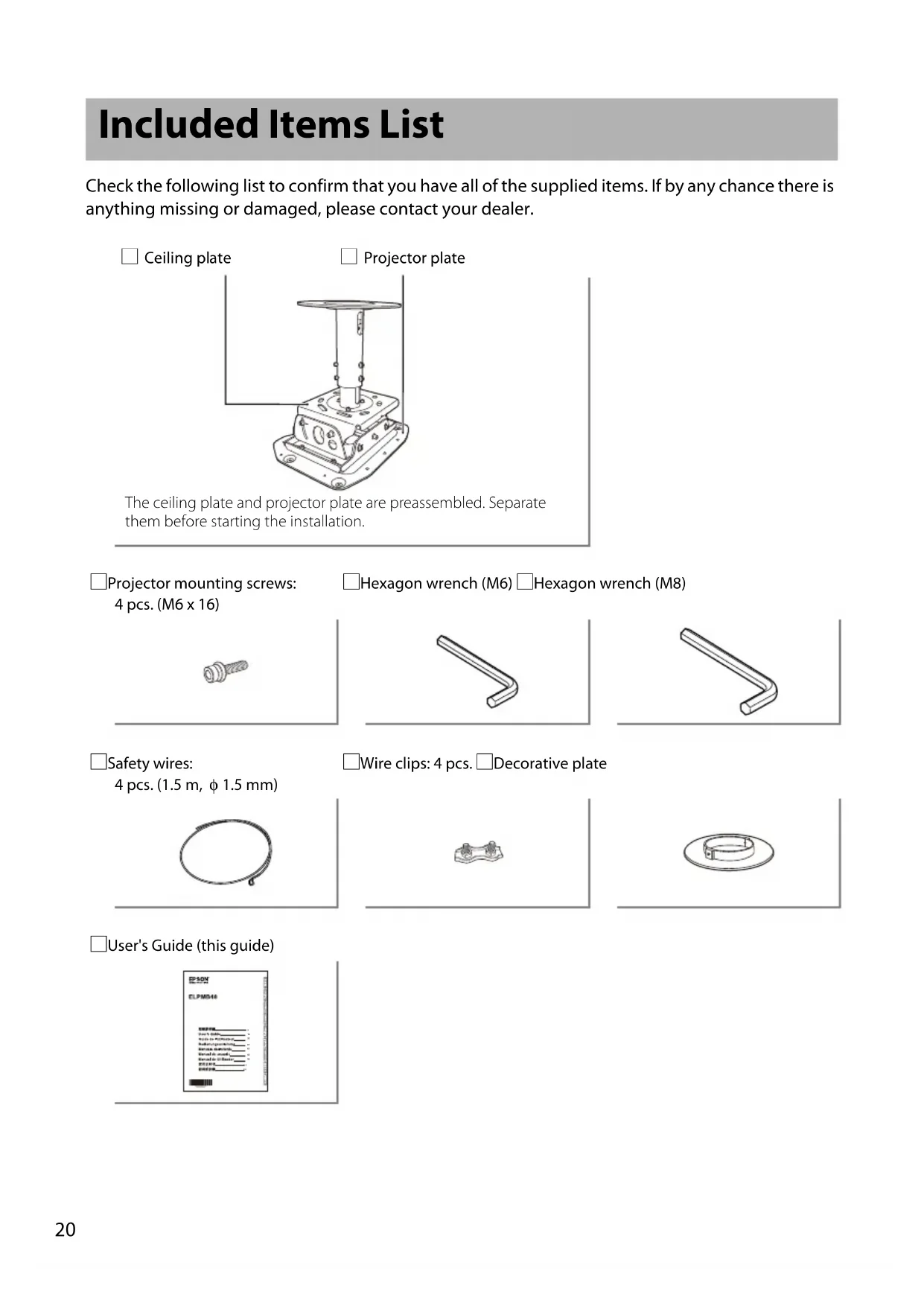

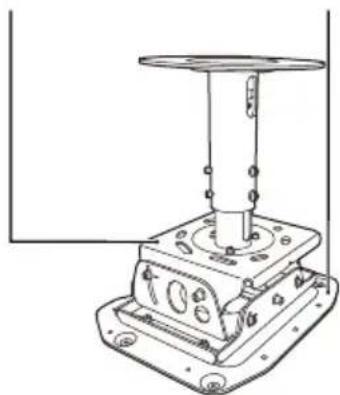

• Spécifications Table des matières36 Vérifiez, à l'aide de la liste suivante, que vous disposez bien de tous les éléments fournis. Si un élément s'avérait manquant ou endommagé, contactez votre revendeur. Liste des élément fournis Y Vis de montage du projecteur : 4 (M6 x 16) Y Clé à six pans (M6) Y Clé à six pans (M8) Y Cordons de sécurité : 4 (1,5 m, φ 1,5 mm) Y Clips de cordon : 4 Y Plaque de décoration Y Guide de l’utilisateur (ce guide) Y Plaque de plafond Y Plaque de projecteur La plaque de plafond et la plaque de projecteur sont préassemblées. Séparez-les avant de commencer l'installation. p. 50
