USER MANUAL CBS 370 Cresta

Blue textured surface with a green square button and 'crests' watermark at bottom (no other text or symbols)

MODEL CBS 370

NL. GLAZEN WEEGSCHAAL MET LICHAAMSANALYSE

EN. GLASS BODY ANALYSER

FR. PÈSE-PERSONNE EN VERRE AVEC ANALYSE DU CORPS

DE. GLÄSERNE PERSONENWAAGE MIT KÖRPERANALYSE

GEBRUIKSAANWIJZING

INSTRUCTION MANUAL

BEDIENUNGSANLEITUNG

MODE D'EMPLOI

CE

NL. Wij bedanken u voor uw aankoop van deze CRESTA personenweegschaal met lichaamsanalyse. Leest u deze gebruiksaanwijzing eerst zorgvuldig door voordat u het product in gebruik neemt, zelfs als u met het soort product vertrouwd bent. Het geeft u aanwijzingen om optimaal van dit product gebruik te maken.
EN. We thank you for buying our CRESTA GLASS BODY ANALYSER. It shows your confidence in our brand and our products. Please be assured you have bought a high quality product which you will enjoy using for many years to come. Read this manual thoroughly before first use, even if you are familiar with this type of product. It will give you instructions to make optimal use of this product.
FR. Nous vous remercions de votre achat de ce pèse-personne CRESTA avec analyse corporelle. Lisez attentivement ce mode d'emploi avant la première utilisation de cet appareil, même si vous connaissez déjà ce genre d'appareil. La notice vous apprend comment utiliser ce produit de façon optimale.
DE. Wir bedanken uns herzlich bei Ihnen für den Kauf dieser Personenwaage der Marke CRESTA, die mit der Funktion der Körperanalyse ausgestattet ist. Lesen Sie diese Gebrauchsanweisung vor der ersten Benutzung aufmerksam, auch wenn Sie diese Art von Gerät bereits kennen. Diese Gebrauchsanweisung zeigt Ihnen, wie Sie dieses Produkt optimal benutzen können.

INHOUDSOPGAVE

VEILIGHEIDSINFORMATIE

INFORMATIE OVER VEILIGHEID EN GEBRUIK 2 TIPS 3

OVERZICHT

PRODUCT ONDERDELEN 4 INHOUD 4 LCD DISPLAY 5

INSTELLINGEN

ALGEMENE INSTRUCTIES ....6 PLAATSEN VAN DE BATTERIJEN ....6 MEETEENHEID INSTELLEN ....7 UW PROFIEL INSTELLEN ....8- UW WEEGSCHAAL INSTELLEN ....9 ALLEEN WEGEN ....10

BEGINNEN MET METEN

EERSTE METING 10-11 DAGELIJKSE METING 11-12

UW GEZONDHEID ONDER CONTROLE

LICHAAMSVET INDICATOR 12

PROBLEMEN OPLOSSEN

FOUTMELDINGEN 13 TIJDENS HET METEN 13

SPECIFICATIES 15

ONDERHOUD 16 GARANTIE 16

BIJLAGEN

GEZONDHEIDSTIPS OVER LICHAAMSVET 17 GEZONDHEIDSTIPS OVER LICHAAMSVOCHT 18 GEZONDHEIDSTIPS OVER SPIERMASSA 19 GEZONDHEIDSTIPS OVER BOTMASSA 19 GEZONDHEIDSTIPS OVER BMI 20 GEZONDHEIDSTIPS OVER CALORIEËN 21 EMC BIJLAGE 21

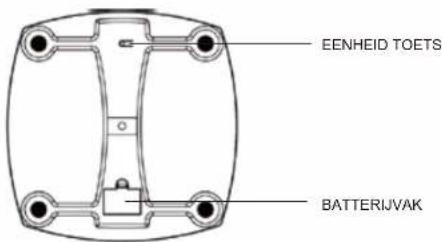

♥ PRODUCT ONDERDELEN

Omlaag LCD Display Omhoog Set toets

EENHEID TOETS BATTERIJVAK

♥ INHOUD

INSTALLATIE

INSTALLATIE

0.0 → 62.5

0.0 kg 62.5 kg 62.5 kg

UW GEZONDHEID ONDER CONTROLE PP

Safety and Usage Information 2

Tips 3

Overview

Device Components 4

List 4

LCD Display 5

Initial Start-Up

General Instructions 6

Insert the Batteries 6

Select Measurement Unit 7

Set Up Your Profile 8-9

Initialising Your Scale 9

Weight Only Operation 1

Start Measuring

First Measurement 10-11

Daily Measurement 11-12

Manage Your Health

Body Fat Indicator 12

Troubleshooting

Error Prompt 13

When Measuring ... 13-14

Specifications

Maintenance 16

Warranty 16

Appendix

Health Tips – About Body Fat 17

Health Tips – About Body Water 18

Health Tips - About Muscle Mass 19

Health Tips - About Bone Mass 19

Health Tips - About BMI 20

Health Tips - About Calorie 21

EMC Guidance 21

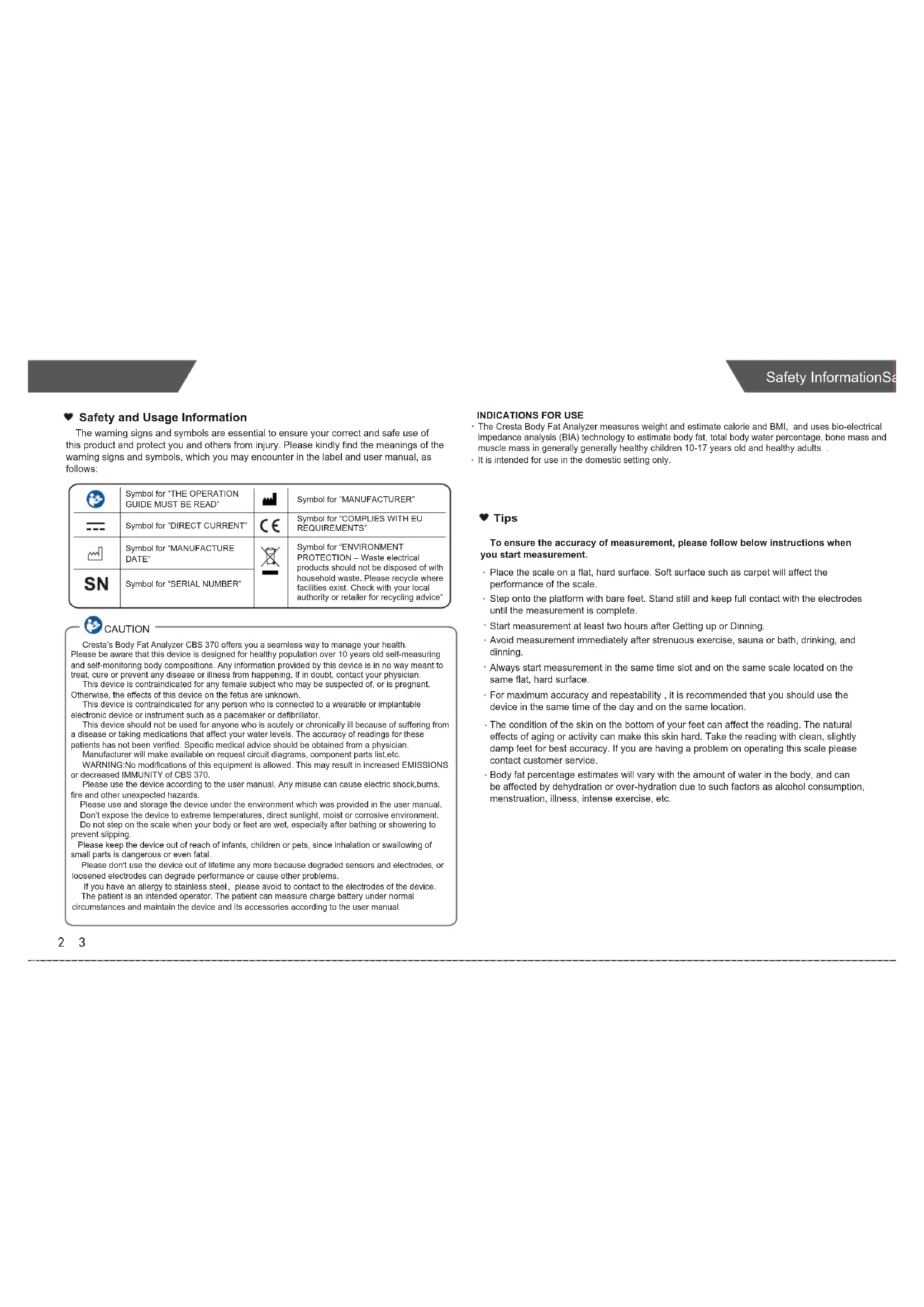

♥ Safety and Usage Information

The warning signs and symbols are essential to ensure your correct and safe use of this product and protect you and others from injury. Please kindly find the meanings of the warning signs and symbols, which you may encounter in the label and user manual, as follows:

[SW23]	Symbol for “THE OPERATION GUIDE MUST BE READ”	[WS5]	Symbol for “MANUFACTURER”
[6C18]	Symbol for “DIRECT CURRENT”	[SWWW]	Symbol for “COMPLIES WITH EU REQUIREMENTS”
	Symbol for “MANUFACTURE DATE”	[WS58]	Symbol for “ENVIRONMENT PROTECTION – Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice”
[0v78a1]	Symbol for “SERIAL NUMBER”

CAUTION

Cresta's Body Fat Analyzer CBS 370 offers you a seamless way to manage your health. Please be aware that this device is designed for healthy population over 10 years old self-measuring and self-monitoring body compositions. Any information provided by this device is in no way meant to treat, cure or prevent any disease or illness from happening. If in doubt, contact your physician. This device is contraindicated for any female subject who may be suspected of, or is pregnant. Otherwise, the effects of this device on the fetus are unknown.

This device is contraindicated for any person who is connected to a wearable or implantable electronic device or instrument such as a pacemaker or defibrillator. This device should not be used for anyone who is acutely or chronically ill because of suffering from a disease or taking medications that affect your water levels. The accuracy of readings for these patients has not been verified. Specific medical advice should be obtained from a physician. Manufacturer will make available on request circuit diagrams, component parts list, etc. WARNING: No modifications of this equipment is allowed. This may result in increased EMISSIONS or decreased IMMUNITY of CBS 370.

Please use the device according to the user manual. Any misuse can cause electric shock, burns, fire and other unexpected hazards. Please use and storage the device under the environment which was provided in the user manual. Don't expose the device to extreme temperatures, direct sunlight, moist or corrosive environment. Do not step on the scale when your body or feet are wet, especially after bathing or showering to prevent slipping.

Please keep the device out of reach of infants, children or pets, since inhalation or swallowing of small parts is dangerous or even fatal. Please don't use the device out of lifetime any more because degraded sensors and electrodes, loosened electrodes can degrade performance or cause other problems. If you have an allergy to stainless steel, please avoid to contact to the electrodes of the device. The patient is an intended operator. The patient can measure charge battery under normal circumstances and maintain the device and its accessories according to the user manual.

INDICATIONS FOR USE

• The Cresta Body Fat Analyzer measures weight and estimate calorie and BMI, and uses bio-electrical impedance analysis (BIA) technology to estimate body fat, total body water percentage, bone mass and muscle mass in generally generally healthy children 10-17 years old and healthy adults.
- It is intended for use in the domestic setting only.

♥ Tips

To ensure the accuracy of measurement, please follow below instructions when you start measurement.

• Place the scale on a flat, hard surface. Soft surface such as carpet will affect the performance of the scale.
• Step onto the platform with bare feet. Stand still and keep full contact with the electrodes until the measurement is complete.
• Start measurement at least two hours after Getting up or Dinning.
• Avoid measurement immediately after strenuous exercise, sauna or bath, drinking, and dinning.
• Always start measurement in the same time slot and on the same scale located on the same flat, hard surface.
• For maximum accuracy and repeatability, it is recommended that you should use the device in the same time of the day and on the same location.
• The condition of the skin on the bottom of your feet can affect the reading. The natural effects of aging or activity can make this skin hard. Take the reading with clean, slightly damp feet for best accuracy. If you are having a problem on operating this scale please contact customer service.
• Body fat percentage estimates will vary with the amount of water in the body, and can be affected by dehydration or over-hydration due to such factors as alcohol consumption, menstruation, illness, intense exercise, etc.

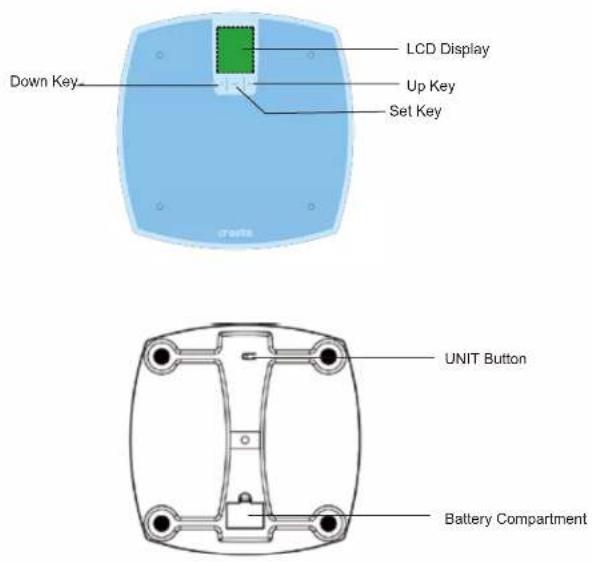

♥ Device Components

Down Key LCD Display Up Key Set Key UNIT Button Battery Compartment

♥ List

1. Body Fat Analyzer CBS 370
2. Three AAA-size Batteries (1.5V each)
3. User Manual

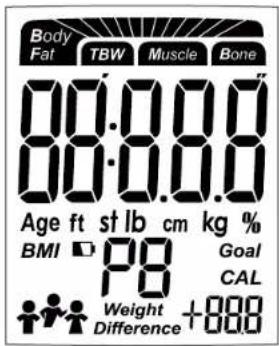

♥ LCD Display

Body Fat TBW Muscle Bone 88.0.0 88.0.0 Age ft st lb cm kg % BMI P8 Goal CAL Weight Difference +888

	Body Fat Analysis Result	%	Percentage
	Total Body Water Analysis Result		Male
	Muscle Mass Analysis Result		Male Athlete
	Bone Mass Analysis Result		Female
Age	Age		Female Athlete
cm	Centimeter	P8	User ID (P1-P8)
ft	Foot	CAL	Calorie Analysis Result
kg	Kilogram	BMI	Body Mass Index
lb	Pound		Low Battery
st lb	Stone	--	Less than the Goal Weight
Weight Difference	Different Compare with the Goal Weight	+	More than the Goal Weight
Goal	Goal Weight

♥ General Instructions

Cresta Body Fat Analyzer CBS 370 applies BIA (Bio-impedance Analysis) technology. A small amount of weak current flows through the human body so as to detect the bio-impedance and estimate calorie, BMI, body fat, body water, muscle mass and bone mass. The electrical current is small and may not be felt.

This BIA technology is cheap, safe, non-invasive, toxic-free and harmless. It also possesses the characteristics of simple operation and abundant information.

The current mentioned above is less than 0.5mA. However, please be aware that anyone with an wearable or implantable medical electronic instrument, such as a pacemaker, must avoid using this device.

The intended use of this device is for healthy children 10-17 years old and healthy adults.

♥ Insert the Batteries

• Open the battery door in the back of the scale.
• Insert the batteries (3 x 1.5V AAA) into the battery compartment according to the polarity indications marked inside the compartment.
  * The digits "8888" will be shown on the LCD.

- Close the battery door and wait until the digits "☐" are shown on the LCD.

CAUTION

* When the symbol ☐ appears, the device will power off in about 3s. Then you shall replace with a new set of batteries. Please replace all three batteries at the same time. Do NOT mix the old batteries with the new one.
- Wom batteries are hazardous waste. Do NOT dispose of them together with the household garbage. - Please refer to the local ordinances and recycling instructions regarding disposal of the worn batteries and scrapped device.
- If you do not intend to use this unit for a prolonged period of time, it is advisable to remove the batteries before storing.

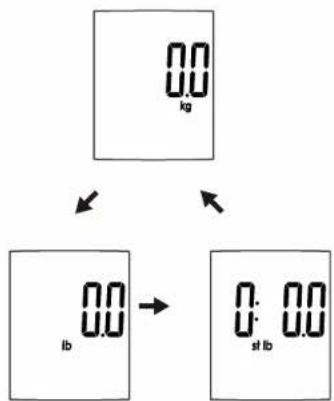

♥ Select Measurement Unit

With batteries correctly installed, press "UNIT" button in the back of the scale to select measurement unit. The default measurement unit is "kg". You may press "UNIT" button to choose among kilogram, pound and stone.

Initial Start-Up

Initial Start-Up

♥ Set Up Your Profile

The body fat analyzer CBS 370 supports multiple users (Up to 8). You may follow below instructions to assign User ID and set up your own profile, including Gender, Stature, Age and Goal Weight.

1. Assigning User ID

• With batteries correctly installed, press "SET" key to enter setting.
• The system will request User ID selection first. As pictured below, "P1" blinks. The operator may press the function key ◀ or ▶ to select User ID among P1 to P8.
• Press "SET" key to confirm User ID.

2. Setting Gender

• After confirming User ID, the system will divert to Gender setting automatically.
- As pictured below, the portrait ✦ blinks. The operator may press the function key
◀ or ▶ to select Gender.( Male/Female/Male Athlete/ Female Athlete).

Press "SET" key to confirm Gender.

Athlete Mode:

An athlete is considered as a person who does 10 hours or more per week of aerobic activity and has a resting heart rate of 60 beats per minute. These individuals should select Athlete Mode for the most accurate measurement results. The body fat analyzer are not calibrated for professional athletes or body builders.

3. Setting Stature

• After confirming Gender, the system will divert to Stature setting automatically.
- As pictured below, the digits "165" blinks. The operator may press the function key
◀ or ▶ to increase or decrease the numeral.
- You may press and hold the function key ◀ or ▶ for fast changing the numeral.
- Press "SET" key to confirm Stature.

4. Setting Age

• After confirming Stature, the system will divert to Age setting.
• As pictured below, the digits "30" blinks. The operator may press the function key ◀ or ▶ to increase or decrease the numeral.
• You may press and hold the function key ◀ or ▶ for fast changing the numeral.
• Press "SET" key to confirm Age.

5. Setting Goal

• After confirming Stature, the system will divert to Goal setting.
• As pictured below, the digits "50.0" blinks. The operator may press the function key
  ◀ or ▶ to increase or decrease the numeral.
  * You may press and hold the function key ◀ or ▶ for fast changing the numeral.
• Press "SET" key to confirm Goal.

- When the LCD displays "0.0kg", you may start measuring.

♥ Initialising Your Scale

1. Press the platform centre and remove your foot.
2. "0.0" will be displayed.

1. The scale will switch off and is now ready for use.
   This initialisation process must be repeated if the scale is moved.
   At all other times step straight on the scale.

Start Measuring Start M

♥ Weight Only Operation

Your Cresta Body Fat Analyzer will operate as a conventional weight - reading scale. No special programming steps are required.

Once the scale is initialized, as previously described, you may simply step on the scale to measure your current weight. For only weight reading.

1. Position the scale on a flat, hard surface. Carpeted or uneven floors may affect accuracy.
2. Step onto the scale platform and remain still while the scale computes your weight.
3. The scale will display your weight value.

0.0 kg 62.5 kg

1. The scale will automatically turn off after a few seconds.

♥ First Measurement

- Please process the user setting before your first measurement. (Refer to Set Up Your Profile for more details)

STEP 1: Step on the platform barefooted.

STEP 2: Stand still and keep full contact with the scale until the LCD stops displaying moving body fat level.

0.0 P1 kg → 625 P1 kg → 625 P1 kg

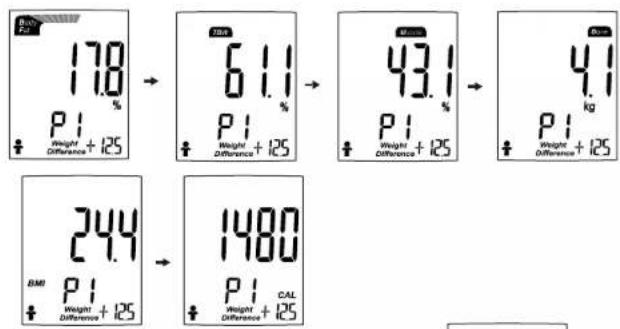

STEP 3: Then the measuring results will be displayed sequentially three times: Body Fat, Total Body Water, Muscle Mass, Bone Mass, BMI and Calorie.

178 P1 Weight Difference + 125 61.1 P1 Weight Difference + 125 43.1 P1 Weight Difference + 125 4.1 P1 Weight Difference + 125 24.4 BMI P1 Weight Difference + 125 1480 P1 Weight Difference + 125 CAL

* If it fails to complete the analysis, the LCD will only display the weight data. (To find out the solutions, please refer to Troubleshooting for more details.)

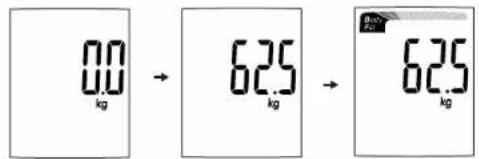

♥ Daily Measurement

• With original SENSE ON patent technology, CBS 370 will switch on as you step on the platform barefooted.
• Stand still and keep full contact with the scale until the LCD stops displaying moving body fat level.

0.0 kg 62.5 kg 62.5 kg

Manage Your Health

Troubleshooting

- According to the analysis results, the system will automatically identify the possible User ID with most similar history records. Then the measuring results will be displayed sequentially three times.

17.8 P1 Weight Difference + 125 61.1 P1 Weight Difference + 125 43.1 P1 Weight Difference + 125 4.1 kg 24.4 BMI P1 Weight Difference + 125 1480 P1 CAL Weight Difference + 125

- When the system finds out two or more users with similar history records, it will notify you to choose between, for example, P1 and P2. You may press ◀ key for P1 and or ▶ key for P2. The measuring results will then be sorted into the User ID you selected and displayed sequentially three times.

- If it fails to identify the possible User ID, the LCD will only display the weight data. (To find out the solutions, please refer to Troubleshooting for more details.)

♥ Body Fat Indicator

The Progress Bar at the top of the LCD Display also functions as the indicator of body fat level. When the measuring result is displayed after analysis, the varying length of the bar indicates different levels of body fat.

♥ Error Prompt

Error Description Solution
	Overload. The device will power off.	Stop using this scale for measurement.
	Low Battery. The device will power off.	Replace all three batteries in the same time. Please purchase the authorized batteries for replacement.

♥ When Measuring ...

Problem Root	Cause Solution
Abnormal measuring results:- Too high; OR- Too low; OR- Huge difference between two recent measurement.	Incorrect posture	Please step on the platform barefooted and stand still.
	The device is located on the soft ground such as a carpet OR on a rugged surface.	Please place the device on a flat, hard surface.

Troubleshooting

Specifications

Problem Root	Cause Solution
Abnormal measuring results: - Too high; OR - Too low; OR - Huge difference between two recent measurement.	Your feet are too dry.	Wipe your feet with a damp cloth, keeping them slightly damp when starting measurement.
No display on LCD when the device powers on.	Batteries not yet installed.	Install the batteries. (Please refer to Insert the Batteries)
	Worn batteries.	Replace all three batteries at the same time. Please purchase the authorized batteries for replacement.
CANNOT proceed to analyze calorie, BMI, body fat, total body water, muscle mass and bone mass.	Step onto the platform wearing socks or shoes.	Please keep barefooted during the measurement, and keep full contact with the electrodes as well.
	The system cannot identify the possible User ID with most similar data.	Please assign a User ID following the instruction in Set Up Your Profile.
	The user fails to select the User ID from what the system found.	Please assign a User ID following the instruction in Set Up Your Profile.
The device powers off.	Low battery.	Replace all three batteries at the same time. Please purchase the authorized batteries for replacement.

♥ Specifications

Product Name	Body Fat Analyzer (CBS 370)
Dimension	Scale: 320x320x27mm (Approximately)
Net Weight	Approximately 1.6kg
Display	Digital LCD
Measurement Unit	Kilogram / Stone/ Pound
Measurement Range	5kg to 180kg / 0st: 11lb to 28st: 5lb / 11lb to 397lb
Division	0.1kg / 0.2lb
Accuracy	50 ±0.3kg; 100 ±0.4kg;150 ±0.5kg; 180 ±0.7kg;
Working Environment	Temperature: 5°C to 40°C Relative Humidity: ≤90% RHAtmospheric pressure: 86kPa to 106kPa
Storage Environment	Temperature: -20°C to 60°C Relative Humidity: ≤90% RHAtmospheric pressure: 50kPa to 106kPa
Power Source	4.5V (Three AAA-size Batteries)
Turn on Method	SENSE ON technology
Auto-OFF	The scale will turn off after about 10 seconds if there is no operation
Accessories	1. Three AAA-size batteries2. User Manual
Mode of Operation	Continuous Operation

About the Accuracy of This Product
• This product passes strict inspection before delivery and therefore its accuracy is guaranteed by the manufacturer. Please refer to the above table for the descriptions on accuracy.
- This product is specially designed for body fat analysis as well as weight measurement. It should NOT be used by anyone during the process of transaction for verification of goods' weight.

Maintenance

Appendix

♥ Maintenance

When carrying out usual maintenance, please ensure practice of the following Do's and Don'ts:

• DO use a dry soft cloth to wipe the dust.
- DO use a wet soft cloth, dipped into water and wrung out, to wipe the dirt. Then use a dry soft cloth to dry up the device.
- DON'T wash the device with water or immerse it in water.
- DON'T use propellant, abrasive or other chemicals to wipe the dirt in avoidance of discolor or malfunction.
- DON'T disassemble this device. If you have any problems, please contact Cresta. (Please refer to Warranty for contact information)

♥ Warranty

• Cresta warrants its products free of defects in materials and workmanship in normal use for a period of TWO years from the date of retail purchase.
• This warranty does NOT cover damages caused by misuse or abuse, including but not limited to:
  → Failure caused by unauthorized repairs or modifications;
  → Damage caused by shock or drop during transportation;
  → Failure caused by improper operation inconsistent with the instructions stated in this user manual;
  → Malfunction or damage from failure to provide the recommended maintenance;
  → Damage caused by improper use of power supply.
• Should this device require maintenance under warranty, please deliver the original package to the store where you have bought it. Please bring along the original cashreceipt to prove the correctness of your warranty claim.

♥ Health Tips - About Body Fat

Human body is made up of, amongst other things, a percentage of fat. Body fat is vital for a healthy, functioning body, protects vital organs, helps regulate body temperature, stores vitamins and helps the body sustain itself when food is scarce. However, too much body fat or indeed too little body fat will damage to your health. It is difficult to gauge how much body fat we have in our bodies simply by looking at ourselves in the mirror.

This is why it is important to measure and monitor your body fat percentage. Body fat percentage gives you a better measure of fitness than weight alone—the composition of your weight loss could mean you are losing muscle mass rather than fat-you could still have a high percentage of fat even when a scale indicates 'normal weight'.

The table as follows may be used as a guide:

The body fat ratio (Unit: %):

Age	Female				Male
	Underfat	Healthy	Overfat	Obese	Underfat	Healthy	Overfat	Obese
<39	<21 21	-33 33.1-39	>39 <8	8-20 20.1-25	>25
40-59	<23	23-34 34.1-40	>40	<11 22.1-28	>28	11-22
>59	<24	24-36 36.1-42	>42	<13 13-25	25.1-30	>30

Appendix Appe

♥ Health Tips - About Body Water

Body water is the single most important component of body weight. It represents over half of your total weight and almost two thirds of your lean body mass (predominantly muscle). Water performs a number of important roles in the body:

All the cells in the body, whether in the skin, glands, muscles, brain or anywhere else, can only function properly if they have enough water. Water also plays a vital part in regulating the body's temperature balance, particularly through perspiration.

The combination of your weight and fat measurement could appear to be 'normal' but your body hydration level could be insufficient for healthy living.

The table as follows may be used as a guide:

The body water ratio (Unit: %):

Age	Female			Male
	Low Normal High			Low Normal High
10-15	<57 57	67	>67	<58	58-72	>72
16-30	<47	47-57	>57	<53	53-67	>67
31-60	<42	42-52	>52	<47	47-61	>61
61-85	<87 37-47	>47		<42	42-56	>56

♥ Health Tips - About Muscle Mass

According to the American College of Sports Medicine (ACSM), lean muscle mass may decrease by nearly 50 percent between the age of 20 and 90. If you do nothing with it you're losing muscle and increasing fat. It is also important to know your muscle mass % during weight reduction. At rest, the body burns approximately 110 additional calories for each kilo of muscle gained. Benifits of gaining muscle mass include:

• Reversing the decline in strength, bone density and muscle mass with aging
• Maintenance of flexible joints
• Guide weight reduction when combined with a healthy diet.

The table as follows may be used as a guide:

The body muscle ratio (%):

Age	Female Male
	Healthy	Healthy
10-85	>34	>40

♥ Health Tips - About Bone Mass

Regular exercise and a balanced diet can help maintain healthy bones. Like muscle, bone is a living tissue that can respond to exercise by becoming stronger. For most people, bone mass peaks in their thirties. Then people begin to lose bone. Regular exercise can help prevent that loss.

Calcium and vitamin D, good sources of which are dairy products, green leafy vegetables and fish, contribute to healthy bones.

The bone mass readings given by this product are anestimation of the amount of bone in your body. Those with osteoporosis or low bone densities may not get accurate estimations. If you have any concern regarding your bones please consult your doctor timely.

The table as follows may be used as a guide:

The bone range (kg)≤ 10kg

Maintaining proper weight is essential to healthy living. Obesity has been linked to a higher risk of heart disease, diabetes and some forms of cancer. The Body Mass Index (BMI) is the most widely accepted measurement of weight according to health professionals. The Analyzer will calculate your BMI on your height and weight.

The table as follows may be used as a guide:

	Normal						Overweight					Obese
	Body Weight (pounds)
58	91	96	100	105	110	115	119	124	129	134	138	143	148	153	158	162	167
59	94	99	104	109	114	119	124	128	133	138	143	148	153	158	163	168	173
60	97	102	107	112	118	123	128	133	138	143	148	153	158	163	168	174	179
61	100	106	111	116	122	127	132	137	143	148	153	158	164	169	174	180	185
62	104	109	115	120	126	131	136	142	147	153	158	164	169	175	180	186	191
63	107	113	118	124	130	135	141	146	152	158	163	169	175	180	186	191	197
64	110	116	122	128	134	140	145	151	157	163	169	174	180	186	192	197	204
65	114	120	126	132	138	144	150	156	162	168	174	180	186	192	198	204	210
66	118	124	130	136	142	148	155	161	167	173	179	186	192	198	204	210	216
67	121	127	134	140	146	153	159	166	172	178	185	191	198	204	211	217	223
68	125	131	138	144	151	158	164	171	177	184	190	197	203	210	216	223	230
69	128	135	142	149	155	162	169	176	182	189	196	203	209	216	223	230	236
70	132	139	146	153	160	167	174	181	188	195	202	209	216	222	229	236	243
71	136	143	150	157	165	172	179	186	193	200	208	215	222	229	236	243	250
72	140	147	154	162	169	177	184	191	199	206	213	221	228	235	242	250	258
73	144	151	159	166	174	182	189	197	204	212	219	227	235	242	250	257	265
74	148	155	163	171	179	186	194	202	210	218	225	233	241	249	256	264	272
75	152	160	168	176	184	192	200	208	216	224	232	240	248	256	264	272	279
76	156	164	172	180	189	197	205	213	221	230	238	246	254	263	271	279	287
	19	20	21	22	23	24	25	26	27	28	29	30	31	32	33	34	35

Body Mass Index

♥ Health Tips - About Calorie

The device uses your age, height, gender and an activity level setting to calculate the estimated number of calories you can consume a day to maintain your present weight. This estimation may gradually help you with a weight loss, gain or maintenance plan.

♥ EMC Guidance

1. MEDICAL ELECTRICAL EQUIPMENT needs special precautions regarding EMC and needs to be installed and put into service according to the EMC information provided in the ACCOMPANYING DOCUMENTS.
2. Wireless communications equipment such as wireless home network devices, mobile phones, cordless telephones and their base stations, walkie-talkies can affect this equipment and should be kept at least a distance d = 3,3 m away from the equipment. (Note. As indicated in Table 6 of IEC 60601-1-2:2007 for ME EQUIPMENT, a typical cell phone with a maximum output power of 2 W yields d = 3,3 m at an IMMUNITY LEVEL of 3 V/m)

Table des matières

Body Fat TBW Muscle Bone 00:00:00 Age ft st lb cm kg % BMI 78 Goal Weight +000 Difference

Digital display showing foot icons and a numeric display showing 0.0 to 625

0.0 P1 kg → 62.5 P1 kg → 62.5 P1 kg

17.8 P1 Weight Difference + 125 → 61.1 P1 Weight Difference + 125 → 43.1 P1 Weight Difference + 125 → 4.1 P1 Weight Difference + 125 → 24.4 BMI P1 Weight Difference + 125 → 1480 P1 Weight Difference + 125

0.0 kg 62.5 kg 62.5 kg

17.8 P/L Weight Difference + 125 → 61.1 P/L Weight Difference + 125 → 43.1 P/L Weight Difference + 125 → 4.1 P/L Weight Difference + 125 24.4 BMI P/L Weight Difference + 125 → 1480 P/L Weight Difference + 125

Body Fat TBW Muscle Bone 00:00:00 Age ft st lb cm kg % BMI 78 Goal Weight +000 Difference

Inbetriebnahme

Inbetriebnahme

♥ Profil einrichten

Diagram showing foot measurement adjustment from a blue foot icon to a digital display showing 0.0 and 62.5 units.

17.8 P1 Weight Difference + 125 → 61.1 P1 Weight Difference + 125 → 43.1 P1 Weight Difference + 125 → 4.1 P1 Weight Difference + 125 24.4 BMI P1 Weight Difference + 125 → 1480 P1 Weight Difference + 125 CAL

0.0 kg 62.5 kg 62.5 kg
