USER MANUAL EL60G MKII Laserworld

Please spend a few minutes to read this manual fully before operating this laser!

Thank you for purchasing this Laserworld

product. Due to continual product developments and technical improvements, Laserworld (Switzerland) AG reserves the right to make modifications to its products. This manual and its content have been made with due care but Laserworld (Switzerland) AG cannot however, take any responsibility for any errors, omissions or any resulting damages forthwith. The brands and product names mentioned in this manual are trade marks or registered trade marks of their respective owners.

1. Product and package contents
2. Preliminary warning notices
3. Initial operations, safety instructions
4. Working on the device
5. Service notes
   6.Warnings and other notices on the device
6. Device connections
7. Operation

Final statement

Technical data sheet

Laser specifications

1. Product and package contents

Please check if all listed parts are included and undamaged. Included in delivery:

1 x laser projector 1 x manual 2 x key (for key switch)

1 x power cable 1 x Interlock connector

(already attached)

2. Preliminary warning notices

1. Please use this device only according to these operating instructions.
2. Do not use the device if there are any visible damages on housing, connector panels, power supplies or power cords.
3. Never look directly into the light source of a laser projector. Danger of damage to the eyes or even blindness in extreme circumstances!
4. Do not operate the device at high humidity, rain or in dusty surroundings.
5. Protect device against dripping or splashing water. Do not place any liquid filled containers near to this device.

Any warranty claims are void if the warranty label is removed or tampered with in any way.

3. Initial operations, safety instructions

1. Make sure to use correct voltage; see information on device & in this manual.
2. Make sure that the device is not connected to mains during installation.
3. Installation has to be done by technical experienced and qualified persons according to safety regulations of the respective country.
4. Always ensure that maximum permissible exposure (MPE) is not exceeded in areas accessible to the public or members of staff.

5. In some countries an additional inspection by technical control institutes could be necessary.

6. Connectaneasilyaccessible interlock connector or circuit breaker to the projector.

7. The power supply should be easily accessible.
8. When installing the laser keep mount it with a minimum distance of 15cm from walls and objects.

9. For safe setup e.g. on walls or ceilings please use a safety cord. The safety cord should be able to withstand tenfold the weight of the device. Please follow the accident prevention regulations of professional associations and/or comparable regulations for accident prevention.

10. If the device has been exposed to great temperature changes, do not switch it on immediately. Condensation (or any moisture/water formed) may damage device.

11. Never use dimmer, RC or other electronically switched sockets. Whenever possible, do not use the laser projector together with large appliances (especially fog machines) on the same mains!

12. Ensure sufficient ventilation and do not place the device on any warm or heat radiating surface. Especially the ventilation openings must not be covered!

13. Ensure that device does not get overheated. Make sure that the device is not exposed to spotlights (especially moving heads). Heat of spotlights could overheat laser in a little while and leads to a degradation of performance.

4. Working on the device

1. This product has no user serviceable parts inside and should only be maintained and serviced by a qualified engineer.
2. Be sure that the mains plug is not connected to the power supply while installing or opening the device (e.g. for cleaning).
3. Take off all reflecting things like rings, watches etc. before start working with or at the projector.
4. Use only non-reflecting tools to work on device.
5. Wear protective clothing (like goggles, gloves etc.) according to laser power and wavelength of the laser.

5. Service notes

• Moisture and heat can reduce lifetime of the laser system dramatically and expires any warranty claim.
• Quick on/off switching of this device will reduce durability of the laser diode dramatically.
• Avoid sharp knocks and shocks to this device and ensure sufficient protection during transportation. Look after your Laserworld product.
• To increase durability of your laser, protect device against overheating:
  Always ensure sufficient ventilation.
• Do not face spotlights (especially moving heads) to the device.

• Check temperature after approx. 30 minutes with each new installation. If necessary install the projector at a place with different temperature.

• Switch off device when it is not needed. Diodes are switched on and can wear out even if there is no visible laser output.

• Keep the device dry. Protect it from moisture, rain and damp.
  The devices of Ecoline Series are not meant for professional applications. After approx. one hour of operation, the device should cool down for about 15 minutes.
• Please ensure the fans and heatsinks are clear from dust and debris otherwise the risk of overheating may occur. If the unit and

airways appear to be blocked then please contact a qualified service engineer to maintain and service the product.

• Removal of the warranty label as well as damages to the device caused by improper handling, neglect of the safety instructions and service notes will void the warranty.

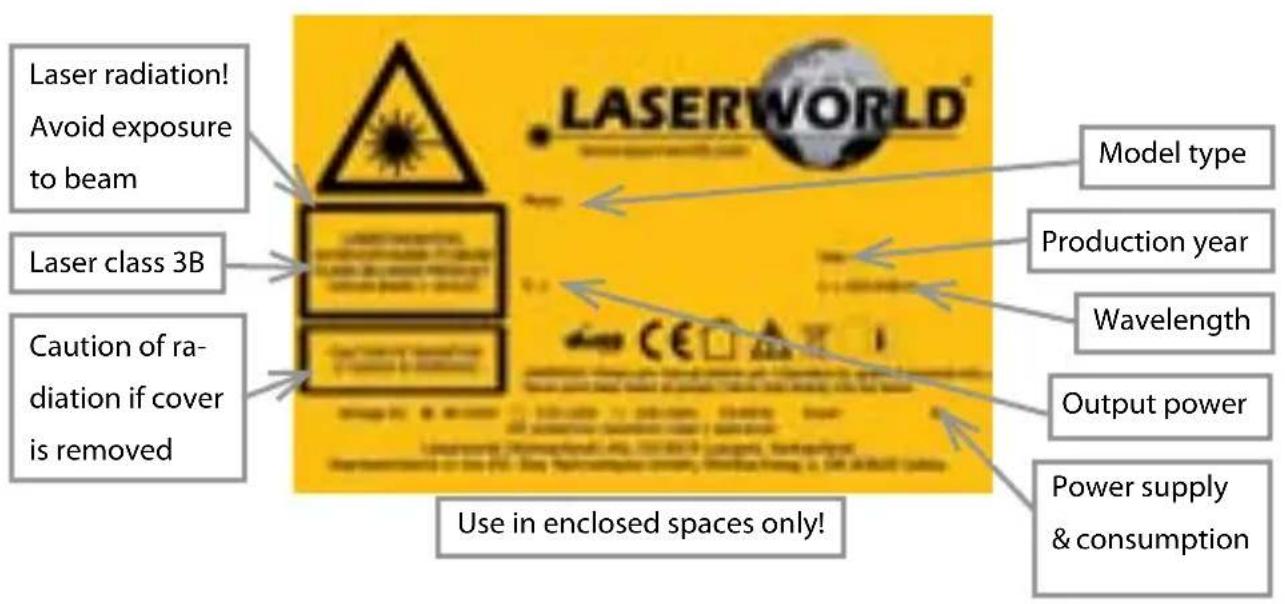

6.Warnings and other notices on the device

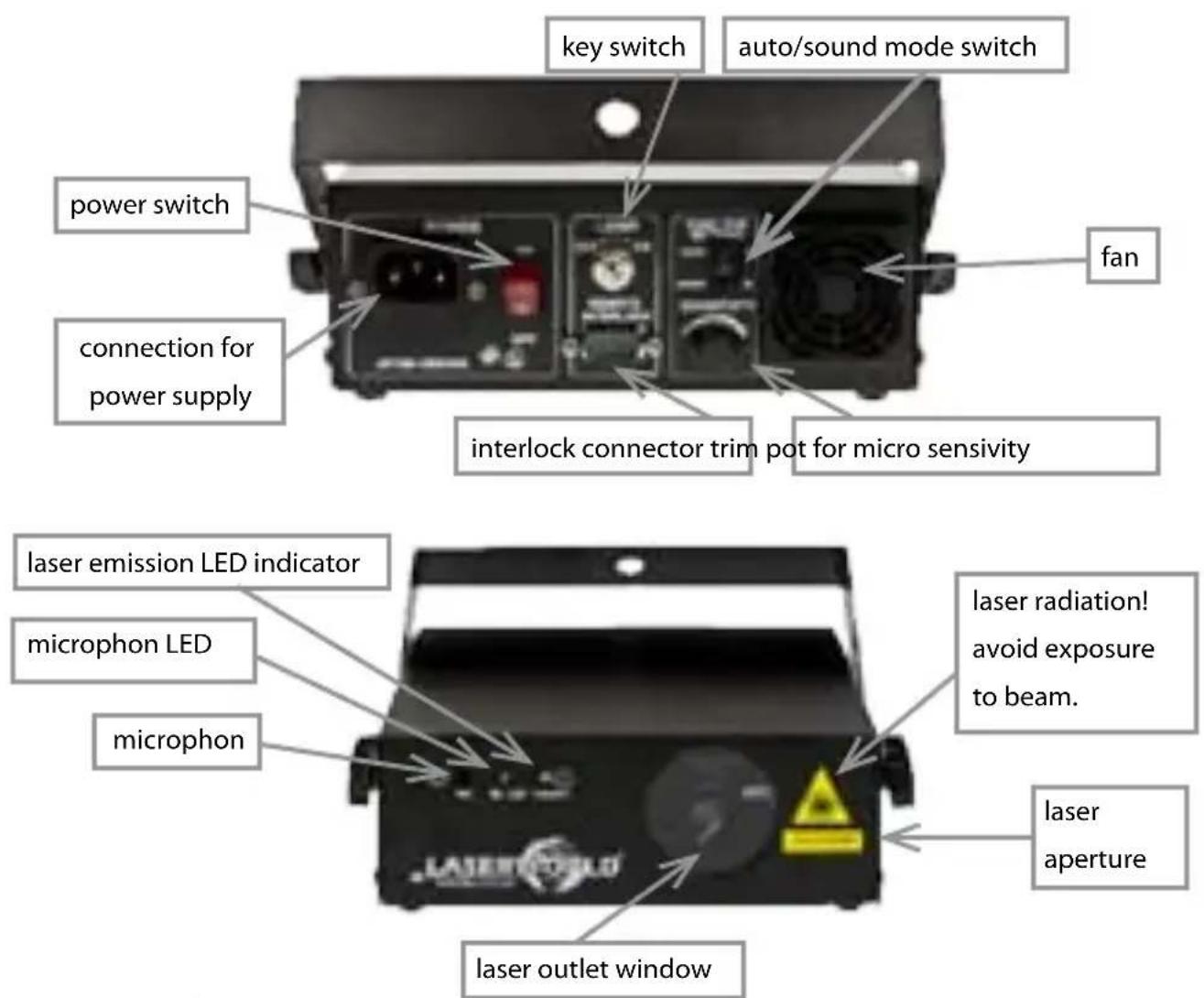

7. Device connections

8. Operation

1. Connect the power cable to the device and then to the mains

2. The Interlock adapter is already attached. There is no need to change anything. The show laser doesn't work if the interlock adapter isn't connected to the device.

3. Press "ON" to switch the device on

4. Insert the key into the key switch and turn it ON

5. Your device will start running in either auto or sound mode now. You can select the mode by using the auto / sound switch located on the rear side of the unit.

6. Control the microphone sensitivity with the trim pot located on the rear side of the unit. The LED is flashing when the device is triggered.

7. To turn off the device, move the key switch to "OFF", switch the device off ("OFF") and disconnect the power cable from the mains.

Final statement

Laserworld products are tested and product packaging is inspected before leaving our warehouse. Users must to follow the local safety regulations and warnings within this manual and adhere to any regulations within its place of use. Damages through inappropriate use will void any liability or warranty of our products. Due to continual product developments, please check for the latest update of this product manual at www.laserworld.com. If you do have any further questions, then please contact your dealer/place of purchase or use our contact section on our website. For service issues, please contact your dealer/place of purchase and ensure only genuine Laserworld spare parts are used in any service repairs.

Errors and omissions excepted and products are subject to change.
