USER MANUAL DML813 MAKITA

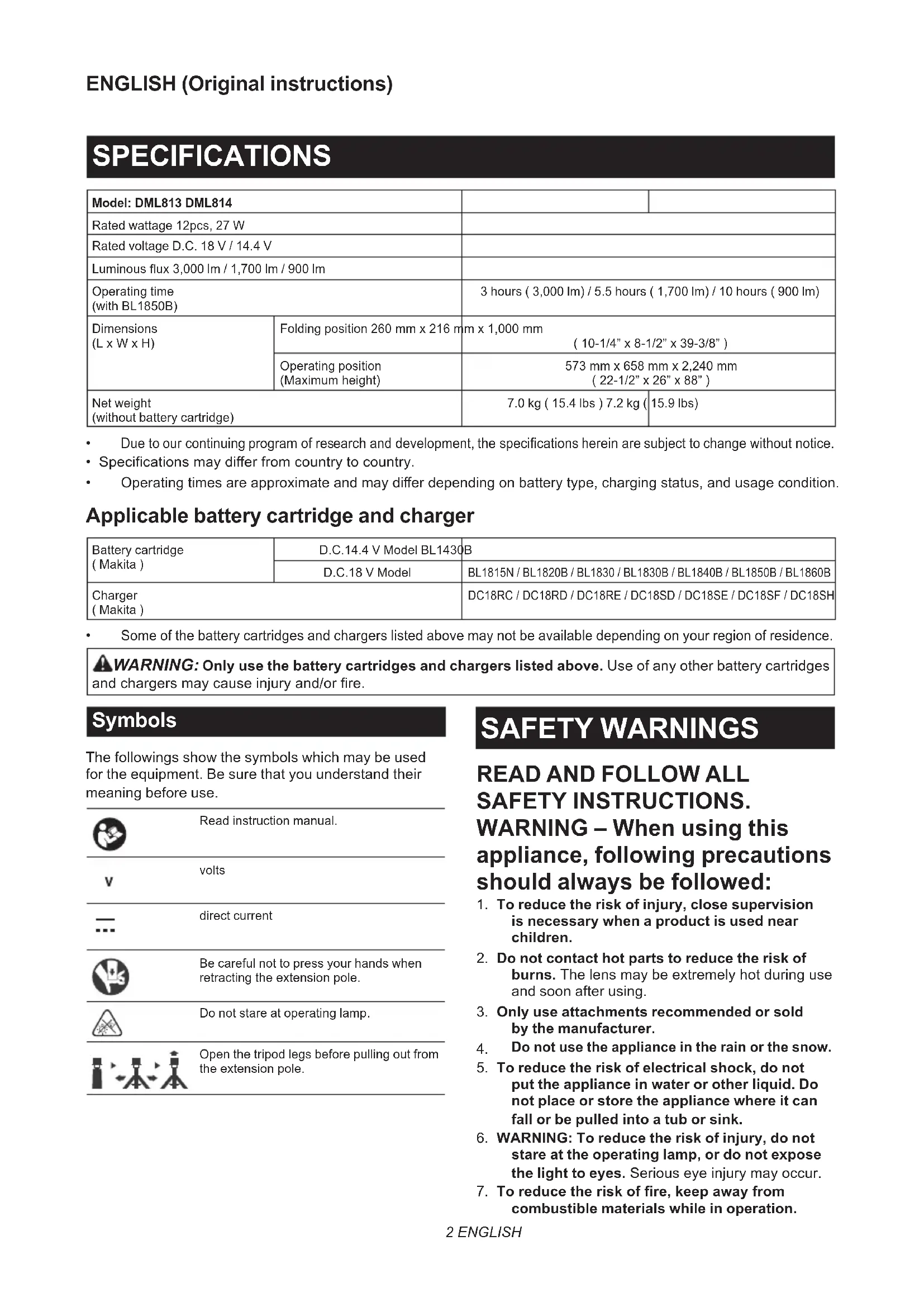

Due to our continuing program of research and development, the specications herein are subject to change without notice.

• Specications may di󰀨er from country to country.

Operating times are approximate and may di󰀨er depending on battery type, charging status, and usage condition. Applicable battery cartridge and charger Battery cartridge( Makita )D.C.14.4 V Model BL1430BD.C.18 V ModelBL1815N / BL1820B / BL1830 / BL1830B / BL1840B / BL1850B / BL1860BCharger( Makita )DC18RC / DC18RD / DC18RE / DC18SD / DC18SE / DC18SF / DC18SH

Some of the battery cartridges and chargers listed above may not be available depending on your region of residence.

WARNING: Only use the battery cartridges and chargers listed above. Use of any other battery cartridges

and chargers may cause injury and/or re. Symbols The followings show the symbols which may be used for the equipment. Be sure that you understand their meaning before use. Read instruction manual.voltsdirect currentBe careful not to press your hands when retracting the extension pole.Do not stare at operating lamp.Open the tripod legs before pulling out from the extension pole. SAFETY WARNINGS

SAFETY INSTRUCTIONS. WARNING – When using this appliance, following precautions should always be followed:

1. To reduce the risk of injury, close supervision

is necessary when a product is used near children.

2. Do not contact hot parts to reduce the risk of

burns. The lens may be extremely hot during use and soon after using.

3. Only use attachments recommended or sold

by the manufacturer.

Do not use the appliance in the rain or the snow.

5. To reduce the risk of electrical shock, do not

put the appliance in water or other liquid. Do not place or store the appliance where it can fall or be pulled into a tub or sink.

6. WARNING: To reduce the risk of injury, do not

stare at the operating lamp, or do not expose the light to eyes. Serious eye injury may occur.

7. To reduce the risk of re, keep away from

combustible materials while in operation.3 ENGLISH

8. Only use attachments recommended or sold

by the manufacturer.

9. Do not allow anything to cover or clog the

vents of the appliance. Always keep clean the vent for cooling. Otherwise it may cause a ame.

Do not use the carrying handle any other purpose than carrying the appliance, such as hoisting.

When carrying the appliance, always fold the tripod legs. Otherwise a falling accident may occur.

Place the appliance out of the reach of children.

13. Place the appliance on a level and stable place.

Otherwise a falling accident may occur.

14. Do not use the appliance in strong winds.

spheres, such as in the presence of ammable liquids, gases or dust.

16. Do not expose the appliance to sparks or cor-

rosive atmosphere, etc.

When the appliance is not in use, always remove the battery cartridge from the appliance.

18. Store the appliance indoors.

19. Do not wash the appliance in water.

20. Keep the tags and nameplate on the product,

which contains important information. If it cannot be read or lost, please contact MAKITA Service Center for free replacement.

21. Disconnect the battery pack from the appli-

ance before making any adjustments, chang- ing accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.

22. Do not modify or attempt to repair the appli-

ance or the battery pack except as indicated in the instructions for use and care.

23. Do not handle the appliance roughly, such as

dropping or hitting. Doing so may cause mal- function or injury.

24. Do not handle charger, including charger plug,

and charger terminals with wet hands.

25. Do not charge the battery outdoors.

26. When the appliance is not in use, always fold

the tripod legs and shrink the pole to reduce injury and damage.

27. The light source contained in this luminaire

shall only be replaced by the manufacturer or his service agent or a similar qualied person.

28. When the appliance is used outdoors, screws

can be used for the holes in the tripod legs as auxiliary xation. When moving the appliance, loosen and remove the screws. Battery tool use and care

1. Prevent unintentional starting. Ensure the

switch is in the o󰀨-position before connecting to battery pack, picking up or carrying the appliance. Carrying the appliance with your nger on the switch or energizing appliance that have the switch on invites accidents.

2. Disconnect the battery pack from the appli-

ance before making any adjustments, chang- ing accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.

3. Recharge only with the charger specied by

the manufacturer. A charger that is suitable for one type of battery pack may create a risk of re when used with another battery pack.

4. Use power tools only with specically desig-

nated battery packs. Use of any other battery packs may create a risk of injury and re.

5. When battery pack is not in use, keep it away

from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery termi- nals together may cause burns or a re.

Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact acci- dentally occurs, ush with water. If liquid con- tacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

7. Do not use a battery pack or tool that is dam-

aged or modied. Damaged or modied batteries may exhibit unpredictable behaviour resulting in re, explosion or risk of injury.

8. Do not expose a battery pack or tool to re or

excessive temperature. Exposure to re or tem- perature above 130 °C may cause explosion.

9. Follow all charging instructions and do not

charge the battery pack or tool outside the temperature range specied in the instruc- tions. Charging improperly or at temperatures outside the specied range may damage the battery and increase the risk of re.

Have servicing performed by a qualied repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.

11. Do not modify or attempt to repair the appli-

ance or the battery pack except as indicated in the instructions for use and care. SERVICE

This appliance service must be performed only by quali- ed repair personnel. Service or maintenance performed by unqualied personnel could result in a risk of injury.

2. When servicing this appliance, use only identical

replacement parts. Use of unauthorized parts or failure to follow maintenance instructions may create a risk of electric shock or injury.

3. Do not incinerate this appliance, even if it is

severely damaged. The batteries can explode in a re. Dispose of the appliance in accordance with the local regulations. Important safety instructions for battery cartridge

Before using battery cartridge, read all instruc- tions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

2. Do not disassemble or tamper the battery

cartridge. It may result in a re, excessive heat, or explosion.

3. If operating time has become excessively

shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.4 ENGLISH

If electrolyte gets into your eyes, rinse them out with clear water and seek medical attention right away. It may result in loss of your eyesight.

5. Do not short the battery cartridge:

(1) Do not touch the terminals with any con- ductive material. (2) Avoid storing battery cartridge in a con- tainer with other metal objects such as nails, coins, etc. (3) Do not expose battery cartridge to water or rain. A battery short can cause a large current ow, overheating, possible burns and even a breakdown.

6. Do not store and use the tool and battery car-

tridge in locations where the temperature may reach or exceed 50 °C (122 °F).

7. Do not incinerate the battery cartridge even if

it is severely damaged or is completely worn out. The battery cartridge can explode in a re.

8. Do not nail, cut, crush, throw, drop the battery

cartridge, or hit against a hard object to the battery cartridge. Such conduct may result in a re, excessive heat, or explosion.

9. Do not use a damaged battery.

The contained lithium-ion batteries are subject to the Dangerous Goods Legislation requirements. For commercial transports e.g. by third parties, forwarding agents, special requirement on pack- aging and labeling must be observed. For preparation of the item being shipped, consult- ing an expert for hazardous material is required. Please also observe possibly more detailed national regulations. Tape or mask o󰀨 open contacts and pack up the battery in such a manner that it cannot move around in the packaging.

11. When disposing the battery cartridge, remove

it from the tool and dispose of it in a safe place. Follow your local regulations relating to disposal of battery.

12. Use the batteries only with the products

specied by Makita. Installing the batteries to non-compliant products may result in a re, exces- sive heat, explosion, or leak of electrolyte.

13. If the tool is not used for a long period of time,

the battery must be removed from the tool.

14. During and after use, the battery cartridge may

take on heat which can cause burns or low temperature burns. Pay attention to the han- dling of hot battery cartridges.

Do not touch the terminal of the tool immediately after use as it may get hot enough to cause burns.

16. Do not allow chips, dust, or soil stuck into the

terminals, holes, and grooves of the battery cartridge. It may result in poor performance or breakdown of the tool or battery cartridge.

17. Unless the tool supports the use near

high-voltage electrical power lines, do not use the battery cartridge near high-voltage electri- cal power lines. It may result in a malfunction or breakdown of the tool or battery cartridge.

18. Keep the battery away from children.

SAVE THESE INSTRUCTIONS. CAUTION: Only use genuine Makita batteries. Use of non-genuine Makita batteries, or batteries that have been altered, may result in the battery bursting causing res, personal injury and damage. It will also void the Makita warranty for the Makita tool and charger. Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely

discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power.

2. Never recharge a fully charged battery car-

tridge. Overcharging shortens the battery service life.

Charge the battery cartridge with room tempera- ture at 10 °C - 40 °C (50 °F - 104 °F). Let a hot battery cartridge cool down before charging it.

4. When not using the battery cartridge, remove

it from the tool or the charger.

5. Charge the battery cartridge if you do not use

it for a long period (more than six months). FCC caution For United States This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a partic- ular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o󰀨 and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a cir- cuit di󰀨erent from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help. ICES-005 standard For Canada

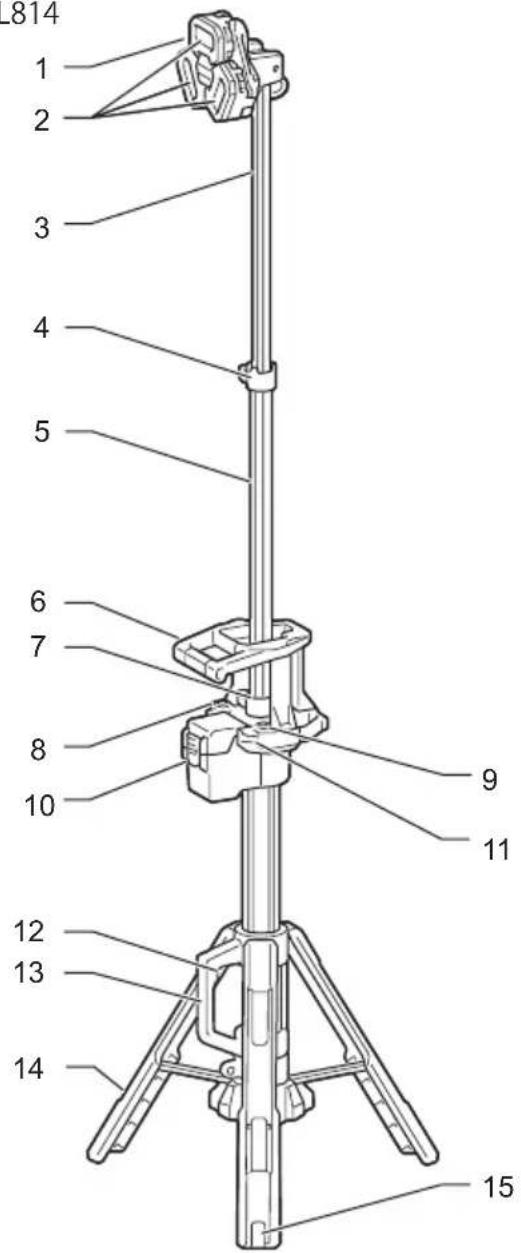

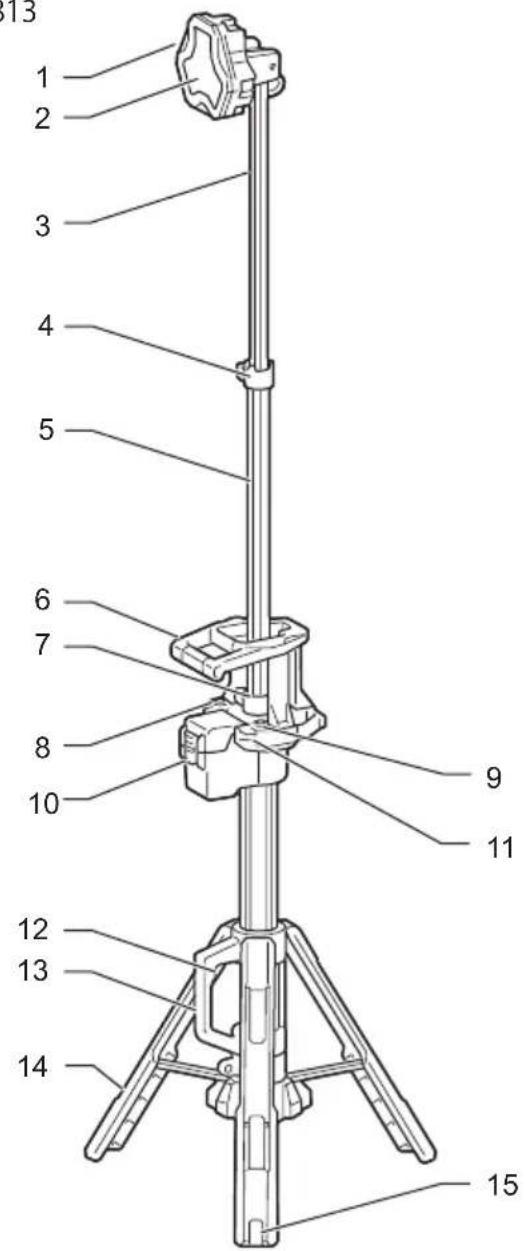

1 Light head 2 Lens 3 Upper extension pole 4 Upper extension latch 5 Lower extension pole 6 Horizontal handle 7 Lower extension latch 8 Power switch button 9 Brightness change button 10 Battery bay 11 Shoulder belt hole 12 Tripod release button 13 Carrying handle 14 Tripod legs 15 Hole for xing6 ENGLISH FUNCTIONAL DESCRIPTION CAUTION: Always be sure that the appli- ance is switched o󰀨 and the battery cartridge is removed before adjusting or checking function on the appliance. Installing or removing battery cartridge CAUTION: Hold the appliance and the bat- tery cartridge rmly when installing or removing battery cartridge. Failure to hold the appliance and the battery cartridge rmly may cause them to slip o󰀨 your hands and result in damage to the appliance and battery cartridge and a personal injury. CAUTION: Be careful not to trap nger(s) between the appliance and battery cartridge when loading battery cartridge as well as between the appliance and the battery cover when closing the battery cover. To install the battery cartridge, release the cover lock, and open the battery cover.

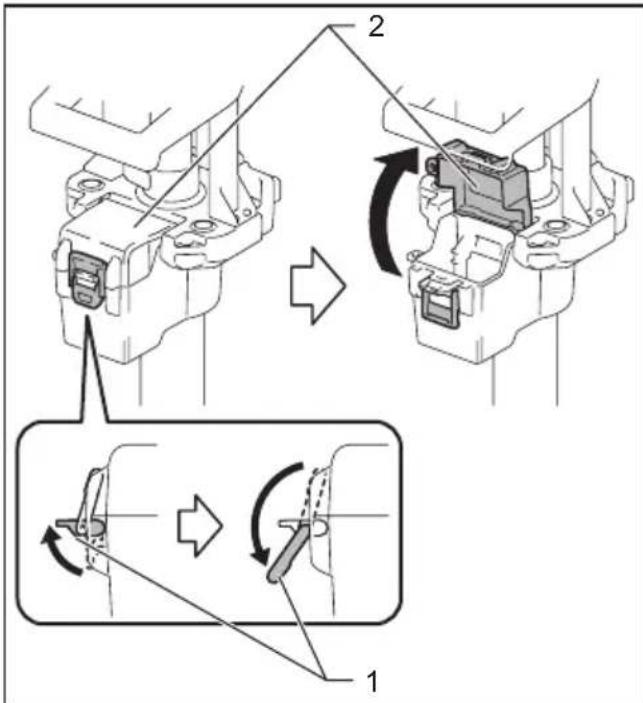

► 1. Cover lock 2. Battery cover To install the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Insert it all the way until it locks in place with a little click. Then close the battery cover.

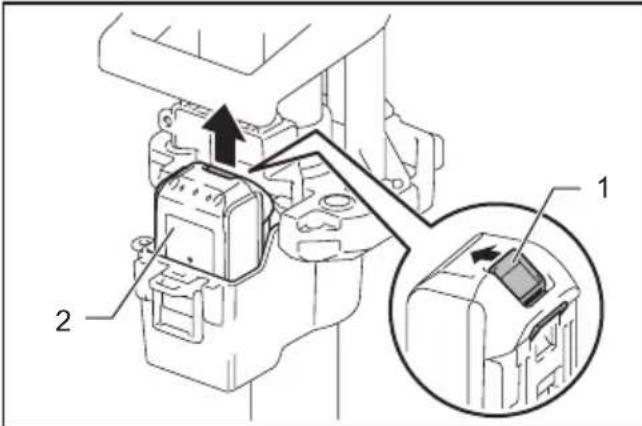

► 1. Button 2. Battery cartridge To remove the battery cartridge, slide it from the appliance while sliding the button on the front of the cartridge. CAUTION: Always install the battery cartridge fully. If not, it may accidentally fall out of the appli- ance, causing injury to you or someone around you. CAUTION: Do not install the battery cartridge forcibly. If the cartridge does not slide in easily, it is not being inserted correctly. Indicating the remaining battery capacity Only for battery cartridges with the indicator

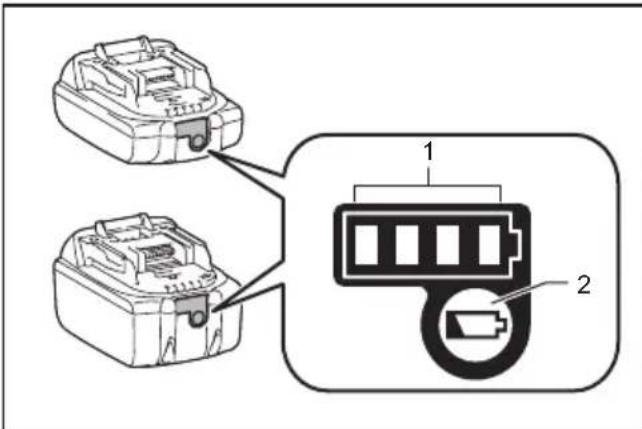

► 1. Indicator lamps 2. Check button Press the check button on the battery cartridge to indi- cate the remaining battery capacity. The indicator lamps light up for a few seconds.7 ENGLISH Indicator lamps Remaining capacity Lighted O󰀨 Blinking 75% to 100% 50% to 75% 25% to 50% 0% to 25% Charge the battery. The battery may have malfunctioned. NOTE: Depending on the conditions of use and the ambient temperature, the indication may di󰀨er slightly from the actual capacity. NOTE: The rst (far left) indicator lamp will blink when the battery protection system works. Appliance / battery protection system The appliance is equipped with the protection system. This system automatically cuts o󰀨 power to extend appliance and battery life. The appliance will automati- cally stop during operation if the appliance or battery is placed under one of the following conditions. Overdischarge protection When the battery capacity becomes low, the LED lights go out except a part of LEDs. Later, the system auto- matically cuts o󰀨 power. In this situation, remove the battery cartridge from the appliance and charge it. Hole for padlock For anti-theft of battery cartridge, hole for padlock is provided.

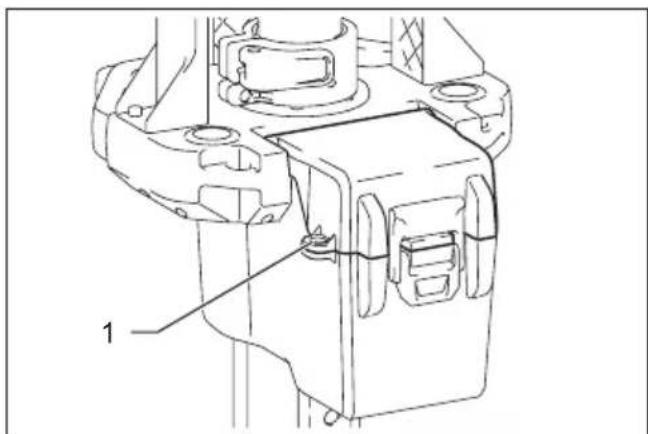

► 1. Hole for padlock ASSEMBLY CAUTION: Always be sure that the appli- ance is switched o󰀨 and the battery cartridge is removed before carrying out any work on the appliance. Spreading / folding the tripod legs CAUTION: Keep hands away from the tripod legs and be careful not to pinch your ngers when spreading or folding the tripod legs.

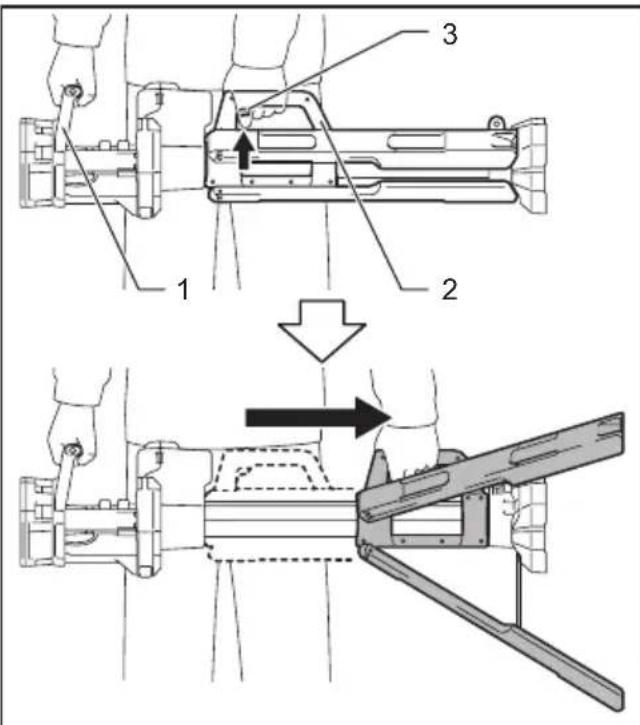

1. Hold the horizontal handle and carrying handle by

2. Slide the carrying handle in the direction of arrow

as illustrated while pushing the tripod release button.

3. Release the tripod release button and make

sure the carrying handle is secured in the bottom position.

4. To fold the tripod, slide the carrying handle in the

opposite direction while pushing the tripod release button.8 ENGLISH Positioning of the light head CAUTION: Before positioning the light head, make sure the tripod legs are spread com- pletely and locked rmly in the locking position. Otherwise the appliance may tilt and a falling accident may occur. Adjusting the height of the light head CAUTION: When adjusting the length of one extension pole, make sure the other exten- sion pole is xed rmly by the extension latch. Otherwise unexpected contraction may occur and cause an injury. CAUTION: Be careful not to pinch your n- gers when adjusting the height of the light head. CAUTION: Keep holding the extension pole when adjusting the length of the extension pole. Otherwise the light head may drop rapidly and pinch hands and ngers.

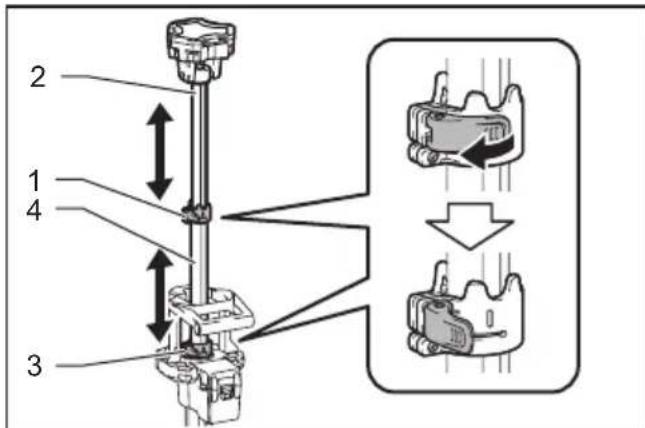

1. Open the upper extension latch.

2. Adjust the length of the upper extension pole by

pulling or retracting the upper extension pole.

3. Close the upper extension latch and make sure

the upper extension pole is xed rmly.

4. If more height is required, adjust the length of the

lower extension pole in the same way as above.

3. Lower extension latch 4. Lower extension pole

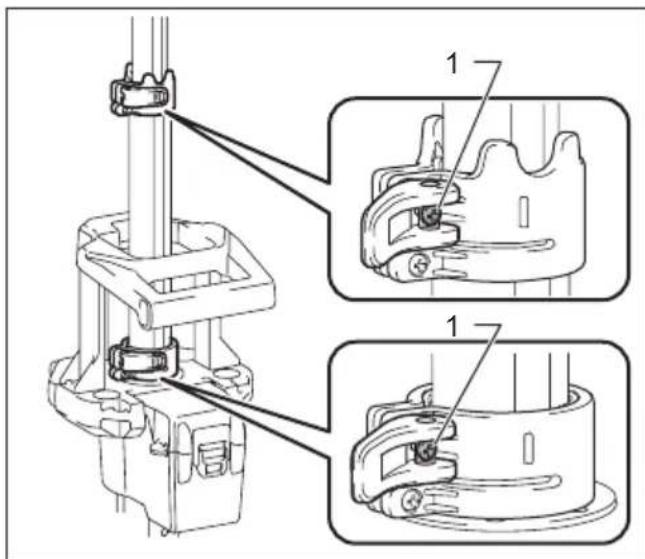

NOTE: If the grip force of the latch is declined, tighten the screws of the extension latch. (Refer to the sec- tion for screw tightening.) Retracting the extention pole CAUTION: Be careful not to pinch your nger when retracting the extension pole. NOTICE: If the extension pole cannot be retracted smoothly, do not force the extension pole to retract. In this case, expand the extension pole again, and then retract the lower extension pole rst. When retracting the extention pole, align the light head as shown in the illustration, and then retract the exten- tion pole. DML813 DML814

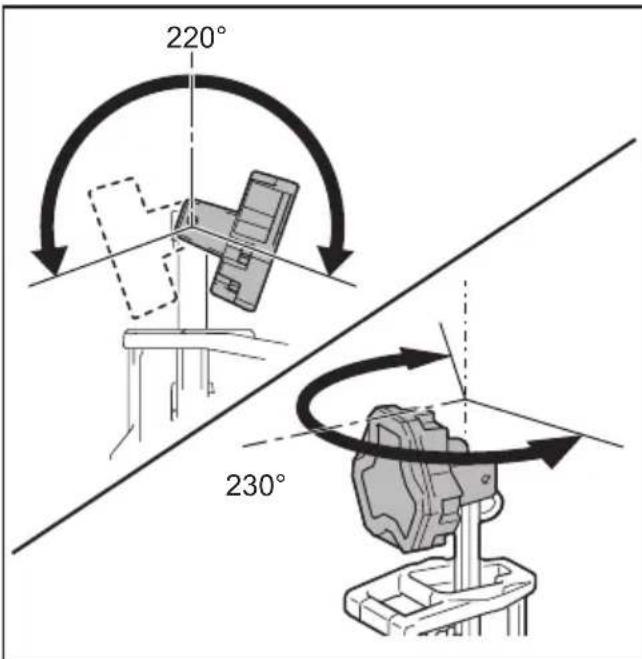

► 1. Light head 2. Horizontal handle Adjusting the angle of the light head CAUTION: Be careful not to pinch your n- gers when adjusting the angle of the light head. Turn the light head as illustrated to the desired angle. 230° 220°9 ENGLISH For DML814 only The lighting area can be adjusted by turning the individual lamp units.

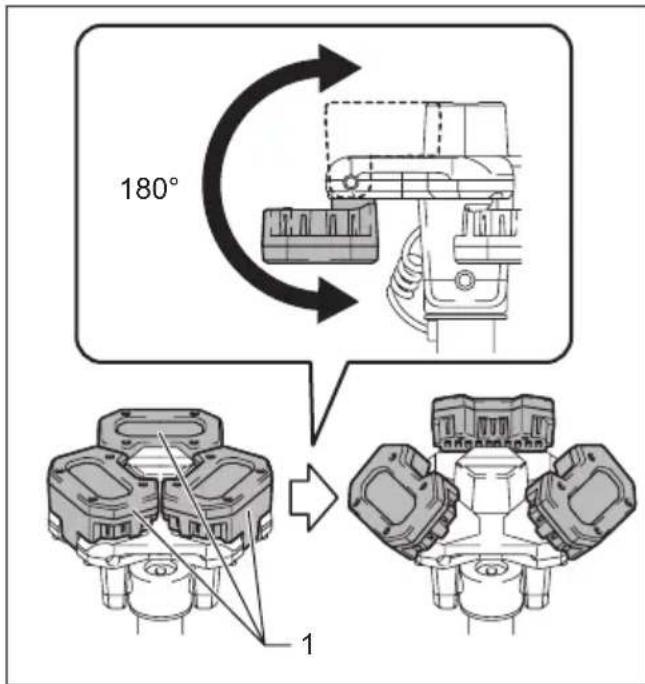

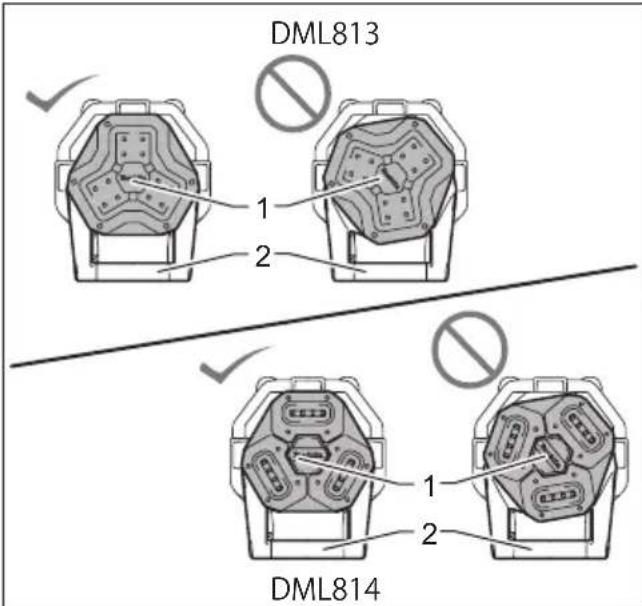

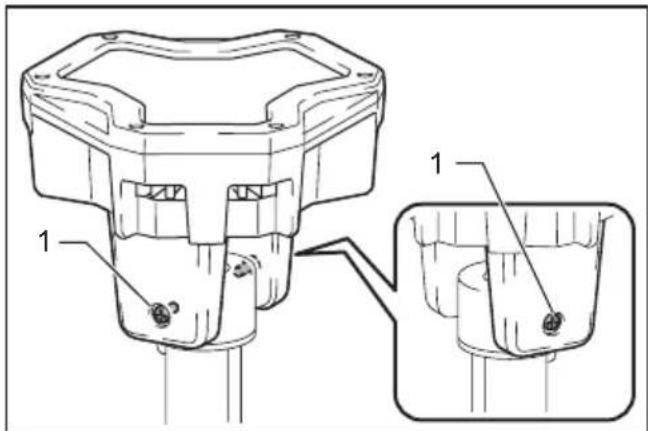

180° ► 1. Lamp unit NOTE: If the grip force of the light head or lamp unit is decline, tighten the screws. (Refer to the section for screw tightening.) Screw tightening CAUTION: Before tightening the screws, retract the poles all the way or lay the appliance sideways. Otherwise the light head moves accidentally and cause an injury. NOTICE: Do not over tighten the screw. Otherwise the joint parts may be broken. NOTICE: Do not use electric tools to tighten the screw. Otherwise the screw may get over tightened. If the grip force of some joint parts is declined, tighten the screw shown in the gure. For the extension latches

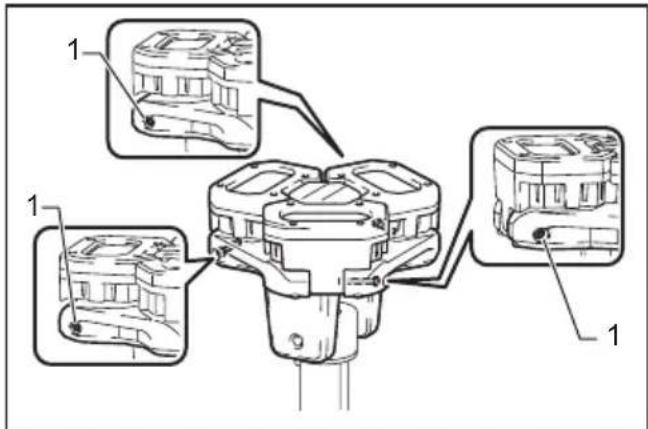

► 1. Screw For the individual lamp units (DML814 only)

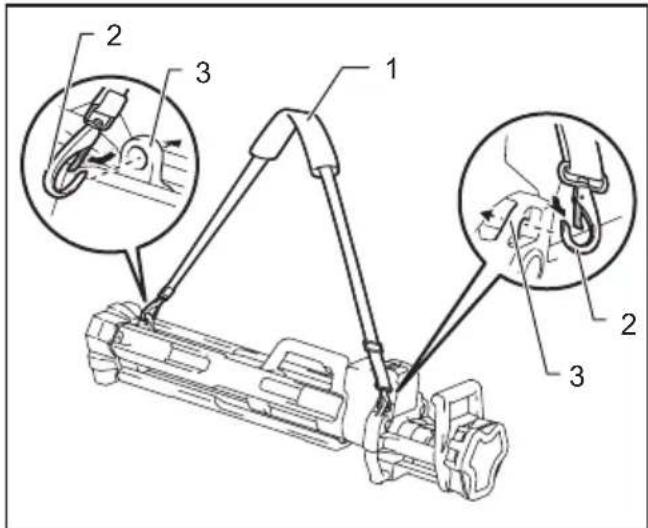

► 1. Screw Shoulder belt Optional accessory CAUTION: When carrying the appliance, keep holding the carrying handle even if when using the shoulder belt. Carrying the appliance using only the shoulder belt makes it unstable. The shoulder belt may come o󰀨 or the appliance hit other objects and cause injury. Attach the hooks of the shoulder belt onto the mounts as shown in the gure certainly.

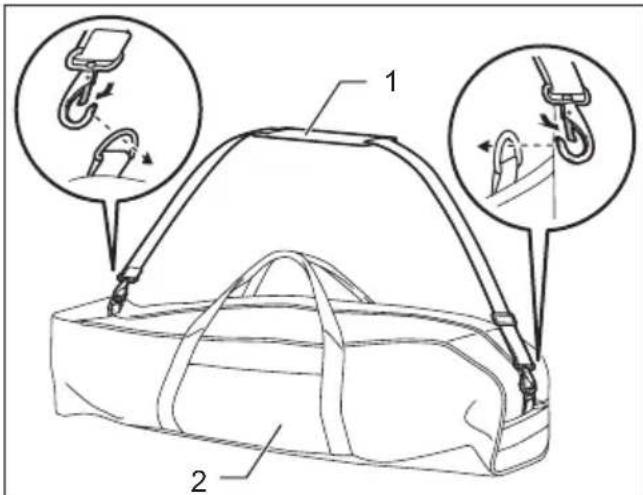

► 1. Shoulder belt 2. Hook 3. Mount10 ENGLISH NOTE: You can also attach the shoulder belt to the tool bag (optional accessory) as illustrated.

WARNING: To reduce the risk of injury, do not

stare at the operating lamp, or do not expose the light to eyes. Serious eye injury may occur.

WARNING: To reduce the risk of burns and

re, do not touch the light head, and keep it away from combustible materials while in operation. CAUTION: When using the appliance, always make sure the tripod legs are in fully spread posi- tion. Otherwise a falling accident may occur. NOTICE: Do not press the buttons forcibly. Otherwise a malfunction may occur. Switch action

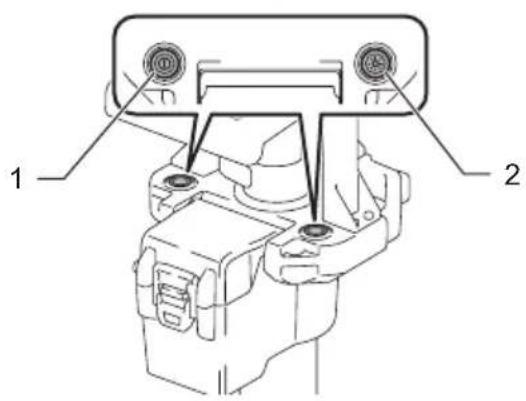

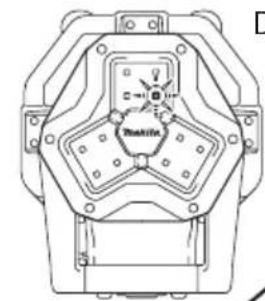

► 1. Power switch button 2. Brightness change button Turning on / o󰀨 the appliance Press the power switch button to turn on the appliance. Press the power switch button again to turn o󰀨 the appliance. NOTE: The appliance turns on at the same bright- ness as the last setting. Changing brightness Press the brightness change button while the appliance is operating. The brightness decreases every time you press the brightness change button. The brightness will return to the highest when operating in the lowest brightness. When the battery capacity becomes low, the LED lights go out except a part of LEDs as illustrated. (Then few minutes later, the system automatically cuts o󰀨 power.) In this situation, remove the battery cartridge from the appliance and charge it. DML813 DML814 MAINTENANCE CAUTION: Always be sure that the appliance is switched o󰀨, unplugged, and the battery car- tridge is removed before attempting to perform inspection or maintenance. NOTICE: Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result. To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. Cleaning CAUTION: Do not wash the appliance in water. From time to time, wipe o󰀨 the outside (appliance body) of the appliance using a cloth dampened in soapy water.11 ENGLISH OPTIONAL ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita tool specied in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. If you need any assistance for more details regard- ing these accessories, ask your local Makita Service Center.
